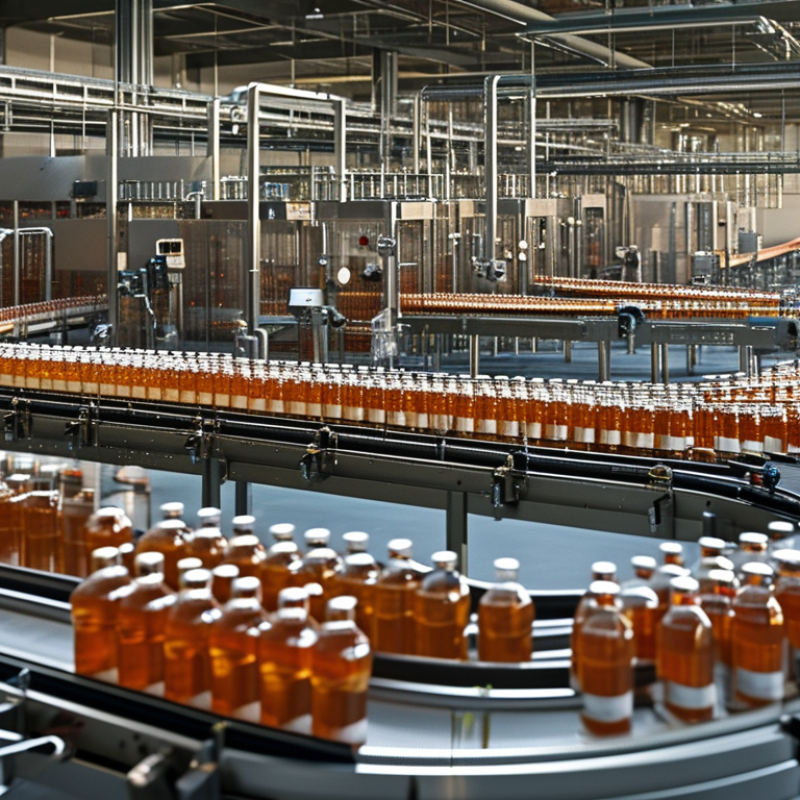

Designing a beverage production line is not simply a matter of placing tanks, fillers, and conveyors in a neat row. The layout must support product safety, steady material flow, operator access, cleaning, maintenance, and future expansion. When planning how to design a beverage production line layout, manufacturers should study every stage, from ingredient receiving to finished-case storage. A syrup room beside the blending area can reduce transfer distance. A clearly separated filling zone can also limit unnecessary traffic.
Dennis R. Heldman, a respected food engineering expert, states, “Process design begins with understanding the operations required to achieve the desired product.” This principle remains practical for beverage plants. A layout should follow the process, not force the process around available floor space. Pipes, drains, inspection points, and control panels need careful consideration. Small details matter.
Start with evidence.
The best design combines production data with real operator experience. Measure batch sizes, changeover times, cleaning cycles, walking distances, and peak storage needs. Then test the proposed arrangement with a scaled drawing or digital model. It may reveal a bottleneck near the cap feeder or an unsafe crossing beside the pasteurizer. That is useful. A perfect first layout is unlikely.
This guide presents seven practical tips for developing a safer, cleaner, and more efficient beverage production line layout. It also considers hygienic zoning, equipment spacing, utilities, workflow visibility, and long-term flexibility. Local regulations and validated sanitation procedures must guide the final design. Good layouts save movement, reduce confusion, and make problems easier to see.
A reliable layout begins with the beverage, not the machinery. Define the recipe, acidity, viscosity, carbonation, temperature, and target shelf life. These factors determine tanks, pumps, heat treatment, filtration, and filling conditions. A low-acid drink needs stricter thermal processing and hygienic zoning. Carbonated products require pressure-rated equipment and controlled temperature. Small details matter.
The FAO’s State of Food and Agriculture 2019 reported that 13.8% of food was lost before retail. Poor process control can increase this waste. Set measurable goals for hourly output, changeover time, water use, energy use, and acceptable product loss. Then map the material flow from ingredient receiving to finished-case storage. Keep raw materials, packaging, and finished beverages moving in one direction. Avoid crossing personnel paths with open-product areas. This reduces contamination risks and unnecessary walking.
Use the Codex General Principles of Food Hygiene when defining cleaning access, drainage, and hygienic separation. Leave enough space around valves and sensors for inspection. A cramped line may save floor space today, but it can slow maintenance tomorrow. I have seen layouts prioritize peak speed and overlook changeovers. That choice often creates hidden downtime. Plan for actual batch sizes, seasonal demand, and future utility capacity. The UNEP Food Waste Index Report 2024 estimated 1.05 billion tonnes of food waste in 2022, making process efficiency more than a production concern.
Define the recipe, acidity, viscosity, carbonation, temperature, and target shelf life. These details guide equipment and hygienic zoning.
Use one forward route from receiving to dispatch. Avoid backtracking, shared forklift paths, and crossings near open products.
Plan receiving, quarantine, water treatment, batching, processing, filling, packing, and dispatch zones. Keep their boundaries visible.
Set targets for hourly output, changeover time, water use, energy use, and acceptable product loss. Guesswork can hide expensive delays.
Separate raw materials, personnel, forklifts, packaging, and finished products. Add handwash stations beside traffic areas, not inside them.
Place water, compressed air, electricity, and process piping near users. Short routes reduce pressure loss and simplify maintenance.
Use sloped floors, accessible drains, washable surfaces, and safe hose routes. Avoid narrow gaps where sticky residue can collect.
Leave practical routes around major machines. Technicians should reach valves, sensors, motors, and drains without dismantling half the line.
No. Walk the route during sanitation, changeovers, and peak production. Noise, water, and crowding may expose overlooked problems.
Include operators, electricians, sanitation staff, and maintenance personnel. Their feedback may reveal weaknesses in an otherwise polished plan.
Designing an efficient beverage production line begins with clearly defining production goals, product types, target capacity, packaging formats, and processing requirements. To understand how to design a beverage production line layout, first map the complete flow of raw materials, ingredients, packaging components, work-in-progress products, finished goods, and waste. A logical one-way flow can reduce unnecessary movement, prevent cross-contamination, and improve overall productivity.
The layout should separate key equipment zones, such as receiving, preparation, processing, filling, packaging, storage, and shipping, while maintaining smooth connections between each stage. Utilities, sanitation stations, safety controls, drainage, ventilation, and maintenance access should be planned alongside the equipment rather than added later. Finally, validate the proposed layout through workflow reviews, space checks, and operational simulations. Allowing room for additional equipment, higher output, and changing product requirements will help the production line remain flexible and efficient over time.
