Customization: Available
After-sales Service: Oversea Service
Warranty: 12 Months
Send Inquiry

Product Description

Basic Information
Model NO.
DGT-1
Type
Complete Processing
Voltage
380V
Power
Complete Processing
Customized
Customized
Origin
China
Capacity
500kg - 5000kg/h
Production
200sets/Year
Packaging & Delivery
Package Size
2500.00cm * 1000.00cm * 300.00cm
Gross Weight
6900.000kg
Package Type
Shipping Container
Product Description

Canned fruit/vegetable production line

Tomato sauce jade beans are canned foods made mainly from jade beans. The main processes include soaking, pre-cooking in alkaline solution and tomato sauce seasoning. The finished product features intact beans and uniform color. During the production process, multiple procedures such as screening and sorting are required to control the quality, and long-term preservation is achieved through sealed sterilization. Its production process consists of two major steps: raw material processing and soup base blending.

Production Line View 1

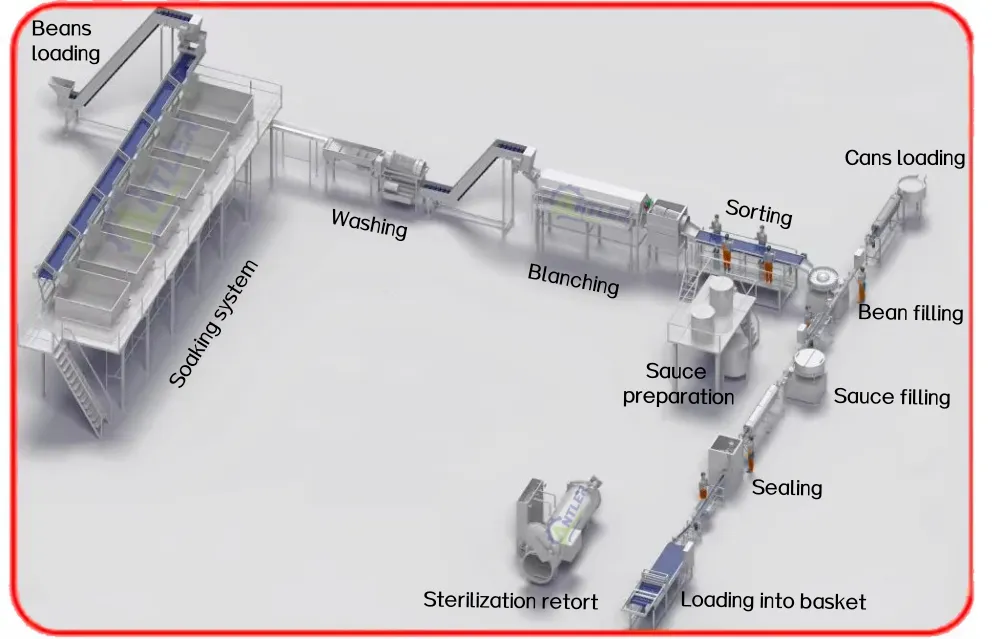

Production Line View 2
Technical Specifications
Raw materialSoybeans, Kidney Beans, Chickpeas, Broad beans
Finished productCanned beans
Processing capacity2000CPH, 4000CPH, 6000CPH, ....... (CUSTOMIZED)
Request packageMetal can, Glass jar
Quotation preparationProposal made as per request capacity and package.
Power supply380V 50HZ Three phase
Steam supplyEquip with steam boiler
Main Processing Steps
❶
Material selection: Jade beans are divided into sections using a classifier. Moldy, insect-infested, or off-colored beans are removed.
❷
Soaking: Soak in clean water for 16 to 24 hours (2:1 water-to-bean ratio) to prevent sprouting and ensure full hydration.
❸
Pre-cooking: Treatment with 0.05% sodium hydroxide solution at 99-100℃ for 20-30 minutes to soften bean skin.
❹
Cooling & Rinsing: Immediate cooling after cooking and rinsing to remove residual alkali.

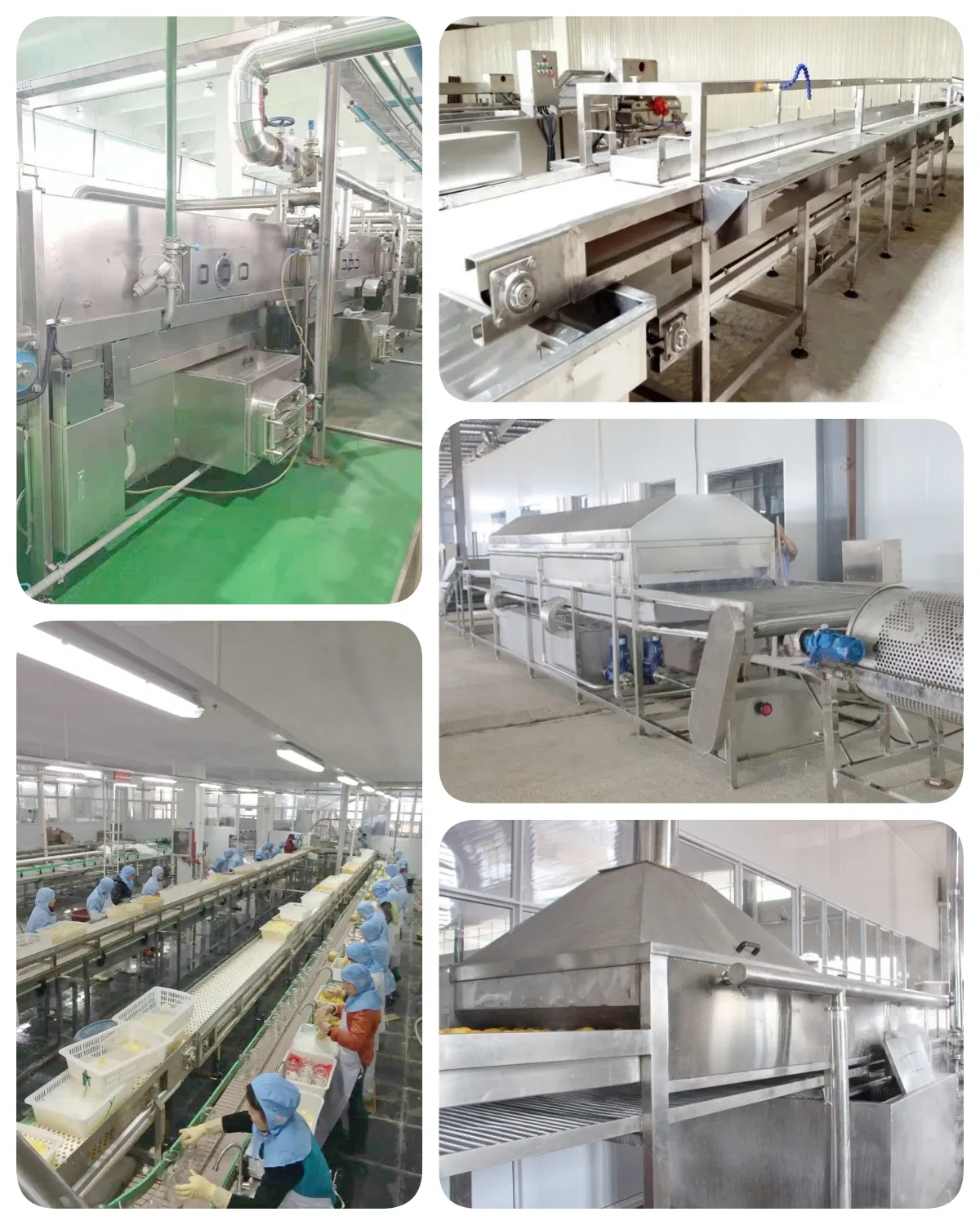

Processing Image 1

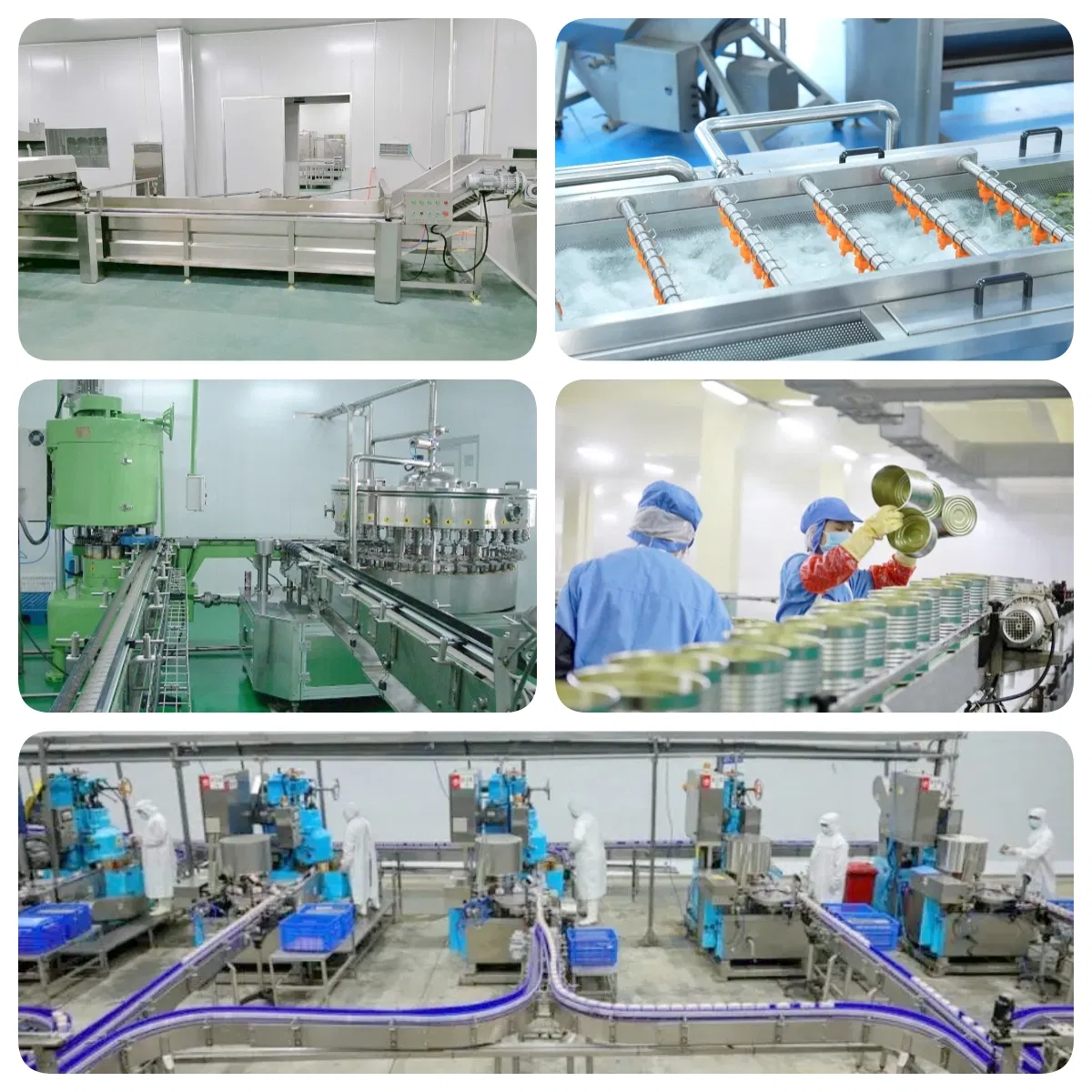

Processing Image 2
Processing Image 3
❺
Sorting: Separation of plump, intact, and uniformly colored beans by size.
❻
Soup preparation: Blend of tomato sauce, salt, sugar, pepper, and starch for seasoning.
❼

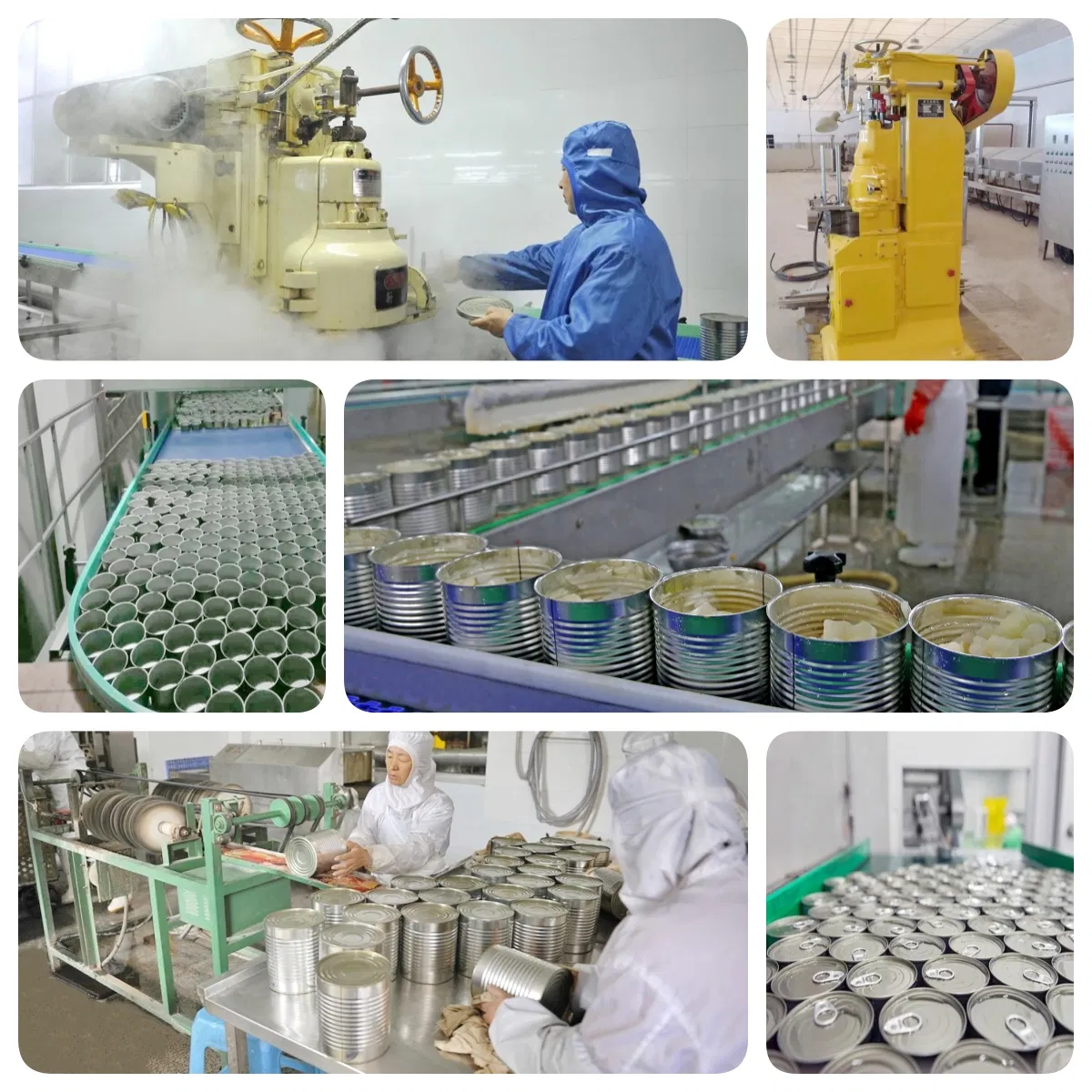

Canning & Sealing: Precise filling weight followed by exhaust sealing (300-400 MMHG).
❽
Sterilization: High-temperature sterilization at 116℃ followed by reverse pressure cooling.
Equipment Gallery
Equipment Detail 1
Equipment Detail 2

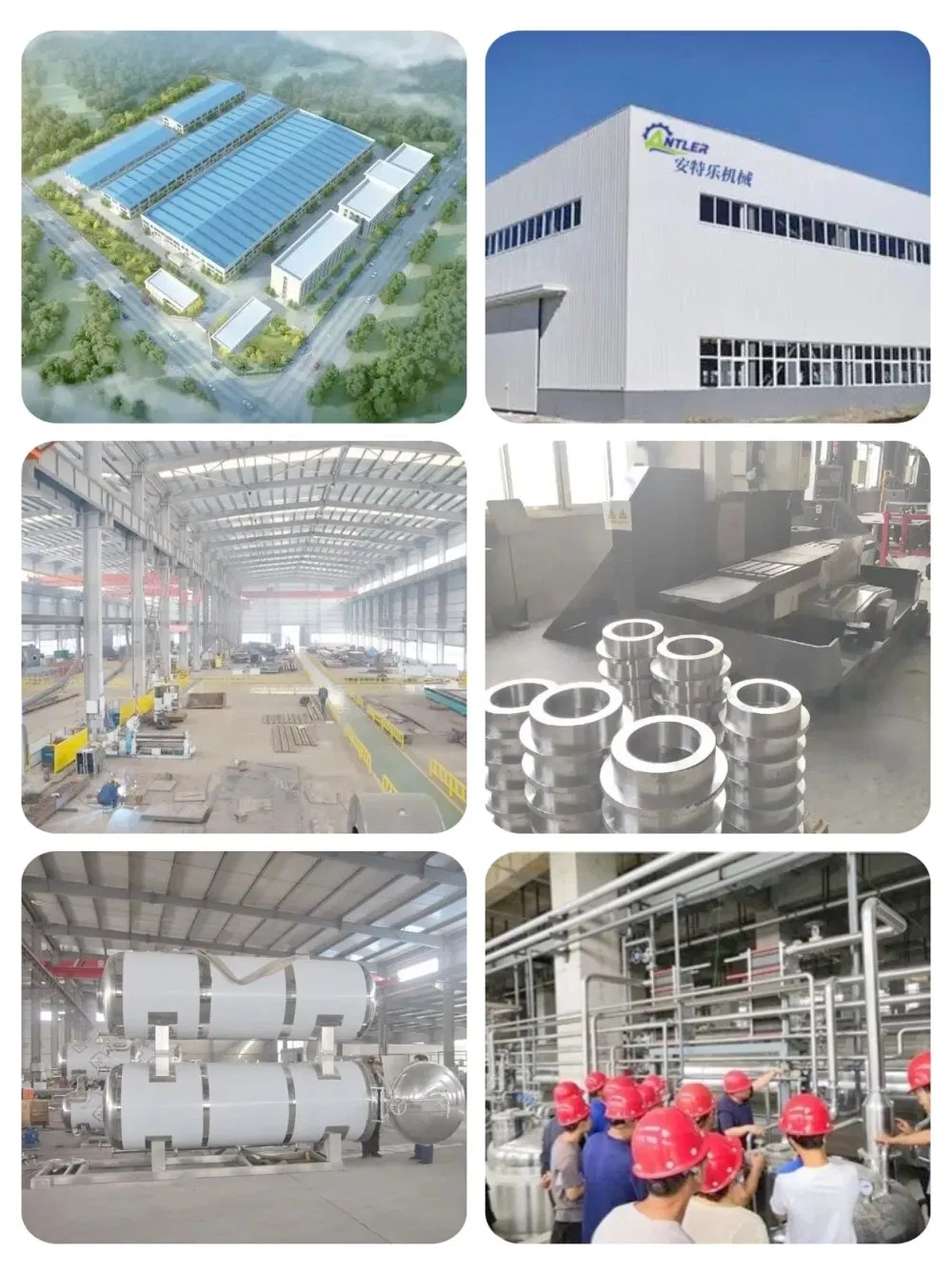

Equipment Detail 3
Equipment Detail 4
Equipment Detail 5
Equipment Detail 6
Equipment Detail 7
Equipment Detail 8
Frequently Asked Questions
What types of raw materials can this line process?
This production line is designed for various beans including soybeans, kidney beans, chickpeas, and broad beans.
Is the processing capacity customizable?
Yes, the capacity is fully customizable ranging from 500kg/h to 5000kg/h or specified CPH (Cans Per Hour) based on your needs.
What packaging materials are compatible with the canning line?
The equipment is compatible with both metal cans and glass jars for finished bean products.
What are the power and utility requirements?
The system standardly requires a 380V 50HZ three-phase power supply and needs to be equipped with a steam boiler for processing.
How is the quality of the canned beans ensured?
Quality is ensured through multiple screening/sorting stages and high-temperature sterilization at 116℃ to ensure long-term preservation and food safety.
Can the configuration be adjusted for specific recipes?
Absolutely. We provide custom equipment configurations and proposals to match your specific processing requirements and package types.
