Commercial Fruit Juice Pressing Equipment
Commercial Fruit Juice Pressing Equipment
Commercial Fruit Juice Pressing Equipment
Commercial Fruit Juice Pressing Equipment
Commercial Fruit Juice Pressing Equipment
1 / 5
Commercial Fruit Juice Pressing Equipment
Commercial Fruit Juice Pressing Equipment
Commercial Fruit Juice Pressing Equipment
Commercial Fruit Juice Pressing Equipment
Commercial Fruit Juice Pressing Equipment

Commercial Fruit Juice Pressing Equipment

Customization: Available
After-sales Service: Oversea Service Available
Warranty: Per Year
Send Inquiry

Product Description

Overview & Basic Info

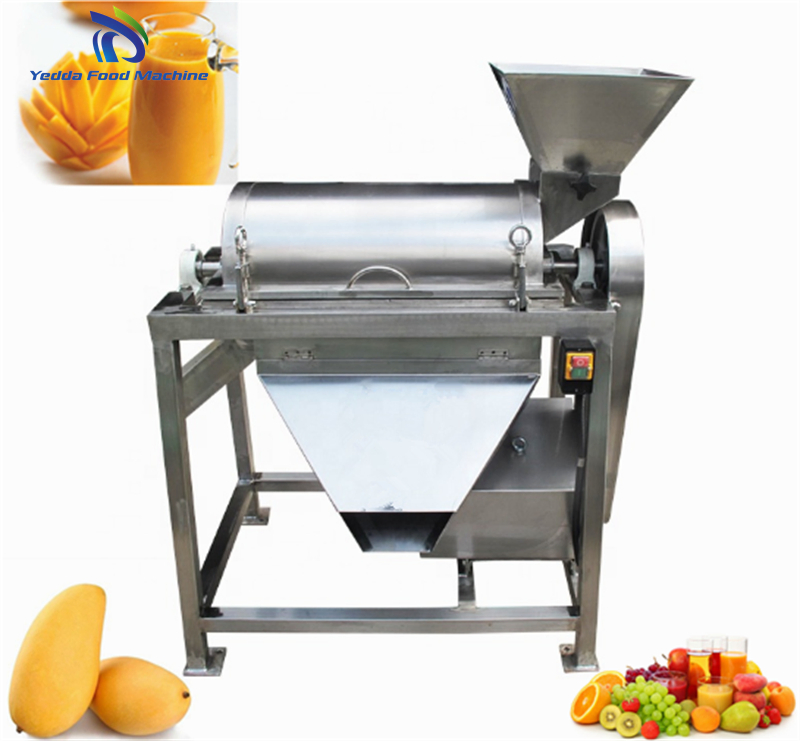

Commercial Fruit Juice Pressing Equipment
Model NO.
HT Series
Type
Juicing
Voltage
380V
Power
1.5KW
Material
304 Stainless Steel
Process
Fruit & Vegetable
Capacity
300-2000kg/Hour
Function
Juicing & Pulping
Transport Package
Plywood Case
HS Code
84386000
Product Description
⚙️

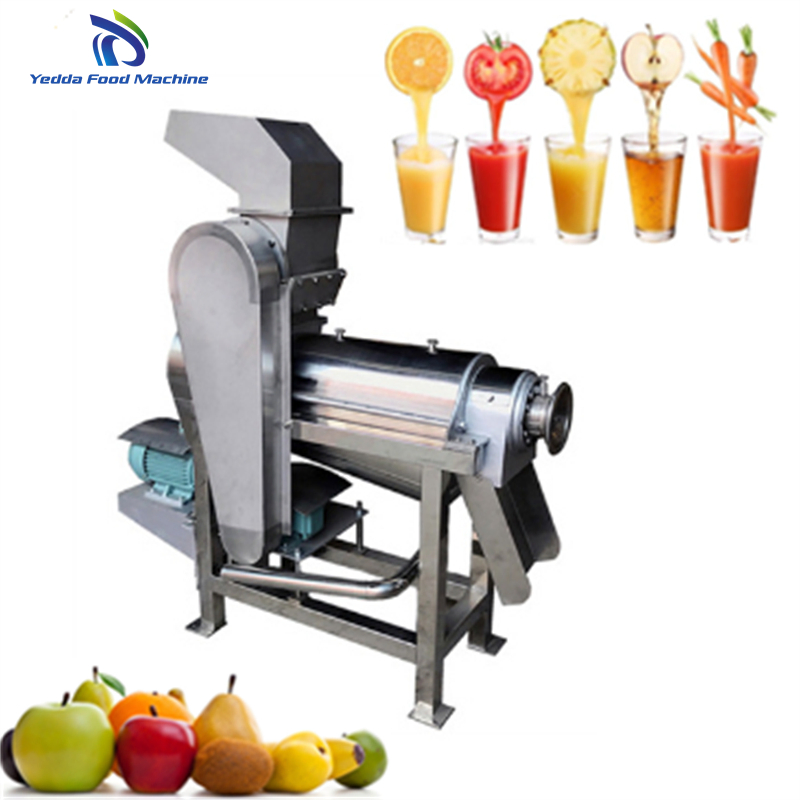

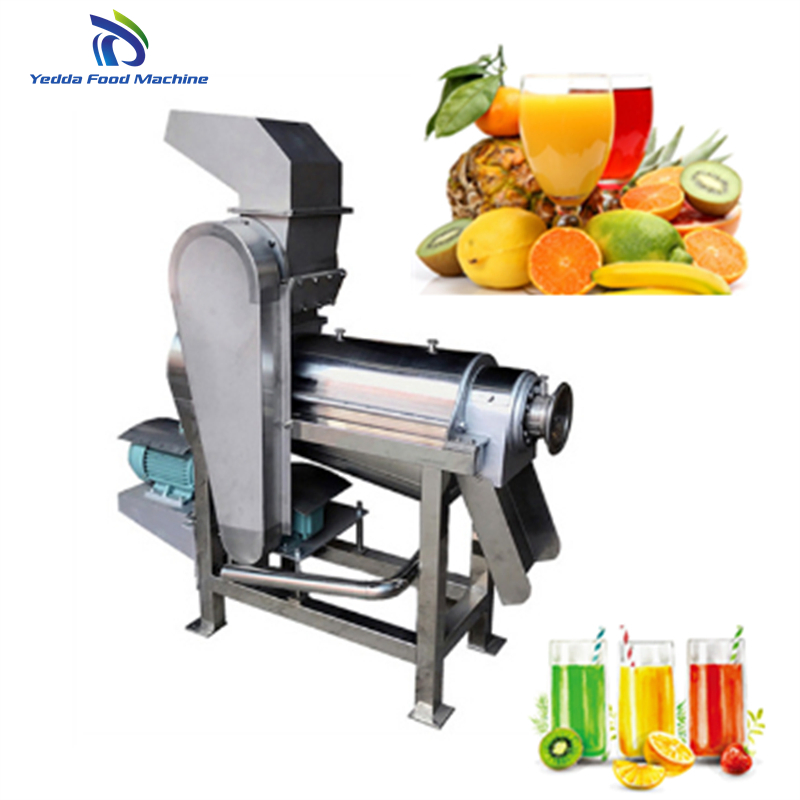

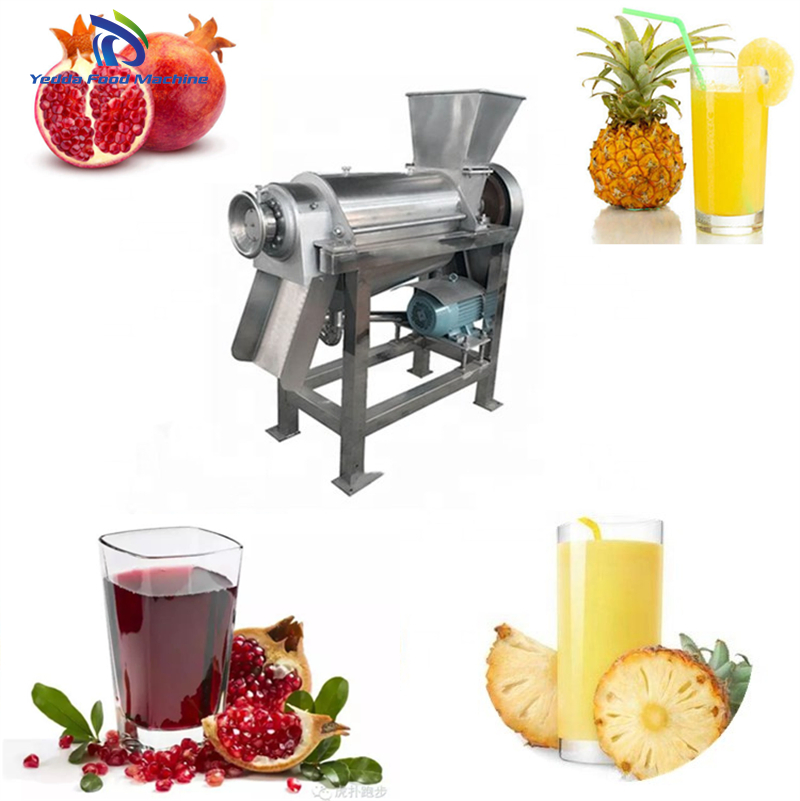

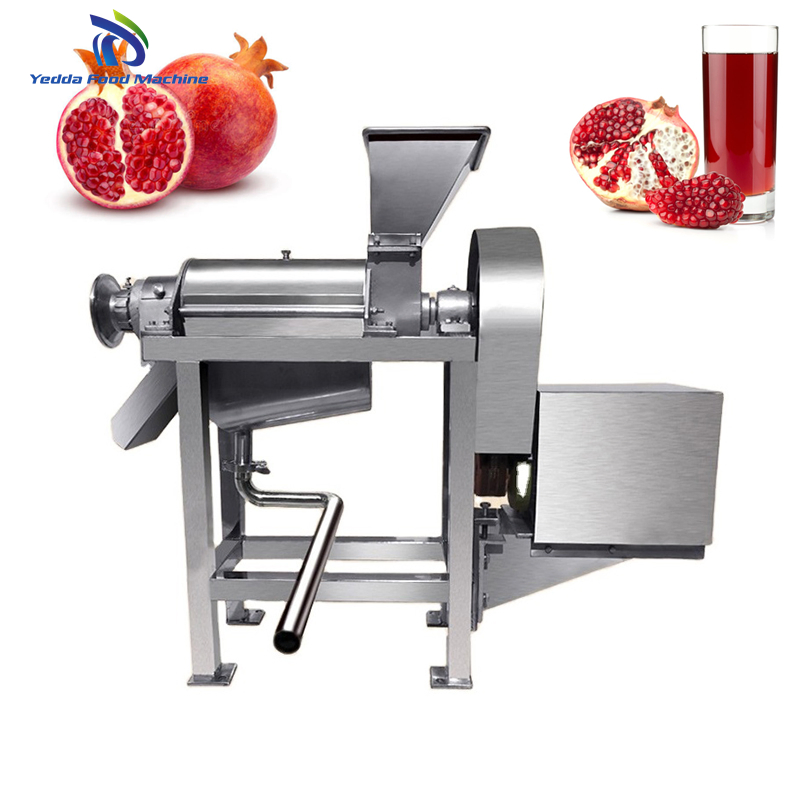

The Automatic Fruit Screw Juice Extracting Machine is an avant-garde solution, masterfully engineered to extract juices from a vast array of both fruits and vegetables with remarkable efficiency. At the core of this premium equipment is a robust spiral mechanism, which expands progressively towards the material residue outlet while the screw pitch narrows. This sophisticated design ensures that as the materials travel through the spiral, they experience volume contraction within the spiral cavity, optimizing juice extraction.
🍎

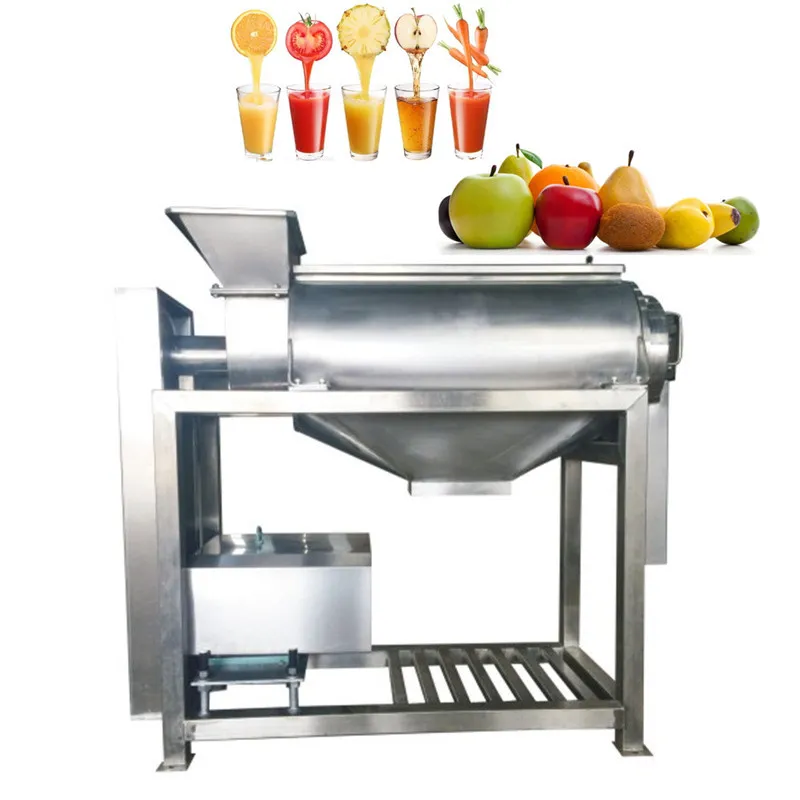

The Fruit Pulping Machine is a specialized powerhouse designed for rapid and seamless fruit and vegetable juice production. This versatile machine can handle a wide range of produce, from juicy fruits like oranges, grapes, and kiwis to robust vegetables such as tomatoes and celery. It excels in transforming fruits like mulberries, bayberries, and peaches into luscious jams or refreshing juices, while expertly removing cores, seeds, and skins.

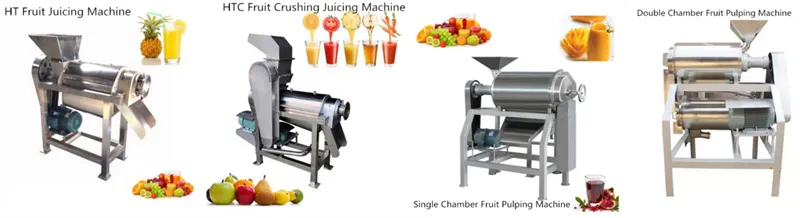

Product Parameters

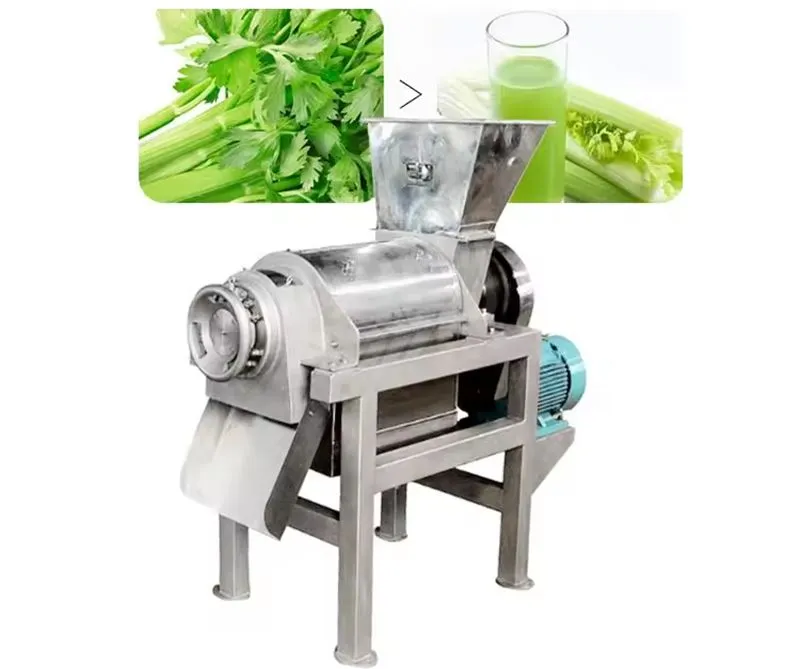

Parameters Overview
ModelDimensionCapacityPowerVoltage
HT-0.51100*320*750mm300-500kg/h1.5kw380V
HT-1.51620*550*950mm1000-1500kg/h2.2kw380V
HT-2.51620*720*1480mm2000-2500kg/h5kw380V

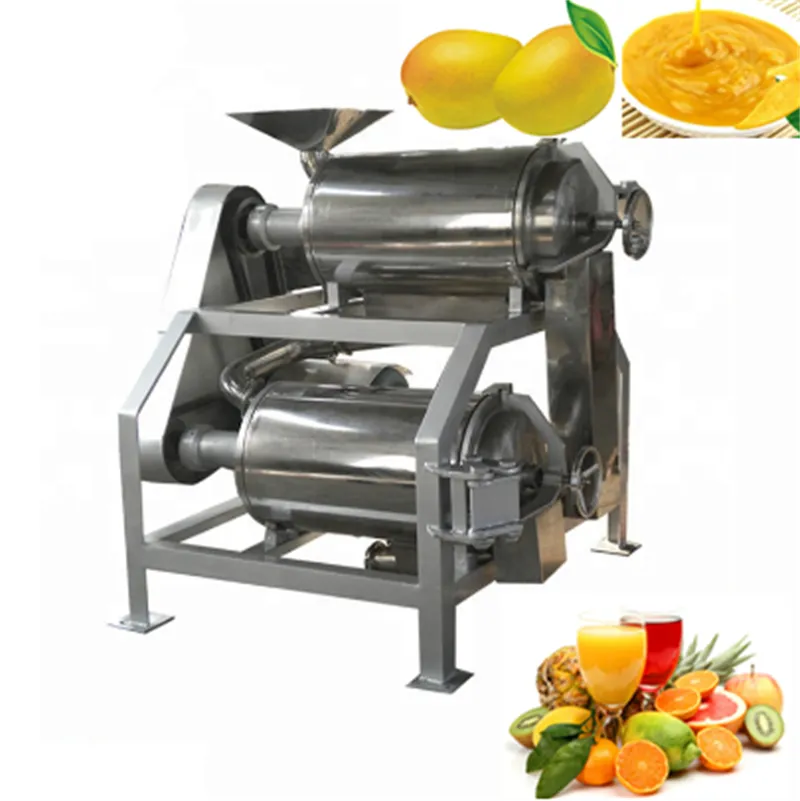

Technical Data
ModelDimensionCapacityPowerVoltage
HTC-0.51100*320*1300mm300-500kg/h1.5kw+2.2kw380V
HTC-1.51620*550*1485mm1000-1500kg/h2.2kw+4kw380V
HTC-2.51620*72*2030mm2000-2500kg/h5kw+4kw380V
Technical Data
ModelDimensionCapacityPowerWeightVoltage
SG-0.51100*450*1150mm300-500kg/h3kw90kg380V
SG-1.51600*800*1550mm1000-1500kg/h5.5kw250kg380V
SG-21600*900*1650mm1500-2000kg/h7.5kw350kg380V
Technical Data
ModelDimensionCapacityPowerVoltage
SG2-0.5T1140*870*1305mm300-500kg/h5.5kw380V
SG2-3T1530*1420*1530mm2000-3000kg/h7.5kw380V
SG2-5T1935*2275*1700mm4000-5000kg/h11kw380V
Detailed Photos

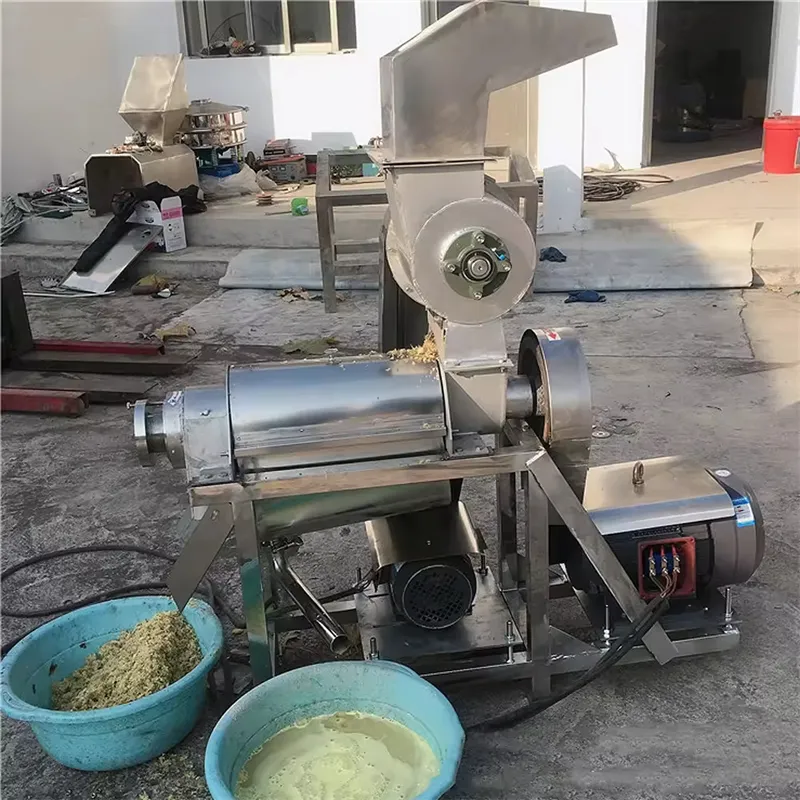

Detailed Equipment Photo
Mango Puree Extraction Display

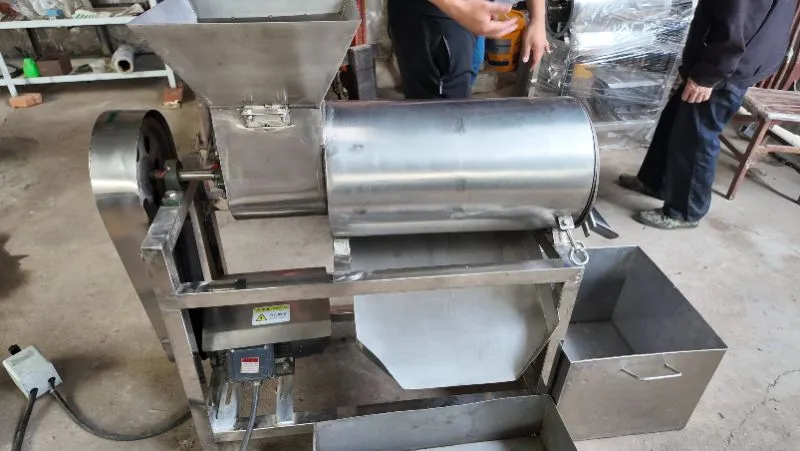

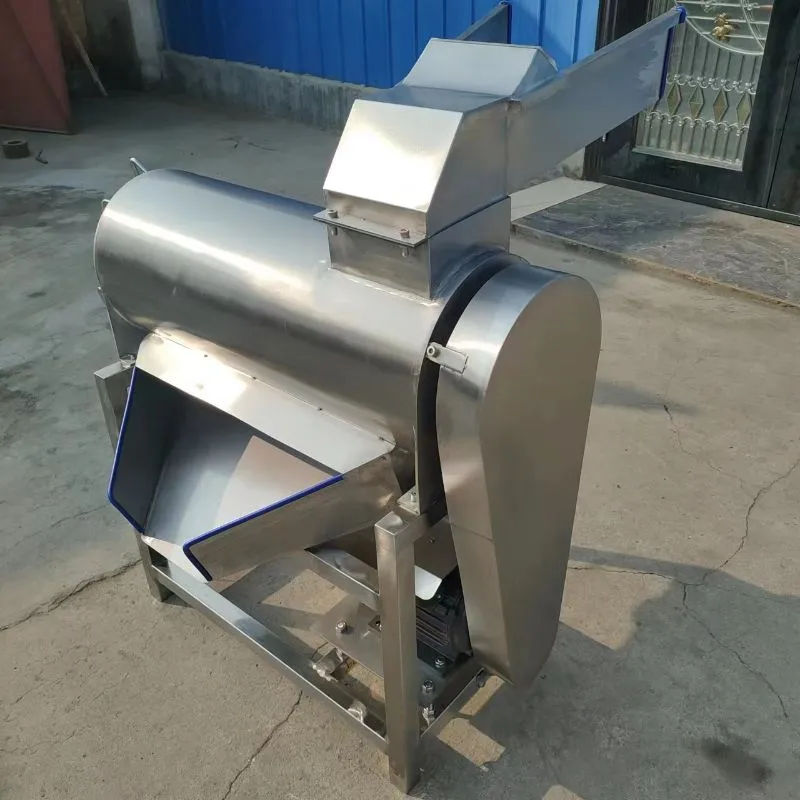

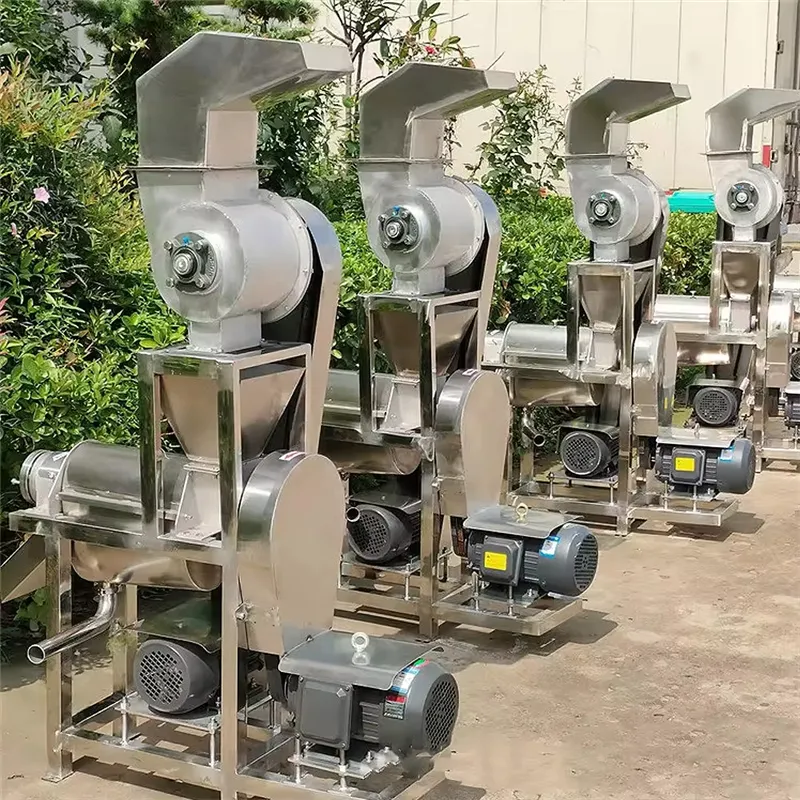

Detail 1 Detail 2 Detail 3 Detail 4 Detail 5 Detail 6
Packaging & Shipping

📦 Exceptional Packaging: Meticulously enclosed in a durable, standard-export plywood case for unparalleled protection.

🚚 Prompt Delivery: Speedy dispatch within 10 working days upon receipt of deposit.

🛡️ Warranty: 1-year warranty covering all non-human malfunctions (excluding wear parts).

Packaging display
Our Expertise
🏭
Our expertise is showcased in the meticulous processes involved in fruit and vegetable washing, peeling, cutting, juicing, drying, frying, and freezing. We offer bespoke solutions designed for meat, fish, and seafood processing, along with innovative nut machines and sophisticated food packaging equipment. We specialize in designing and setting up customized food production plants tailored to specific requirements.

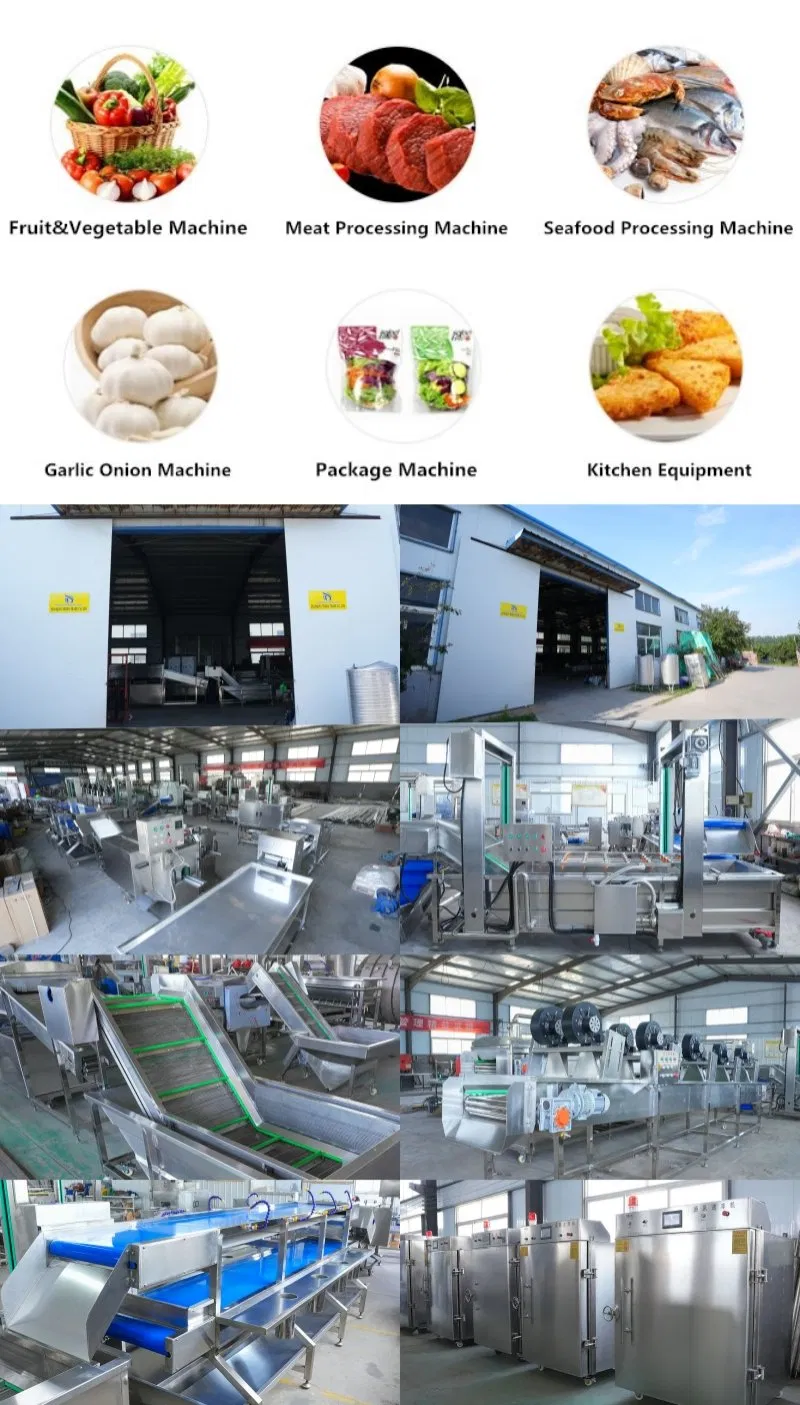

Production line
Frequently Asked Questions
What types of fruits and vegetables can be processed?
The equipment is versatile, handling everything from oranges, grapes, and kiwis to tomatoes, celery, mulberries, and peaches for juice or jam production.
What material is the machine made of?
The machine is constructed primarily from high-quality 304 Stainless Steel, ensuring food safety and durability.
What is the processing capacity range?
We offer various models with capacities ranging from 300kg/h to as high as 5000kg/h to suit different production scales.
Does the machine remove seeds and skins automatically?
Yes, our pulping machines are designed to expertly transform fruit into pulp while automatically removing cores, seeds, and skins.
How long is the delivery lead time?
Standard dispatch is typically within 10 working days after the deposit is received.
What is the warranty policy?
We provide a comprehensive 1-year warranty covering all non-human malfunctions, excluding standard wear parts.
