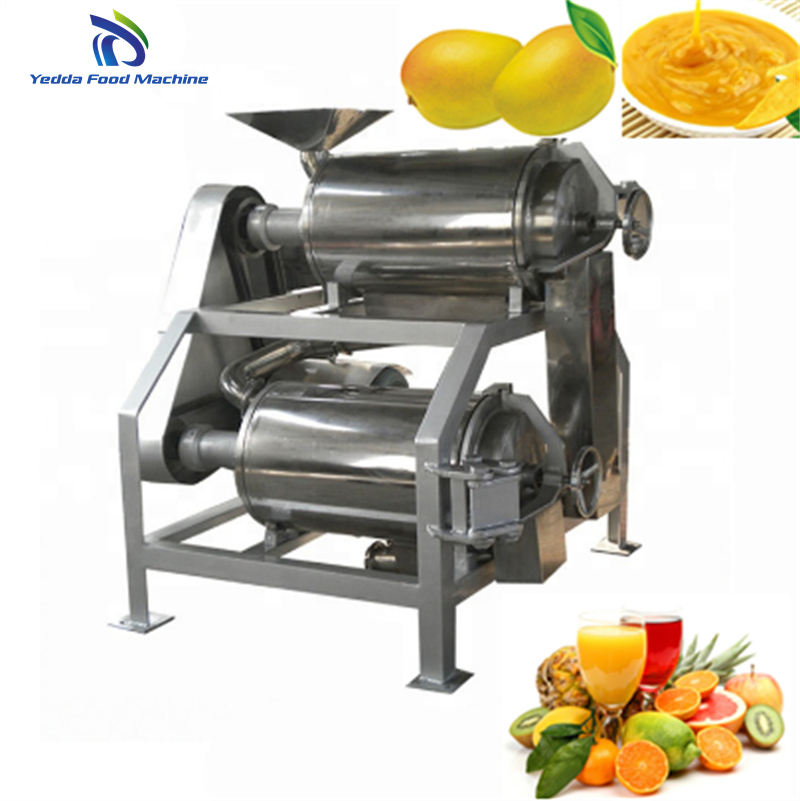

High Efficiency Mango Puree Production Equipment for Food Industry

Customization: Available
After-sales Service: Oversea Service Available
Warranty: Per Year

Product Description

Basic Information

Model NO.
HT Series
Type
Juicing
Voltage
380V
Power
1.5KW
Material
304 Stainless Steel
Process
Fruit & Vegetable
Capacity
300-2000kg/Hour
Function
Juicing & Pulping
HS Code
84386000
Origin
China

Product Description

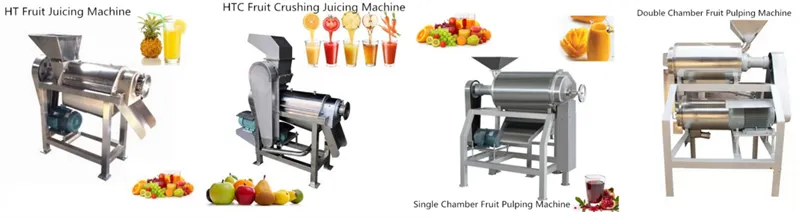

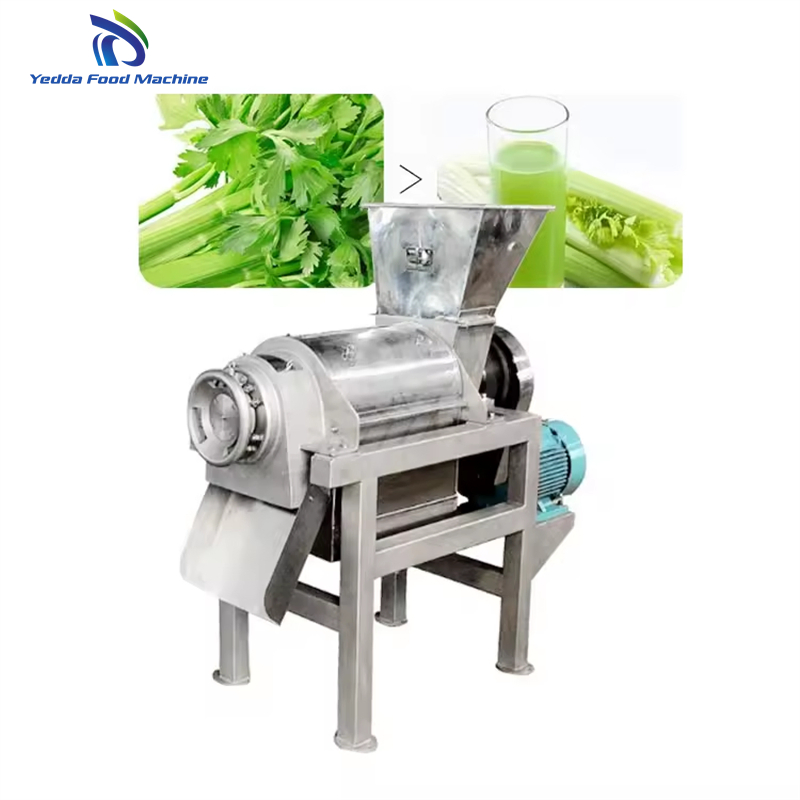

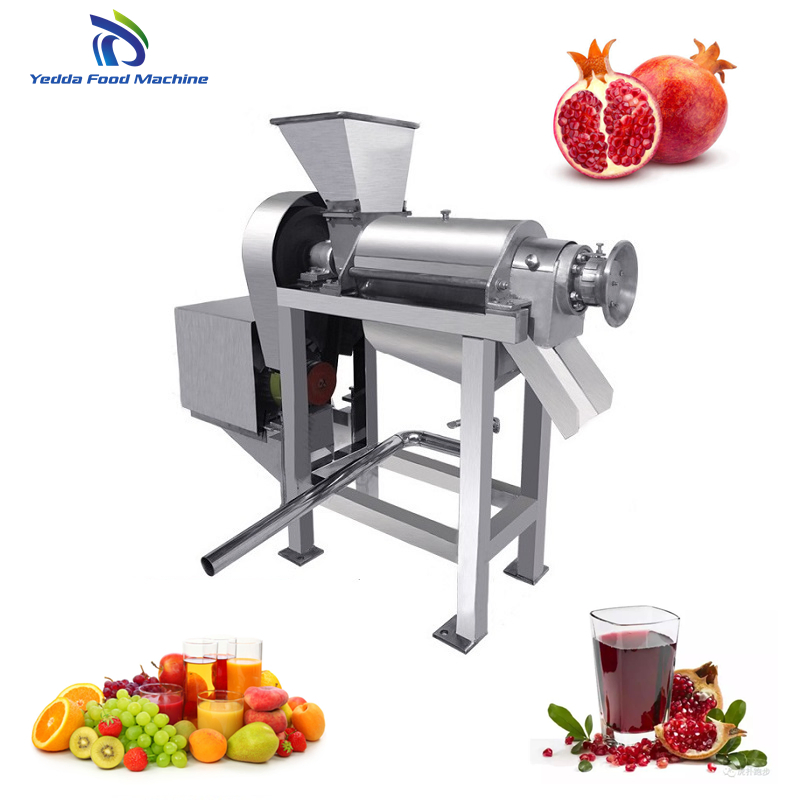

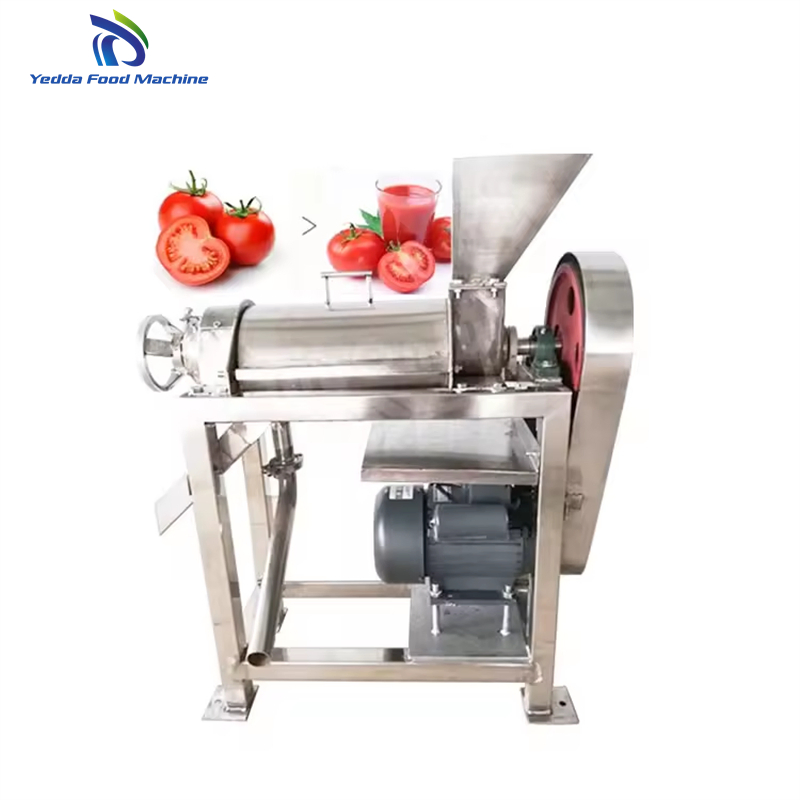

Mango Puree Production Equipment

The Revolutionary Automatic Fruit Screw Juice Extracting Machine is a cutting-edge masterpiece engineered to meticulously extract juices from a vast array of fruits and vegetables with unmatched efficiency.

At the core of this remarkable equipment is an advanced spiral mechanism that progressively enlarges towards the material residue outlet while the screw pitch narrows. This design ensures that materials experience volume contraction, resulting in highly effective juice extraction. The spiral juicer integrates fruit crushing with screw juicing and features an automatic residue removal system.

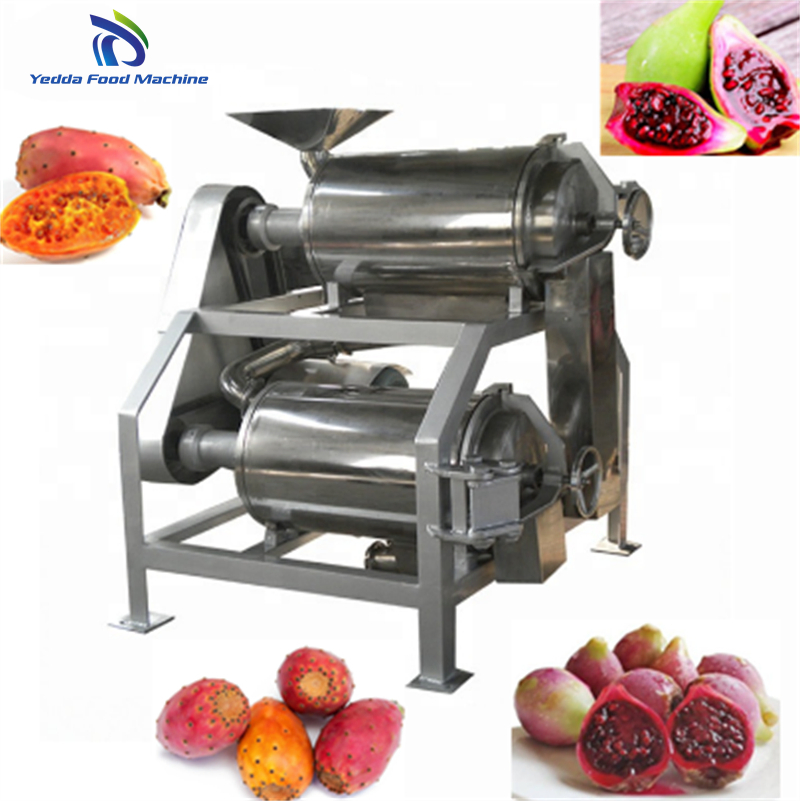

The Dynamic Fruit Pulping Machine is a specialized powerhouse for rapid juice production. It manages a diverse range of produce, from oranges, grapes, and kiwis to tomatoes and celery. It excels in transforming fruits like mulberries, bayberries, and peaches into jams or juices, efficiently separating cores, seeds, and skins.

Product Parameters

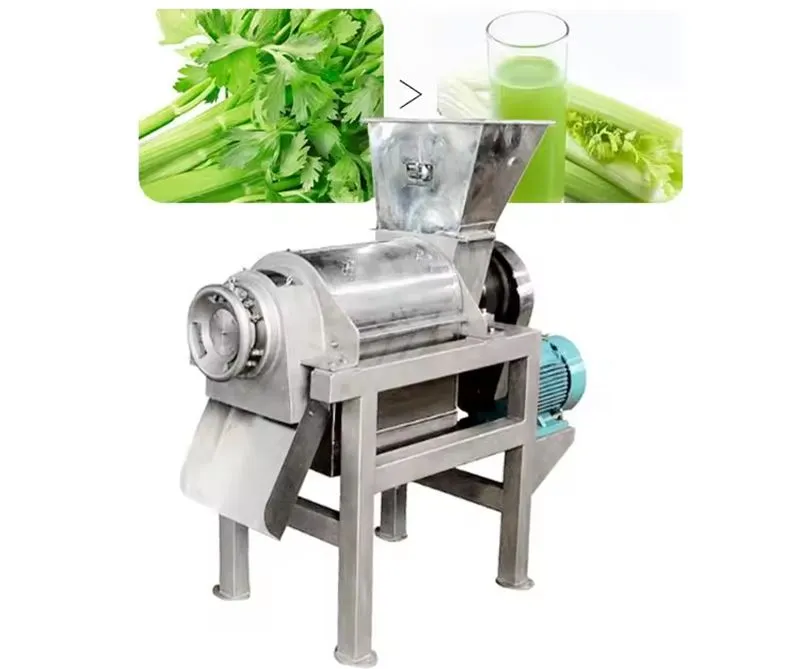

Parameters Overview
Model Dimension Capacity Power Voltage
HT-0.51100*320*750mm300-500kg/h1.5kw380V
HT-1.51620*550*950mm1000-1500kg/h2.2kw
HT-2.51620*720*1480mm2000-2500kg/h5kw

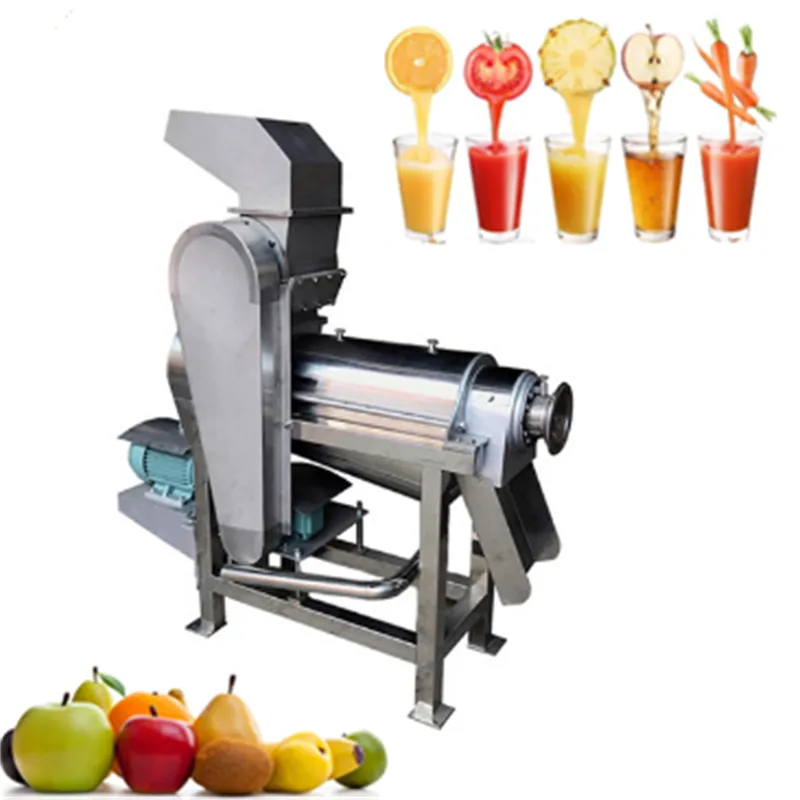

HTC Series Parameters
Model Dimension Capacity Power Voltage
HTC-0.51100*320*1300mm300-500kg/h1.5kw+2.2kw380V
HTC-1.51620*550*1485mm1000-1500kg/h2.2kw+4kw
HTC-2.51620*72*2030mm2000-2500kg/h5kw+4kw

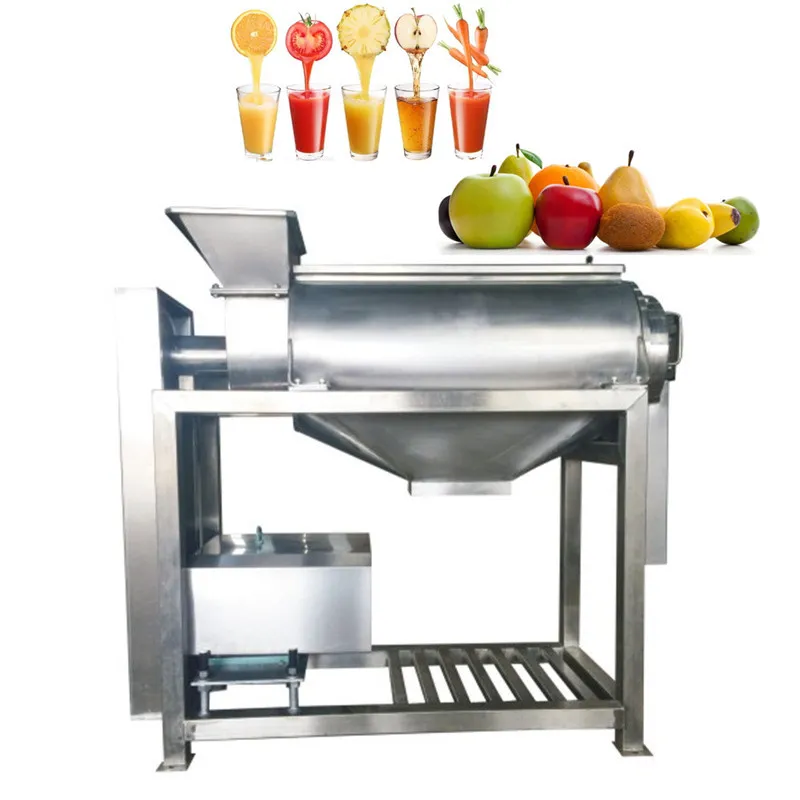

SG Series Parameters
Model Dimension Capacity Power Weight Voltage
SG-0.51100*450*1150mm300-500kg/h3kw90kg380V
SG-0.81300*550*1250mm500-800kg/h4kw130kg
SG-11400*650*1350mm800-1000kg/h5.5kw180kg
SG-1.51600*800*1550mm1000-1500kg/h5.5kw250kg
SG-21600*900*1650mm1500-2000kg/h7.5kw350kg

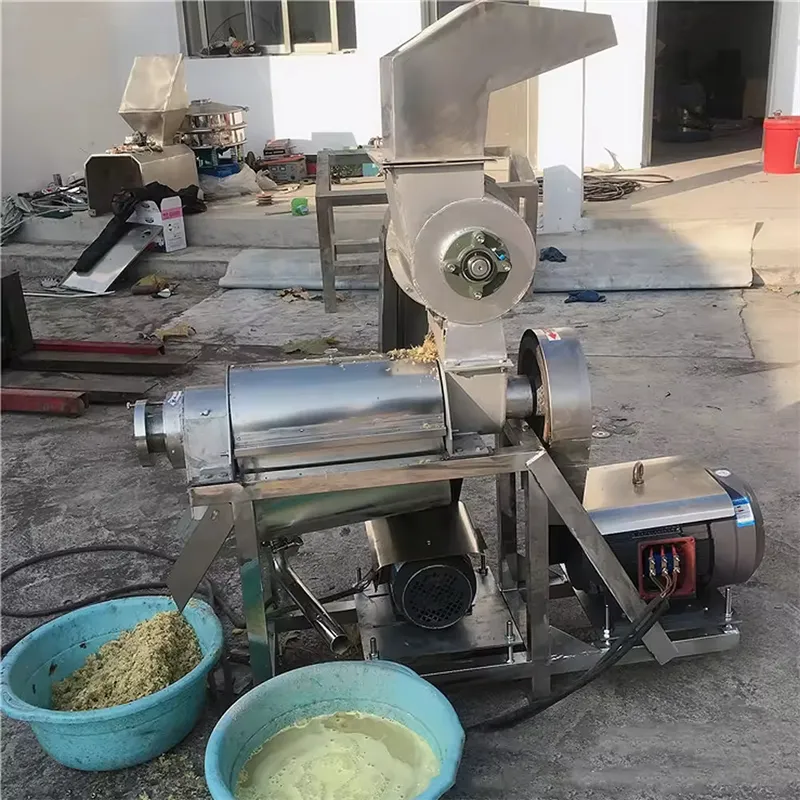

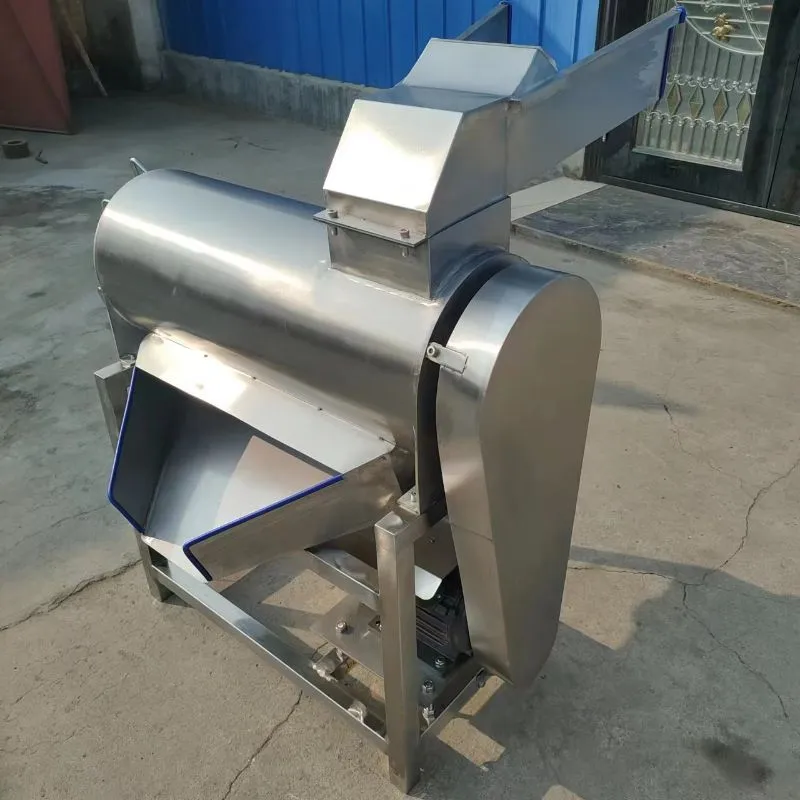

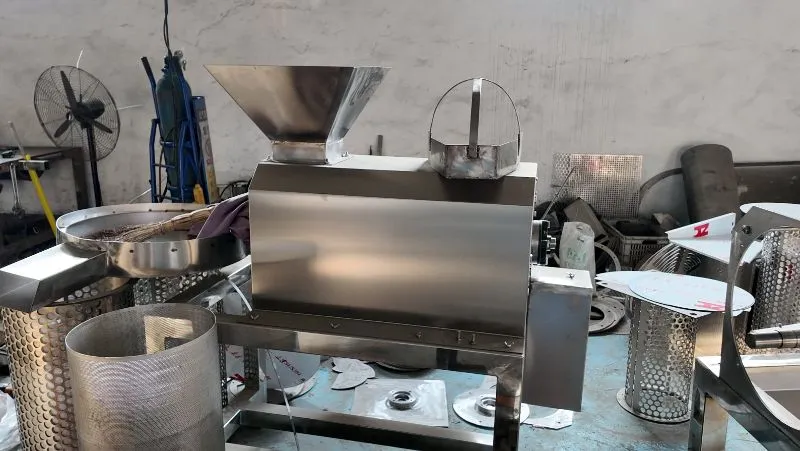

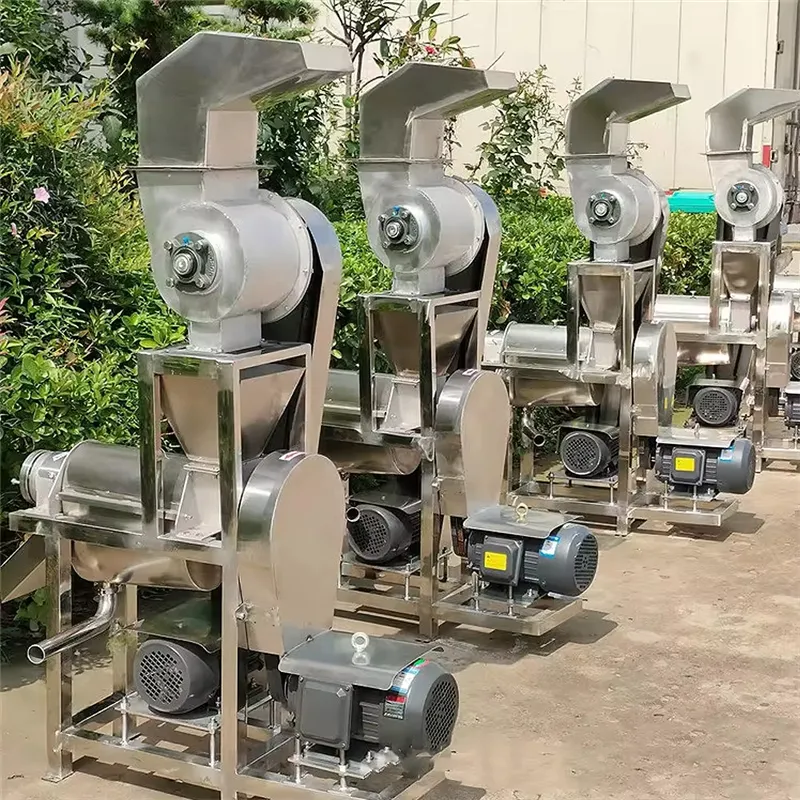

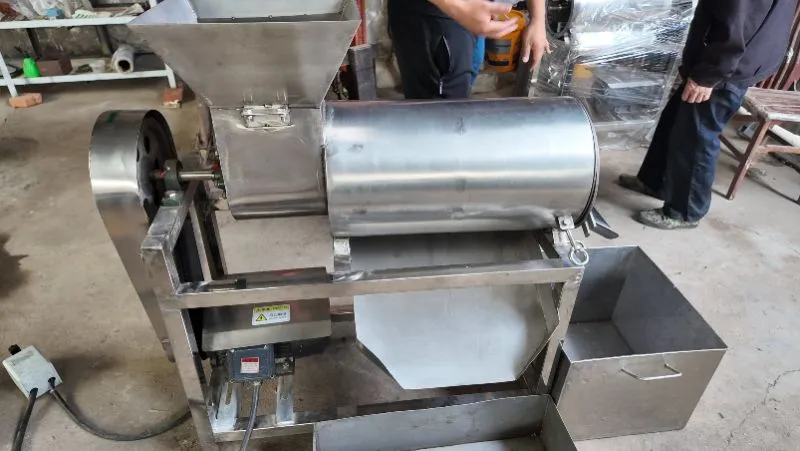

Detailed Photos

Packaging & Shipping

Exceptional Packaging:

Meticulously encased in robust, standard exporting plywood cases for maximum protection.

Prompt Delivery:

Guaranteed dispatch within 10 working days upon receipt of deposit.

Warranty:

1-year warranty covering all non-human malfunctions (excluding wear parts).

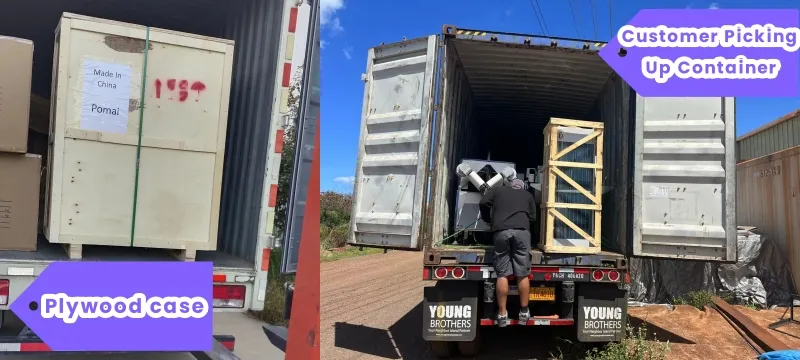

Shipping Packaging

Service & Expertise

We stand as a beacon of innovation and efficiency in the advanced food machinery industry, delivering bespoke solutions tailored to the dynamic food sector. Our expertise shines through in meticulous processes including fruit and vegetable washing, peeling, cutting, juicing, drying, frying, and freezing.

We specialize in machinery designed for meat, fish, and seafood processing, nut machines, and sophisticated food packaging equipment. Our team provides comprehensive kitchen and restaurant equipment and customized food production plants tailored to specific customer requirements.

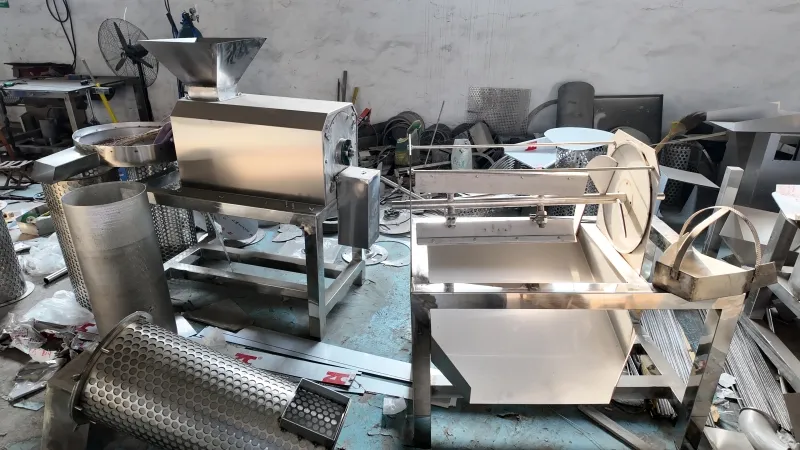

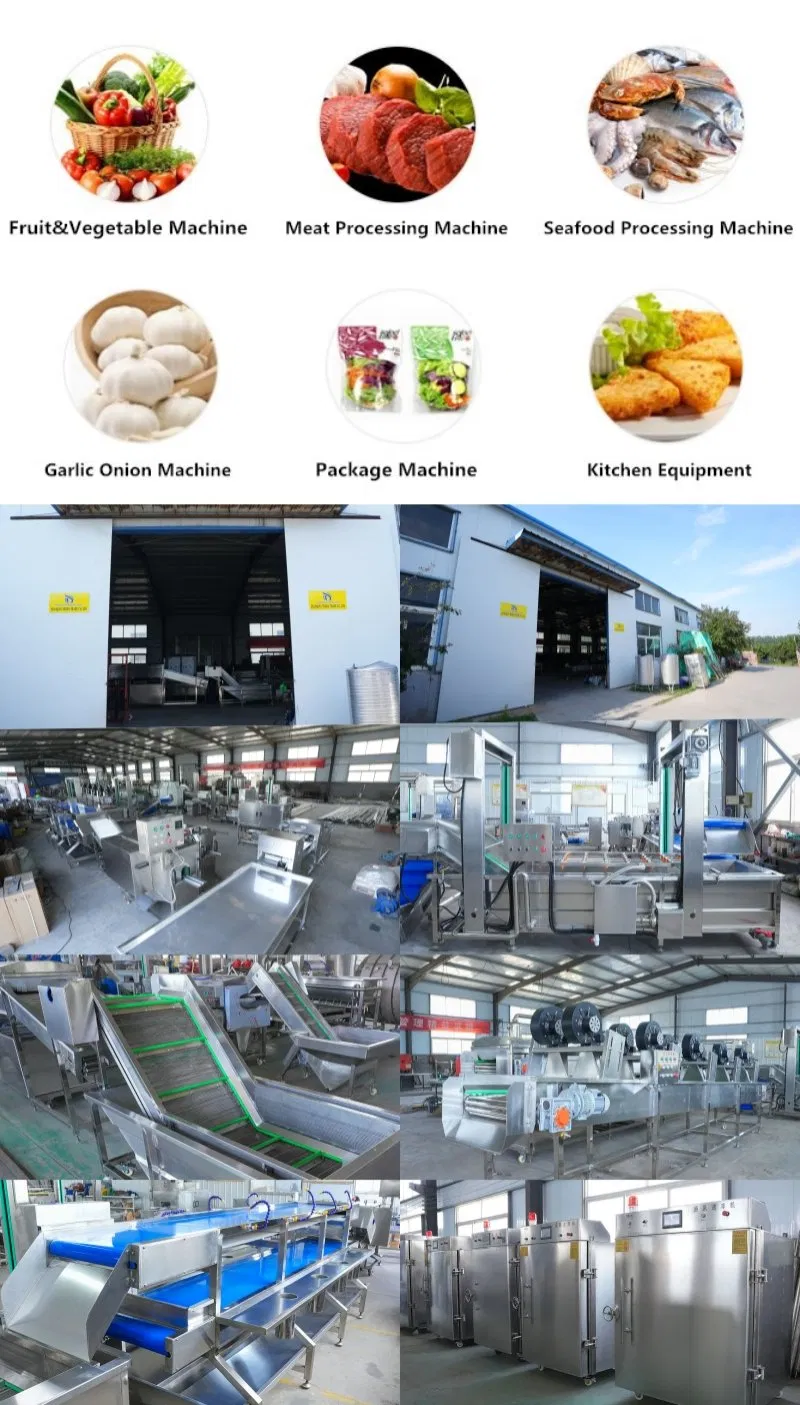

Facility Showcase

Frequently Asked Questions

What materials are used in the construction of the machine?
The equipment is primarily constructed from high-quality 304 stainless steel, ensuring durability and compliance with food safety standards.
What types of fruits and vegetables can be processed?
The machine is versatile and can process oranges, grapes, kiwis, tomatoes, celery, mulberries, bayberries, peaches, and more.
What is the production capacity range?
Depending on the model, the capacity ranges from 300kg/h for smaller units up to 5000kg/h for industrial-scale models.
What is the power requirement for these machines?
The machines typically operate on a 380V voltage supply, with power ratings starting from 1.5KW depending on the specific model.
How long does shipping take and how is it packaged?
We commit to dispatching within 10 working days. The equipment is packed in standard exporting plywood cases for safe international transit.
Does the machine include a warranty?
Yes, we provide a comprehensive 1-year warranty covering all non-human malfunctions, excluding standard wear parts.
