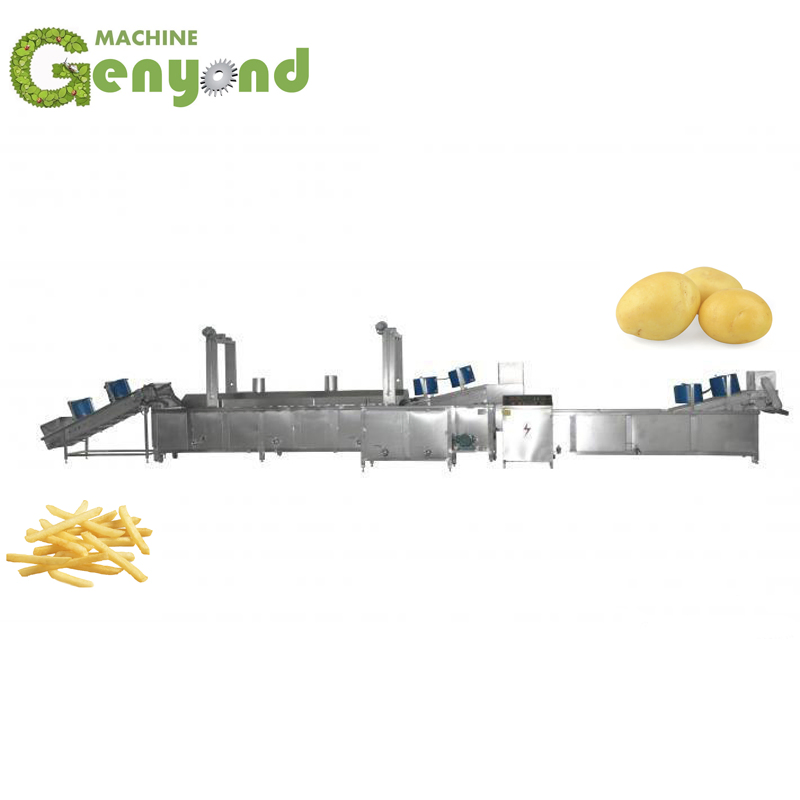

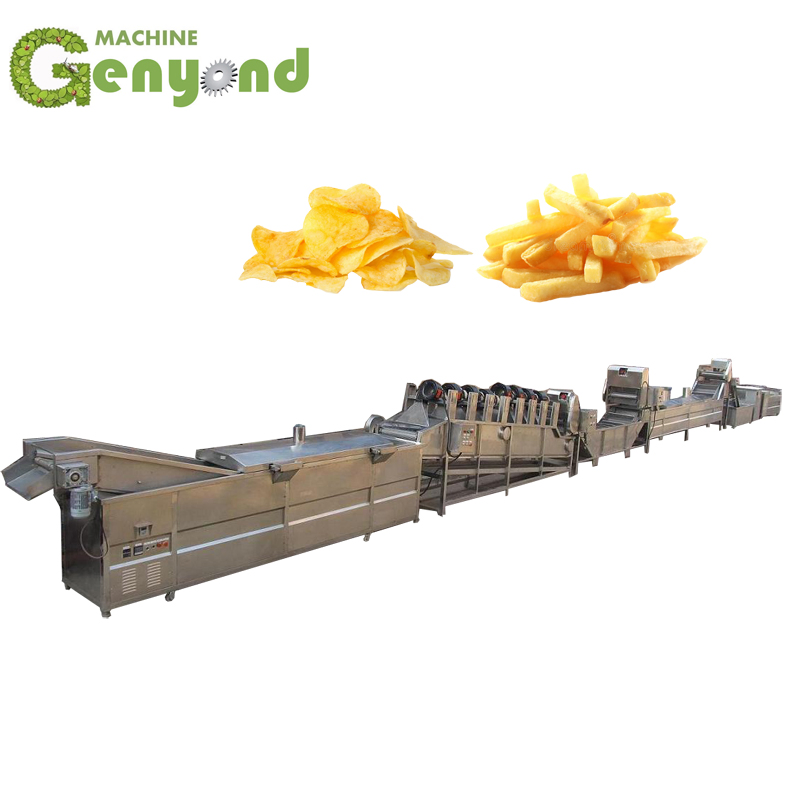

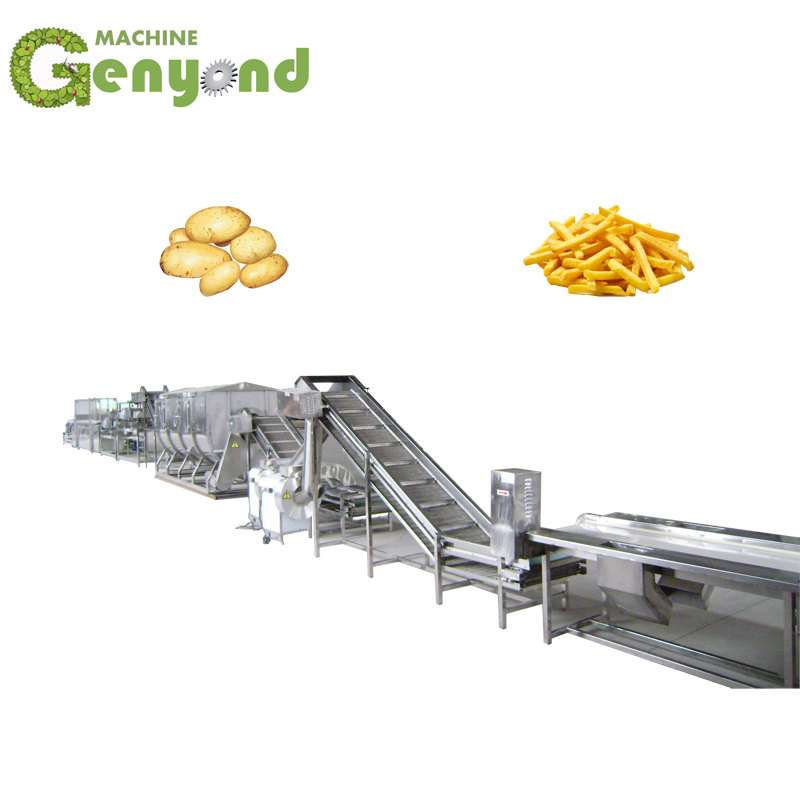

Frozen French Fries Production Line

Customization:	Available
Certification:	CE, ISO9001
Power Source:	Electric

Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.

GYFFF-500

Process

Frozen and Chilled

Automatic Grade

Automatic

Application

French Fries

Material

Stainless Steel

Turn-Key Project

Yes

Processing Capacity

100kg to 5000kg Per Hour

Warranty

2 Years

Oversea Service

Engineers Available for Installation

Origin

China

HS Code

84386000

Production Capacity

50 Set Per Year

📋

Product Description

We offer turnkey projects for frozen French fries production lines with capacities ranging from 50kg per hour to 2000kg per hour. Our equipment is designed for convenient operation, features adjustable settings, maintains a low broken rate, and significantly reduces labor time while increasing total output.

Process Flow

Potatoes→ De-stoner & Cleaning→ Peeling→ Inspecting→ Cutting→ Grading→ Blanching→ Conditioning→ Drying→ Frying→ De-oiling→ Pre-cooling→ Frozen→ Packing→ Cold Storage

Capacity Details:
Input potato capacity: 1000kg/h
Output capacity: 300-500kg/h

Raw Material Requirements

Fresh potatoes, no decay, no degeneration, and free from pests.
Smooth exterior without deep eyes.
Dry matter: ≥21%
Starch content: ≥15%
Reducing sugar: ≤0.25%
Weight of potato: 150-500g

Final Product Quality

Sectional dimensions: 7.5*7.5mm and 10*10mm
Length: ≥76 mm (≥5%), ≤45 mm (≤30%)

⚙️

Technical Parameters

No	Project	Contents	Remarks
1	Capacity	2000Kg/h	Fresh potato
2	Processing time	10-100min adjustable	Manual & frequency control
3	Feeding temperature	Room temperature	-
4	Conveyor belt width	750mm/650mm/1300mm	Wire / PVC / Quick-freezing belt
5	Blanching temperature	80-100ºC adjustable	Screw peel and blanching
6	Steam required	1.0 T/h	(0.4-0.7)Mpa
7	Air cooled	Room temperature & freezing cooling

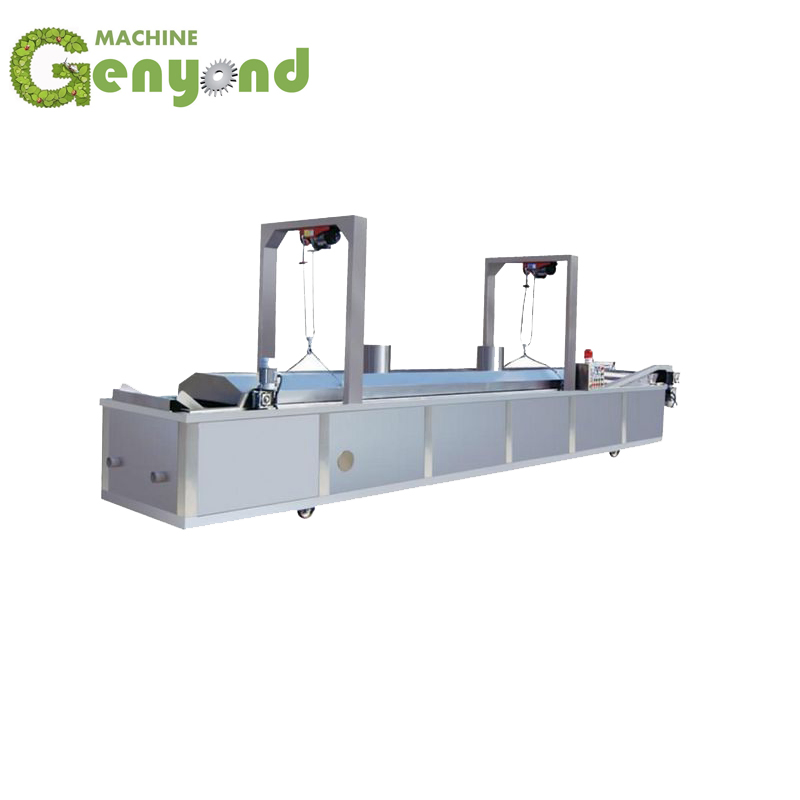

8	Frying temperature	160-240ºC	Natural gas
9	Gas consumption	25~35L/H	Gas heated
10	First water supply	Around 20T	Sink water supply
11	Hourly water use	About 3.0T/h	Washing and peeling
12	Installed power	284Kw	380V/50HZ
13	Workshop space	50m (L) x 10m (W)
14	Operators	6-7 peoples

❓

Frequently Asked Questions

What production capacities do you offer?

We provide flexible solutions ranging from 50kg per hour up to 5000kg per hour to suit different production needs.

What is the warranty period for the production line?

The complete production line comes with a 2-year warranty and engineers are available for overseas installation and service.

What kind of potatoes are best for this line?

Ideal potatoes should have a dry matter content of ≥21%, starch content of ≥15%, and a weight between 150g and 500g for optimal results.

Can the frying and blanching temperatures be adjusted?

Yes, the blanching temperature is adjustable between 80-100ºC and the frying temperature ranges from 160-240ºC.

What are the final sizes of the frozen french fries?

The standard sectional dimensions are 7.5*7.5mm and 10*10mm, but the system allows for various grading specifications.

Is the production line fully automatic?

Yes, the GYFFF-500 is a fully automatic grade line designed to minimize labor and maximize output efficiency.
