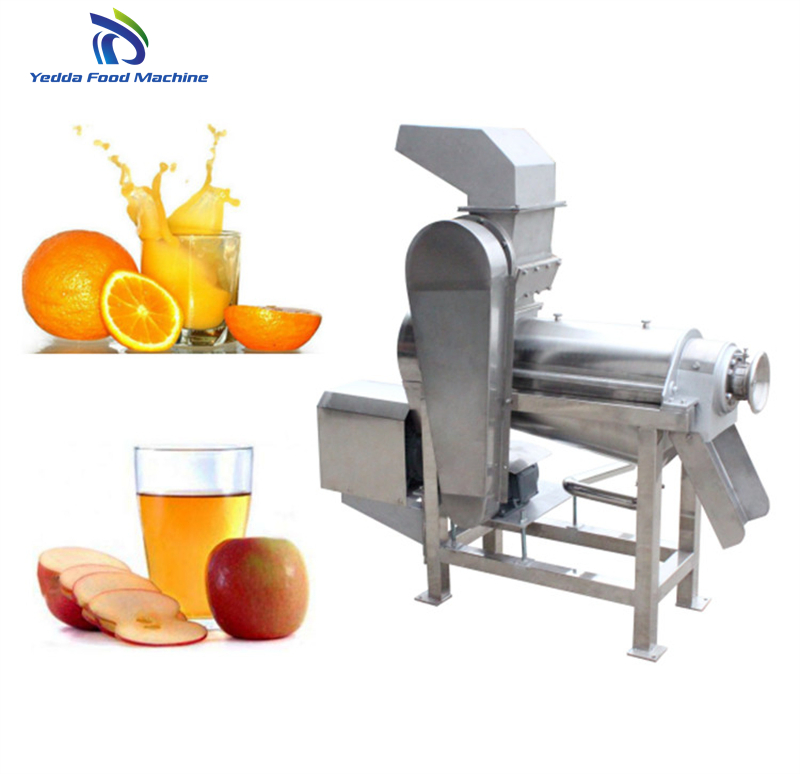

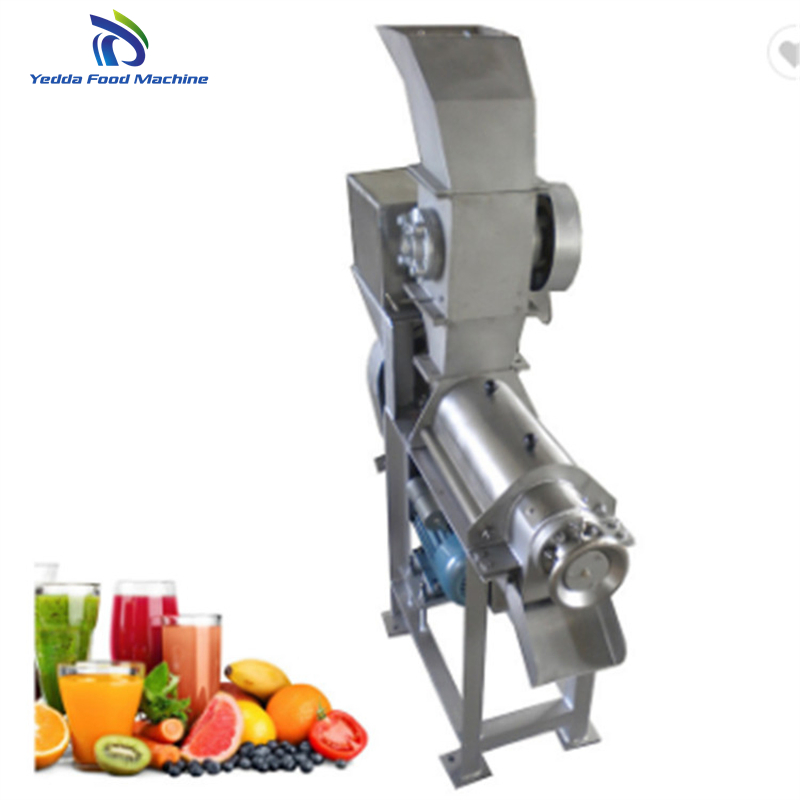

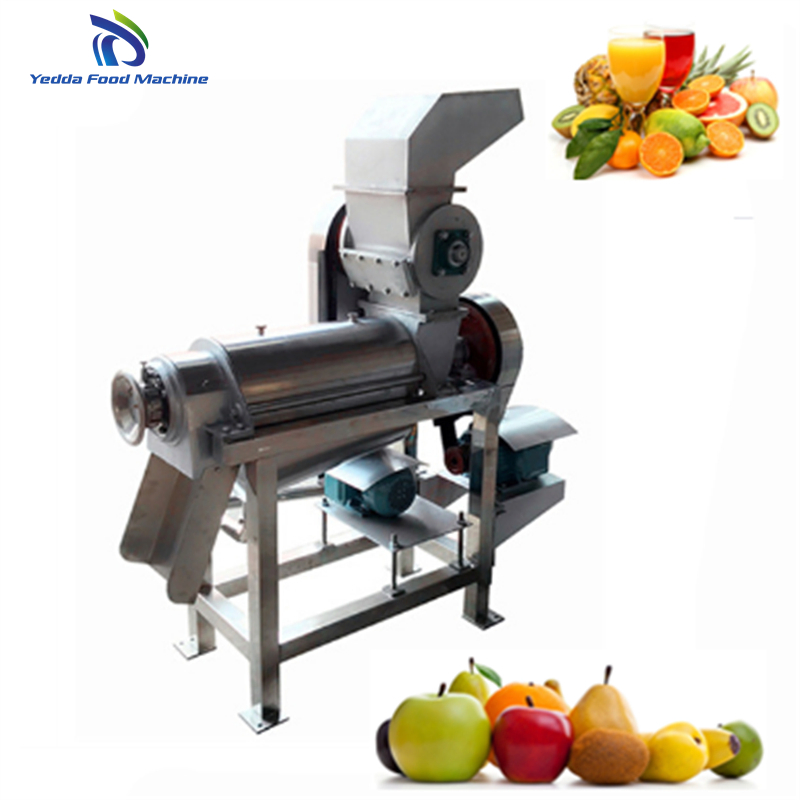

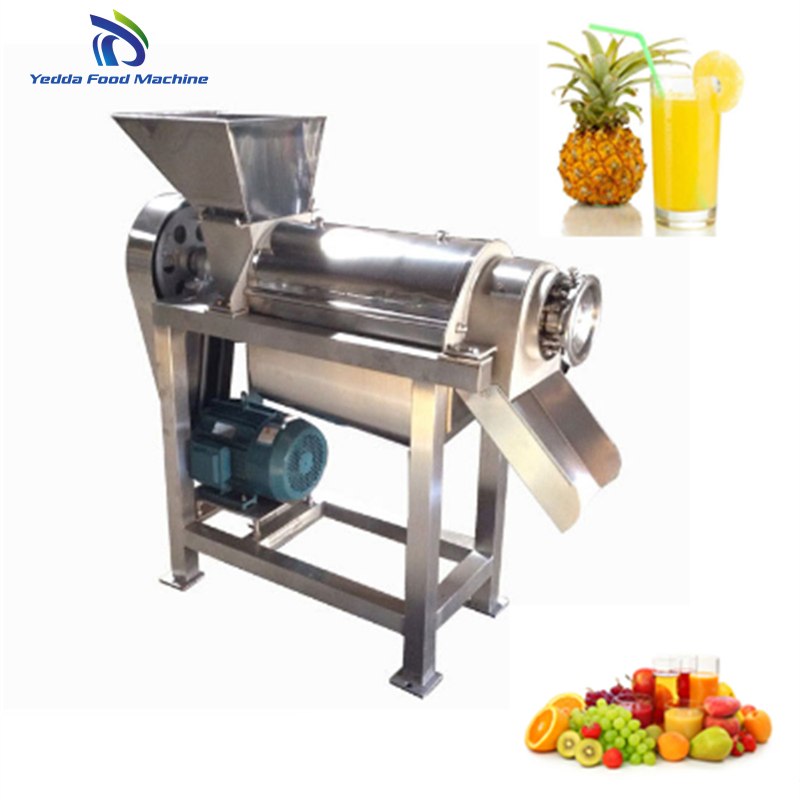

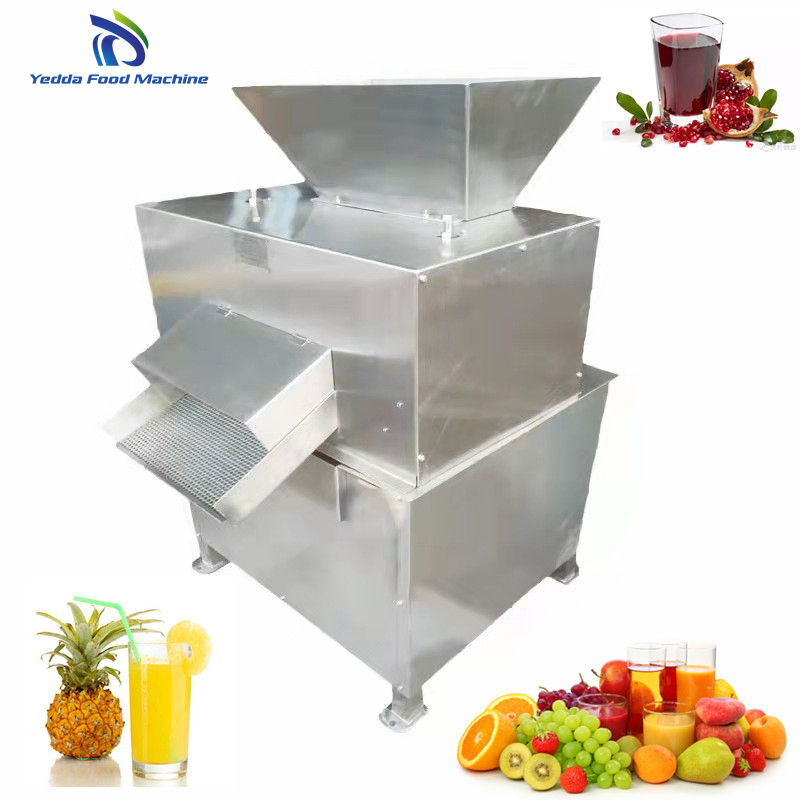

High-Quality 304 Stainless Steel Fruit Pulping Machine for Juicing

Customization: Available
After-sales Service: Oversea Service Available
Warranty: Per Year

Product Description

1

Overview

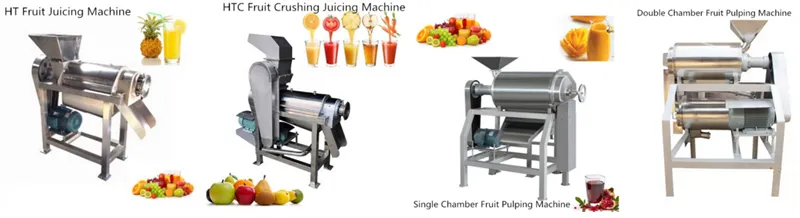

Fruit Pulping Machine Overview
Model NO.:
HT Series
Type:
Juicing
Voltage:
380V
Power:
1.5KW
Material:
304 Stainless Steel
Process:
Fruit & Vegetable
Capacity:
300-2000kg/Hour
Function:
Juicing & Pulping
Package:
Plywood Case
Specification:
460*400*1000mm
Origin:
China
HS Code:
84386000
2

Product Description

The Automatic Fruit Screw Juice Extracting Machine is a revolutionary advancement designed to extract juices from an extensive range of fruits and vegetables with exceptional efficiency. At the core of this equipment is a durable spiral mechanism that gradually enlarges towards the material residue outlet while the screw pitch narrows. This brilliant design ensures that as materials move through the spiral, they experience volume contraction within the spiral cavity, thereby facilitating highly effective juice extraction. Our spiral juicer masterfully combines fruit crushing and screw juicing functionalities and boasts an automatic residue removal system.

The Fruit Pulping Machine is a dedicated powerhouse engineered for the rapid production of fruit and vegetable juices. Versatile and efficient, it handles a wide variety of produce, from succulent fruits like oranges, grapes, and kiwis to hearty vegetables like tomatoes and celery. This exceptional machine excels at converting fruits such as mulberries, bayberries, and peaches into delectable jams or revitalizing juices, all while skillfully separating cores, seeds, and skins.

3

Product Parameters

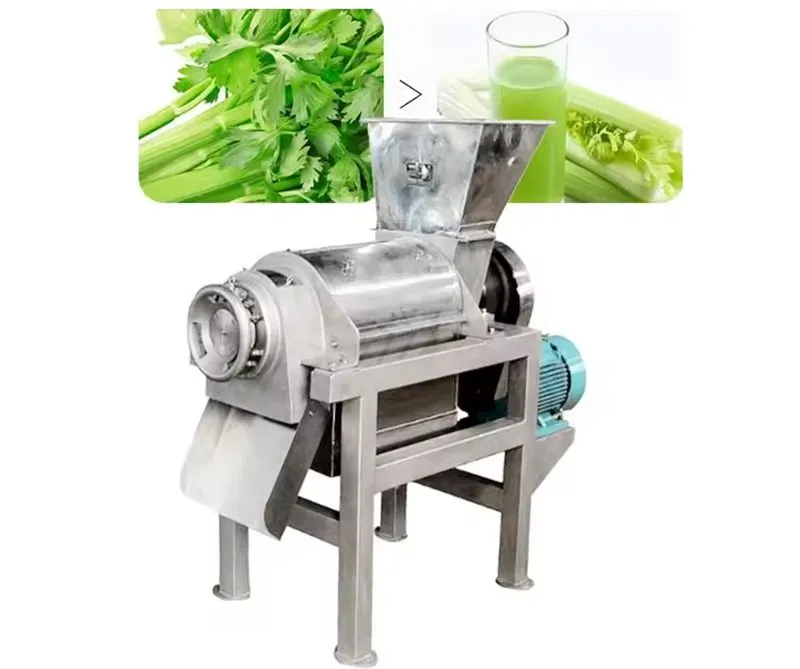

Technical Specifications
Model Dimension Capacity Power Voltage
HT-0.51100*320*750mm300-500kg/h1.5kw380V
HT-1.51620*550*950mm1000-1500kg/h2.2kw
HT-2.51620*720*1480mm2000-2500kg/h5kw

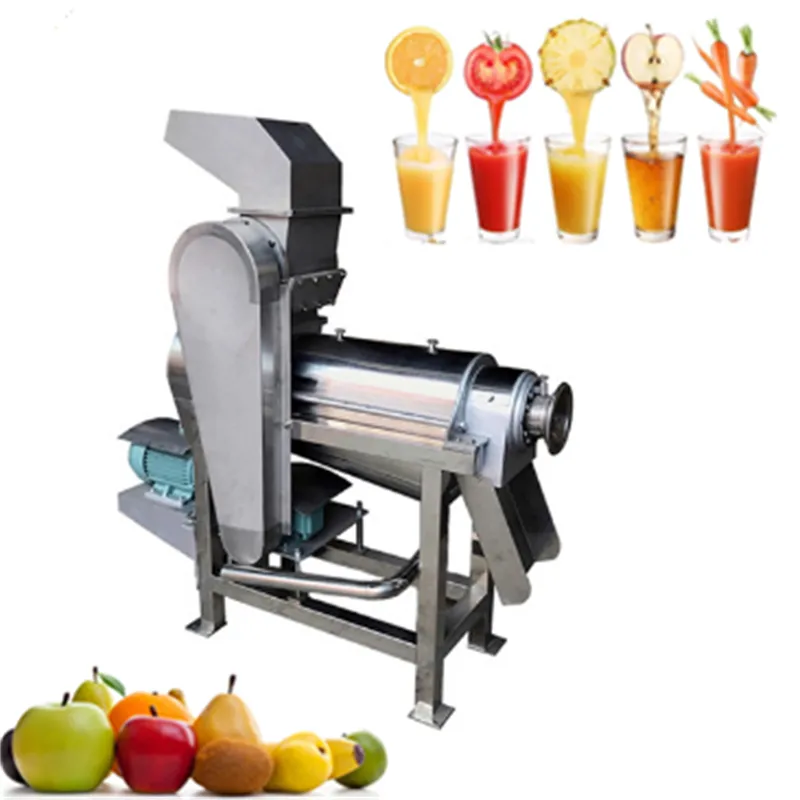

Parameter Chart 2
Model Dimension Capacity Power Voltage
HTC-0.51100*320*1300mm300-500kg/h1.5kw+2.2kw380V
HTC-1.51620*550*1485mm1000-1500kg/h2.2kw+4kw
HTC-2.51620*72*2030mm2000-2500kg/h5kw+4kw

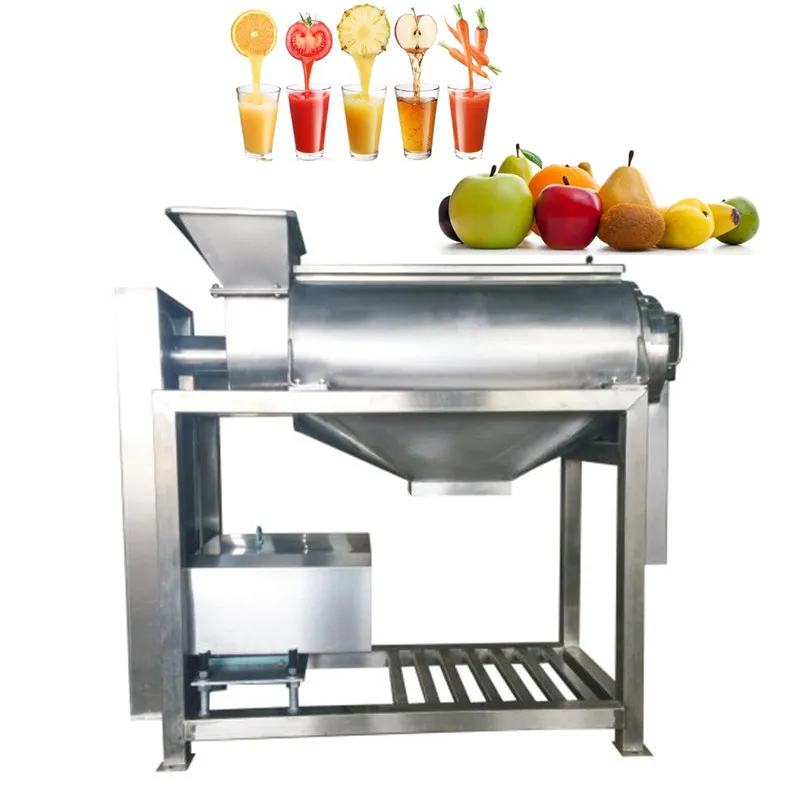

Parameter Chart 3
Model Dimension Capacity Power Weight Voltage
SG-0.51100*450*1150mm300-500kg/h3kw90kg380V
SG-0.81300*550*1250mm500-800kg/h4kw130kg
SG-11400*650*1350mm800-1000kg/h5.5kw180kg
SG-1.51600*800*1550mm1000-1500kg/h5.5kw250kg
SG-21600*900*1650mm1500-2000kg/h7.5kw350kg
4

Detailed Photos

Mango Puree Production

Processing Samples: Mango Puree & More

Processing Sample 1
Processing Sample 2

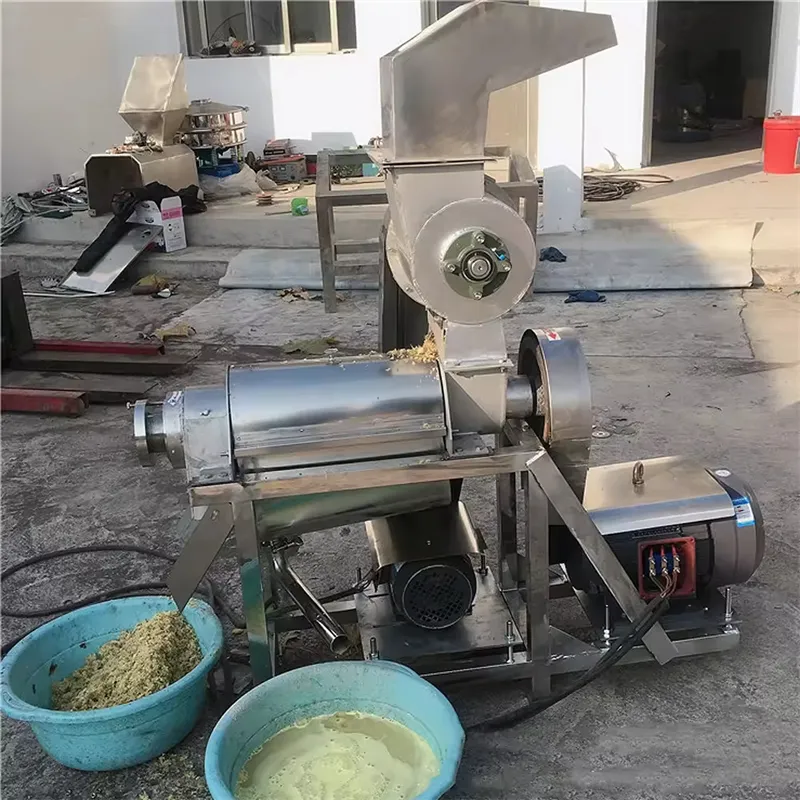

Processing Sample 3

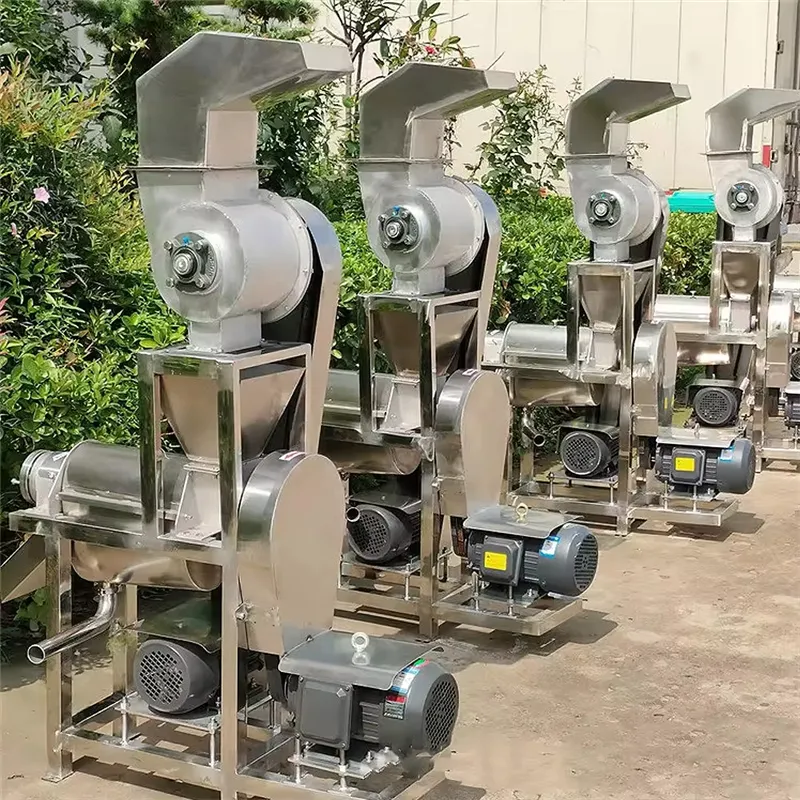

Processing Sample 4

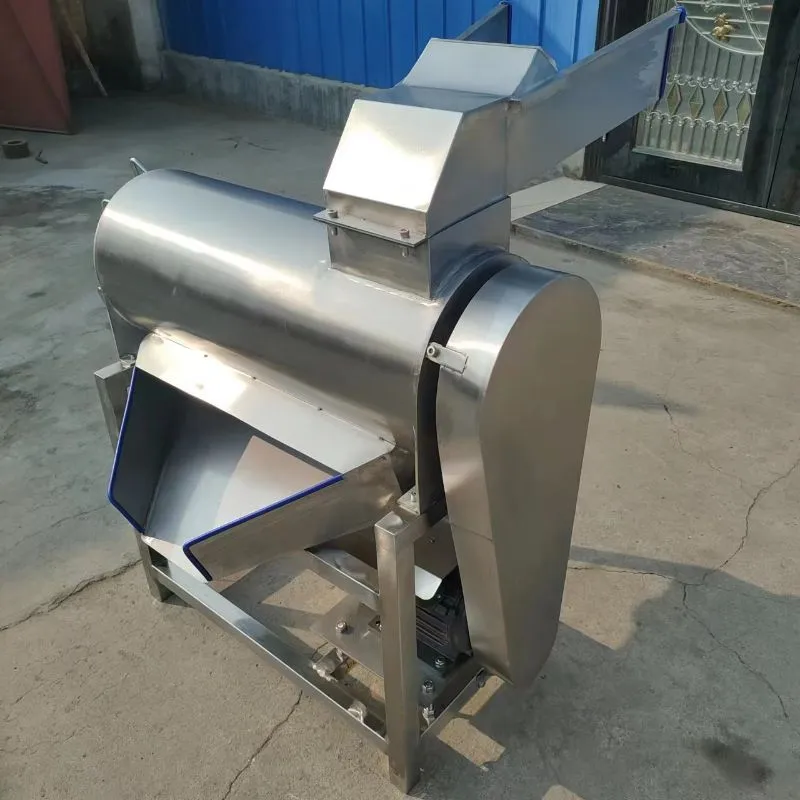

Processing Sample 5

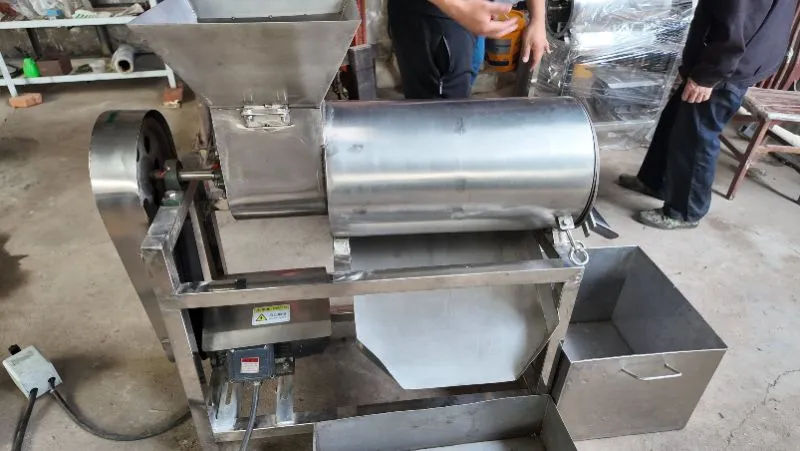

Processing Sample 6
5

Packaging & Shipping

Exceptional Packaging: Our product is meticulously encased in a sturdy, standard exporting plywood case, offering unmatched protection during transit.

Prompt Delivery Time: We guarantee dispatch within a swift 10 working days upon receiving your deposit, ensuring timeliness and reliability.

Comprehensive Warranty: Enjoy a 1-year warranty covering all non-human malfunctions (excluding wear parts).

Shipping Package
6

Company Profile

Our company is a beacon of innovation and efficiency in the advanced food machinery industry. We deliver bespoke solutions tailored precisely to the food sector's dynamic needs, ensuring unmatched performance and reliability. Our expertise shines in the meticulous processes of fruit and vegetable washing, peeling, cutting, juicing, drying, frying, and freezing.

We take pride in offering state-of-the-art machines designed for meat, fish, and seafood processing, innovative nut machines, and sophisticated food packaging equipment. Guided by our principles of 'High Quality, Competitive Prices, Expert Team, and Integrity in Service,' we strive to deliver products that consistently exceed client expectations.

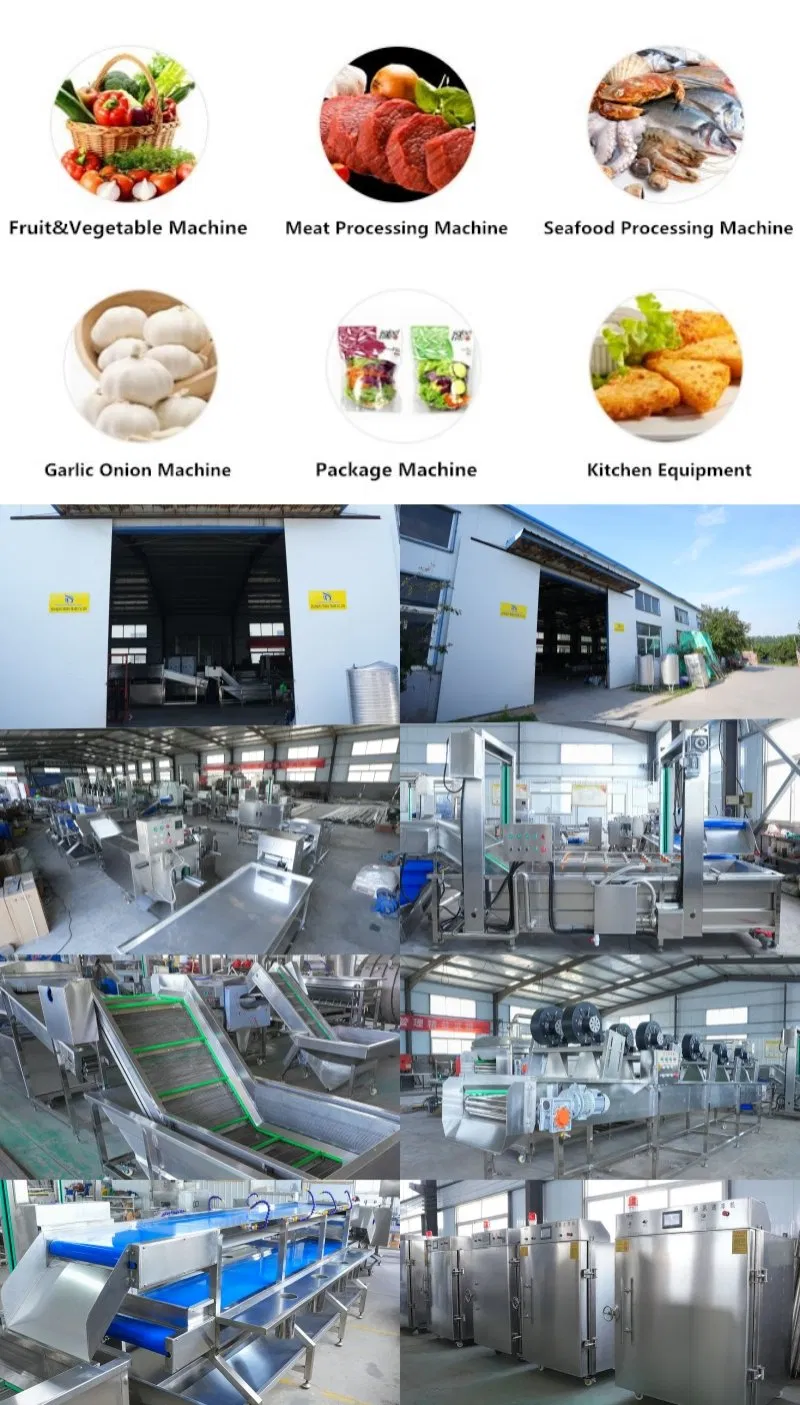

Manufacturing Capability

Frequently Asked Questions

What materials are used to construct the machine?
The machine is constructed from high-quality 304 stainless steel, ensuring durability, hygiene, and compliance with food processing standards.
What types of fruits and vegetables can be processed?
It is versatile and can handle a wide variety of produce, including oranges, grapes, kiwis, tomatoes, celery, mulberries, bayberries, and peaches.
What is the production capacity of these machines?
Depending on the specific model selected, the capacity ranges from 300kg/h up to 2000-5000kg/h for industrial-scale requirements.
How is the equipment packaged for international shipping?
All machines are meticulously packed in sturdy, standard exporting plywood cases to provide maximum protection during transit.
What is the delivery time and warranty policy?
We guarantee dispatch within 10 working days after deposit. The product comes with a 1-year warranty covering non-human malfunctions.
Does the machine separate skins and seeds automatically?
Yes, the machine is designed to skillfully separate cores, seeds, and skins from the juice or pulp automatically.
