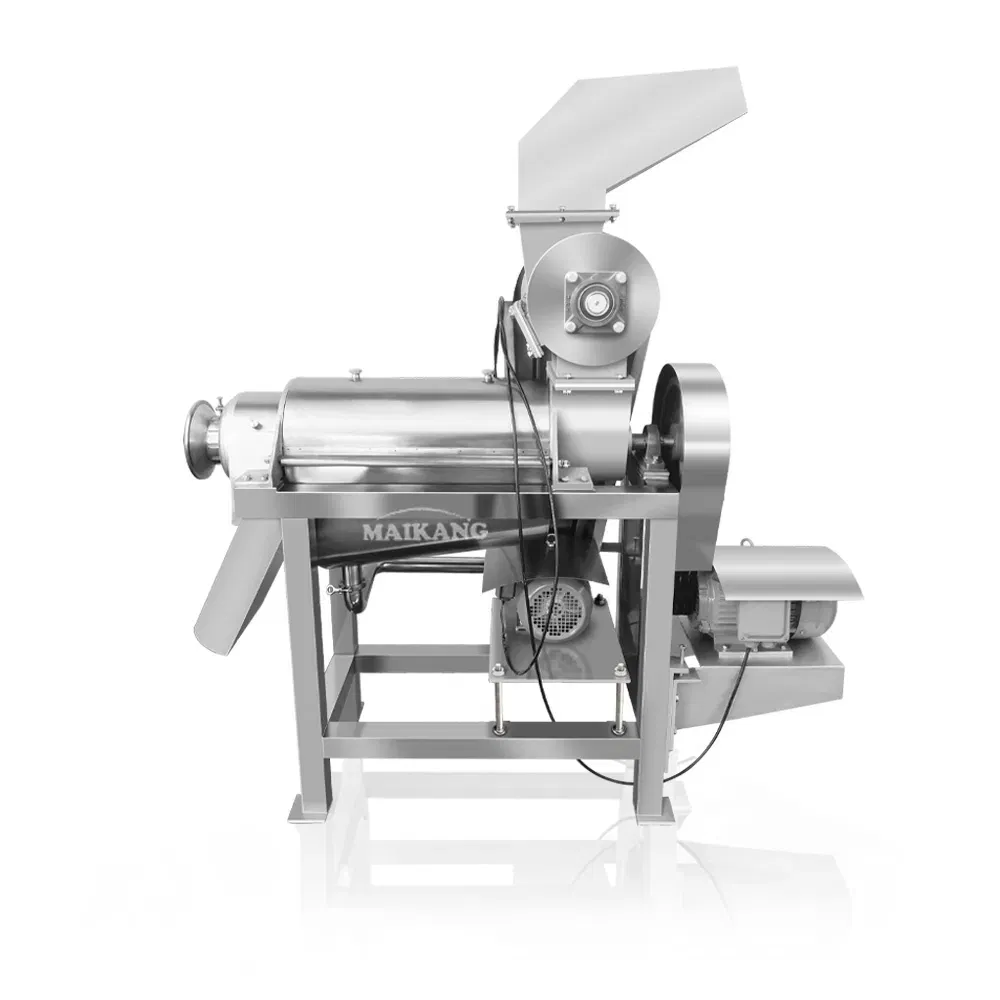

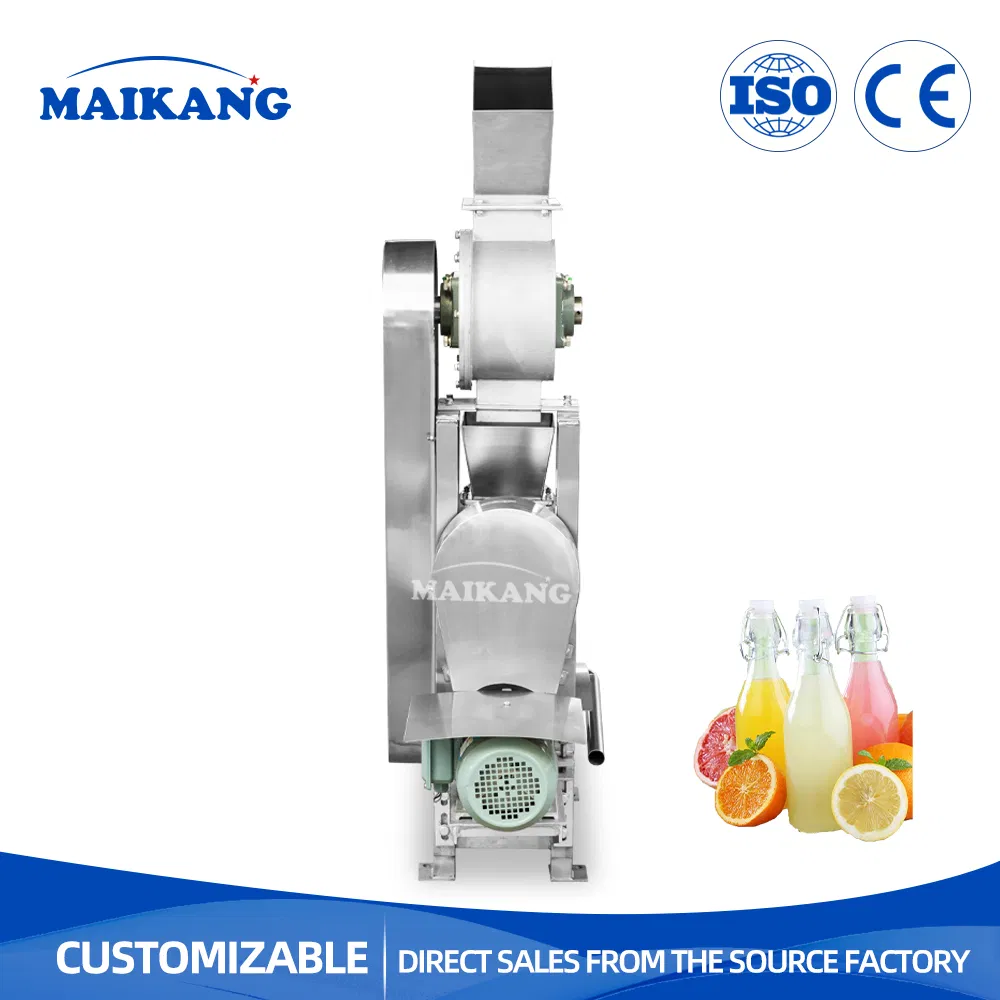

Leaf Vegetable Seaweed Crushing Spiral Juicer Fruit Pear Grape Juice Extractor Pulping Machine
Leaf Vegetable Seaweed Crushing Spiral Juicer Fruit Pear Grape Juice Extractor Pulping Machine
Leaf Vegetable Seaweed Crushing Spiral Juicer Fruit Pear Grape Juice Extractor Pulping Machine
Leaf Vegetable Seaweed Crushing Spiral Juicer Fruit Pear Grape Juice Extractor Pulping Machine
Leaf Vegetable Seaweed Crushing Spiral Juicer Fruit Pear Grape Juice Extractor Pulping Machine
1 / 5
Leaf Vegetable Seaweed Crushing Spiral Juicer Fruit Pear Grape Juice Extractor Pulping Machine
Leaf Vegetable Seaweed Crushing Spiral Juicer Fruit Pear Grape Juice Extractor Pulping Machine
Leaf Vegetable Seaweed Crushing Spiral Juicer Fruit Pear Grape Juice Extractor Pulping Machine
Leaf Vegetable Seaweed Crushing Spiral Juicer Fruit Pear Grape Juice Extractor Pulping Machine
Leaf Vegetable Seaweed Crushing Spiral Juicer Fruit Pear Grape Juice Extractor Pulping Machine

Leaf Vegetable Seaweed Crushing Spiral Juicer Fruit Pear Grape Juice Extractor Pulping Machine

Customization: Available
After-sales Service: Online Services
Warranty: 1 Year
Send Inquiry

Product Description

📋 Basic Information
Model NO.
PSZZ-1.5
Type
Juicer Extractor
Voltage
380V
Power
3kw
Machine Name
Fruit and Vegetable Crusher Juicer
Function
Crushing, Juicing, Separating
Material
304 Stainless Steel
Structure
Crusher + Screw Juicer Integrated
Cleaning
Self-Cleaning Structure
Capacity
500 - 1000 kg/h
🔍 Product Description

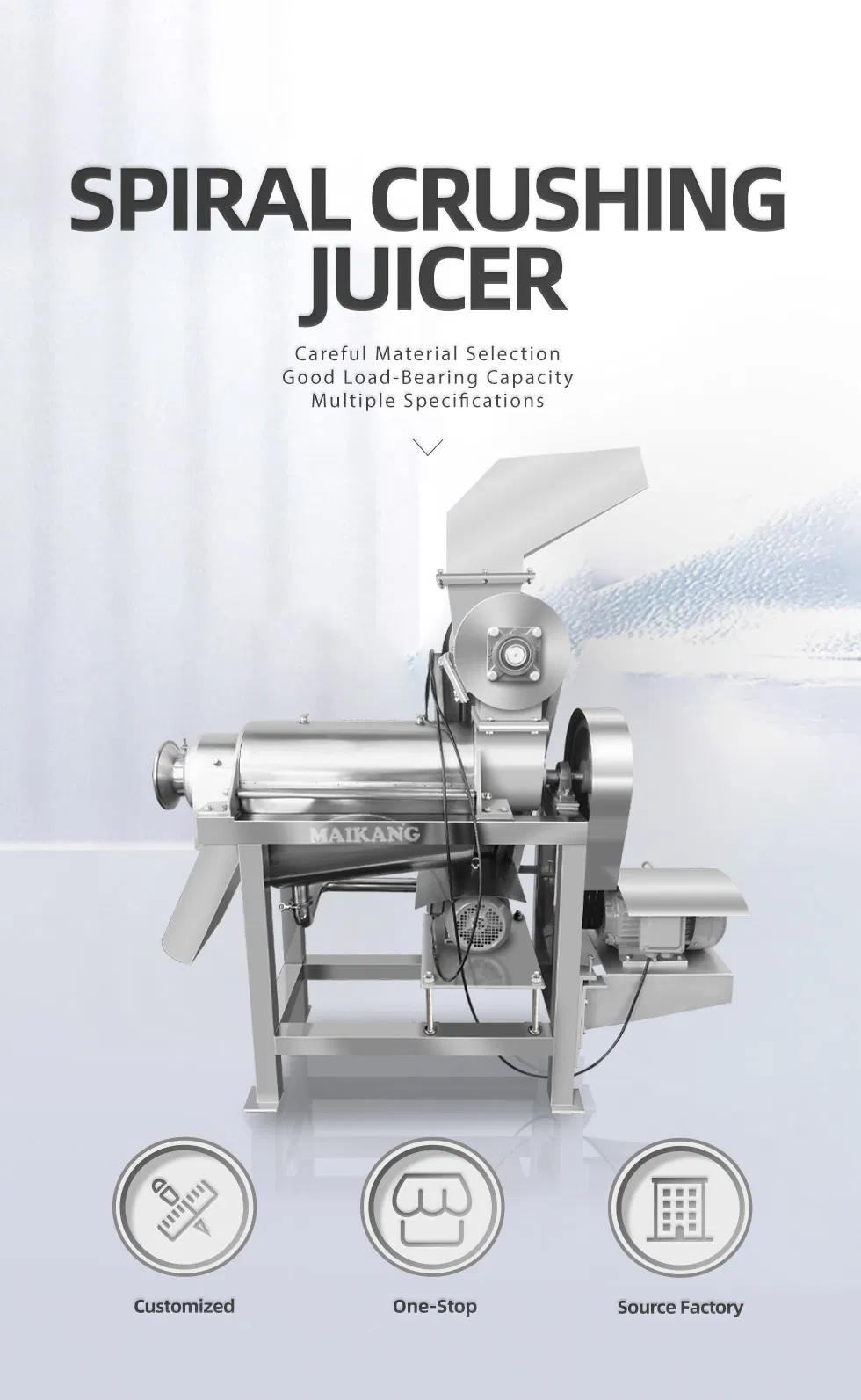

Juicer Extractor

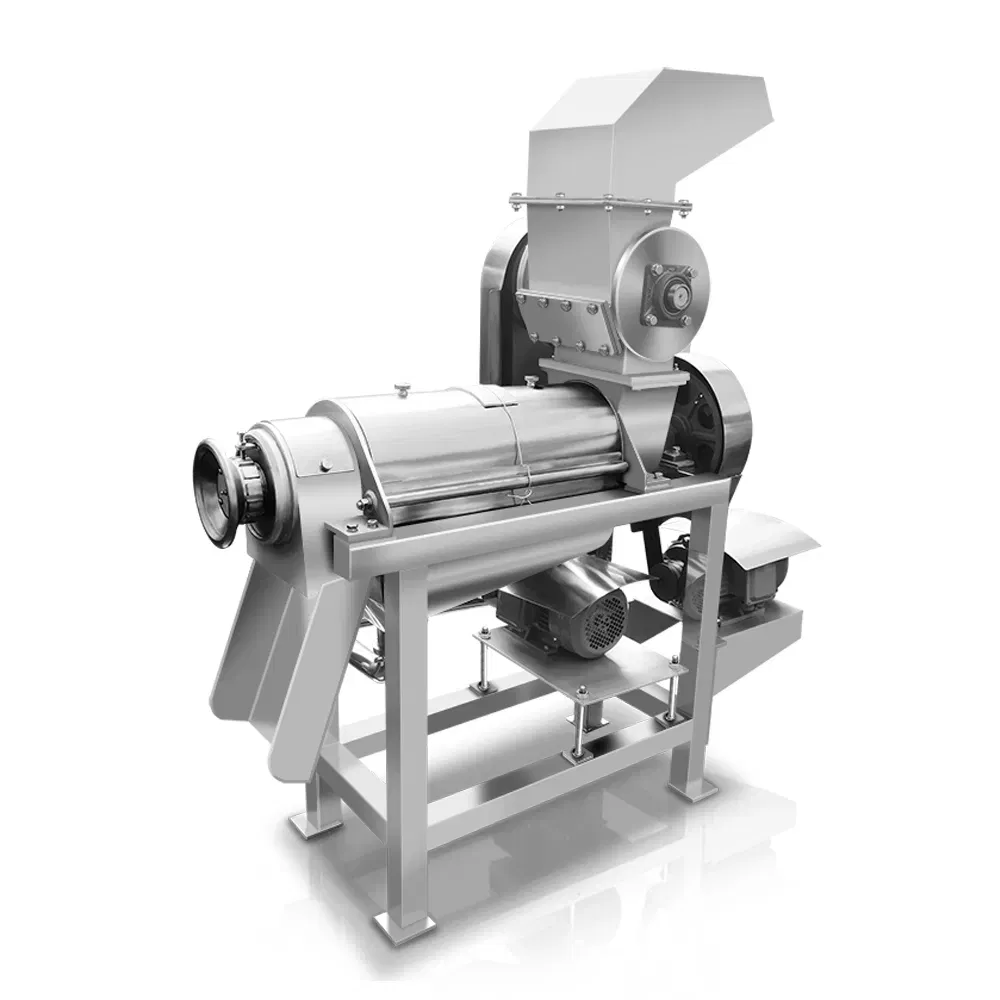

Fruit and Vegetable Crushing Juicer Machine
This machine is designed for crushing, pulping, and juicing various fruits and vegetables. It integrates the crushing and juice extraction stages into one continuous process, significantly improving juice yield and production efficiency.

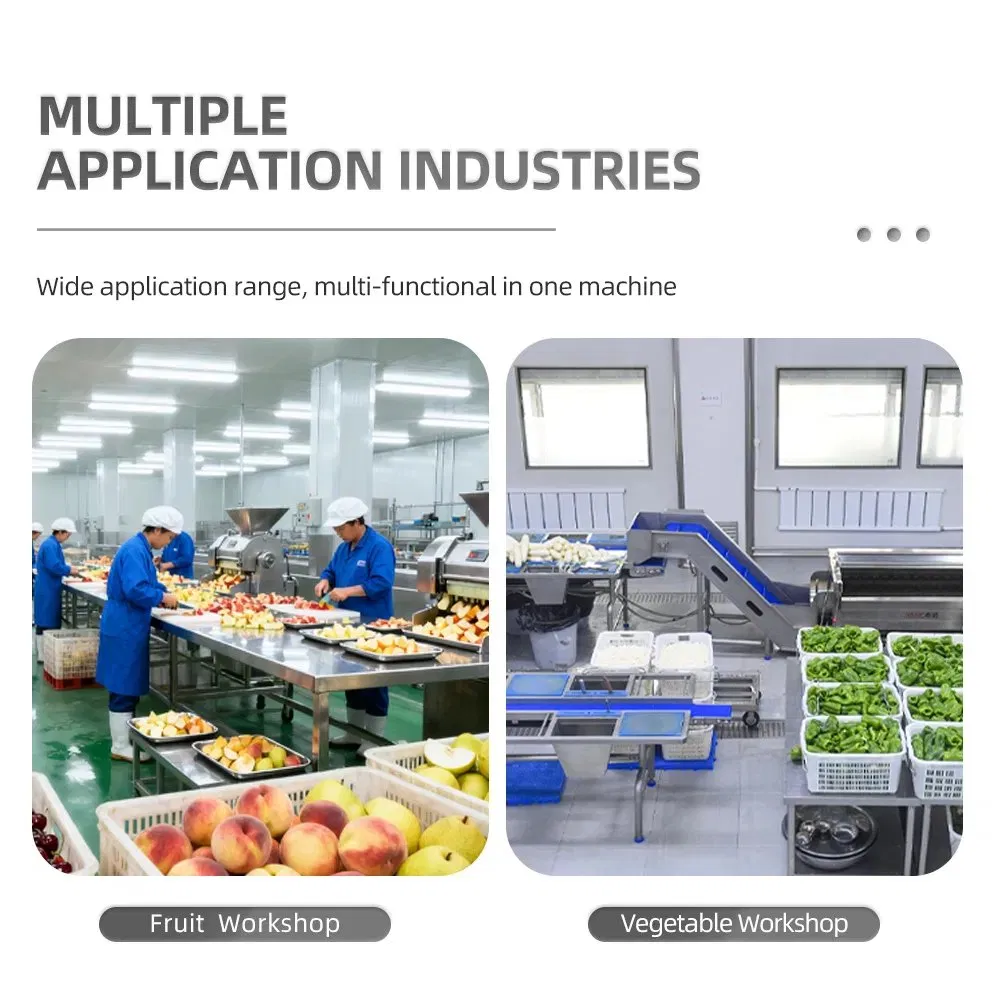

Suitable for processing: Apples, pears, pineapples, oranges, grapes, tomatoes, carrots, spinach, ginger, and other soft or hard fruits and vegetables. It is an ideal solution for juice production lines and food processing plants.

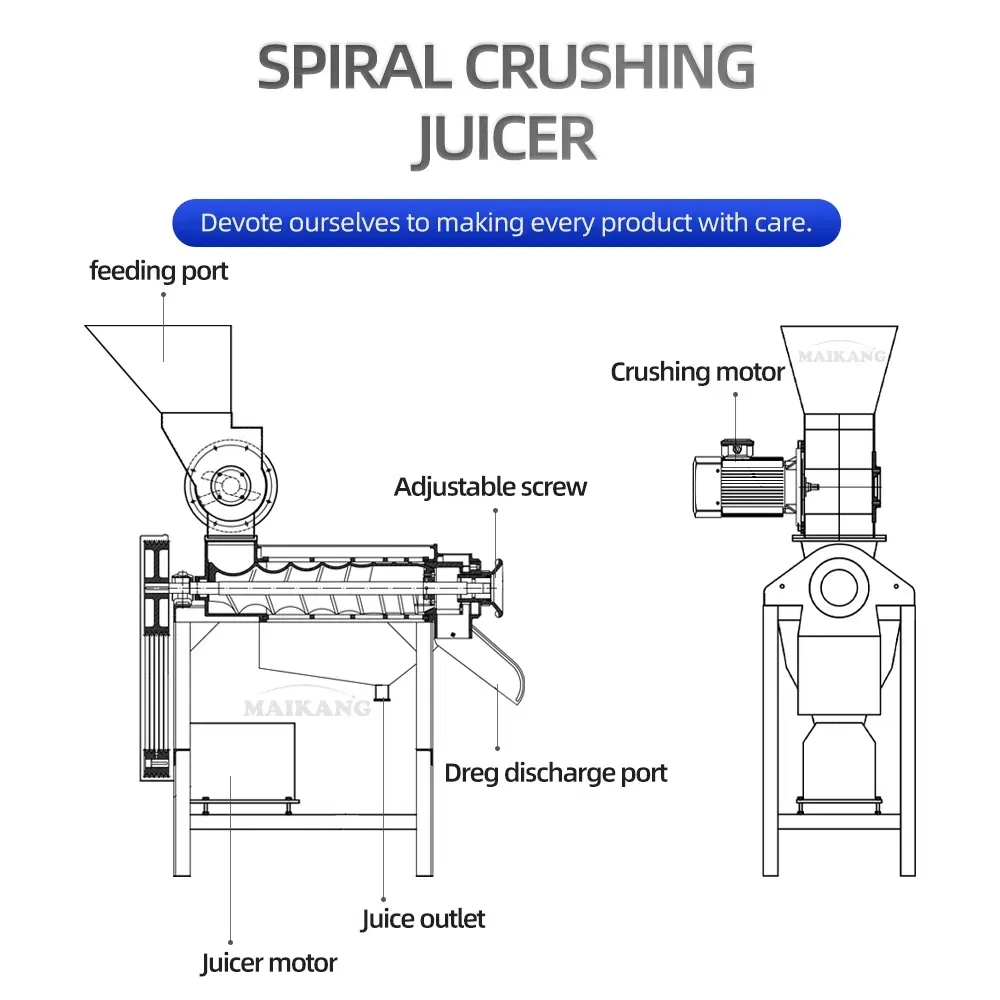

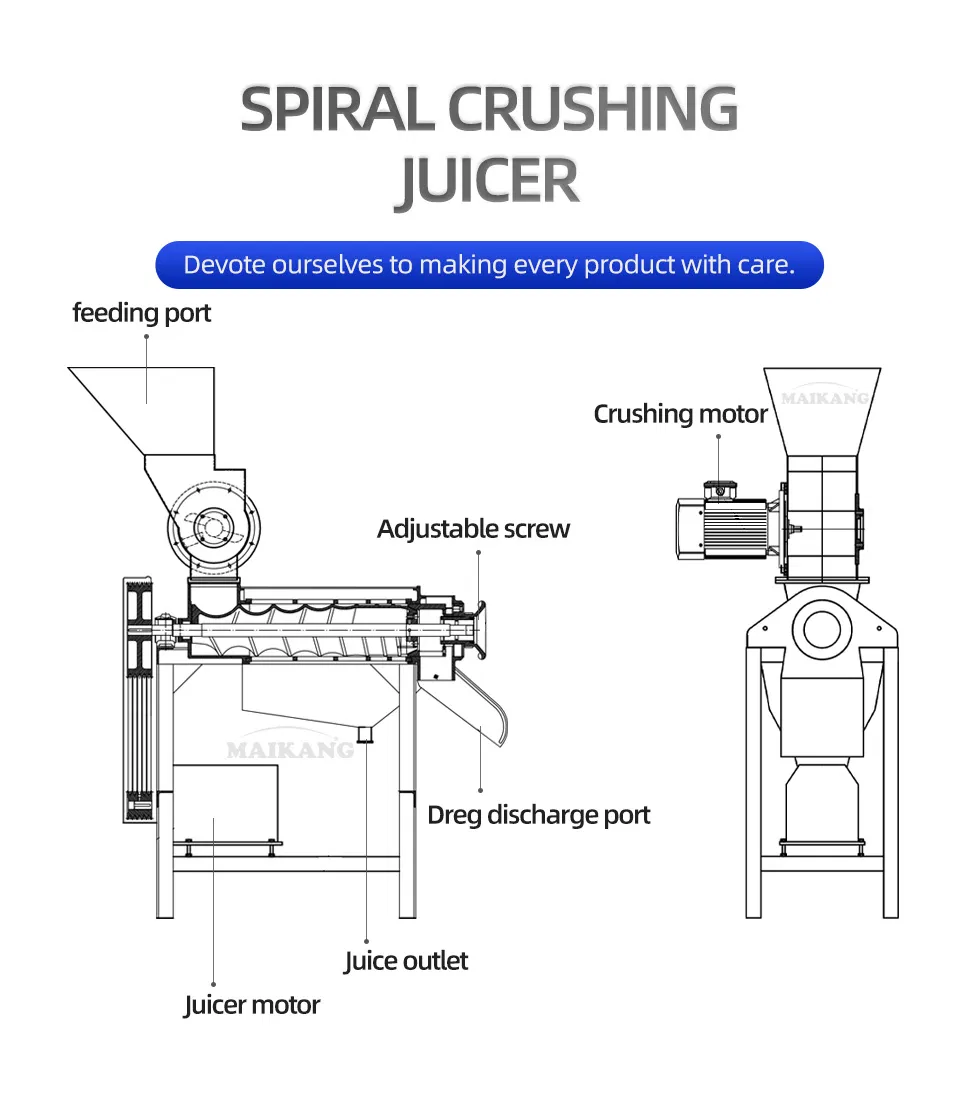

Processing Flow Machine Details Internal View
📊 Technical Specifications
Model DRB-PS0.5T DRB-PS0.5ST
Capacity (kg/h) 300 – 500 500 – 1000
Power (kW) 3 + 2.2 1.5 + 4
Dimension (mm) 1100 × 450 × 1550 1560 × 580 × 1470
Feeding Inlet (mm) 170 × 135 × 140 170 × 135 × 140
Juice Outlet Ø30 mm Ø30 mm
Materials Full 304 Stainless Steel for Food Contact Parts
⚙ Operation & Key Features

Operating Steps:

1
Place fruits or vegetables into the feeding hopper.
2
Start the machine; crushing blades break down the materials.
3
Pulp enters the screw juicing section for separation.
4
Collect fresh juice and discharge residue automatically.
5
Clean the machine with water after operation.
  • Integrated Design: Combines crushing and juicing, saving space and labor.
  • Food Grade: Made of 304 stainless steel, durable and easy to clean.
  • High Yield: Maximum juice extraction with low waste.
  • Automatic: Continuous operation ideal for industrial production.

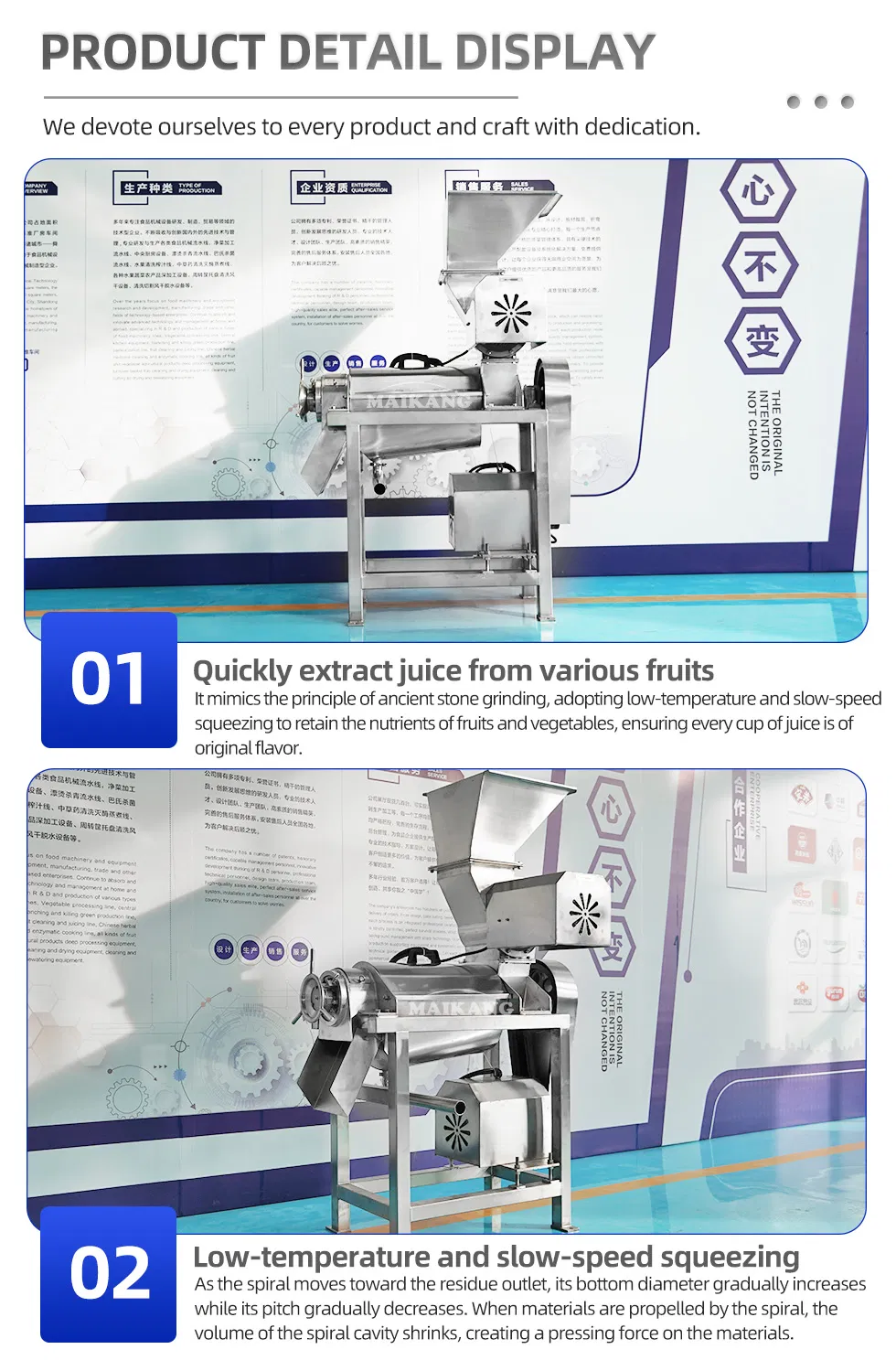

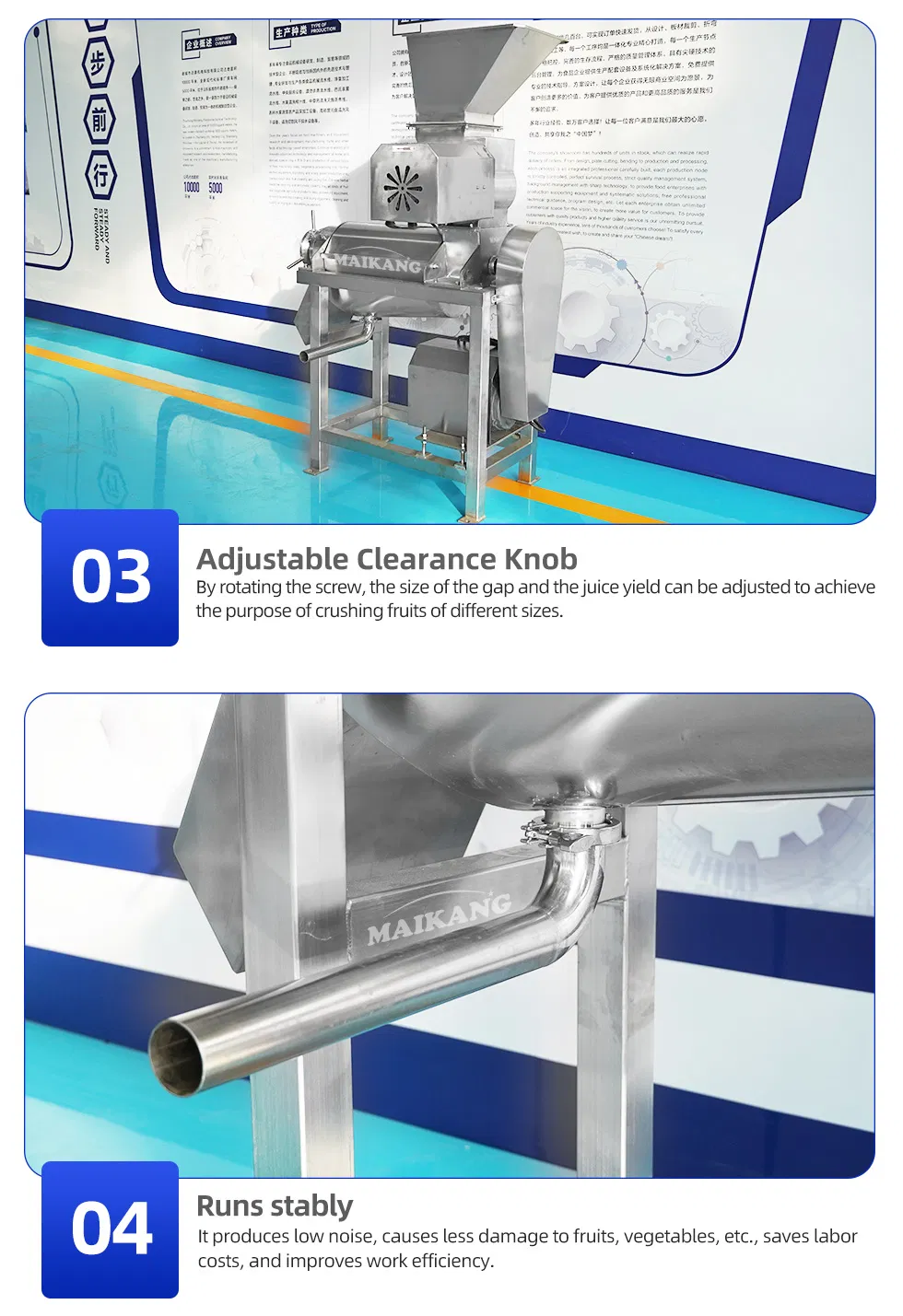

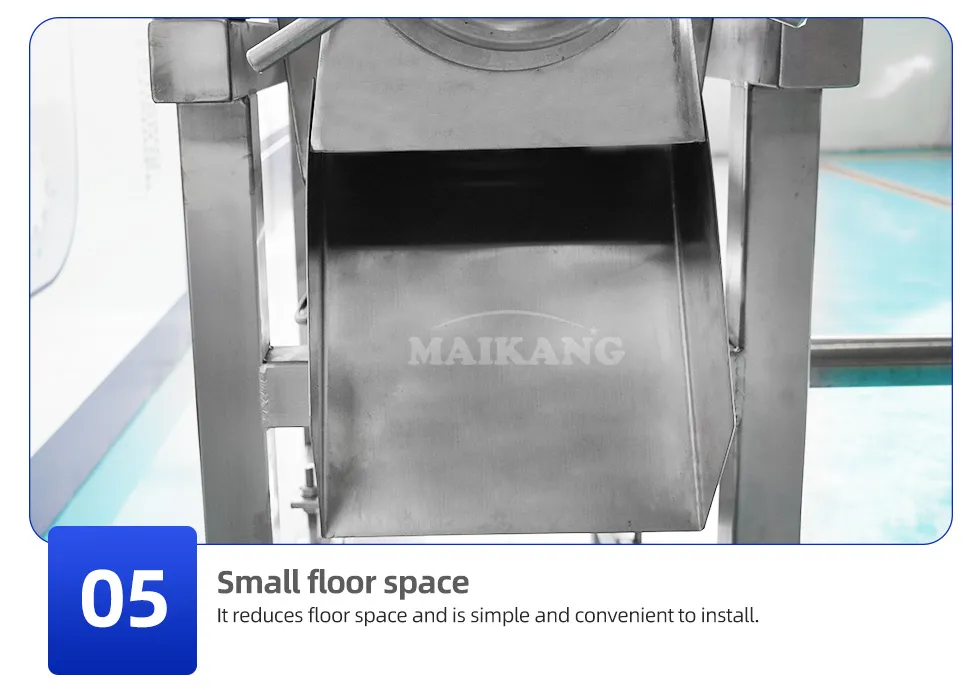

Juicing Detail Machine Structure Fruit Processing
🏭 Production Capabilities

As a professional manufacturer with 11 years of experience, we specialize in food processing machinery R&D and production. We provide one-stop solutions for automated production lines, including washing, juicing, drying, and meat processing equipment. Our commitment to quality and service helps clients enhance efficiency and product quality worldwide.

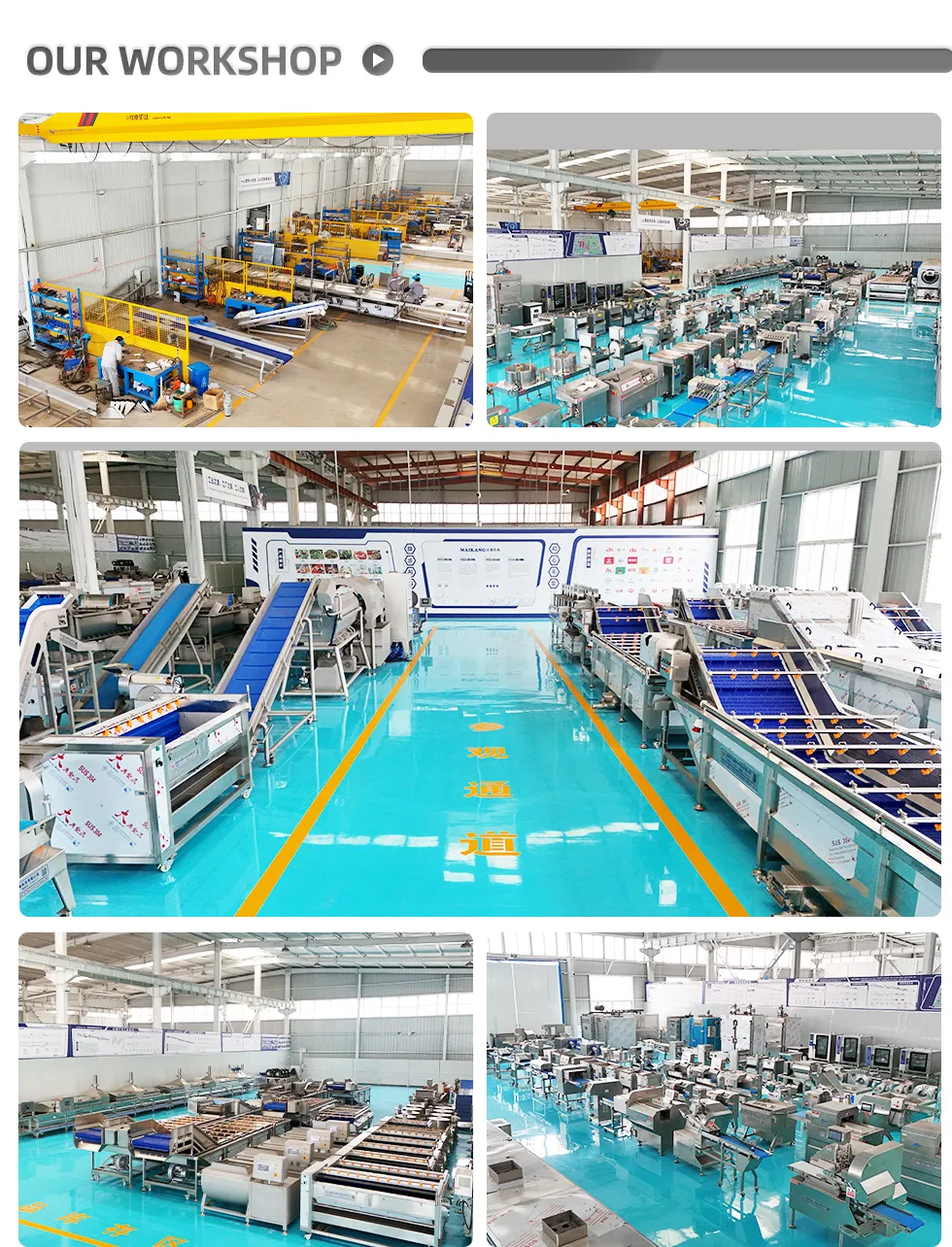

Factory Workshop Production Line
❓ Frequently Asked Questions
1. What materials can this machine process?
It is suitable for a wide range of fruits and vegetables, including apples, pears, pineapples, oranges, grapes, tomatoes, carrots, ginger, and leafy vegetables.
2. Is the machine made of food-grade materials?
Yes, all parts that come into contact with food are made of high-quality 304 stainless steel to ensure hygiene and corrosion resistance.
3. Can the crushing size and capacity be customized?
Yes, we provide customized designs for capacity, crushing size, and screw structures to meet specific industrial requirements.
4. What is the after-sales service policy?
We provide a one-year free warranty and lifetime maintenance service. For international customers, we also offer installation and training support.
5. Does it separate the juice and pulp automatically?
Yes, the machine features an integrated screw separation system that automatically discharges juice and residue through separate ports.
6. How easy is it to clean the equipment?
The machine is designed with a self-cleaning structure. It can be easily rinsed with clean water after use to maintain hygiene standards.
