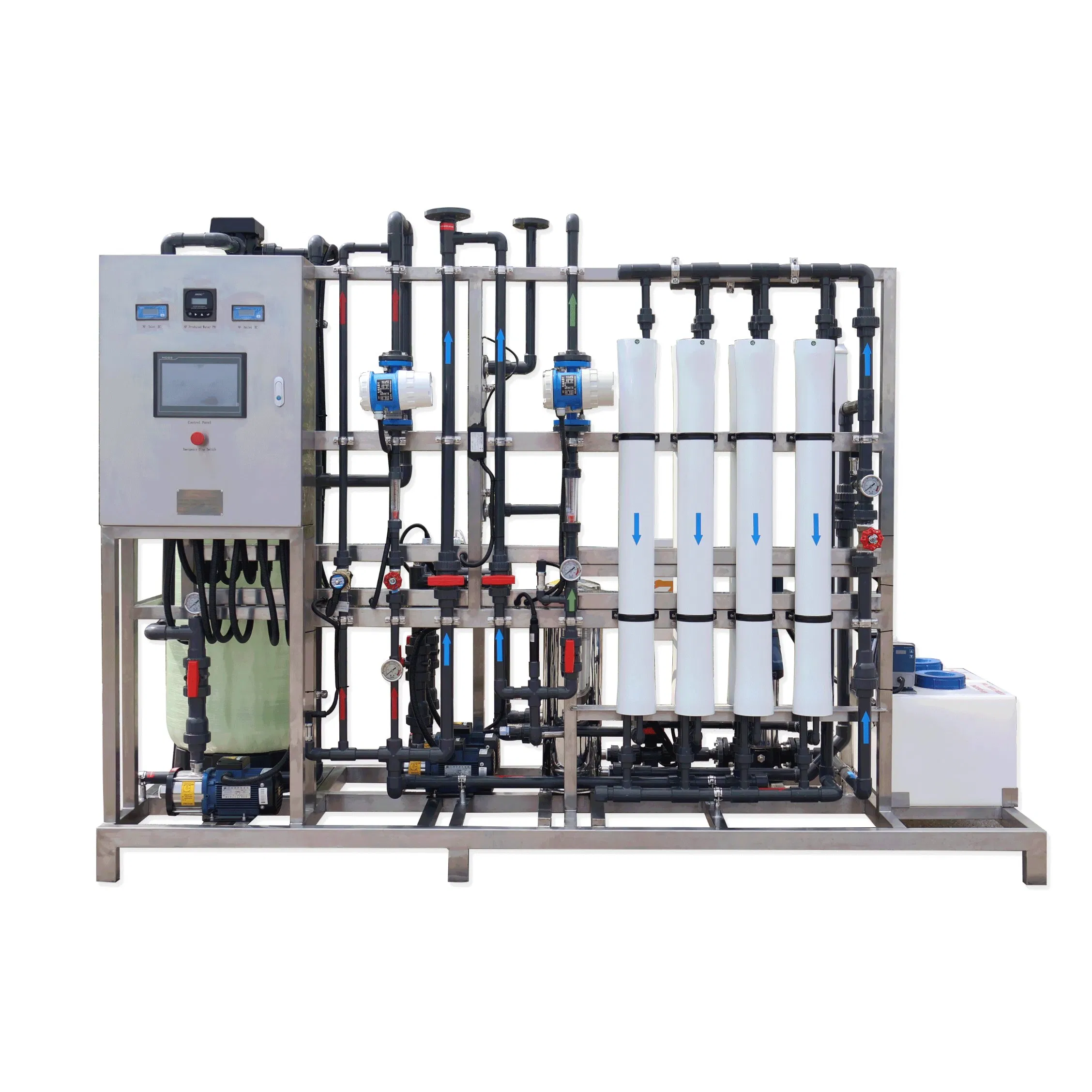

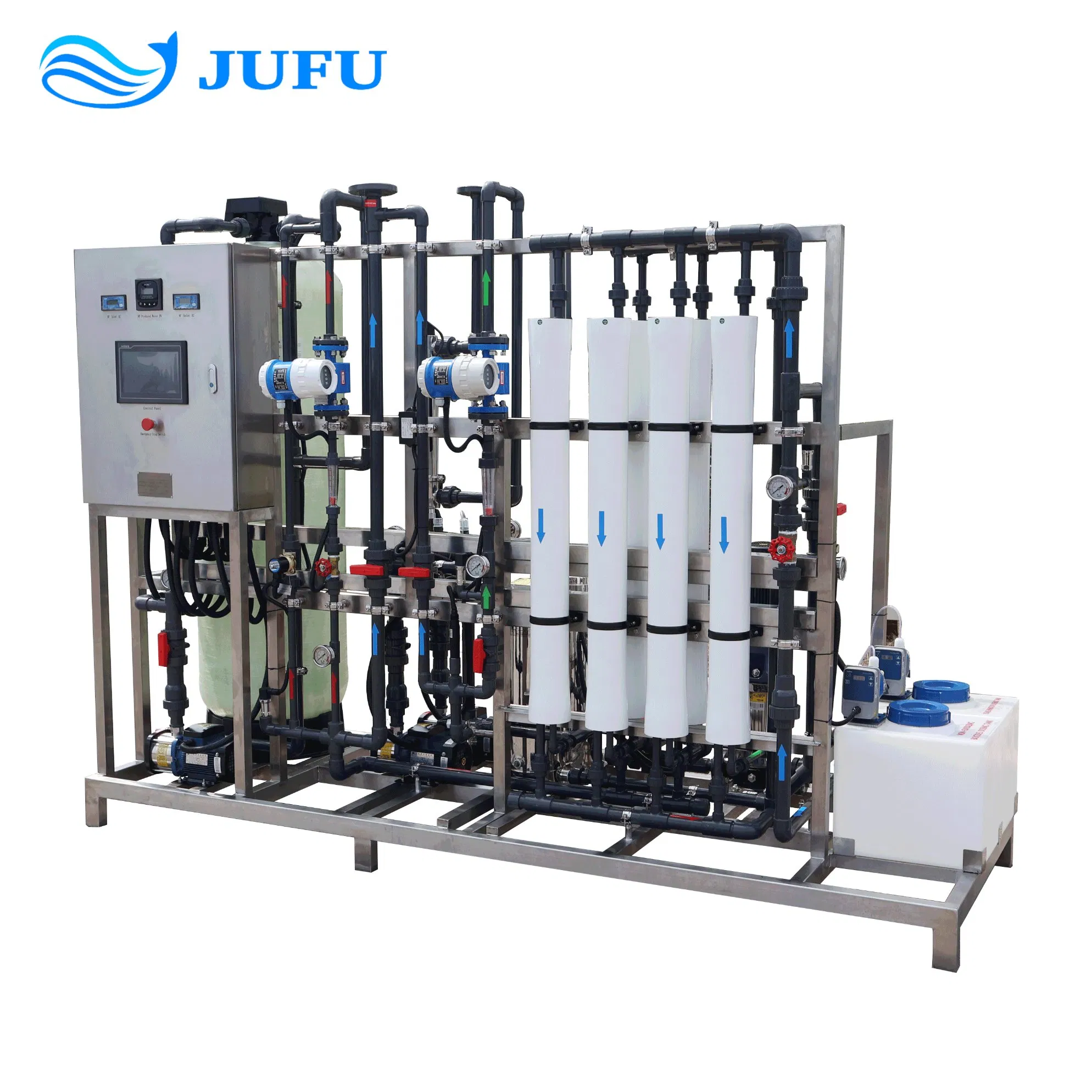

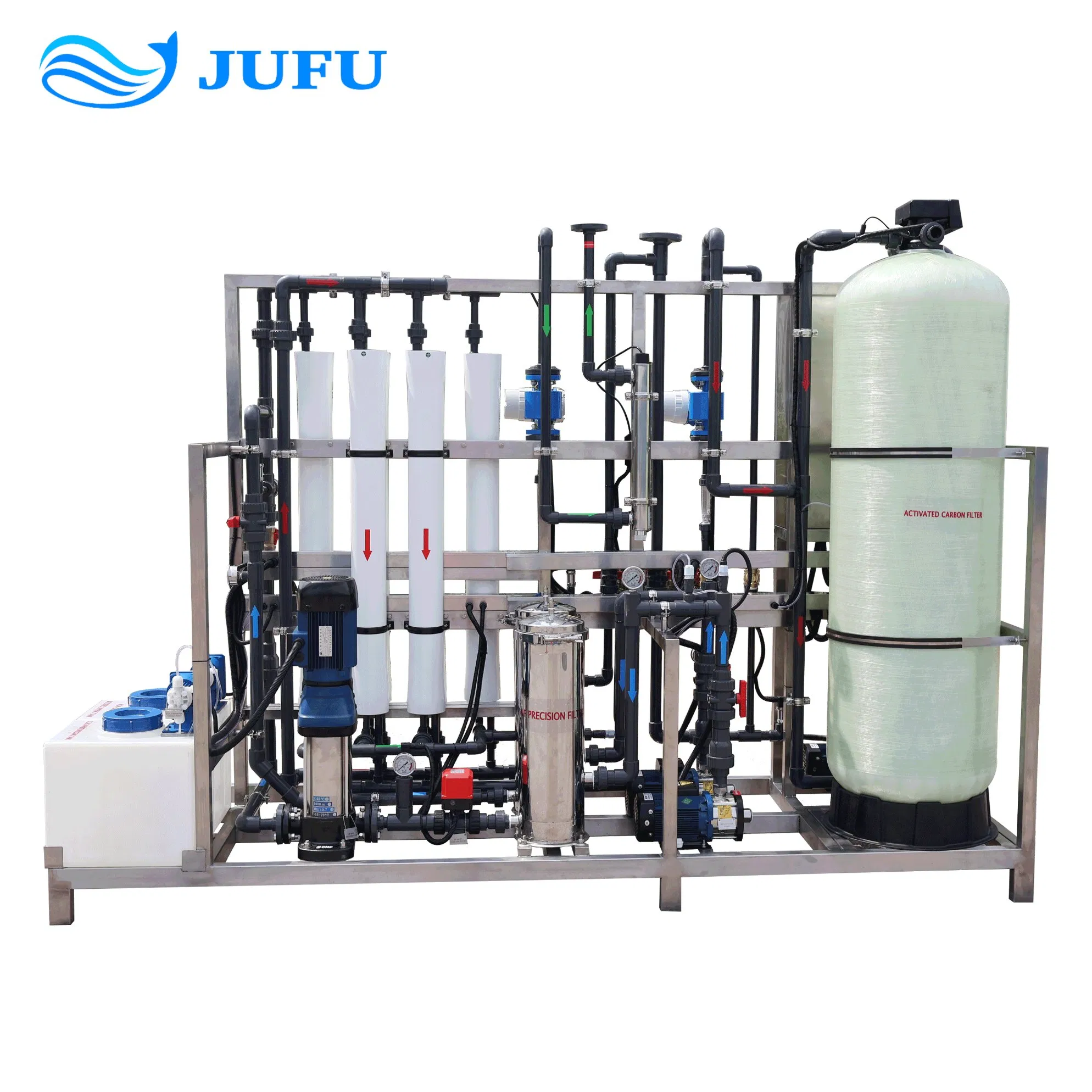

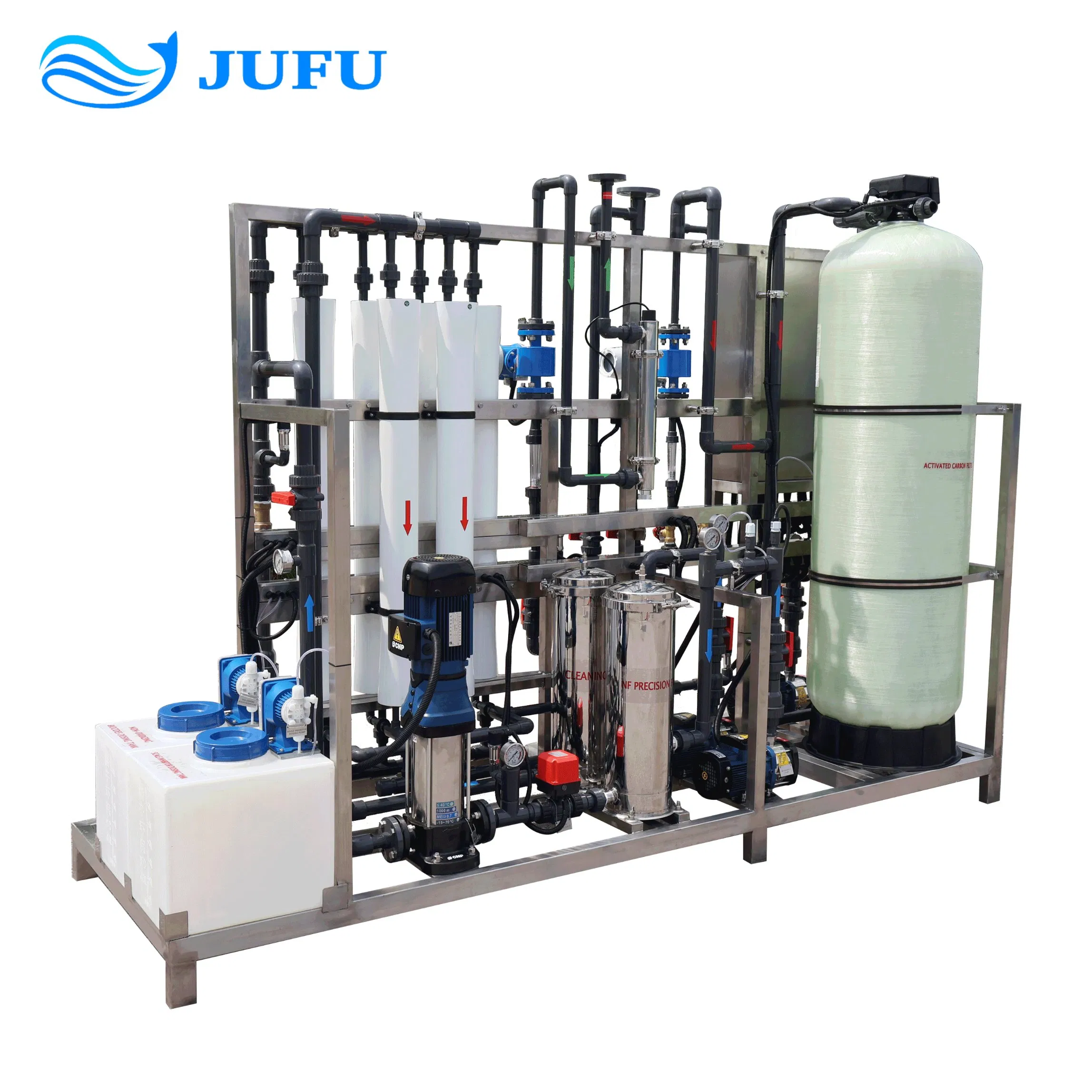

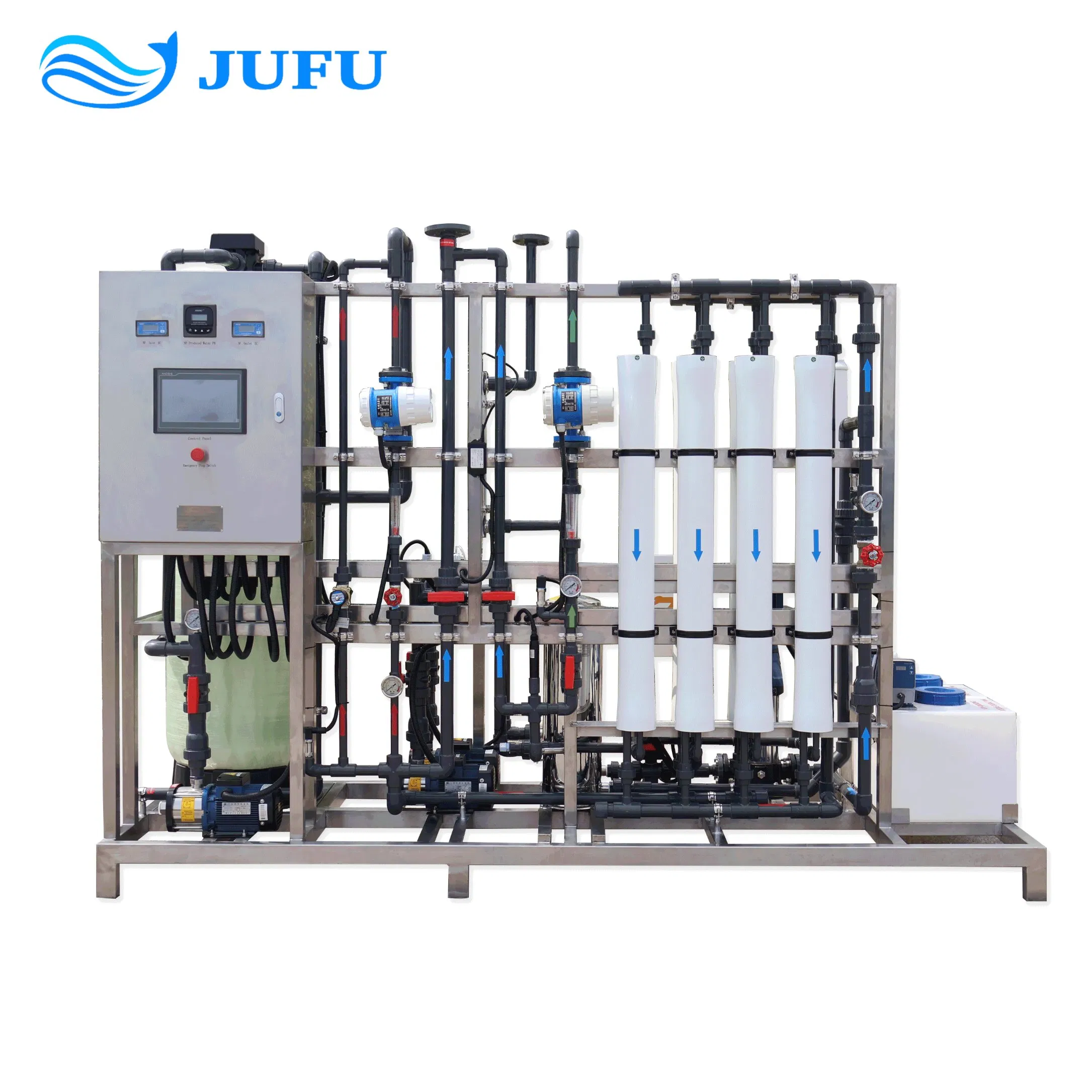

2500lph NF System Nanofiltration Water Treatment Equipment Nano Filter System NF Plant
2500lph NF System Nanofiltration Water Treatment Equipment Nano Filter System NF Plant
2500lph NF System Nanofiltration Water Treatment Equipment Nano Filter System NF Plant
2500lph NF System Nanofiltration Water Treatment Equipment Nano Filter System NF Plant
2500lph NF System Nanofiltration Water Treatment Equipment Nano Filter System NF Plant
1 / 5
2500lph NF System Nanofiltration Water Treatment Equipment Nano Filter System NF Plant
2500lph NF System Nanofiltration Water Treatment Equipment Nano Filter System NF Plant
2500lph NF System Nanofiltration Water Treatment Equipment Nano Filter System NF Plant
2500lph NF System Nanofiltration Water Treatment Equipment Nano Filter System NF Plant
2500lph NF System Nanofiltration Water Treatment Equipment Nano Filter System NF Plant

2500lph NF System Nanofiltration Water Treatment Equipment Nano Filter System NF Plant

Customization: Available
Certification: ISO9001, CE
Salt Rejection Rate: 99.0%
Send Inquiry

Product Description

Basic Specifications

Model NO.
JFNF-2.5T
Application
Industry
Capacity
2500lph
Recovery Rate
75%
Operation
Automatic Running
Core Component
NF Membrane, Pump
Frame Material
Stainless Steel
Tank Material
FRP/SUS
Pipe Material
U-PVC
HS Code
842121990

Nanofiltration System Description

Nanofiltration Membrane: Pore size above 1nm, generally 1-2nm. It is a functional semi-permeable membrane that allows solvent molecules or certain low molecular weight solutes or low valence ions to pass through. It is used for removing organic matter and coloration from surface water, removing hardness from groundwater, partially removing dissolved salts, concentrating fruit juices, and separating useful substances from pharmaceuticals.

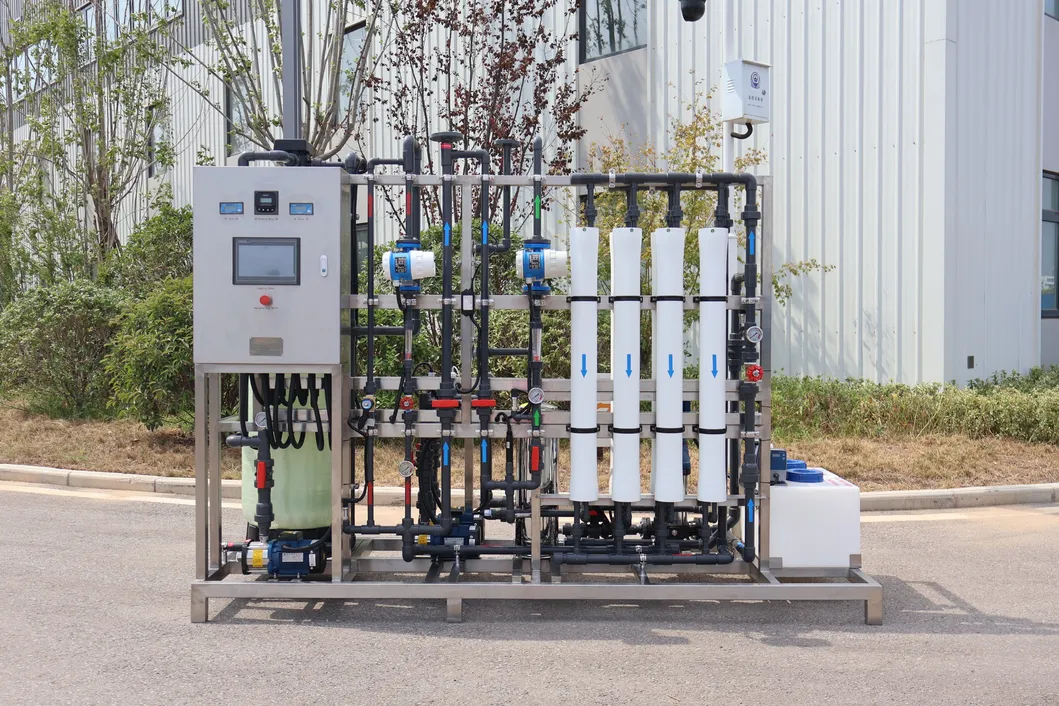

NF System

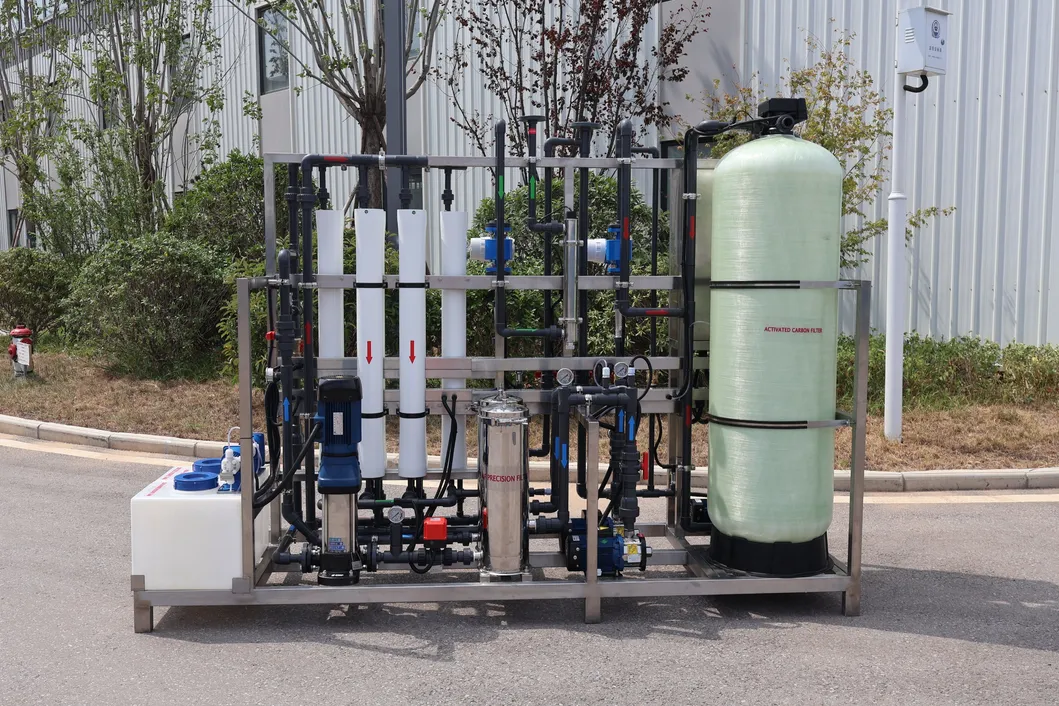

NF Plant

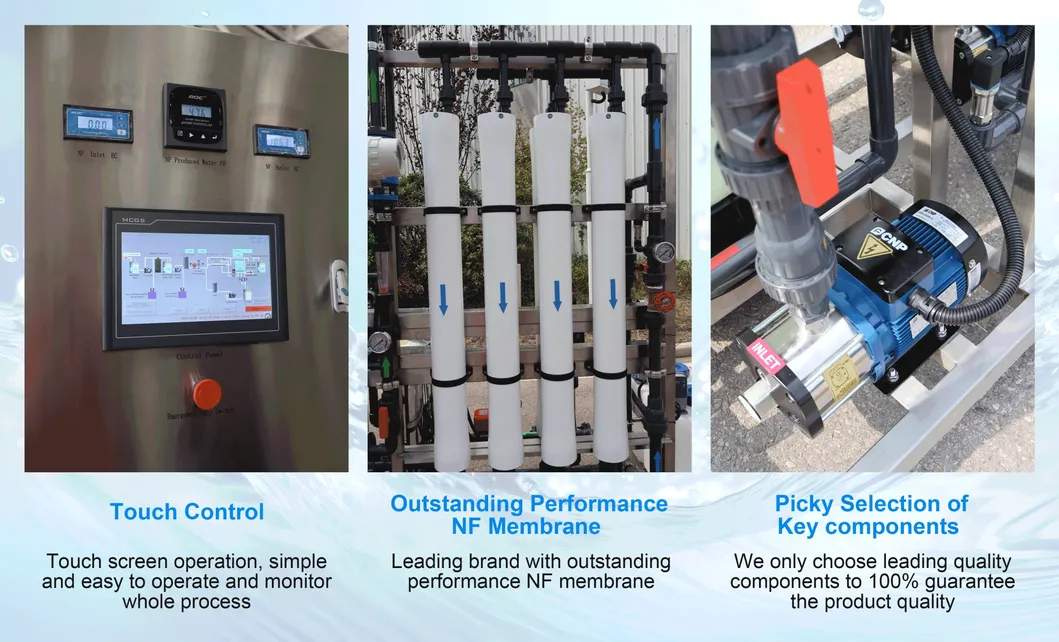

Nano Filter System

Technical Parameters

System Specification: JFNF-2500L
Power3.6KW
Power Supply220V /380V/415V - 50Hz/60Hz (Customized)
Operating Pressure0.5 - 1.0MPa
Producing Capacity2500L/H
Desalination Rate99%
Number of Membranes6
PumpCNP / NYP ... (Optional)
Tank MaterialSS / FRP (Optional)
Control ValveManual / Automatic
Membrane HousingSS / FRP
Pipe MaterialU-PVC/ Stainless steel (Optional)

Applicable Scenes

💧
Pharmaceuticals: Desalination and concentration of antibiotic resin solution, vitamin concentration.
💧
Amino acids: Decolorization, removal of impurities, concentration, desalination.
💧
Food Industry: Purification of oligosaccharide, starch sugar, fruit juice concentration, plant extraction.
💧
Liquor Recovery: Monosodium glutamate and glucose crystallization mother liquor decontamination.
💧
Water Treatment: Printing and dyeing wastewater, water reuse, ultrapure water preparation.
💧
Acid/Alkali Recovery: Waste liquid treatment in chemical fiber and pharmaceutical industries.

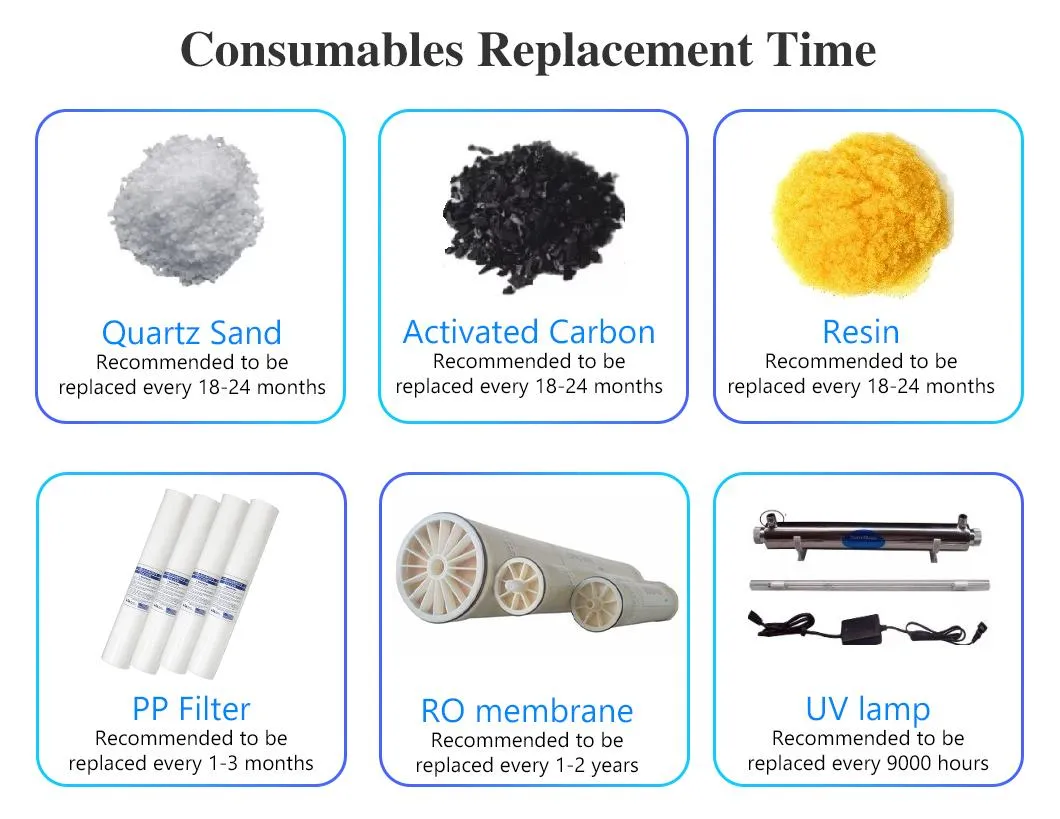

NF System Process

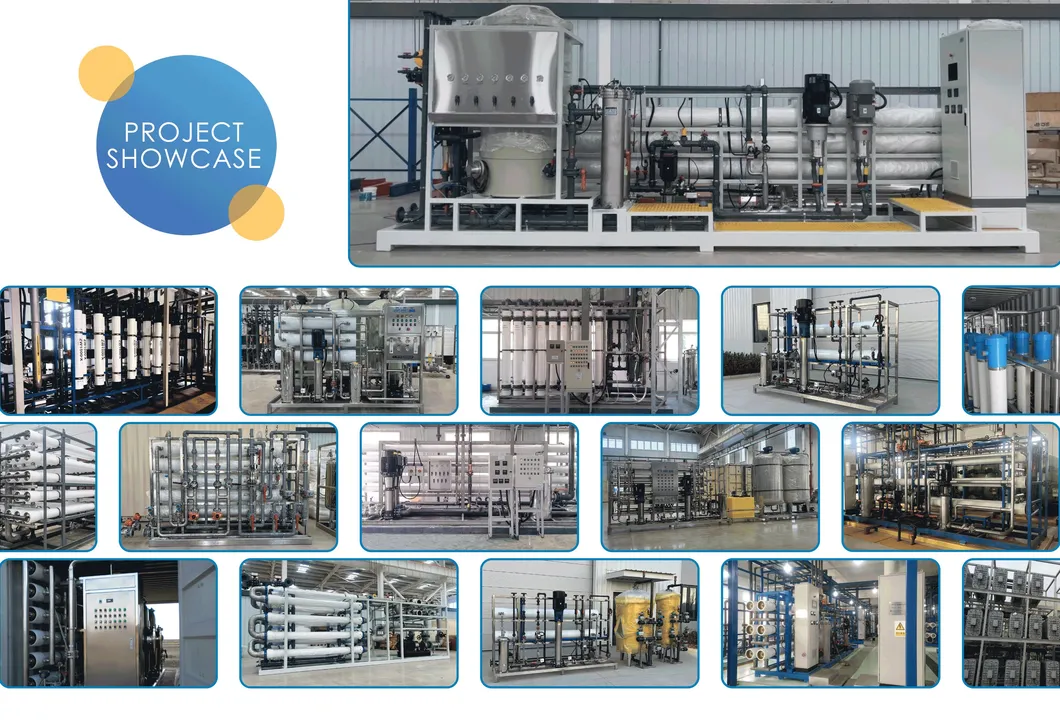

Equipment Detail

Frequently Asked Questions

Q: What information is needed for product selection?
A: Please provide the raw source of your water (Water Analysis Report if possible), requested output capacity, the specific application for the project, and local piping standards.
Q: How can I choose the product that perfectly matches my case?
A: Tailor-made solutions are provided based on your specific requirements. All project pain-points are analyzed for overall optimization.
Q: What are the payment terms?
A: Typically, a deposit is required in advance with the balance cleared before delivery.
Q: What is the typical lead time?
A: It depends on the equipment, but generally 3-5 weeks for standard products.
Q: What is the warranty for the system?
A: A 1-year warranty is offered. The equipment itself can work for over 5 years with proper use and maintenance.
Q: Is on-site installation guidance available?
A: Yes, guidance can be provided based on project requirements and local market needs.
