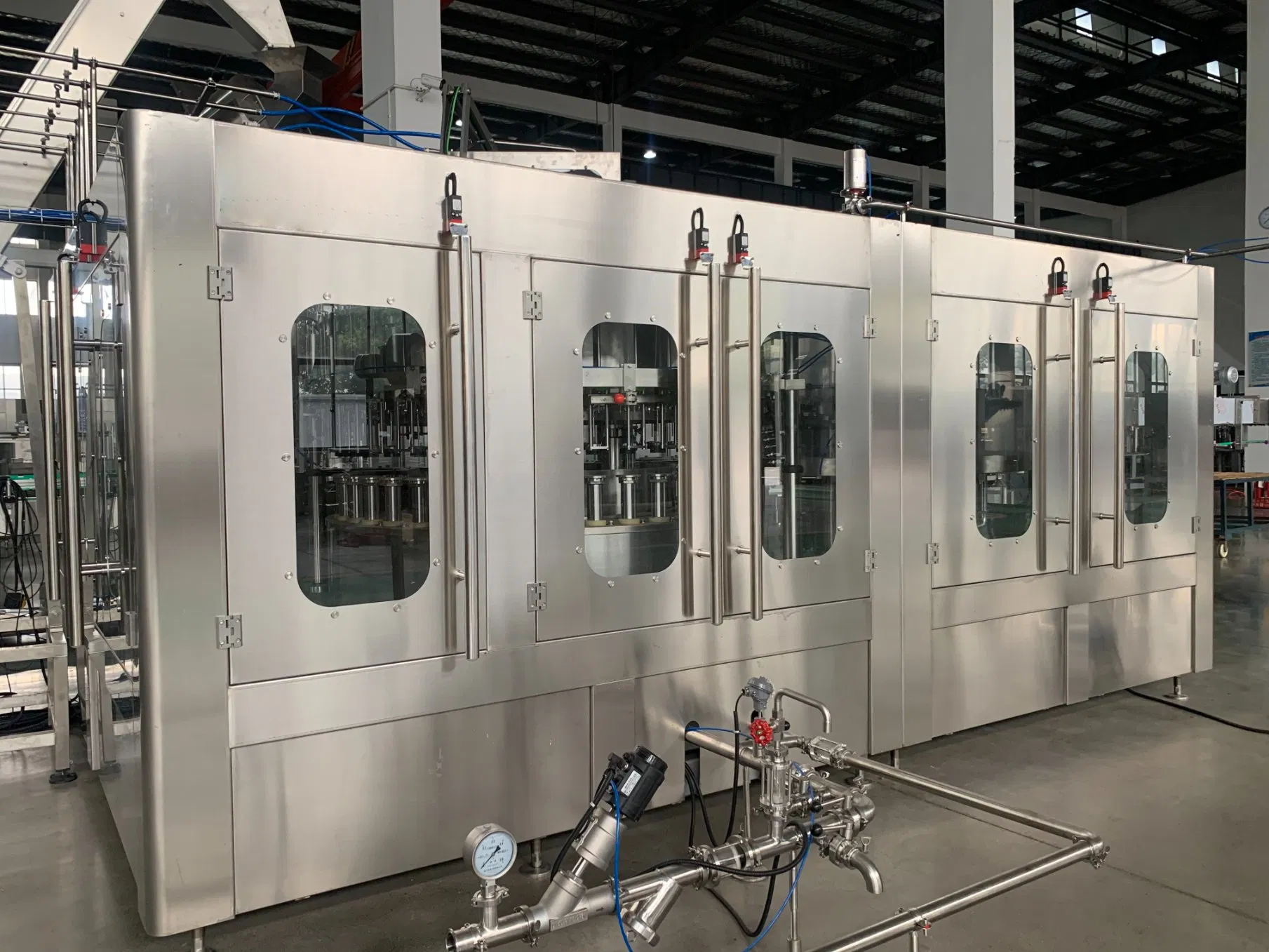

Introduction: This machine utilizes advanced technology combined with the characteristics of the beer production industry. It features excellent mechanical reliability, improved rinsing, filling, capping, and sterilization functions.

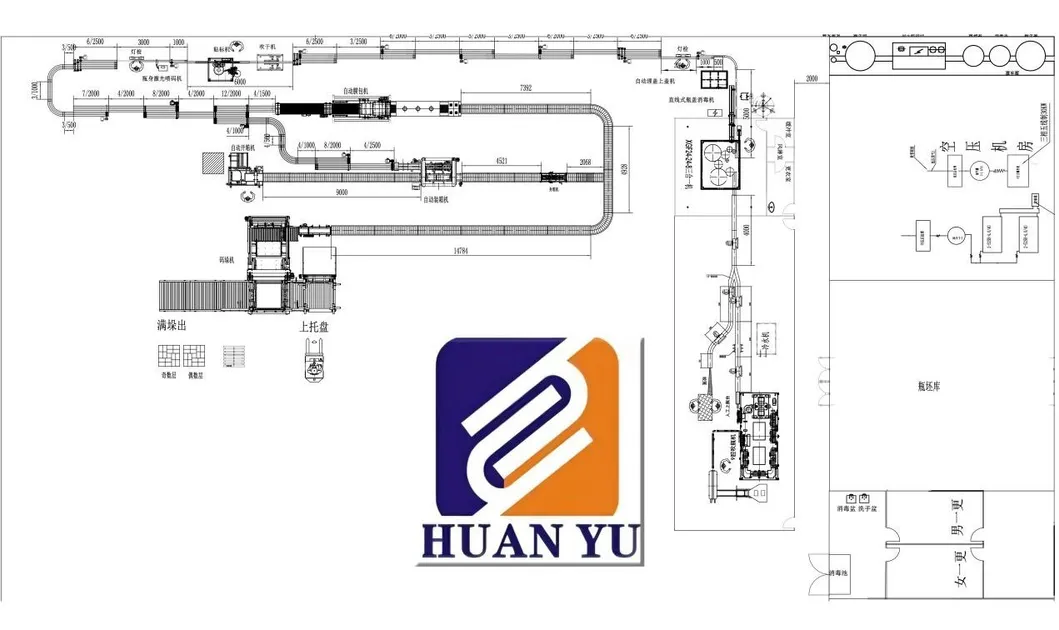

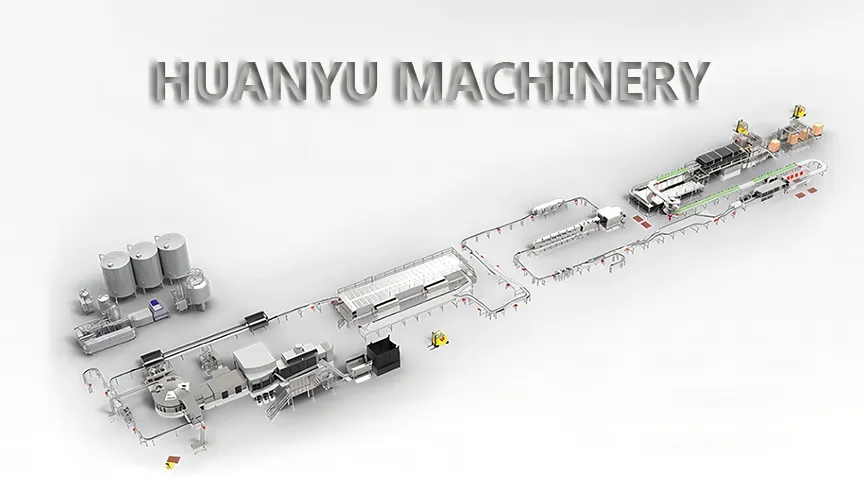

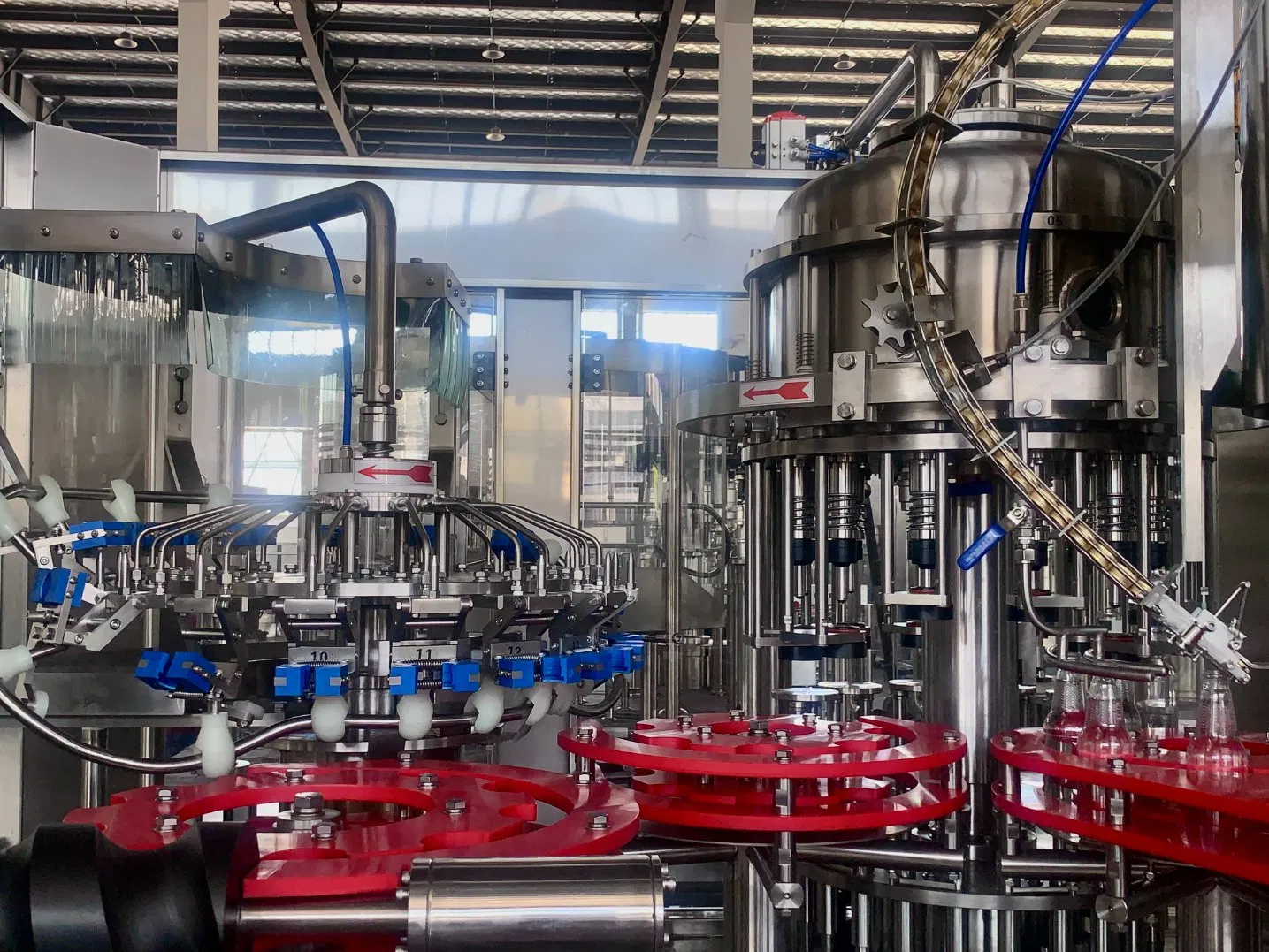

Complete Beer Filling Plant System: Cap loader → Automatic 3-in-1 washing filling and capping machine → Flat conveyor → Light Checker → Bottle dryer → Labeling machine → Date/code laser printer → Automatic PE shrink wrapping Machine.
| Model | Capacity (500ml) | Rinsing Heads | Filling Heads | Capping Heads | Dimensions (mm) |
|---|---|---|---|---|---|
| BCGF14-12-4 | 2000BPH | 14 | 12 | 4 | 2100*1800*2700 |
| BCGF18-18-6 | 3500BPH | 18 | 18 | 6 | 2600*2100*2700 |
| BCGF24-24-8 | 6000BPH | 24 | 24 | 8 | 3200*2300*2700 |
| BCGF32-32-10 | 9000BPH | 32 | 32 | 10 | 4200*2600*2700 |
| BCGF60-60-15 | 22000BPH | 60 | 60 | 15 | 6000*4200*2700 |
| BCGF80-80-22 | 30000BPH | 80 | 80 | 22 | 7000*5000*2700 |

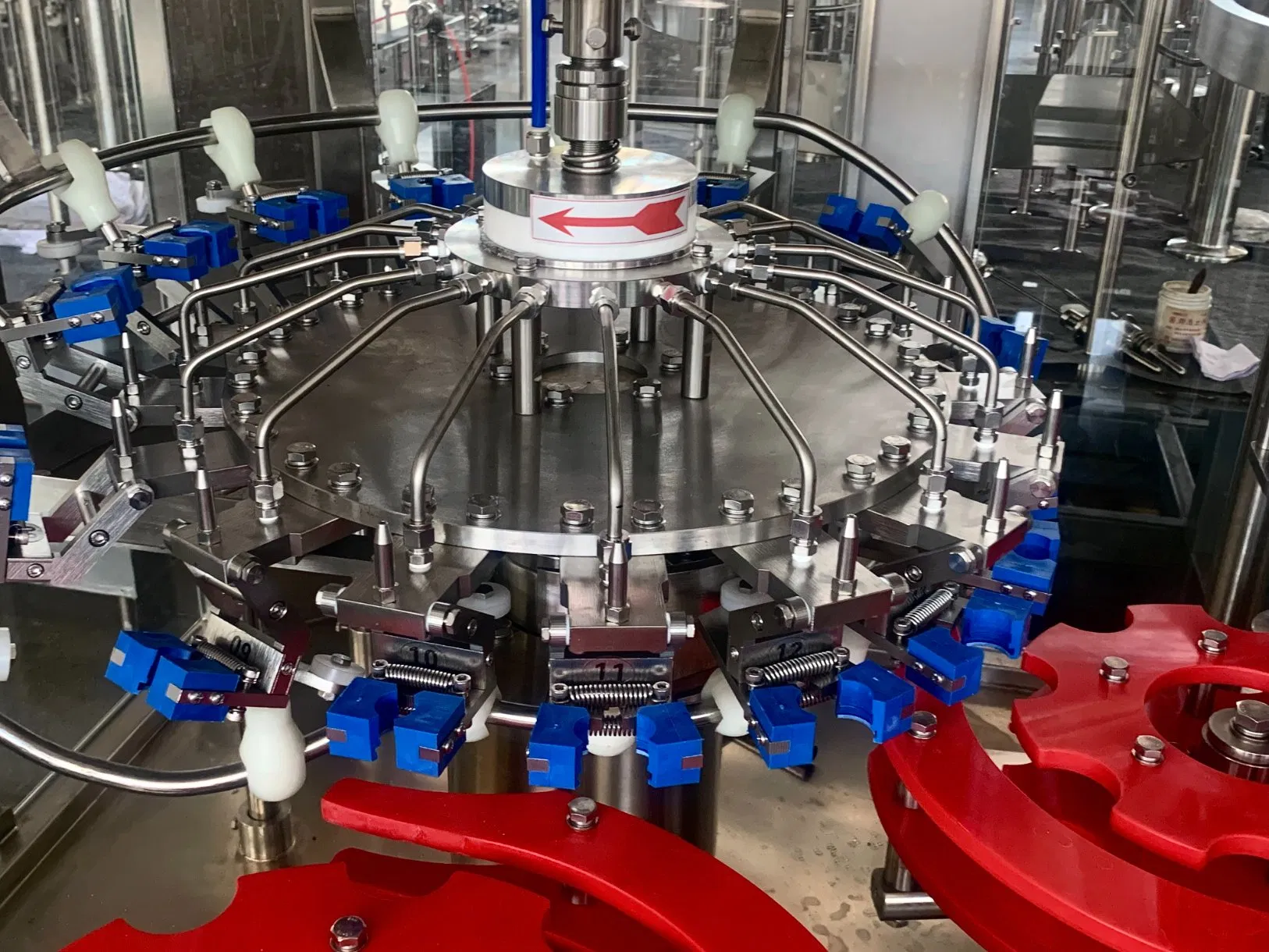

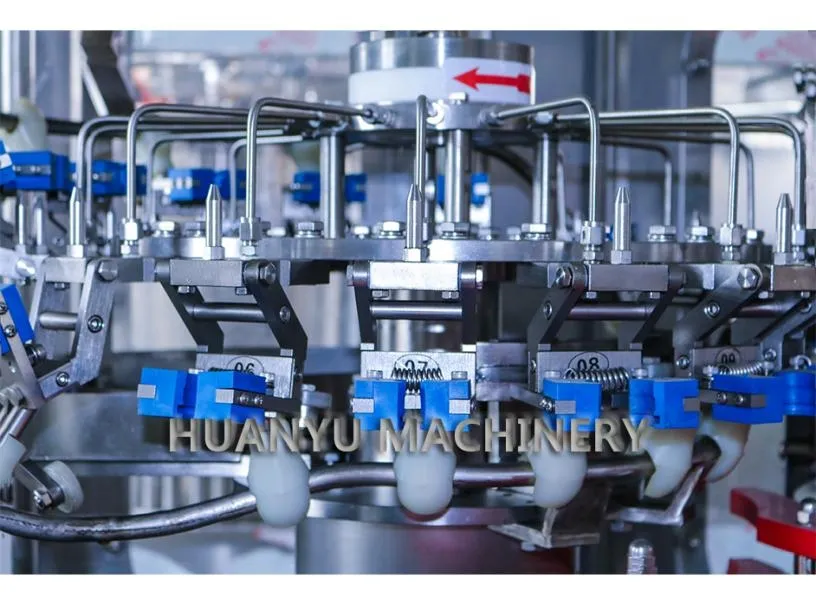

Rinsing Part
Rotary type used for rinsing new bottles. Features a stainless steel clip with a simple structure and easy adjustment. Designed to avoid secondary pollution at the bottle mouth efficiently.

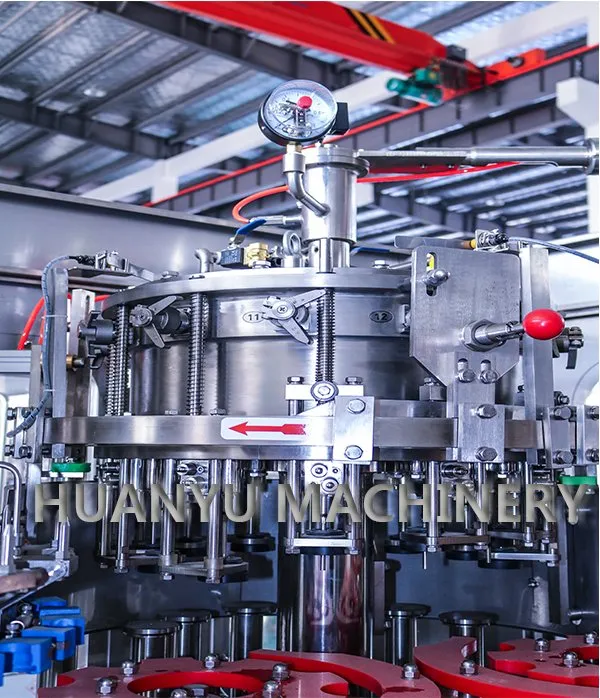

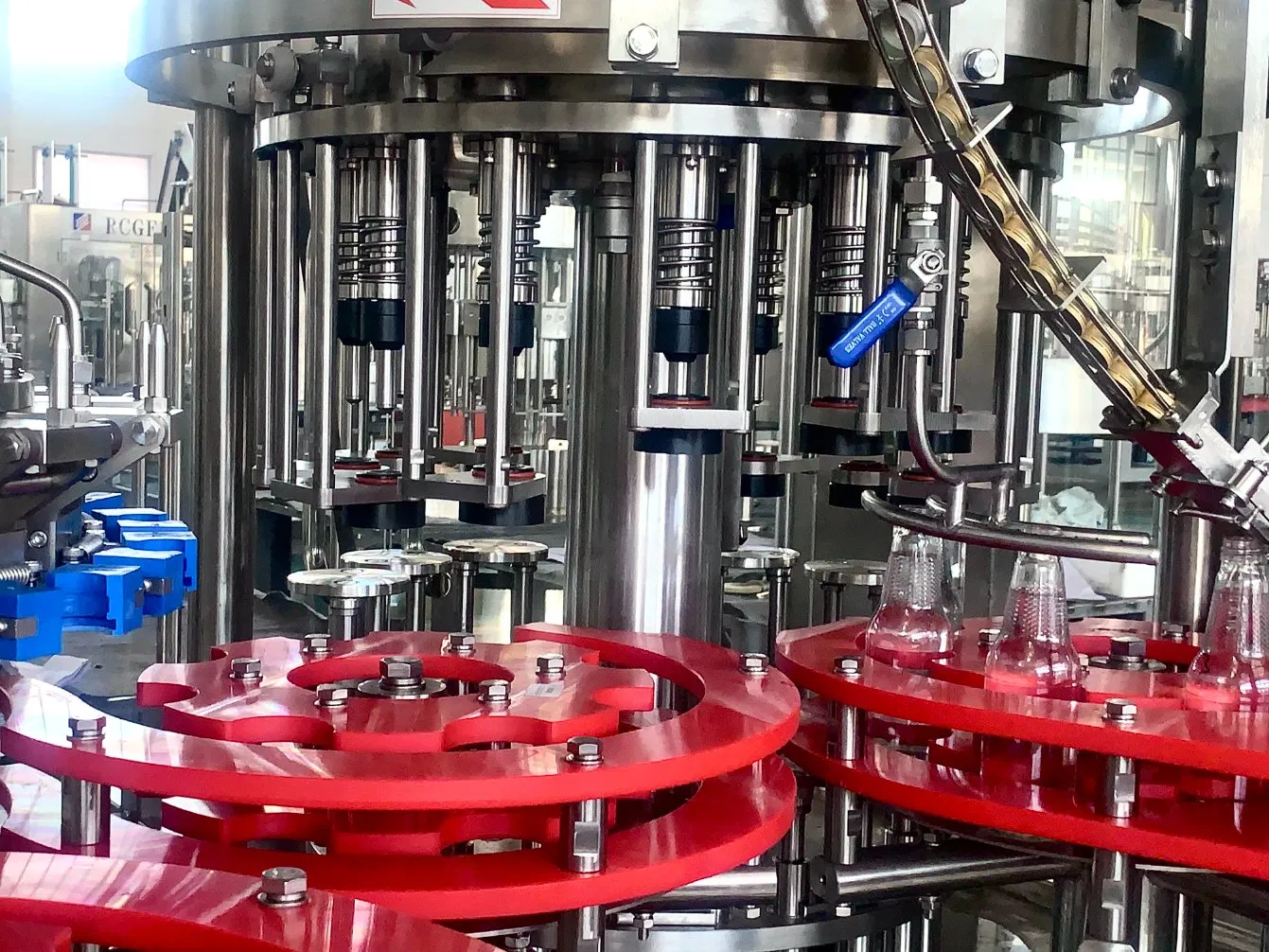

Filling Part
Adopts a constant pressure mechanism valve for fast and high-accuracy liquid levels. The main drive uses high-efficiency gear drives with low noise and automatic lubrication systems.

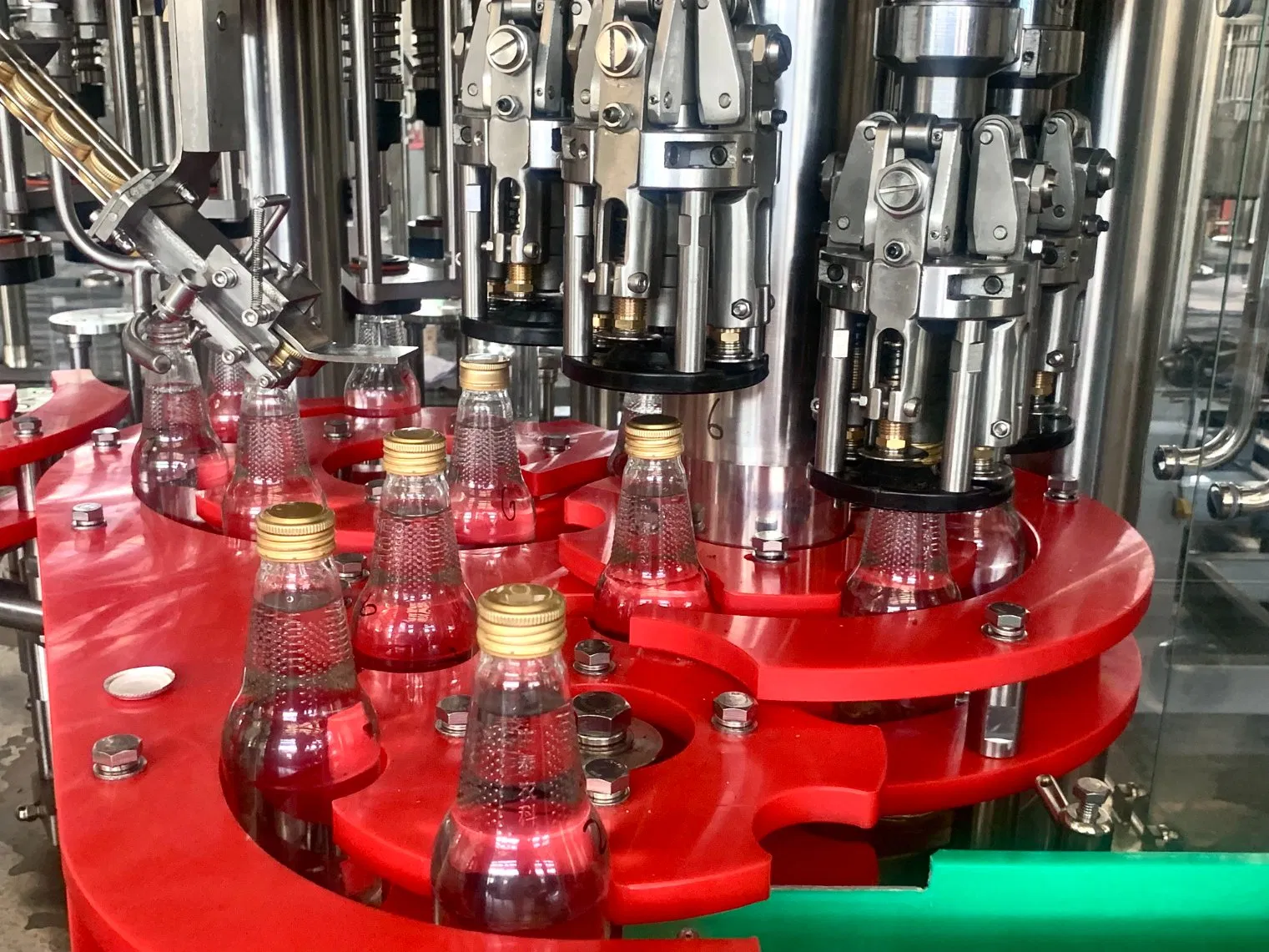

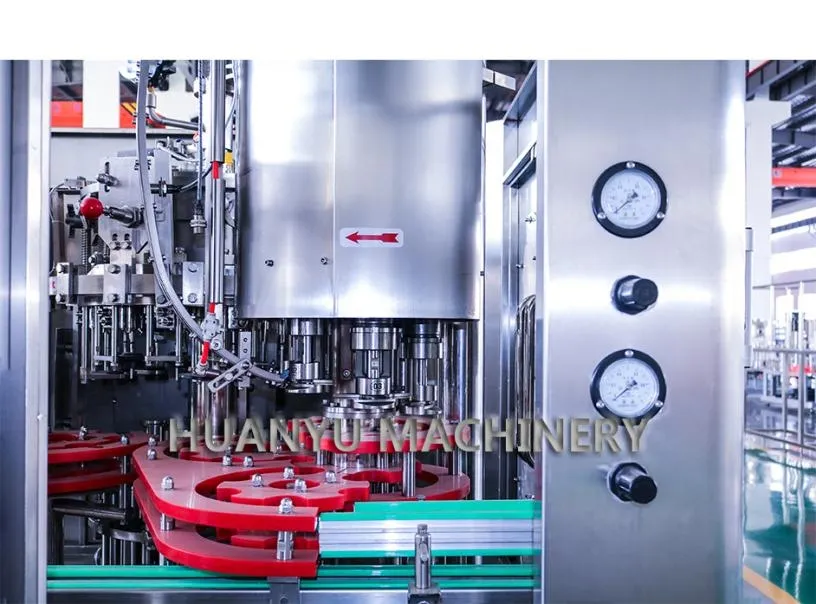

Capping Part
Ensures correct cap orientation using centrifugal force and separation devices. Equipped with photoelectric switches to stop the host if no caps are detected, ensuring high reliability.

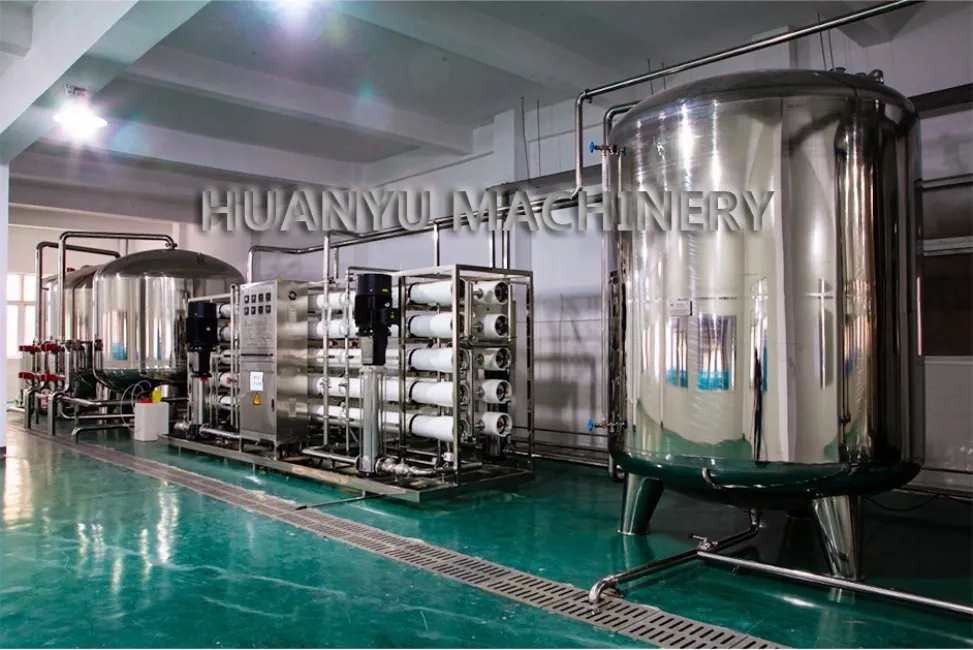

Water Treatment System
Purifies raw water through silica sand filters, active carbon filters, and reverse osmosis to ensure drinkable quality.

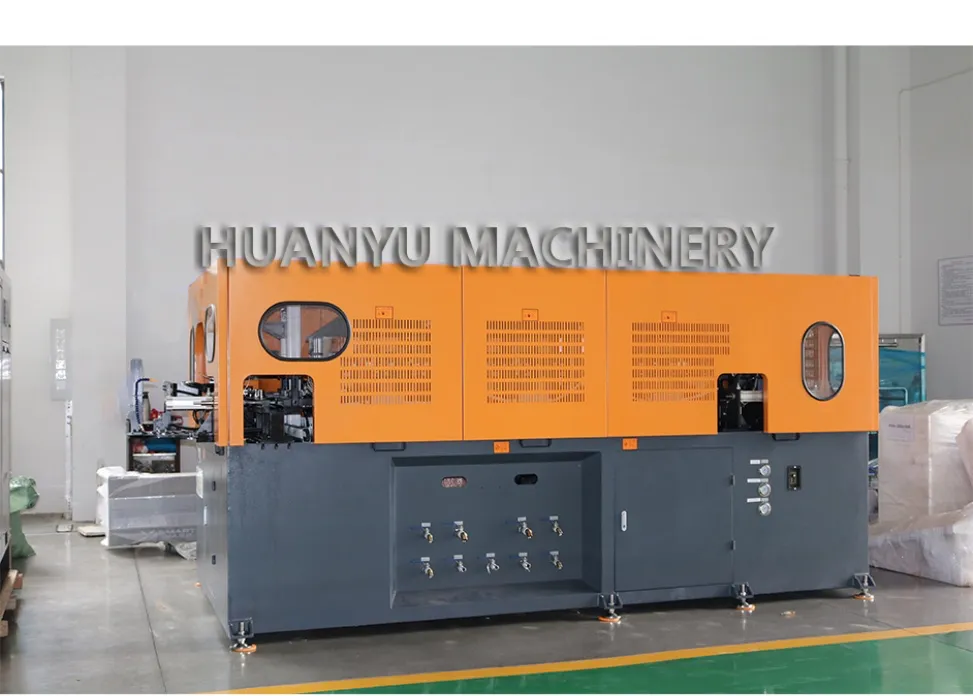

Automatic Bottle Blowing Machine
A stable two-step stretch moulding machine capable of producing containers up to 20L for various liquids.

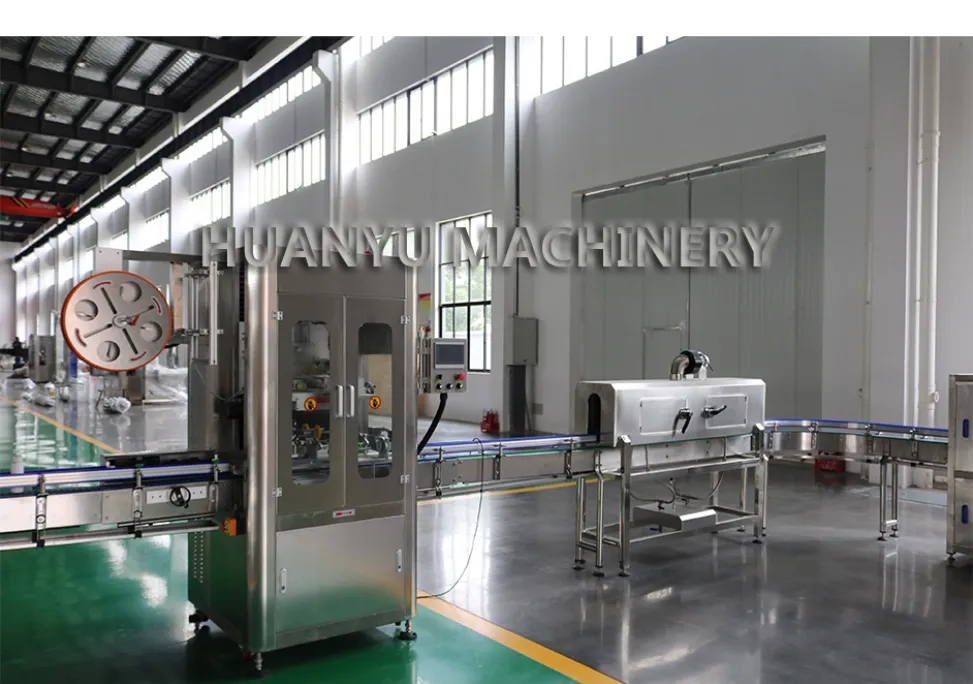

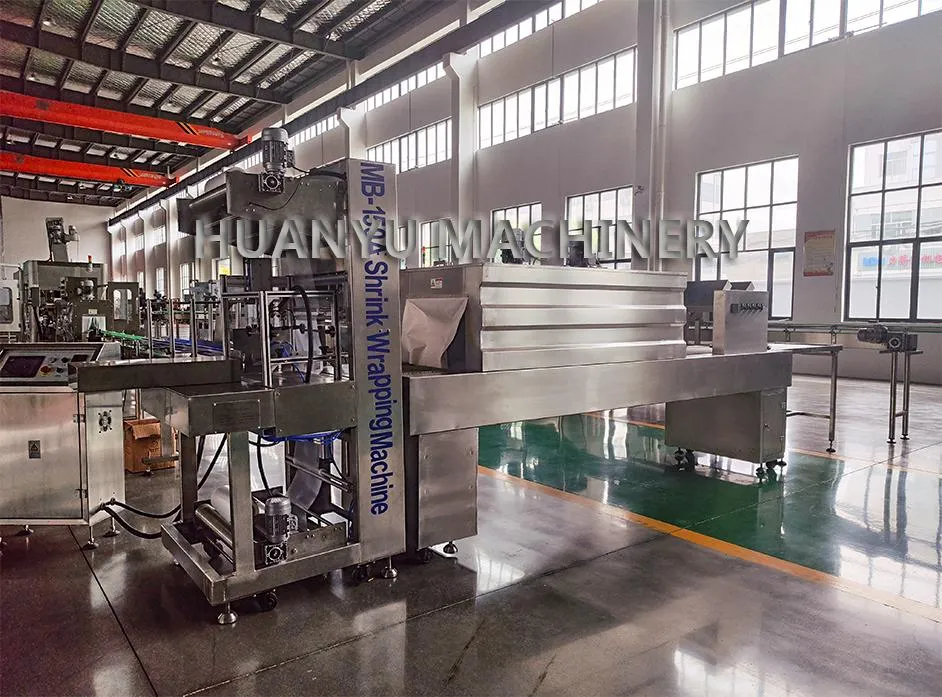

Sleeve Labeling & Shrink Packing
Advanced modular design for accurate film cutting and heat shrinking, suitable for mineral water, beer, and carbonated drinks.

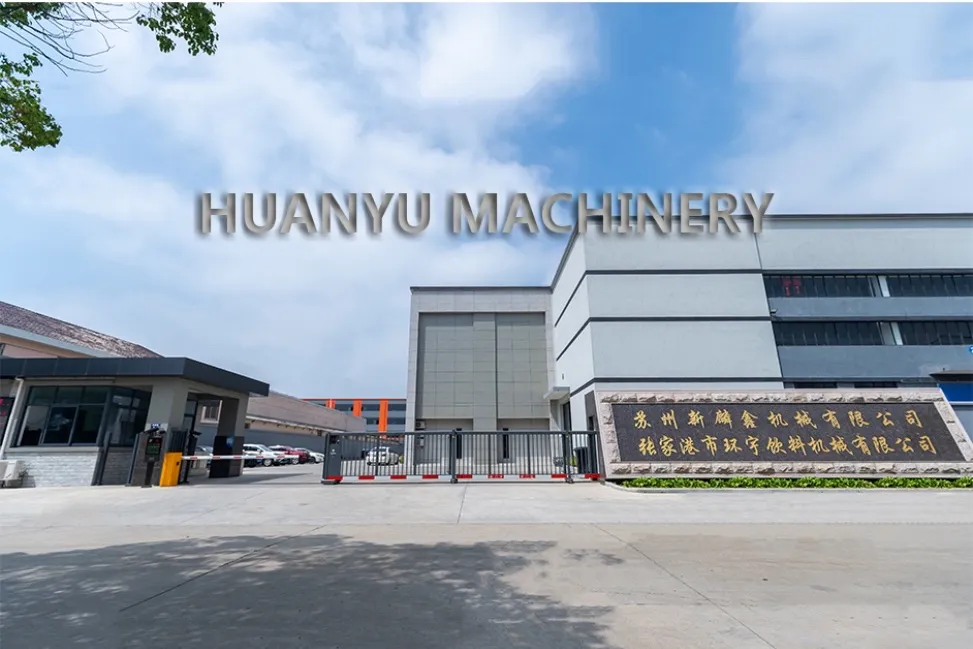

Standardized workshop of 12,000 square meters equipped with CNC machines and laser cutters to ensure part precision. All equipment undergoes a 24-hour test run before delivery.
