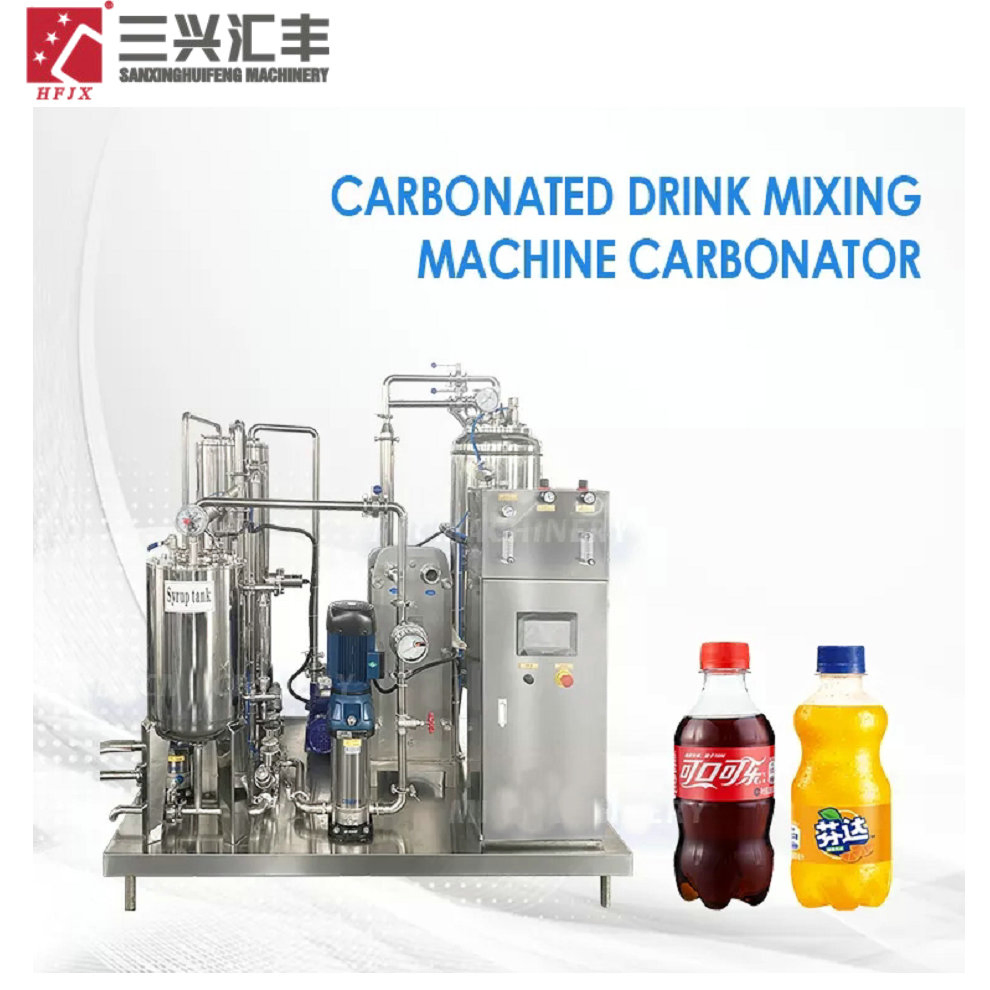

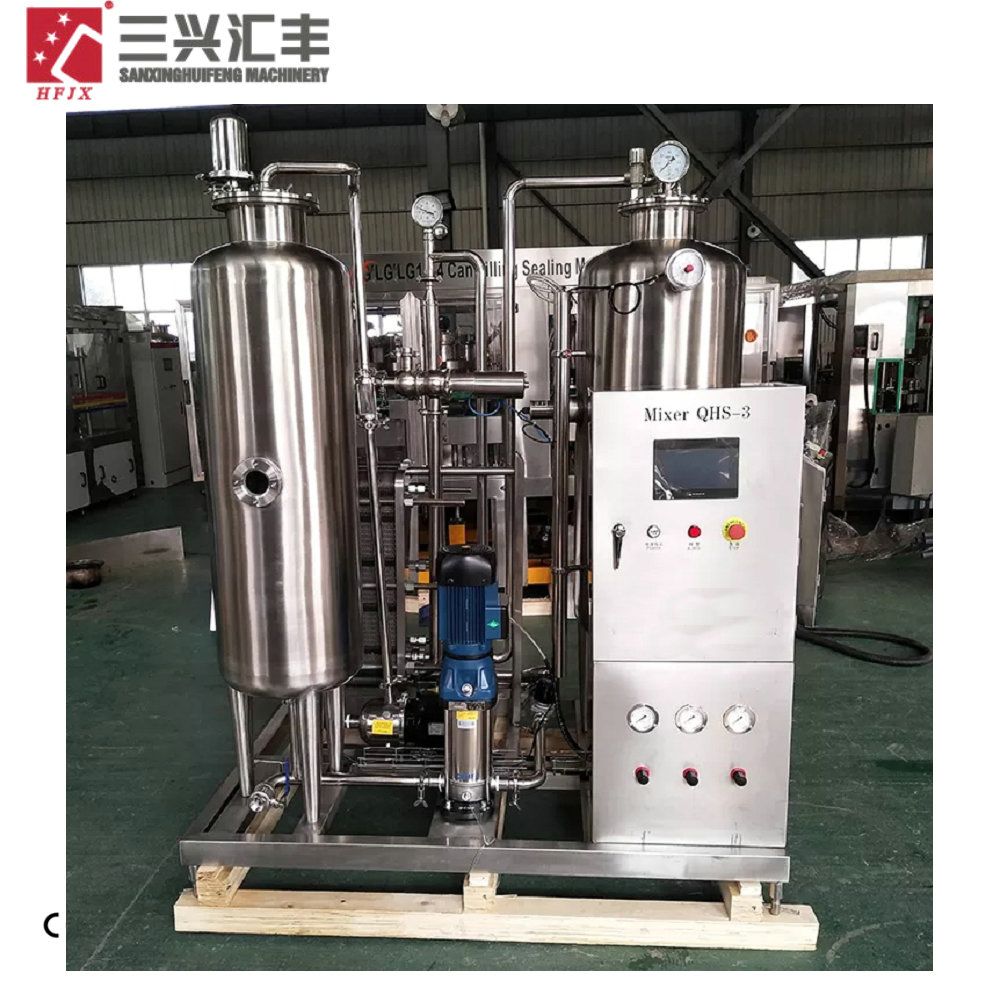

The Carbonation mixer mixing machine is specifically engineered to optimize the proportions of water, syrup, and carbon dioxide. Utilizing advanced static mixer technology, it thins the water layer to increase carbonizing time and ensure maximum mixing efficiency.
Key features include carbon dioxide back-flow deoxygenation for gas conservation and deoxidation. Equipped with high-quality water pumps and SIEMENS electrical components, the system operates with high automation, ease of maintenance, and exceptional hygiene standards. It is ideal for soda water, fruit juices, colas, and other carbonated beverages.

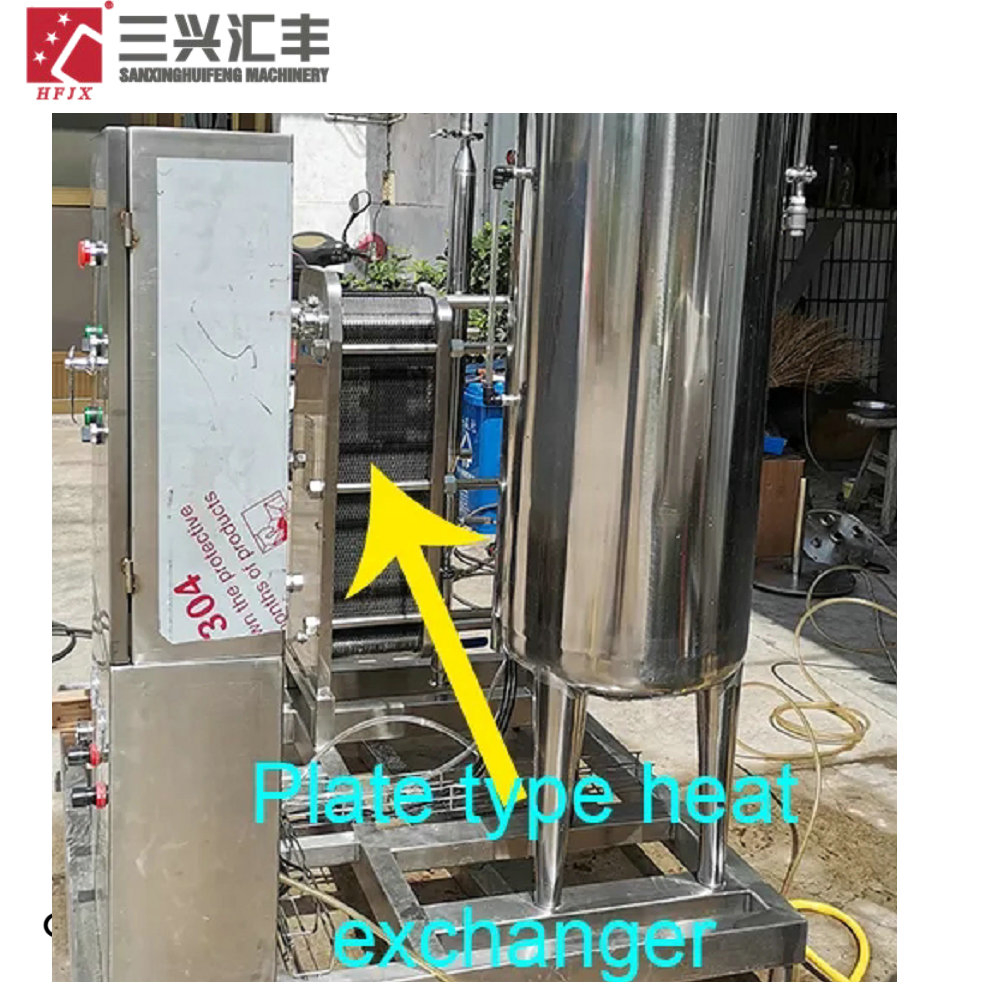

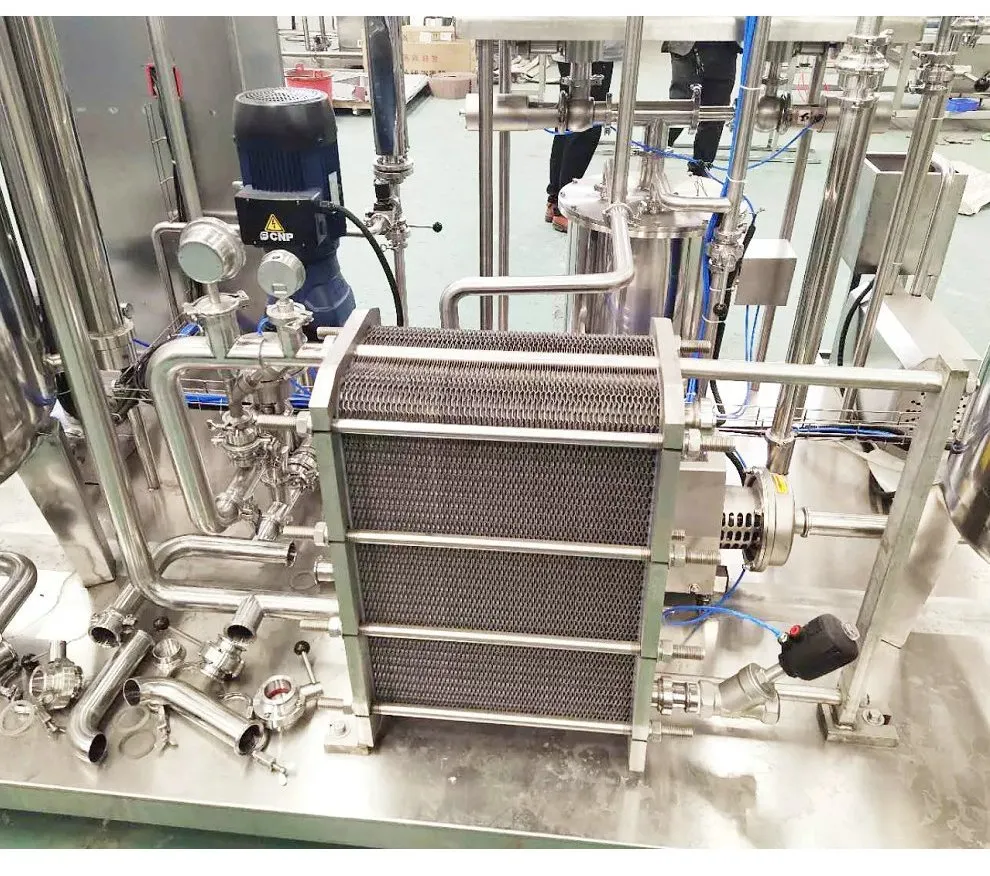

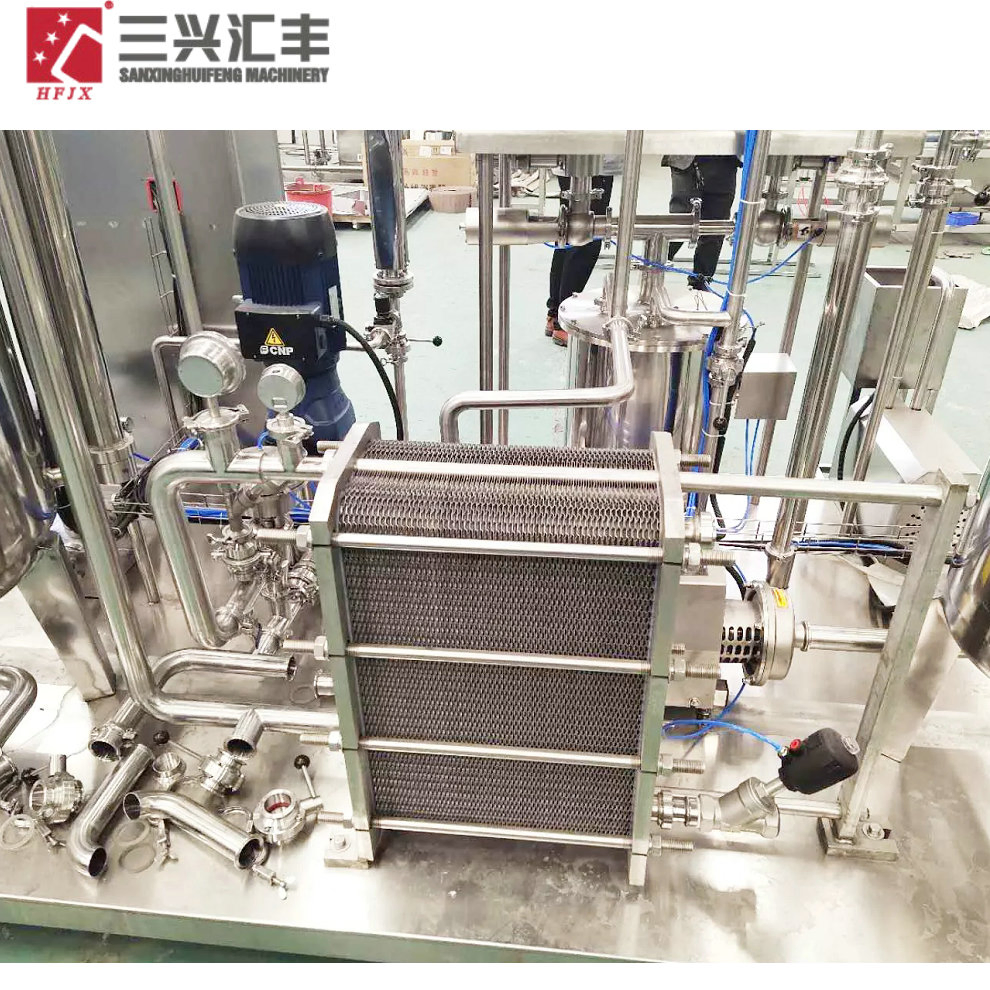

Heat Plate Exchanger

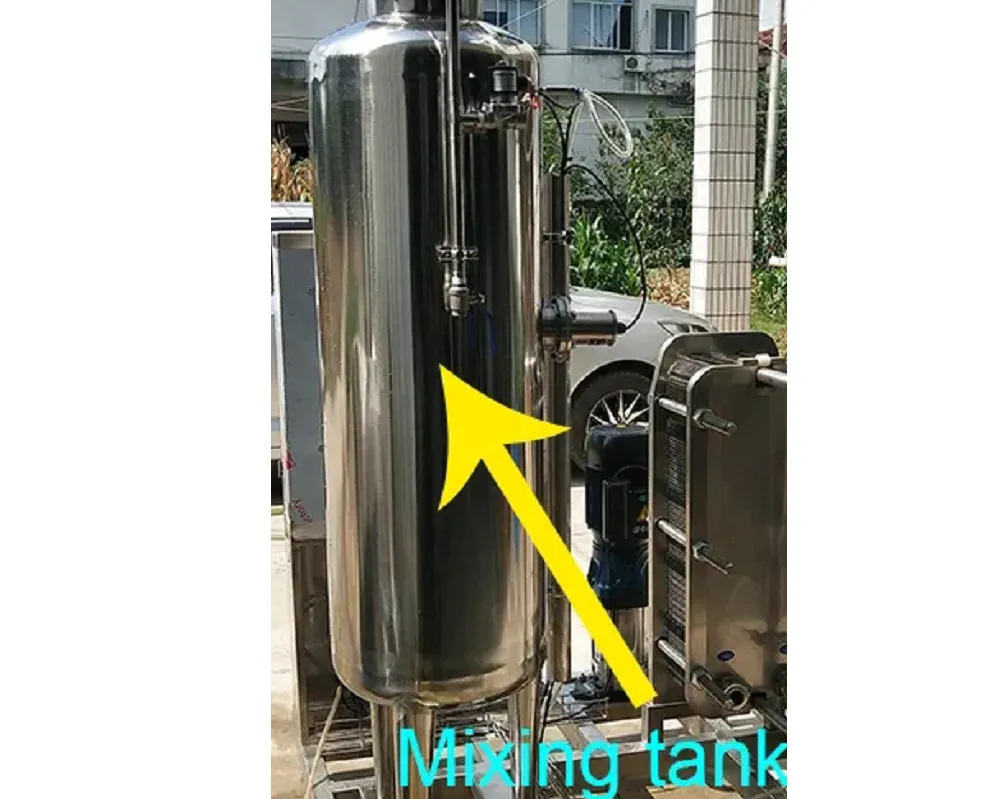

Carbonation Tank

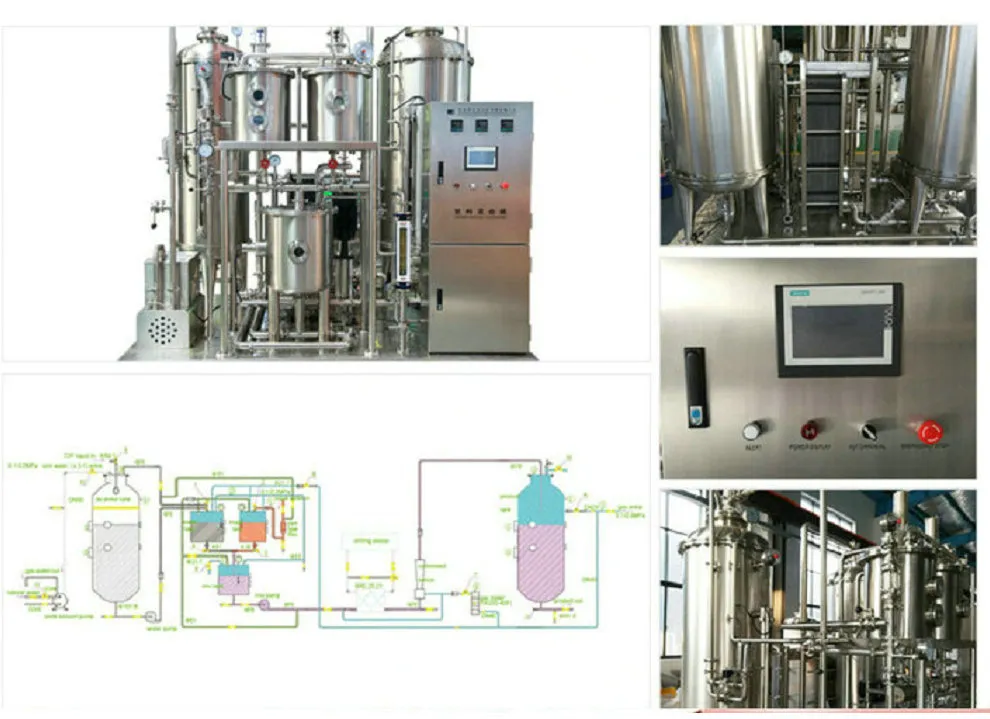

Electronic Control Panel

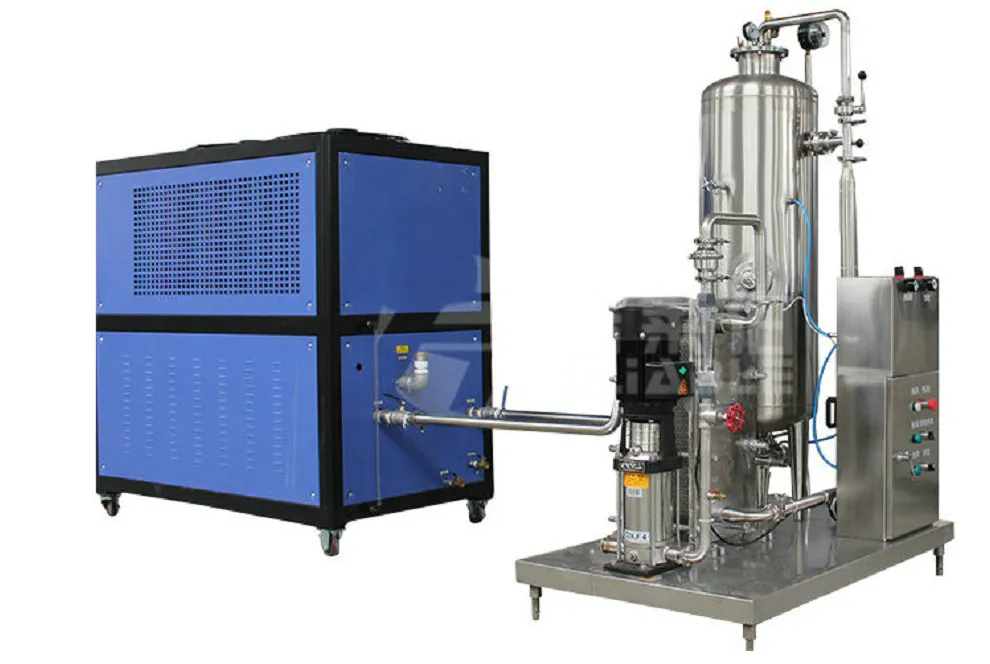

Chiller & CO2 Regulator
| Model | Output (L/Hr) | CO2 Content | Power | Weight |
|---|---|---|---|---|
| QHS-1500 | 1000-1500 | 1.5-2.5 | 2.2kw | 1000kg |
| QHS-2500 | 2000-3000 | >2.5 | 3.5kw | 1500kg |
| QHS-5000 | 4000-5000 | >3 | 5.5kw | 2000kg |
| QHS-8000 | 8000-9000 | >3.5 | 7.5kw | 3500kg |
| QHS-12000 | 12000-14000 | >3.5 | 11kw | 6000kg |

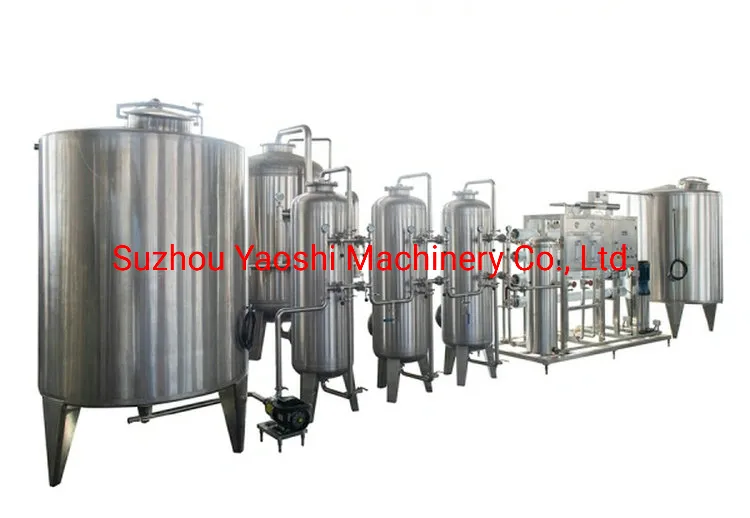

I. Water Treatment System
Filters, RO, UV & Ozone sterilization.

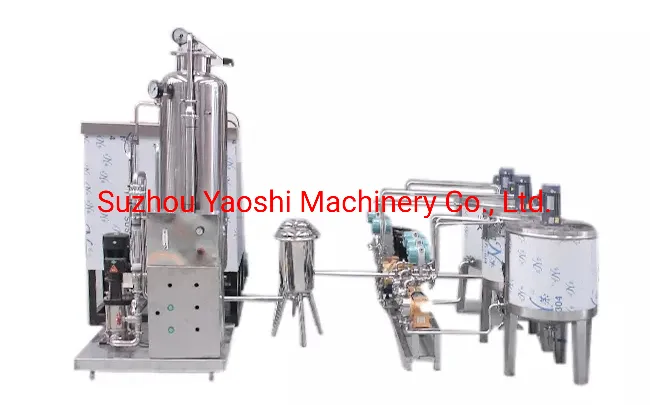

II. Flavoured Drink Mixing
Cooling, heating, and CIP cleaning.

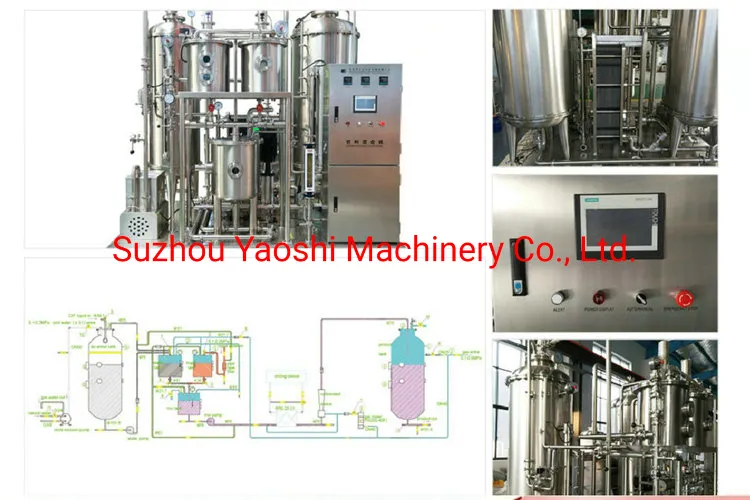

III. Carbonation System
Syrup melting, filtering, and cooling.

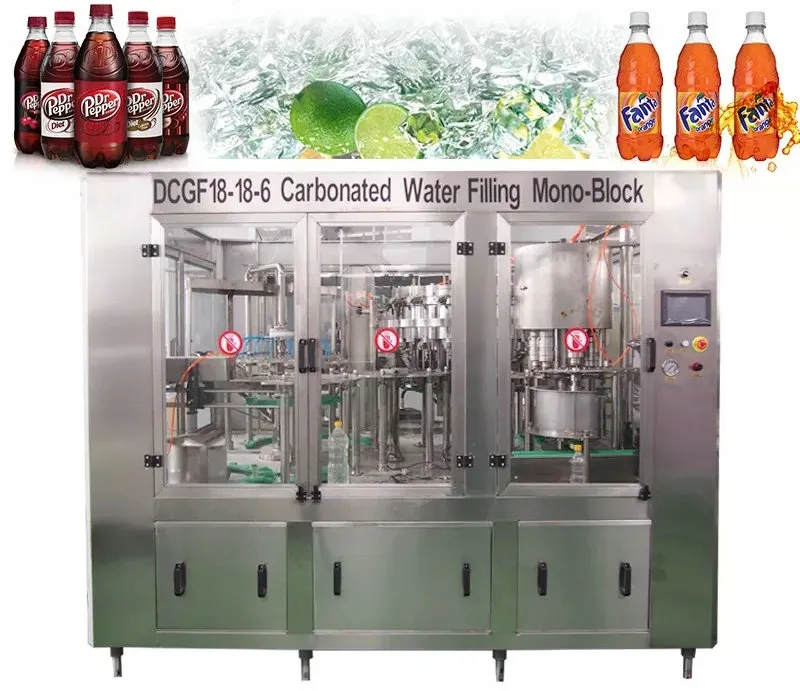

IV. Filling & Capping
Washing, filling, and capping monoblock.

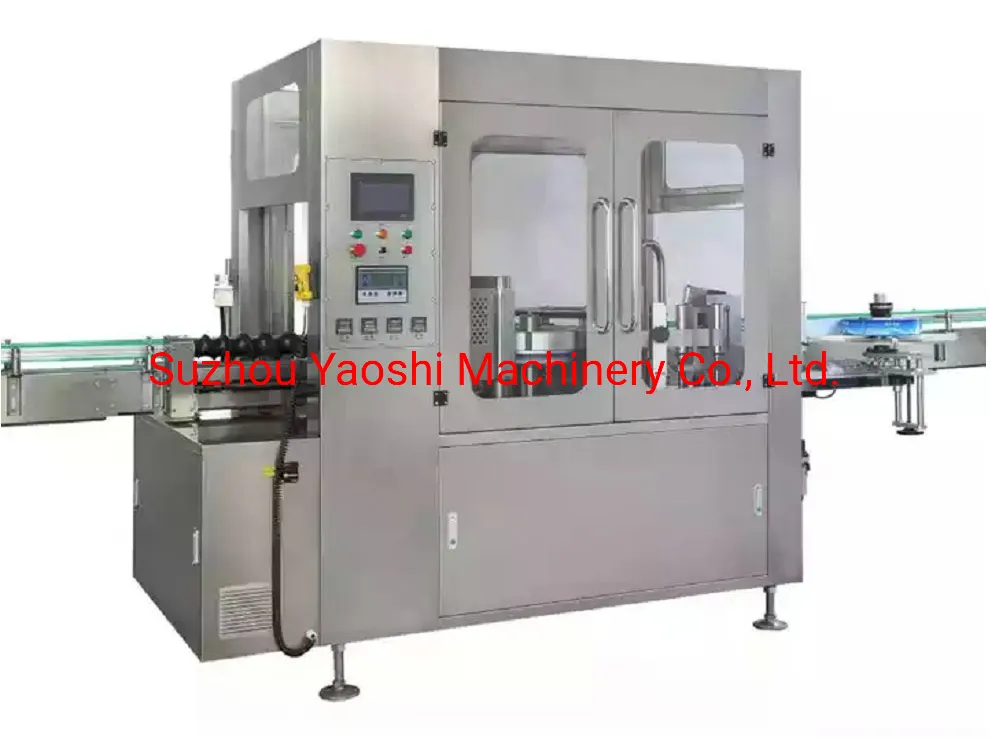

V. Labeling Machinery
OPP or adhesive labeling options.

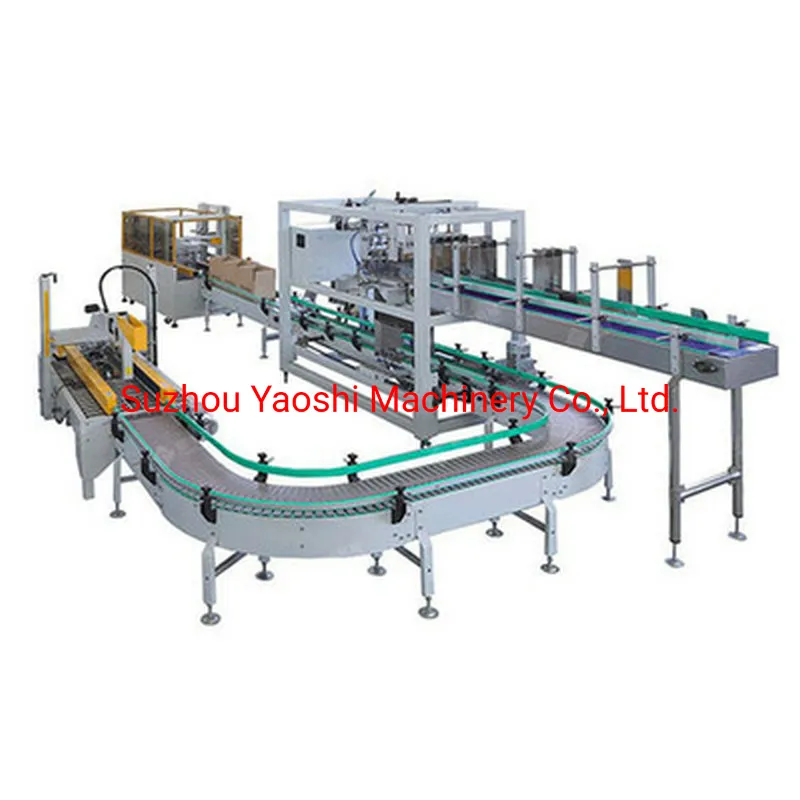

VI. Packaging Machine
Automatic PE film shrink wrapping.
Our factory is a professional manufacturer dedicated to the production of high-performance beverage filling machinery. Established in 1999, our facility spans 15,000 square meters and integrates advanced R&D, design, and manufacturing capabilities.
With a high-quality, innovative workforce and state-of-the-art CNC machining centers, we implement strict quality control from raw materials to final testing, ensuring standardized and scientific enterprise management.
