| Model NO. | PZZX-0.5 |
| Type | Juicer |
| Voltage | 380V |
| Power | 15kw |
| Applicable Raw Materials | Fruits (Apple, Orange, Pineapple, Mango), Vegetables |
| Final Products | Juice Beverage / Concentrated Juice / Fruit Pulp |
| Machine Material | Food-Grade Stainless Steel |
| Control System | PLC Automatic Control |
| Production Process | Washing, Crushing, Juicing, Filtering, Blending, etc. |
| Juicing Method | Screw Juicing |
| Sterilization Method | Pasteurization |
| Filling Types | Glass Bottle / Plastic Bottle / Aseptic Bag / Can |
| Package Size | 12200.00cm * 2500.00cm * 2600.00cm |
| Package Gross Weight | 5000.000kg |
| Transport Package | Export Wooden Boxes |

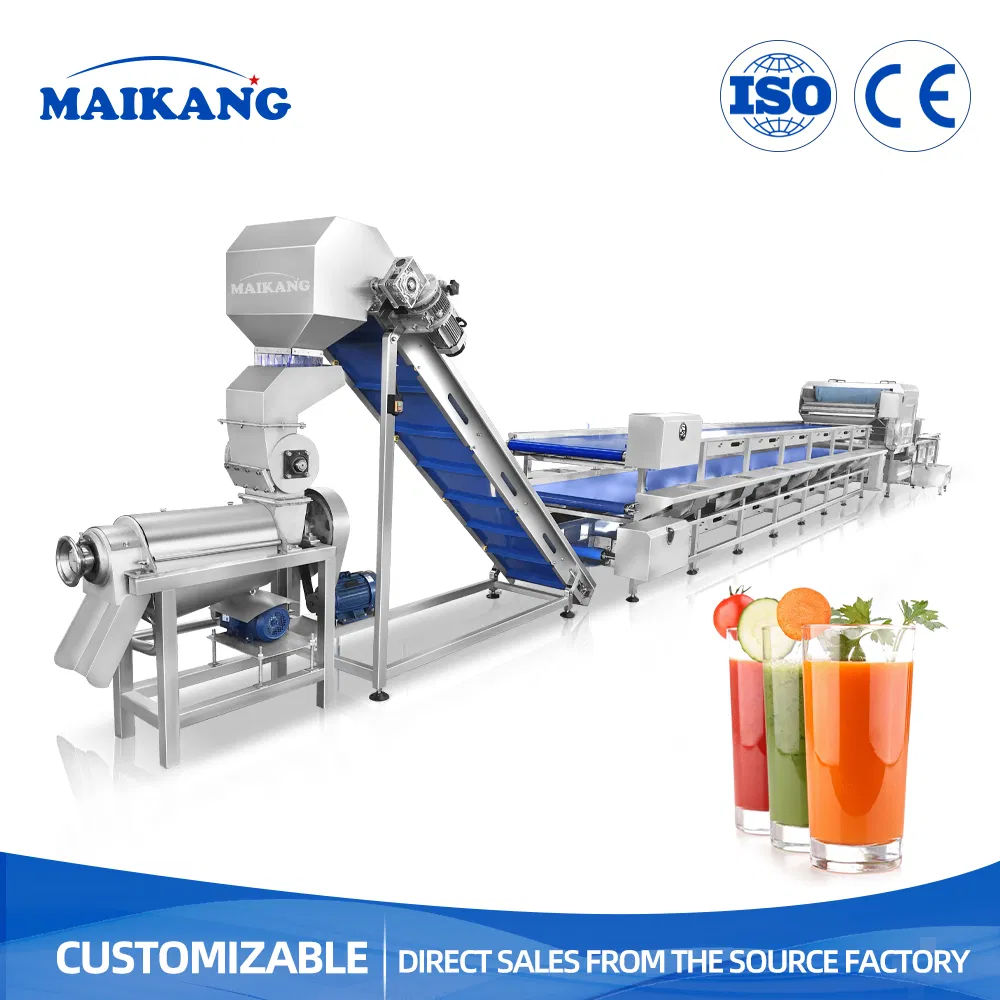

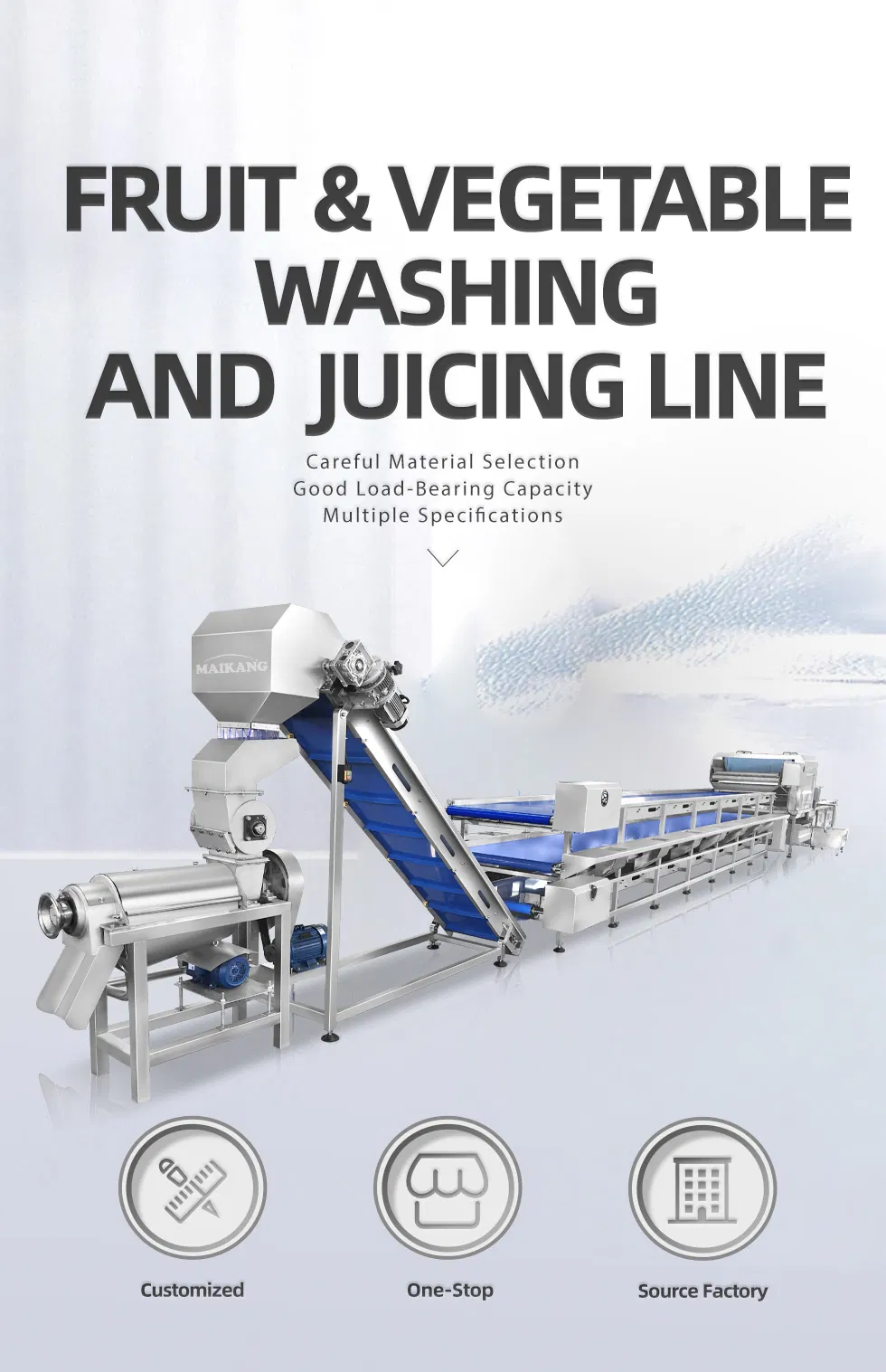

Automatic Fruit Juice Production Line Juice Making Machine Juicer Extractor for Beverage Plant
The fruit washing and juicing production line can produce beverages with unique flavors and excellent taste. This equipment can complete the entire process, from pre-processing steps such as raw fruit selection, cleaning, processing, sorting, crushing, peeling, pitting, and pulping, to vacuum concentration, ultra-high temperature sterilization, and aseptic filling into aseptic large bags of concentrated paste or concentrated juice; it can also directly produce fruit and vegetable juice beverage products.

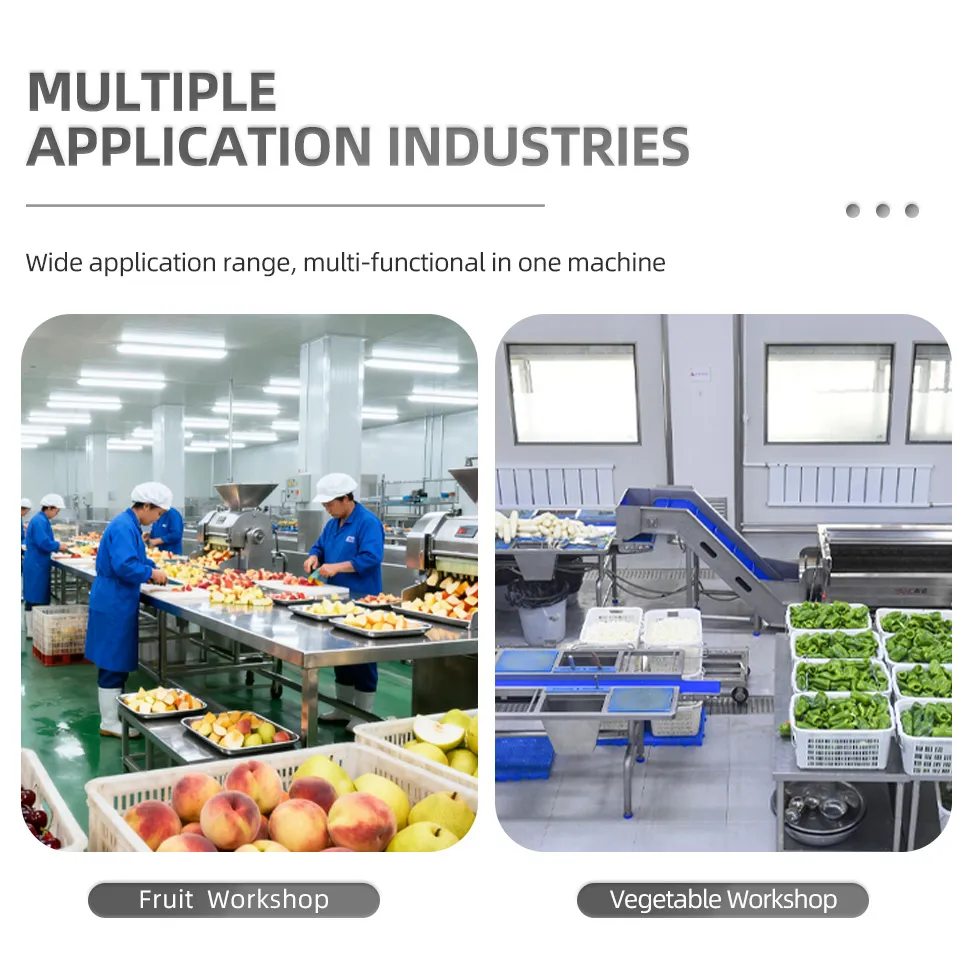

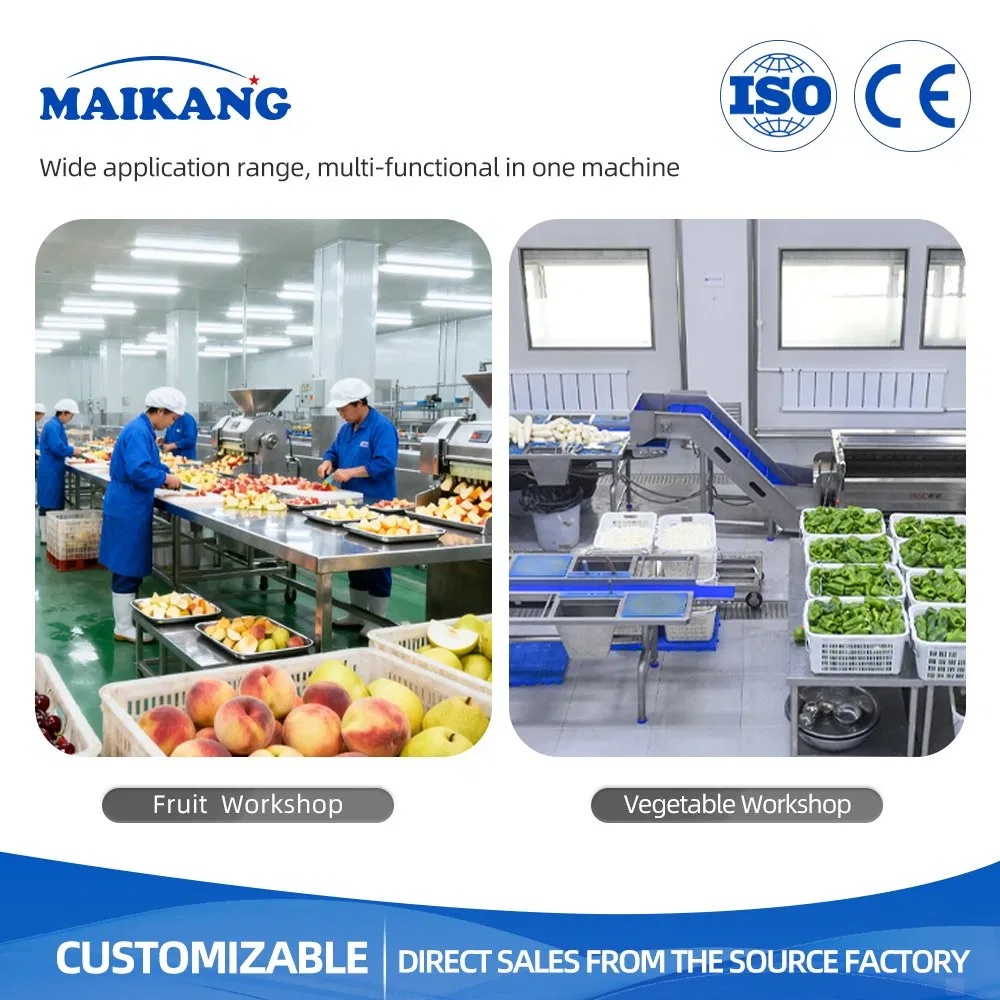

This product is widely used for extracting fruit juice, vegetable juice, enzyme juice, medicinal juice, and more.

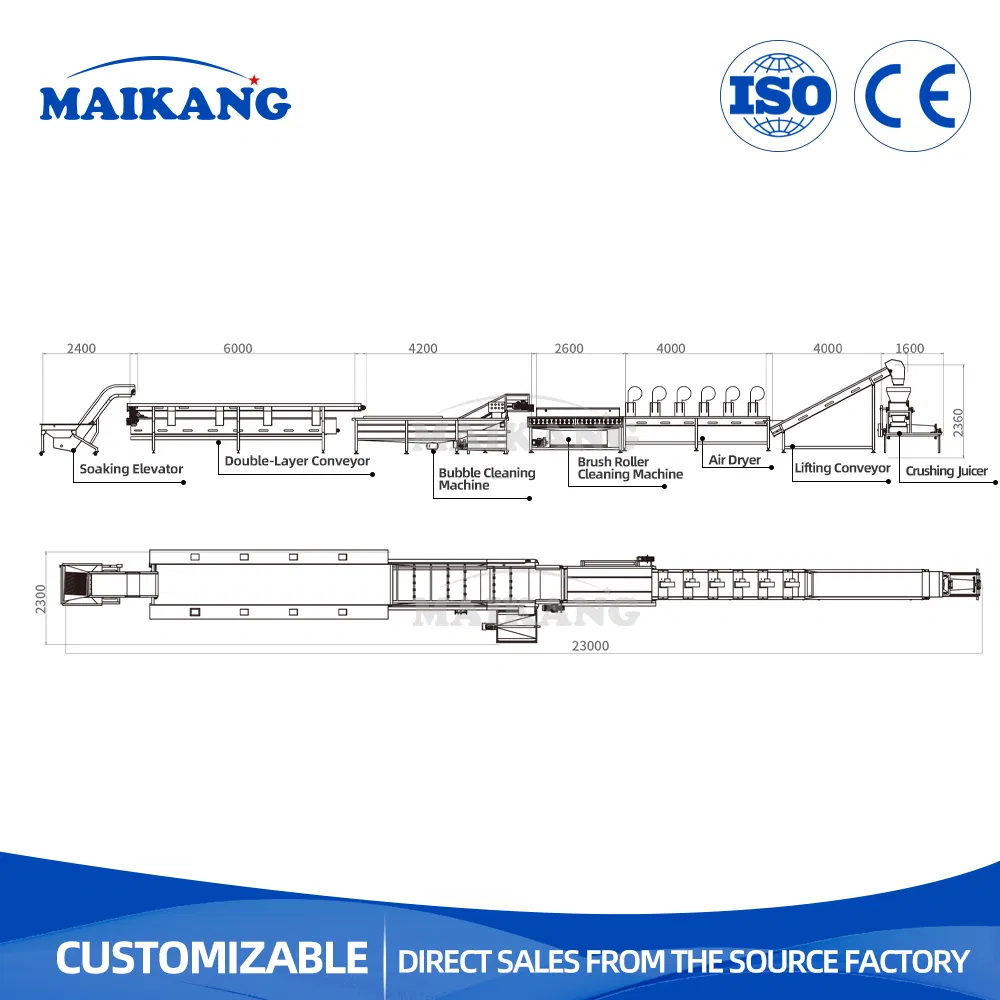

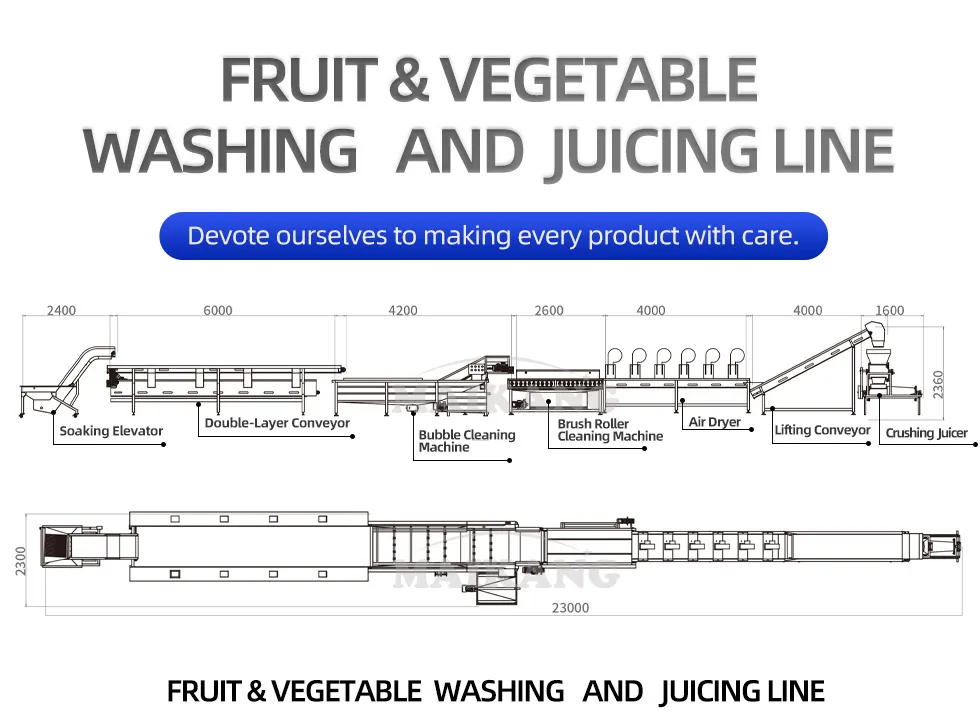

| Equipment Name | Total Power | Electricity Consumption | Machine Dimensions |
|---|---|---|---|

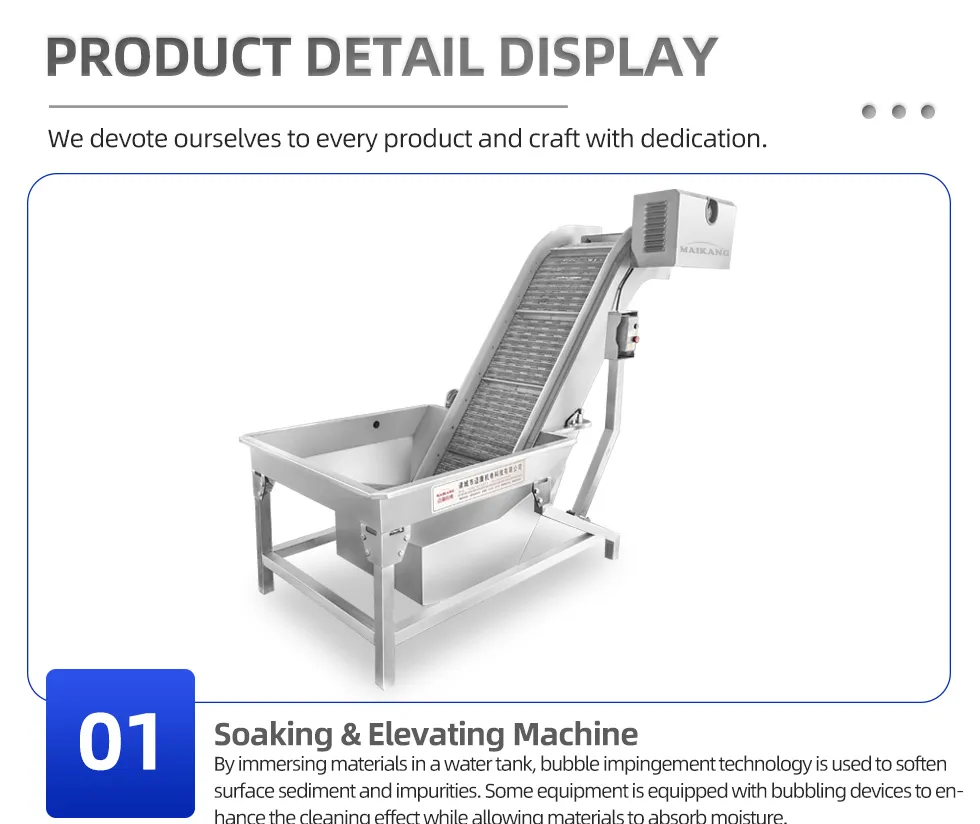

| Soaking and Lifting | 0.92kw | 1kw/h | 4000x1000x1000mm |

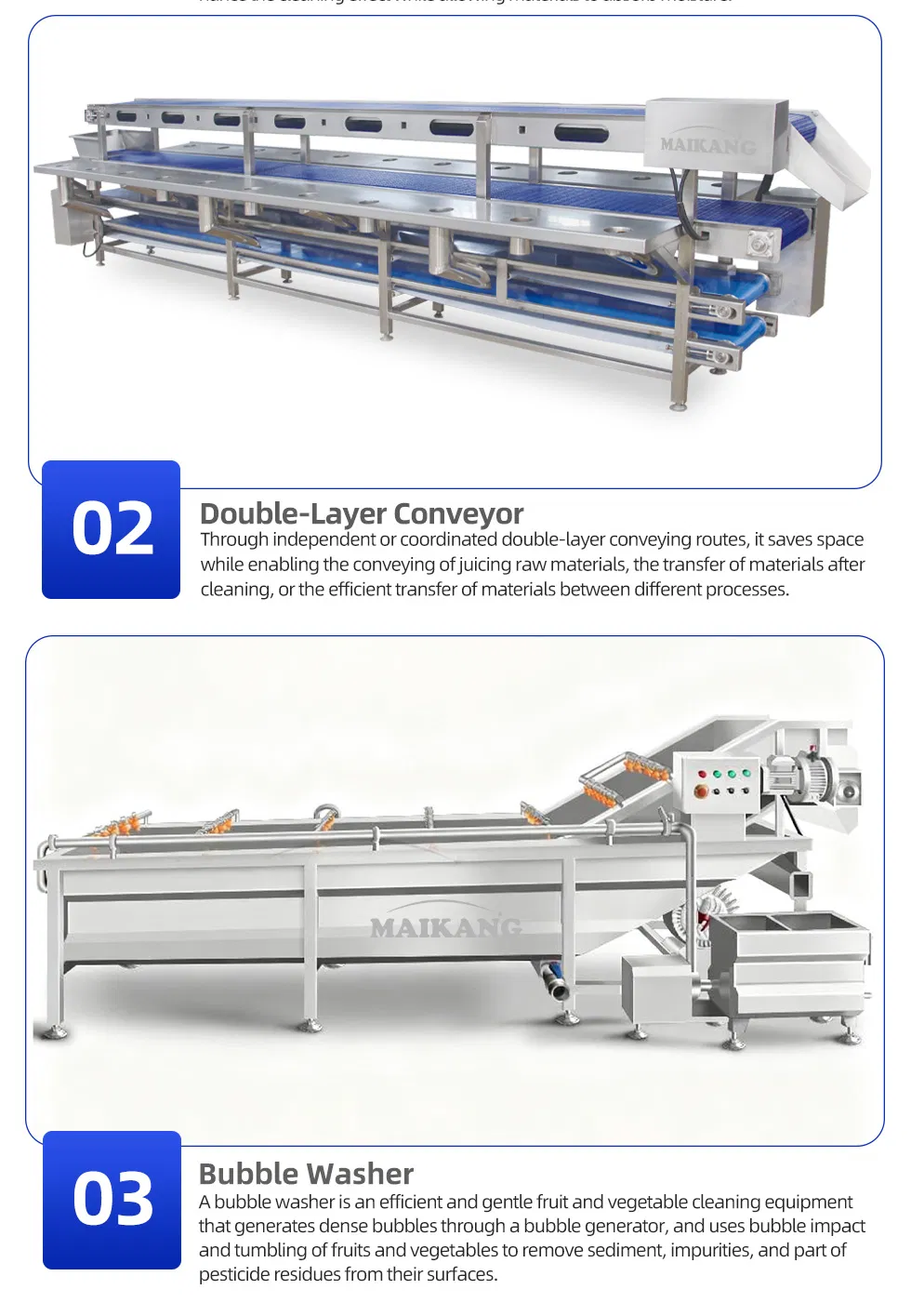

| Double-Layer Conveyor | 1.5kw | 1.5kw/h | 4000x1000x1000mm |

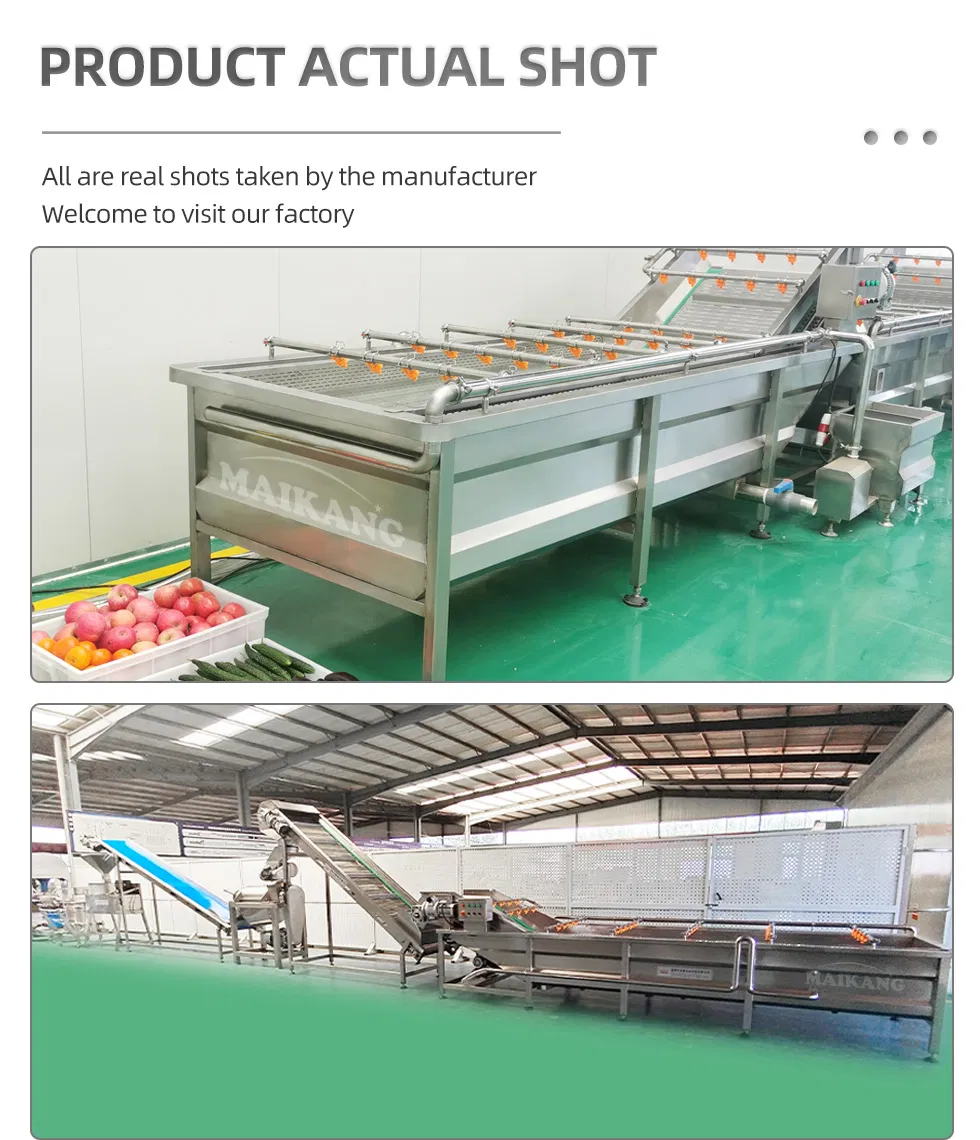

| Bubble Cleaning Machine | 3.7kw | 3.7kw/h | 4100x1550x1400mm |

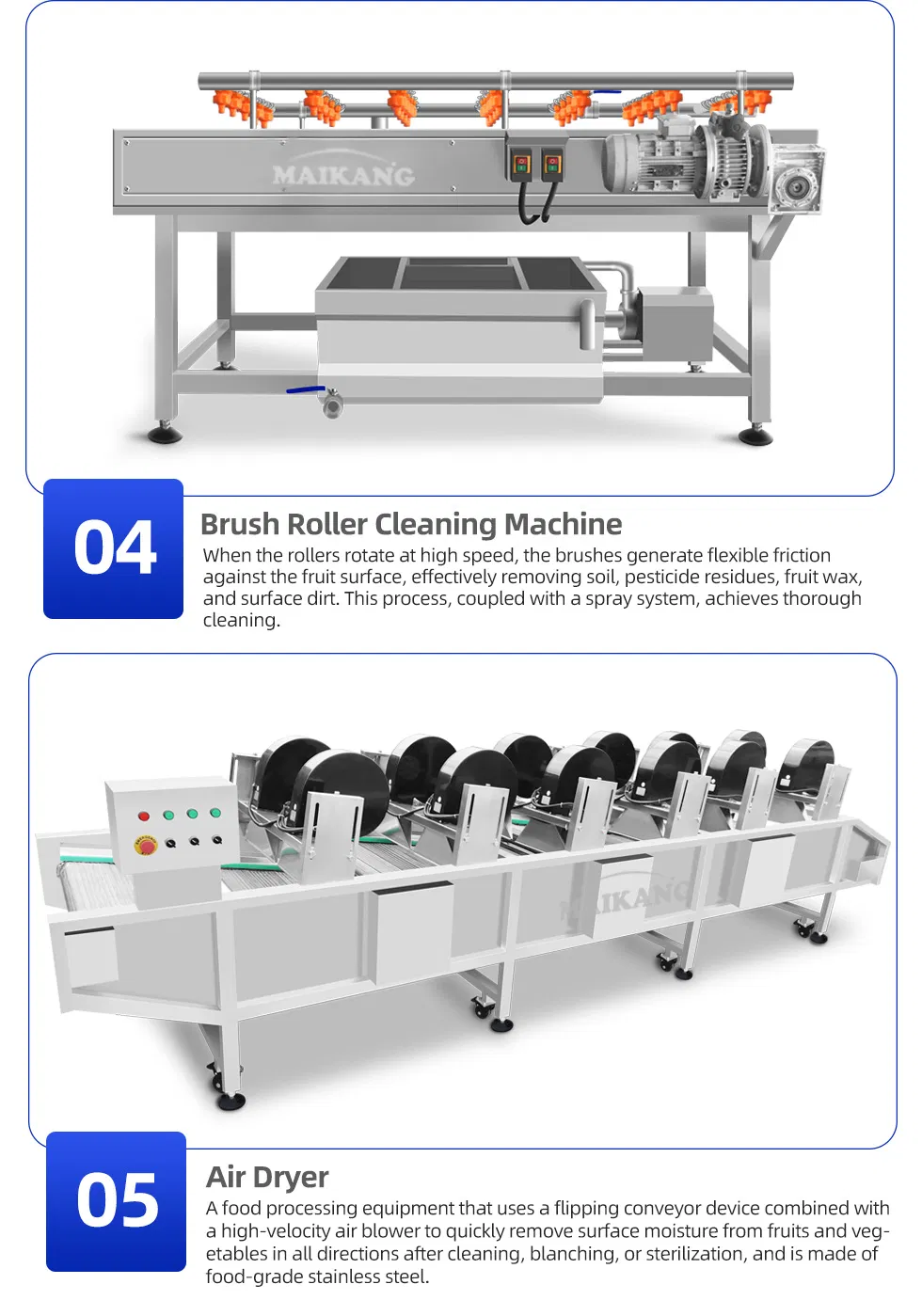

| Brush Roller Cleaning Machine | 2.2kw | 2.2kw/h | 2000x1000x1000mm |
| Air Dryer | 5.25kw | 5.25kw/h | 4100x1550x1400mm |

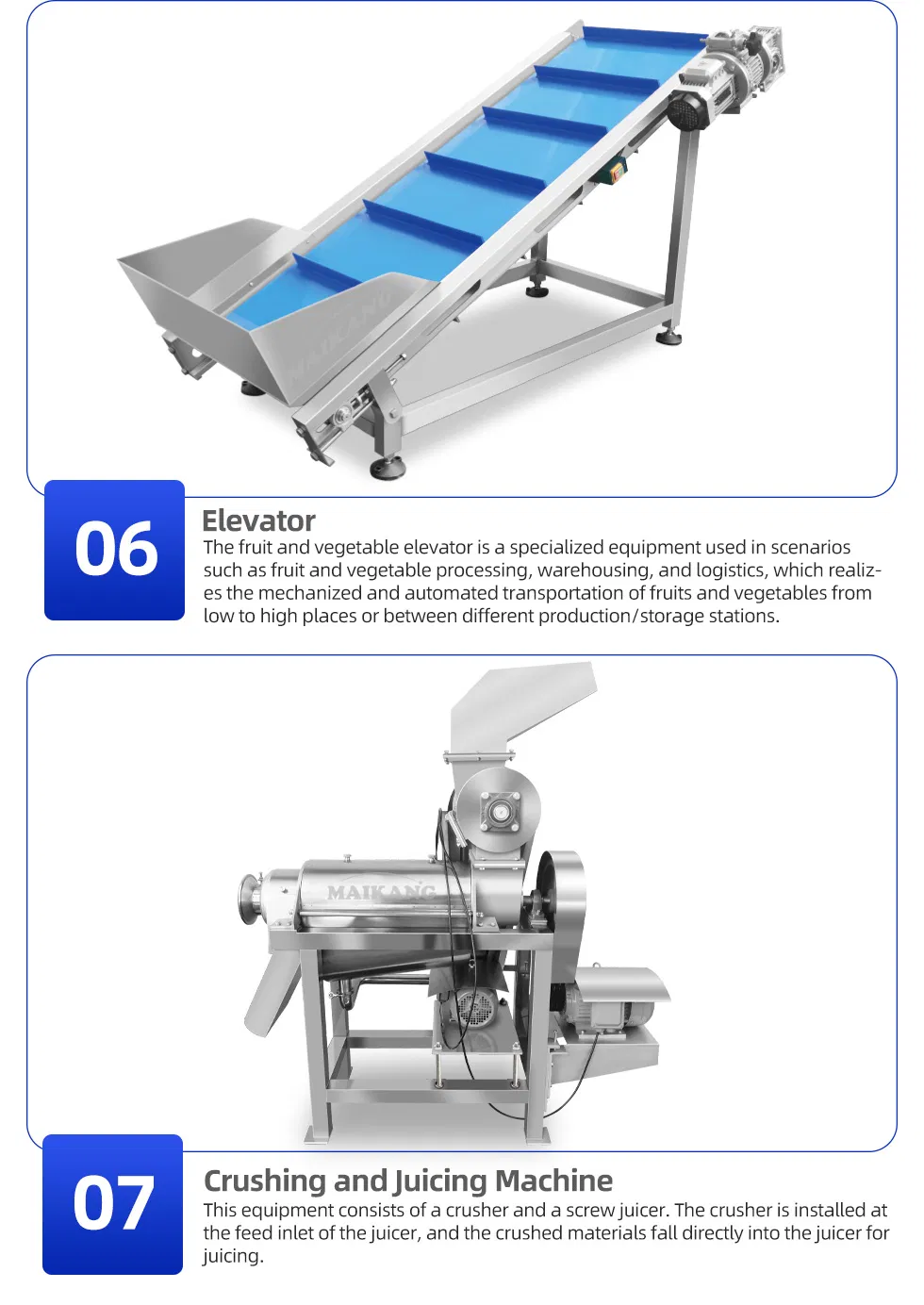

| Elevating Conveyor | 0.75kw | 0.75kw/h | 4000x1000x1000mm |

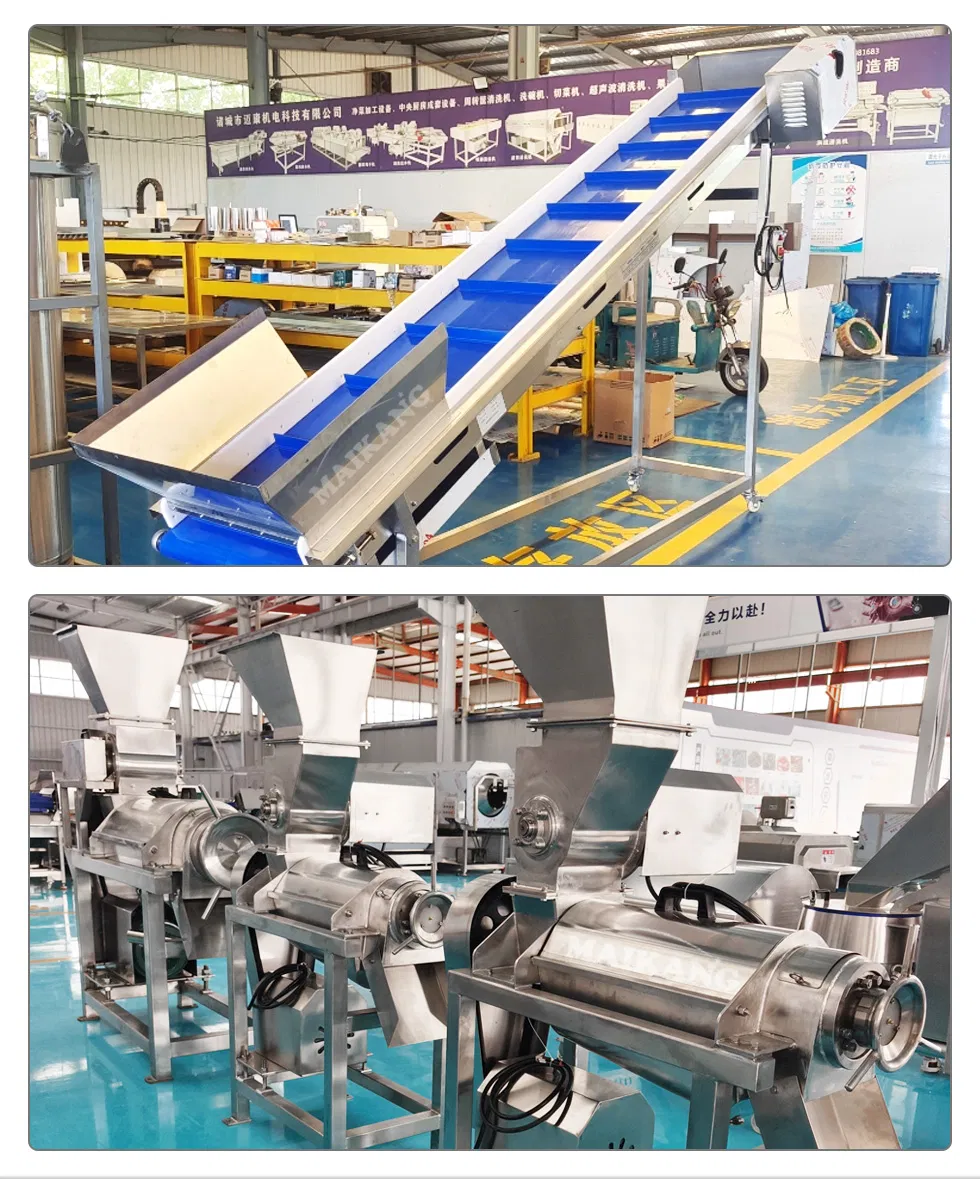

| Crushing Juicer | 7.7kw | 7.7kw/h | 1560x580x1470mm |
Soaking & Elevation → Fruit Sorting → Cleaning → Trimming & Draining → Crushing → Juicing → Heating → Homogenization/Clarification & Filtration → Blending → Can Filling → Sealing → Sterilization → Cooling

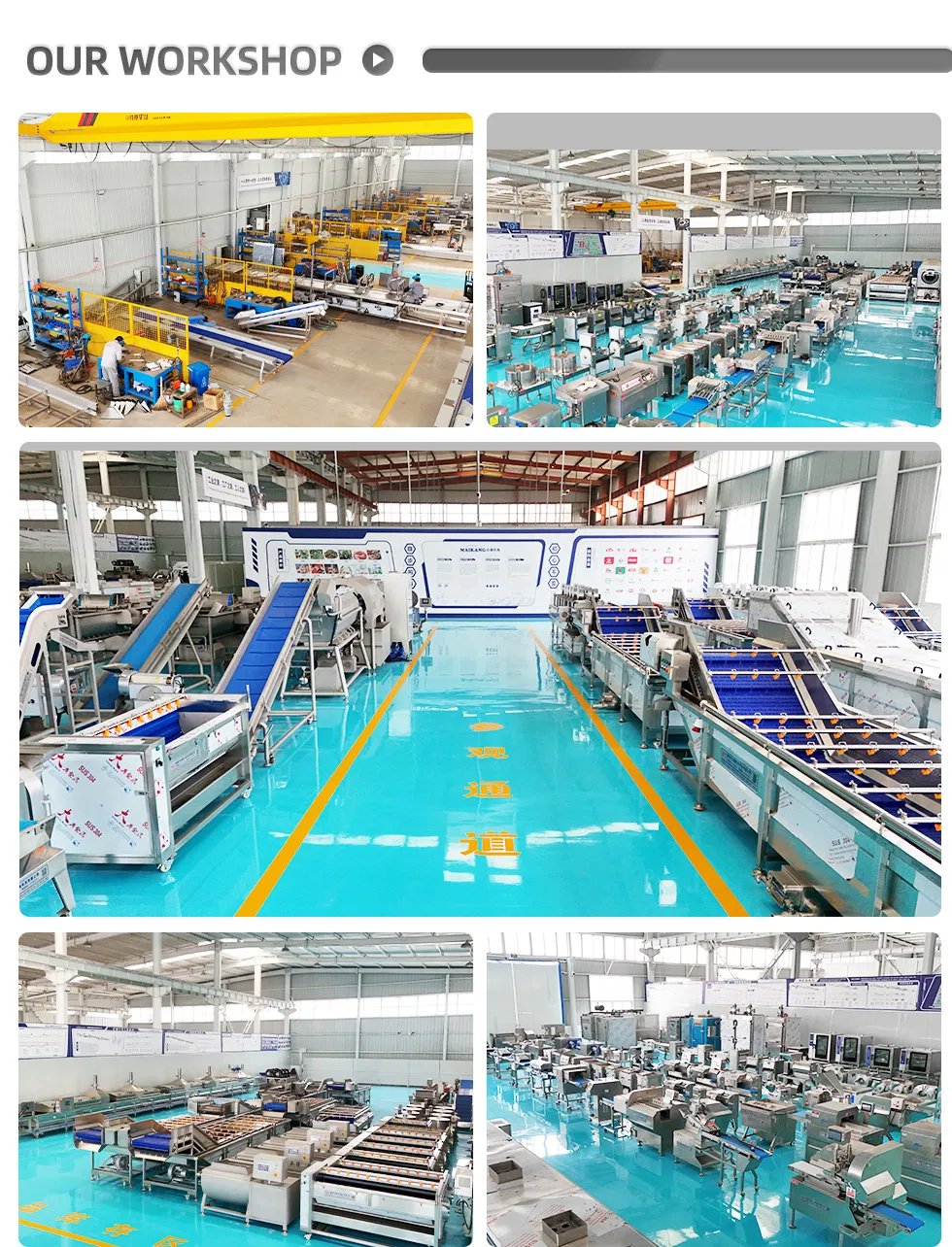

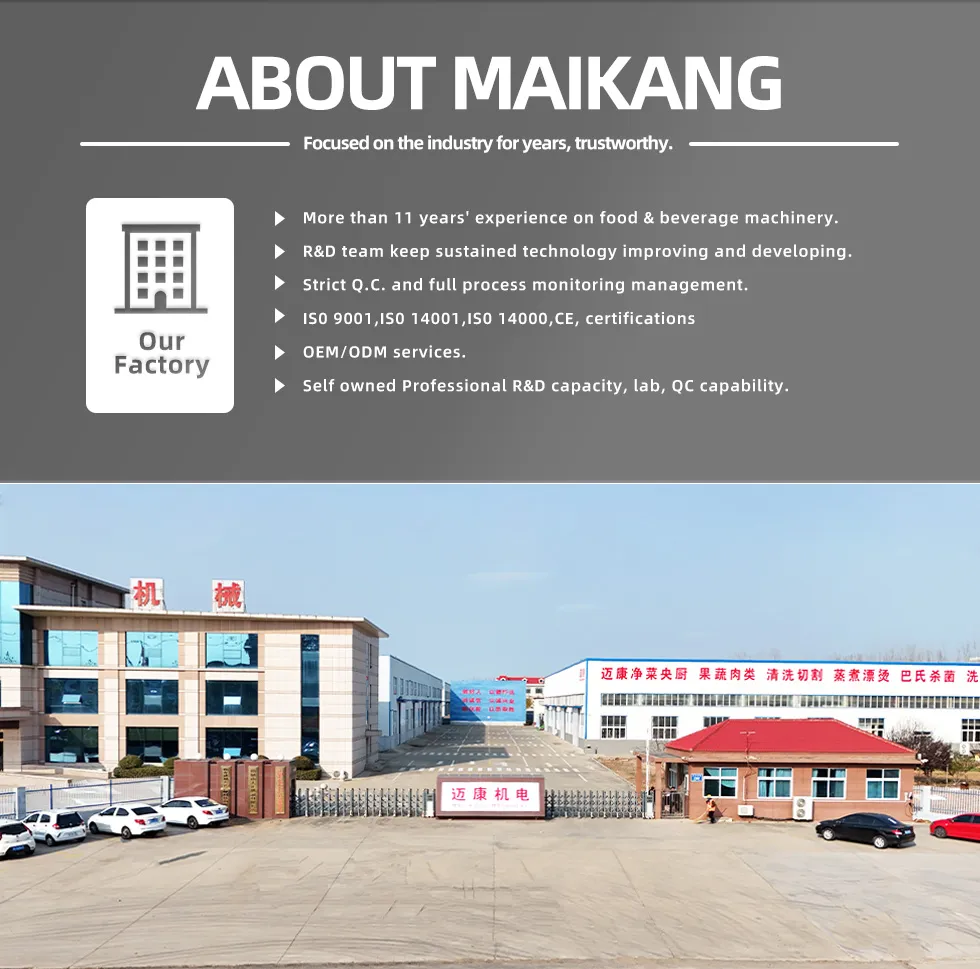

We are a leading manufacturer specializing in the R&D, production, sales, and after-sales service of food processing machinery. We are committed to providing customized, one-stop solutions for our clients, offering a wide range of automated production lines including box washer, fruit and vegetable cleaning and juicing line, thawing equipment, heat pump drying oven, blanching (cooking) system, pasteurization cooling and drying line, meat cutting and processing equipment etc.
Adhering to the philosophy that "Quality Builds the Brand, Service Wins the Future," we strive to provide reliable equipment and attentive service, creating lasting value for our customers and helping them enhance efficiency and product quality.
