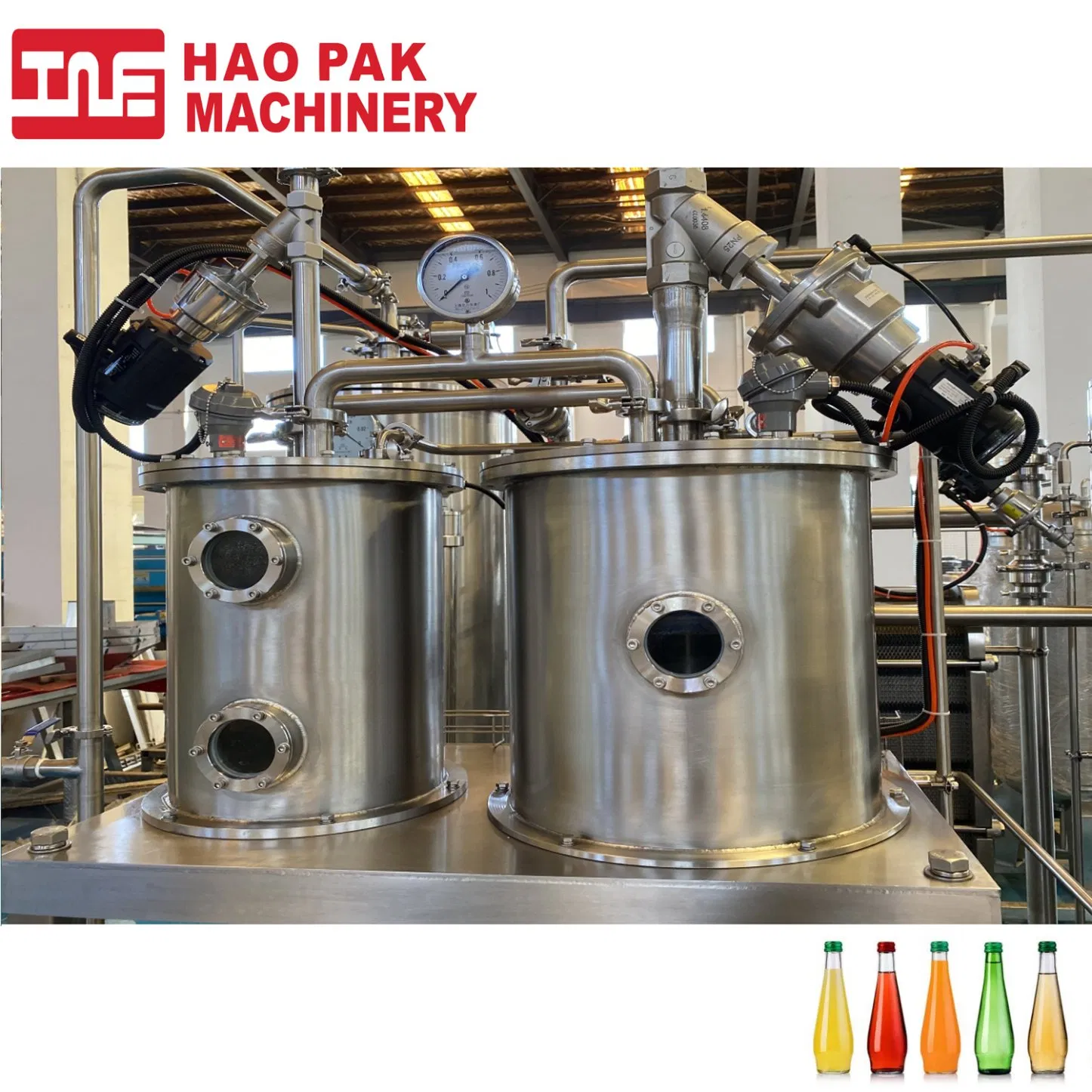

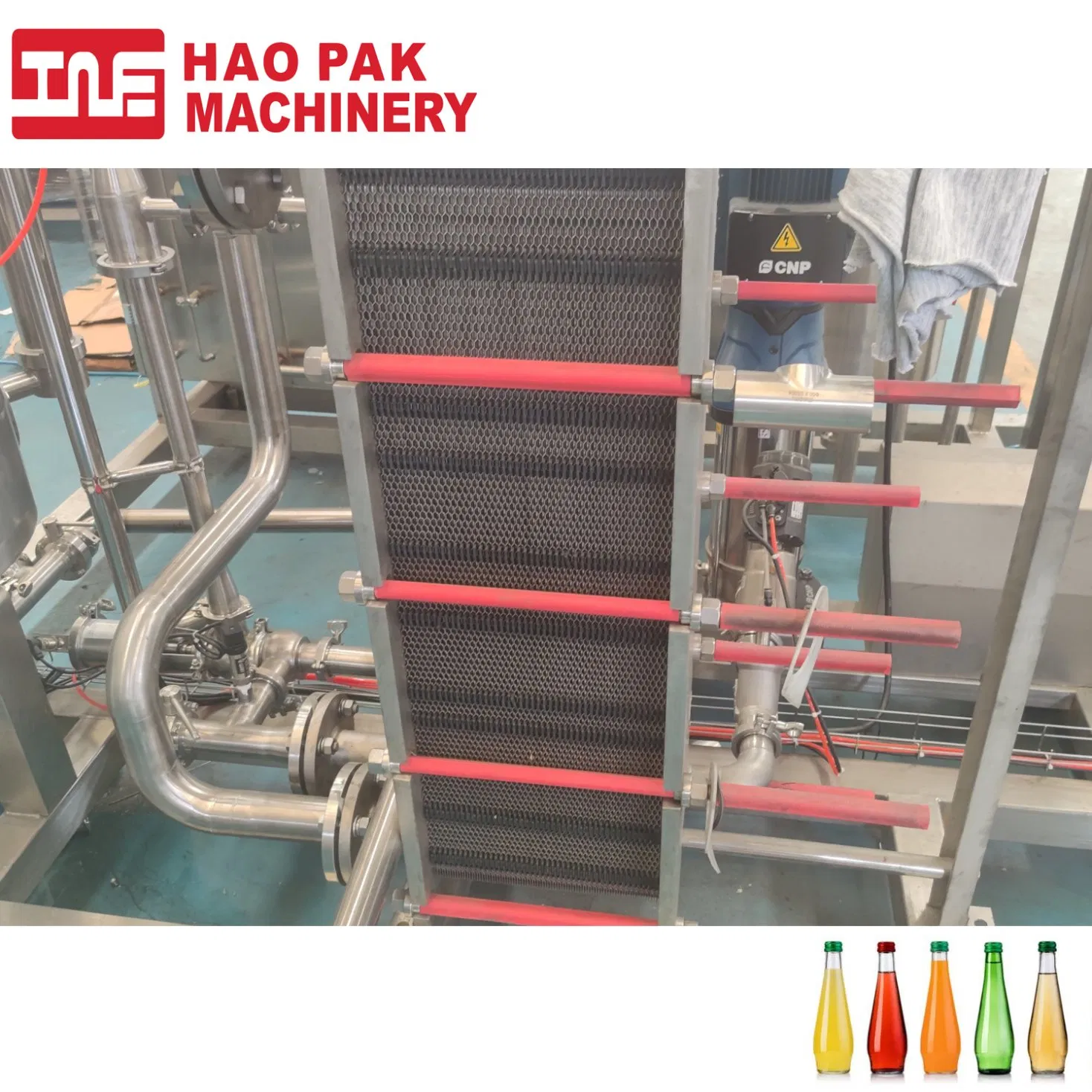

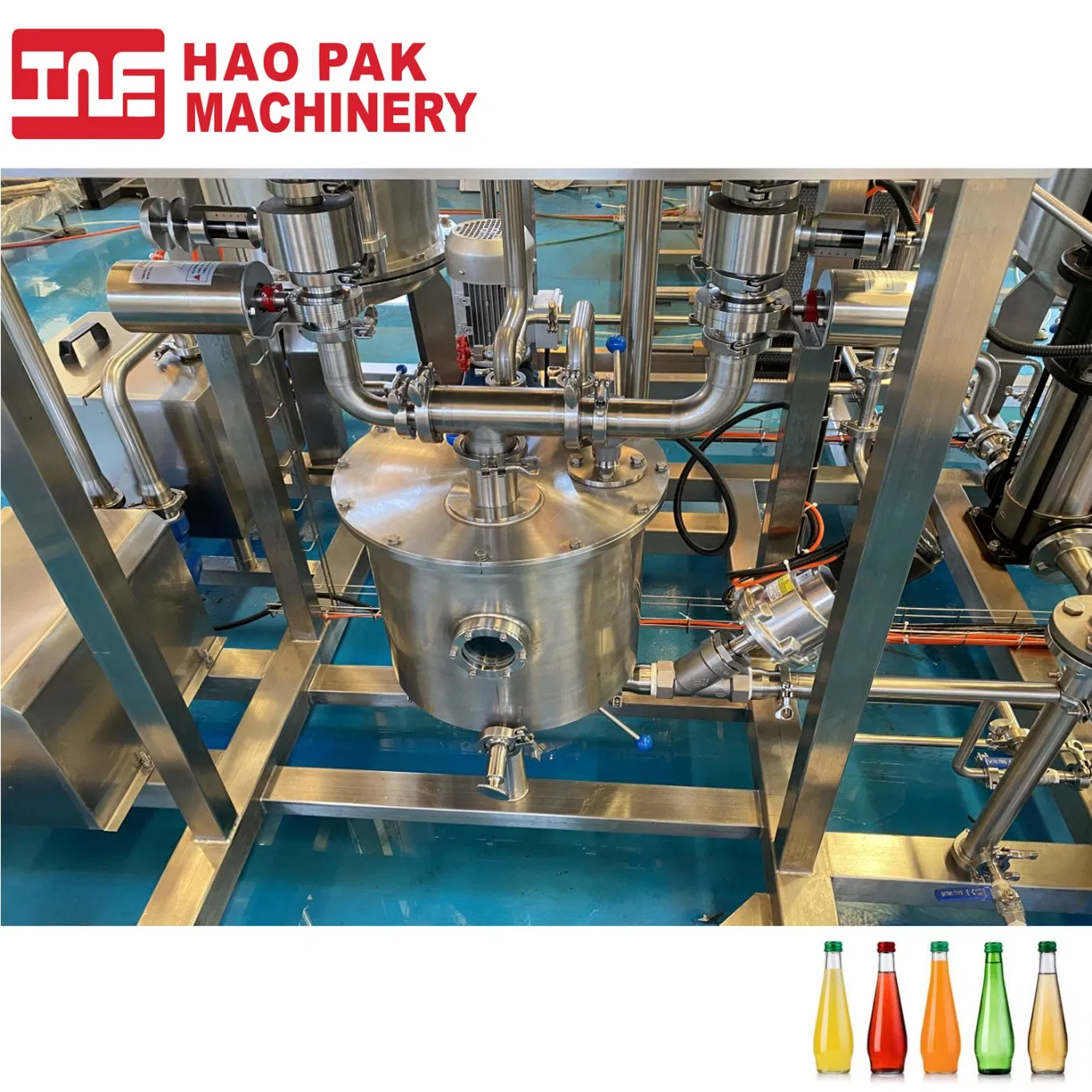

Beverage Mixer Carbonation Dioxide Carbonated CSD CO2 Soda Gas Water Drinks Mixing Machine

Customization: Available
Additional Capabilities: Milling, Drying, Granulating, Coating
After-sales Service: Support

Product Description

i

Basic Information

Model NO.
QHS-5000
Application
Viscous Fluid, Liquid, Beverage
Certification
CE, ISO
Warranty
12 Months
Output Capacity
5000kg/H
Mixing Ratio Scope
3:1-6:1
CO2 Pressure
0.6MPa-0.8MPa
Total Power
4.45kw

Product Description

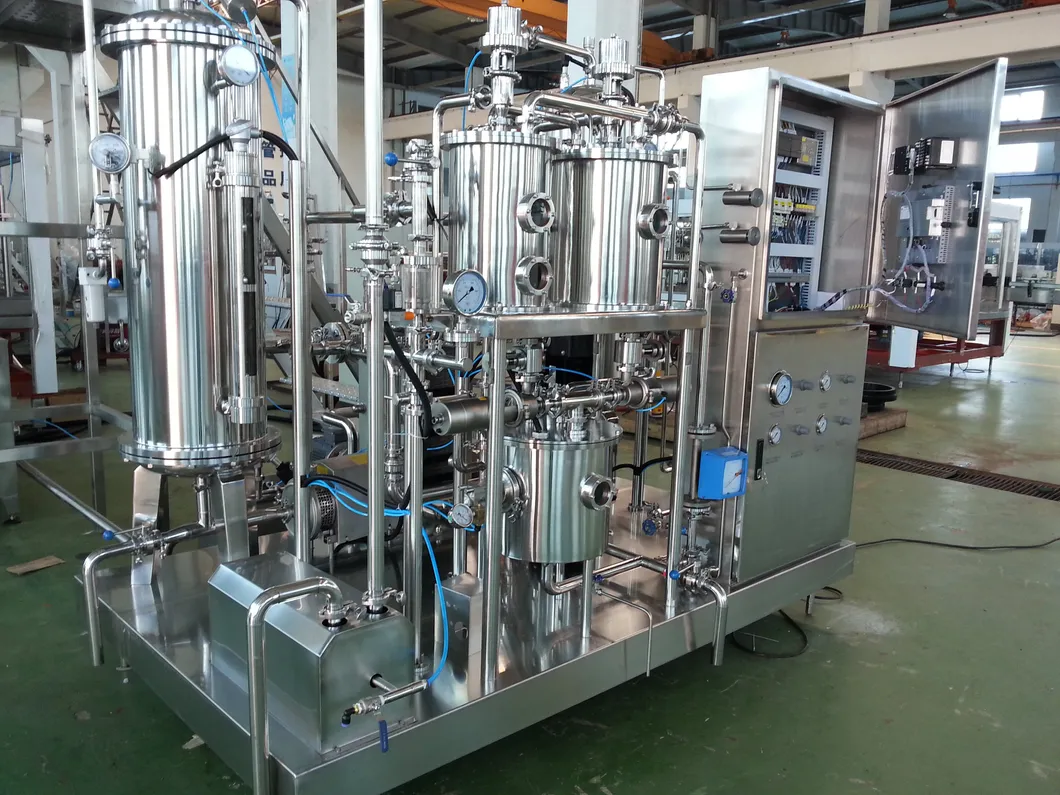

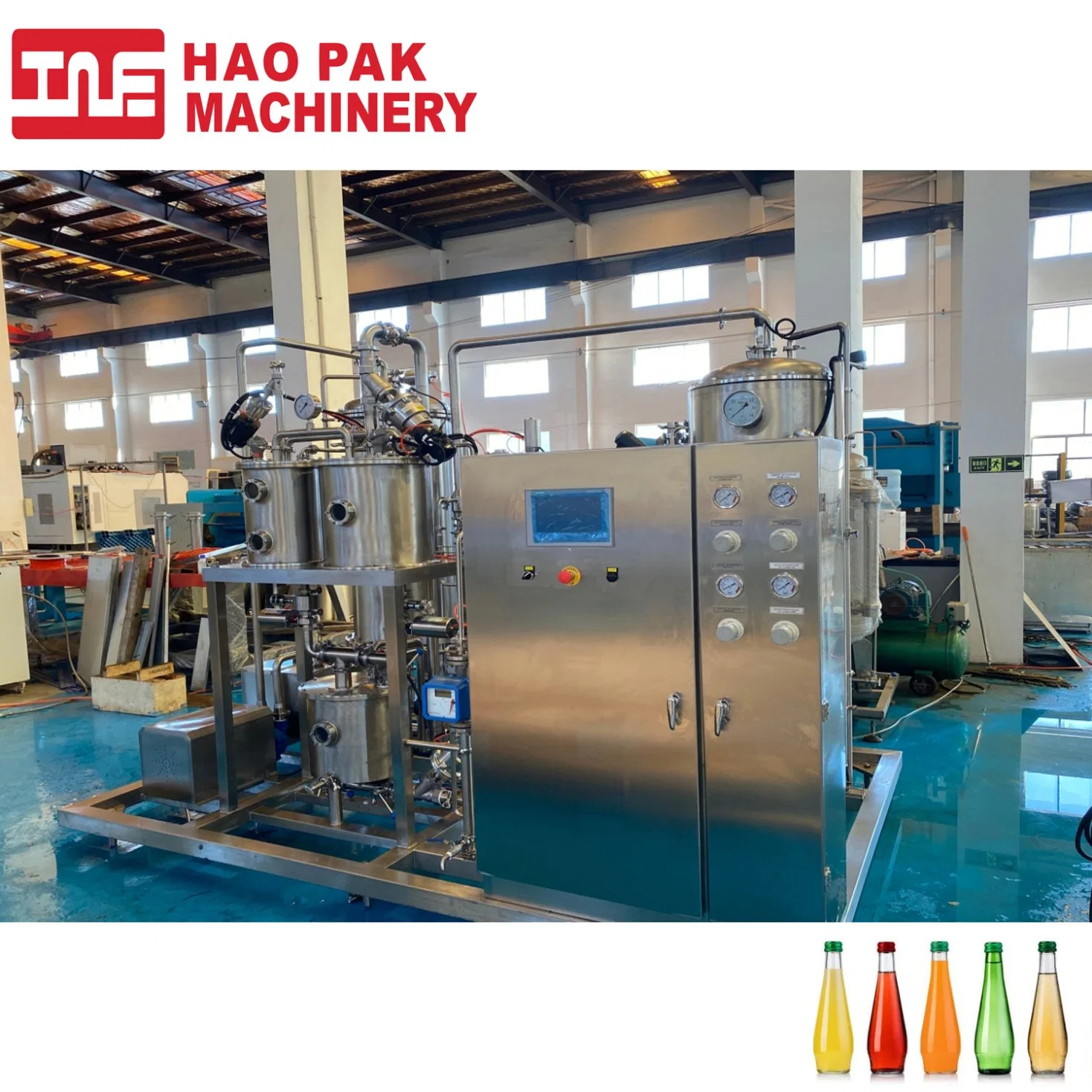

Carbonated Drink Mixer Machine

The Carbonated Drink Mixer Machine is designed for the high-precision carbonation and proportion mixing of various gaseous beverages, including water, syrup, and CO2 (such as lemon soda and cola). As a critical component in beverage production lines, it ensures consistent quality for middle and top-level beverage products.

Utilizing a vacuum oxygen degassing system, the machine facilitates sterilized water synthesis with CO2 and sugar based on specific customer requirements. It offers flexible adjustments for production capacity and mixing ratios.

Main Features

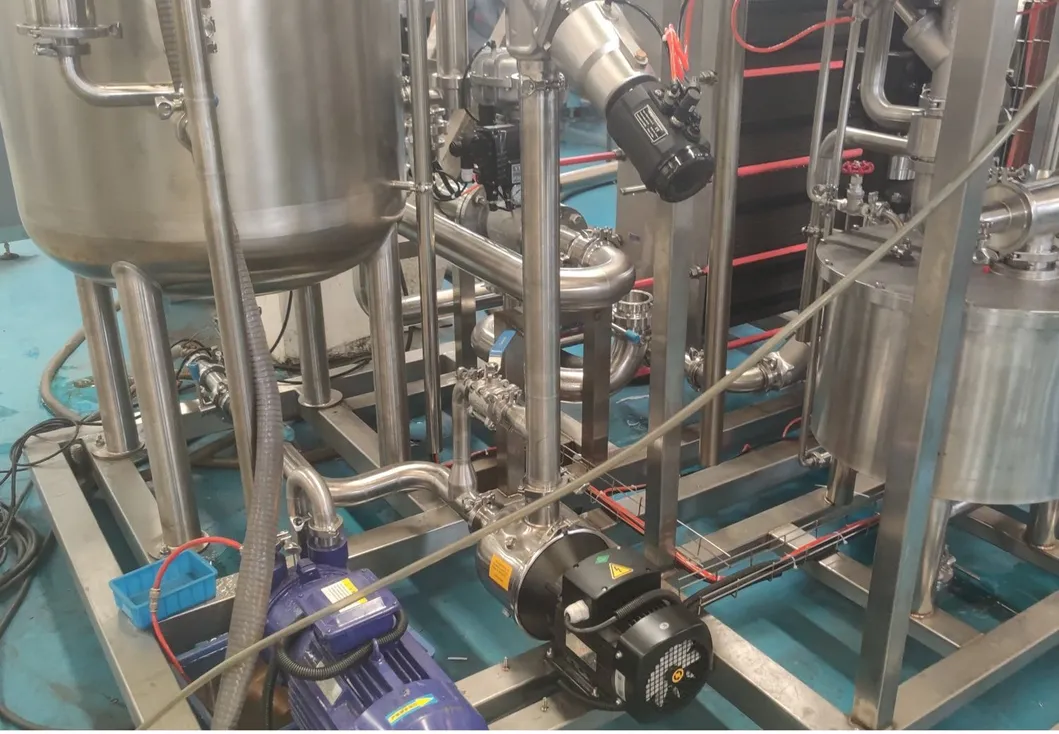

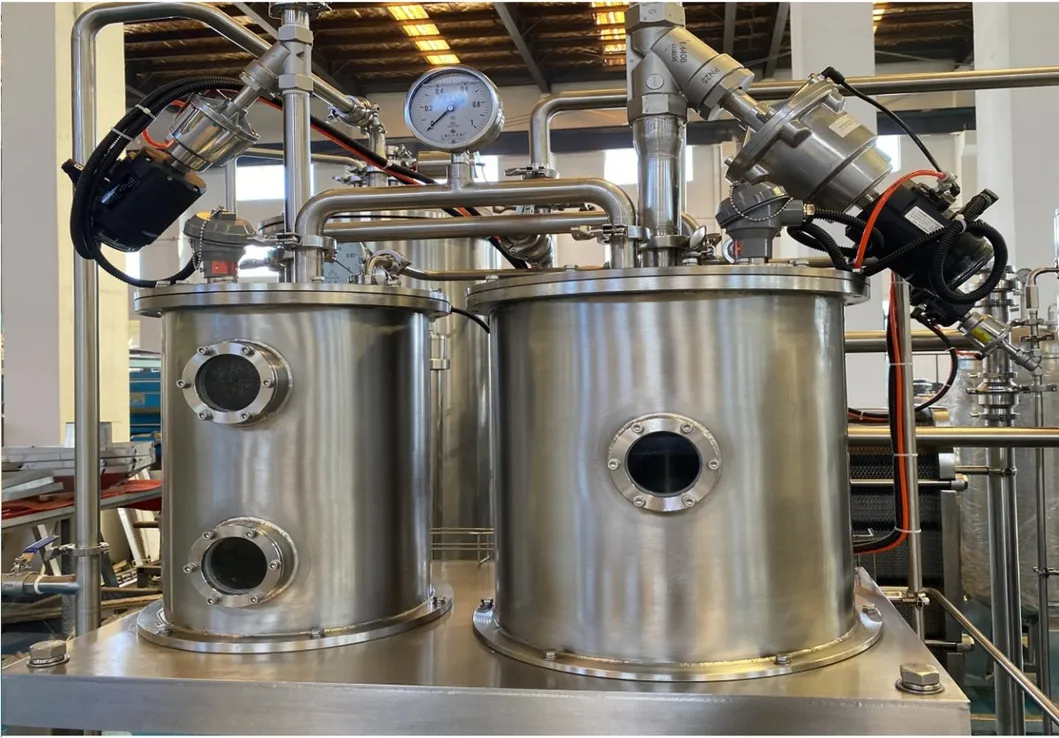

1. Advanced Injection System: Adopts high-efficiency injectors for CO2 addition, maintaining constant flow and stationary mixing. This ensures low energy consumption and simple structural maintenance with a reliable multi-stage mixing pump.

2. Accurate Proportioning: The mixing ratio is highly accurate and easily adjustable. No part replacement is required to change the output or the syrup-to-water ratio. Stable pressure across tanks ensures the final beverage quality remains consistent.

Product Parameters

Description Specification
Output capacity1000kg~20000kg/H
Mixing ratio scope3:1~6:1
Syrup-water Mixing Accuracy≥98%
CO2 Pressure0.6Mpa-0.8Mpa
CO2 content times≤3.8 times
CO2 Pureness≥99.99%
Compressed air pressure0.6~0.8Mpa
Compressed air consumption0.5M3/h

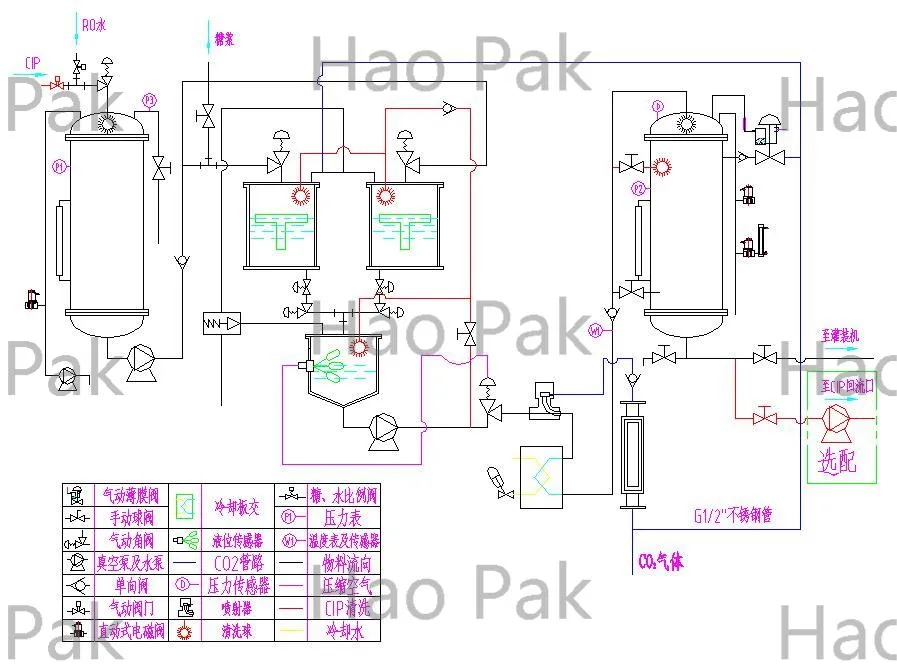

Machine Layout

Professional Manufacturer

Factory Overview

Established in 1998, the factory is one of the earliest specialized manufacturers for beverage filling and mixing machinery. The workshop covers more than 10,000 square meters and employs over 150 staff, including 30+ professional technical engineers. We integrate design, research, manufacturing, and technical services to provide complete solutions for water, carbonated drinks, alcohol, and dairy beverages.

Our sales network spans over 30 countries and regions globally. We have provided equipment and services to numerous world-famous beverage brands, maintaining a principle of "Quality First, Service Guaranteed."

📜

Certifications

Certificates Display
?

Frequently Asked Questions

How about the spare parts?
We provide one year's worth of easy-wear spare parts with the machine shipment. During the warranty period, we supply spare parts at our cost, including delivery fees.
How long does the installation take?
Depending on the order complexity, we send one or two engineers to your plant for installation, typically taking between 10 to 25 days.
What is the machine warranty?
We offer high-quality machines with a 1-year guarantee and provide lifelong technical support for all our equipment.
What is the typical production time?
Normal production time is around 30-60 days, depending on the specific machine type and customization requirements.
Are you a manufacturer or trading company?
We are an Original Equipment Manufacturer (OEM), allowing us to provide high-quality machinery at reasonable factory prices.
Can the mixing ratio be adjusted?
Yes, the syrup-to-water mixing ratio can be conveniently adjusted within a scope of 3:1 to 6:1 without needing to replace parts.
