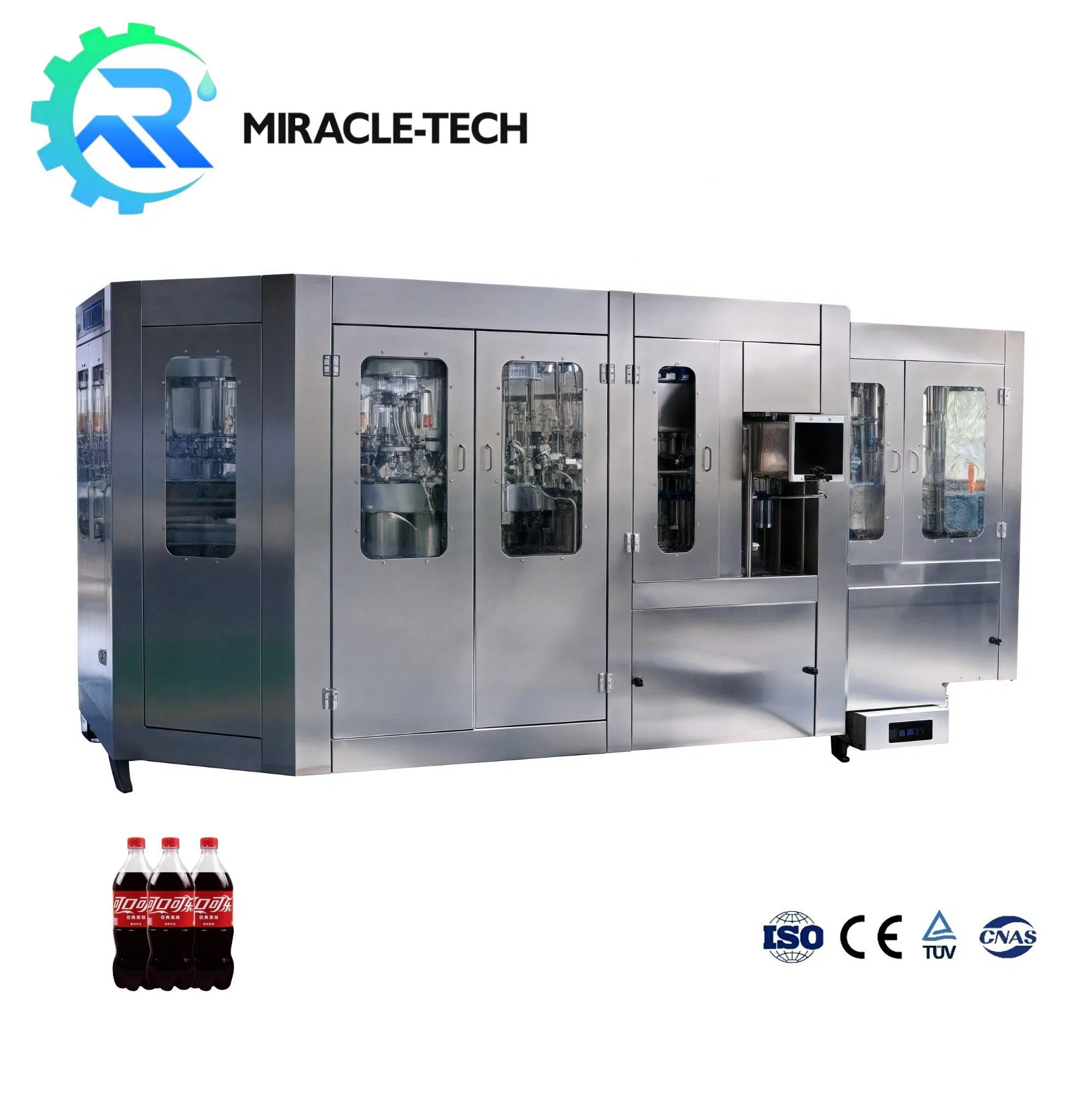

Dcgf24-24-8 6000-7000bph Bottled Carbonated Soda Soft Drink Beverage Processing CO2 Mixing Carbonation Filling Capping Machine Bottling Packaging Line
Dcgf24-24-8 6000-7000bph Bottled Carbonated Soda Soft Drink Beverage Processing CO2 Mixing Carbonation Filling Capping Machine Bottling Packaging Line
Dcgf24-24-8 6000-7000bph Bottled Carbonated Soda Soft Drink Beverage Processing CO2 Mixing Carbonation Filling Capping Machine Bottling Packaging Line
Dcgf24-24-8 6000-7000bph Bottled Carbonated Soda Soft Drink Beverage Processing CO2 Mixing Carbonation Filling Capping Machine Bottling Packaging Line
Dcgf24-24-8 6000-7000bph Bottled Carbonated Soda Soft Drink Beverage Processing CO2 Mixing Carbonation Filling Capping Machine Bottling Packaging Line
1 / 5
Dcgf24-24-8 6000-7000bph Bottled Carbonated Soda Soft Drink Beverage Processing CO2 Mixing Carbonation Filling Capping Machine Bottling Packaging Line
Dcgf24-24-8 6000-7000bph Bottled Carbonated Soda Soft Drink Beverage Processing CO2 Mixing Carbonation Filling Capping Machine Bottling Packaging Line
Dcgf24-24-8 6000-7000bph Bottled Carbonated Soda Soft Drink Beverage Processing CO2 Mixing Carbonation Filling Capping Machine Bottling Packaging Line
Dcgf24-24-8 6000-7000bph Bottled Carbonated Soda Soft Drink Beverage Processing CO2 Mixing Carbonation Filling Capping Machine Bottling Packaging Line
Dcgf24-24-8 6000-7000bph Bottled Carbonated Soda Soft Drink Beverage Processing CO2 Mixing Carbonation Filling Capping Machine Bottling Packaging Line

Dcgf24-24-8 6000-7000bph Bottled Carbonated Soda Soft Drink Beverage Processing CO2 Mixing Carbonation Filling Capping Machine Bottling Packaging Line

Customization: Available
After-sales Service: 24 Months
Warranty: 2-Year Warranty
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
DCGF
Type
Volumetric Filling Machine
Automatic Grade
Fully Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Dosing Device
Capacity Cup
Filling Principle
Pressure / Isobaric
Product Name
Carbonated Beverage Filling Machine
Material
SUS304 / SUS316L
Capacity
2000bph - 24000bph
Bottle Volume
200ml - 2L
Function
Washing Filling Capping
Control Method
PLC Control
Certification
CE, ISO, SGS, CNAS
⚙️

Product Description

Automatic Carbonated Beverage Filling Machine

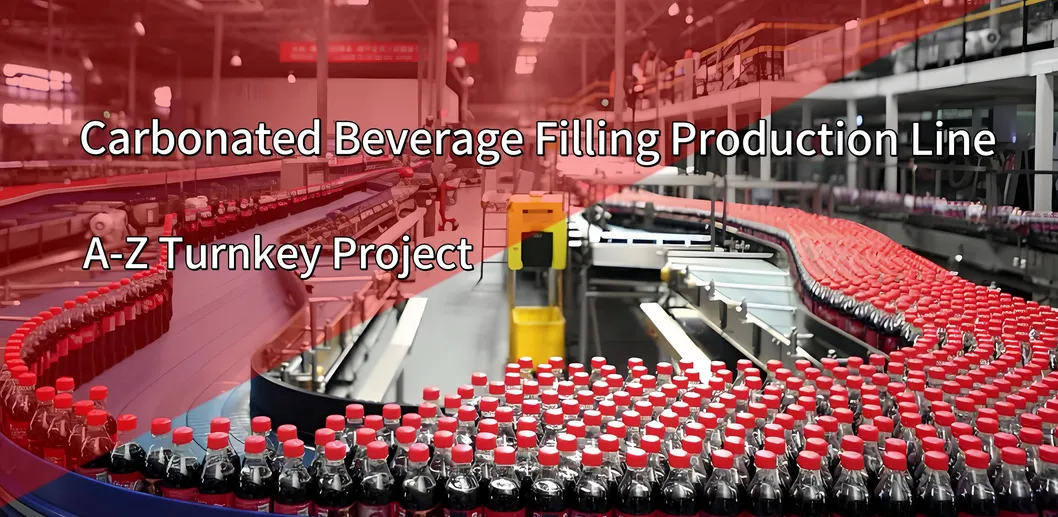

Automatic Carbonated Beverage Filling Machine / Complete Bottling Production Line

Professional solutions for liquid packaging, focusing on complete production lines including water treatment, beverage processing, 3-in-1 washing-filling-capping, labeling, and automatic packing systems.

📊 Technical Parameters
Model DCGF14-12-5 DCGF18-18-6 DCGF24-24-8 DCGF32-32-10 DCGF40-40-12
Capacity (for 500ml) 2000-2500 4000-5000 6000-7000 8000-10000 12000-15000
Bottle diameter φ40-φ120
Bottle height 150-350mm
Filling method Isobaric filling
Washing medium Aseptic pure water
Power 4.5KW 5.5KW 6.2KW 7.5KW 8.2KW
Weight 3200KG 4300KG 5500KG 6800KG 8500KG

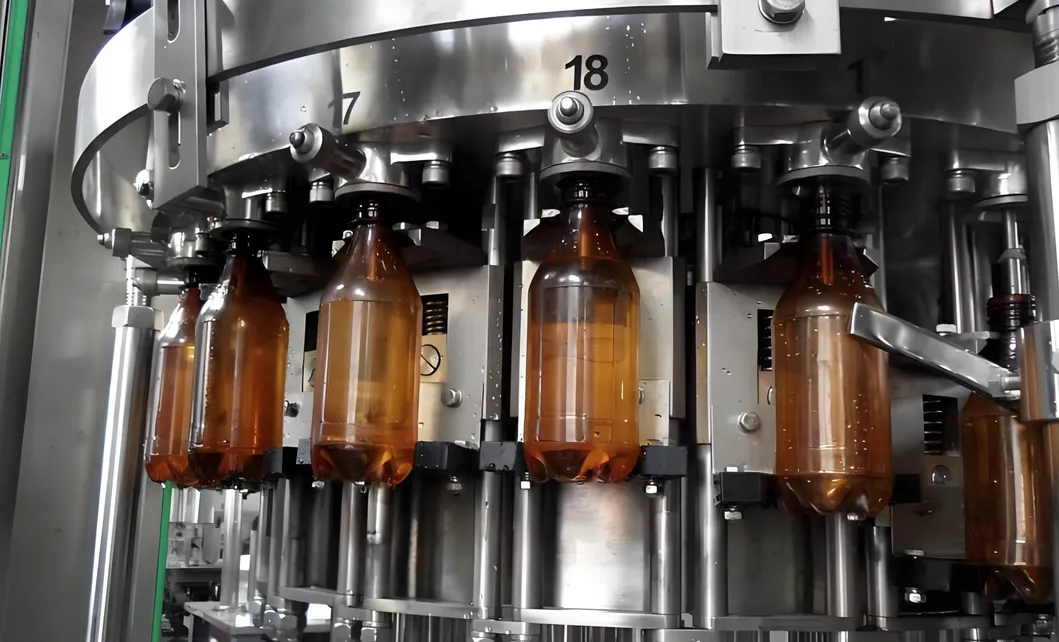

Machine Details
💧

System Details

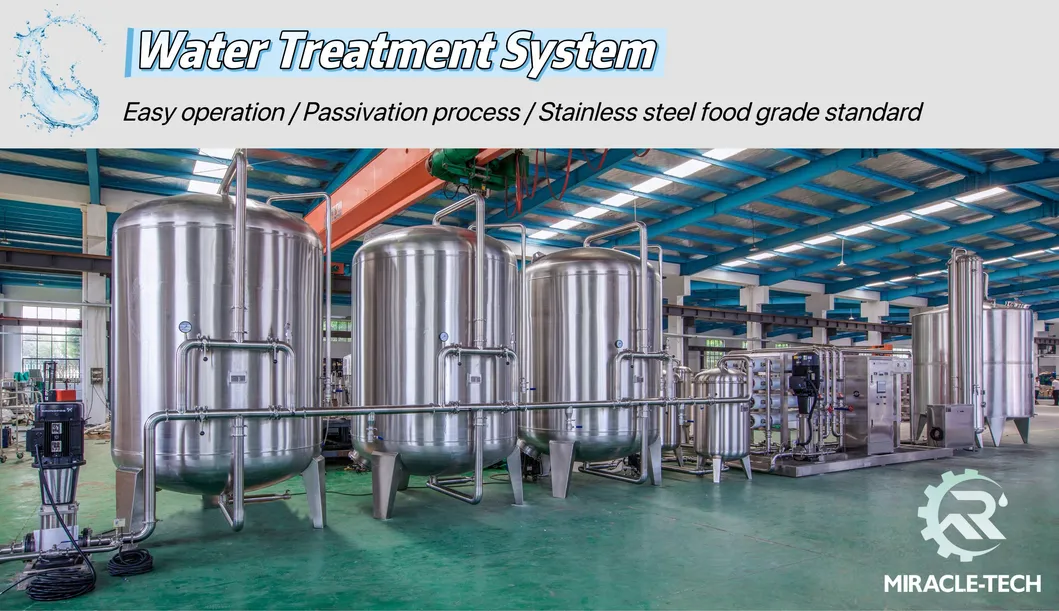

Water Treatment System Process Flow:

Raw water input -> Raw water pump -> Silica sand filter -> Active carbon filter -> Sodium ion exchanger -> Precision filter -> Reverse osmosis (RO) -> UV sterilizer -> Pure water tank -> Output.

Water Treatment System

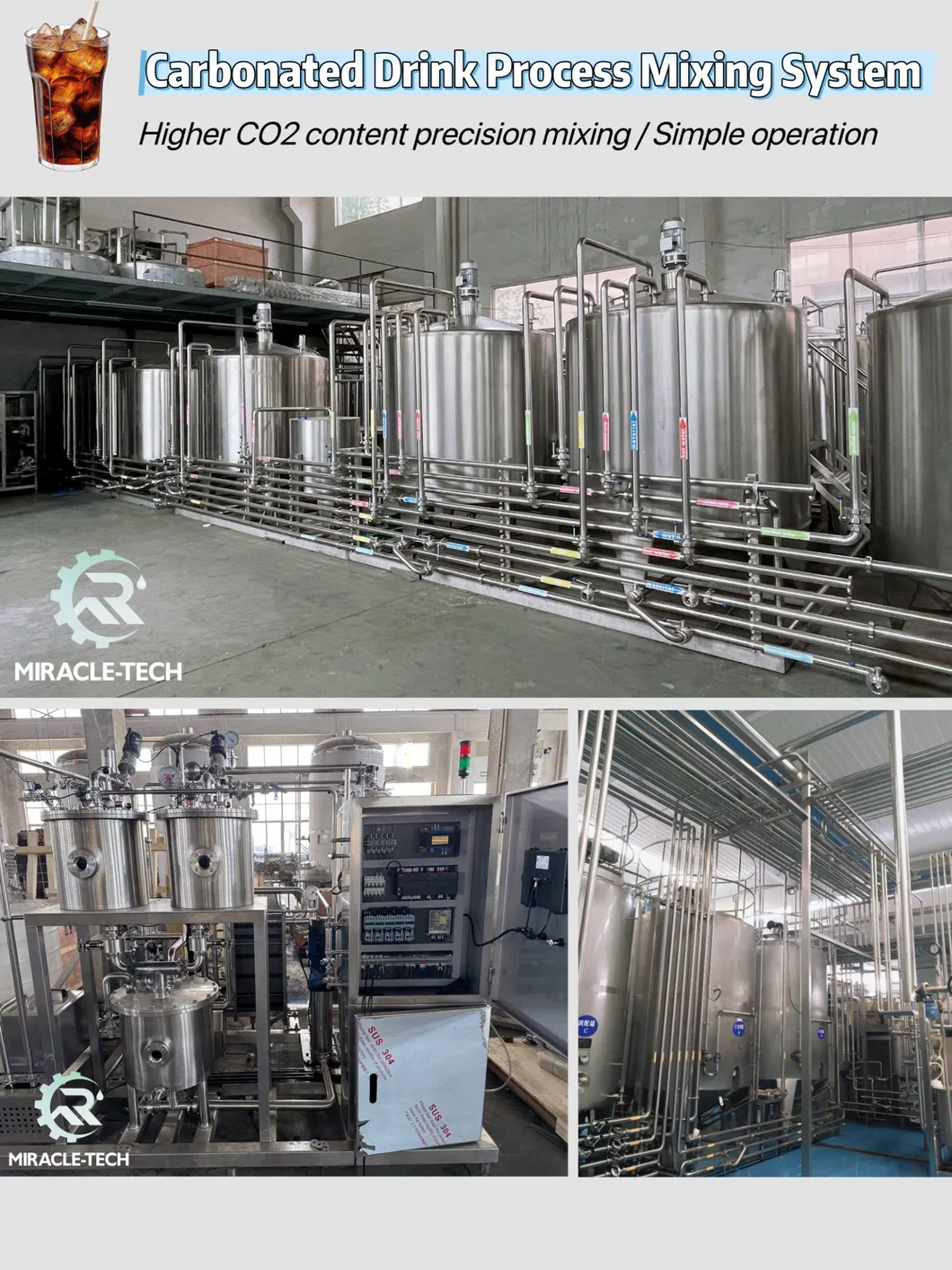

Carbonated Beverage Mixing System:

Features high mixing precision and sufficient carbon dioxide integration with dual cooling and carbonation advantages. Suitable for carbonated beverages, soft drinks, and fermented beverages.

Mixing System

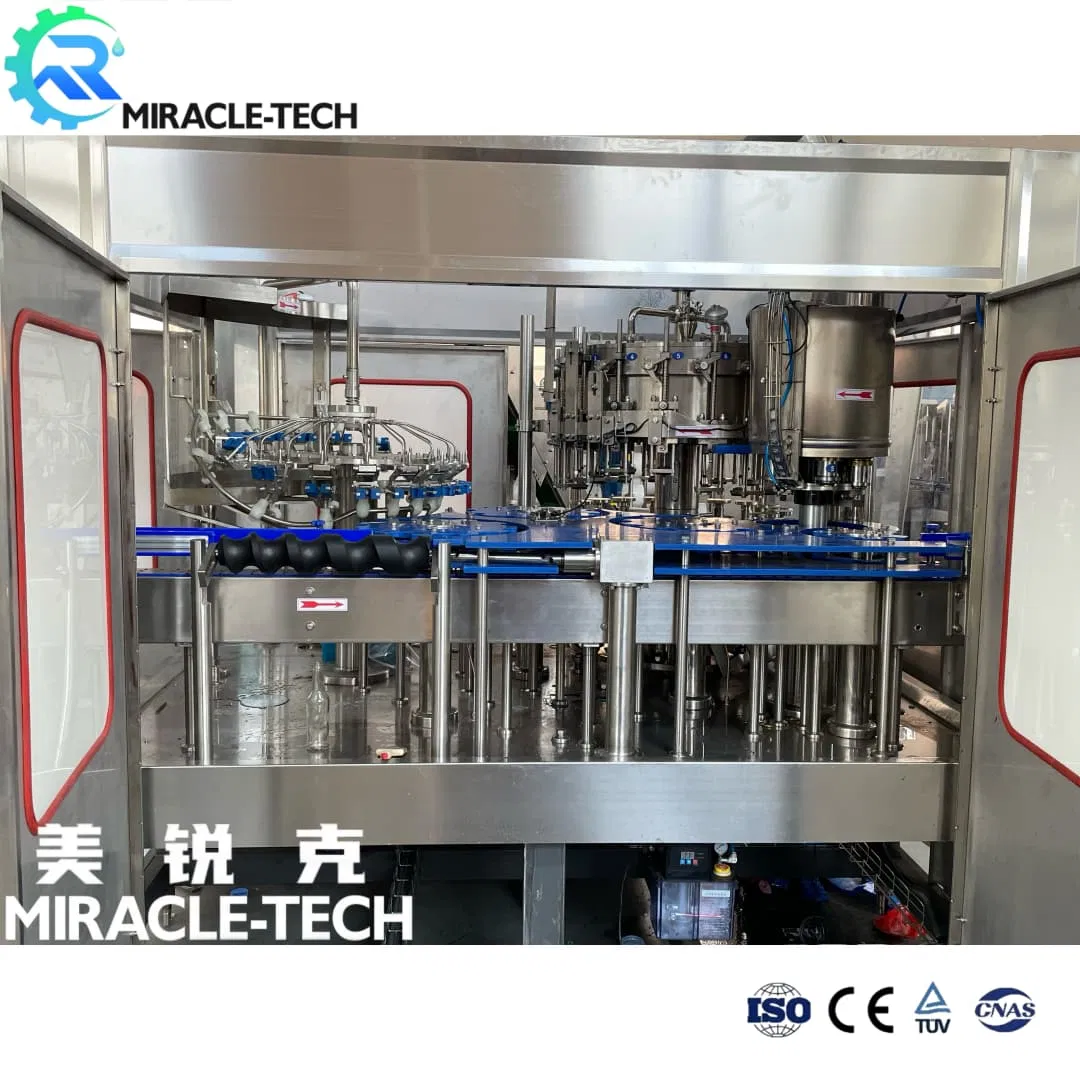

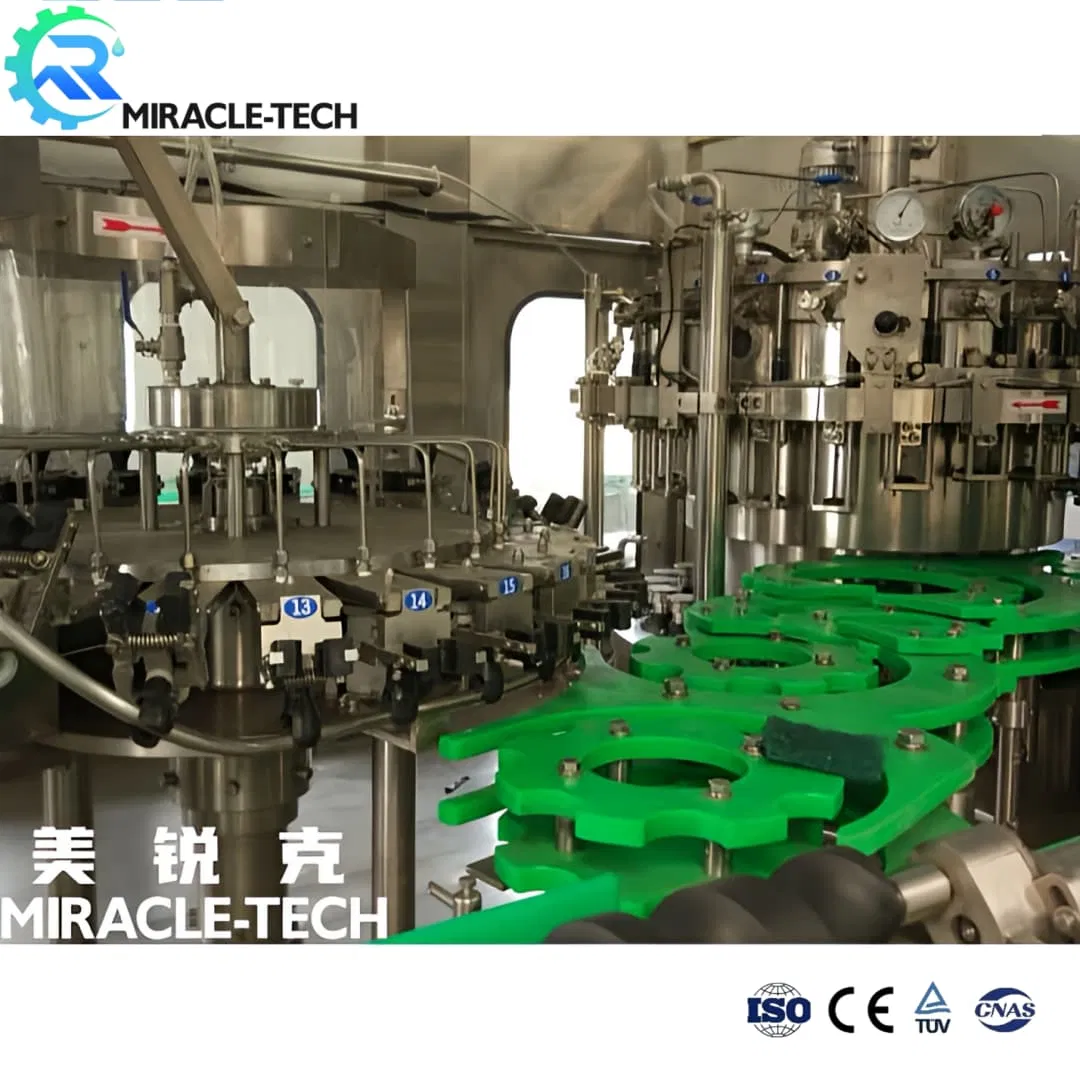

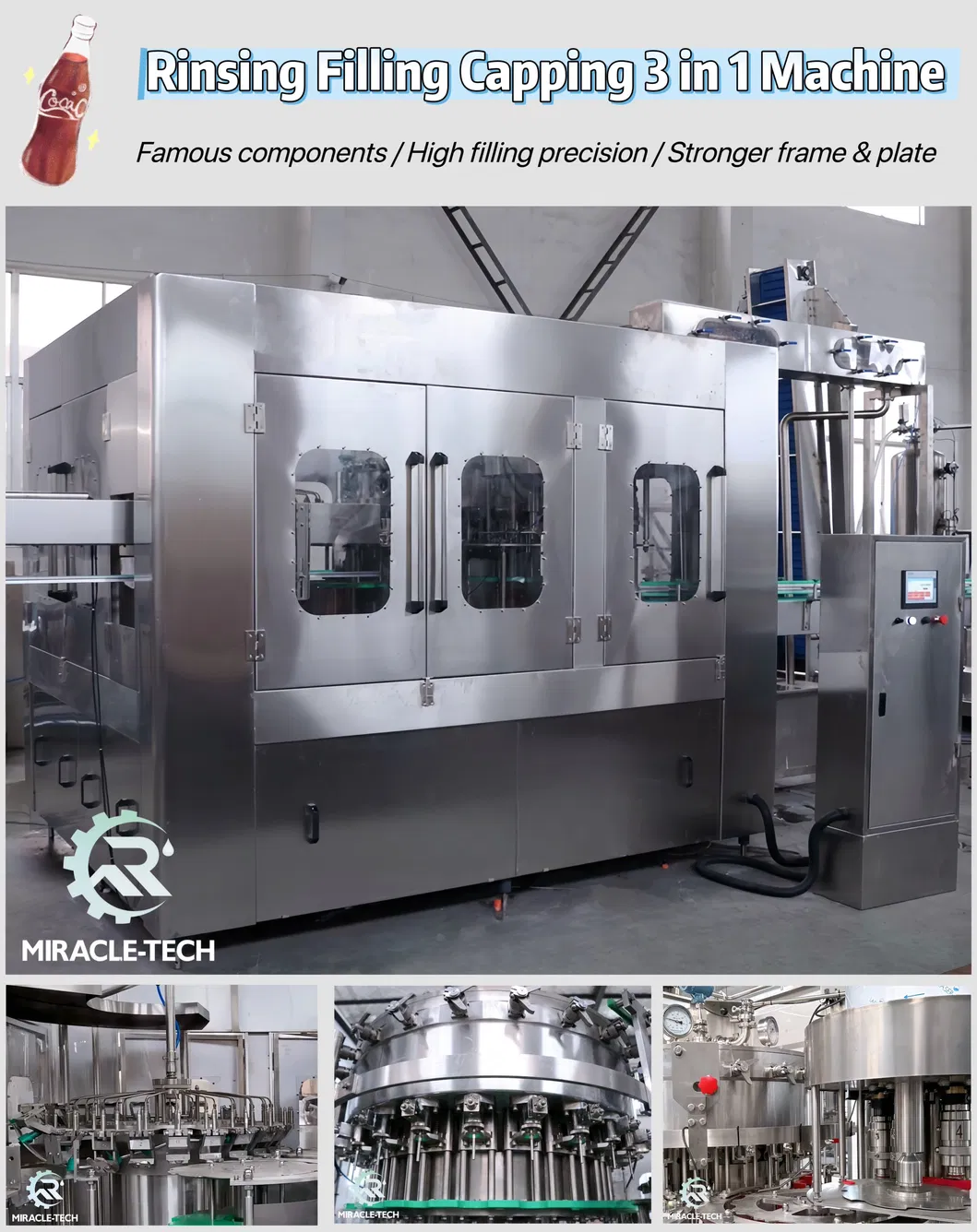

Main Features of Filling Machine:
✅ technology of direct connection between wind channel and moving wheels for easier shape changes.
✅ Bottle neck clamping technology eliminates machine height adjustments.
✅ High-speed gravity flow valves for accurate, fast filling without liquid loss.
✅ Advanced PLC automatic control with high-quality global electrical components.
✅ Stainless steel bottle washer clamps designed to prevent secondary contamination.
Filling Machine Features
📦

Packaging & Auxiliary Equipment

Labeling and Packing:

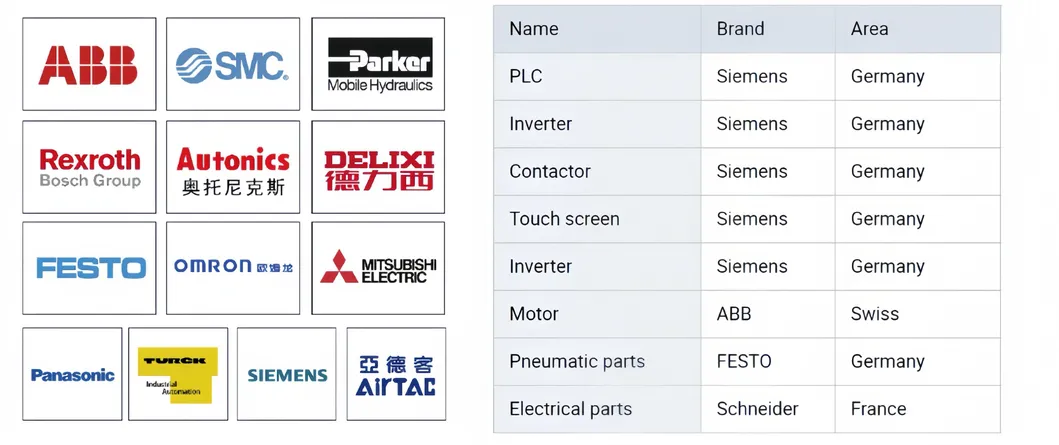

Configuration

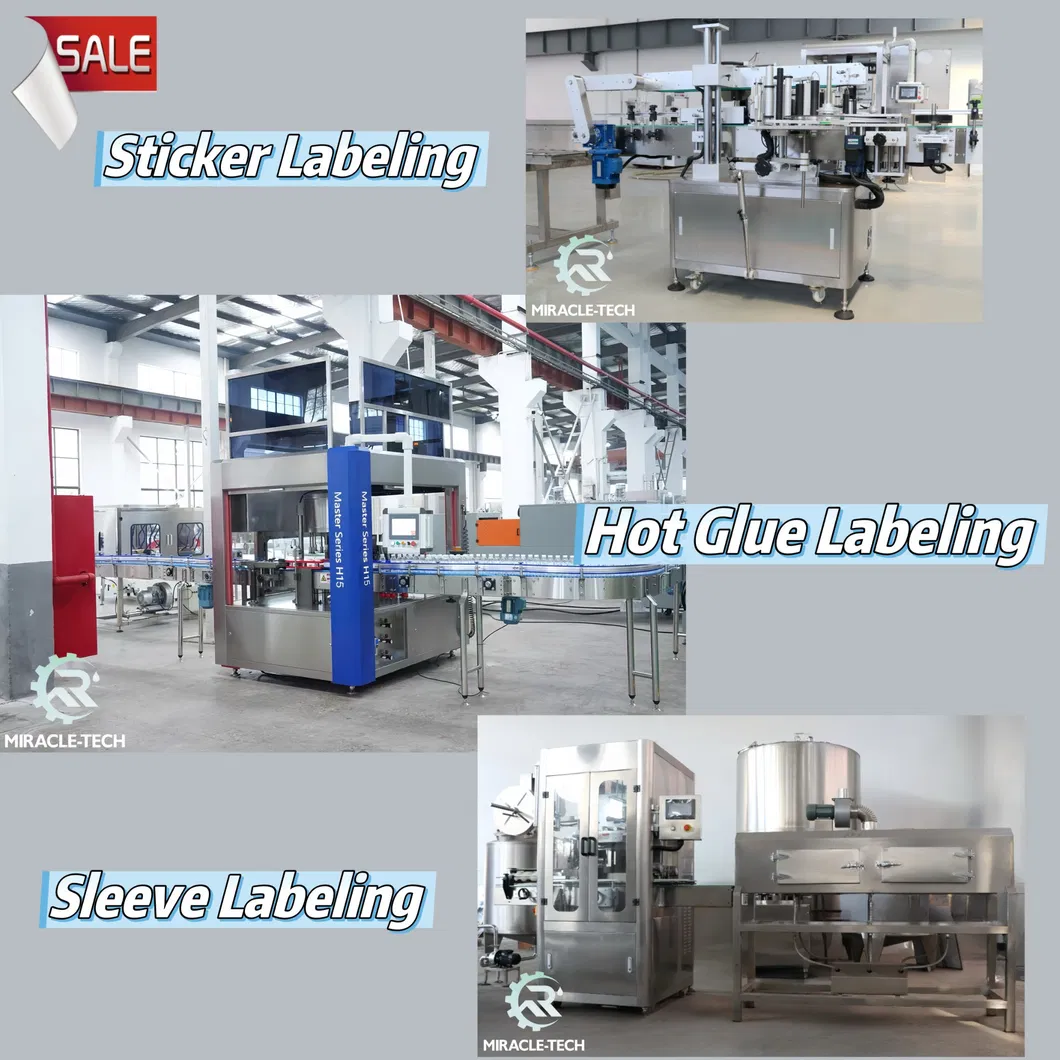

Labeling Machine
Shrink Wrapping and Conveyors:

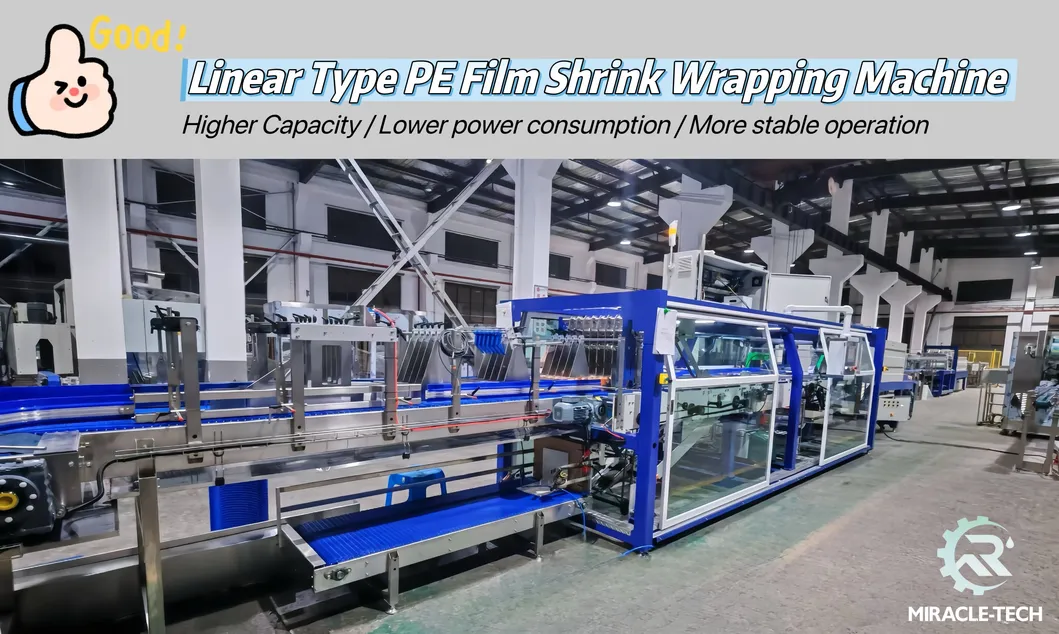

Packing 1

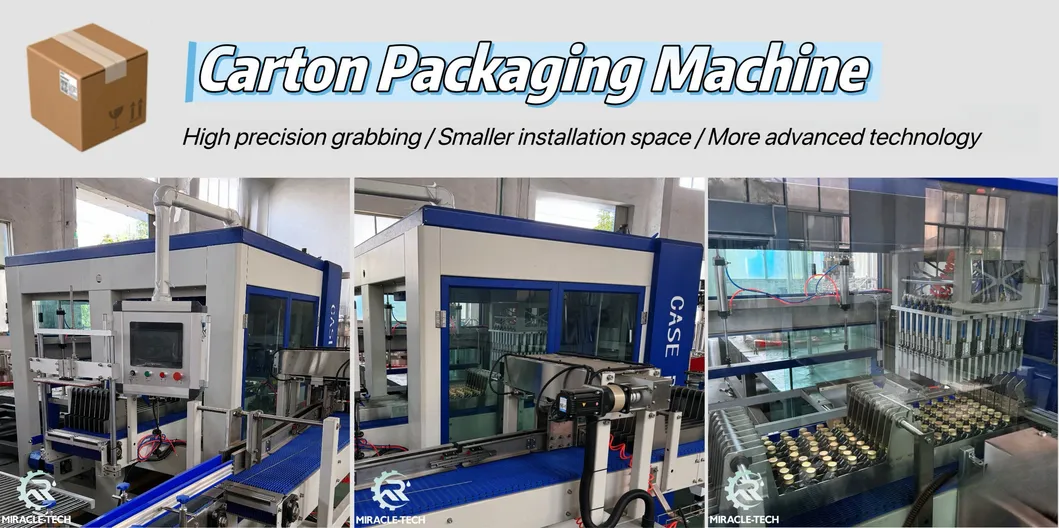

Packing 2

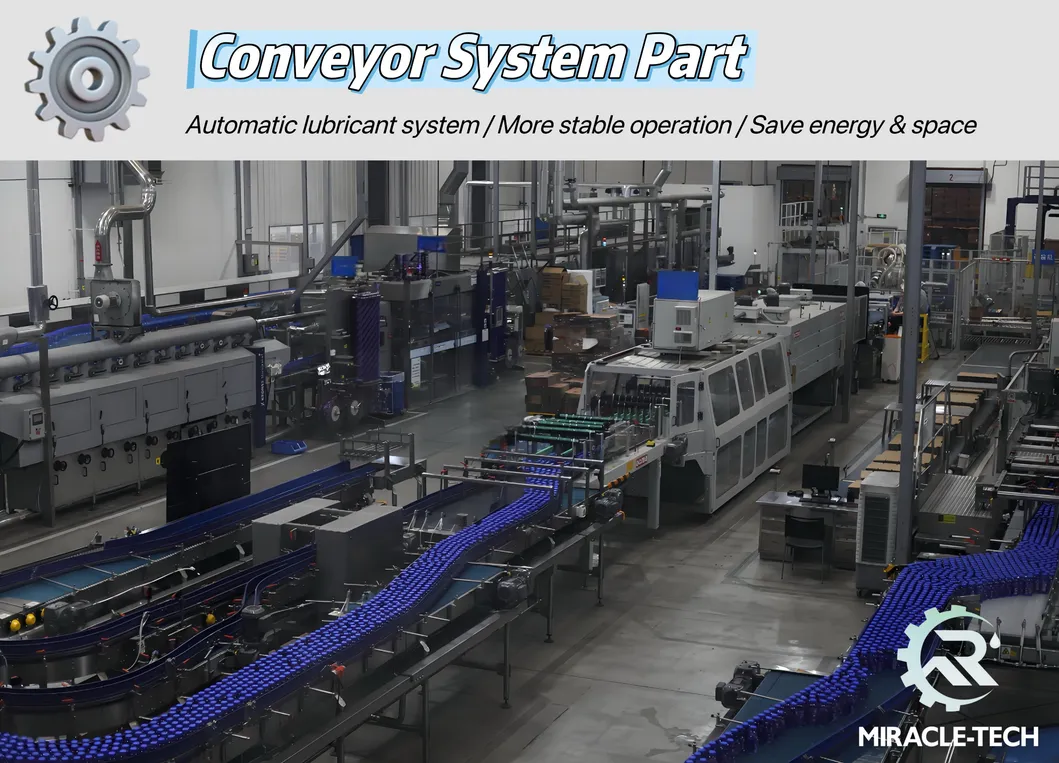

Conveyor System
Bottle Blowing and Injection Molding:

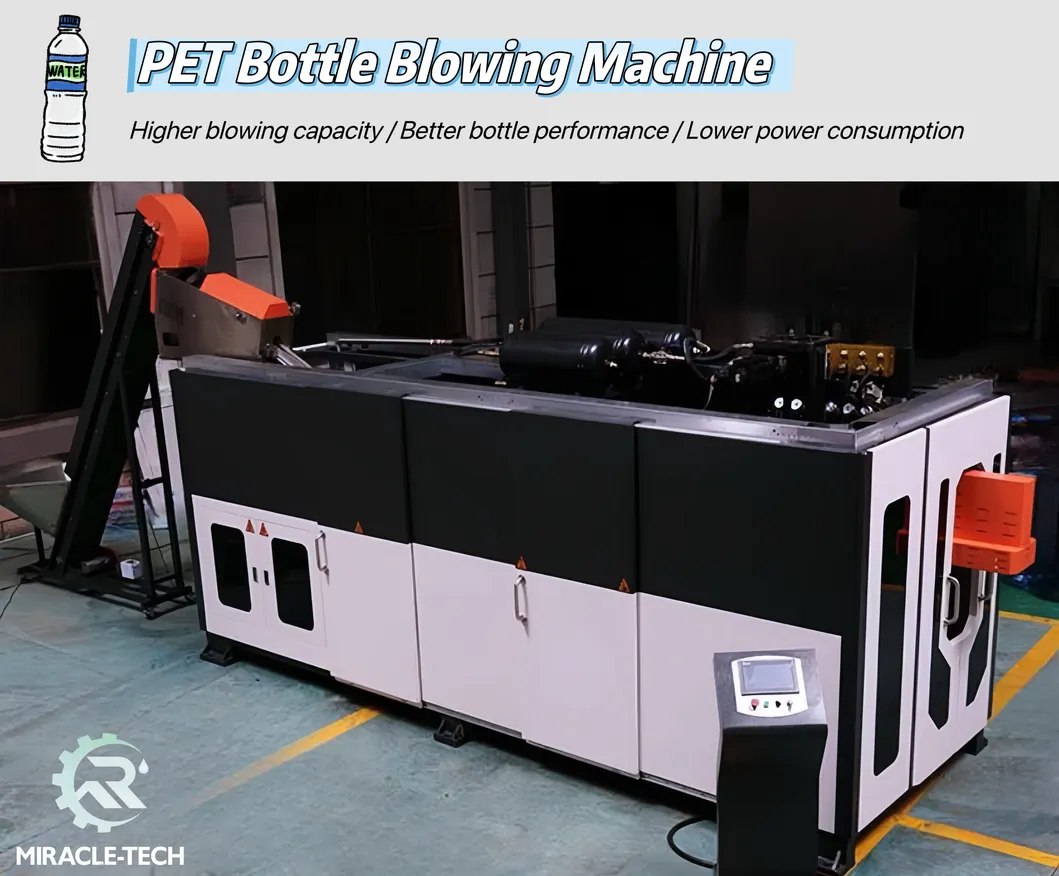

Blowing Machine

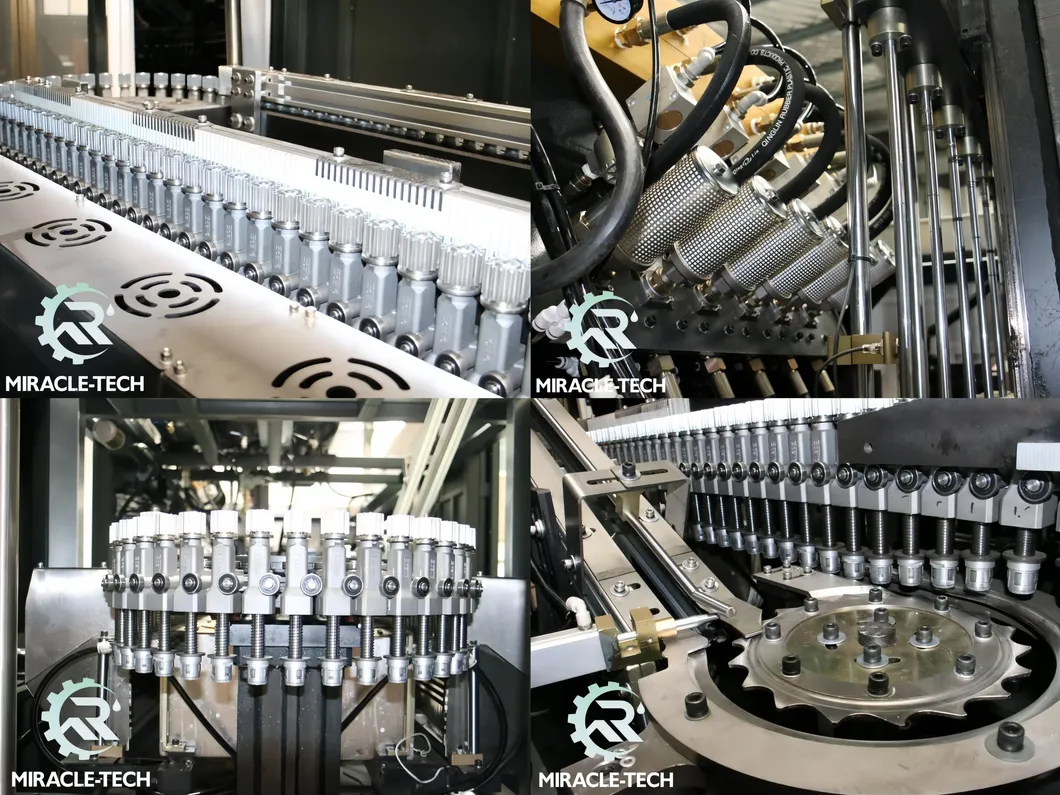

Blowing Process

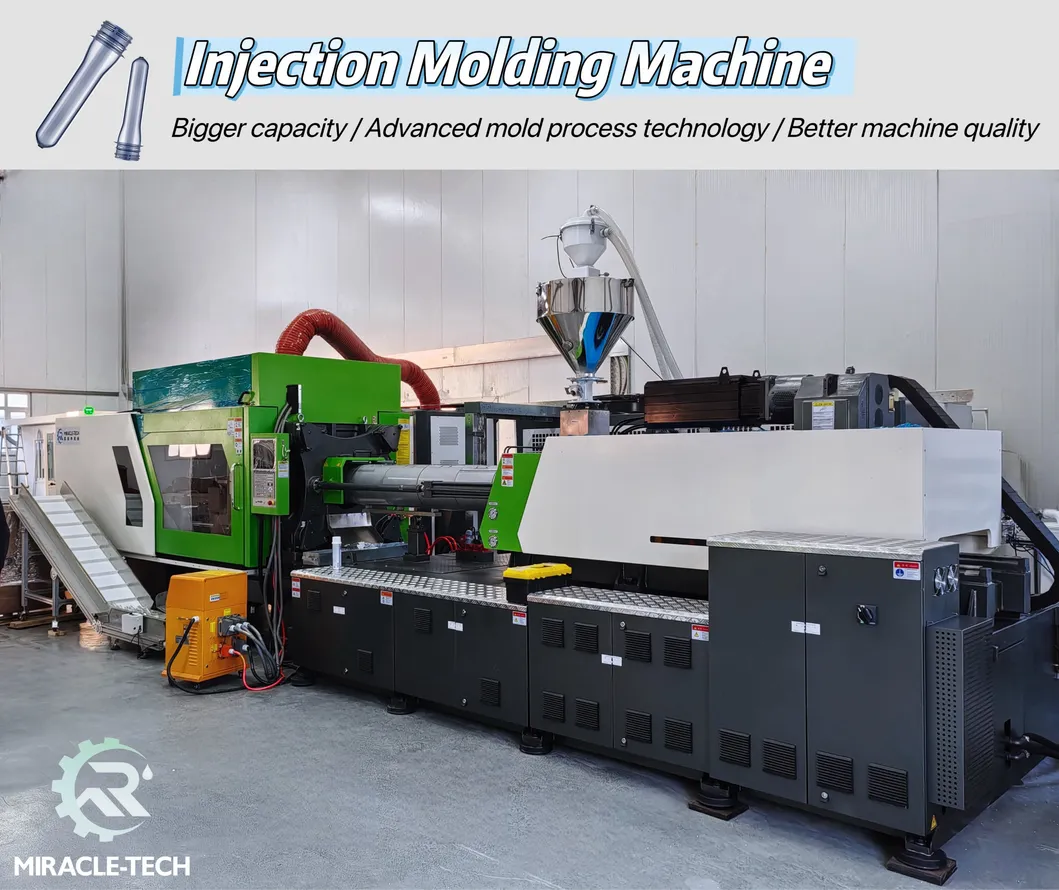

Injection Machine

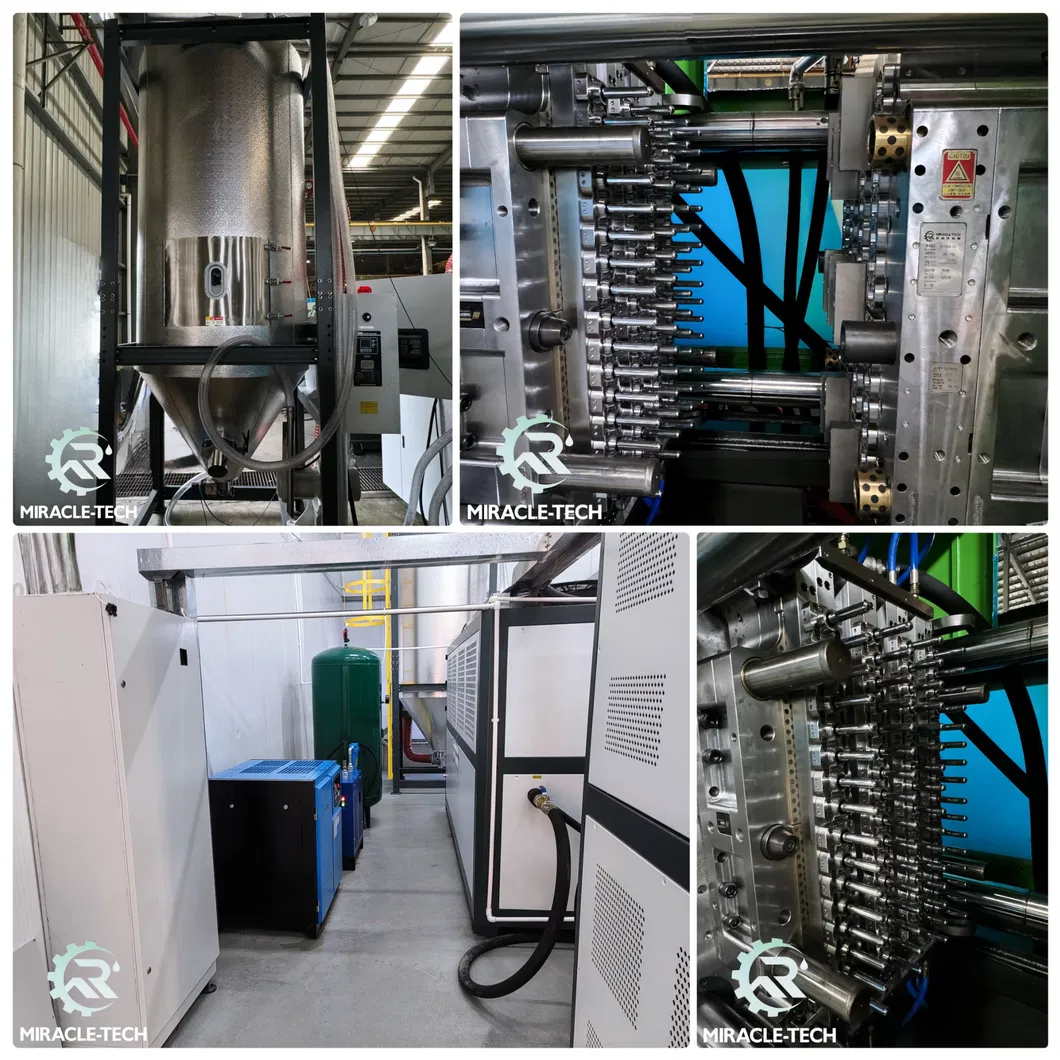

Preforms
🏗️

Turnkey Project Solutions

Complete A to Z project layout and design for liquid bottling. We provide standardized factory workshop setups, precision CNC-processed parts, and full equipment testing for 24 hours before delivery.

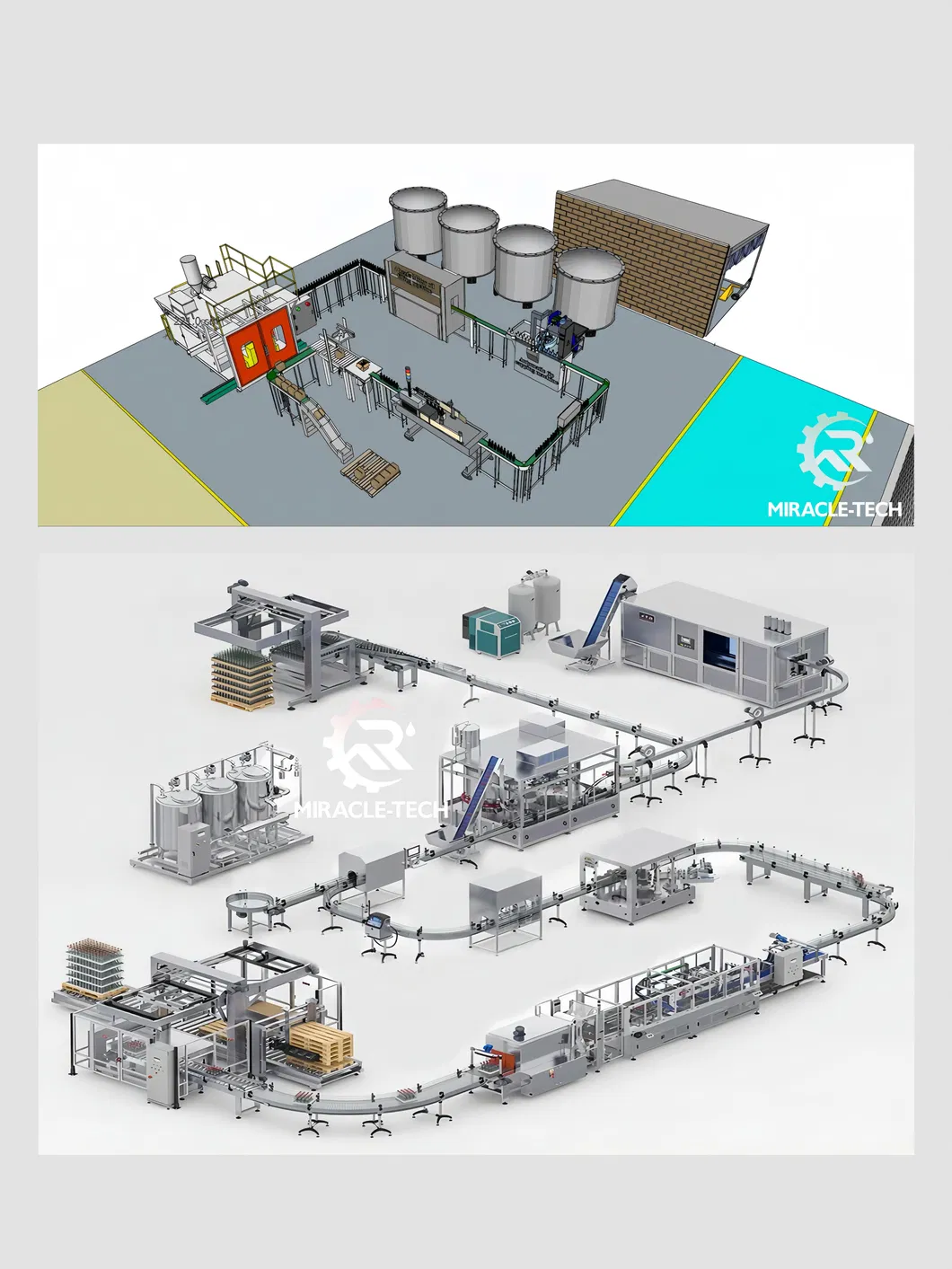

Project Layout
Manufacturing Standards:

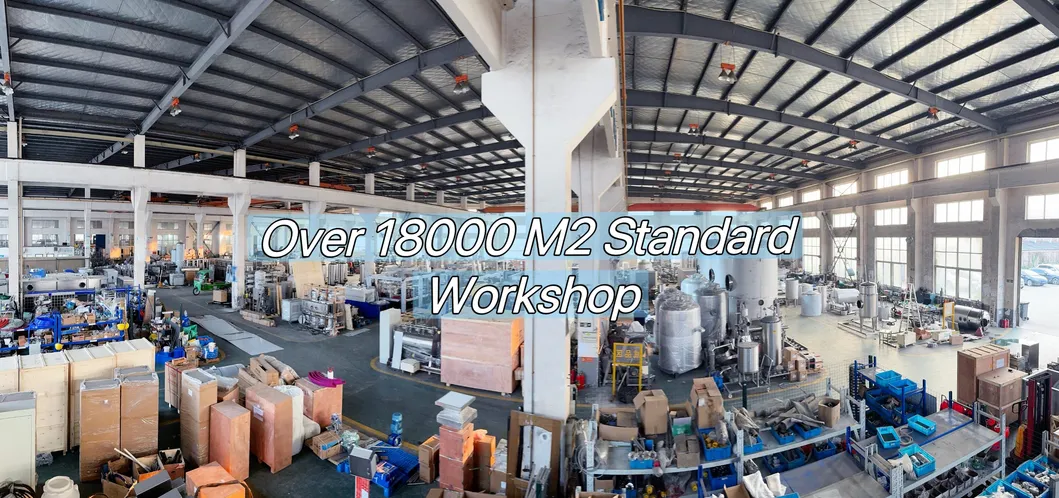

🔹 Over 18,000 square meters of production space.
🔹 High-precision tools including laser and plasma cutting.
🔹 Global certifications: ISO9001, CE, SGS, TUV.
🔹 Experienced overseas installation and engineering support.
Factory
Certification
Customers
Frequently Asked Questions (FAQ)
1. What types of beverages can this machine fill?
This machine is specifically designed for carbonated beverages, including soda water, sparkling drinks, soft drinks, and other gas-containing liquids.
2. What is the production capacity of the carbonated beverage line?
The capacity ranges from 2000 bottles per hour (bph) to 24000 bottles per hour, depending on the specific model and bottle size (200ml to 2L).
3. What filling technology does the machine use?
The machine utilizes Isobaric (pressure) filling technology, which ensures stable carbonation levels and high-speed, accurate filling for carbonated drinks.
4. Can I use both PET and Glass bottles?
Yes, the production line can be customized to handle both PET plastic bottles and glass bottles.
5. Is the machine easy to adjust for different bottle shapes?
Yes, the machine uses bottle neck clamping technology, making it easy to change between different bottle shapes by replacing simple parts without adjusting the machine's overall level.
6. Does the production line include cleaning and capping functions?
Yes, it is a 3-in-1 monoblock system that integrates bottle washing, beverage filling, and cap sealing in one synchronized unit.
