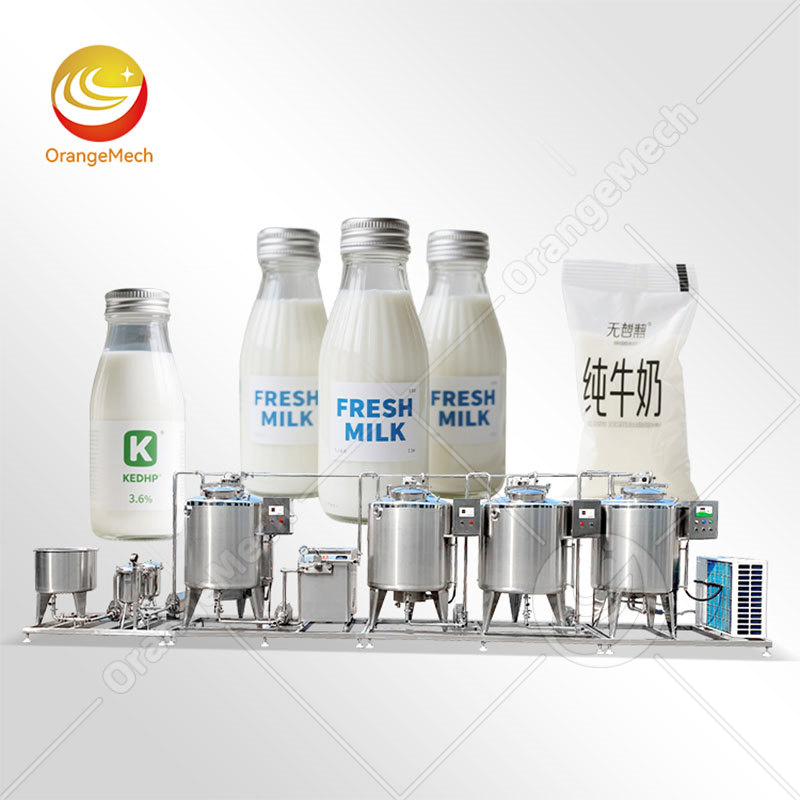

300 500 Liter Electric Bath Pasteurizer Dairy Process Equipment Goat Milk Pasteurizer Camel Milk Pasteurization Tank Process Plant Milks Process Line for Sale

Customization: Available
After-sales Service: Online Support, Video Technical Support
Warranty: 1 Year

Product Description

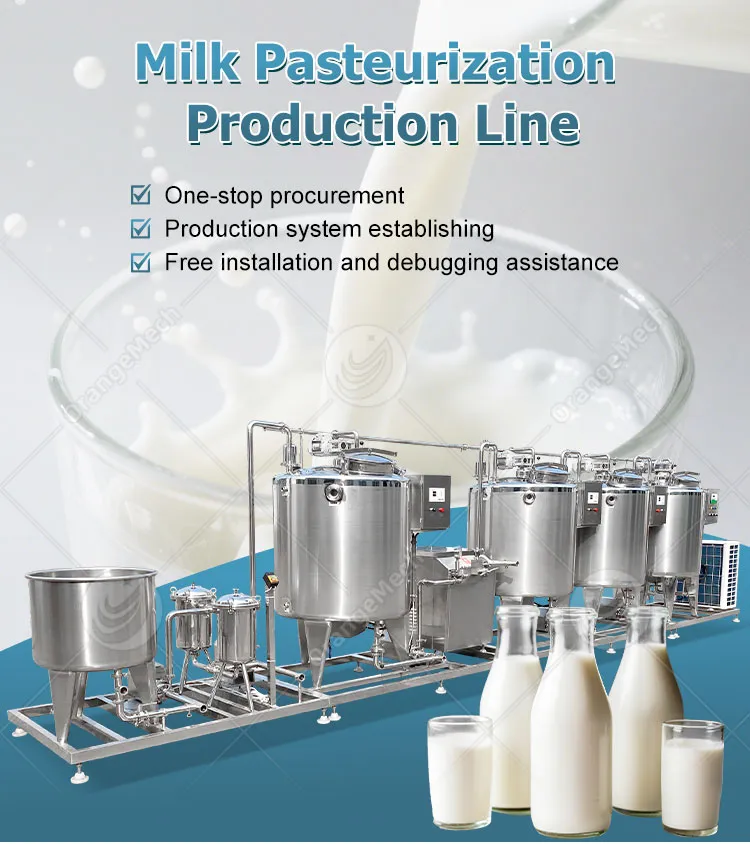

Milk Pasteurization Equipment
Basic Information
Model
ORME-NSJ-10
Process
Thermal Processing
Power Source
Electric
Certification
CE, ISO9001
Automatic Grade
Automatic
Application
Milk, Yogurt, Cheese
Product Name
Milk Sterilization Line
Raw Material
Fresh Liquid Milk / Milk Powder
Capacity
300L~10000L
Material
Stainless Steel 304/316
Voltage
220V/380V Customized
HS Code
8419200000
Product Description
Introduction

This milk pasteurization line preserves the fresh taste and nutrients of milk while ensuring product safety and extending its shelf life. Made of high-quality stainless steel and equipped with an efficient automatic control system for pasteurization, it is ideal for producing high-quality milk, yogurt and other dairy beverages.

Application

This milk pasteurization line is designed specifically for the dairy processing industry and is suitable for farms, dairies, and dairy product manufacturers. It can be used to produce pasteurized fresh milk, yogurt, cream, cheese, and various dairy beverages with a longer shelf life, meeting the needs of small and medium-sized dairy processing operations.

Key Features
  • Constructed of food-grade 304 stainless steel, easy to clean and wear-resistant.
  • Integrated stainless steel frame features a compact structure for easy installation.
  • Equipped with adjustable feet for easy overall leveling.

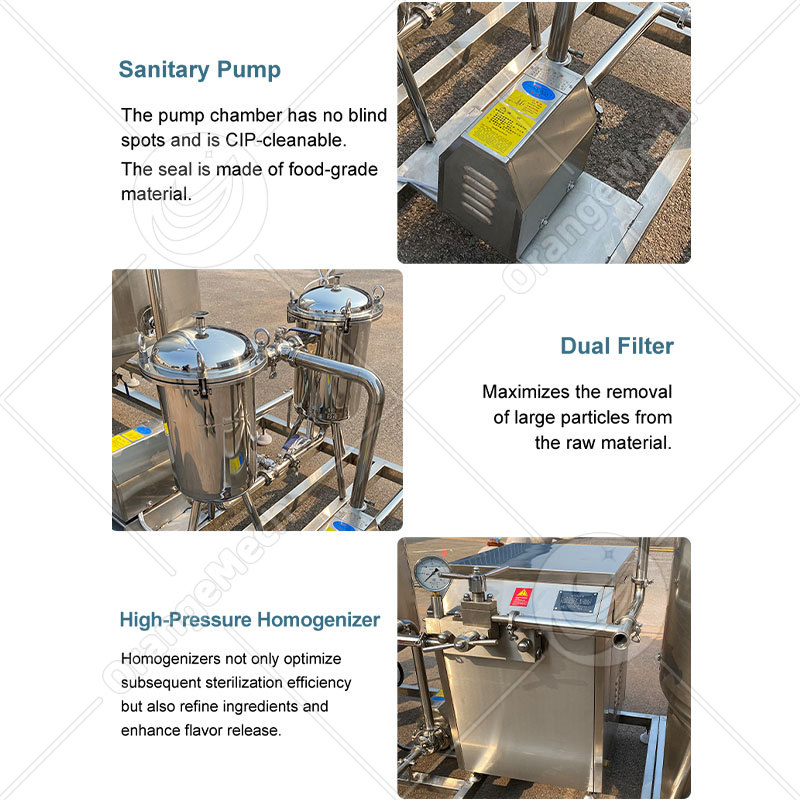

  • Sanitary pump with stainless steel protective cover to prevent damage.
  • Dual filter effectively removes large particles from raw materials.
  • Multiple sampling ports facilitate online sampling and testing.
  • High-pressure homogenizer achieves a finer and uniform material texture.

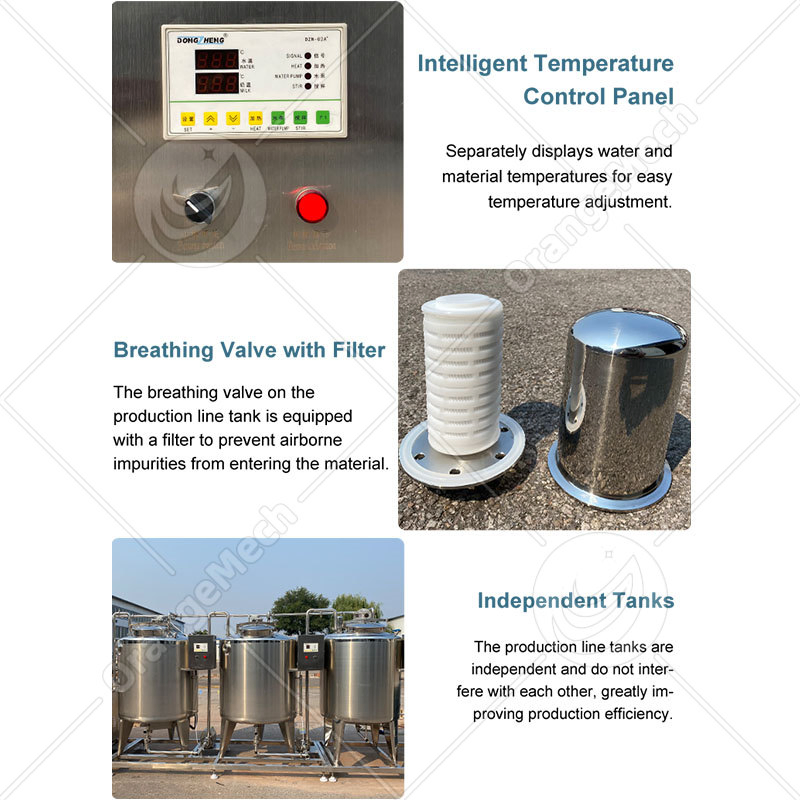

  • Intelligent temperature control panel with separate screens for water and material temperatures.
  • Efficient water-cooling process and independent low-temperature storage.
  • Breathing valve equipped with a filter to prevent contamination.
Technical Parameters

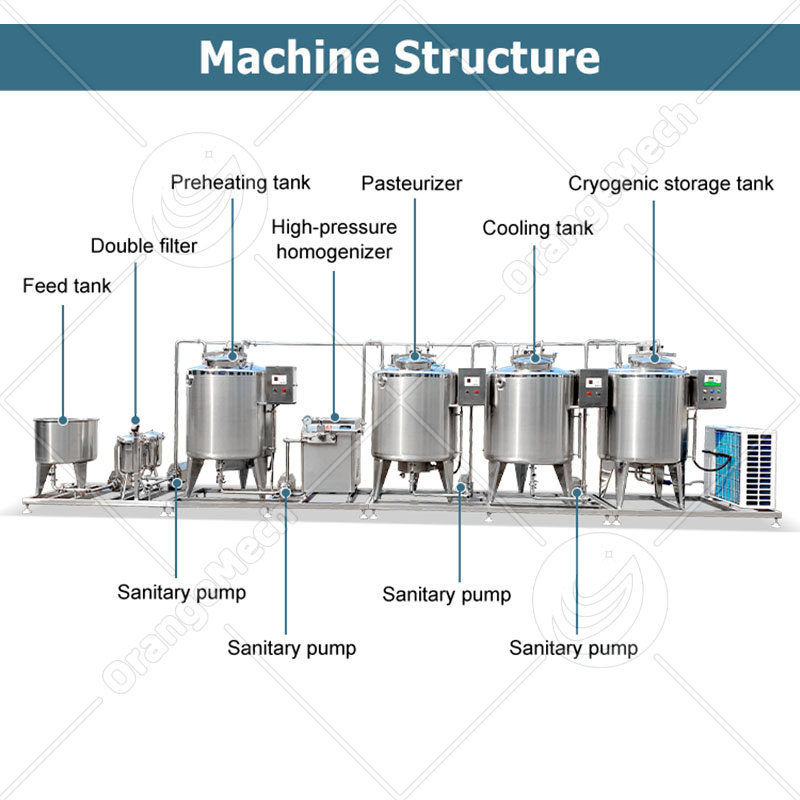

System Components & Specifications
Feed Tank200L, 304 Stainless Steel, 800*800*800mm
Duplex Filter5T/h Capacity, 200 Mesh, 304 Stainless Steel
Preheating Tank500L, 24KW Heating Power, 380V, 36r/min Agitation
High-Pressure Homogenizer1000L/H Capacity, 7.5KW, 304 Stainless Steel
Pasteurization Tank500L, 24KW Heating, 36r/min Agitation speed
Cooling Tank500L, Circulating chilled water cooling method
Low-Temp Storage Tank500L, 3KW Refrigeration power, 380V
Machine Structure & Details

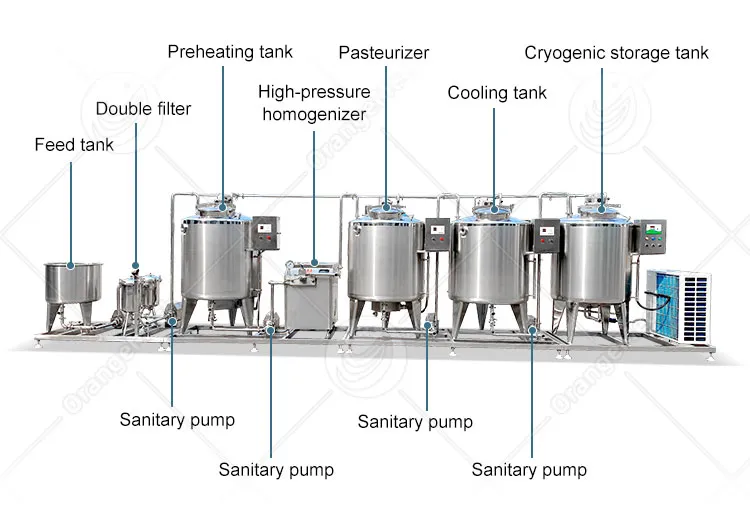

Structure 1

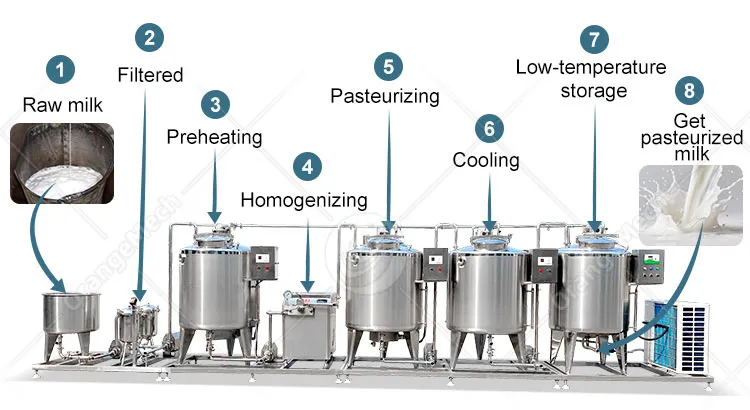

Structure 2

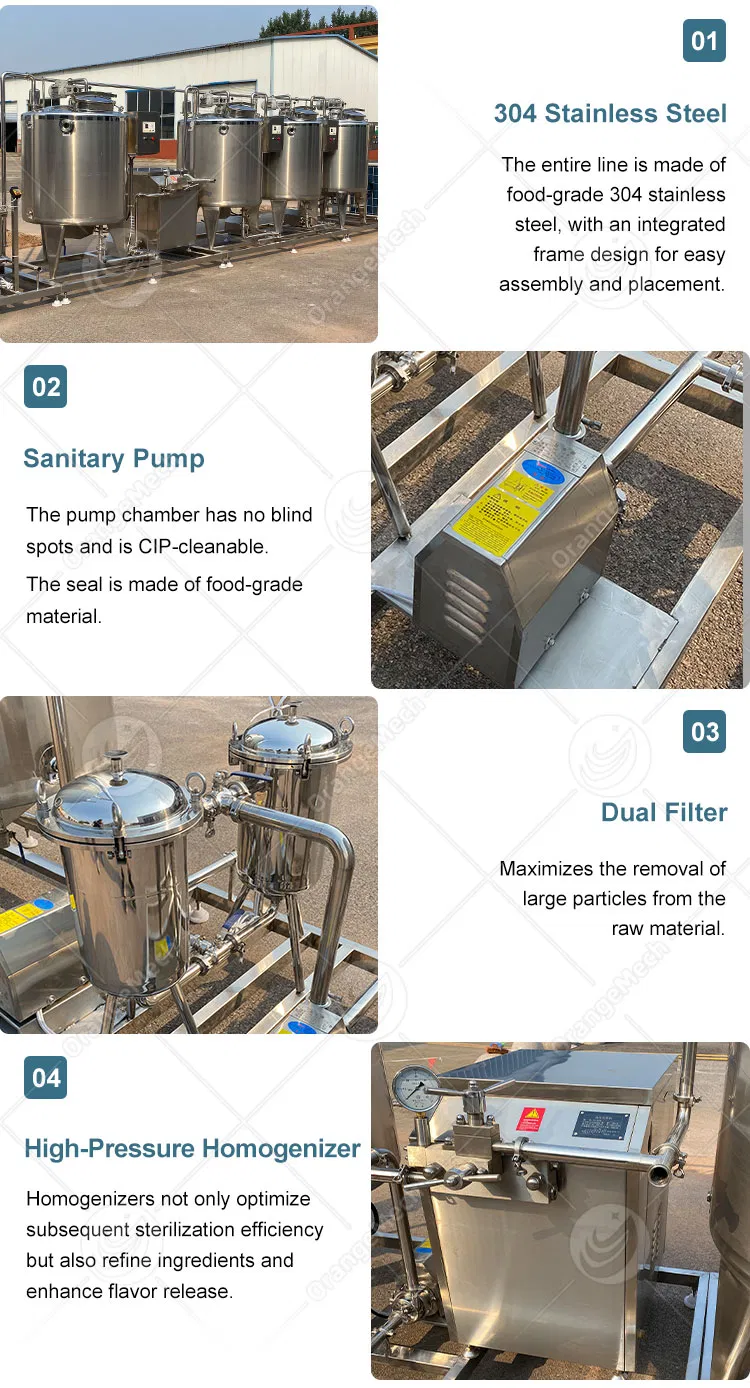

Details 1

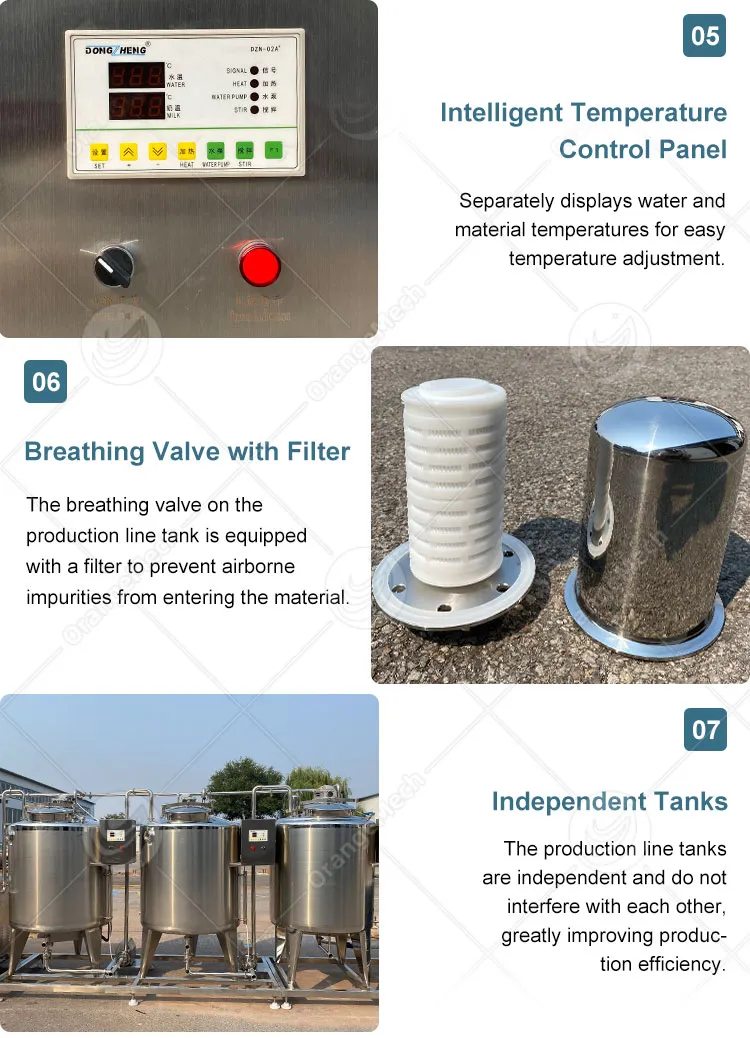

Details 2

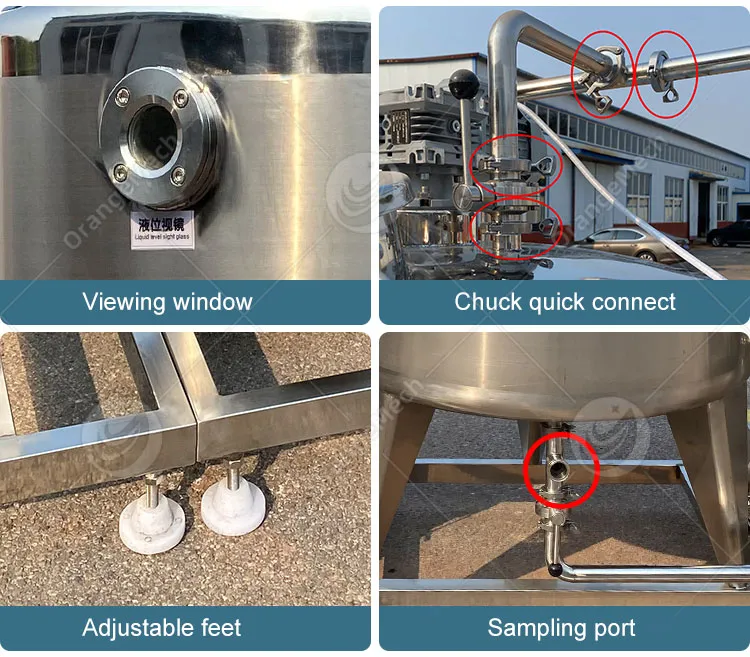

Details 3
Details 4
Finished Products & Photographs
Product Display 1

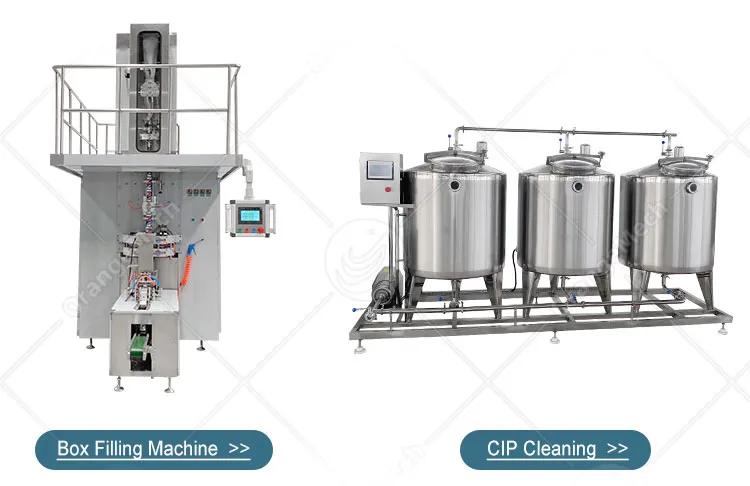

Product Display 2

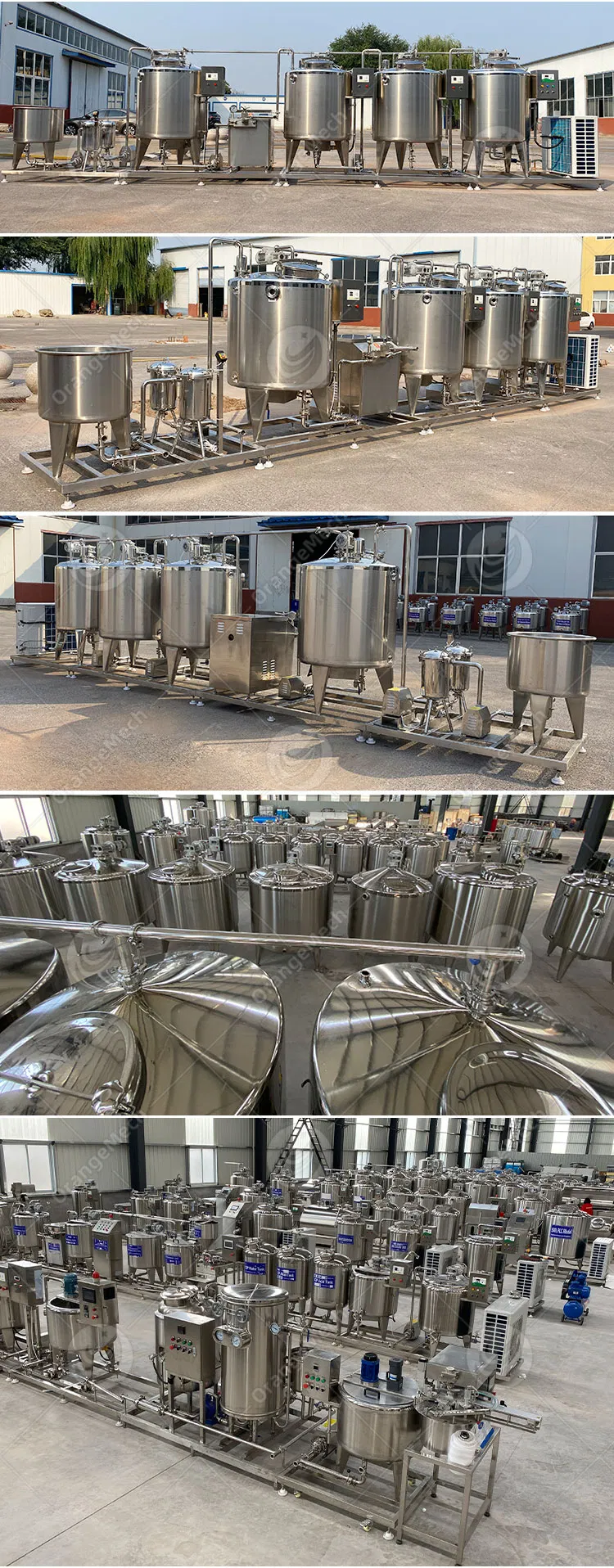

Product Photo 1
Product Photo 2

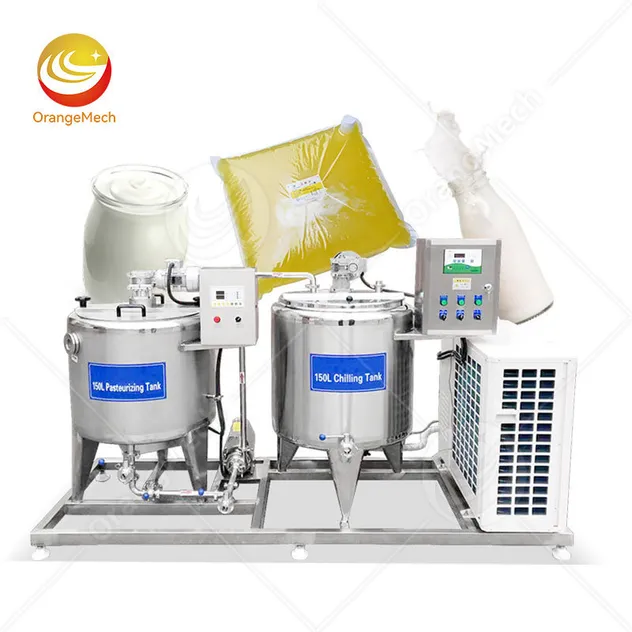

Related Machine 1

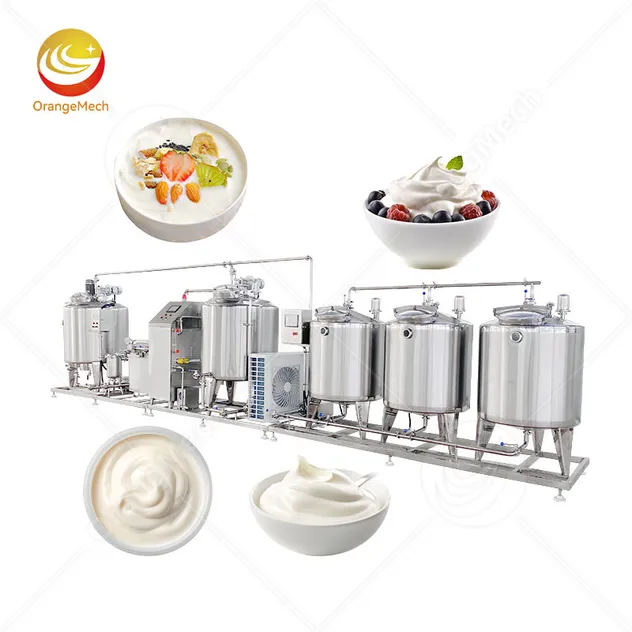

Related Machine 2

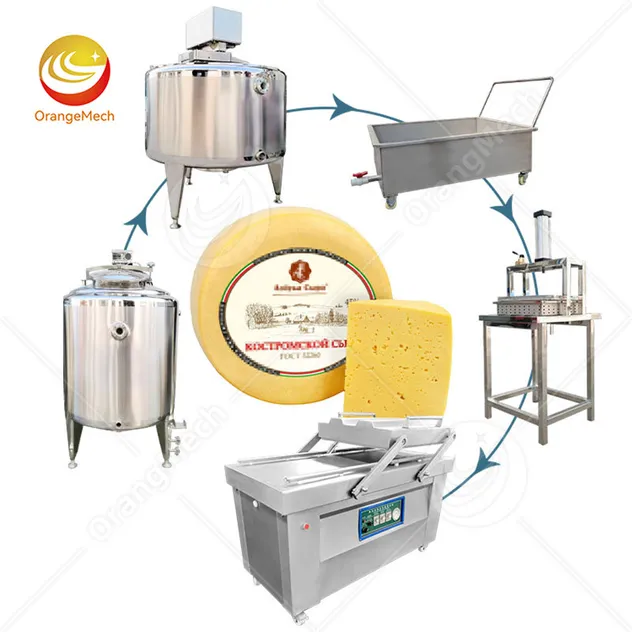

Related Machine 3
After-Sales Service
  • 24-hour communication service.
  • Fast logistics and smooth delivery (including DDU & DDP options).
  • One-year warranty, lifetime technical support, and free staff training.
  • Participation in international expositions for face-to-face consultation.
  • Support for local after-sales service.
Frequently Asked Questions
What materials is the equipment made of?
The entire sterilization line is constructed from food-grade Stainless Steel 304 or 316, ensuring durability, hygiene, and resistance to corrosion.
What is the production capacity of this line?
We offer a wide range of customizable capacities, ranging from 300 Liters up to 10,000 Liters to suit different production scales.
Which dairy products can be processed using this machine?
The line is versatile and suitable for processing fresh milk, yogurt, cream, cheese, and various other dairy-based beverages.
How is the temperature controlled during pasteurization?
The equipment features an intelligent temperature control panel that displays water and material temperatures on separate screens for precise, automated monitoring.
Does the equipment meet international standards?
Yes, our milk sterilization lines are CE and ISO9001 certified, meeting rigorous safety and quality standards for global export.
What is the cooling method used after pasteurization?
The system utilizes a specialized water-cooling process followed by independent low-temperature storage to ensure product stability and safety.
