Small Scale Mini Dairy Plant Pasteurized Milk Process Cow Milk Pasteurization Yoghurt Production Line

Customization: Available
After-sales Service: Online Support, Video Technical Support
Warranty: 1 Year

Product Description

Basic Info.
Model NO.
YPL-08
Process
Thermal Processing
Power Source
Electric
Certification
CE, ISO9001
Automatic Grade
Semi-Automatic
Application
Milk, Yogurt, Milk Powder, Cheese
Customized
Customized
Product Name
Yogurt Production Line
Material
304 Stainless Steel
Raw Material
Fresh Liquid Milk / Milk Powder
Capacity
300L~10000L
Heating
Electric /Steam
Packaging & Delivery
Package Size
1000.00cm * 800.00cm * 1350.00cm
Gross Weight
600.000kg
Product Description
Yogurt Production Line
Introduction

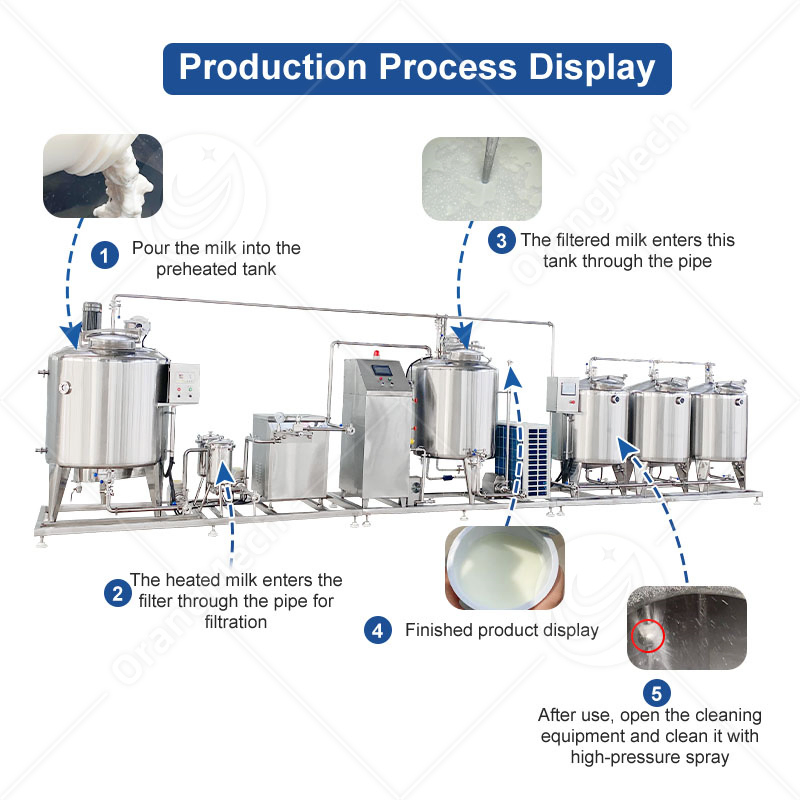

Yogurt production line is a combination of specialized equipment and processes specifically designed for yogurt production. The complete production process begins with raw material processing (fresh milk, milk powder) and continues through standardized blending, pasteurization, cooling, constant-temperature fermentation, filling, shaping, and final packaging.

Applications
  • Basic Yogurt: Complete production of set-style and stirred-style yogurt (plain and flavored);
  • Flavored Yogurt: Fruit yogurt, jam yogurt, cereal yogurt, probiotic yogurt, etc.;
  • Processed Yogurt Products: Yogurt drinks, fermented milk drinks, yogurt pudding, ice cream, smoothies, etc.;
  • Specialty Yogurts: Low-fat/non-fat yogurt, sugar-free yogurt, room-temperature yogurt, fermented milk, etc.;
  • Suitable for dairy plants, beverage factories, and large-scale ranches.
Key Features
  • One-stop production of various products including pasteurized, room-temperature, and flavored yogurts.
  • Precise control of pasteurization temperature (62-65℃) and fermentation (40-43℃).
  • High-pressure homogenizers refine materials to the micron level for a smooth texture.
  • Food-grade 304/316 stainless steel with mirror-polished tanks and optional CIP cleaning.
  • Fully automated operation from pretreatment to final packaging.
Technical Parameters
Equipment Type Voltage Power Capacity Size(mm)
Preheating tank380V/50Hz2.6kW300L1700*900*1550
Filter machine/3T/H/
Homogenizer4kW300L1010*616*980
Pasteurization tank18kW300L1200*1000*1650
Fermentation tank18kW300L1200*1000*1650
Refrigeration tank2.6kW300L1700*900*1550
CIP cleaning system54kW300L*33800*900*2300
Pump0.37kW1T/H/

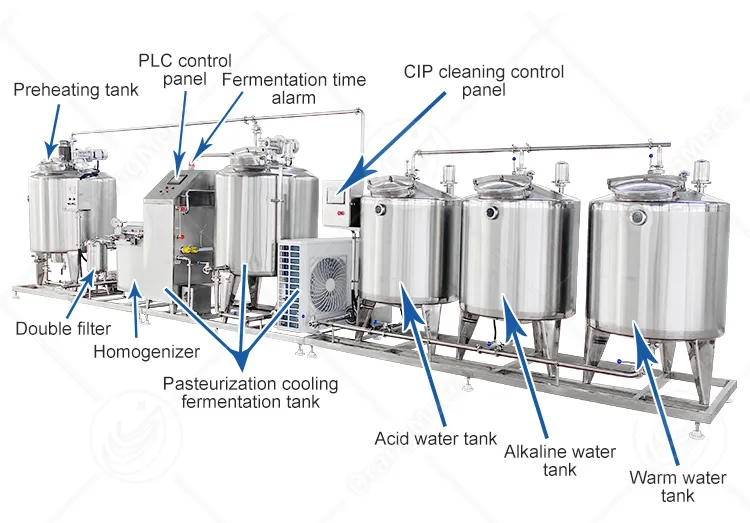

Machine Structure
Machine Structure
Machine Details

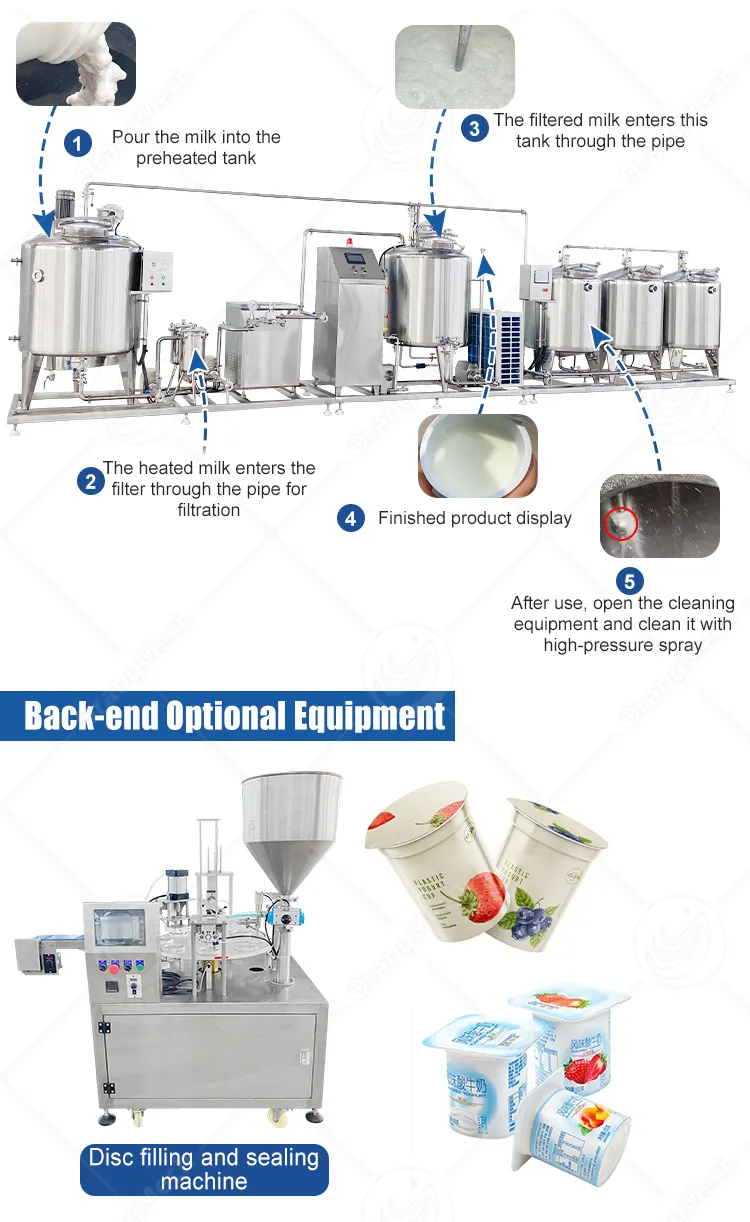

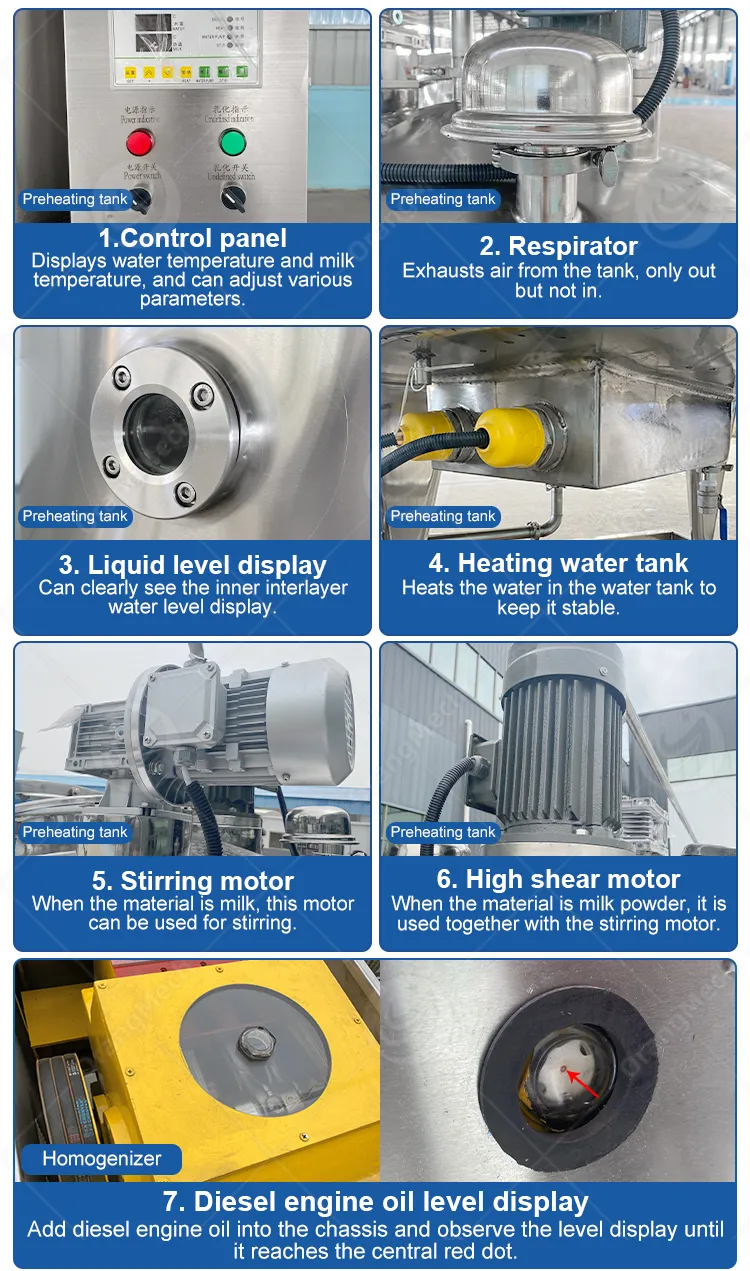

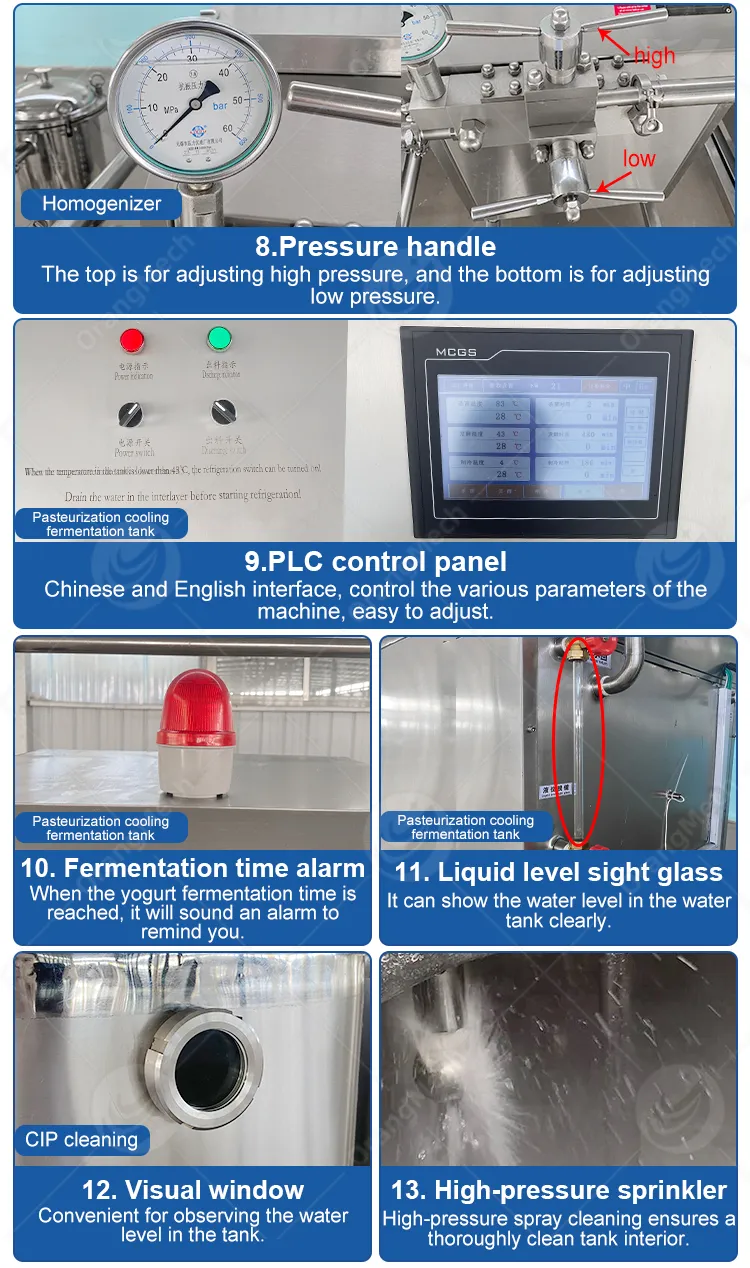

Detail 1 Detail 2 Detail 3 Detail 4 Detail 5 Detail 6
Related Equipment
Related Machine 1

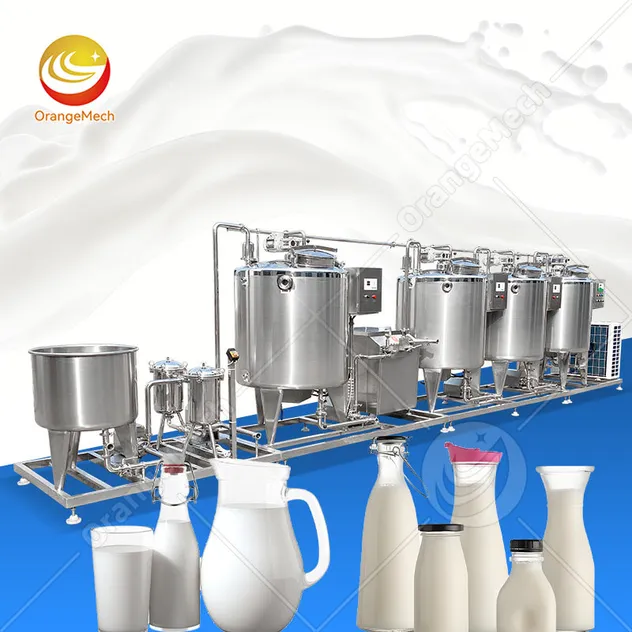

Related Machine 2
Related Machine 3
Product Photograph

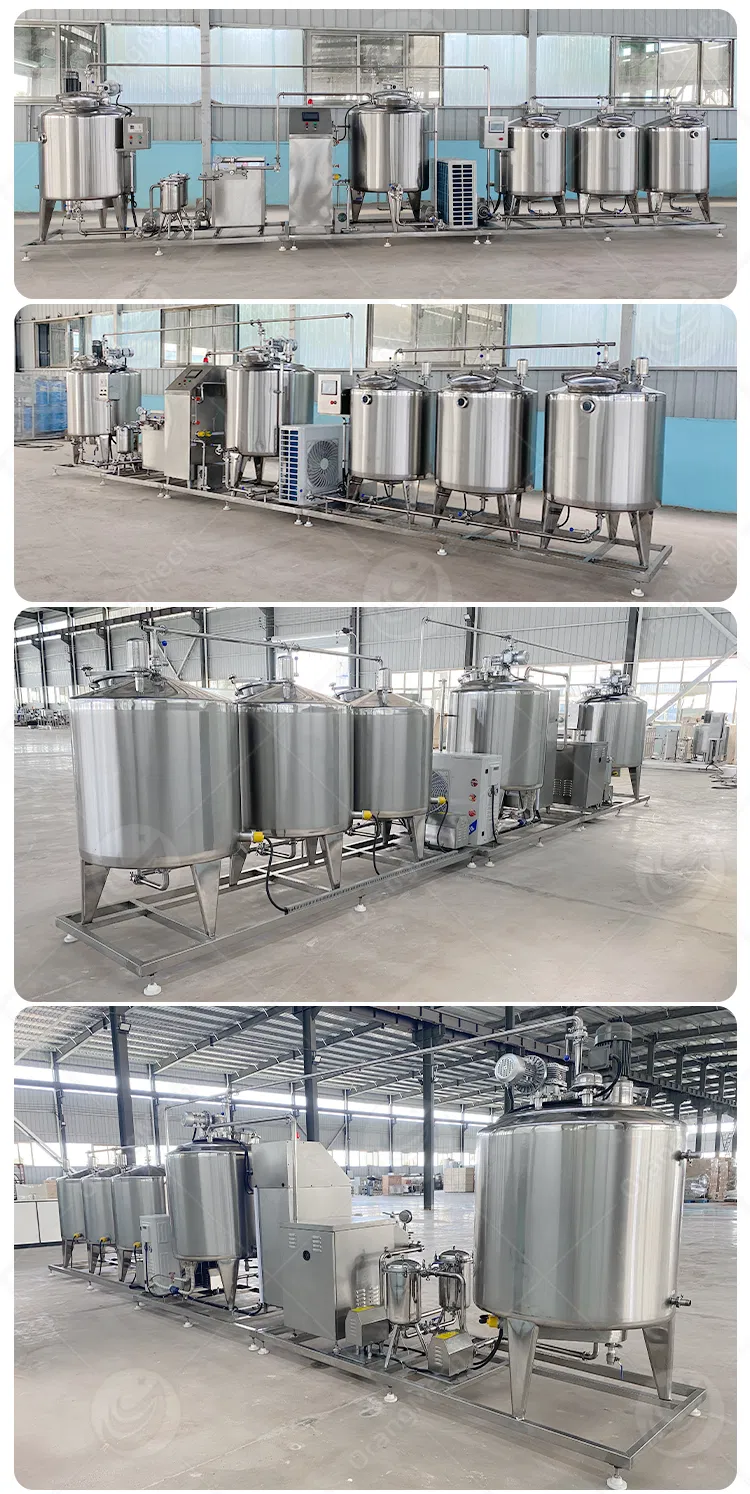

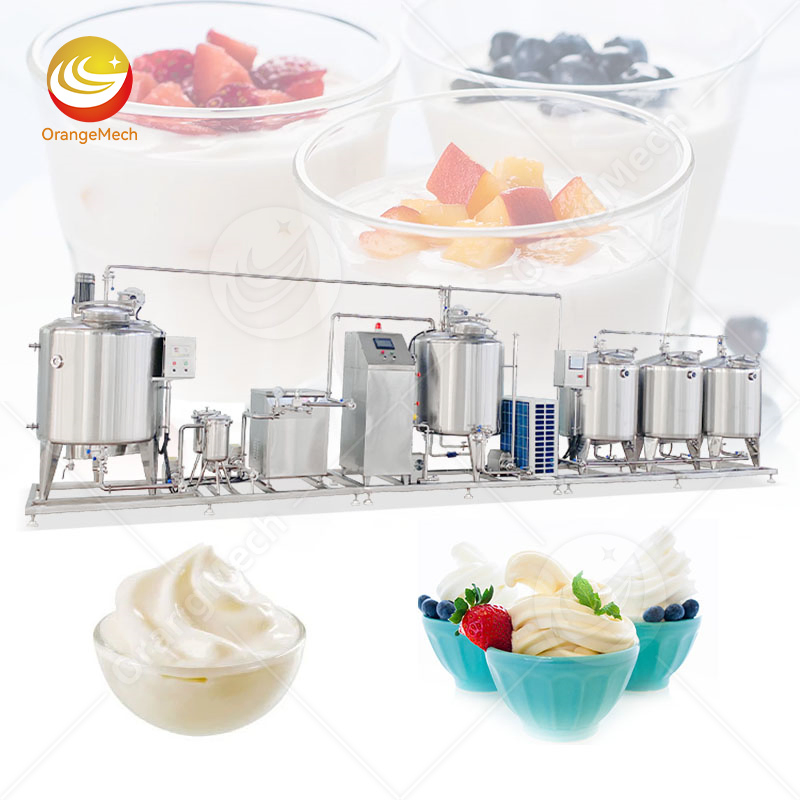

Product Photo
Factory Overview

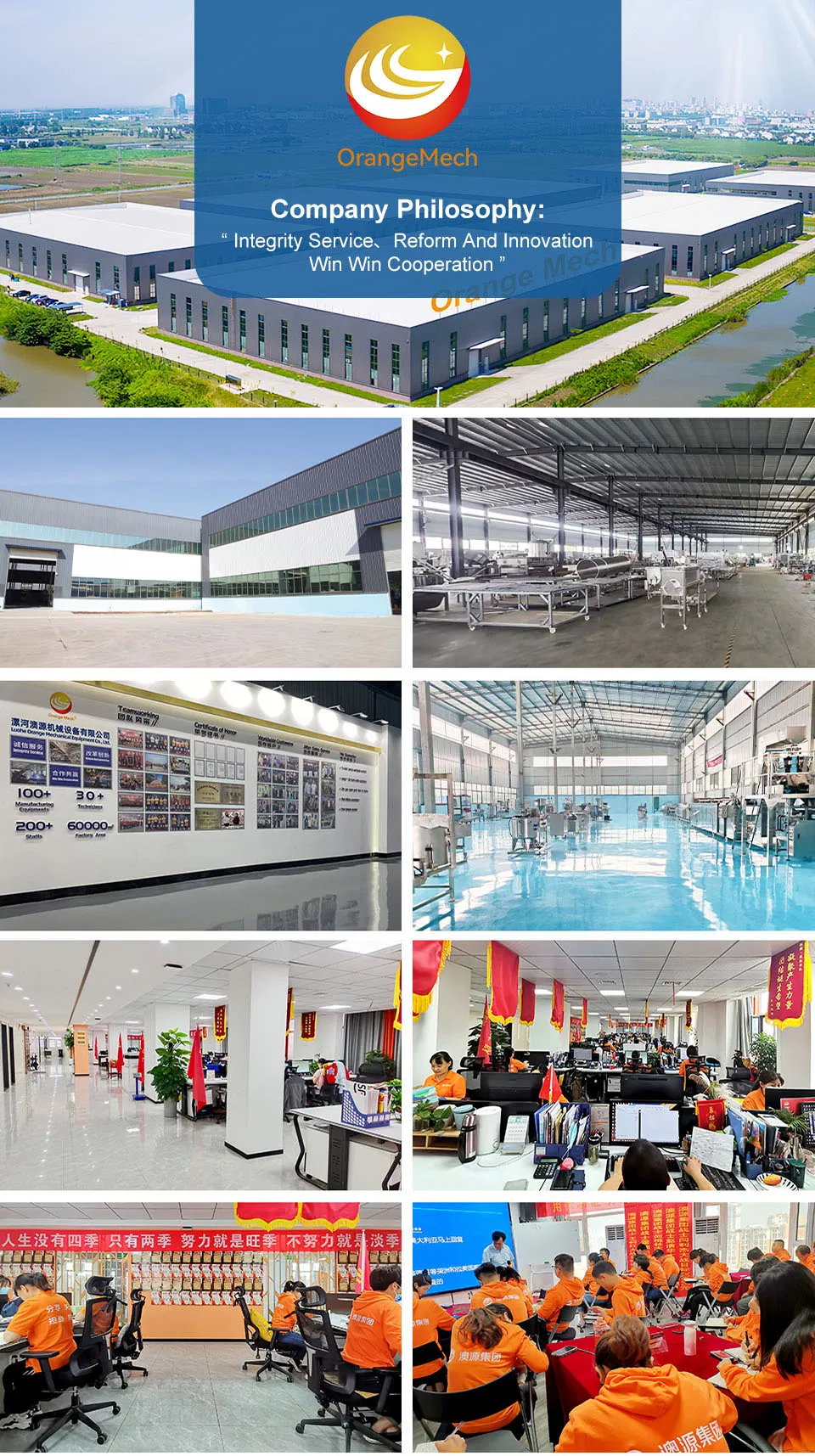

Factory View
Our Quality & Strength
  • More than 20 years of professional mechanical equipment manufacturing experience.
  • R&D team focuses on continuous technology improvement and development.
  • Strict Quality Control and full-process monitoring management.
  • ISO 9001, ISO 14001, ISO 45001, CE, BSCI, ETL certificated.
  • Professional R&D capability, laboratory, and QC facility.
Certificates
Frequently Asked Questions
Q1 What types of yogurt can the production line produce?
It can produce all types of yogurt, including pasteurized yogurt, room-temperature yogurt, flavored fruit yogurt, probiotic yogurt, and traditional yogurt. By adjusting the fermentation process and adding ingredients such as fruit pieces/jams, it can also customize specialty flavors.
Q2 How much space is needed for the production line installation?
A basic line requires 80-120 square meters, while an automated line requires 150-200 square meters. The workshop needs to be temperature-controlled (18-25℃), dust-free, well-ventilated, and equipped with a water supply and drainage system.
Q3 Can the yogurt production line adapt to different packaging formats?
Yes, it supports various packaging formats such as cups, bottles, bags, and boxes.
Q4 What daily maintenance is required?
Daily: Clean the filling head and conveyor belt. Weekly: Calibrate the pH meter and clean the homogenizer filter. Monthly: Check the fermentation tank agitator. Quarterly: Conduct pressure tests on the tanks.
Q5 Is there a risk of contamination during production?
There is no risk of contamination. The entire line is made of food-grade 304/316 stainless steel, with mirror-polished tanks and no unsanitary corners. Piping uses quick-connect fittings for easy disassembly and cleaning.
Q6 Is installation and commissioning service provided?
We provide comprehensive video guidance or on-site installation and commissioning services after your purchase to ensure smooth operation.
