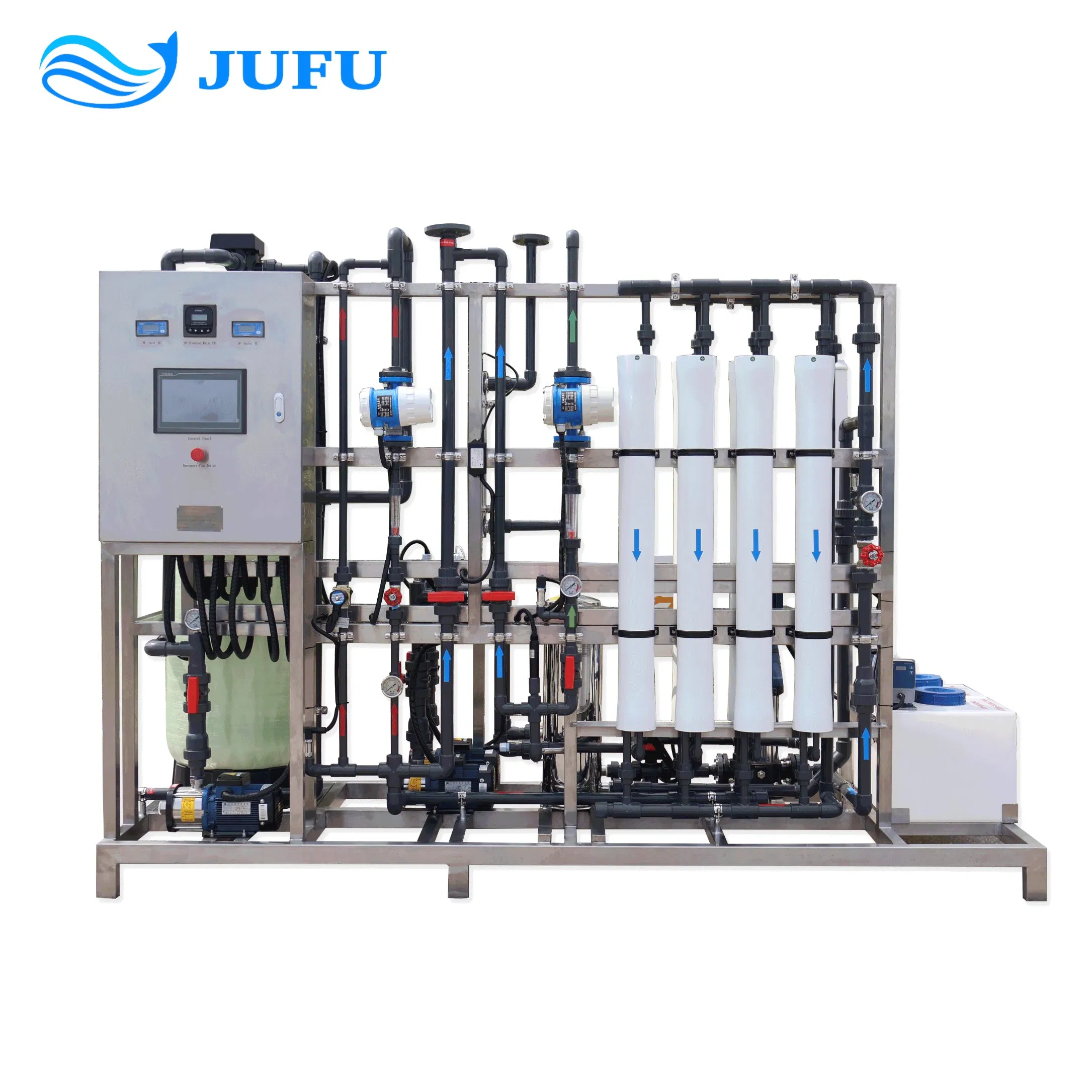

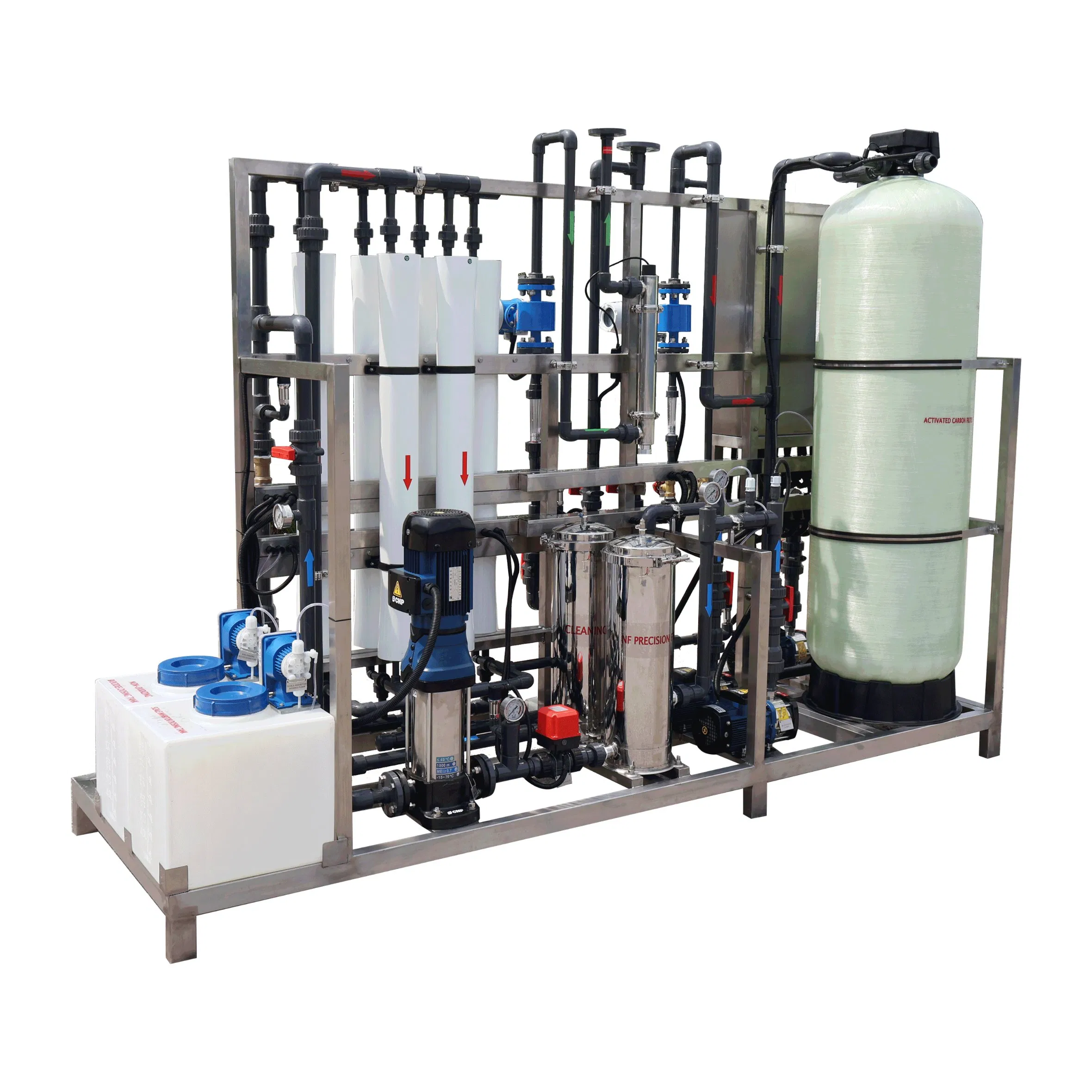

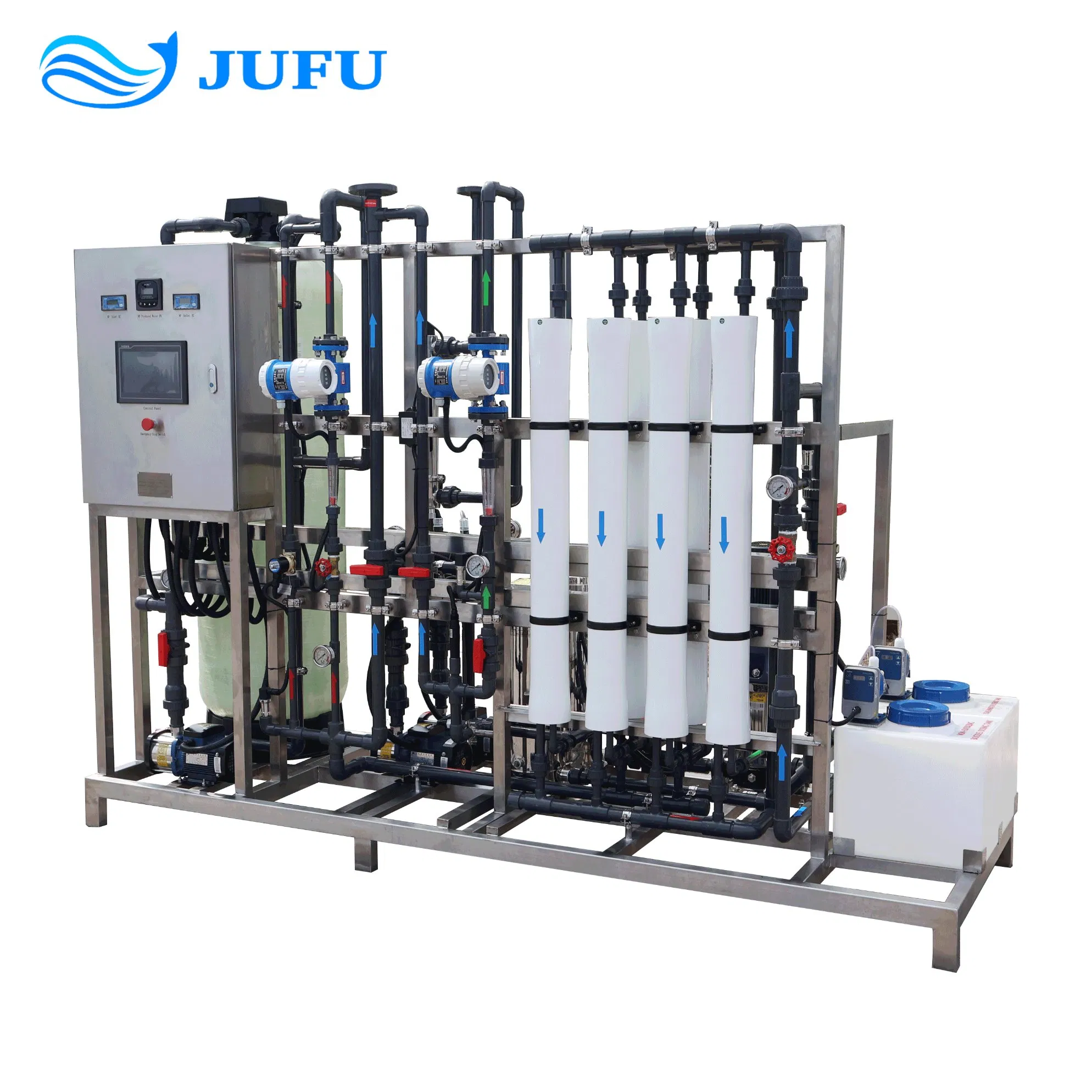

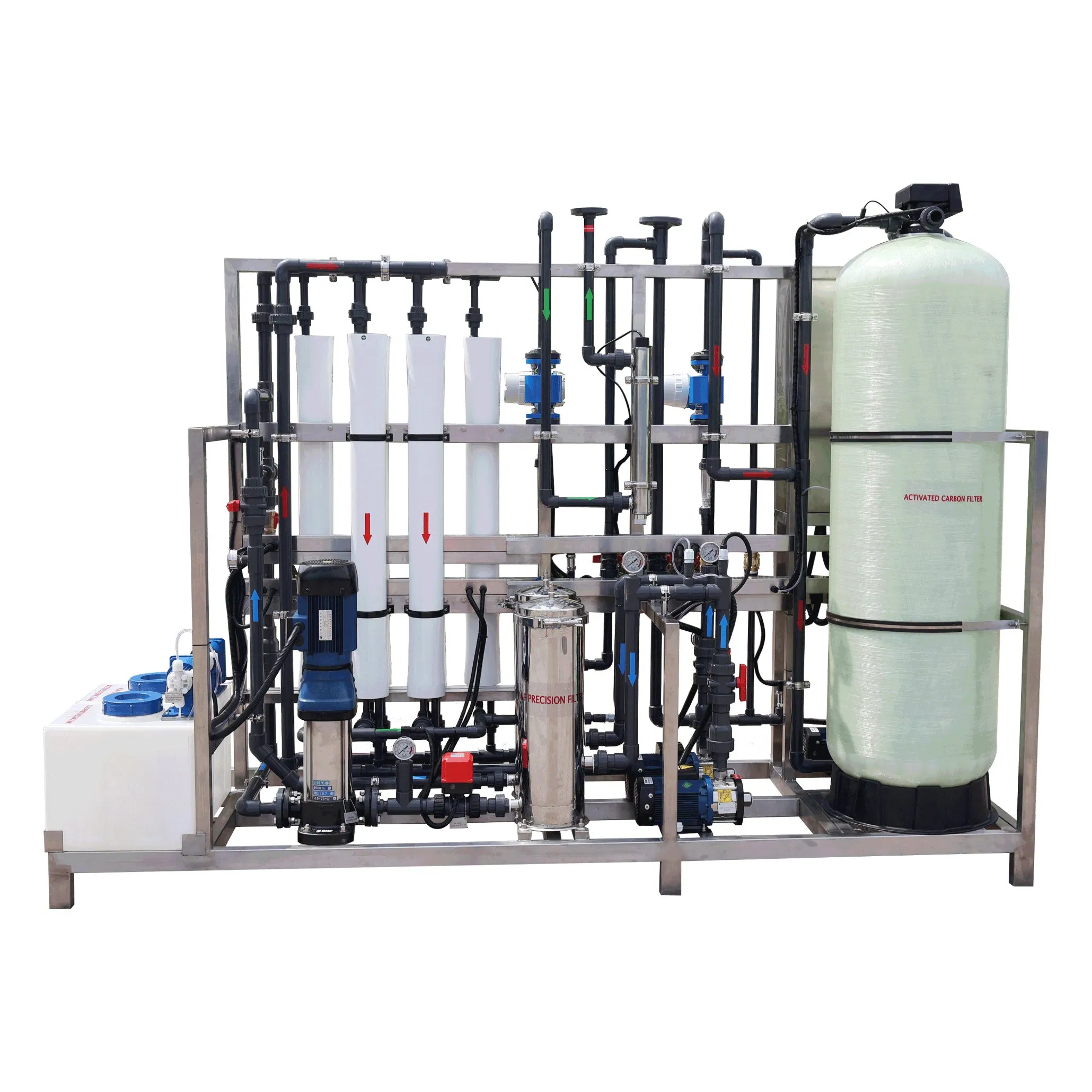

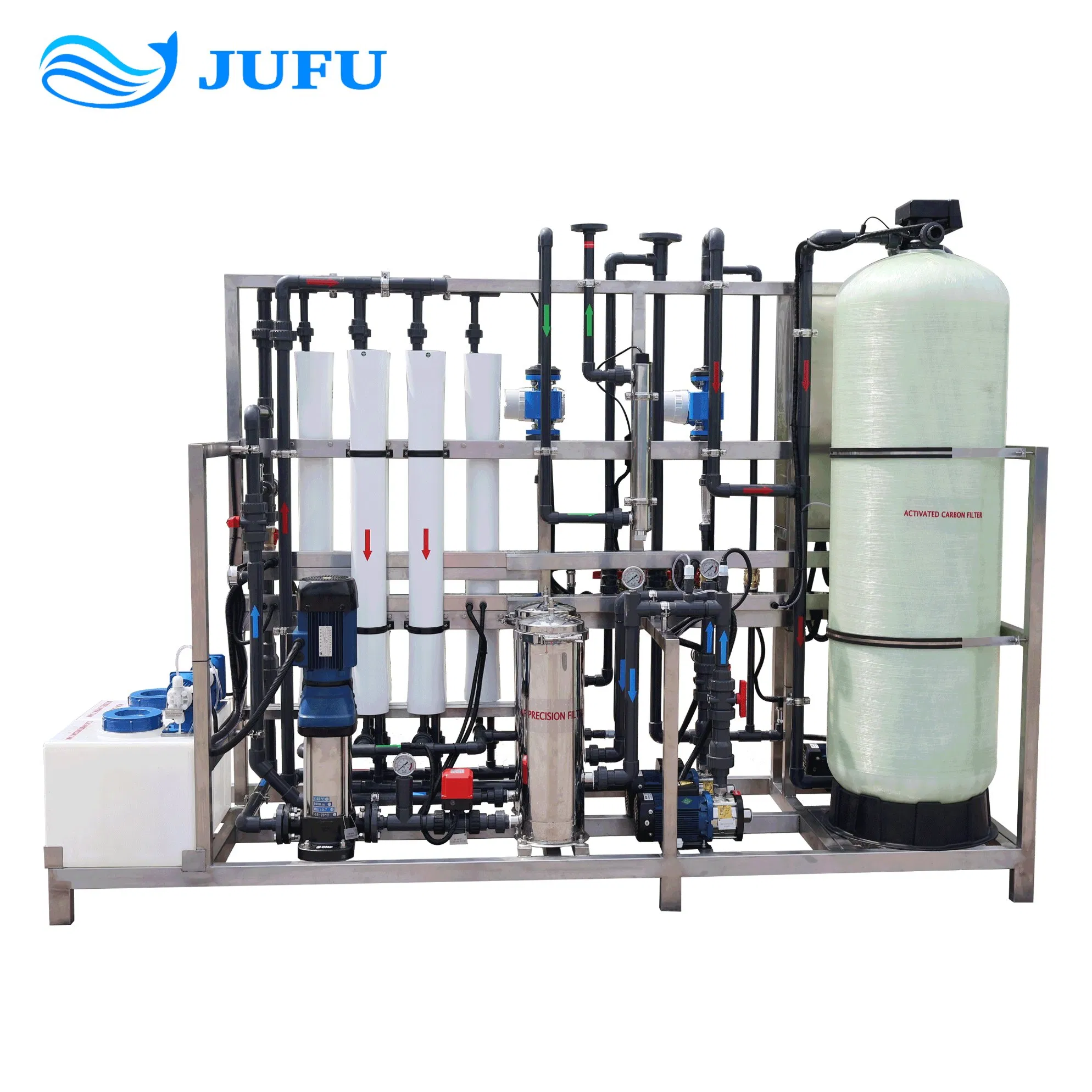

Nanofiltration Reverse Osmosis Water System for Wastewater 2500 Lph Water Purification Plant

Customization: Available
Certification: ISO9001, CE
Salt Rejection Rate: 99.0%

Product Description

Basic Specifications

Model NO.
JFNF-2.5T
Application
Industry
Capacity
2500lph
Recovery Rate
75%
Operation
Automatic Running
Core Component
NF Membrane, Pump
Frame Material
Stainless Steel
Tank Material
FRP/SUS
Pipe Material
U-PVC
Processing
Pre-Treatment + RO System
Control Valve
Automatic
Transport Package
Wooden Case
Origin
China
HS Code
842121990

Product Description

Nanofiltration Membrane: Pore size above 1nm, generally 1-2nm. It is a functional semi-permeable membrane that allows solvent molecules or certain low molecular weight solutes or low valence ions to pass through. It is a special and promising variety of separation membrane, which is named for its ability to retain substances with a size of approximately nanometers. It is used for removing organic matter and coloration from surface water, removing hardness from groundwater, partially removing dissolved salts, concentrating fruit juices, and separating useful substances from pharmaceuticals.
Water Purification System

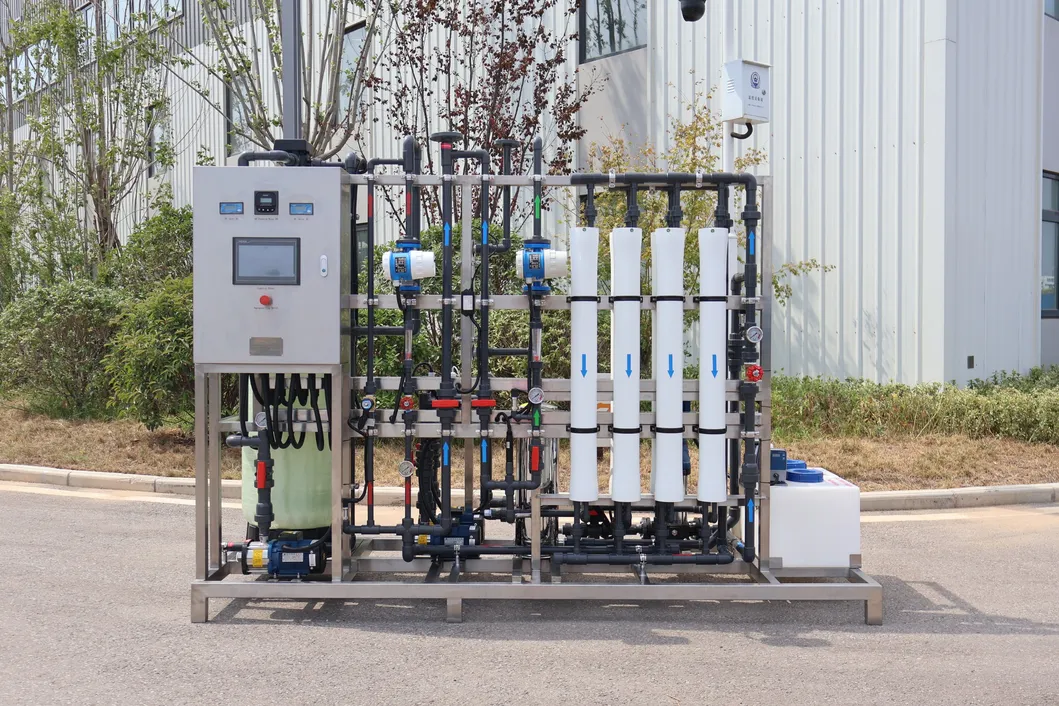

Nanofiltration Plant

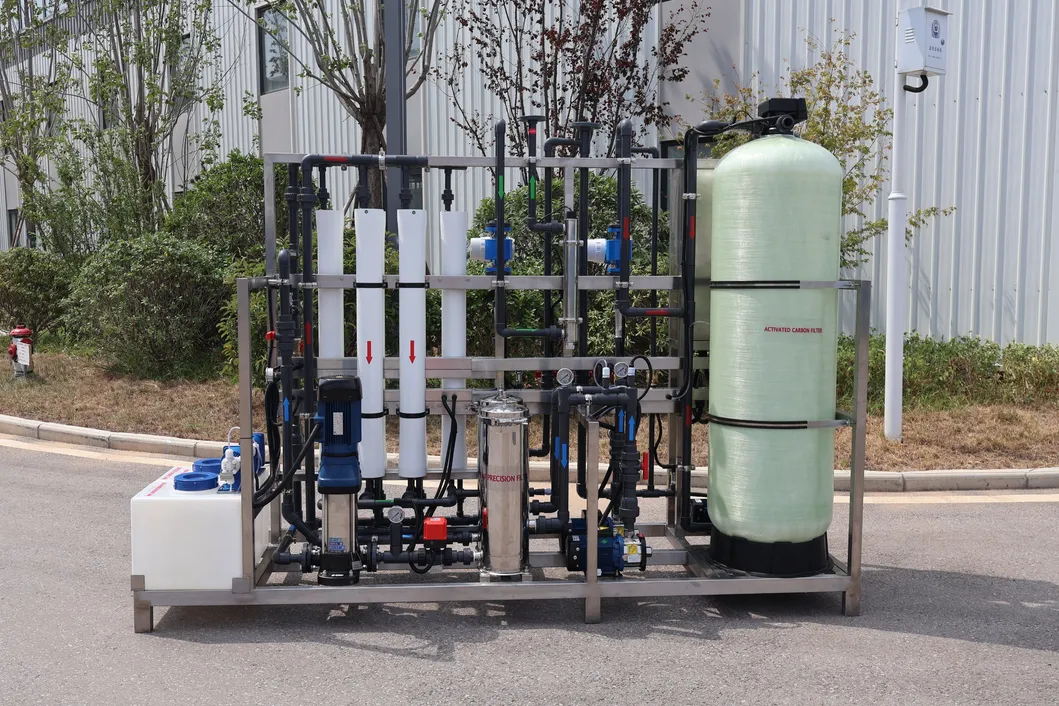

Nanofiltration Plant Detail

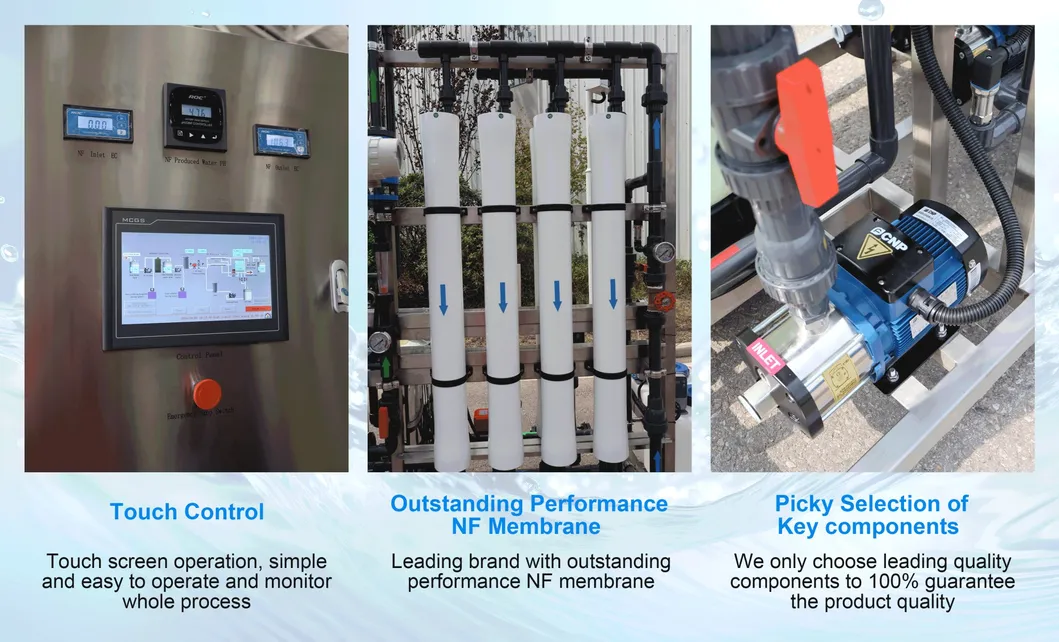

Equipment Display
Banner

Technical Parameters

8m³/h Nanofiltration / Reverse Osmosis System Specifications
ModelJFNF-2500L
Power3.6KW
Power Supply220V / 380V / 415V - 50Hz/60Hz (Customizable)
Operating Pressure0.5 - 1.0MPa
Producing Capacity2500L/H
Desalination Rate99%
Number of Membranes6
PumpCNP / NYP ... (Optional)
Tank MaterialSS / FRP (Optional)
Control ValveManual / Automatic
Membrane HousingSS / FRP
Pipe MaterialU-PVC / Stainless Steel (Optional)

Applicable Scenes of Nanofiltration System

Pharmaceuticals: Desalination and concentration of antibiotic resin resolution solution, vitamin concentration.
Amino Acids: Decolorization and removal of impurities, concentration, and desalination.
Food Industry: Separation and purification of oligosaccharide and starch sugar, concentration of fruit juice, plant extraction.
Liquor Recovery: Monosodium glutamate mother liquor decontamination, glucose crystallization mother liquor decontamination.
Water Treatment: Printing and dyeing wastewater treatment, water reuse, ultrapure water preparation.
Dyestuff: Desalination and concentration, instead of salt precipitation, acid precipitation.
Acid & Alkali Recovery: Pharmaceutical industry washing column acid, chemical fiber industry waste acid and alkali.
Wastewater System
Purification Plant
System Line

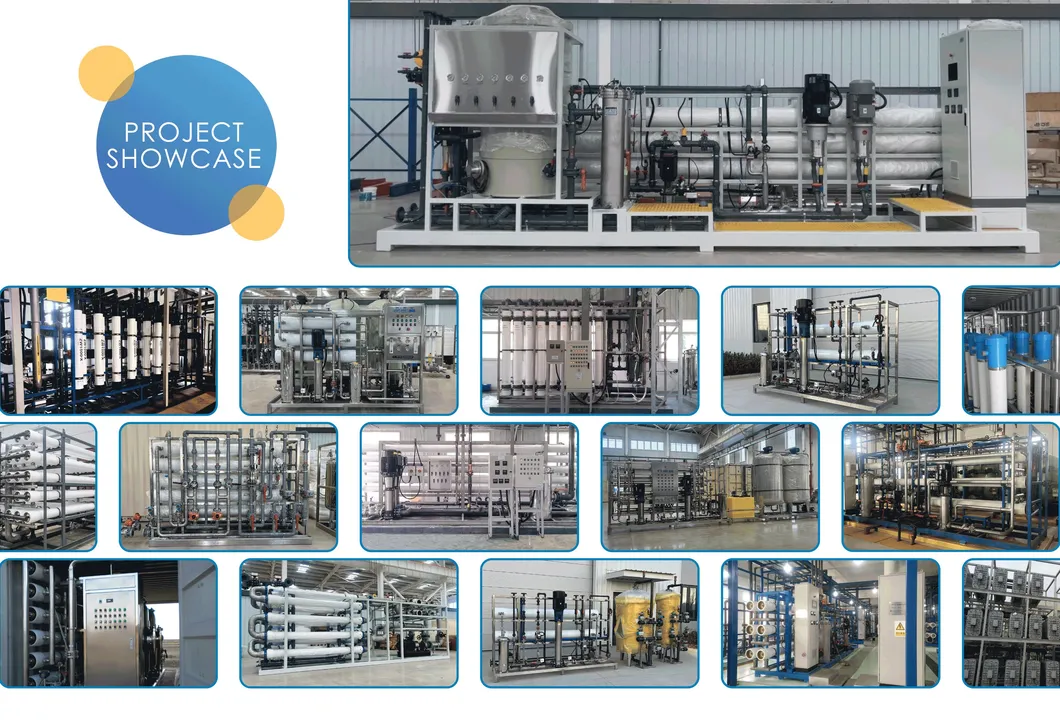

Equipment Overview
Machine Structure
Bottom Banner

Frequently Asked Questions

Q: What is the pore size of the Nanofiltration membrane used?
The NF membrane has a pore size above 1nm, typically ranging from 1nm to 2nm, allowing for precise molecular separation.
Q: What raw water information is required for a custom solution?
Please provide the raw water source, a Water Analysis Report if available, the required output capacity, and the specific application of the project.
Q: Can the power supply be customized for different regions?
Yes, the system supports 220V, 380V, and 415V at both 50Hz and 60Hz to meet local power standards.
Q: What materials are available for the tanks and piping?
Tanks are available in Stainless Steel (SS) or FRP. Piping options include U-PVC or Stainless Steel based on your requirements.
Q: What is the typical lead time for equipment?
The typical lead time is 3 to 5 weeks for general products, depending on specific customization requirements.
Q: Is the operation of the system automated?
Yes, the system is designed for automatic running with automatic control valves, though manual options are also available.
