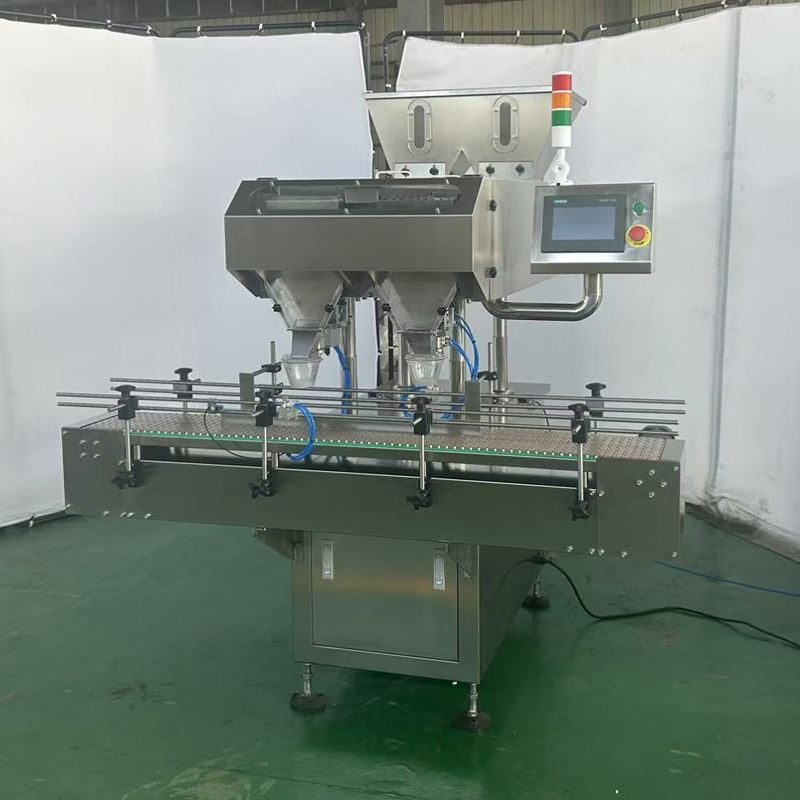

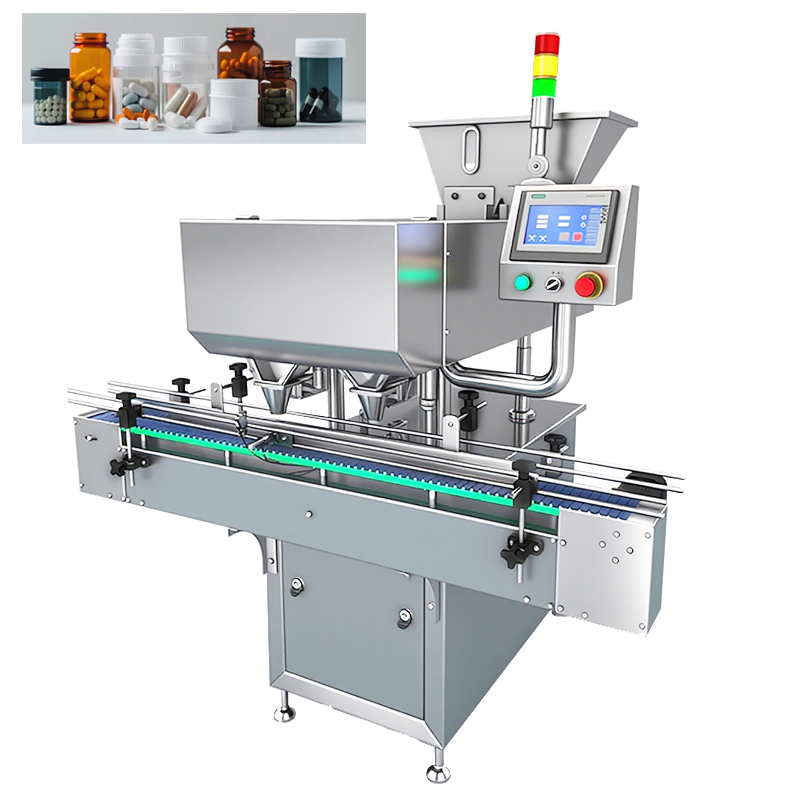

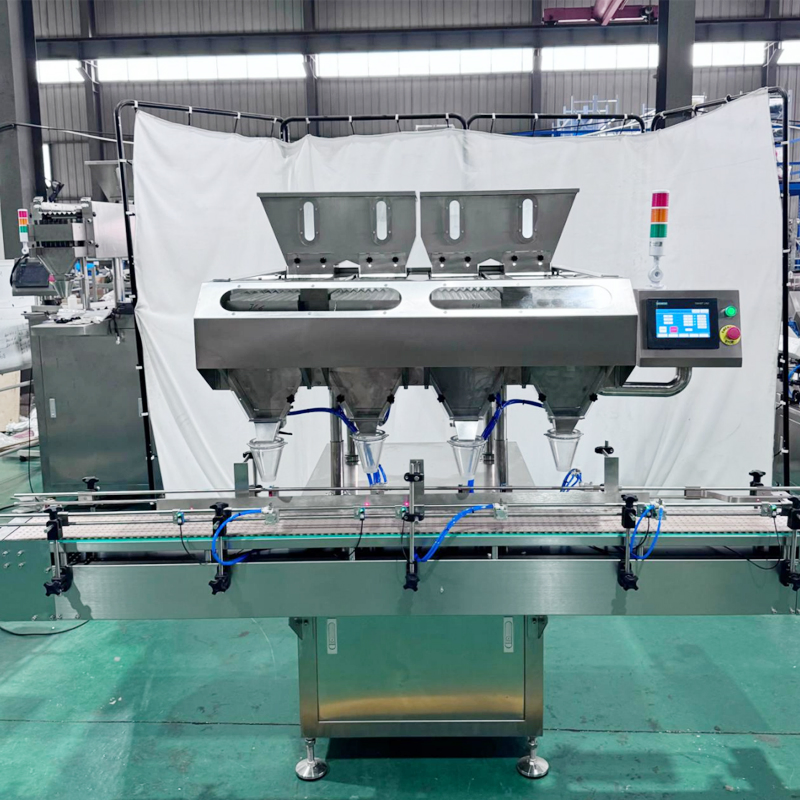

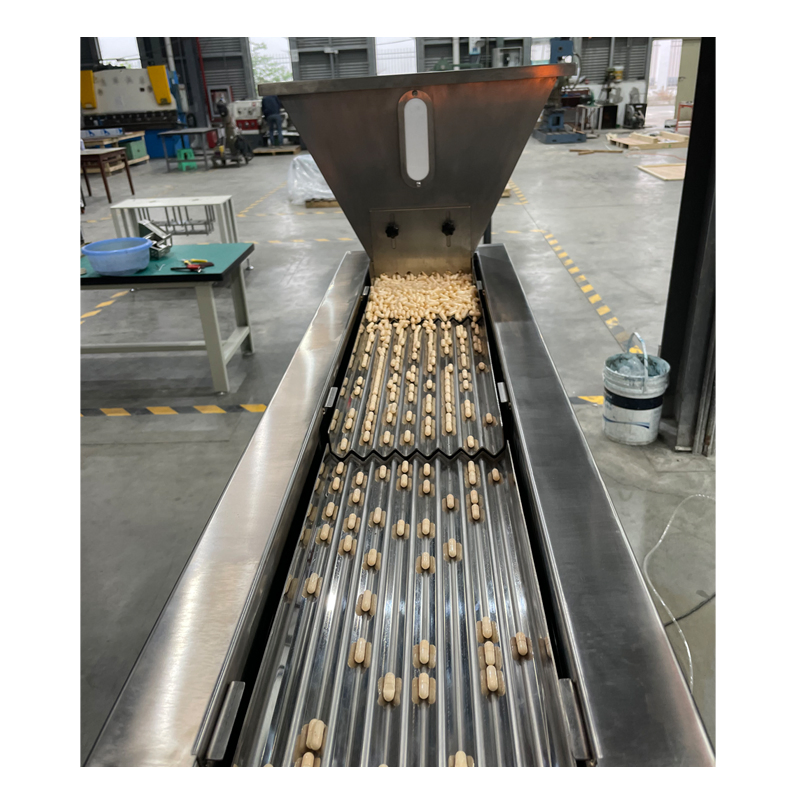

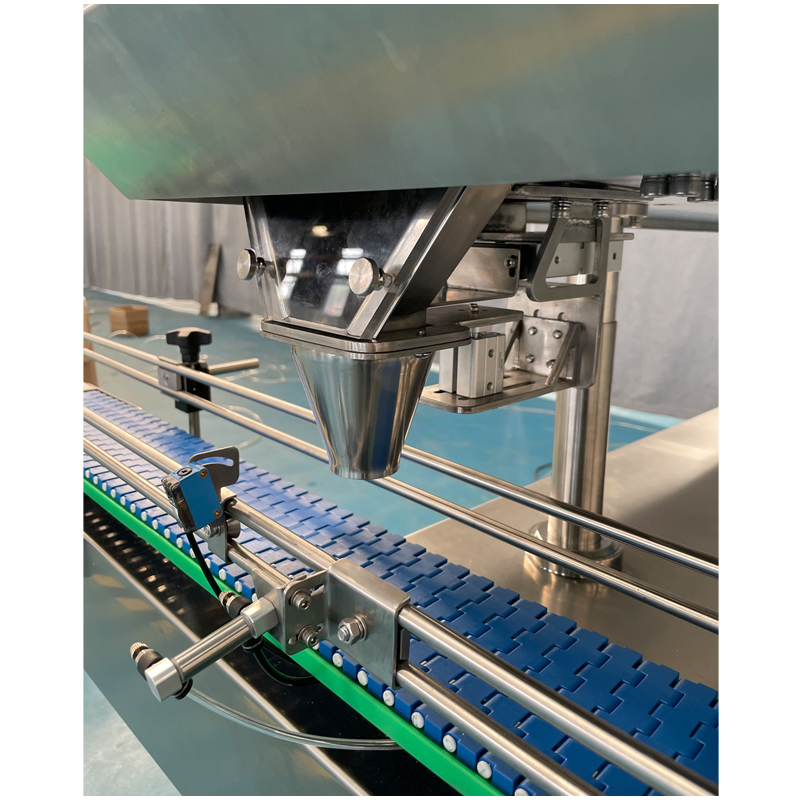

Dust-Free Enclosed Tablet Counting System with Checkweigher for Coated and Friable Tablets
Dust-Free Enclosed Tablet Counting System with Checkweigher for Coated and Friable Tablets
Dust-Free Enclosed Tablet Counting System with Checkweigher for Coated and Friable Tablets
Dust-Free Enclosed Tablet Counting System with Checkweigher for Coated and Friable Tablets
Dust-Free Enclosed Tablet Counting System with Checkweigher for Coated and Friable Tablets
1 / 5
Dust-Free Enclosed Tablet Counting System with Checkweigher for Coated and Friable Tablets
Dust-Free Enclosed Tablet Counting System with Checkweigher for Coated and Friable Tablets
Dust-Free Enclosed Tablet Counting System with Checkweigher for Coated and Friable Tablets
Dust-Free Enclosed Tablet Counting System with Checkweigher for Coated and Friable Tablets
Dust-Free Enclosed Tablet Counting System with Checkweigher for Coated and Friable Tablets

Dust-Free Enclosed Tablet Counting System with Checkweigher for Coated and Friable Tablets

Customization: Available
Application: Chemical Industry, Clinical Diagnosis, Cosmetic Industry, Food Industry, Food Safety, Forensic Science, Pharmaceutical Industry
Automation Grade: Automatic
Send Inquiry

Product Description

Basic Technical Specifications
Model:
48C
Material:
Stainless Steel
Capacity:
70-150 bottles/Min
Accuracy:
≥99.5%
Warranty:
2 Years
Filling Range:
1-999 PCS/Bottle
Capsule Size:
#00 ~ #5
Tablet Size:
5.5 - 22mm
Air Pressure:
0.6MPa
Control System:
PLC

Dust-Free Enclosed Tablet Counting System

A tablet/capsule counting machine is a precision electromechanical device designed to accurately count solid oral dosage forms (tablets, capsules, caplets, softgels, lozenges) at high speed. It is the critical component in the primary packaging process, directly impacting efficiency, compliance, and profitability.

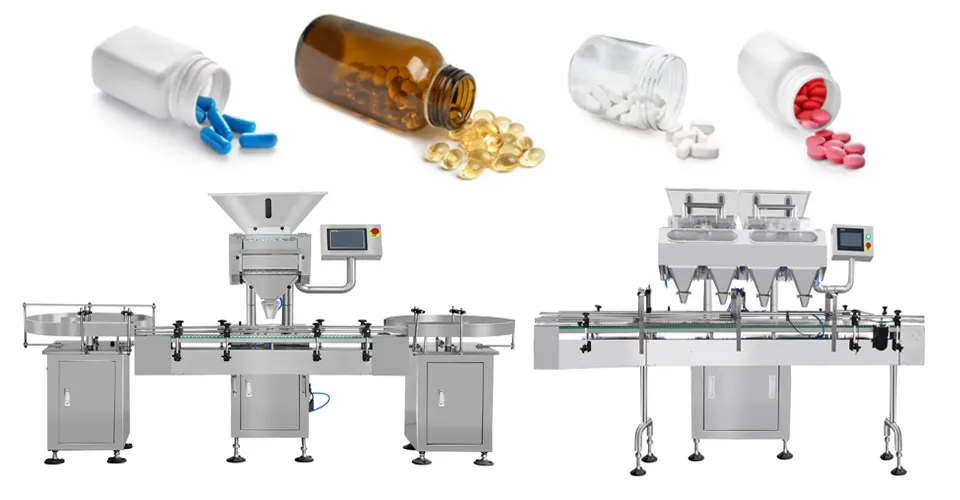

Tablet Counting System Overview

Operation & Performance Video

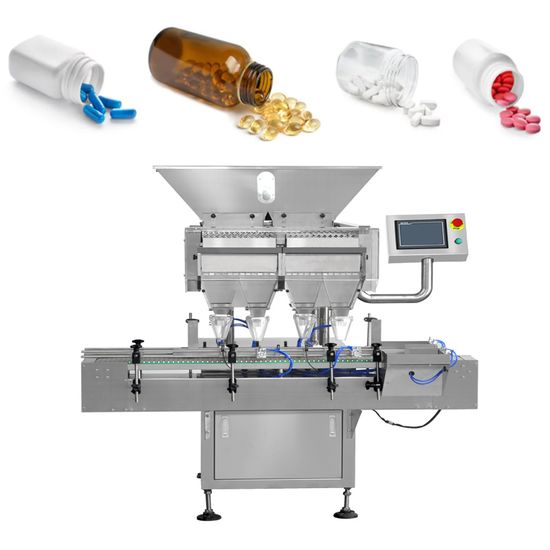

Video Cover

The machine utilizes Vibratory Feed with Optical Sensor technology for high-precision counting.

Industrial Applications

Pharma App
Nutraceutical App
Pharmaceutical Industry
Ideal for counting tablets/capsules into blister packs or vials with GMP compliance and gentle handling for coated products.
Nutraceutical & Food
Handles vitamins, gummies, candy, and nuts. Flexible for diverse shapes and high production volumes.
Food App
Hardware App

Key System Features

High Accuracy: 360-degree infrared dynamic scanning minimizes error rates.
PLC Control: Siemens PLC touch screen for easy parameter storage and switching.
GMP Standards: 316 stainless steel contact parts and 304 stainless steel body.
Safety Guard: Emergency stop buttons and dispensing protection devices included.

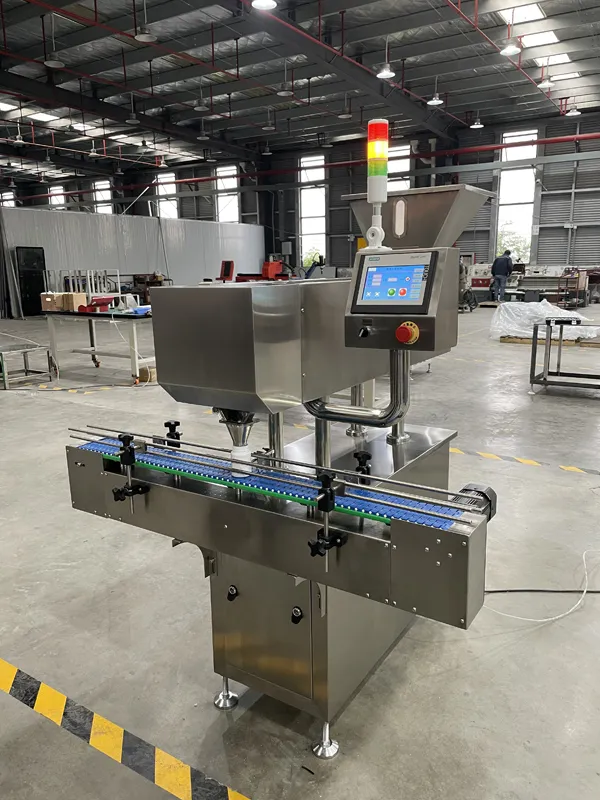

Detail 1

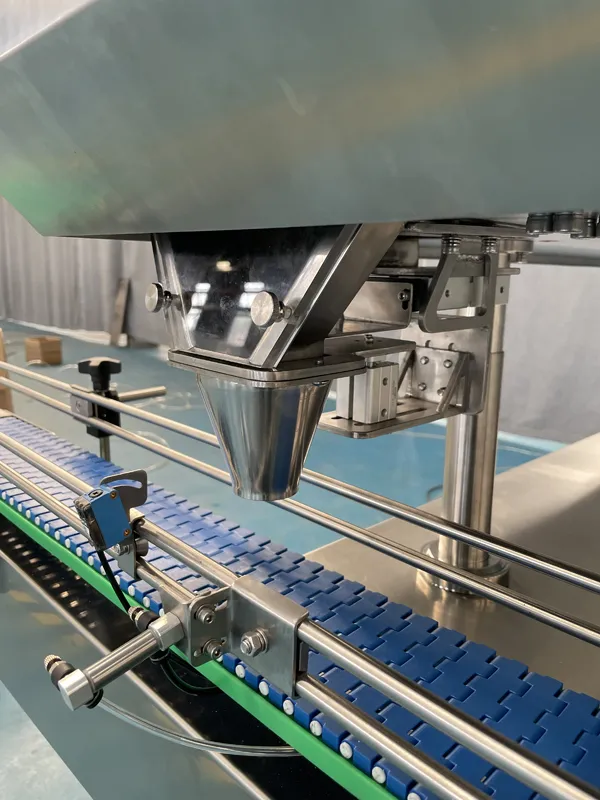

Detail 2

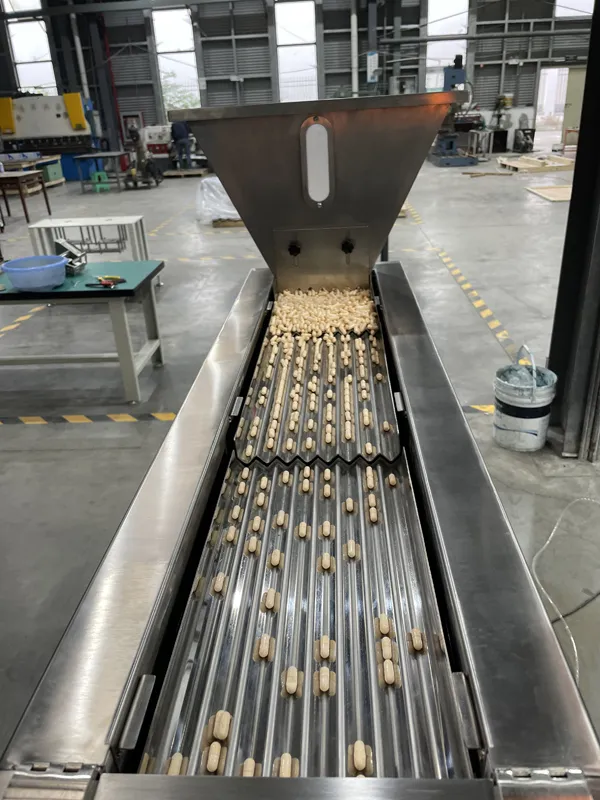

Detail 3

Technical Parameters Comparison

Model 8C 12C 16C 24C 32C
Speed (bottles/min) 10-60 30-70 40-90 60-120 70-150
Channels 8 12 16 24 32
Power (KW) 0.5 0.5 1.1 1.6 2.1
Weight (kg) 450 500 600 800 900
Dimensions (mm) 1360x1360x1500 1360x1360x1500 1560x1560x1660 1760x1560x1760 2200x1400x1680

Packaging & After-Sales

Packing 1
Packing 2
Reinforced Wooden Packaging: Machines are wrapped in stretch film and secured in export-standard wooden cases.
Warranty Support: Standard 24-month warranty with 24/7 global technical assistance.

Frequently Asked Questions

Q: What types of products can this machine count?
A: It can handle #00-#5 capsules, softgels, tablets (5.5-22mm), pills (3-22mm), and various small hardware items.
Q: How accurate is the counting process?
A: The machine achieves a counting accuracy of ≥99.5%, which exceeds standard industrial requirements.
Q: What is the typical lead time for an order?
A: Standard models are usually shipped within 7–15 days, while customized units take approximately 15–30 days.
Q: Is the equipment compliant with international standards?
A: Yes, the system is designed to comply with GMP, FDA, and CE certifications, utilizing high-grade stainless steel for all contact parts.
Q: What payment methods do you support?
A: We accept T/T, Western Union, PayPal, and L/C. Standard terms are a 30% deposit and 70% balance before shipment.
Q: Do you provide documents for export?
A: Yes, we provide a full export package including the Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).
