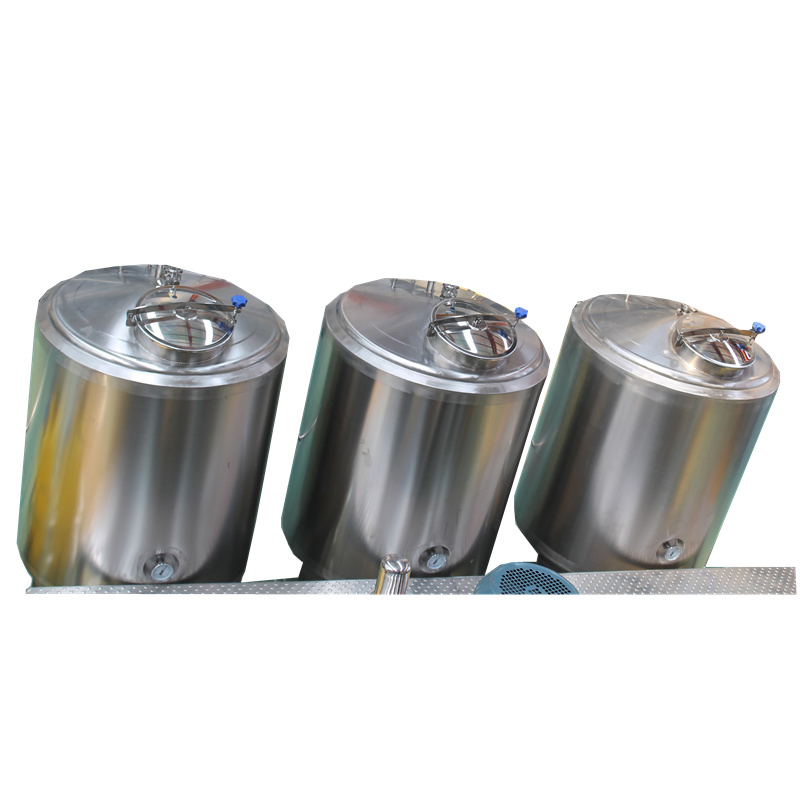

Food grade sanitary round vertical beverage mixing machine / juice blending machine / CIP cleaning system

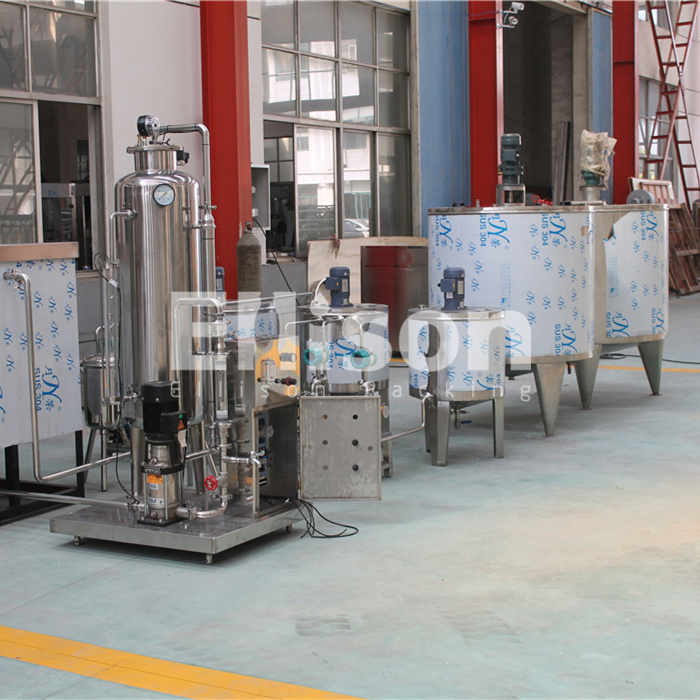

CO2 Mixing MachineMixer machine is using injecting gas-water mixer is specially designed for soda and non-soda drinks such as lemonade, cola and juice, as well as for other soft drinks such as mineral water, grape juice, juice wine and apple juice. It achieves functional completeness, great adaptability, a new structure, nice appearance, and high automation. The volume ratio of CO2 and 1L water is 2.5 to 2.8. High CO2 content and low production temperature ensures the volume ratio of CO2 and 1L water to be 3.5 to 4.0, or higher.
| Type | QHS 1500 | QHS - 3000 | QHS 4000 | QHS - 5000 | QHS - 6000 |
|---|---|---|---|---|---|
| Capacity (kg/h) | 1000 - 1500 | 2500 - 3000 | 2000 - 4000 | 2500 - 5000 | 4000 - 6000 |
| Syrup/Water Ratio | 1:3 - 1:10 | 1:3 - 1:10 | 1:3 - 1:10 | 1:3 - 1:10 | 1:3 - 1:10 |
| Gas Qty | 1.5-2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| Power (KW) | 1.5 | 3.7 | 4.05 | 5.6 | 6.2 |
| Weight (kg) | 500 | 1100 | 1300 | 1600 | 1800 |

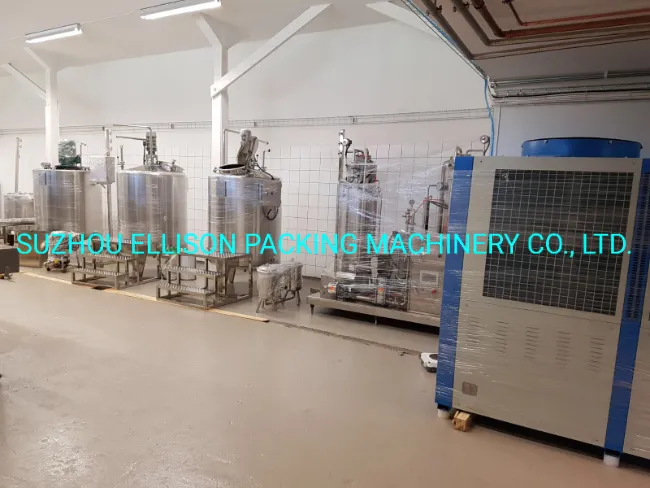

Stainless steel mixing tanks are widely applied in the beverage, food, dairy, pharmaceutical, and chemical industries. Features include: Capacity 100-20000L, Single/double/three layers, Sanitary stainless steel materials, and humanized structure design with no dead corners.
| Volume (L) | Tank Dim (mm) | Total Height (mm) | Inlet/Outlet (mm) | Power (kw) | Blending Speed |
|---|---|---|---|---|---|
| 500 | 840*1000 | 2750 | 60 | 0.55 | Common: 35, 43, 60 r/min |
| 1000 | 1060*1220 | 3150 | 60 | 0.75 | |
| 5000 | 1810*2000 | 4300 | 60 | 2.2 | |
| 10000 | 2300*2440 | 5050 | 60 | 3 | |
| 20000 | 2640*3660 | 6400 | 60 | 5.5 |
The Cleaning In Place (CIP) system ensures production lines (tanks, pipes, valves) are cleaned and disinfected circularly in a closed loop without dismantling. It comprises acid, alkali, hot-water, and pure-water tanks.
| Tank size | 300L~10,000L |
| CIP Tank type | alkali tank, acid tank, hot water tank, pure water tank, water recycle tank |
| Cleaning recycles | Single, double, three, or four circuits |
| Heating method | Coil pipes inside, plate, or tubular |
| Automation | Fully automatic (Auto flow, temp, level control) or Semi-auto / Manual |

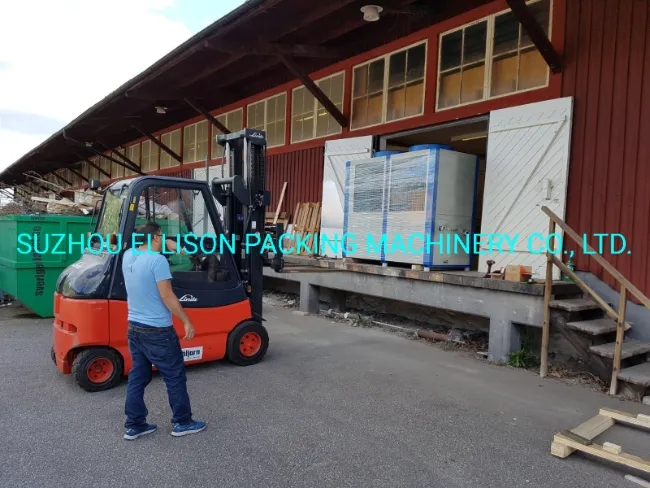

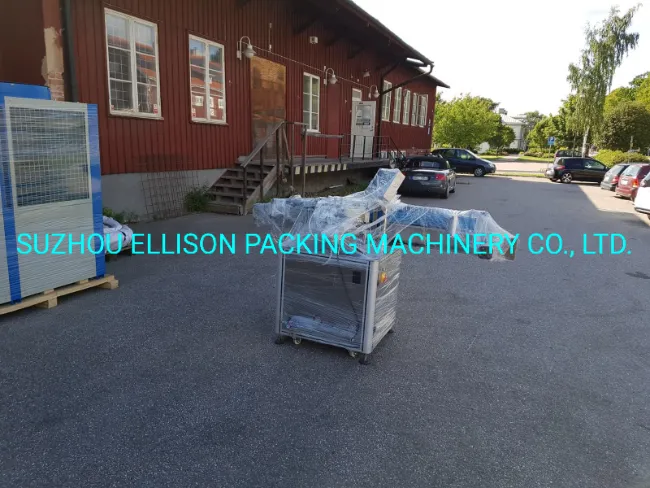

After equipment reaches the workshop, we offer plane layout assistance and seasoned technicians for installation, debugging, and test production to reach rated capacity.
