Customization: Available
Application: Biotechnology Industry, Chemical industry, Clinical Diagnosis, Food & Beverage Factory, Food Safety, Forensic Science, Pharmaceutical Industry
Capacity: 20000 L/hr
Send Inquiry

Product Description

📊 Basic Info.
Model NO.
MY-FS
Certification
CE, FDA, GMP, ISO
Control System
Fully Automatic
Treatment Process
Filtration, Ultrafiltration
Core Components Warranty
1 Year
Power Supply
380V 50Hz
Tank Material
Stainless Steel 316L
Sealing Level
IP65
🔍 Product Description

Precise Pharmaceutical Blending 304L/316L Preparation Tank System Formulation Mixing Tank

The mixing tank, a core component of the formulation system, is crafted with high-quality materials and advanced manufacturing techniques. It ensures optimal homogeneity and consistency in the blending process, which is crucial for the production of reliable and effective pharmaceutical products.

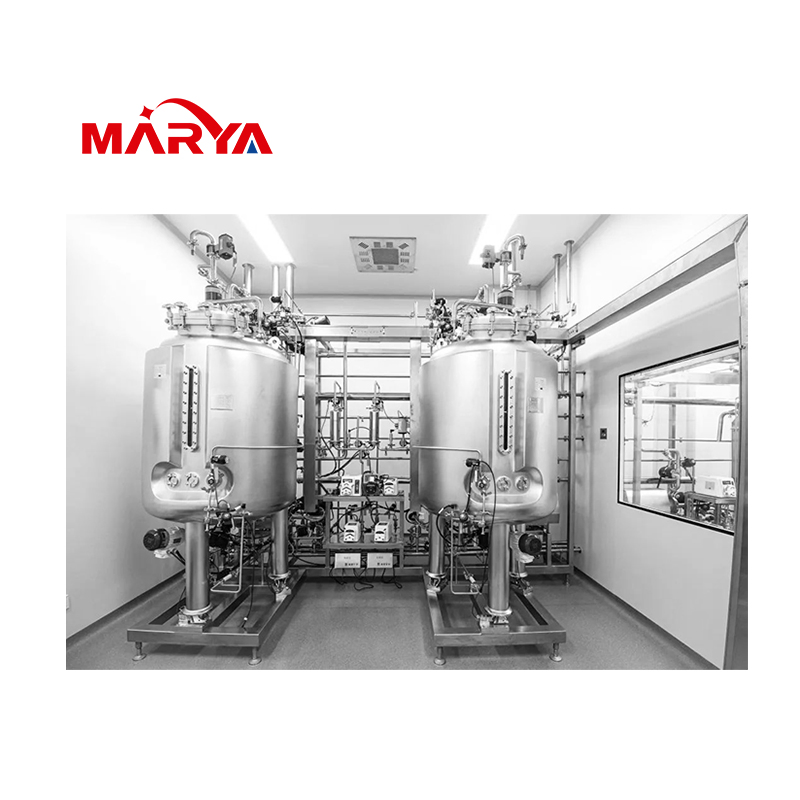

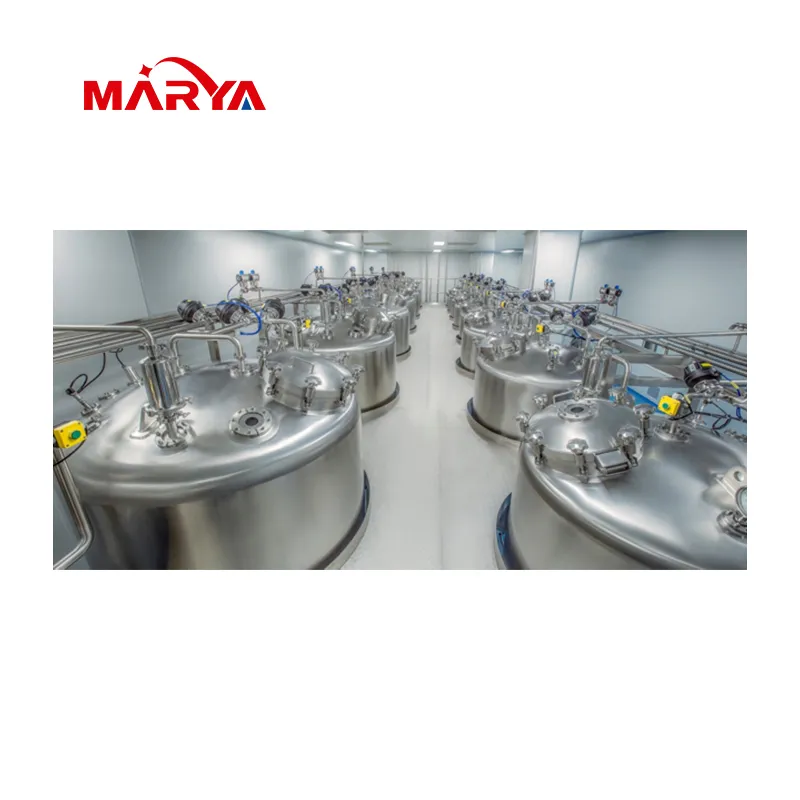

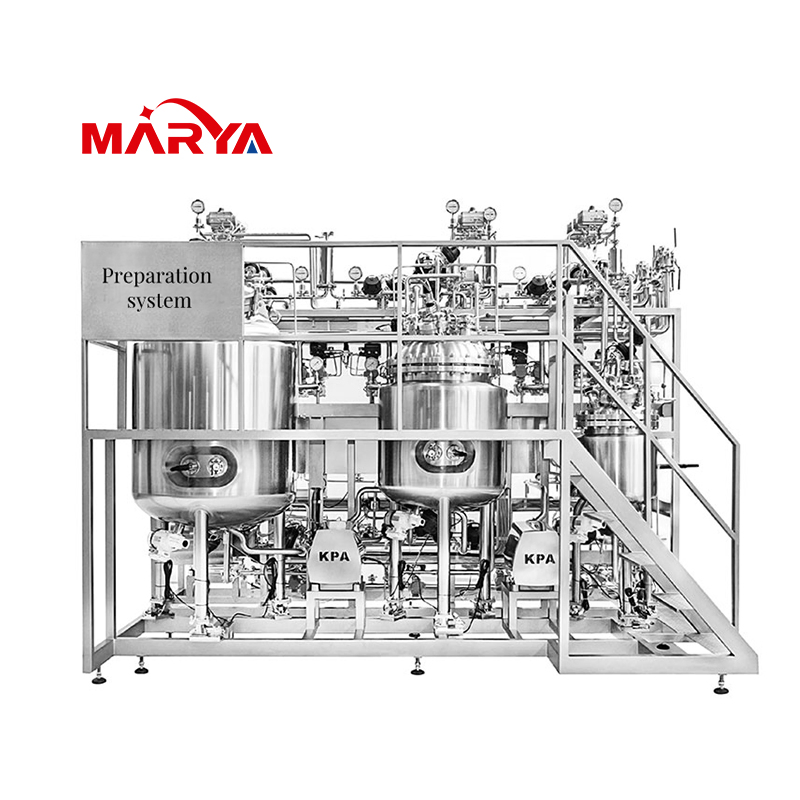

Preparation Tank System

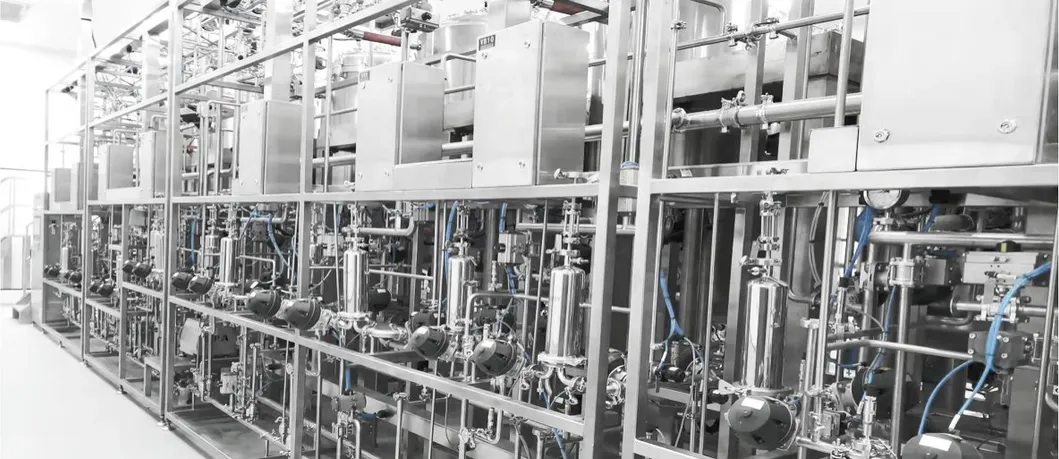

Mixing Tank Layout
📋 Classification
  • General formulation system: Used in the production of preparations with complex processes, such as suspensions, emulsions, liposomes, microspheres and other special preparations.
  • Complex formulation system: Designed for advanced pharmaceutical processes requiring precise consistency.
  • Biological formulation system: Used for antibodies, vaccines, blood products, recombinant proteins, and culture medium production.
  • CIP station system: Assists in on-line cleaning of tanks and pipelines, can be controlled separately or integrated.
✨ Key Features
  • Fully automatic modular design for convenient installation and maintenance.
  • Follows ASME BPE and GMP design concepts, meeting 3D blind corner requirements for low residue.
  • One-key CIP and SIP automatic control with recipe management and audit tracking functions.
  • Controllable key process parameters (Temperature, Dissolved Oxygen, pH) with automatic alarm systems.
  • High-quality stainless steel (316L) with electrolytic polishing process (Ra < 0.4μm).
  • Sterilizing-grade PES liquid filters resistant to pH 1-14 and temperatures up to 150ºC.
⚙️ Product Parameters
Name Parameters
Working volume 2~15000L
Stirring speed control accuracy Range 0~450rpm ±3.0%
Temperature control accuracy Range -10~150ºC ±0.2ºC
Pressure control accuracy Range -0.01Mpa~0.06Mpa ±0.01MPa
Weighing control accuracy 3‰
Power supply 380V 50Hz
Protection levels IP65
🖼️ Product Showcase
Detail 1
Detail 2
Detail 3
Detail 4
Detail 5
Detail 6
Detail 7
Detail 8
Detail 9
Detail 10
Detail 11
Detail 12
❓ Frequently Asked Questions
Q1: What materials are used for the preparation tanks?
The tanks are constructed from high-grade Stainless Steel 316L for internal contact parts and 304L for others, ensuring compliance with pharmaceutical standards.
Q2: What is the maximum volume capacity of the mixing system?
The system is highly scalable, with a working volume range from as small as 2L up to 15,000L.
Q3: How does the system ensure hygiene and cleaning?
It features an integrated CIP (Clean-in-Place) and SIP (Sterilization-in-Place) system that can be activated with a single key, following ASME BPE and GMP concepts to eliminate blind corners.
Q4: What level of precision does the temperature control offer?
The system provides high-precision temperature control within a range of -10 to 150℃ with an accuracy of ±0.2℃.
Q5: Can this system handle biological products like vaccines?
Yes, the biological formulation system is specifically designed for antibodies, vaccines, blood products, and recombinant proteins.
Q6: What kind of filters are used in the process?
We use sterilizing-grade polyethersulfone (PES) liquid filters, which are resistant to a wide pH range (1-14) and high temperatures (up to 150ºC).
