2018 Advanced 2.5T/H Homogenizer for Juice and Milk

1 / 5

2018 Advanced 2.5T/H Homogenizer for Juice and Milk

Customization:	Available
Condition:	New
Customized:	Customized

Send Inquiry

Product Description

Basic Specifications

Model NO.:

GJB2.5-25

Voltage:

380V

Composition:

Packaging Equipment

Processing Material:

Natural Ingredients

Process:

Mild Processing

Rating Pressure:

40MPa

Rating Flux:

2.5t/H

Convey Material:

Milk, Bean Milk, Juice

Inlet Pipe Diameter:

48mm

Outlet Pipe Diameter:

18mm

Transport Package:

Wooden Package

Production Capacity:

2000 pieces/Year

Product Description

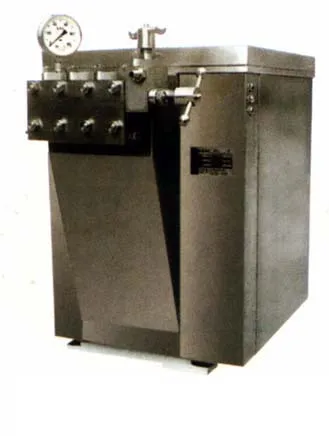

The GJB serial high pressure homogenization pump is a multi-purpose piece of equipment designed to homogenize and refine liquid materials to form high-pressure sprays. This pump enables liquid materials to reach high pressure through the reciprocal movement of a plunger piston. It simultaneously refines and mixes materials through a ternary process of extruding, impacting, and expanding under non-pressure conditions.

Key Function: This equipment homogenizes milk, bean milk, and similar liquids under high pressure during dairy production. It remarkably refines fat globules within the liquid, preventing or reducing stratification while improving fineness and porosity for better quality.

The resulting high-pressure liquid can be converted into powder form when used with spray dryer equipment, making it a critical component in powder-production processes (such as milk powder manufacturing).

This equipment is also widely adapted for use in the medical industry, chemical industry, and other applications requiring high-pressure homogenization and spraying. Please note: This pump is not suitable for liquids with granular suspension or high viscosity (kinematics viscosity should be less than 0.2Pa.S).

Model	GJB2.5-25
Rating pressure (MPA)	40
Rating flux (M3/H)	5
Convey material	Milk, bean milk, juice, etc.
Temperature (°C)	<75
Inlet pipe diameter (mm)	48
Outlet pipe diameter (mm)	18
Liquid requirement	Liquid tank level higher than inlet level
Motor (KW)	45
Overall size (W x H)	1200 * 1000 * 1350 mm
Weight (KG)	1270

Frequently Asked Questions

1. What are the primary applications of the GJB series homogenizer?

It is primarily used for homogenizing and refining liquids like milk, bean milk, and juice in the dairy industry, as well as in medical and chemical processing.

2. Can this pump handle high-viscosity liquids?

No, this pump is not suitable for high-viscosity liquids or those with granular suspension. The kinematics viscosity should be less than 0.2Pa.S.

3. What are the installation requirements for the liquid source?

The liquid supply tank level must be positioned higher than the pump's inlet level to ensure proper operation.

4. How does the homogenization process improve food quality?

It refines fat globules to prevent stratification, improving the fineness and porosity of the product, which makes it easier for the body to absorb.

5. What is the maximum processing temperature for this equipment?

The equipment is designed to handle materials with a temperature of less than 75°C.

6. What type of packaging is provided for shipping?

The product is secured in a professional wooden package to ensure safety during transport.
