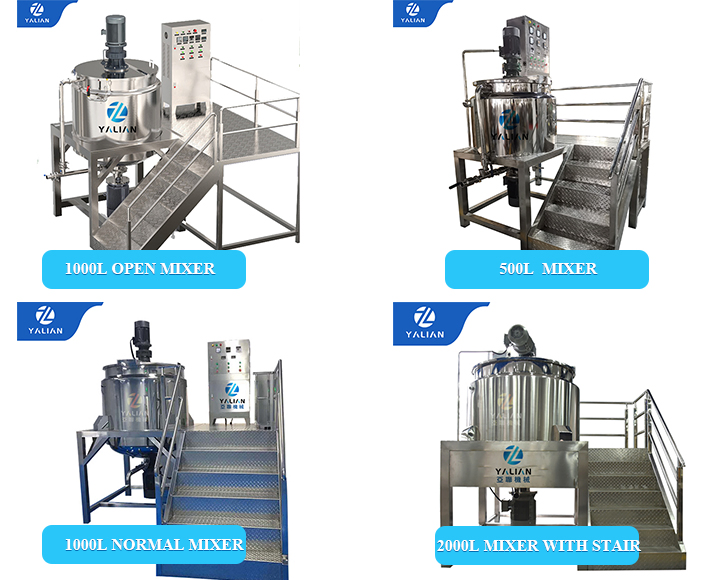

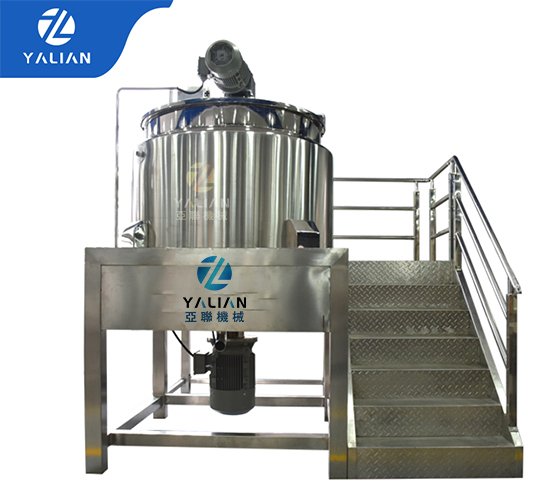

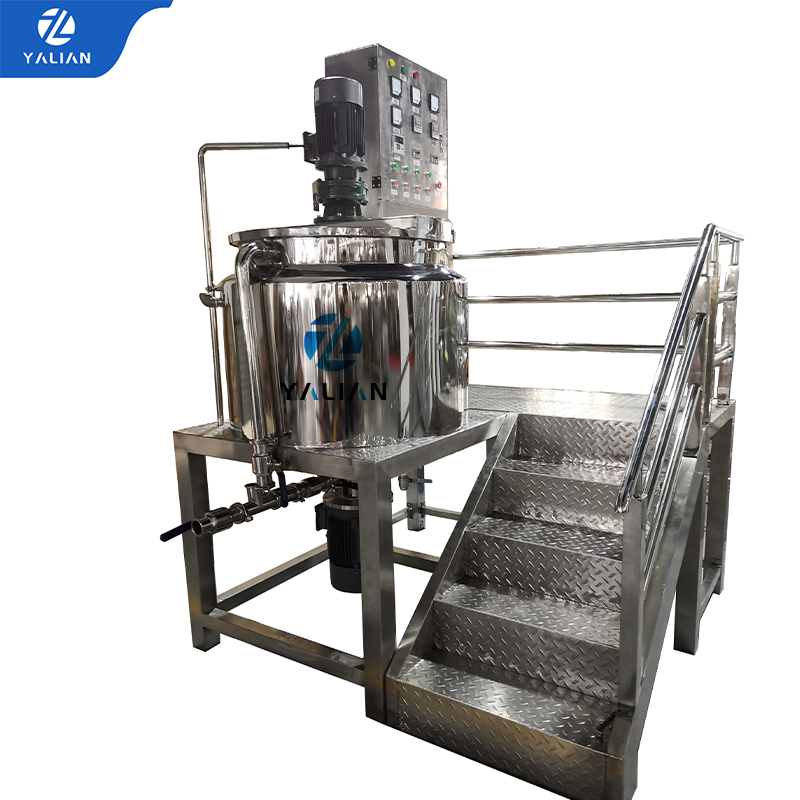

This Soap making system features ISO and CE certification, designed with 30 years of manufacturing experience. We offer customized mixers ranging from 50L to 10,000L.

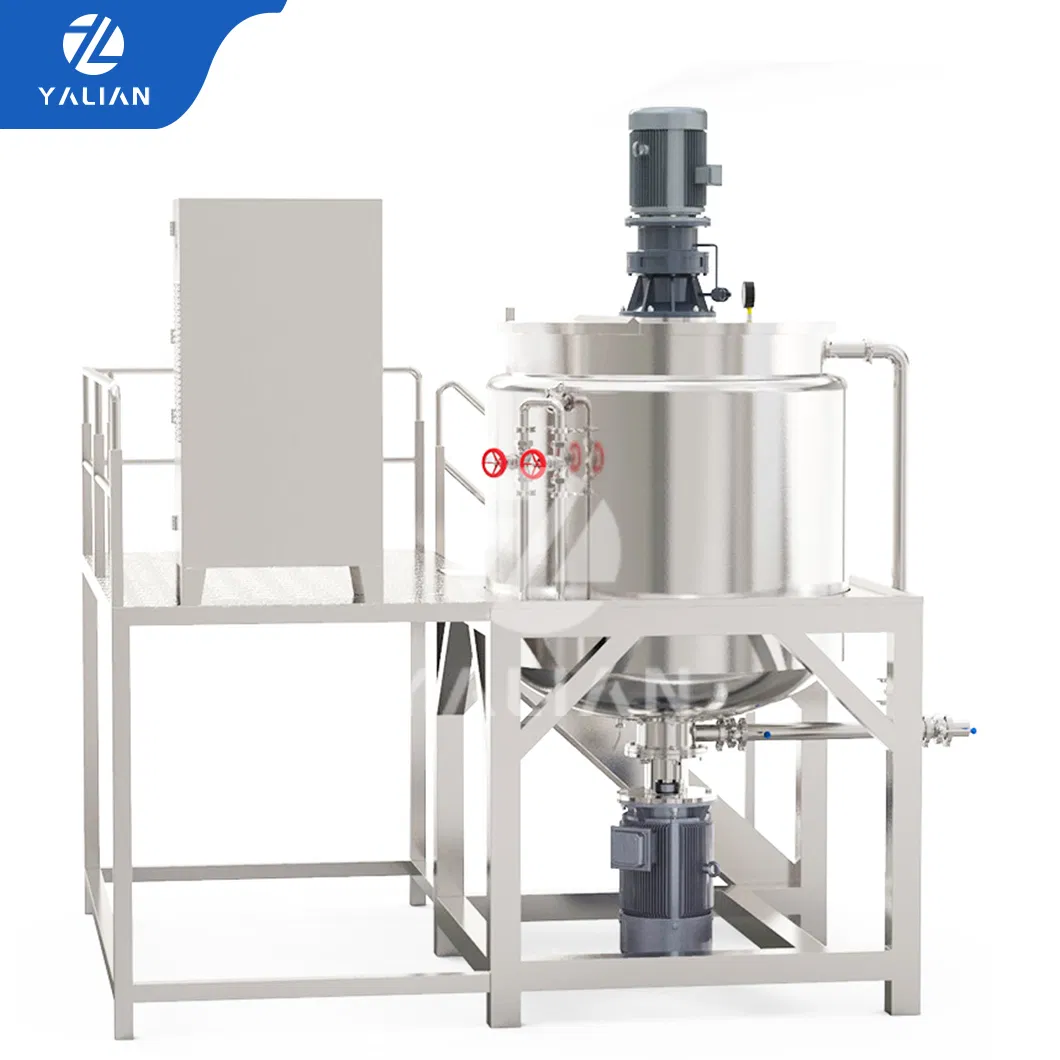

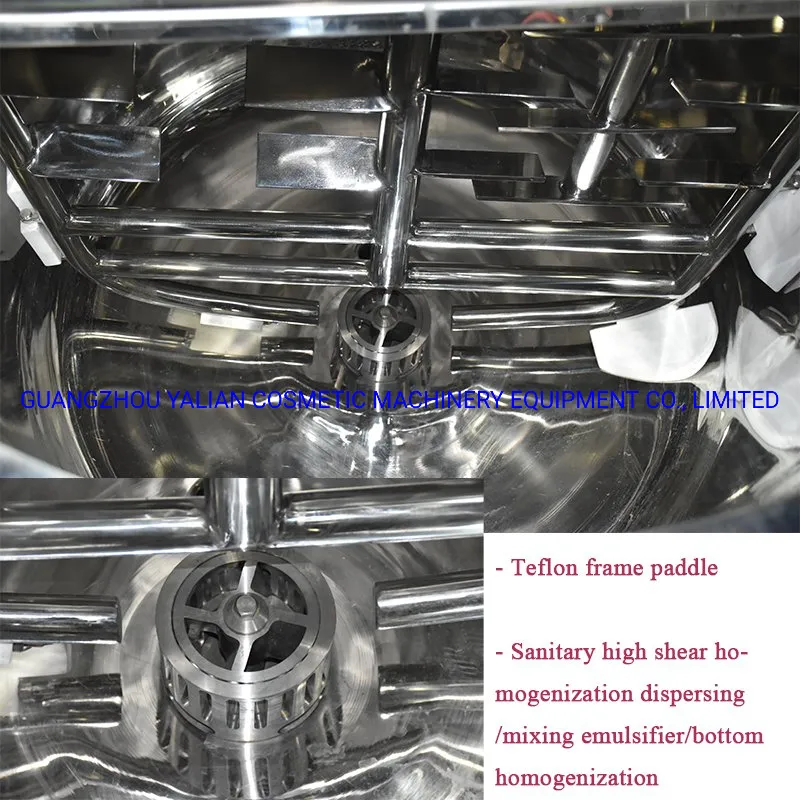

During the production of liquid washing products, the self-suction type AES dissolver alleviates labor intensity and shortens dissolving time. High-speed mixing is ideal for particle size reduction, emulsification, and homogenization. The top mixing frame includes a scraper and a stable oar to prevent whirlpool formation.

• Cosmetic & Daily Chemical: Cream, lotion, shampoo, detergent, gel, hand sanitizer.
• Pharmaceutical: Ointment, ice packs, injection liquid, penicillin.
• Food Industry: Mayonnaise, peanut butter, sesame butter, fruit juice.
• Chemical Industry: Paints, pigments, dyes, pesticides, shoe polish.

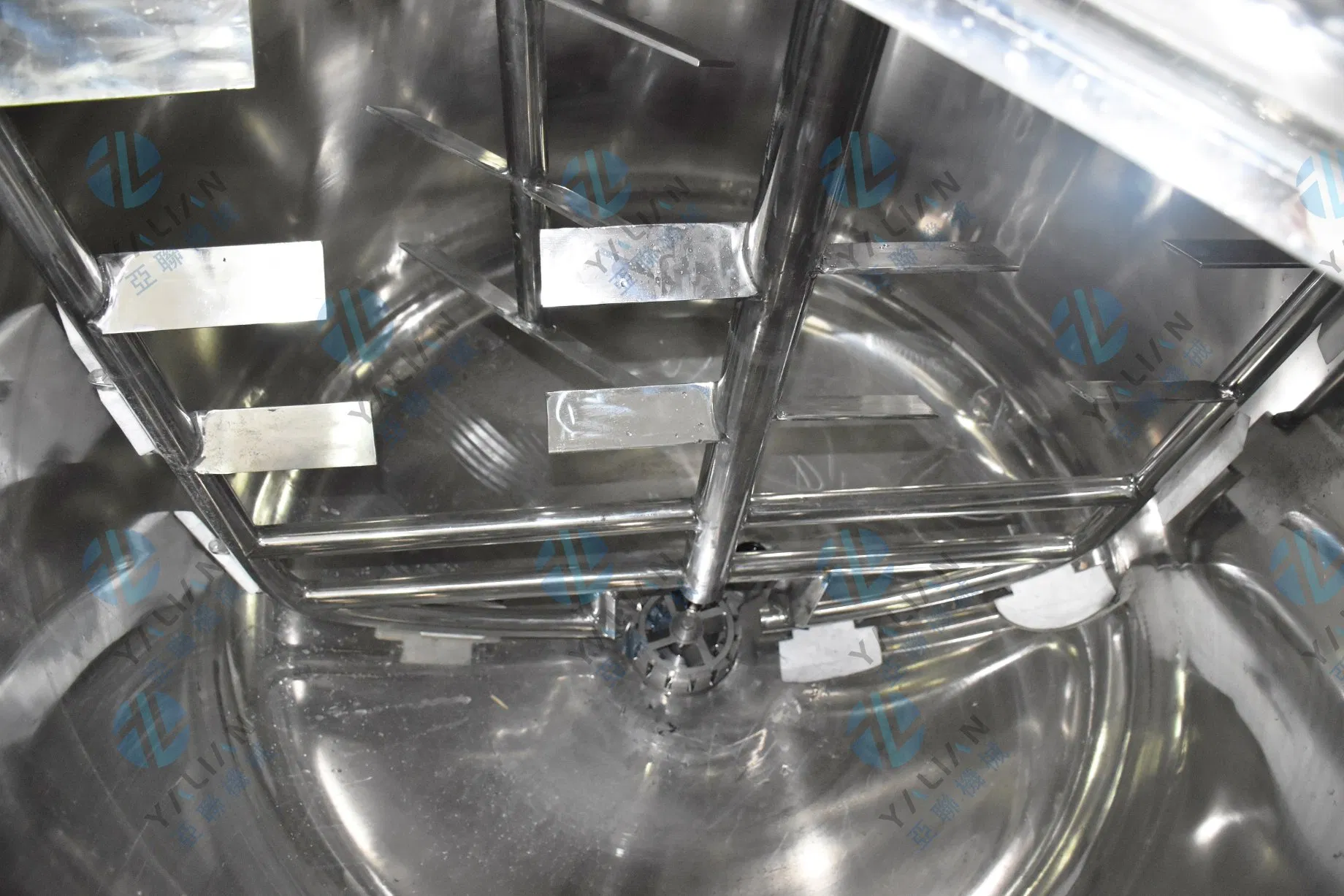

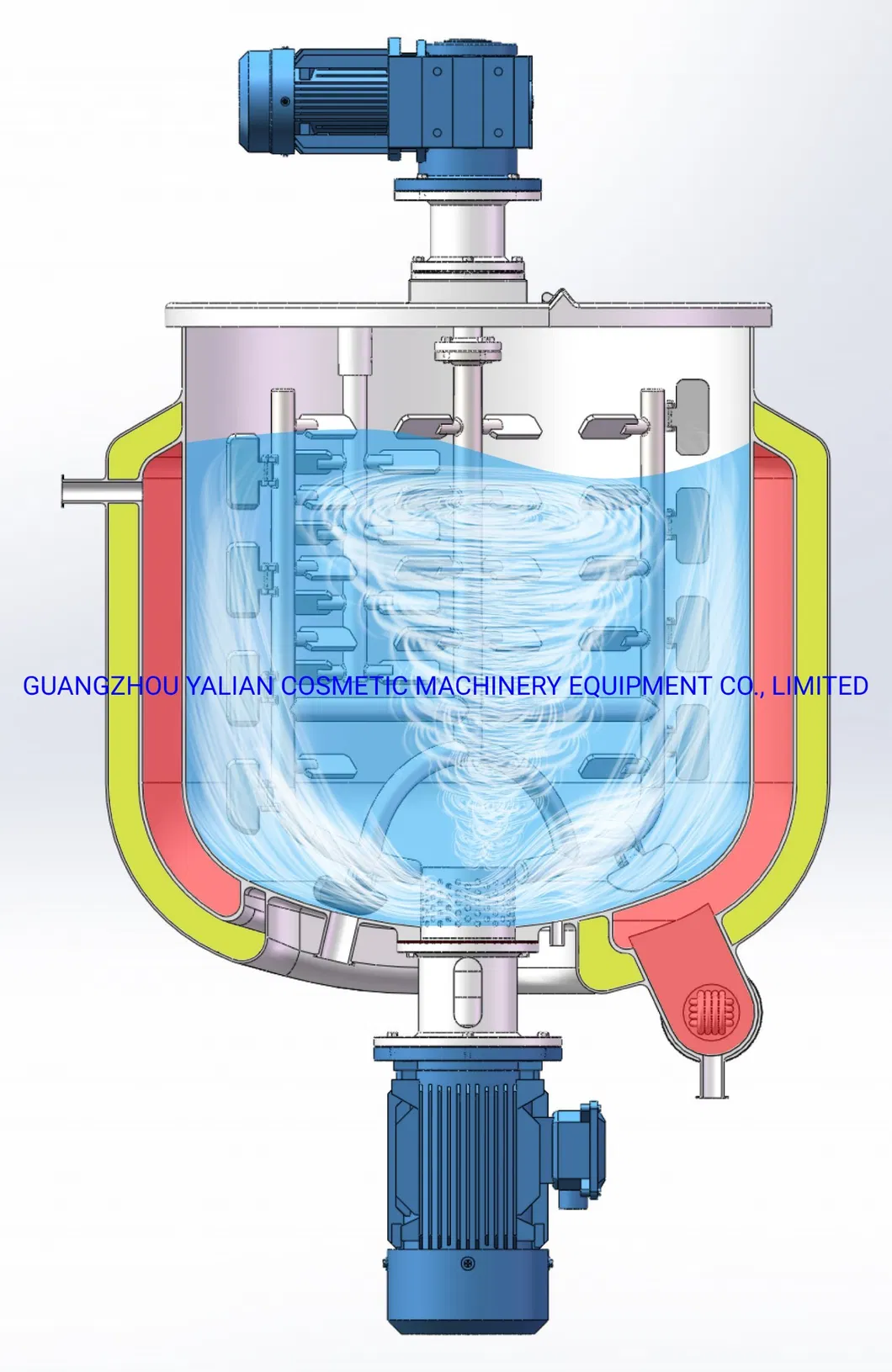

The anchor agitator rotates clockwise, driving materials along the wall. Baffles change the moving direction, creating opposite forces that roll the liquid from top to bottom repeatedly. This ensures the liquid is completely mixed and heat from the jacket is efficiently transferred to every part of the vessel.

• High-quality 316L stainless steel for all contact parts, mirror polished to GMP standards.

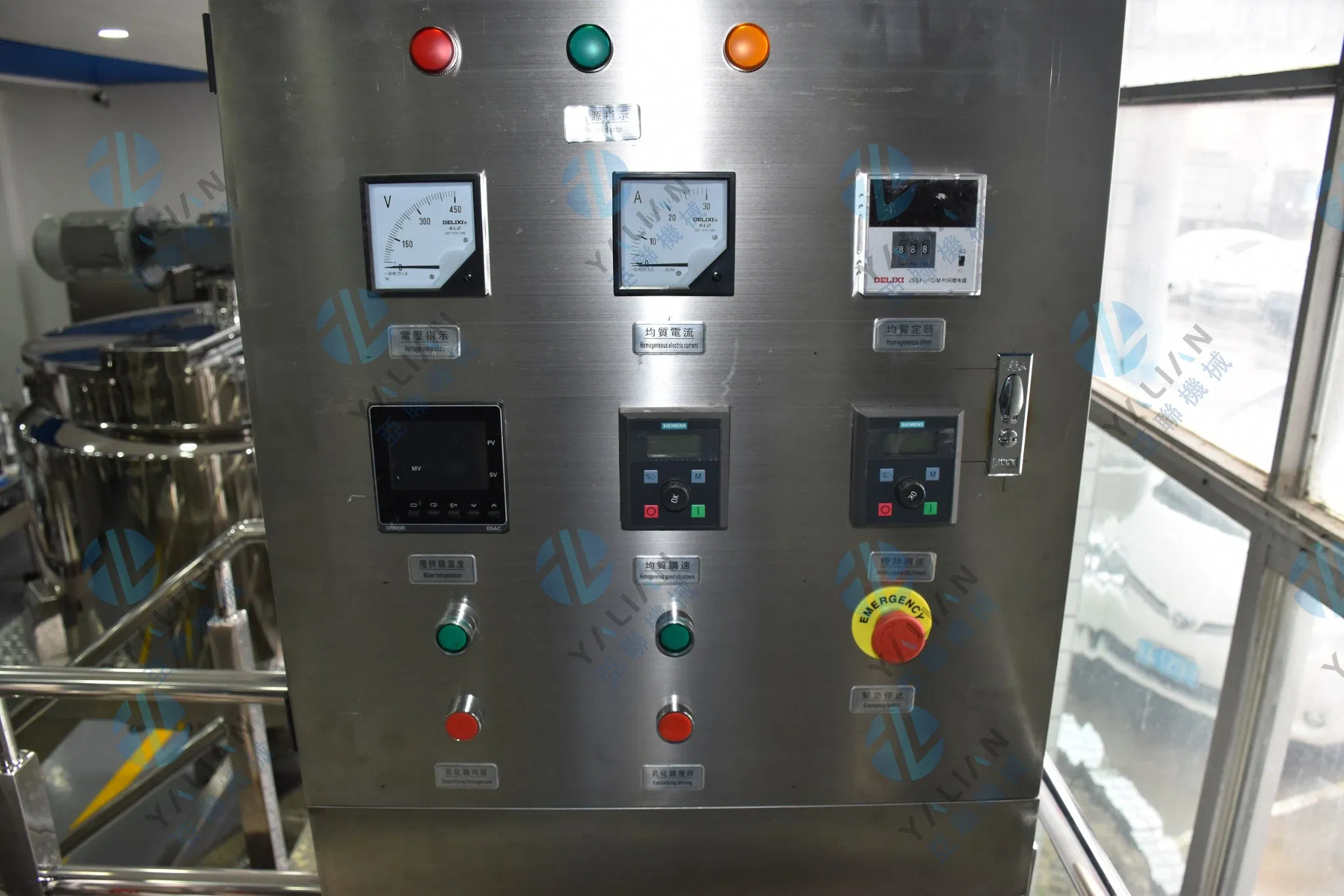

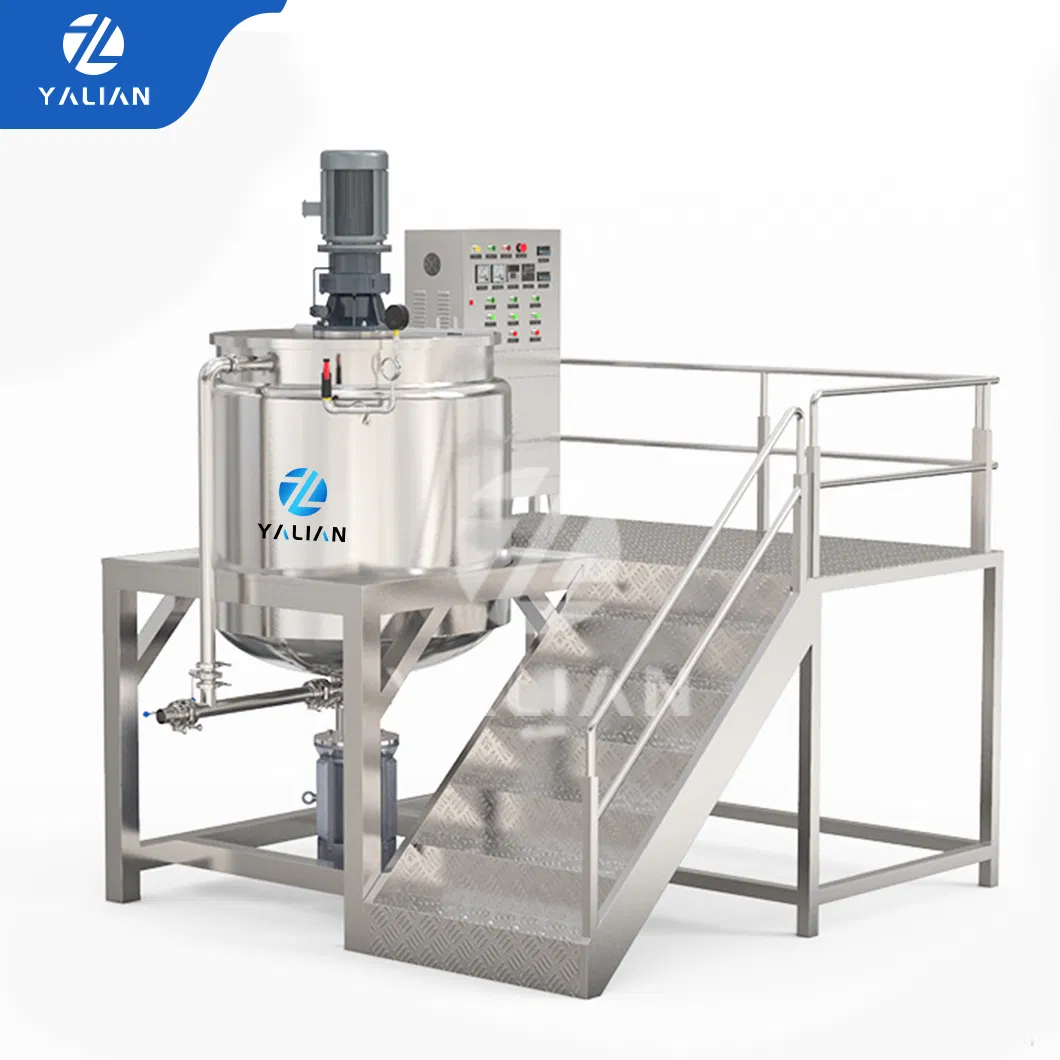

• Compact structure with an integrated stainless steel electric control cabinet.
• Versatile heating/cooling options (Steam or Electric) to meet specific process requirements.
• Advanced frequency converter to adjust stirring speed for different product types.
• Optional vacuum pump for bubble extraction and sterile requirements.

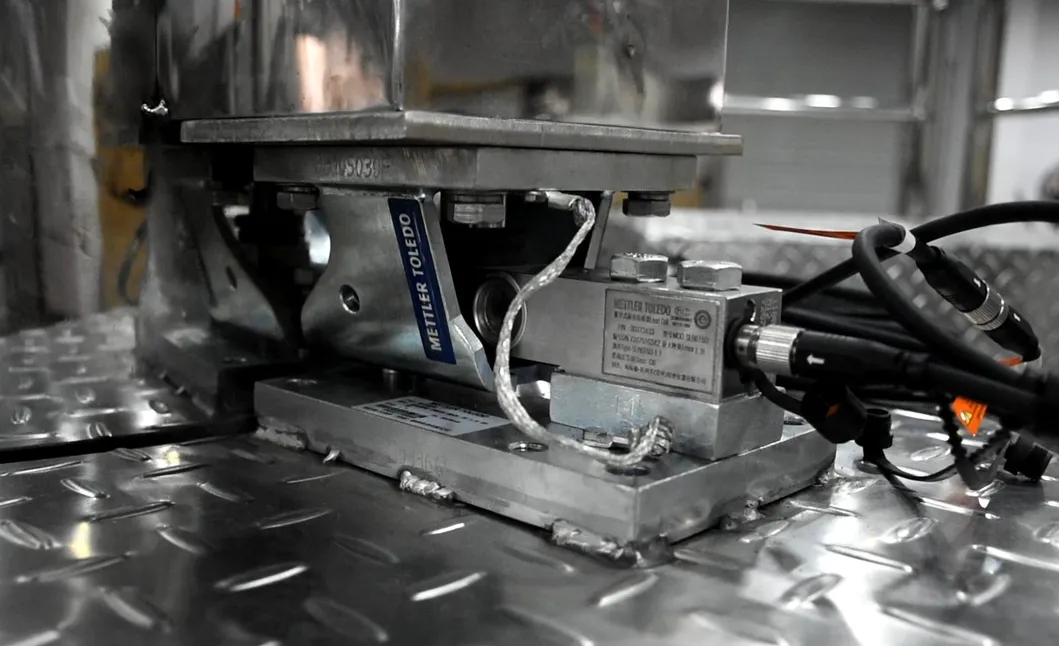

Our newest design includes load cells for automatic loading and weight monitoring. This allows for precise ingredient proportions directly inside the tank, crucial for maintaining consistency in color, texture, and viscosity.

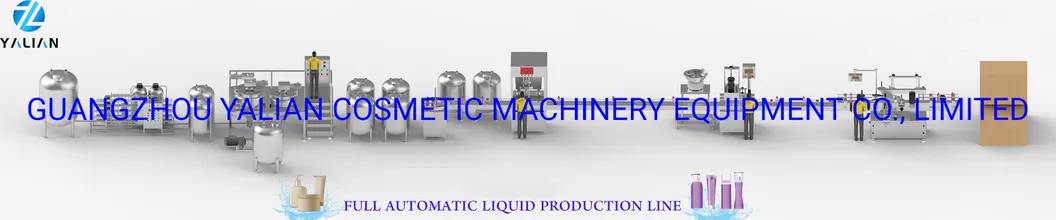

We provide complete machine sets for cosmetics, chemicals, and pharmaceuticals. This includes water softening treatment, mixing tanks, storage tanks, and filling machines.
