Yalian Cream Shampoo Mixer Line System for Sale

Customization:	Available
Additional Capabilities:	Milling
After-sales Service:	20years

Send Inquiry

Product Description

Basic Information

Model NO.

YMC

Application

Liquid with Suspended Solids, Viscous Fluid, Granules

Certification

CE, ISO

Warranty

2 years

Materials

Stainless Steel 316L/304

Motor Brand

Siemens/ABB

Heating System

Jacket Heating (Steam/Electric)

Control Panel

PLC or Press-Button

Product Description

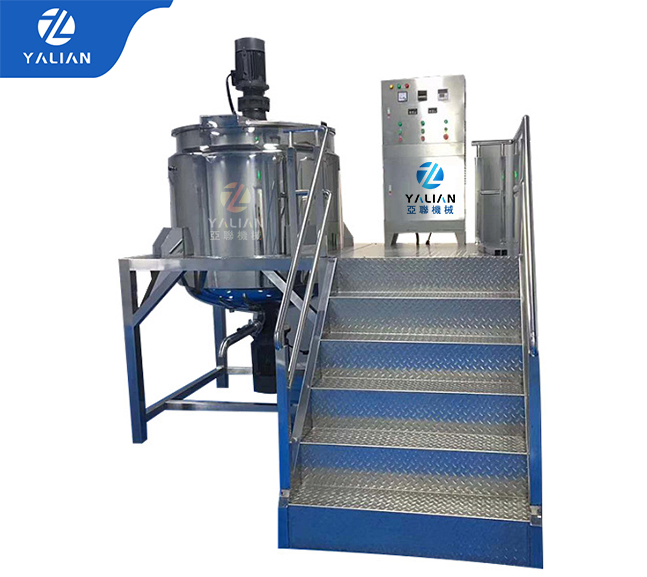

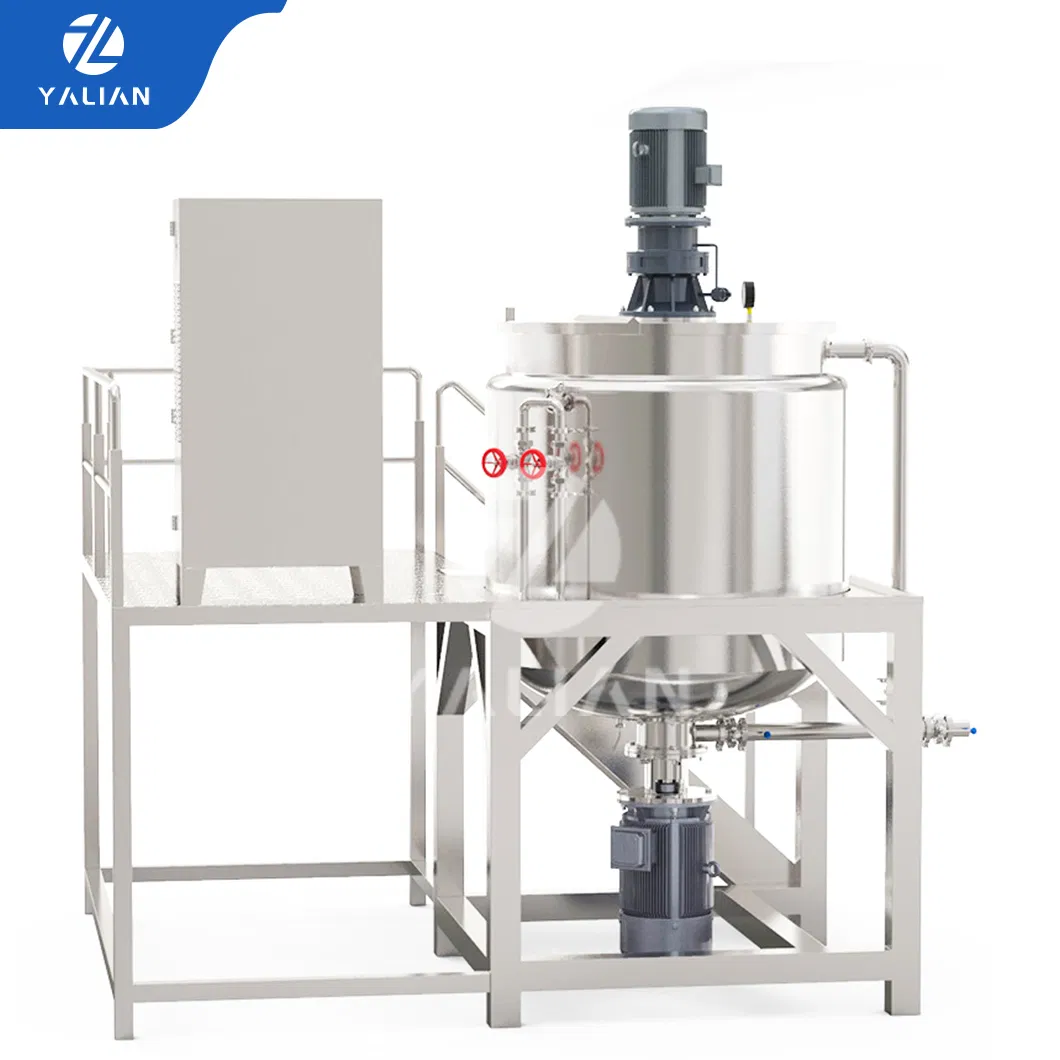

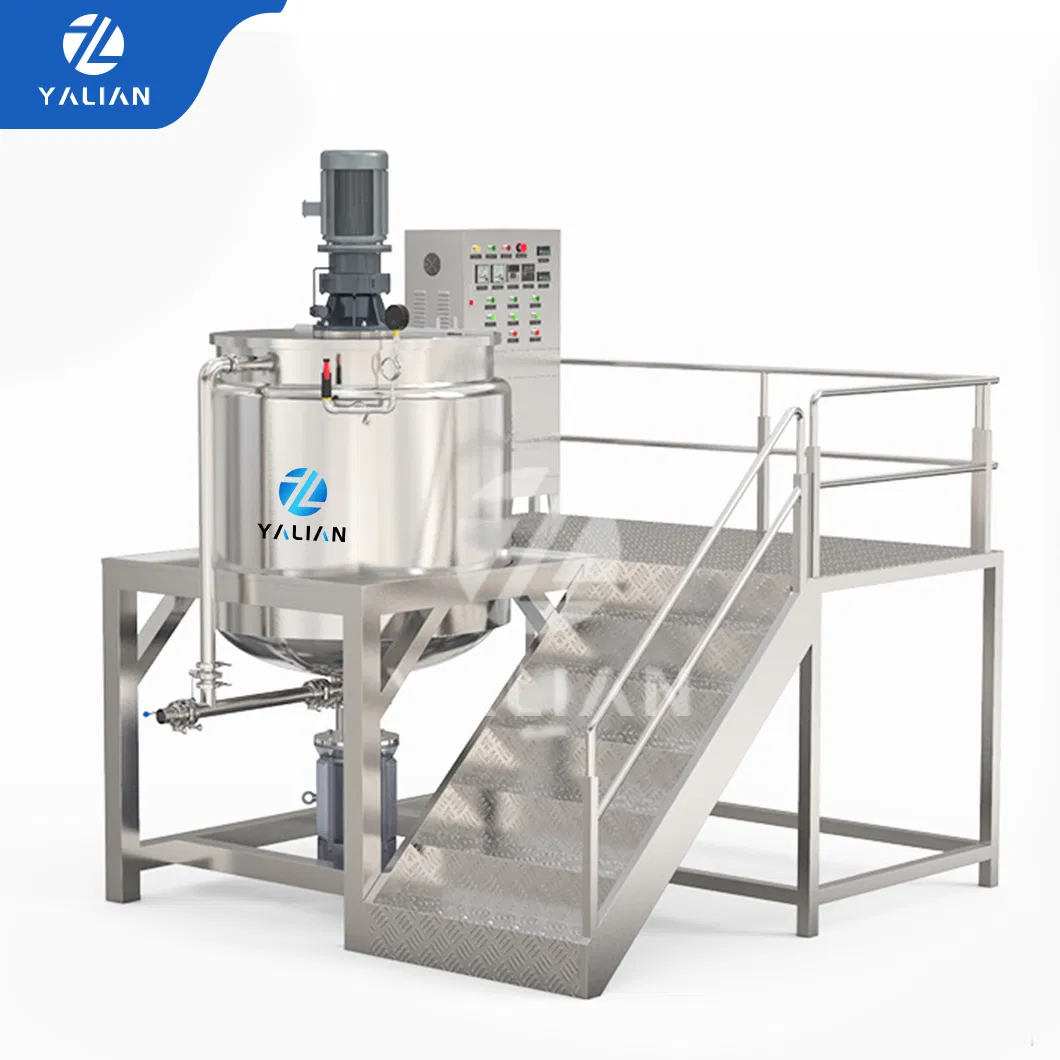

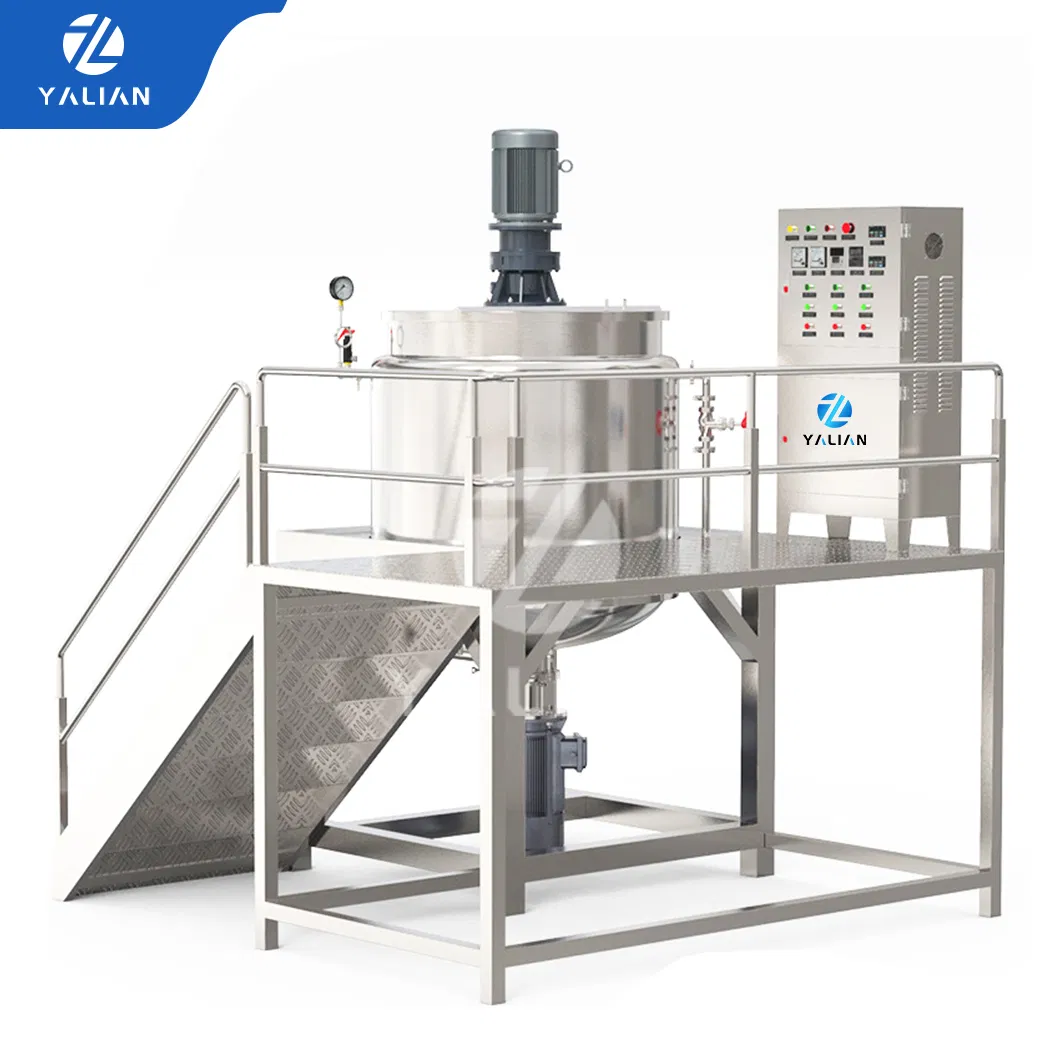

Cream Shampoo Mixer Line System
Customized mixer solutions from 50L to 10,000L designed with 30 years of manufacturing expertise. This system is engineered for the production of liquid washing products, featuring a self-suction type AES dissolver to reduce labor intensity and shorten processing time.

High-speed mixing is critical for incorporating solids into liquids, especially for difficult-to-wet powders. The system operates under high shear and turbulent flow conditions, ideal for particle size reduction, emulsification, and homogenization.

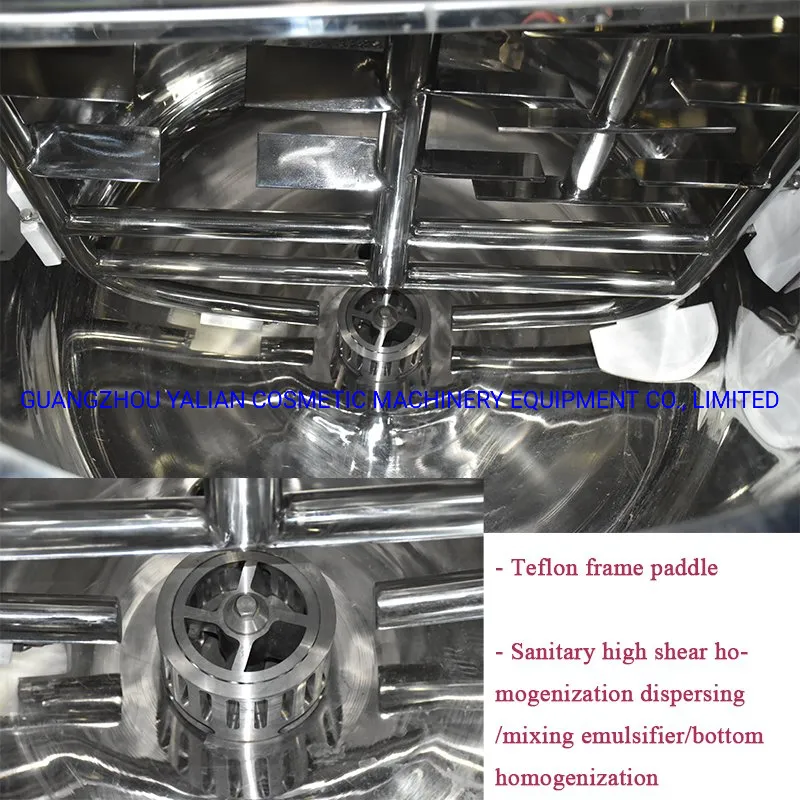

The top mixing frame includes a scraper and a stable oar to prevent whirlpool formation. The bottom homogenizer reaches speeds of 0-3300rpm, ensuring raw materials are thoroughly emulsified.

Industrial Applications

Cosmetics: Creams, lotions, shampoo, detergents, gels, hand sanitizers.
Pharmaceuticals: Ointments, ice packs, injection liquids, penicillin.
Food & Beverage: Mayonnaise, peanut butter, fruit juices, dairy products.
Chemicals: Paints, pigments, dyes, pesticides, resins.

Equipment Specifications

Feature	Specification Details
Capacity	50-10,000L (Customizable)
Mixing Power	0.75-55KW
Homogenizing Speed	0-3300 / 0-6000 RPM
Material	304 or 316 Stainless Steel
Vacuum System	-0.085mpa (Optional)
Agitator Type	Anchor with scraper, Turbine, High Shear
Inside Finish	Mirror polished Ra<0.4um

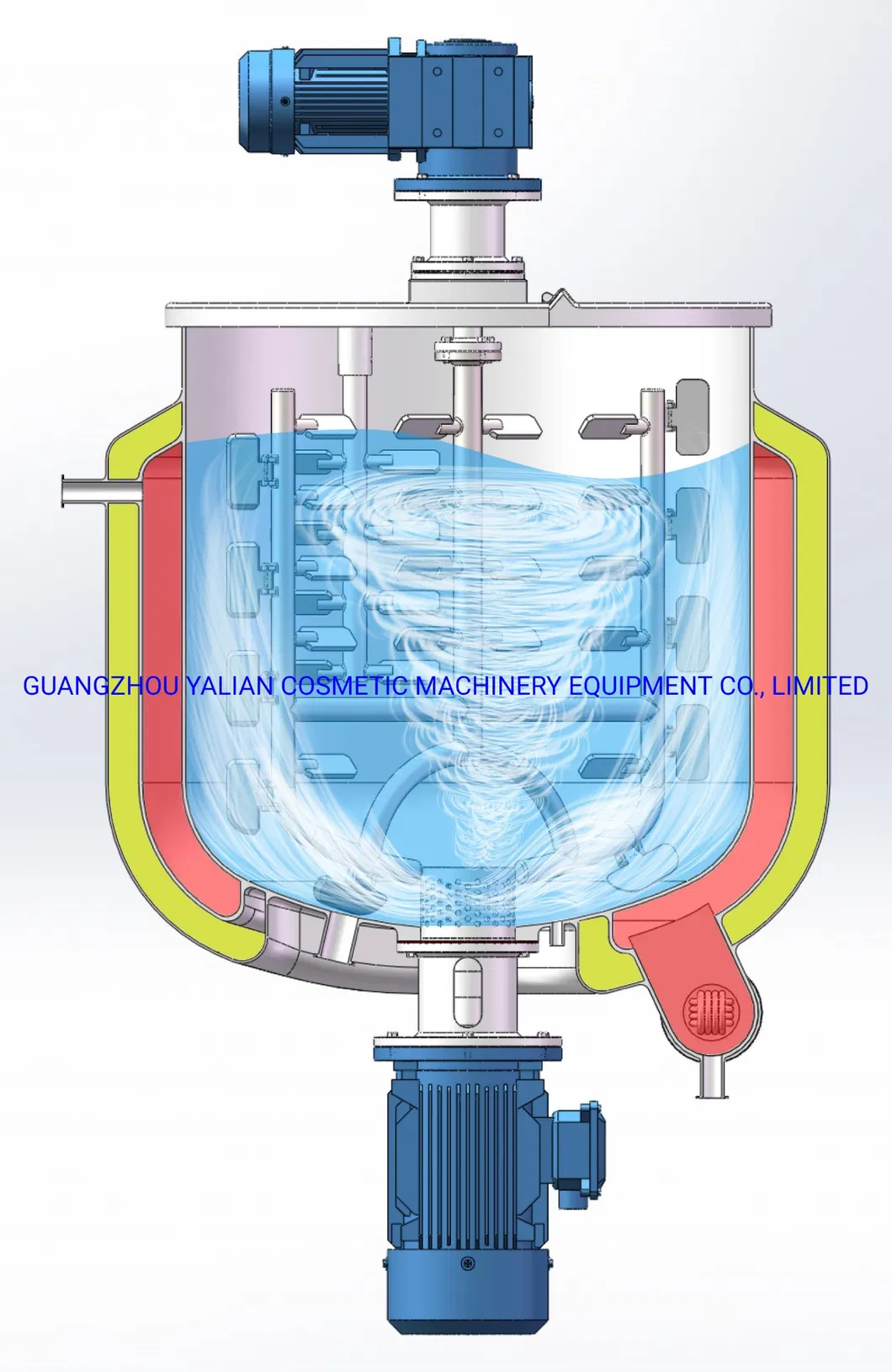

Work Process

The anchor agitator rotates clockwise, driving materials along the tank wall. When liquid encounters the baffles, the direction changes, creating a rolling effect from top to bottom. This ensures complete blending and efficient heat transfer from the jacket to the material.

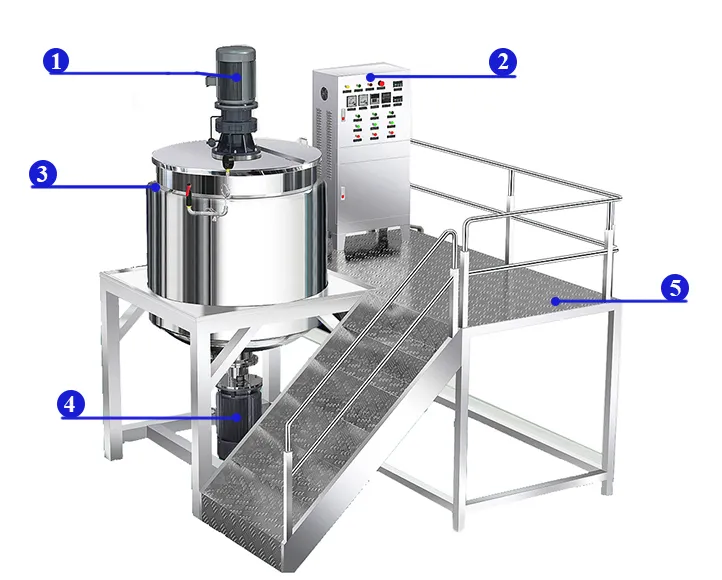

Key Product Features

All stainless steel construction (316L for contact parts) complying with GMP.

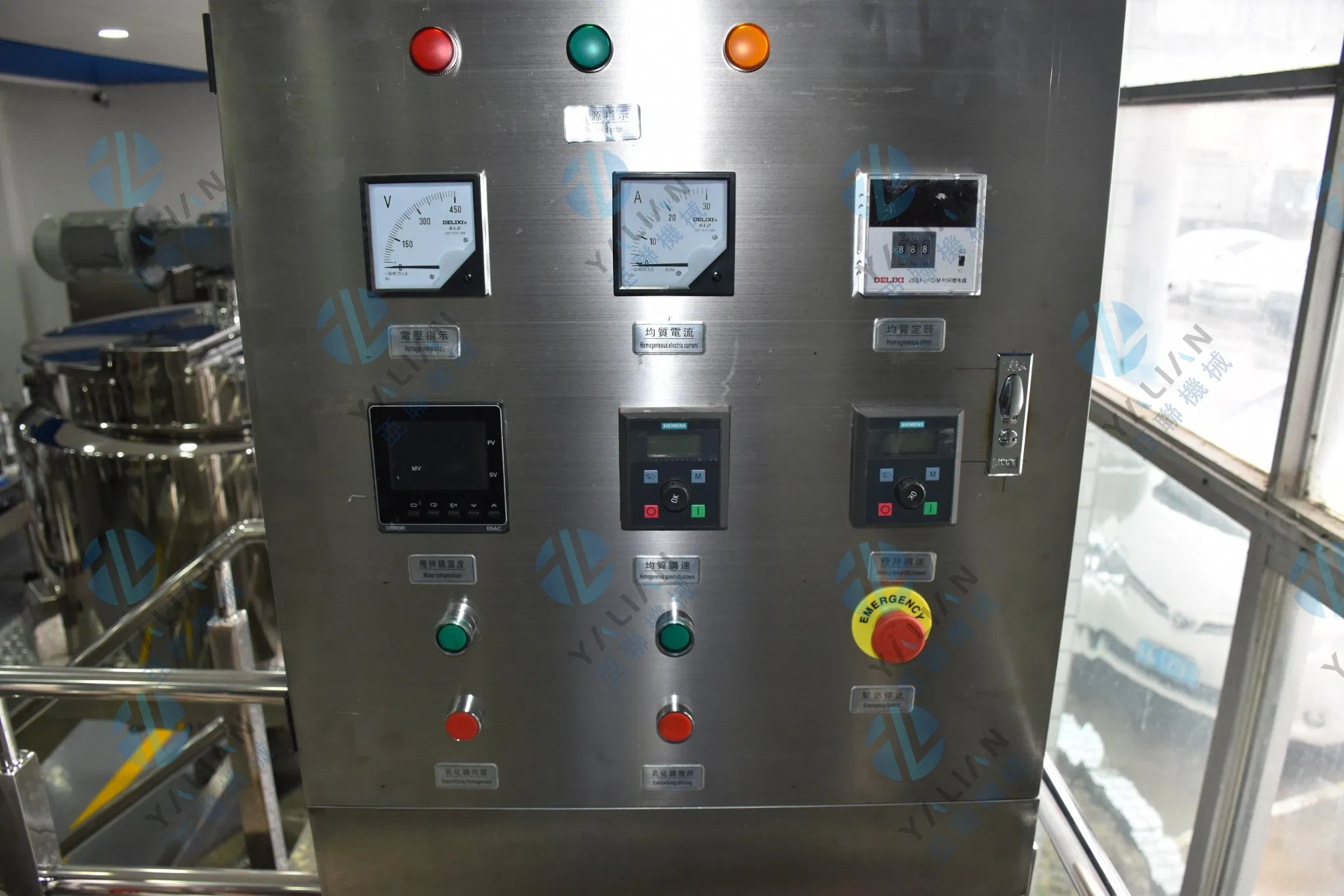

Compact structure with integrated electric control cabinet.
Flexible heating/cooling options via steam or electricity.
Advanced frequency inverters for precise speed control.
Optional vacuum pump for bubble-free production.

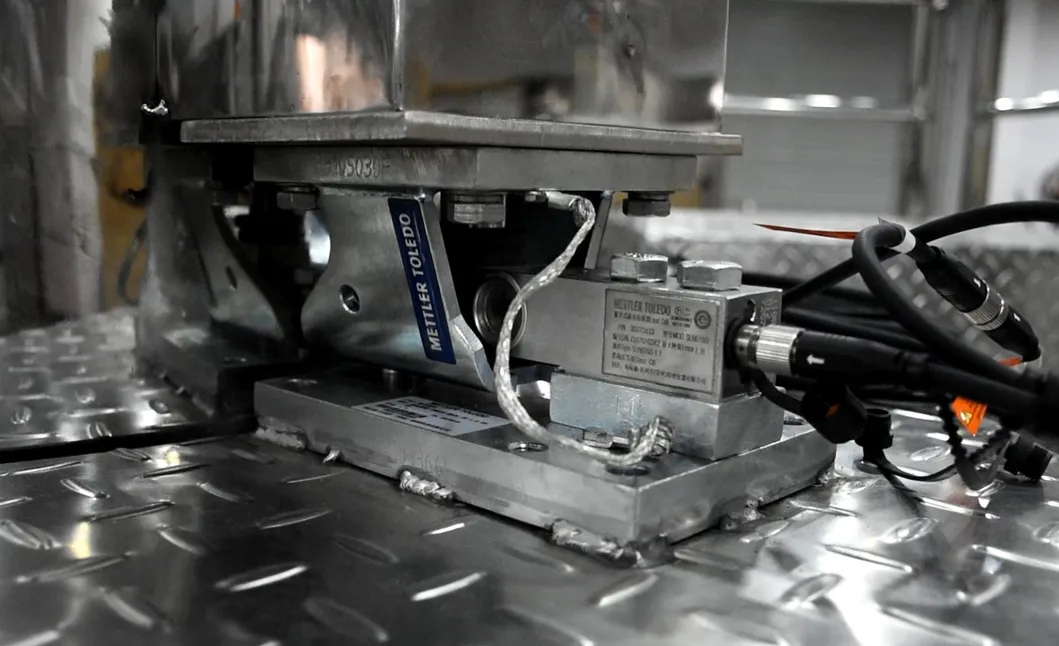

Advanced Load Cell System

Load cells allow for precise detection of weight changes, ensuring exact proportions for high-quality mixtures. Dosing can be performed directly inside the mixing tank, eliminating the need for separate ingredient measurement and reducing raw material waste.

Technical Parameters

Model	Volume (L)	Blending Power (kw)	Blending Speed (r/min)	Homogenizing Power (kw)	Heating
YMC-50	50	0.55	0-65	1.5	Electric
YMC-100	100	0.75	0-65	2.2	Electric
YMC-500	500	2.2	0-65	5.5/7.5	Steam/Elec
YMC-1000	1000	2.2-4	0-65	7.5/11	Steam/Elec
YMC-3000	3000	7.5	0-53	15/18	Steam/Elec
YMC-5000	5000	11	0-53	22/25	Steam/Elec

Our Advantages

We provide complete production lines, including water treatment, storage tanks, and filling machines. All equipment is mirror-polished (5 times) and utilizes premium components like Siemens or ABB motors for long service life.

Frequently Asked Questions

What is the capacity range for your mixing tanks?

We offer a wide range of capacities from 50L to 10,000L, and all machines can be customized to meet your specific production requirements.

What materials are used in the construction of the tanks?

The tanks are constructed from high-quality stainless steel, typically 304 or 316L, depending on the material compatibility and sanitary requirements.

Are the machines compliant with industrial standards?

Yes, all our equipment is designed and manufactured to comply with GMP requirements and ISO9001 standards, featuring mirror-polished finishes.

What heating methods are available for the mixer?

You can choose between electric heating or steam heating systems, depending on your facility's infrastructure and process needs.

Can the stirring and homogenizing speeds be adjusted?

Yes, our motors are equipped with advanced frequency converters that allow you to adjust both the stirring and homogenizing speeds as needed.

What brands of motors do you use?

We prioritize quality and longevity by using world-renowned motor brands like Siemens or ABB for our homogenizer and stirring systems.
