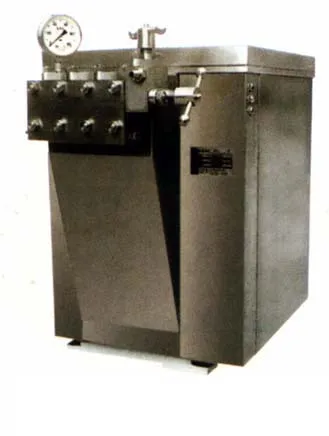

GJB serial high pressure homogenization pump is multi-purposes equipment which homogenizes and refines the liquid material in order to form the high pressure spray. This pump helps the liquid material to achieve high pressure through the reciprocal movement of plunger piston. Meanwhile, it has the function of refining and mixing under the ternary process of extruding, impacting and expanding under the condition of non-pressure.
This pump is to homogenize the milk, bean milk, etc. under high pressure in the processes of producing dairying, which refines the fat globule remarkably contained in the liquid and prevents or reduces the stratification of the liquid. Thus, the degree of fineness and porosity will be better, which reflects the inner quality. Under this circumstance, the finished foodstuff will be easy for people to absorb with prolific value.
The high pressure liquid will be formed into power after the spray drier equipment, which is the important equipment during the process of power-producing. (milk power is one of the examples)
This equipment is also adapted in the medical industry, chemical industry and any other occasions which need high pressure homogenization and high pressure sprayer. This pump is not adapted to the liquid with granular suspending and high viscosity. The kinematics viscosity scale is usually less than 0.2Pa.S.
Technical Specifications
Model
5-25
Rating pressure (MPA)
40
Rating flux (M3/H)
5
Convey material
Milk bean milk juice and etc
Temperature (℃)
<75
Inlet pipe diameter (mm)
48
Outlet pipe diameter (mm)
18
Liquid requirement
Liquid tank level higher then inlet level
Motor (KW)
45
Overall size W*H (mm)
1200*1000*1350
Weight (KG)
1270
Frequently Asked Questions
What is the primary function of the GJB serial homogenizer?
It is designed to homogenize and refine liquid materials using high pressure, helping to prevent stratification and improve the fineness and porosity of the final product.
Which materials are suitable for this homogenization pump?
It is ideal for processing milk, bean milk, fruit juices, and other liquid materials in the dairy, medical, and chemical industries.
Are there any limitations on the type of liquid that can be processed?
Yes, the pump is not suitable for liquids with granular suspending or high viscosity. The kinematics viscosity should be less than 0.2Pa.S.
What is the maximum rating pressure and flux for this equipment?
The GJB2-25 model offers a rating pressure of 40MPa and a rating flux of up to 5 M3/H depending on the specific configuration.
What is the requirement for the liquid inlet level?
For optimal performance, the liquid tank level should be positioned higher than the pump's inlet level.
How does homogenization affect the nutritional value of food?
By remarkably refining fat globules, it makes the finished foodstuff easier for the human body to absorb, thereby increasing its prolific value.
