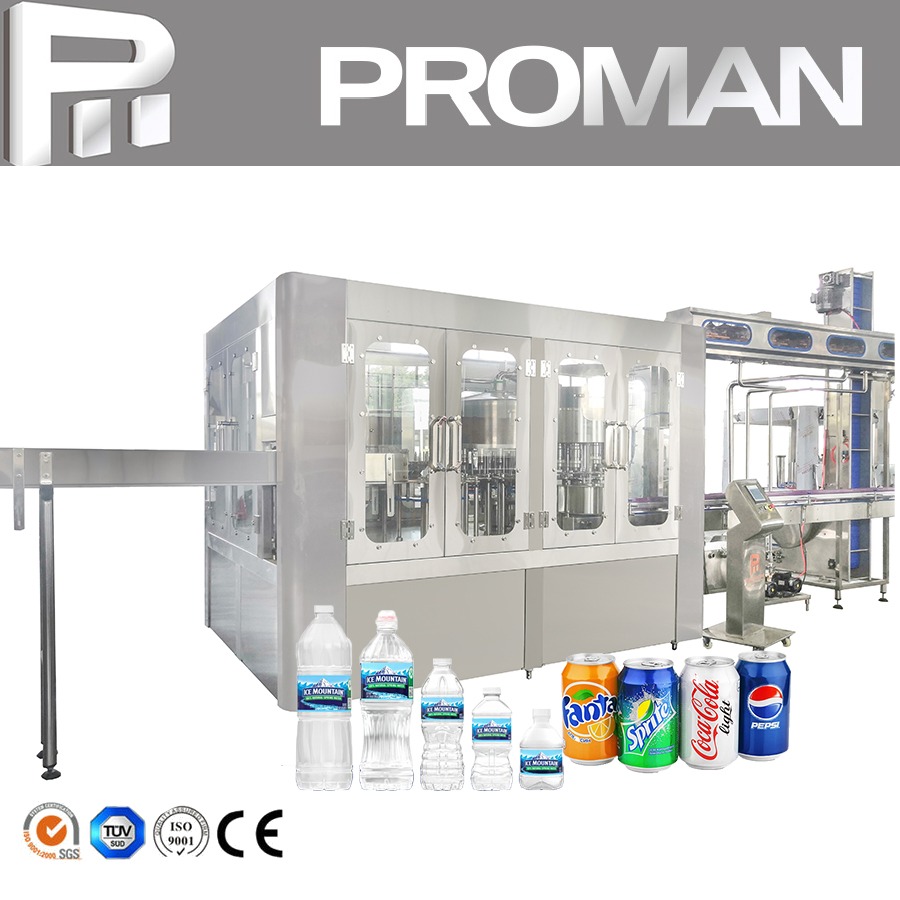

Automated 500ml PET Glass Bottle Bottling Drink Filler System
Different models can satisfy various requirement of output from 2000B/H to 24000B/H. The machine adopts advanced Mitsubishi programmable controller (PLC) to control automatically, interworking with inverter running more stable and reliable. The photoelectric sensor detects all part running state with high degree of automation and easy operation.
📊 Technical Parameters
| Model |
CGF14-12-4 |
CGF16-16-5 |
CGF18-18-6 |
CGF24-24-8 |
CGF40-40-12 |
| Capacity (500ML) |
4000BPH |
6000BPH |
8000BPH |
12000BPH |
18000BPH |
| Washing Heads |
14 |
16 |
18 |
24 |
40 |
| Filling Heads |
12 |
16 |
18 |
24 |
40 |
| Capping Heads |
4 |
5 |
6 |
8 |
12 |
| Suitable Bottle |
PET Bottle, Plastic Bottle (Diameter: 55-110mm, Height: 150-310mm) |
| Main Motor Power |
1.2kw |
1.5kw |
3kw |
3kw |
5.5kw |

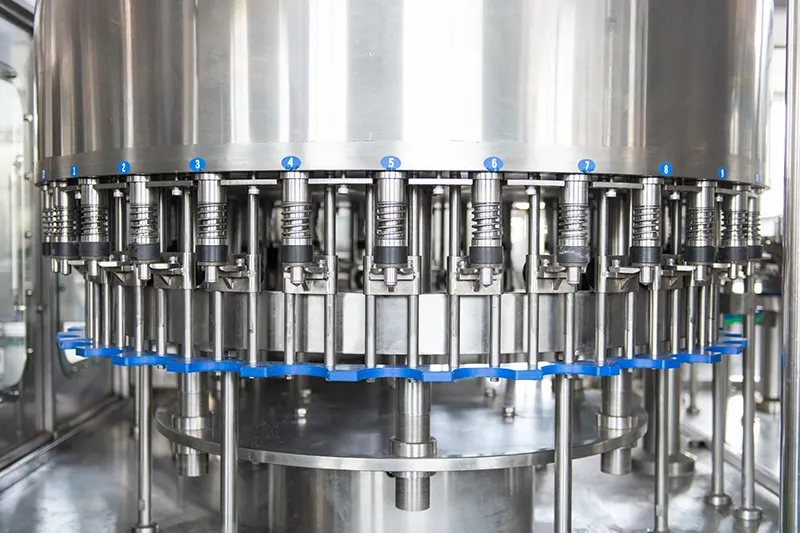

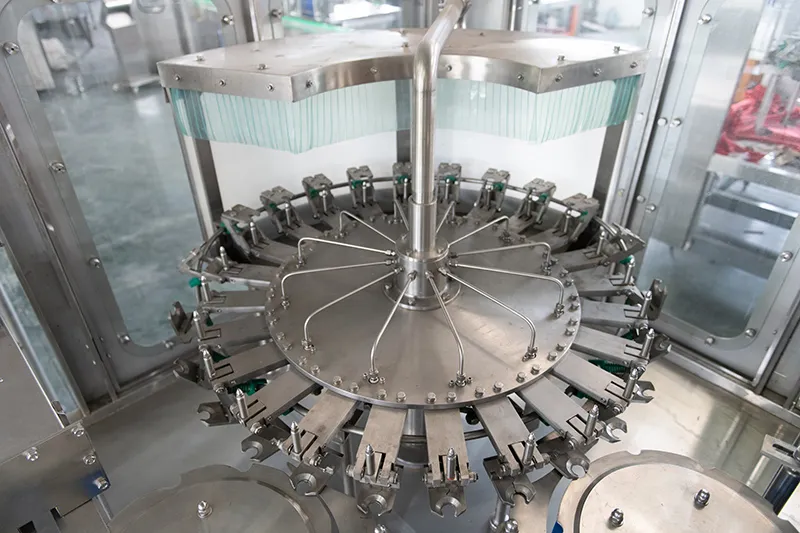

🚿 Washing Head Module

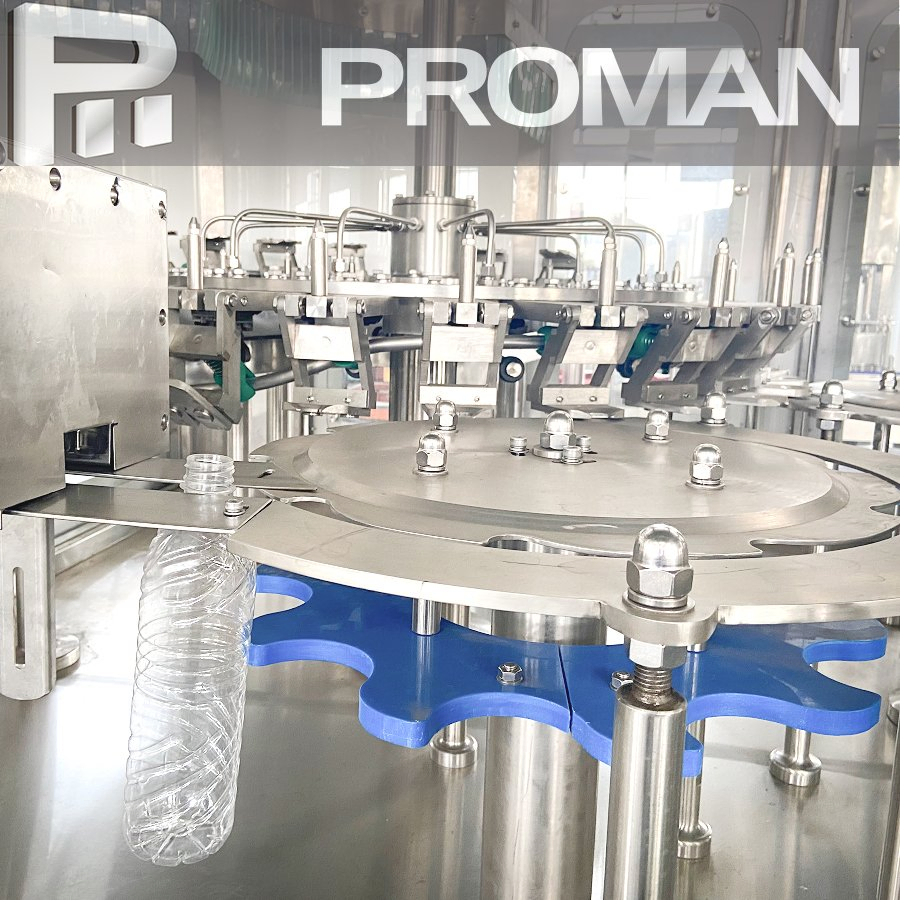

- Air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads with water spray style design.
- Stainless steel gripper with plastic pad ensures minimal bottle crash.
- Durable 304/316 stainless steel washing pump.

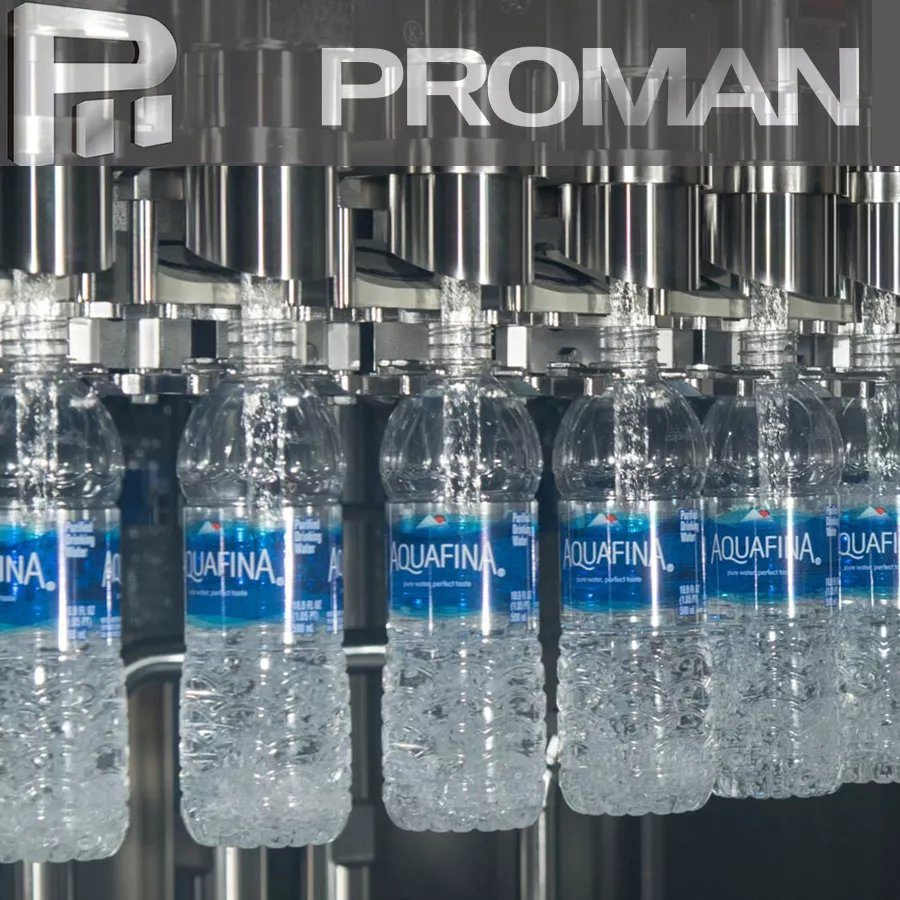

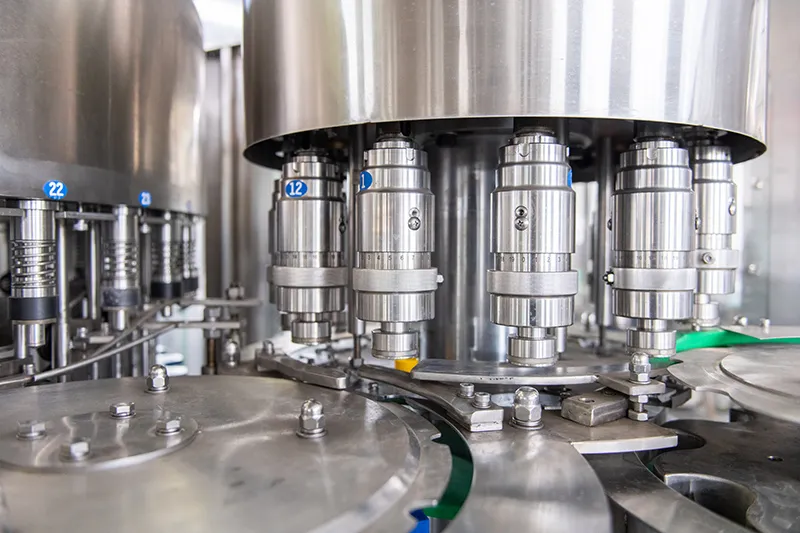

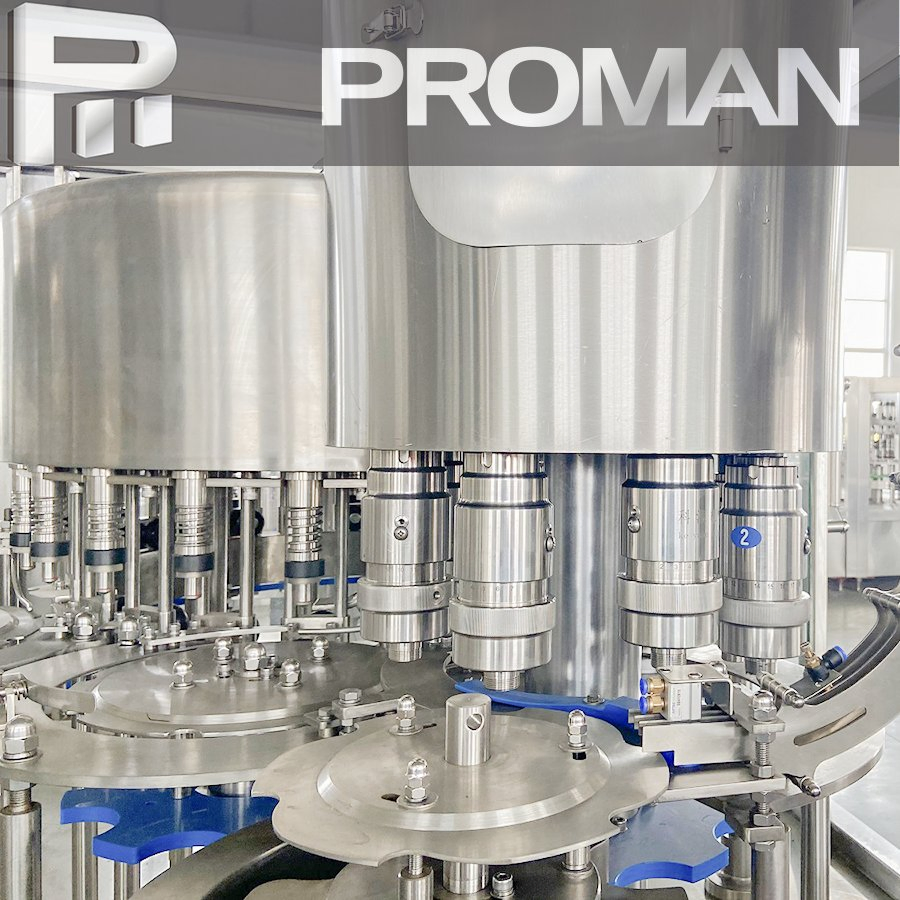

💧 Filling Head Module

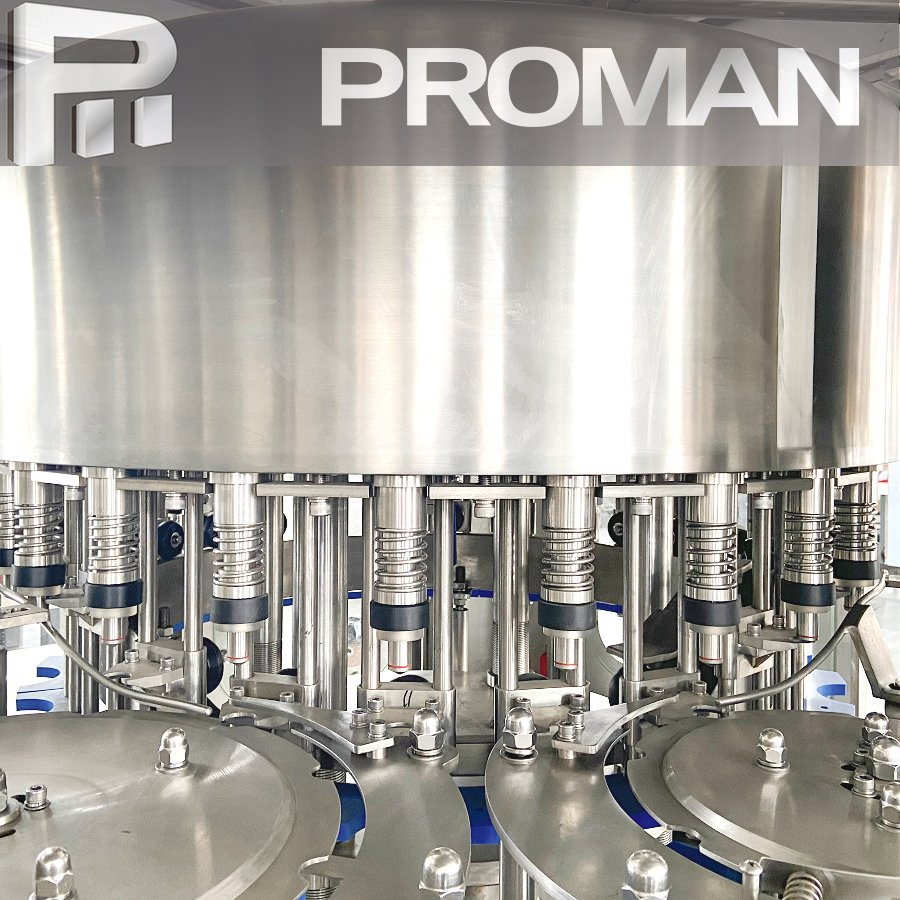

- High precision 304/316 stainless steel filling nozzle.
- Filling volume adjustable in fine rank with consistent liquid levels.
- All contact parts and liquid tanks made of polished stainless steel (no dead corners).
- Efficient spray nozzle thoroughly rinses and saves water.
🔩 Capping Head Module
- Electromagnetic capping heads with burden discharge function.
- "No bottle, No capping" safety system.
- Automatic stop when there is a lack of bottles.
- Stable capping effect with a defective rate ≤0.2%.
⭐ Core Advantages

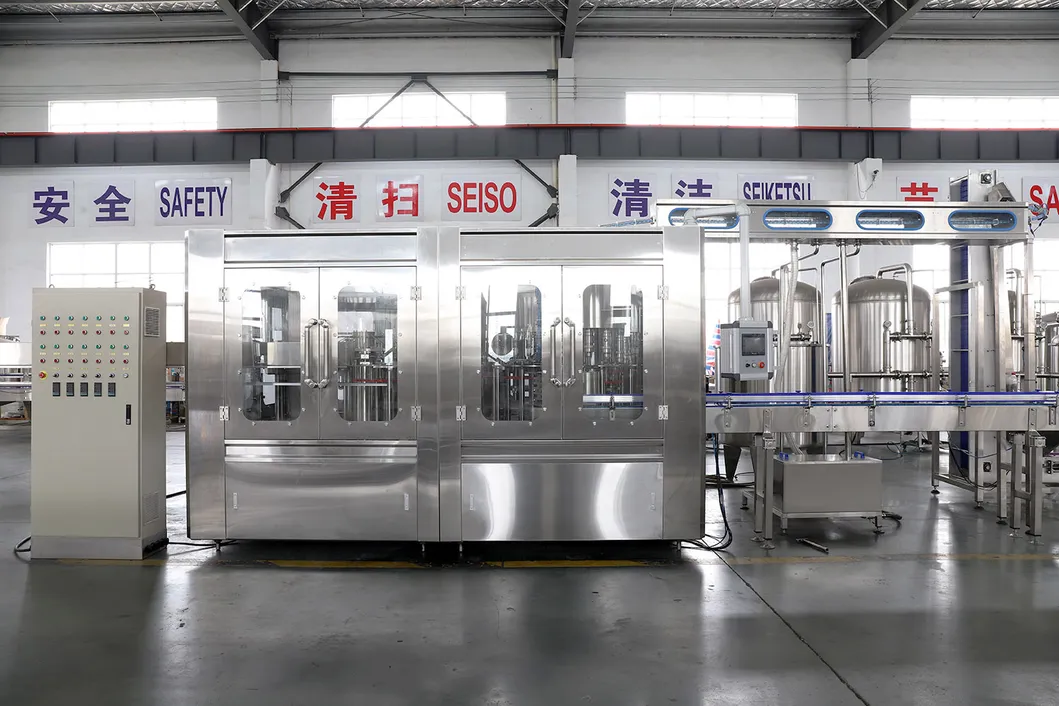

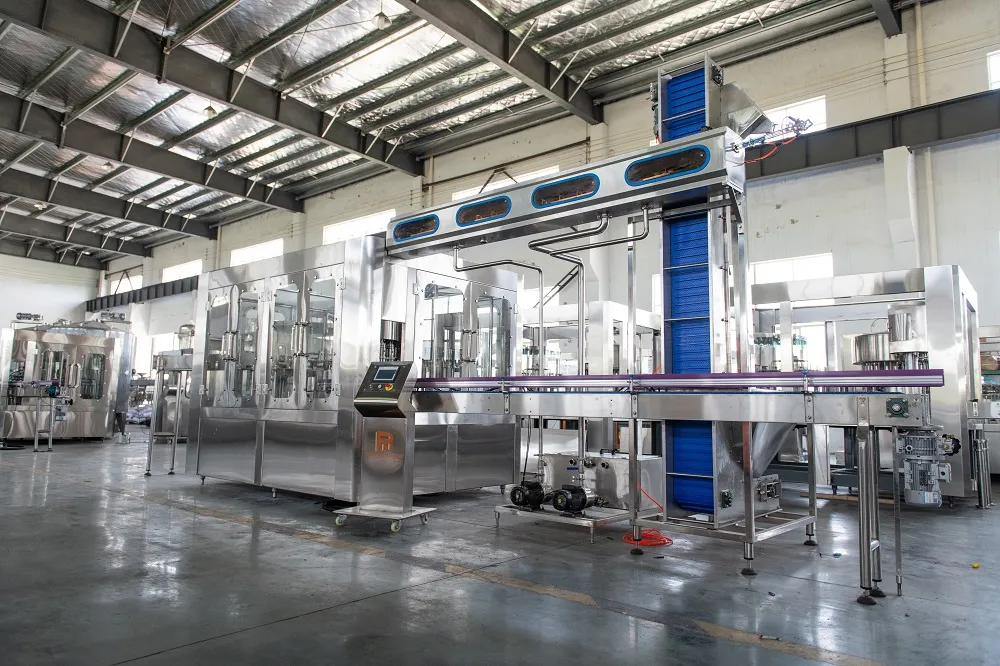

- All-in-One Integration: Washing, Filling, and Capping finished by one machine (Saves space and improves hygiene).
- Advanced Conveying: Bottle neck clamping and suspending technology allows for easy changeover between different bottle sizes.

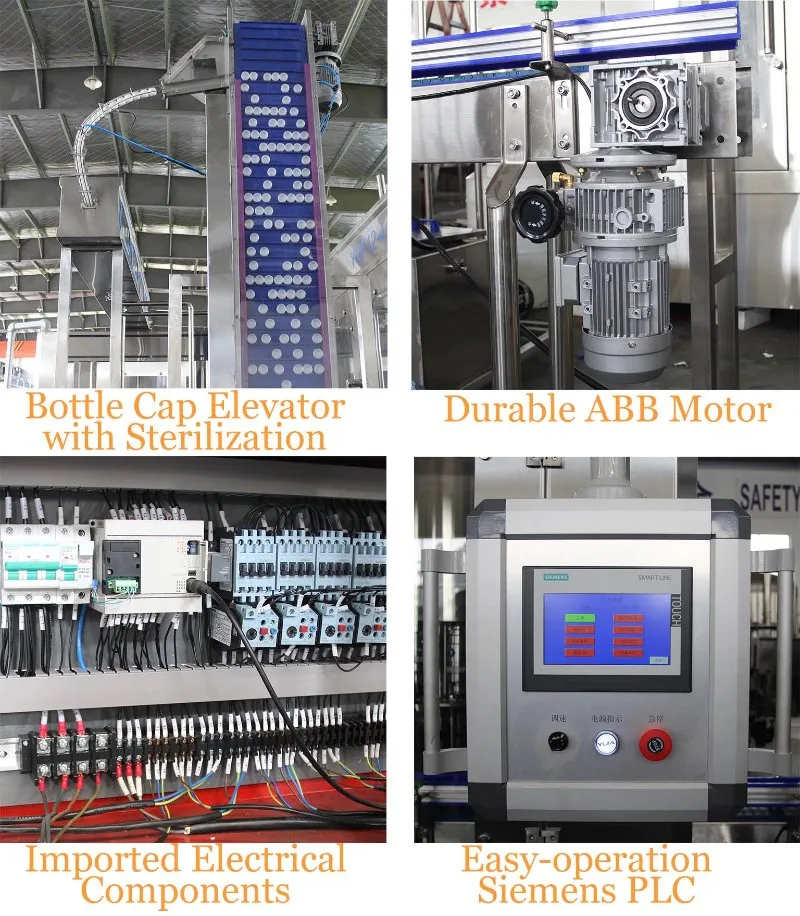

- Smart Control: Advanced programmable PLC and touch screen interface for easy operation.
- Premium Components: All electronic and pneumatic elements are sourced from famous international enterprises.
- Quality Material: All spare parts touching water are made from high-quality stainless steel.
📦 Logistics & Quality Assurance
❓ Frequently Asked Questions (FAQ)
How can I submit an enquiry about this filling machine?
You can reach out via email, phone, or Instant Messenger platforms like WhatsApp and Skype. Simply let us know your specific production requirements.
What is the origin of these machines and can I visit the production site?
The machines are manufactured in China. Site visits can be arranged for customers arriving at nearby major airports or train stations to inspect the facility and machinery.
Is technical support available for installation and training?
Yes, we provide a professional team of engineers with extensive experience in installation, debugging, and training for machinery operations overseas.
What kind of warranty is provided with the water filling line?
We offer high-quality machines with a 1-year guarantee and provide life-long technical support for all our equipment.
What range of bottle sizes and liquids can the machine handle?
The system is designed for PET and plastic bottles ranging from 200ml to 2000ml. It is suitable for water, juice, carbonated drinks, oils, and other similar liquids.
Is it difficult to change parts when using different bottle sizes?
No, the machine uses bottle neck clamping and suspending technology, making it very convenient to adjust for different bottle dimensions.
