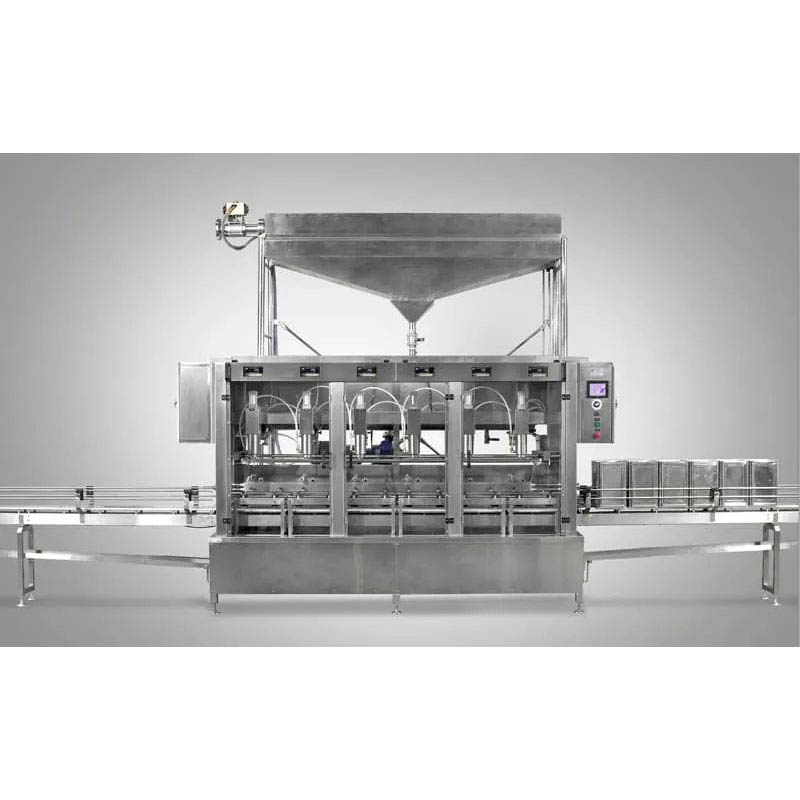

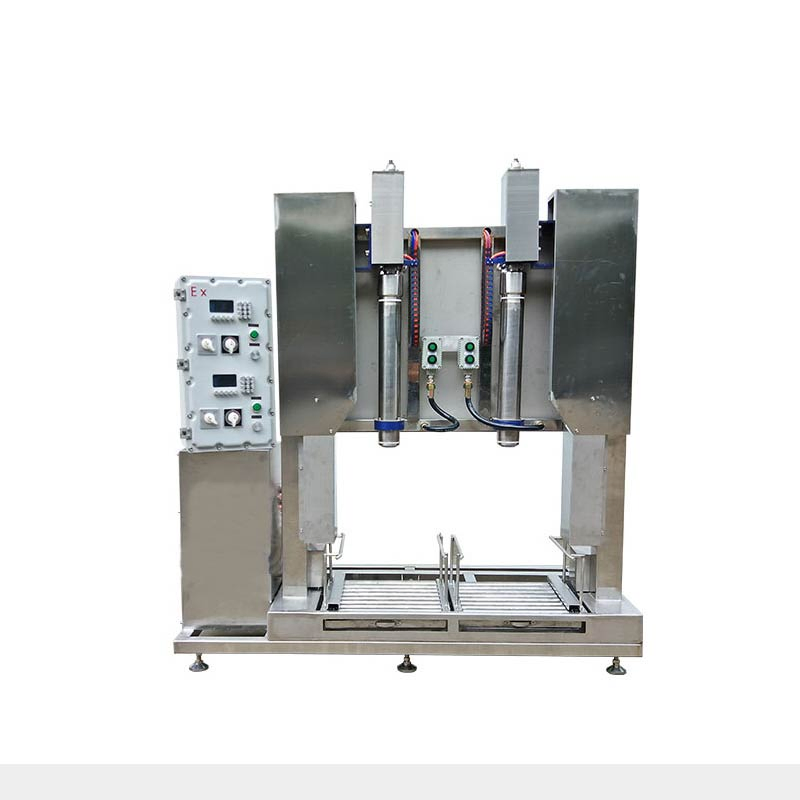

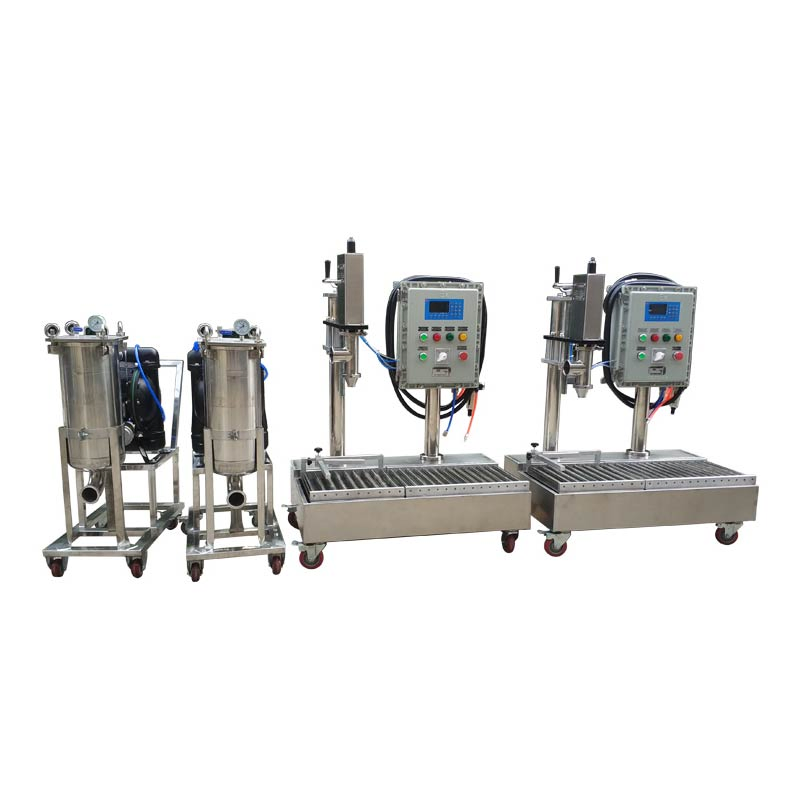

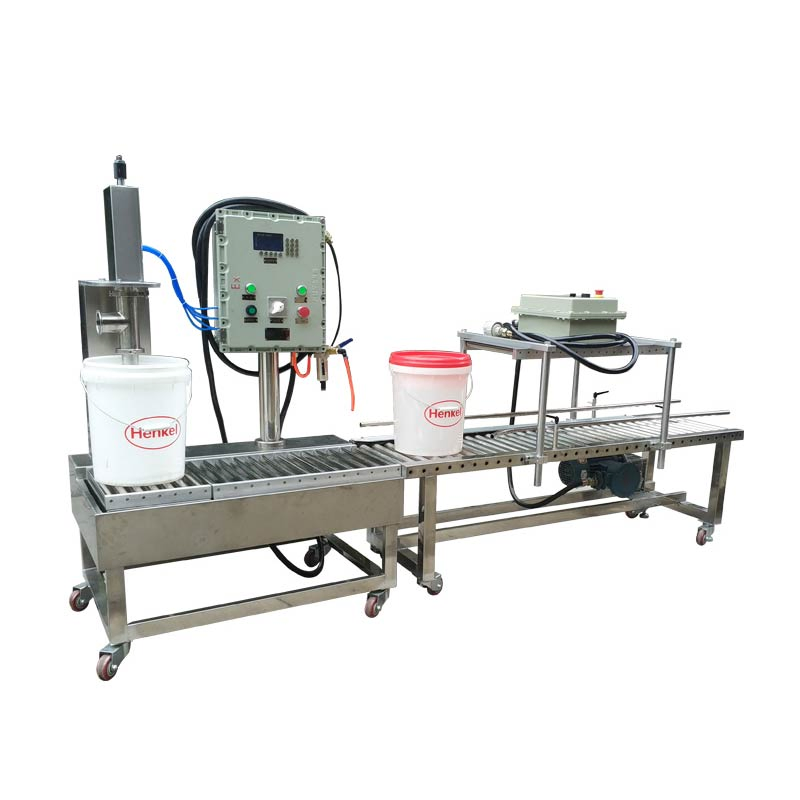

Advanced Fully Automated Oil Bottle Filling and Sealing System
Advanced Fully Automated Oil Bottle Filling and Sealing System
Advanced Fully Automated Oil Bottle Filling and Sealing System
Advanced Fully Automated Oil Bottle Filling and Sealing System
Advanced Fully Automated Oil Bottle Filling and Sealing System
1 / 5
Advanced Fully Automated Oil Bottle Filling and Sealing System
Advanced Fully Automated Oil Bottle Filling and Sealing System
Advanced Fully Automated Oil Bottle Filling and Sealing System
Advanced Fully Automated Oil Bottle Filling and Sealing System
Advanced Fully Automated Oil Bottle Filling and Sealing System

Advanced Fully Automated Oil Bottle Filling and Sealing System

Customization: Available
After-sales Service: Provided
Warranty: 1 Year
Send Inquiry

Product Description

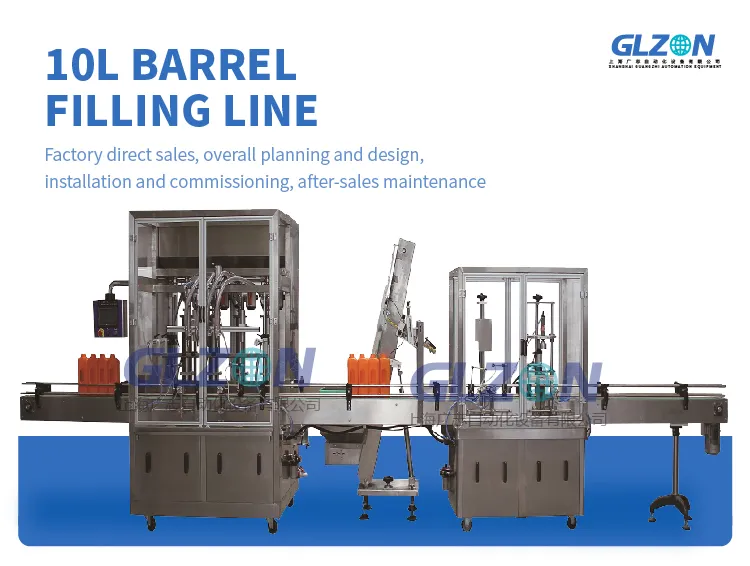

10L Fully Automatic Double-Head Water Based Paint Filling Production Line
Filling Production Line
i

Basic Information

Model NO. GZM-30L
Type Weighing-type Filling Machine
Automatic Grade Fully Automatic
Material Type Liquid
Suitable Material Coatings, Inks, Paints, Asphalt, Glue, Lubricants
Packaging Barrel, Pail, Can, Bottle
★

Product Introduction

The Liquid filling line is a highly automated packaging equipment designed to automatically fill liquid materials into predetermined weights. It effectively prevents material overflow and environmental pollution while providing labor protection for operators. The system is stable and reliable, featuring simple operation and precise filling accuracy.

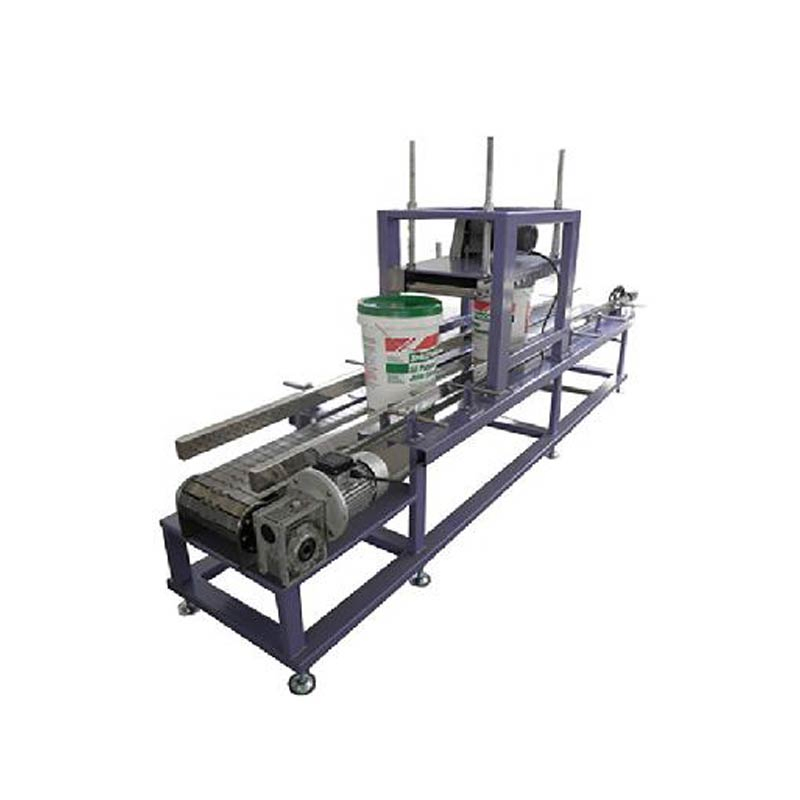

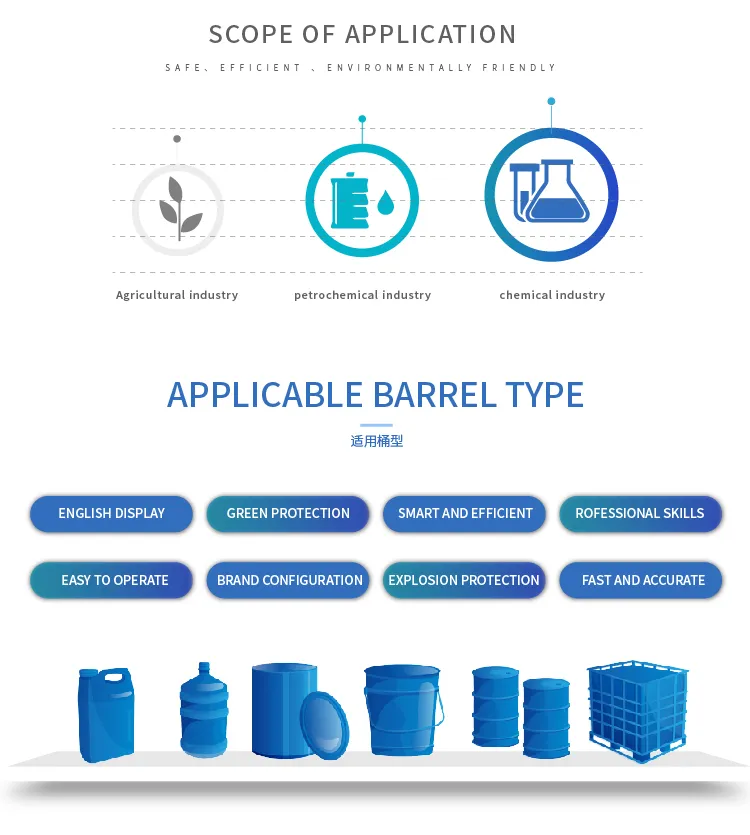

Equipment Detail 1

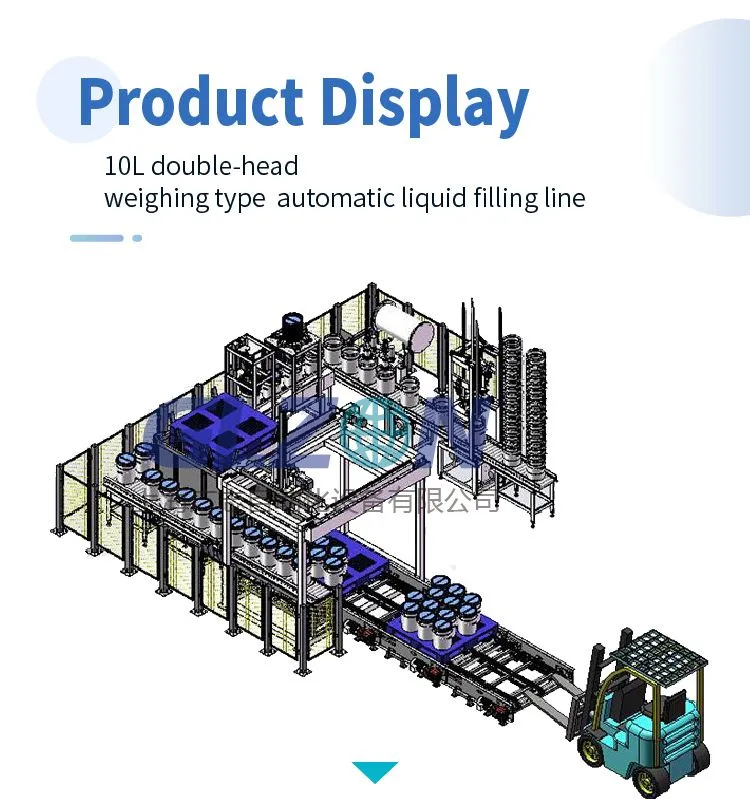

Equipment Detail 2
Core Features
✓Programmable PLC control with easy guidance for square barrels and drums.
✓Automatic filling head alignment and exit mechanism.
✓Integral technology filling gun to prevent dripping and splashing.
✓Four-stage filling design (large, medium, small, trace) for maximum accuracy.
✓Differential pressure zero-time bucket collision protection.
✓Dual filling methods: Net weight and Gross weight (auto tare).
✓One-click operation with real-time volume and barrel count display.
✓Real-time signal indicators and automatic deviation alarms.
⚙

Technical Parameters

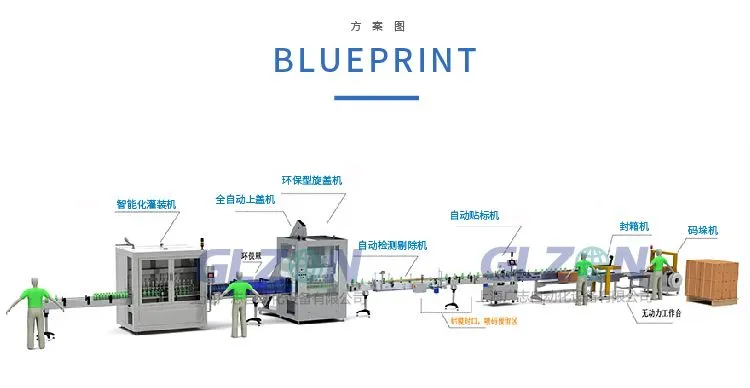

Parameter Chart
Specifications
ModelGZM-10AUTO-2PT
Filling Range1-10kg
Filling Accuracy0.02%
Speed5-7 barrels/min (per station)
Power / Air SourceAC220V±10% 50hz / 0.5mpa
Filling Stations2
Material ConstructionSUS304 / 316 Stainless Steel
⚙

Operation & Principle

Feeding System: Uses a pressurized pump for stable feeding, controlled by solenoid valves for fast/slow cycles.
Automatic Tare: Once the barrel is positioned, the system automatically tares the weight for precise calculation.
Weighing Platform: Equipped with unpowered rollers to ensure no external forces interfere with the accuracy.
Capping Process: Full barrels move to the capping position where caps are secured manually or via machine.

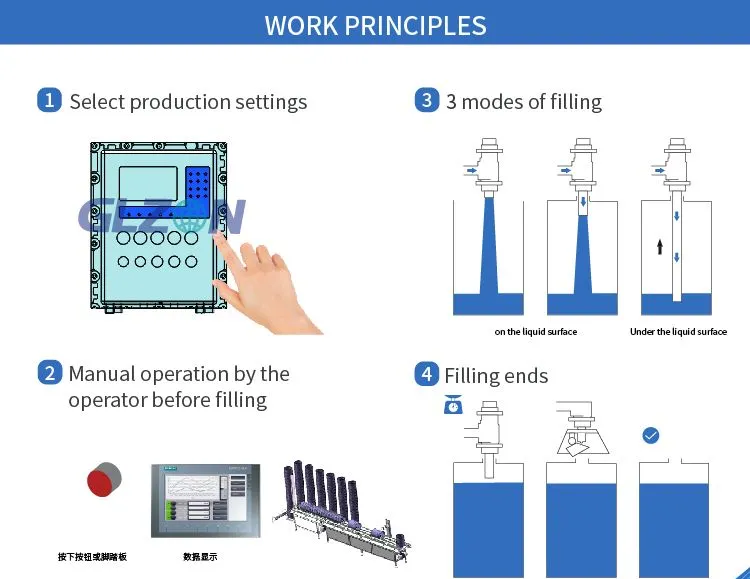

Workflow Diagram
✔

Our Advantages

Factory Overview

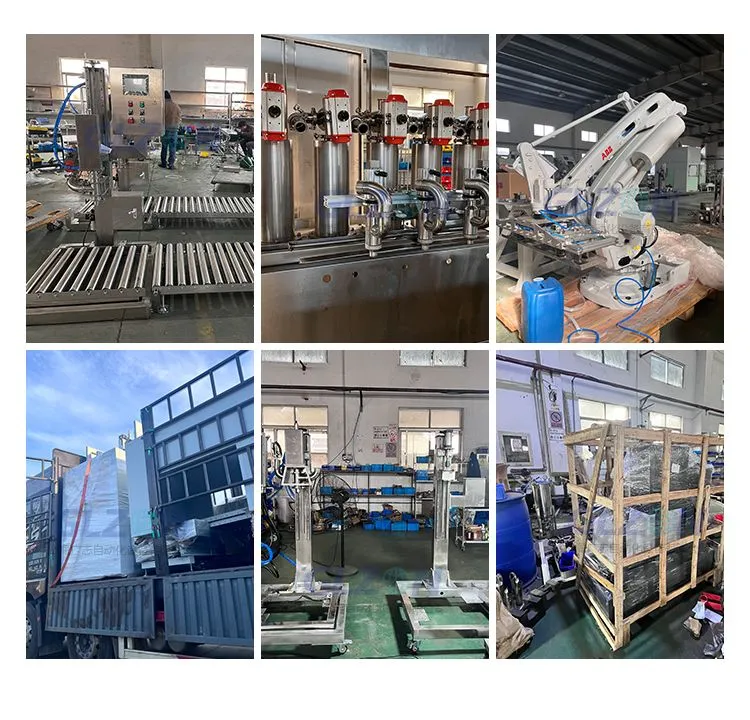

Packaging Service
Professional Solutions: Comprehensive packaging and logistics services tailored to your chemical or food production needs.
Expert Support: Pre-sale testing and solution bundles provided by experienced electrical and sales engineers.
After-Sales Security: 12-month warranty with free part replacements for manufacturing defects.
🏆

Certifications

Certificates
🚢

Packaging & Shipping

Shipping Scenario

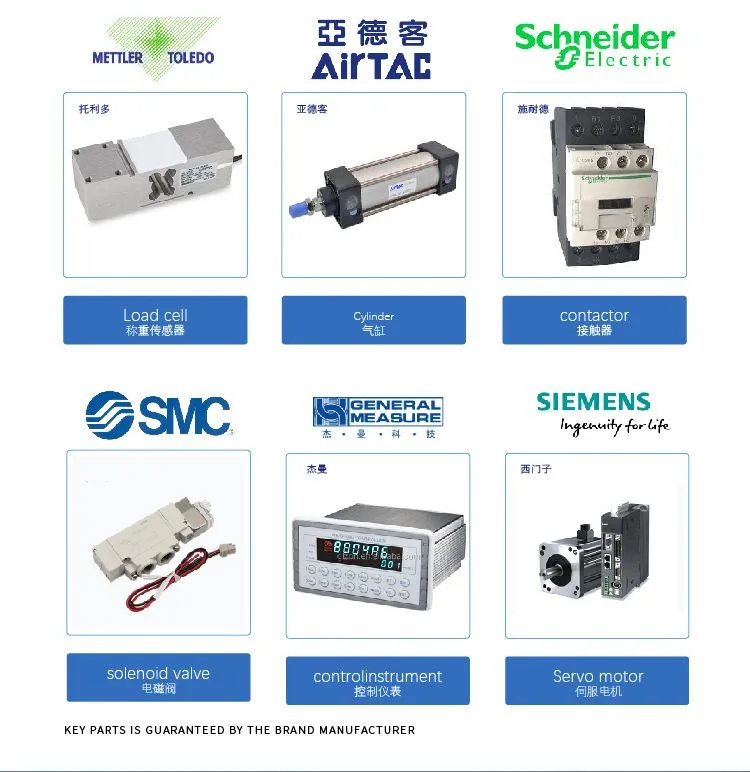

Components Brand

Note: Designs and specifications are subject to updates to improve performance.

?

Frequently Asked Questions

What materials can this filling machine handle?
It is designed for various liquids including coatings, inks, paints, asphalt, glue, lubricants, and fine chemicals.
How accurate is the filling process?
The system features a 0.02% filling accuracy, utilizing a four-stage filling design (large, medium, small, and trace quantities).
What is the warranty period for the equipment?
We provide a 12-month trouble-free warranty. Electric parts are covered, and replacements are provided for any manufacturing defects.
Does the machine support different barrel sizes?
Yes, the height of the filling gun is adjustable, making it suitable for rapid filling of packaging barrels of various specifications.
What kind of technical support is available?
We offer lifetime online support via various digital platforms and remote assistants, available from 9am to 9pm daily. Onsite support is also available.
Is it easy to clean between batches?
Yes, the filling gun is designed with quick-release connectors, allowing for easy disassembly and thorough cleaning.
