Reliable Eye Drop Bottle Filling, Sealing, and Conveying Operation/Efficient Eye Drop Bottle Liquid Dosage and Cap Application System with Low Price

Certification: CE, GMP, ISO
Condition: New
Customized: Customized

Product Description

📋

Basic Information

Model NO.
Customized -1
Fill Range
≤49ml / 10-50ml
Filling Principle
Time Gravity Filling
Machine Type
Healthcare Industry
Voltage
380V / AC 380V/3p 50Hz
Warranty
1 Year
Pump Type
Ceramic, Peristaltic, or Metal Pump
Process Type
Washing, Sterilizing, Filling, Stoppering, Capping
Capacity
3500-4000 Bottles/Hour (Customized)
Work Pressure
6 ~ 8 Kg/Cm²
Net Weight
600kg
HS Code
8422303090
⚙️

Product Description

High-Velocity Ophthalmic Filler / Speedy Vision Dropper Plant / Accelerated Eye Serum Bottling System

The rotary plugging machine is suitable for plugging of bottles with inner stopples in such industries as medicine, daily chemical industry, biological industry or other industries. It adopts continuous bottle moving mode and mechanical hand vacuum stopple grabbing and plugging. It can work with various packaging machines for linked production.

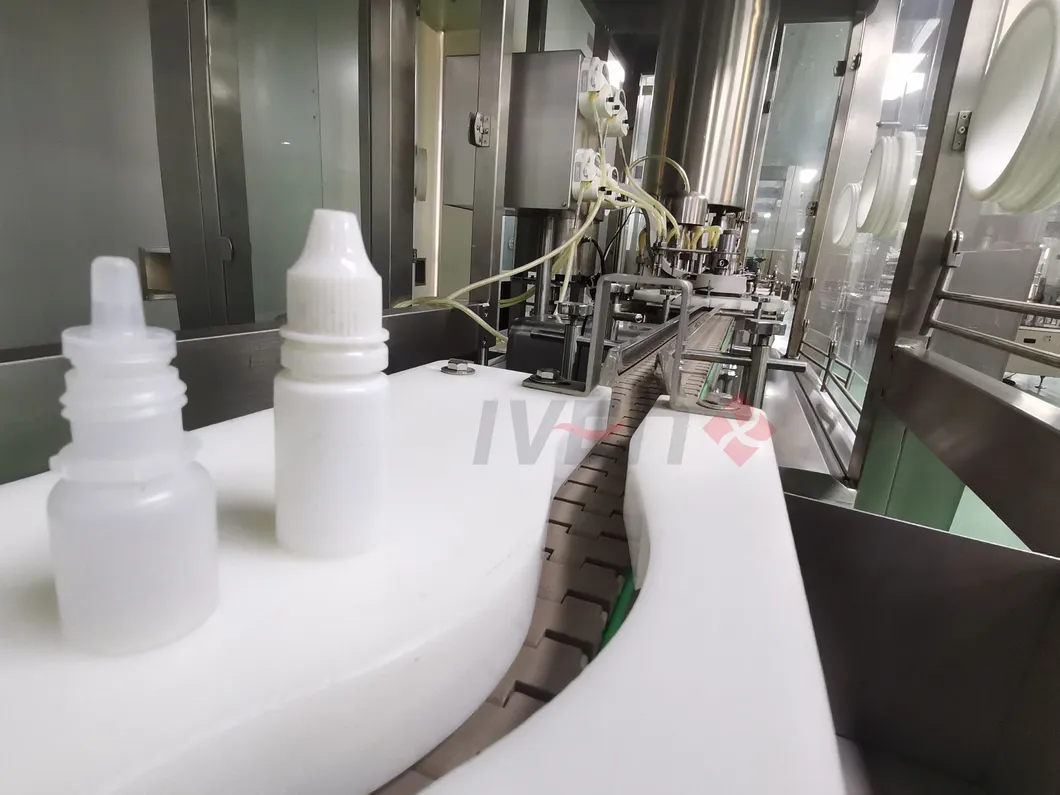

Ophthalmic Filler Operation

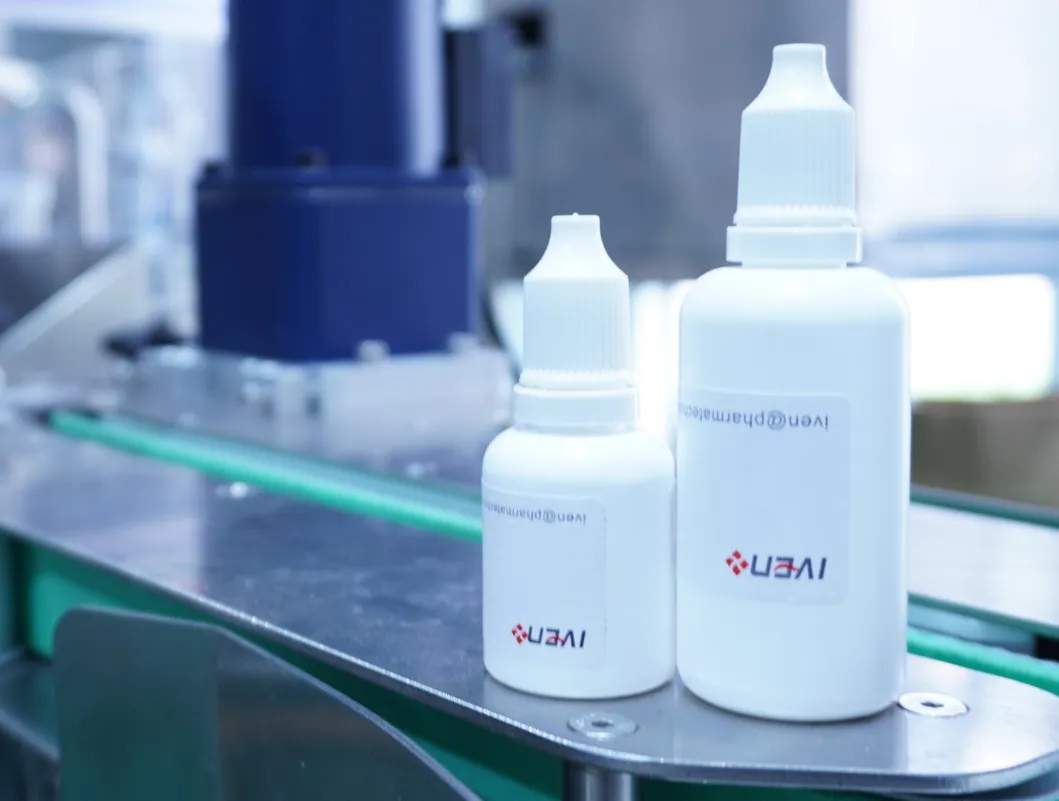

Eye Drop Bottling System

Main Features:

  • Stable and reliable mechanical hand stopple grabbing and plugging with a high success rate.

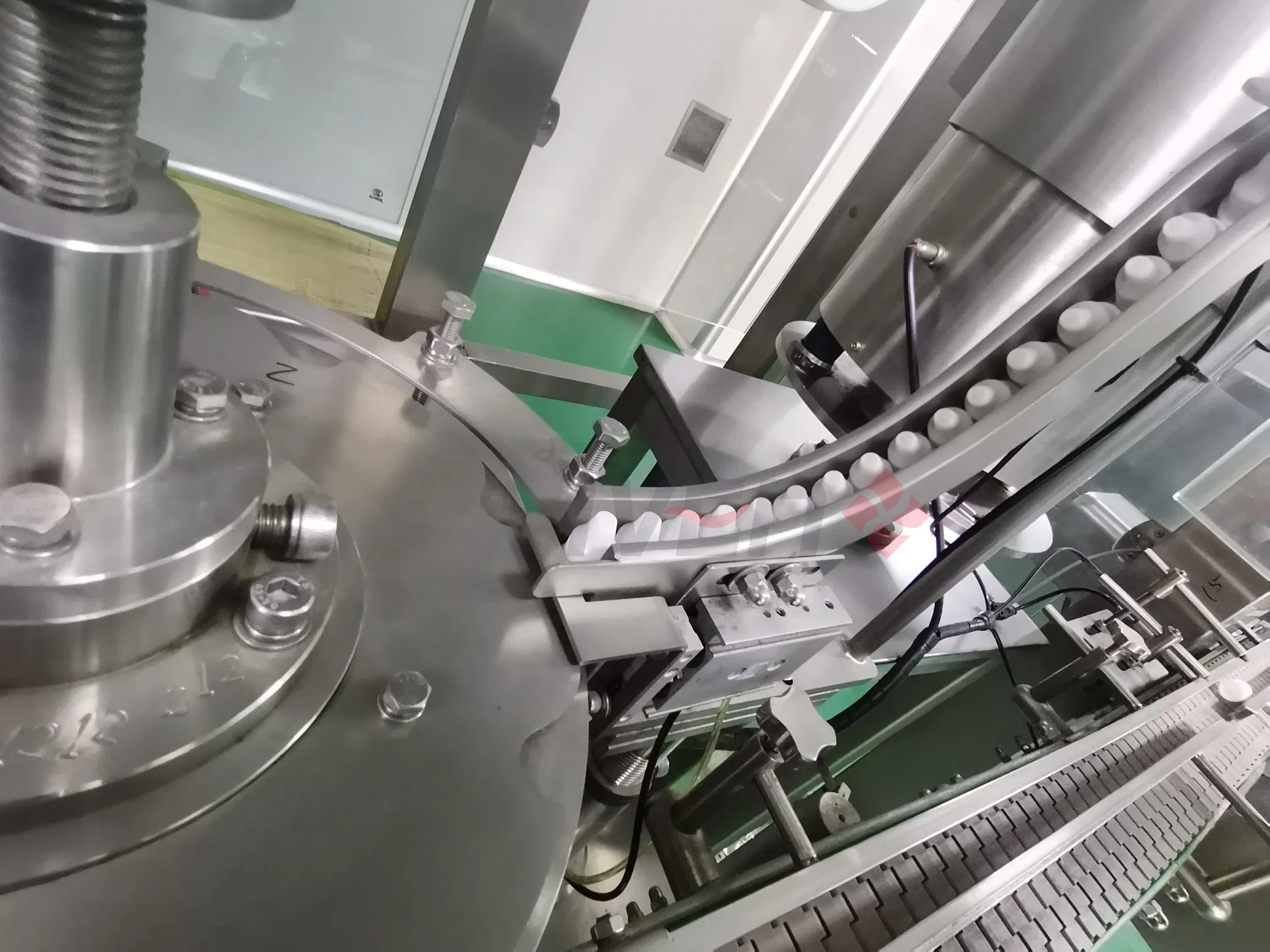

  • Continuous bottle movement for high production capacity and smooth feeding/discharging.
  • Variable frequency speed control, easily integrated into automated production lines.
  • Simple structure for easy operation and low-cost maintenance.

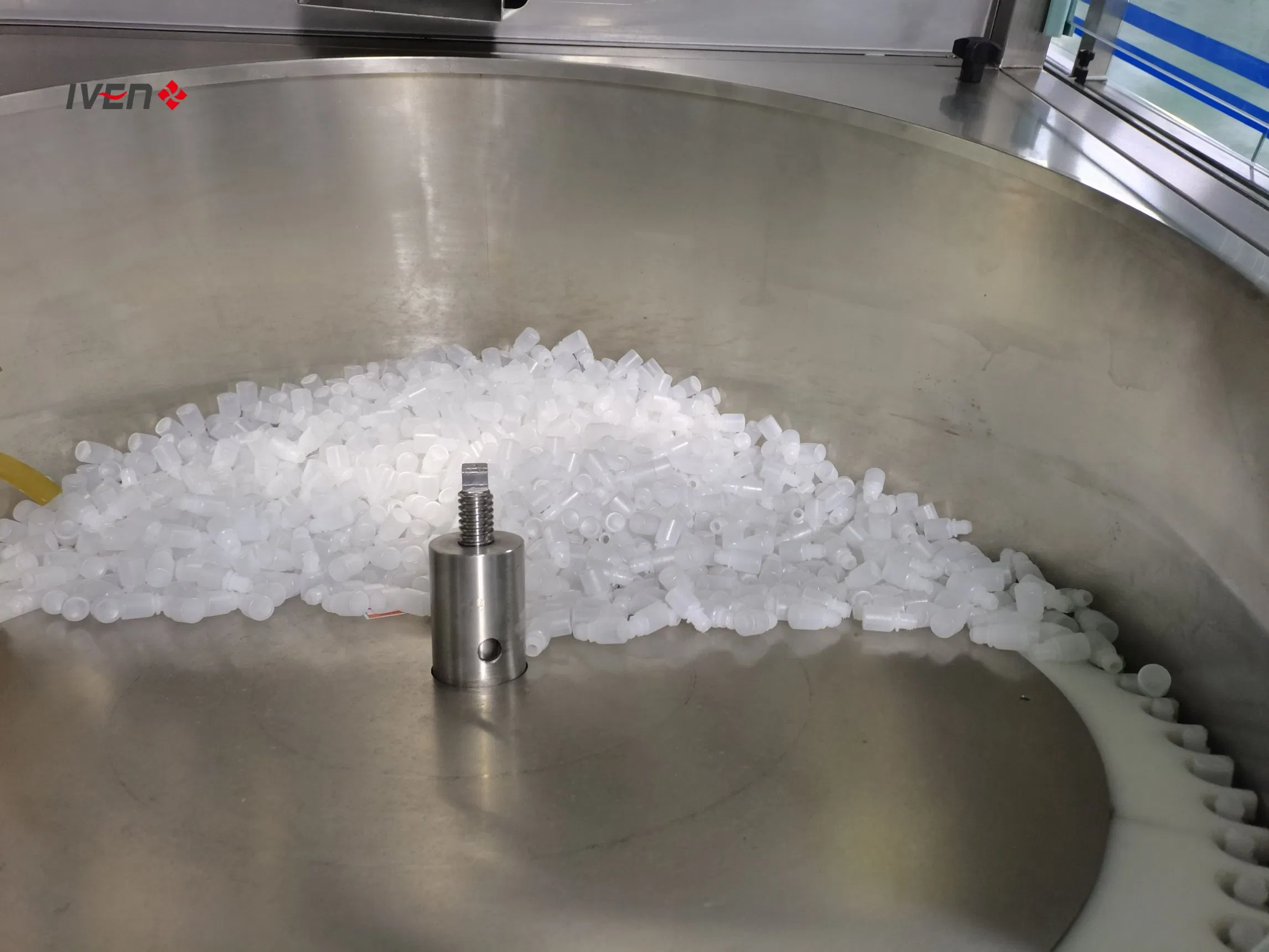

  • Optional equipment includes inner stopple storage and lifting mechanisms.

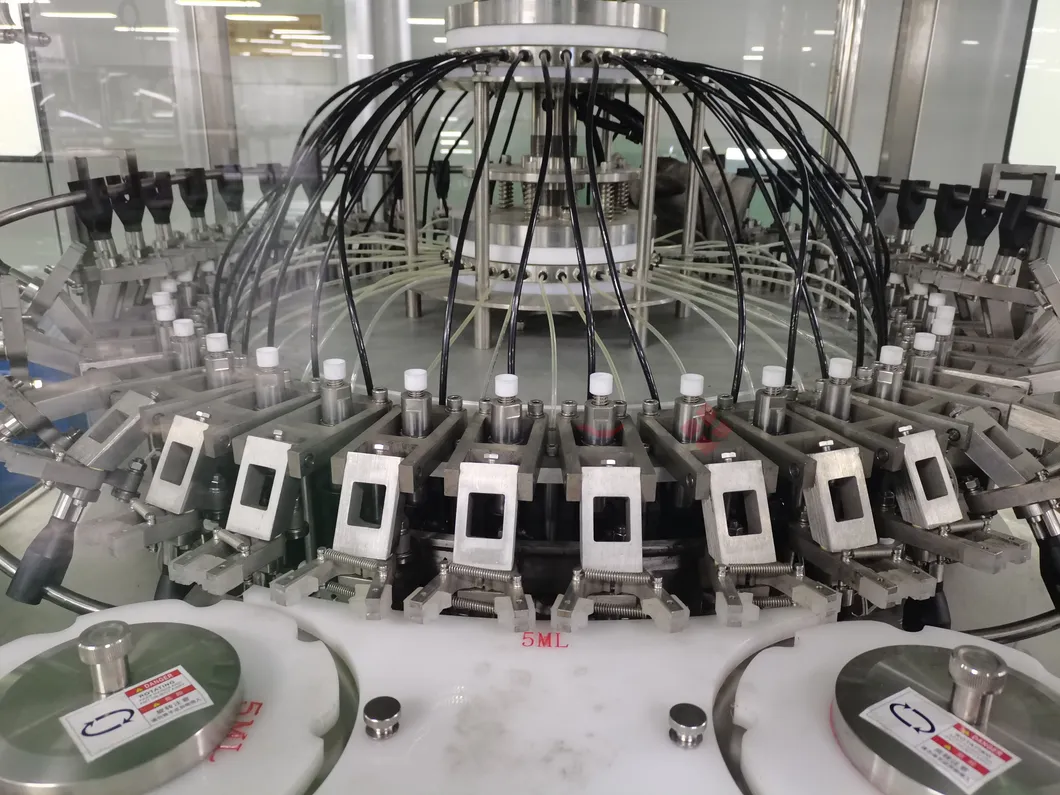

Filling Component Detail

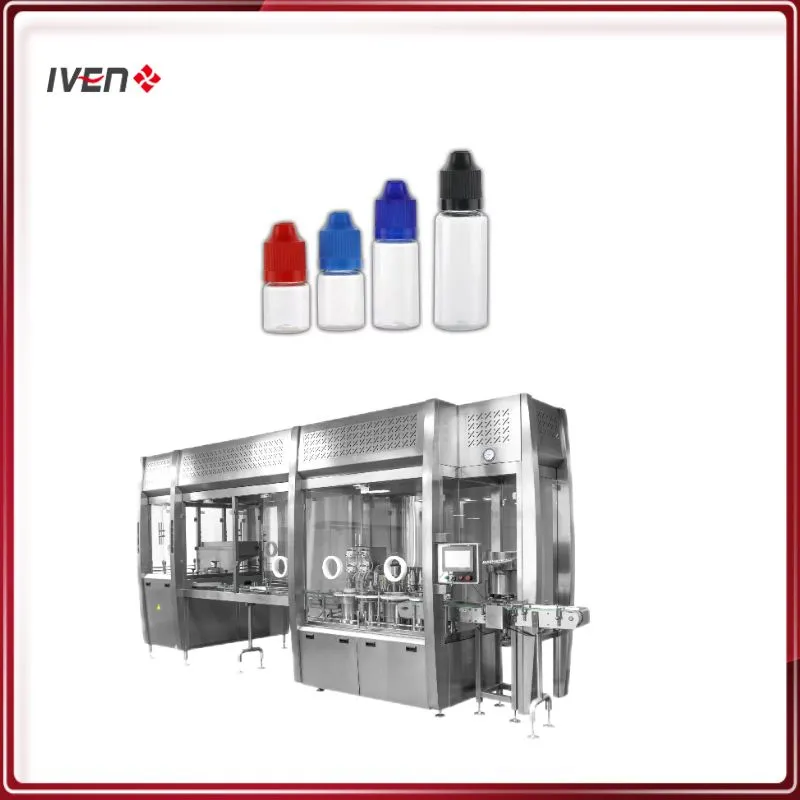

Bottle Sealing Process
System Overview
📊

Technical Parameters

Product Model XG1/1 XG2/2 HYS/8 HYS/12 HYS/18
Capacity (bottles/min) 40-50 80-100 100-120 130-150 180-250
Bottle Moving Mode Round disc Round disc Continuous Continuous Continuous
Specifications 5-500ml (Customized for >500ml)
Cap Pressing Heads 1 head 2 heads 8 heads 12 heads 18 heads
Pass Rate ≥99.9%
Power Supply 220/380V 50/60Hz
Machine Weight 1000kg 1000kg 1500kg 1800kg
🏢

System Overview & Flow

System Flow Chart

Frequently Asked Questions

What bottle sizes can this machine handle?
The system is designed for bottle specifications ranging from 5ml to 500ml. For sizes larger than 500ml, customized solutions are available.
What is the expected production pass rate?
The machine is engineered for high precision, achieving a qualification pass rate of ≥99.9%.
What types of pumps can be used for filling?
Depending on your specific liquid characteristics and requirements, we offer Ceramic Pumps, Peristaltic Pumps, or Metal Pumps.
Is the machine compatible with full production lines?
Yes, the system is designed with a continuous moving mode and variable frequency speed control, making it easy to link with washing, sterilizing, and capping units.
What industries is this equipment suitable for?
While primarily used for ophthalmic products (eye drops), it is also ideal for the pharmaceutical, biological, and daily chemical industries.
What are the power and air requirements?
The system typically operates on AC 380V/50Hz power and requires a working gas pressure of 6 to 8 Kg/Cm².
