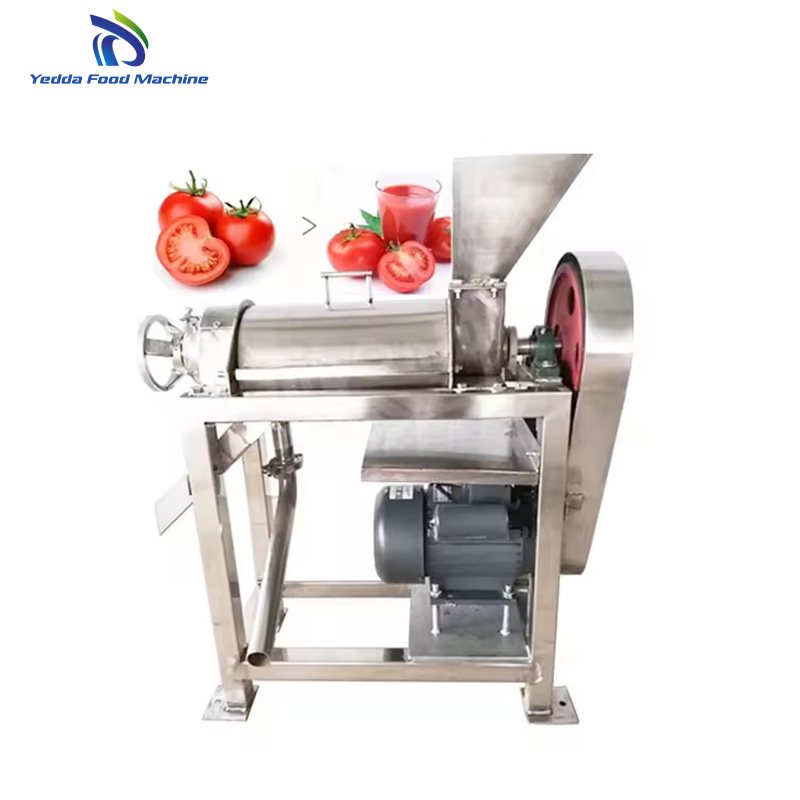

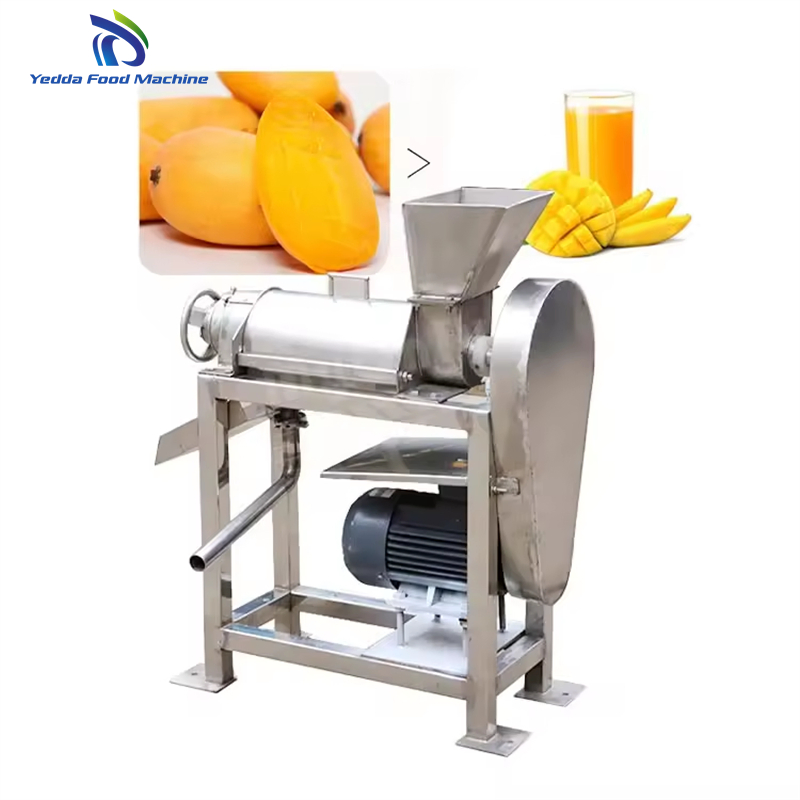

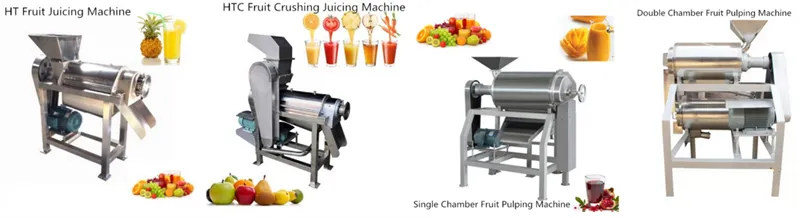

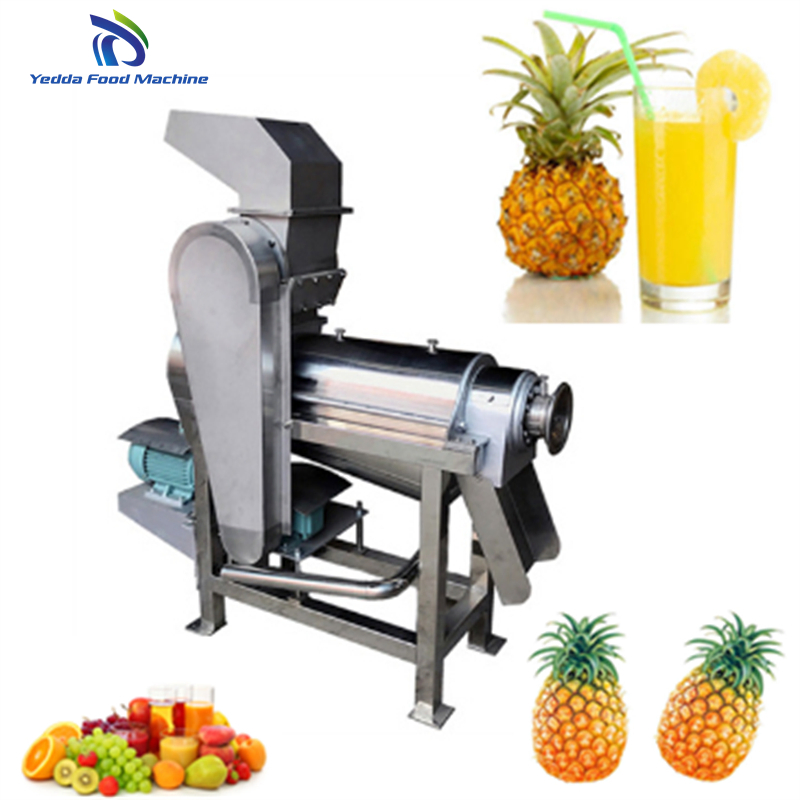

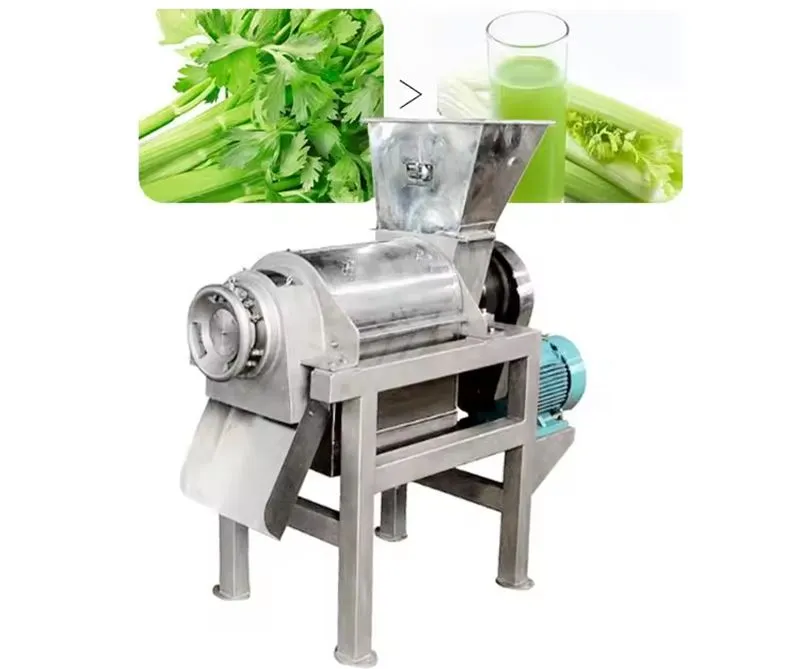

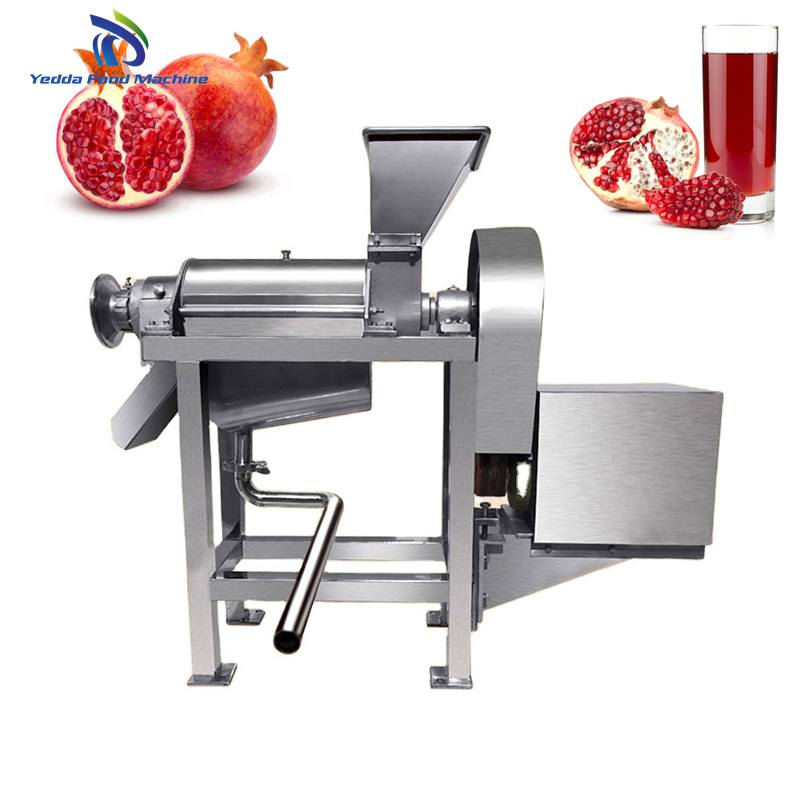

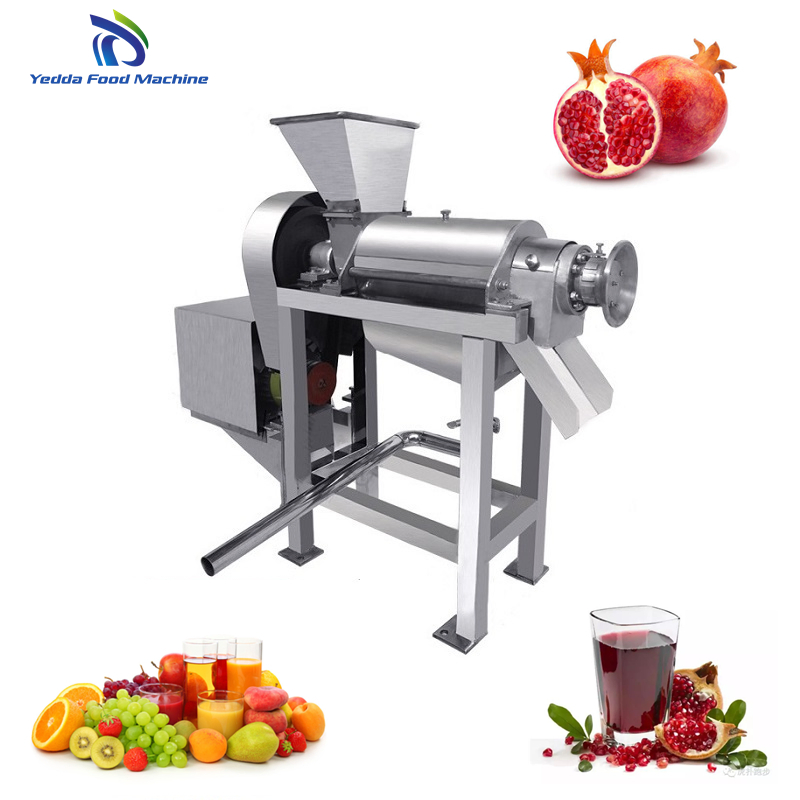

The Automatic Fruit Screw Juice Extracting Machine is an innovative solution meticulously engineered for the efficient extraction of juices from a diverse range of fruits and vegetables.

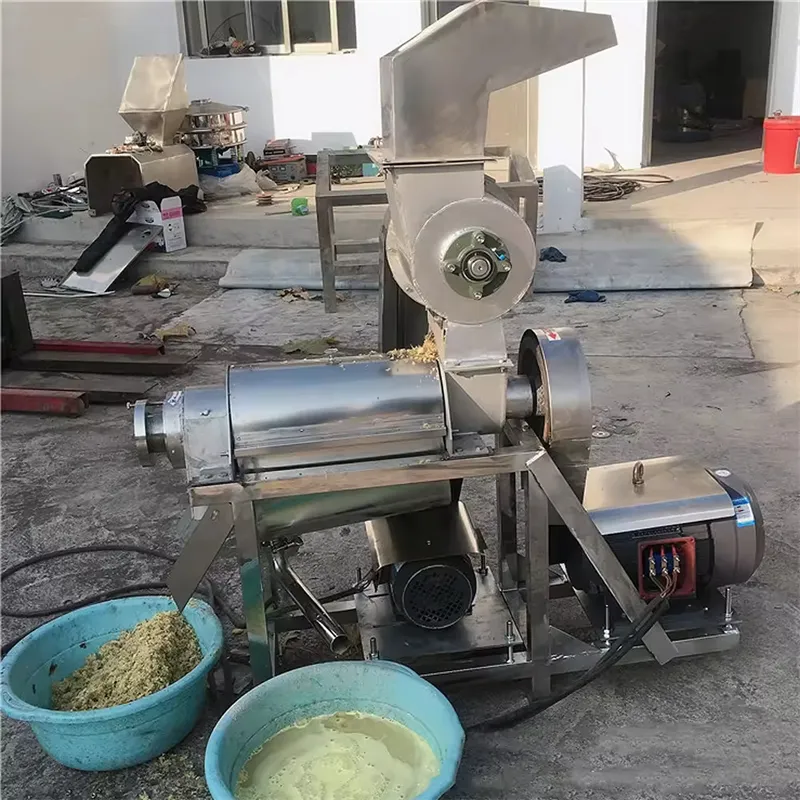

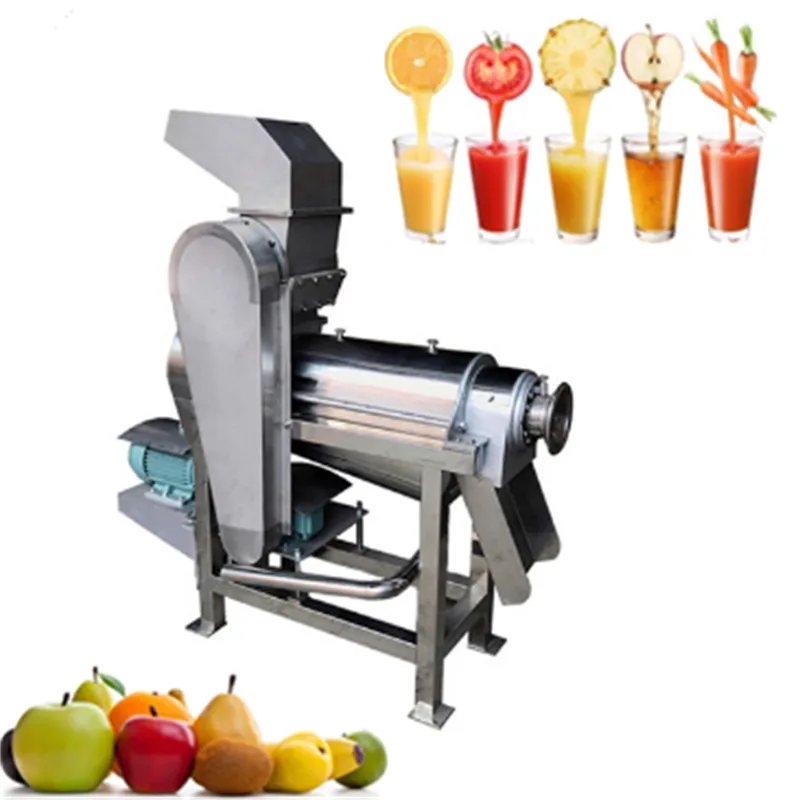

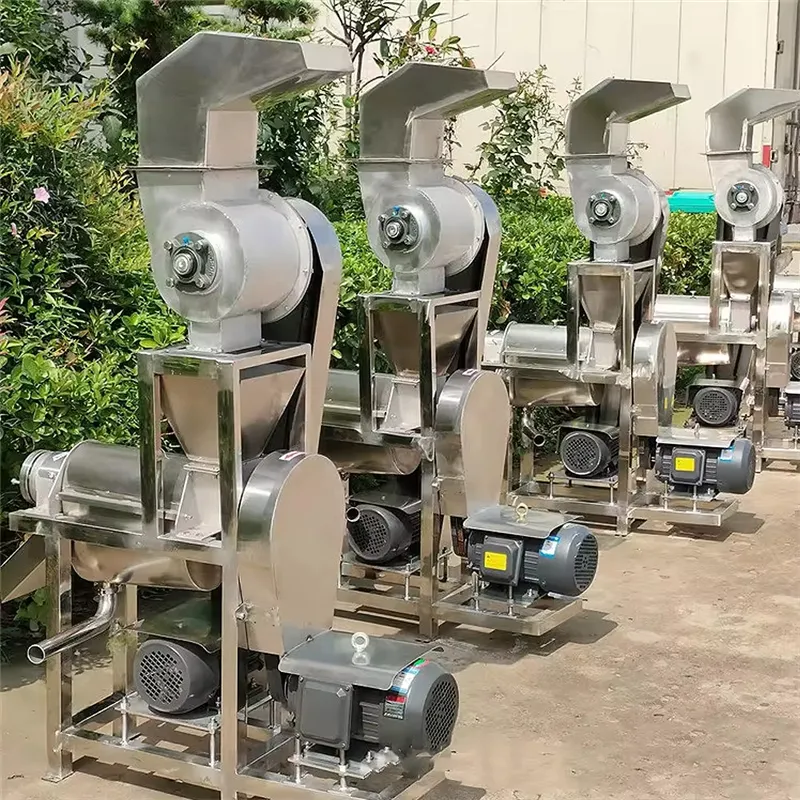

At the heart of this cutting-edge equipment is a robust spiral mechanism that progressively enlarges towards the residue outlet while the screw pitch narrows. This ingenious design ensures that as the materials advance through the spiral, they undergo volume contraction within the spiral cavity, thus facilitating effective juice extraction. Our spiral juicer seamlessly integrates the dual functionalities of fruit crushing and screw juicing and features an automatic residue removal system.

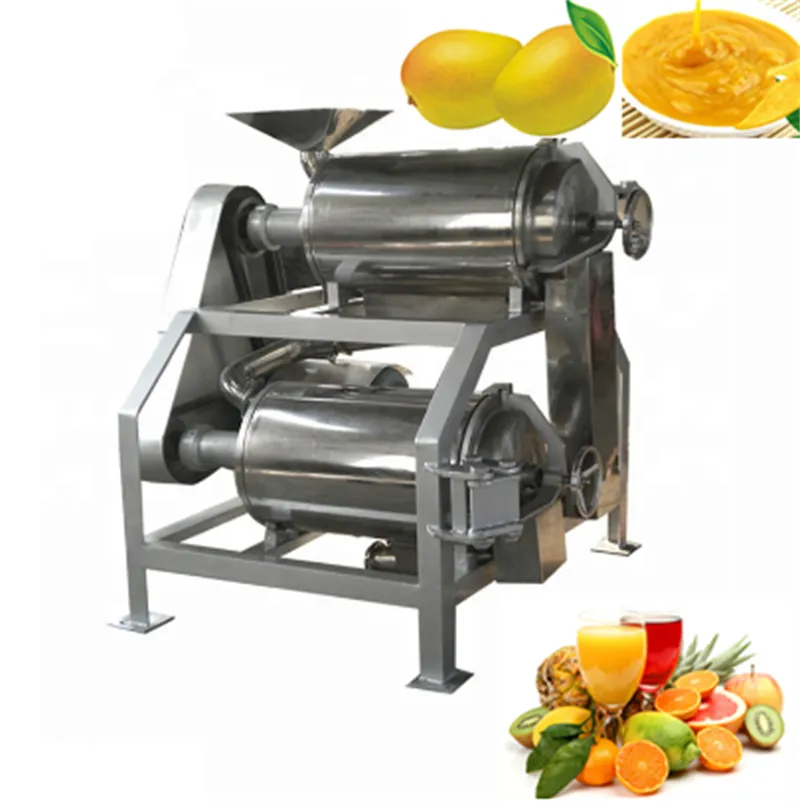

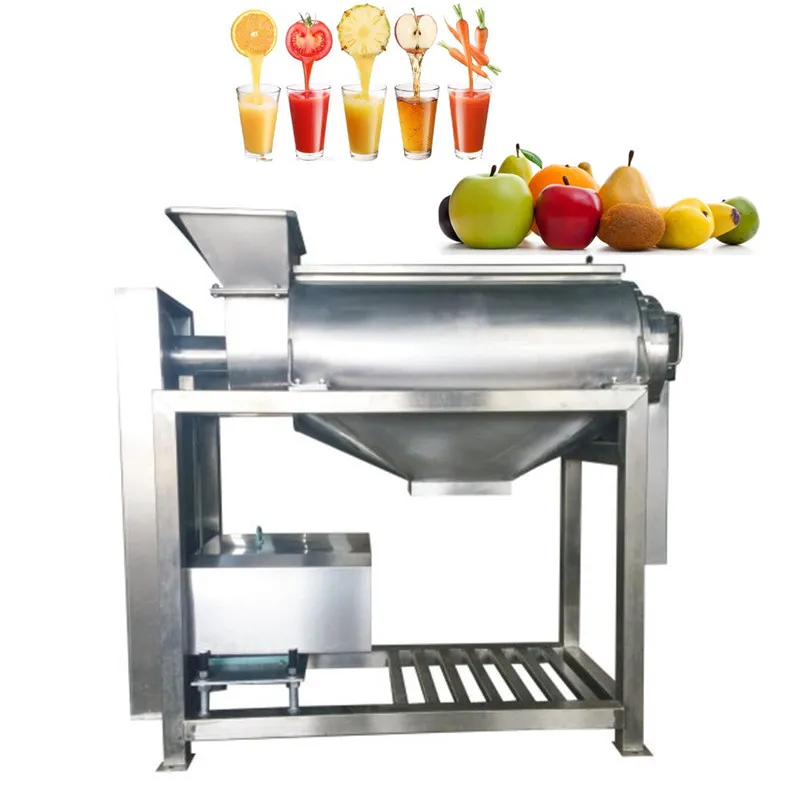

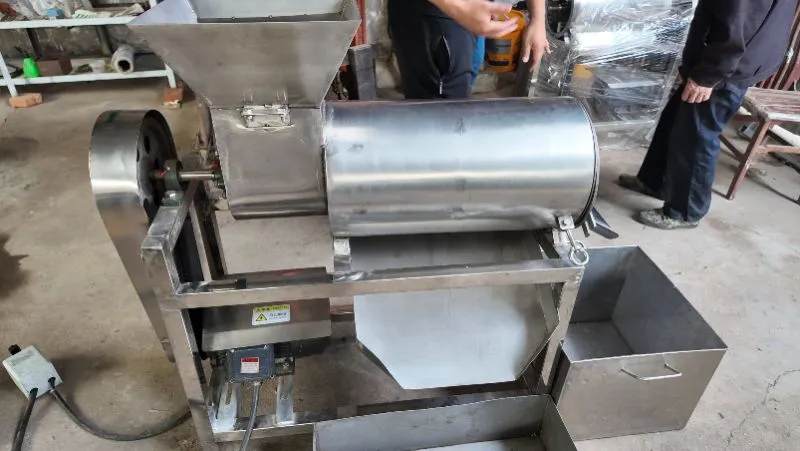

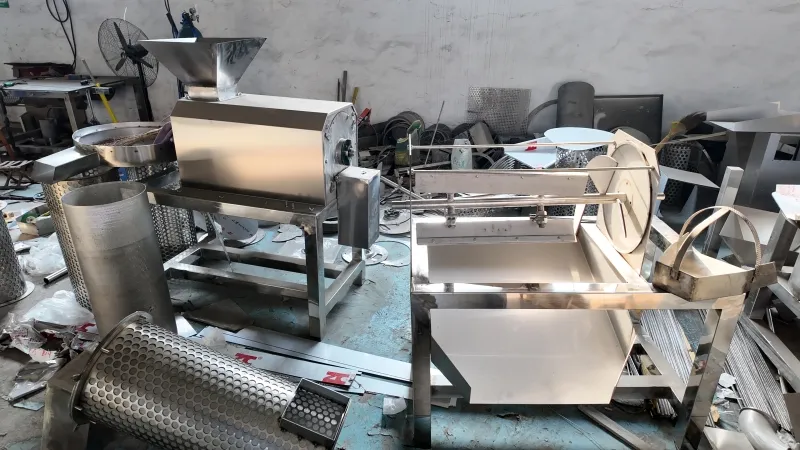

The Fruit Pulping Machine is a specialized powerhouse designed for rapid and efficient production of fruit and vegetable juices. Versatile and high-performing, it adeptly handles a variety of fresh produce, from juicy fruits like oranges, grapes, and kiwis to hearty vegetables such as tomatoes and celery. This machine excels in transforming fruits like mulberries, bayberries, and peaches into luscious jams or refreshing juices, expertly separating cores, seeds, and skins.
| Model | Dimension | Capacity | Power | Voltage |
|---|---|---|---|---|
| HT-0.5 | 1100*320*750mm | 300-500kg/h | 1.5kw | 380V |
| HT-1.5 | 1620*550*950mm | 1000-1500kg/h | 2.2kw | |
| HT-2.5 | 1620*720*1480mm | 2000-2500kg/h | 5kw |
| Model | Dimension | Capacity | Power | Voltage |
|---|---|---|---|---|
| HTC-0.5 | 1100*320*1300mm | 300-500kg/h | 1.5kw+2.2kw | 380V |
| HTC-1.5 | 1620*550*1485mm | 1000-1500kg/h | 2.2kw+4kw | |
| HTC-2.5 | 1620*72*2030mm | 2000-2500kg/h | 5kw+4kw |
| Model | Dimension | Capacity | Power | Weight | Voltage |
|---|---|---|---|---|---|
| SG-0.5 | 1100*450*1150mm | 300-500kg/h | 3kw | 90kg | 380V |
| SG-0.8 | 1300*550*1250mm | 500-800kg/h | 4kw | 130kg | |
| SG-1 | 1400*650*1350mm | 800-1000kg/h | 5.5kw | 180kg | |
| SG-1.5 | 1600*800*1550mm | 1000-1500kg/h | 5.5kw | 250kg | |
| SG-2 | 1600*900*1650mm | 1500-2000kg/h | 7.5kw | 350kg |
| Model | Dimension | Capacity | Power | Voltage |
|---|---|---|---|---|
| SG2-0.5T | 1140*870*1305mm | 300-500kg/h | 5.5kw | 380V |
| SG2-3T | 1530*1420*1530mm | 2000-3000kg/h | 7.5kw | |
| SG2-5T | 1935*2275*1700mm | 4000-5000kg/h | 11kw |








Exceptional Packaging: Our product is meticulously encased in a robust, standard exporting plywood case, providing unparalleled protection during transit to ensure it arrives in perfect condition.
Prompt Delivery Time: We guarantee dispatch within a swift 10 working days upon receipt of your deposit, ensuring remarkable timeliness and reliability for your utmost convenience.
Comprehensive Warranty Period: Benefit from a 1-year warranty covering all non-human malfunctions, excluding wear parts, providing complete peace of mind.
