Rotary Drum Washer/Fruits and Vegetables Cleaning System

1 / 5

Rotary Drum Washer/Fruits and Vegetables Cleaning System

Customization:	Available
After-sales Service:	Field Installation, Commissioning & Personal Trai
Warranty:	One Year

Send Inquiry

Product Description

Basic Specifications

Model No. JP-S-Sinoroy

Type Fruit & Vegetable Production Line

Voltage 380V

Material Capacity 1-30 tons/H

End-Products Mango Jam, Sauce, Ketchup

Certification CE, ISO9001

Product Overview

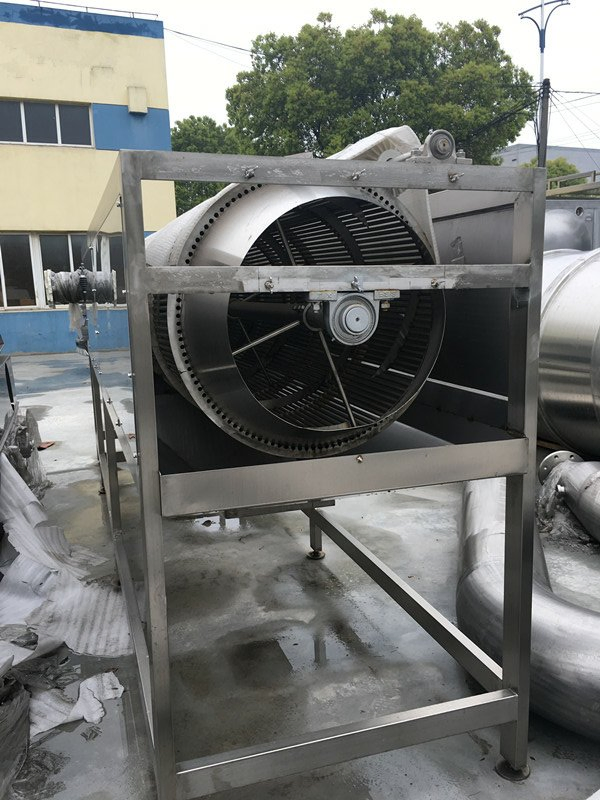

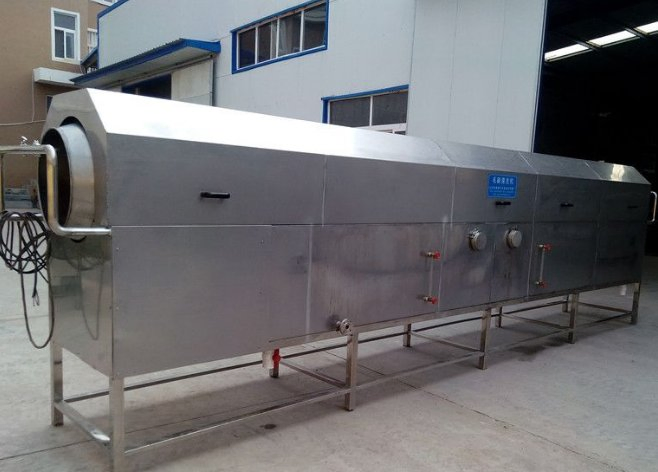

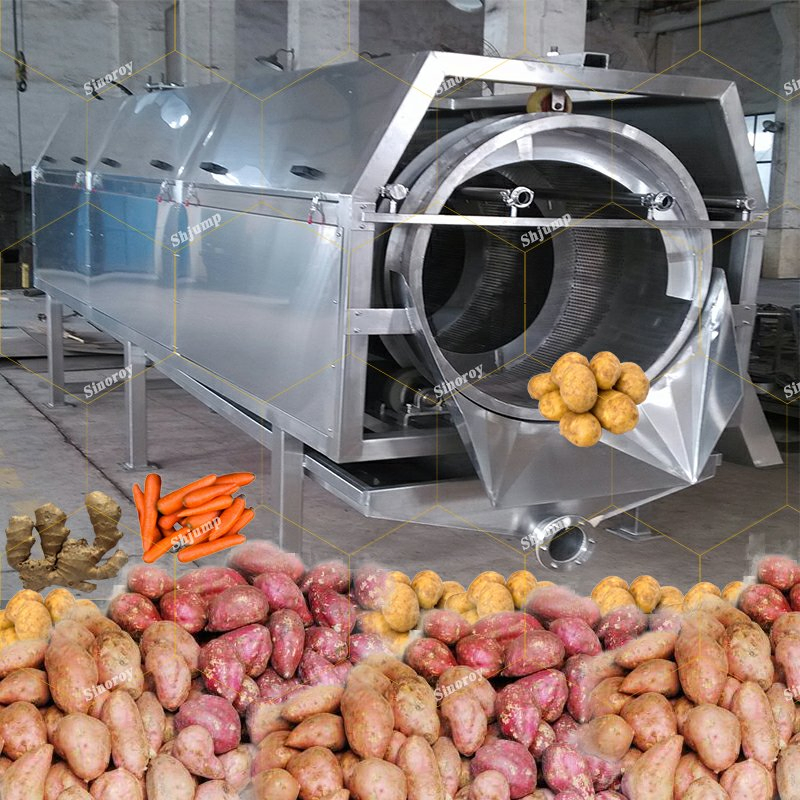

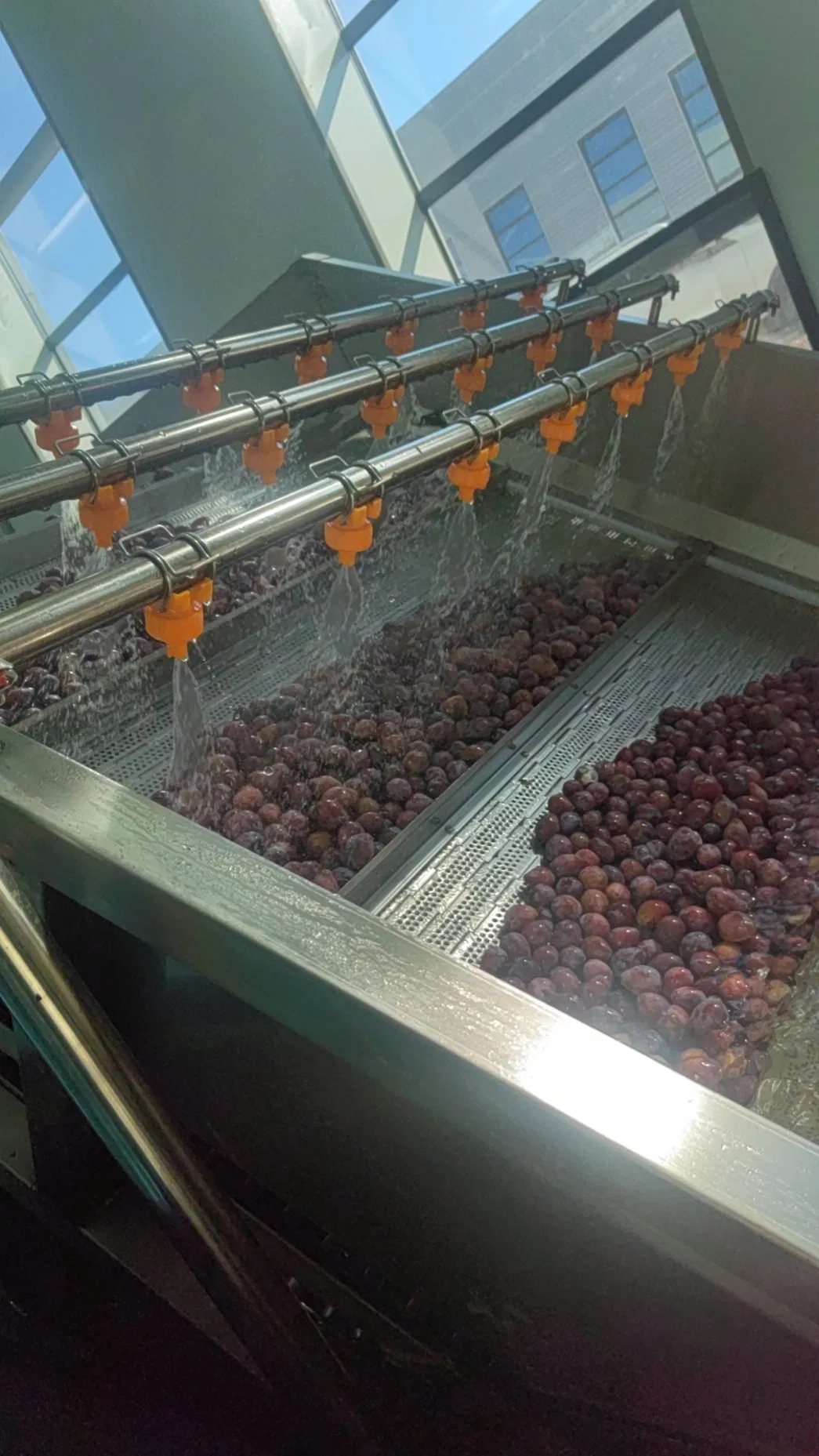

The Rotary Drum Washer is a specialized cleaning system consisting of a robust frame, driving speed reducer, circulation pump, water tank, and precision spray pipes. When fruits and vegetables are introduced into the drum, they undergo thorough washing through the combined action of the rolling drum and high-pressure water sprays. The integrated hollow screw ensures a smooth discharge process.

Key Features

Rapid & Stable Cleaning: Both inner and outer tanks are constructed from high-grade SUS 304 stainless steel.
Integrated System: Combines detergent spray wash, water spray rinse, fan blowing, and hot air drying.
Full Adjustability: Working time, temperature, and power can be tailored to specific needs.
High Efficiency: Designed for maximum output with significant cost-saving benefits.

Technical Parameters

Model	Capacity (Ton/H)	Rated Power (kw)	Dimensions (mm)
JP-P-QX-102-5T	5	3	2000 x 1000 x 900
JP-P-QX-102-10T	10	5.5	2000 x 1200 x 900
JP-P-QX-102-15T	15	7.5	2000 x 1500 x 900
Customization	Custom	Custom	Custom

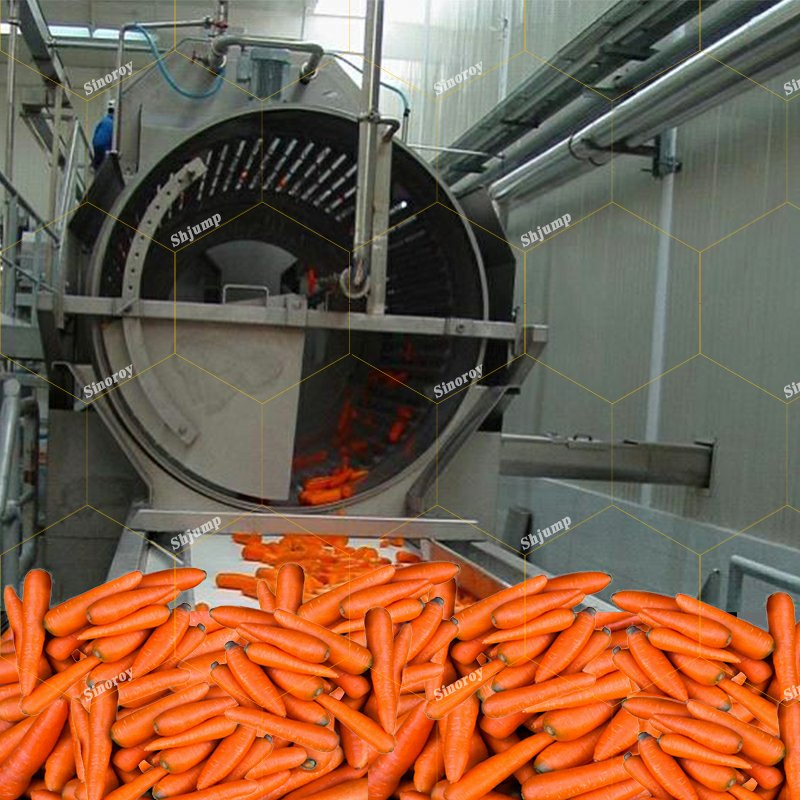

Note: Suitable for root vegetables such as carrots, potatoes, and sweet potatoes.

Complete Processing Solutions

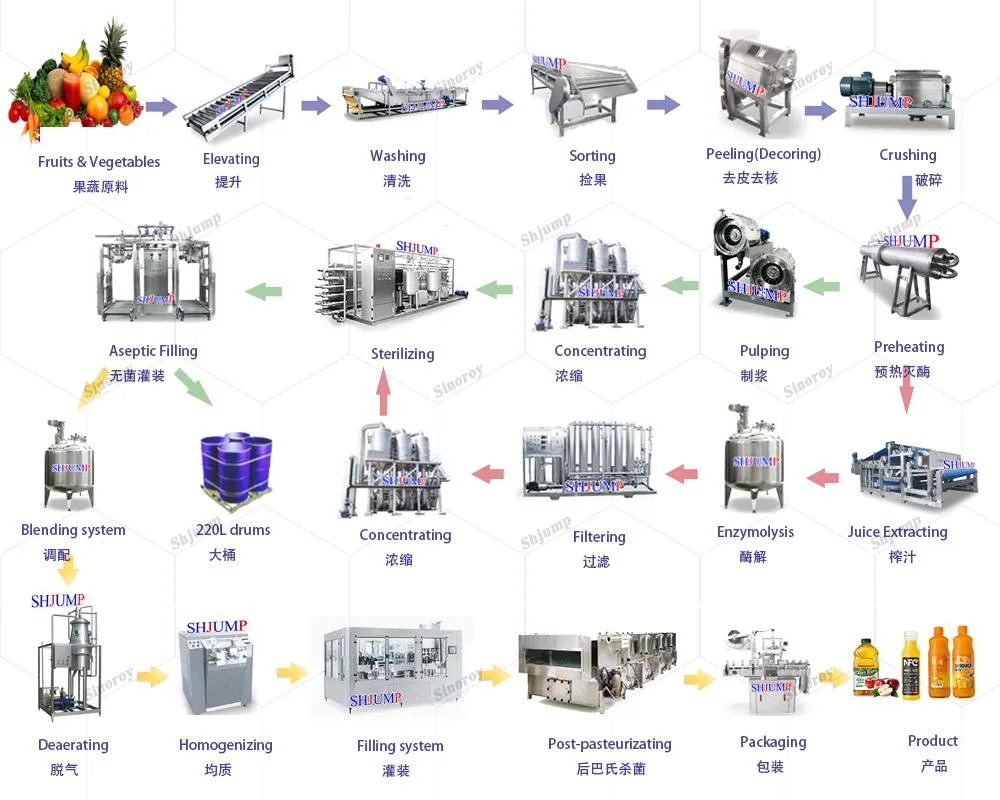

We provide comprehensive production lines for various fruit and vegetable treatments, including:

Beverages & Purees Fruit juice, syrup, pulp, puree, concentrated juice, and nectar.

Confections Jam, jelly, marmalade, and crystallized fruits.

Snacks & Extracts Dried fruit, fruit leather bars, fruit powder, and essential oils.

Value-Added Engineering Services

📍 Process Design & Optimization

We optimize processing technologies and design custom workflows tailored to client specifications.

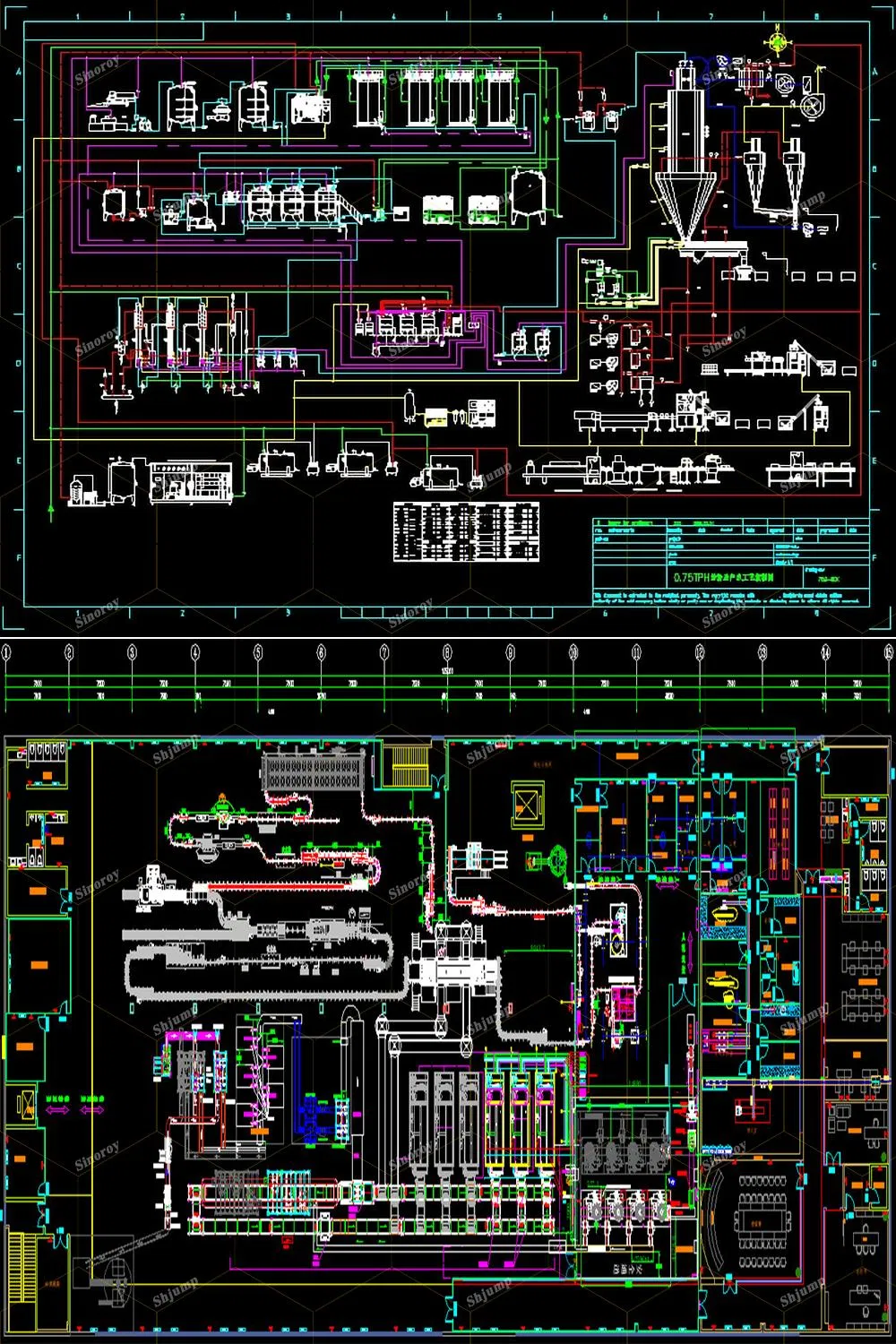

📍 Factory Planning & Layout

Accurate processing line layouts based on factory dimensions, including detailed pipeline and cable calculations.

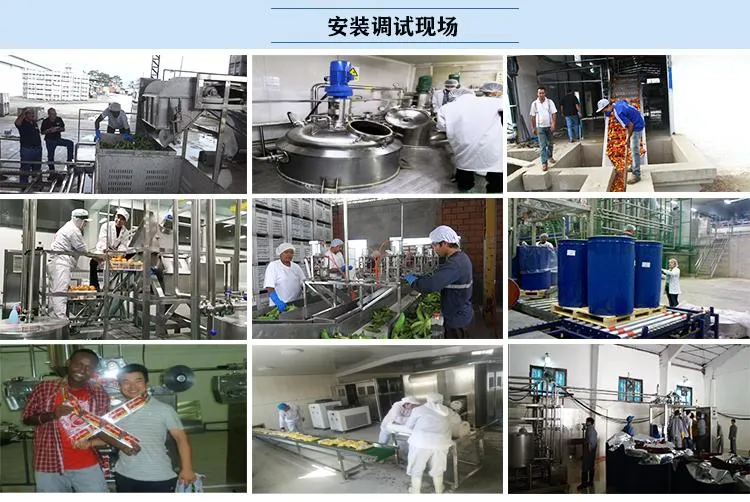

📍 Installation & Global Commissioning

Our engineers provide overseas installation, adjustment, and comprehensive labor training to ensure smooth operations from day one.

Why Choose Our Solutions?

Turnkey Solutions: From raw material testing to final product marketing.
Versatile Design: Multipurpose lines that adapt to changing consumer habits.
Top-Tier Components: Equipped with Siemens PLC, ABB motors, and Spirax Sarco valves.

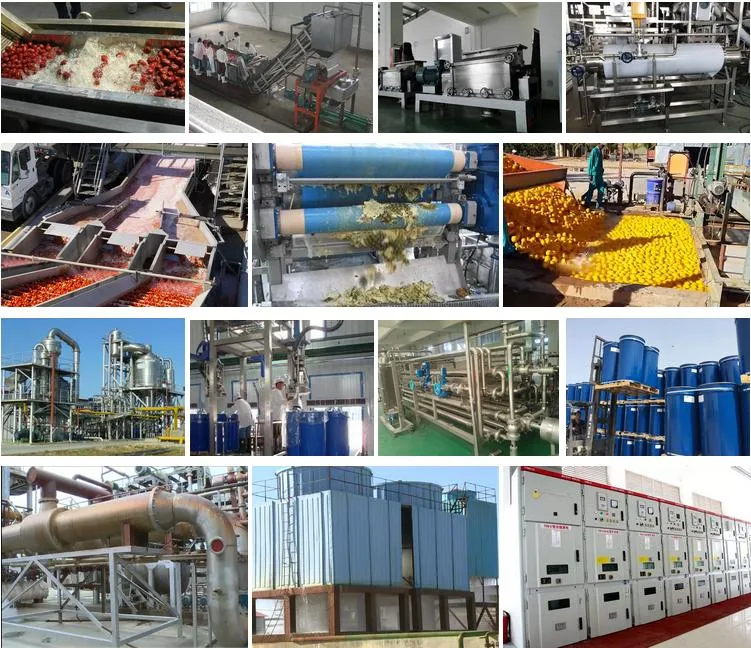

Proven Expertise: Over 300 successful projects globally with 40+ years of technical experience.

Frequently Asked Questions

Q1: What infrastructure is required before purchasing a production line? You need necessary local business licenses, factory land, and utilities including water, electricity, and fuel. We can assist in procuring boilers and cooling towers from reliable sources.

Q2: What details should be included in an inquiry? Please specify the raw materials to be treated, the desired final product, the required hourly capacity, and your estimated budget range.

Q3: How long does the entire ordering and installation process take? Manufacturing typically takes 60-90 working days, followed by 30 days for shipping and 30 days for on-site installation. We recommend planning 6 months in advance.

Q4: Can one production line handle multiple types of fruit? Yes, our designs emphasize versatility, allowing for multiple functions within a single line to accommodate product modifications as market habits change.

Q5: Do you provide training for local staff? Absolutely. Our engineers remain on-site after installation to teach workers how to operate, clean, maintain, and repair the machinery until they are fully proficient.

Q6: Are the machine components sourced from reputable brands? Yes, we exclusively use world-class hardware such as Siemens PLC, ABB motors, and Kronne flowmeters to ensure long-term stability and high-quality operation.
