Automatic Fruit Juice Extracting System

Customization: Available
After-sales Service: Oversea Service Available
Warranty: Per Year

Product Description

i

Basic Info.

Model NO.
HT Series
Type
Juicing
Voltage
380V
Power
1.5KW
Material
304 Stainless Steel
Process
Fruit & Vegetable
Capacity
300-2000kg/Hour
Function
Juicing & Pulping
Transport Package
Plywood Case
HS Code
84386000
!

Product Description

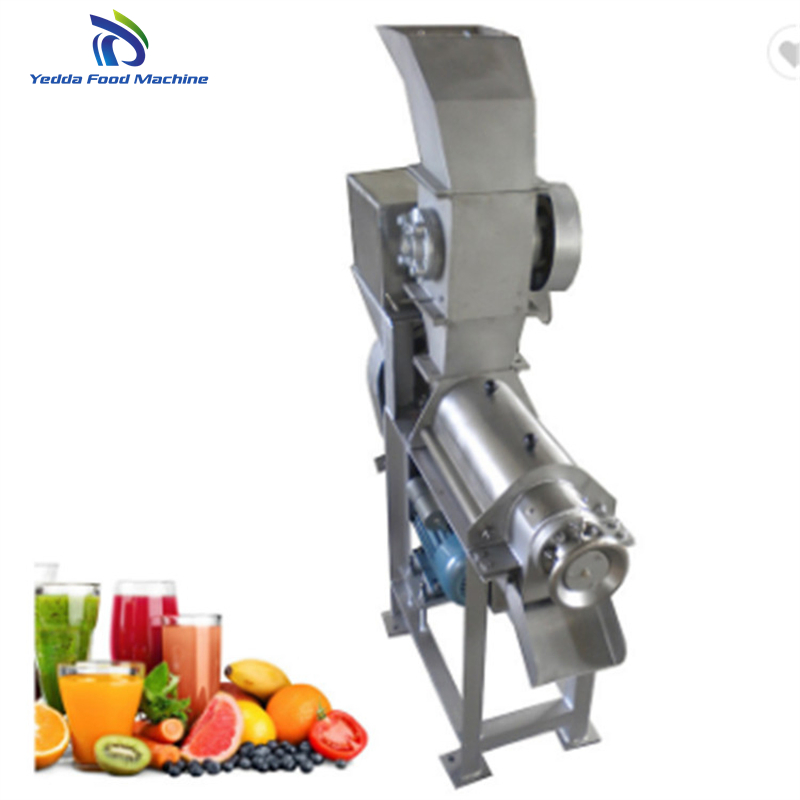

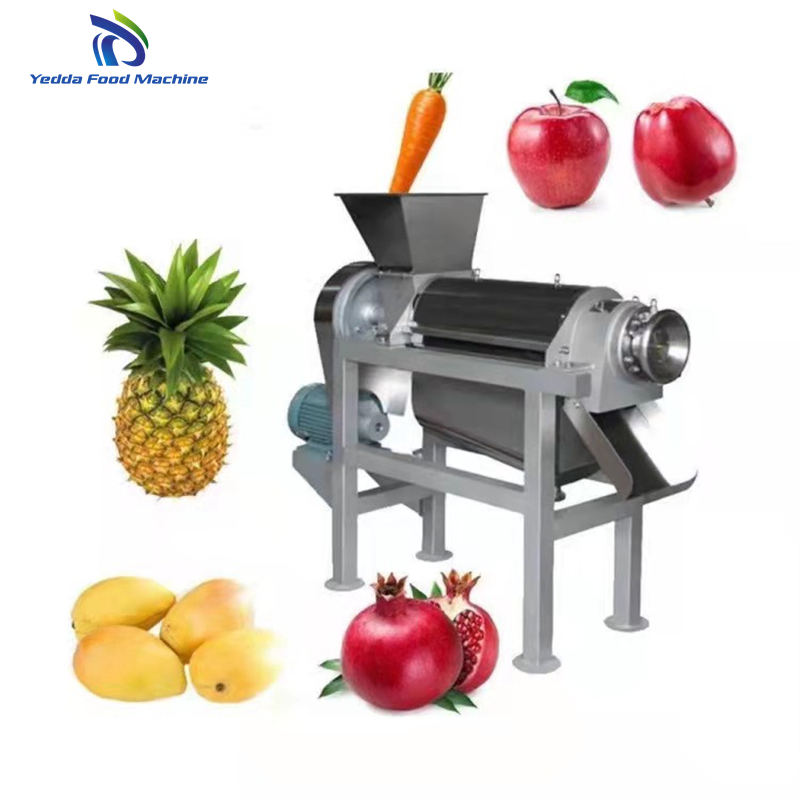

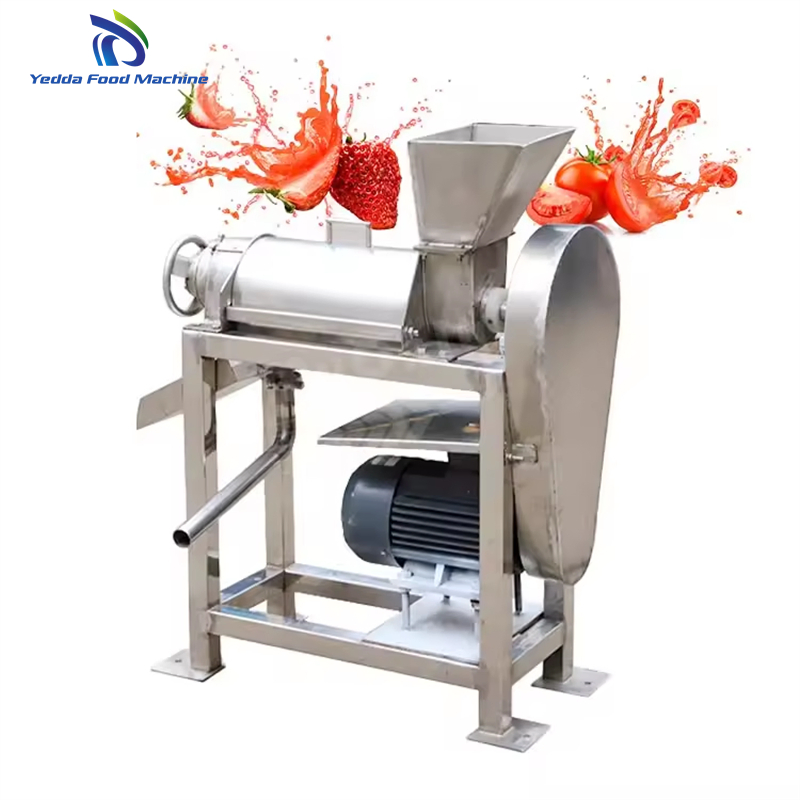

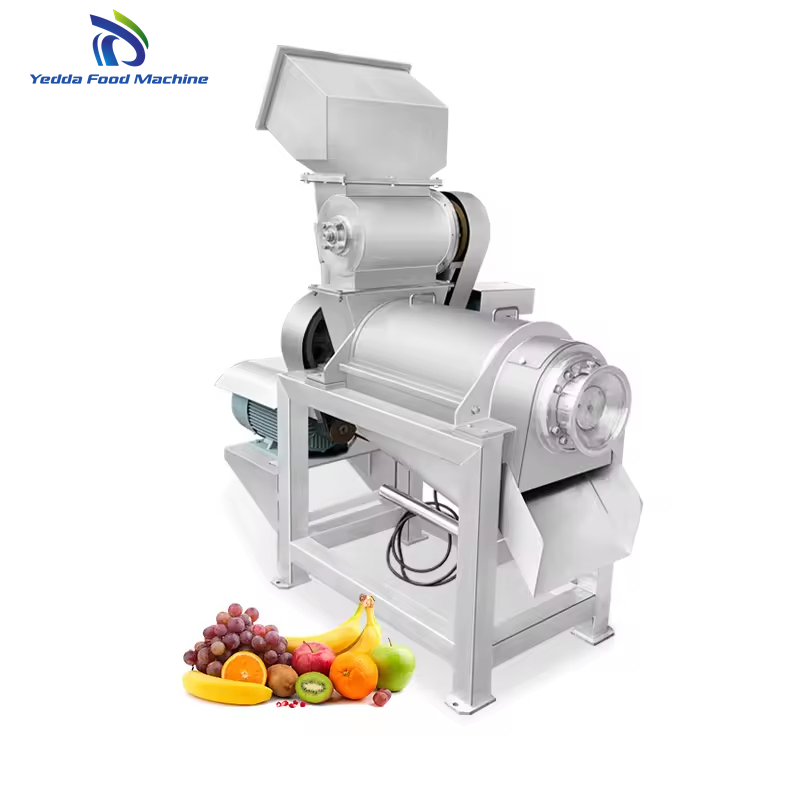

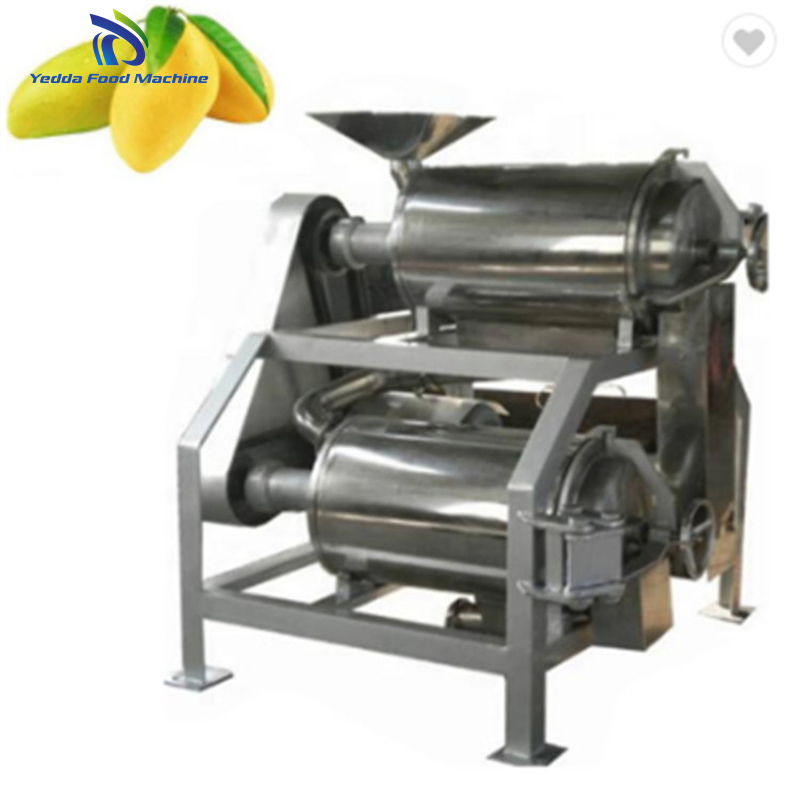

Automatic Fruit Juice Extracting System

The Automatic Fruit Screw Juice Extracting Machine is a groundbreaking innovation, meticulously engineered to extract juices from an extensive variety of fruits and vegetables with unmatched efficiency.

At its core, the machine boasts a robust spiral mechanism that progressively enlarges towards the material residue outlet while narrowing the screw pitch. This brilliant design ensures that as materials move through the spiral, they experience volume contraction within the spiral cavity, facilitating optimal juice extraction. Seamlessly integrating fruit crushing and screw juicing functions, our spiral juicer features an automatic residue removal system for uninterrupted operation.

The Fruit Pulping Machine is a specialized powerhouse engineered for rapid, high-volume fruit and vegetable juice production. It adeptly processes fresh produce—from oranges, grapes, and kiwis to tomatoes and celery. This machine excels in transforming fruits into delightful jams or juices, skillfully separating cores, seeds, and skins.
P

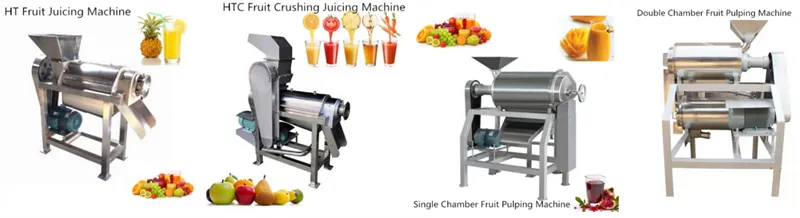

Product Parameters

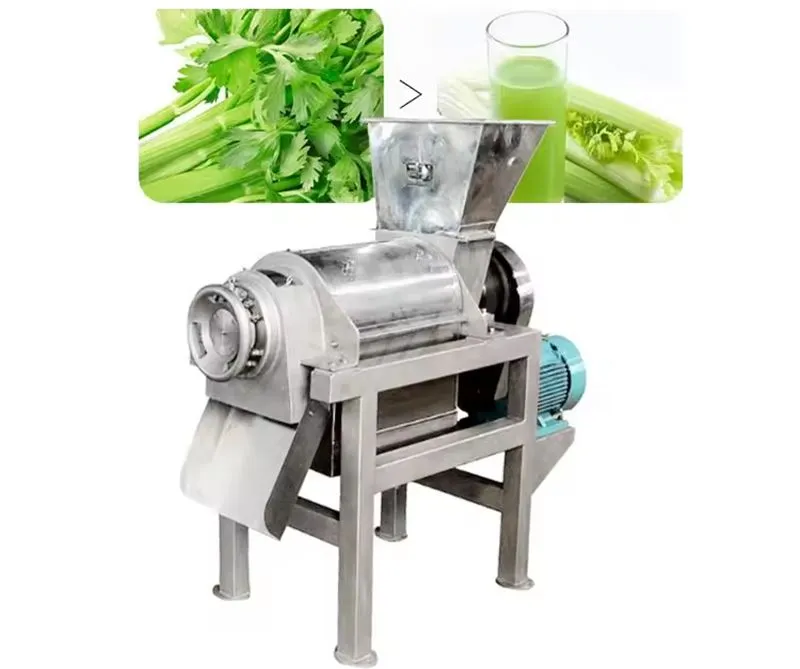

Parameters Overview
Model Dimension Capacity Power Voltage
HT-0.51100*320*750mm300-500kg/h1.5kw380V
HT-1.51620*550*950mm1000-1500kg/h2.2kw
HT-2.51620*720*1480mm2000-2500kg/h5kw

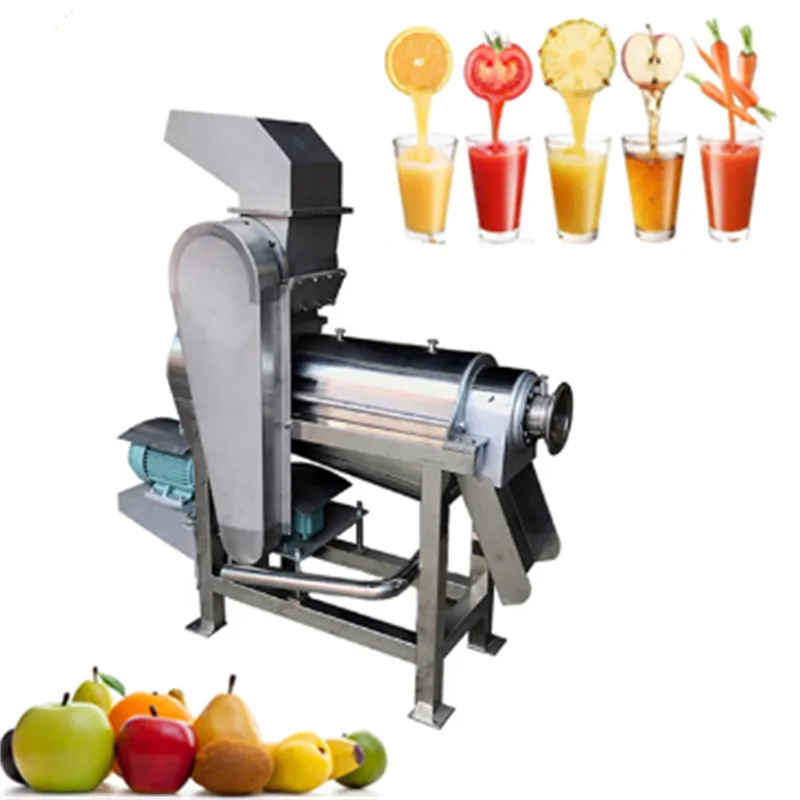

HTC Series
Model Dimension Capacity Power Voltage
HTC-0.51100*320*1300mm300-500kg/h1.5kw+2.2kw380V
HTC-1.51620*550*1485mm1000-1500kg/h2.2kw+4kw
HTC-2.51620*720*2030mm2000-2500kg/h5kw+4kw

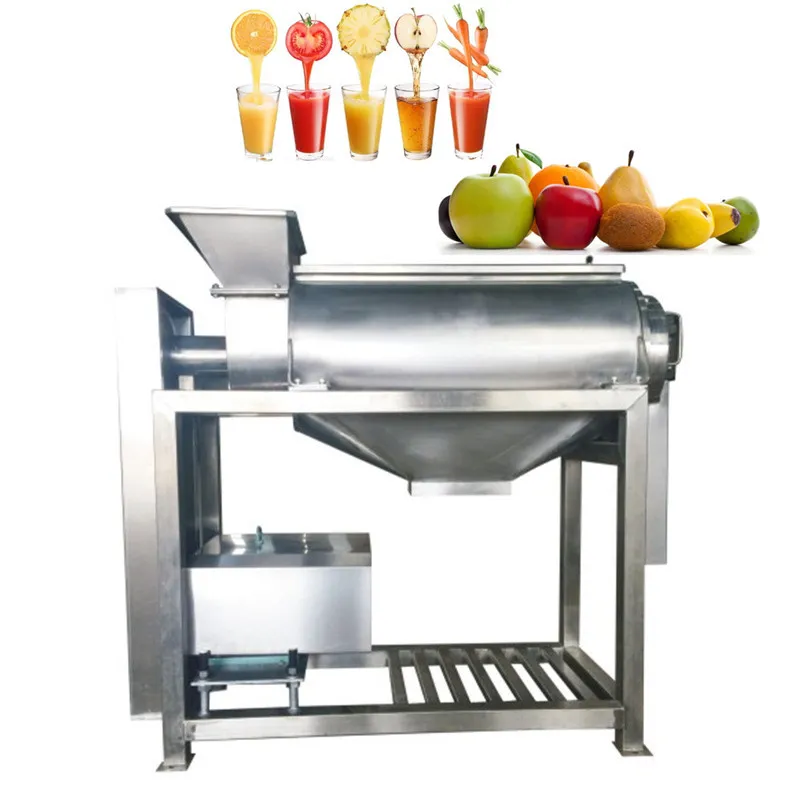

SG Series
Model Dimension Capacity Power Weight Voltage
SG-0.51100*450*1150mm300-500kg/h3kw90kg380V
SG-0.81300*550*1250mm500-800kg/h4kw130kg
SG-11400*650*1350mm800-1000kg/h5.5kw180kg
SG-1.51600*800*1550mm1000-1500kg/h5.5kw250kg
SG-21600*900*1650mm1500-2000kg/h7.5kw350kg

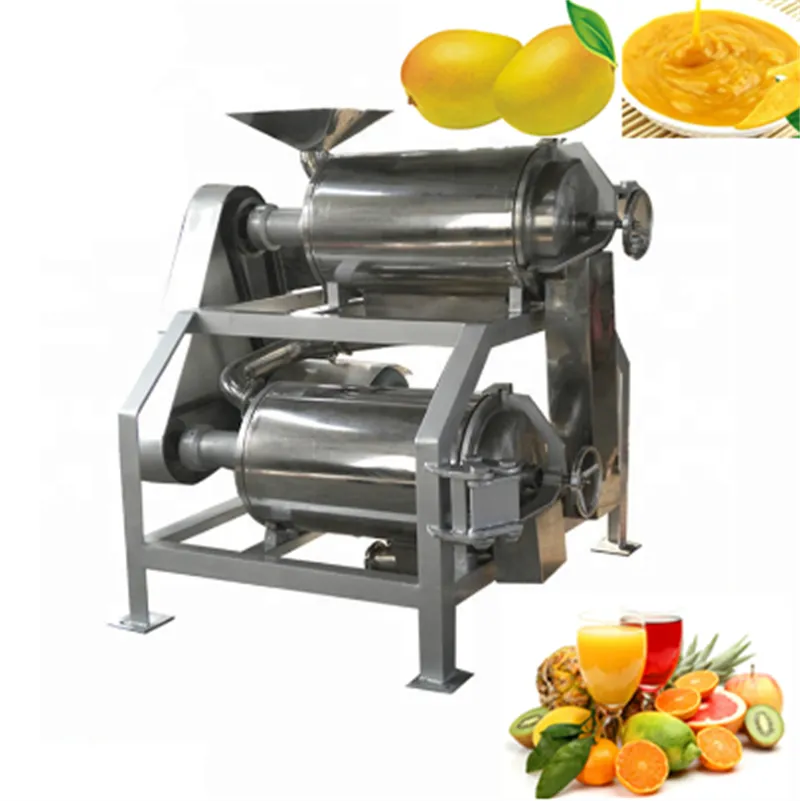

SG2 Series
Model Dimension Capacity Power Voltage
SG2-0.5T1140*870*1305mm300-500kg/h5.5kw380V
SG2-3T1530*1420*1530mm2000-3000kg/h7.5kw
SG2-5T1935*2275*1700mm4000-5000kg/h11kw
V

Detailed Photos

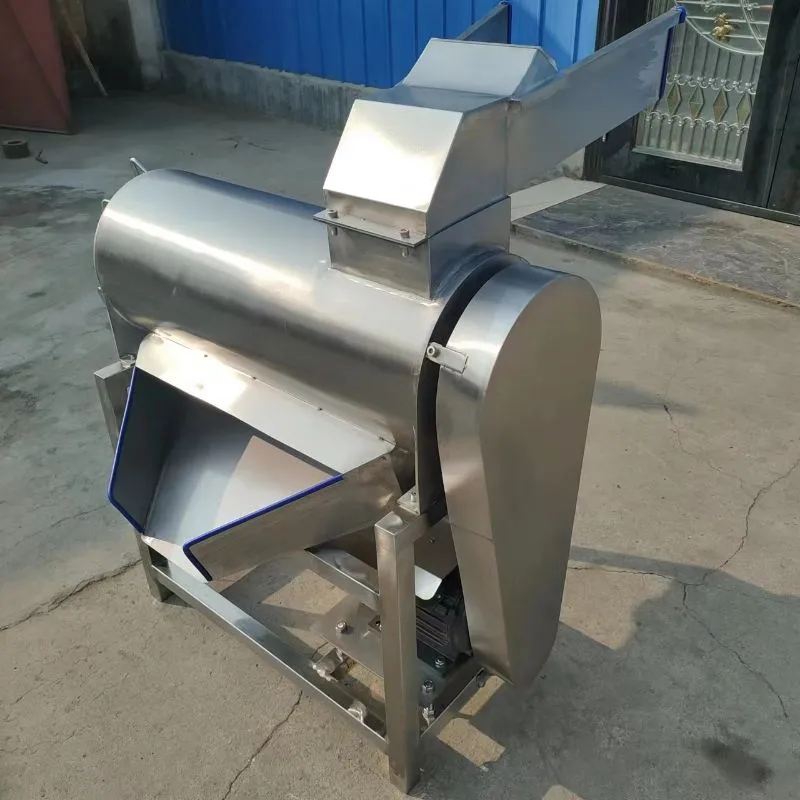

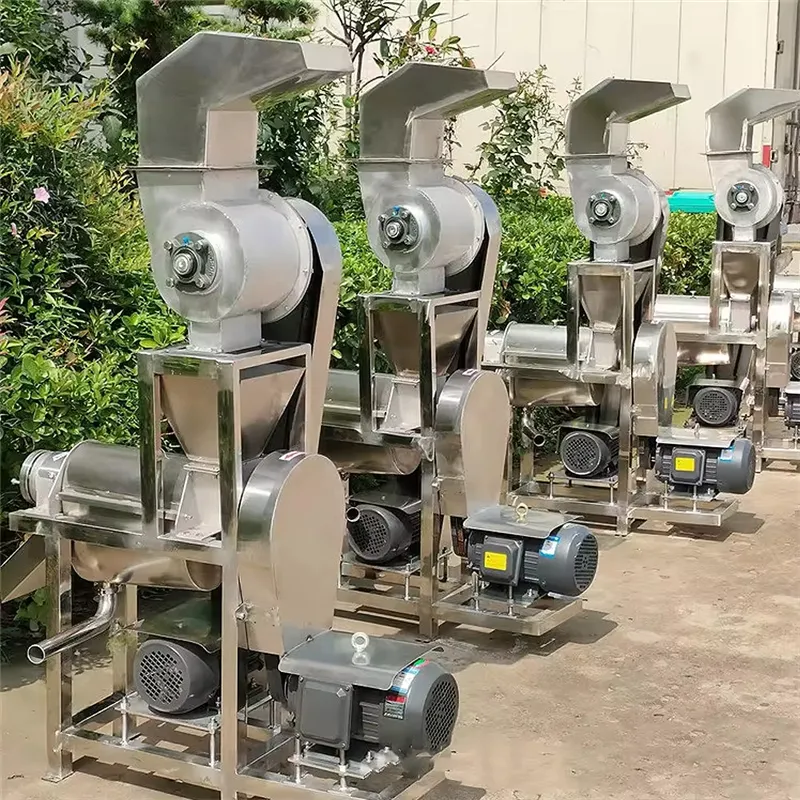

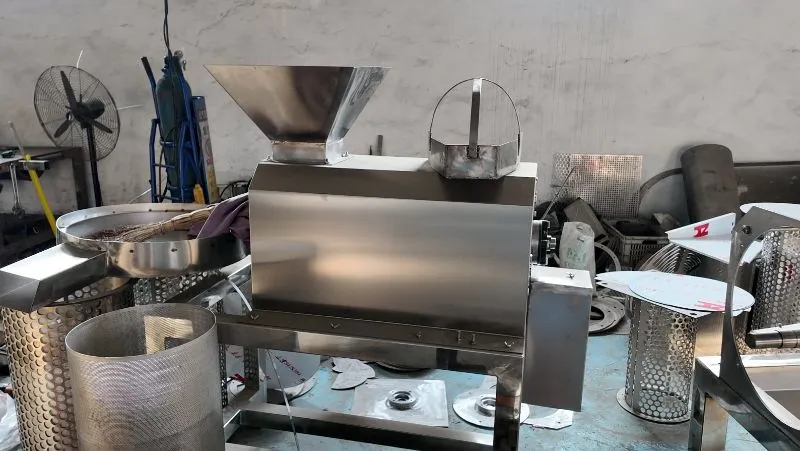

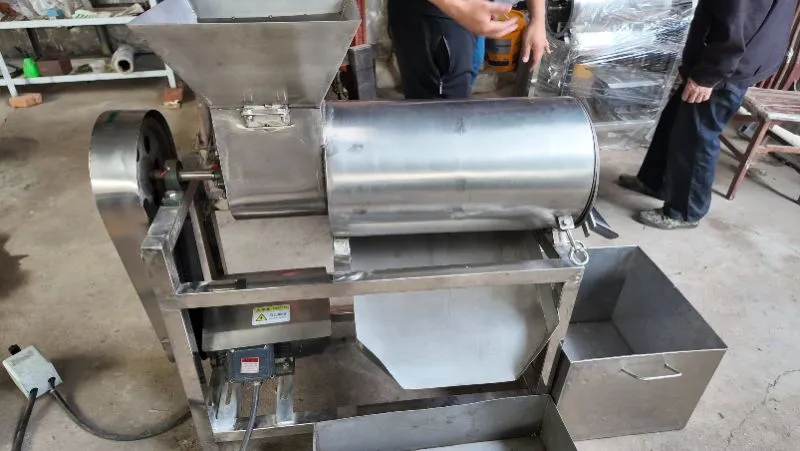

Machine Detail

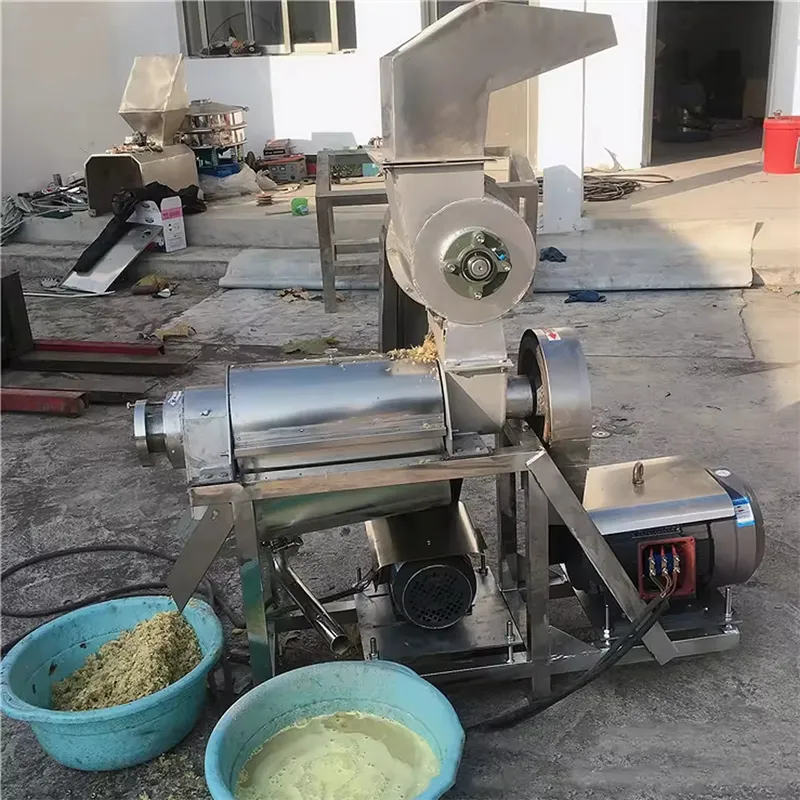

Mango Puree Processing Display:

S

Packaging & Shipping

Exceptional Packaging: Our product is meticulously encased in a durable, export-standard plywood case, providing unparalleled protection during transit.

Prompt Delivery Time: We ensure dispatch within a swift 10 working days upon receipt of your deposit, guaranteeing reliability for your convenience.

Comprehensive Warranty Period: Enjoy a 1-year comprehensive warranty covering all non-human malfunctions, excluding wear parts, providing peace of mind.

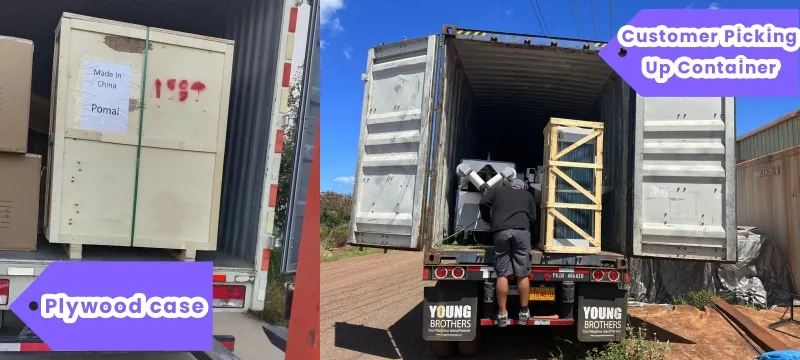

Shipping Package
C

Company Profile

We are a beacon of innovation and efficiency in the advanced food machinery industry, offering bespoke solutions that cater precisely to the dynamic food sector. Our expertise is showcased in the meticulous processes involved in fruit and vegetable washing, peeling, cutting, juicing, drying, frying, and freezing.

We provide cutting-edge machines designed for meat, fish, and seafood processing, innovative nut machines, and sophisticated food packaging equipment. We are experts in designing customized food production plants tailored to specific customer requirements. Guided by our principles of 'High Quality, Competitive Prices, Expert Team, and Integrity in Service,' we strive to deliver products that consistently exceed client expectations.

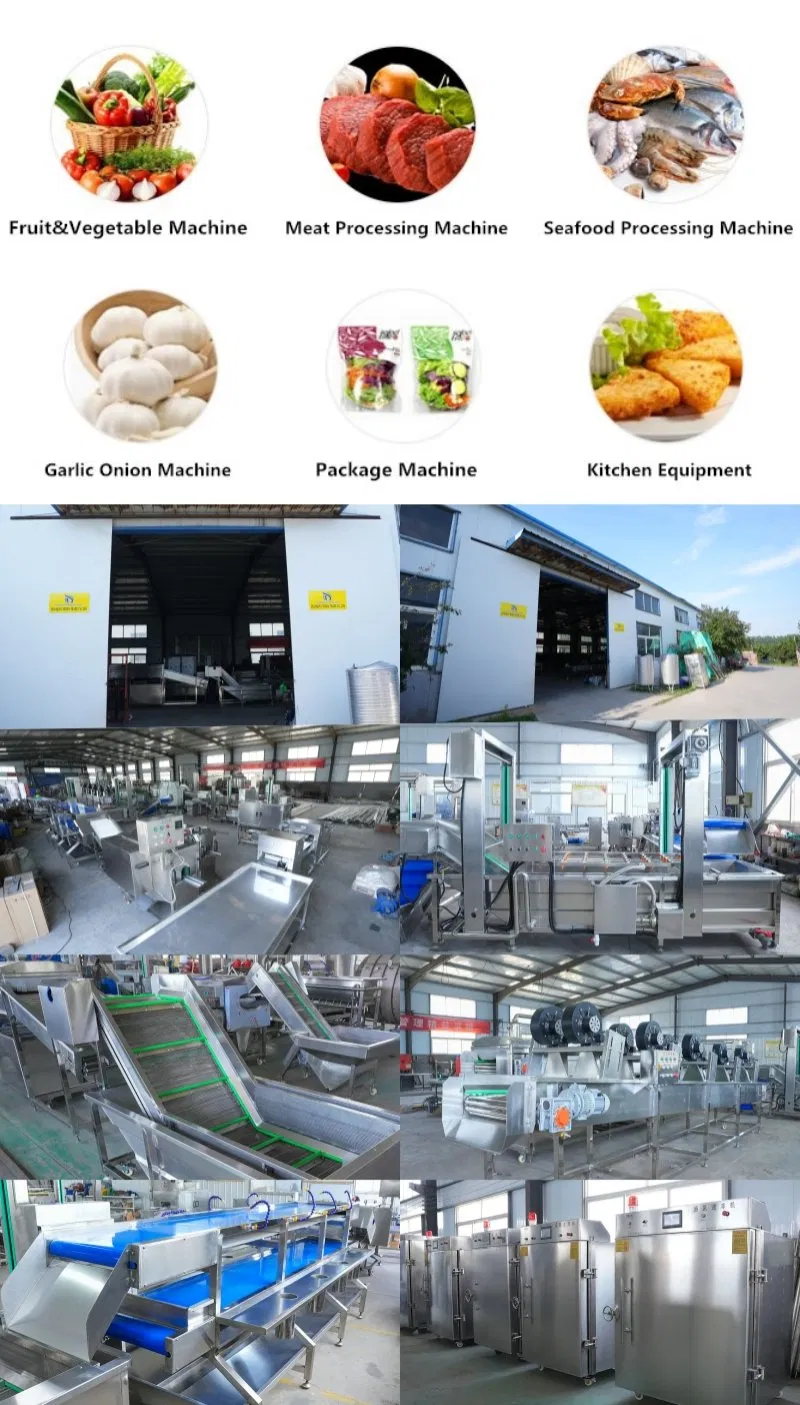

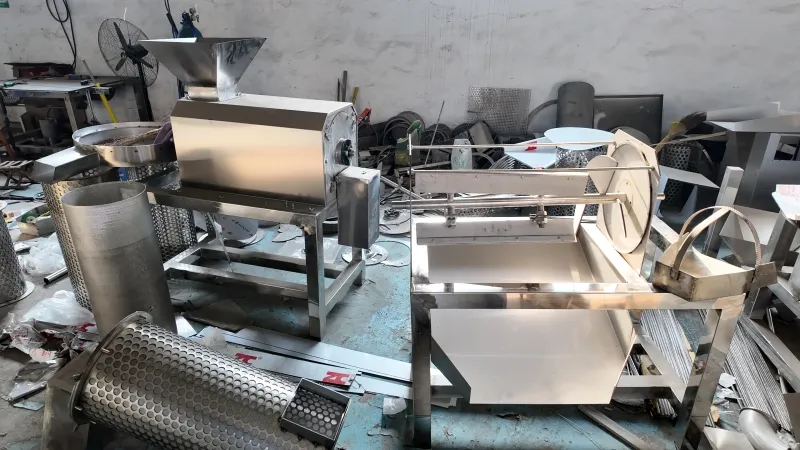

Workshop
?

Frequently Asked Questions

What materials are used in the construction of the machines?
All machines are primarily constructed using high-quality 304 stainless steel to ensure food safety, durability, and easy cleaning.
Can these machines process both fruits and vegetables?
Yes, our spiral juicers and pulping machines are designed to handle a wide range of produce including oranges, grapes, kiwis, tomatoes, celery, and more.
What is the production capacity range?
We offer various models with capacities ranging from 300kg/h for smaller operations up to 5000kg/h for large-scale industrial production.
What is the standard power and voltage requirement?
The standard voltage is 380V, and the power requirement varies from 1.5KW to 11KW depending on the specific model and capacity.
How is the equipment packaged for international shipping?
Equipment is packed in export-standard plywood cases to prevent damage during long-distance maritime or air transportation.
What kind of warranty and after-sales service do you provide?
We provide a 1-year comprehensive warranty on all non-human malfunctions. After-sale and overseas services are also available to ensure optimal performance.
