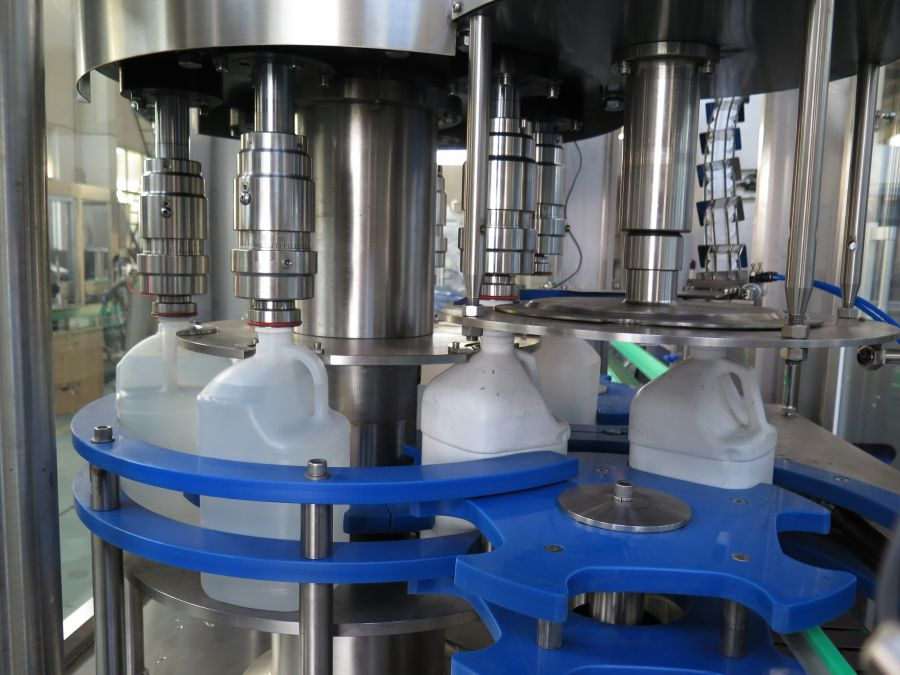

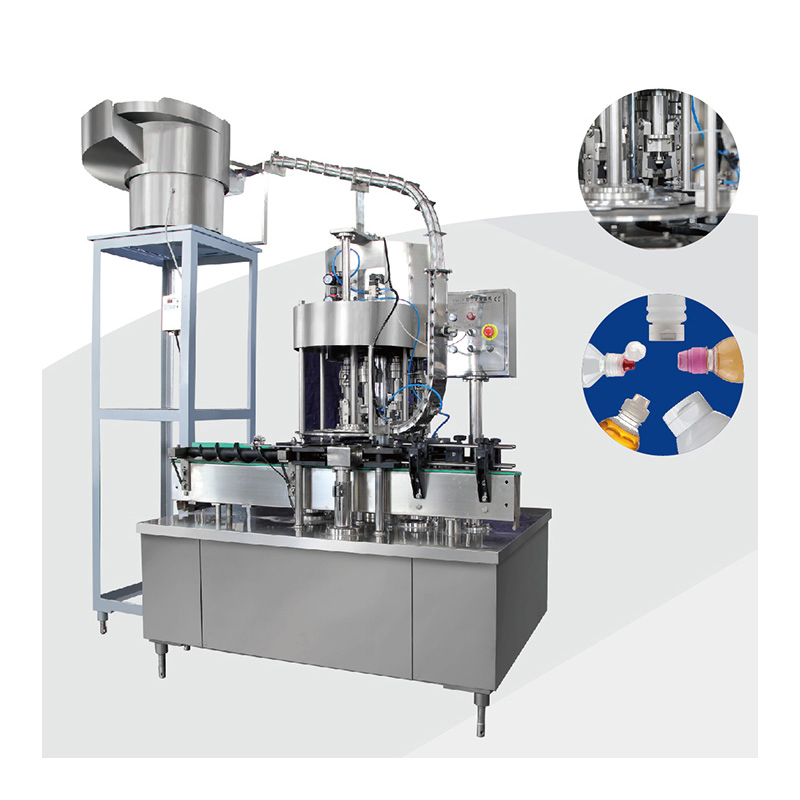

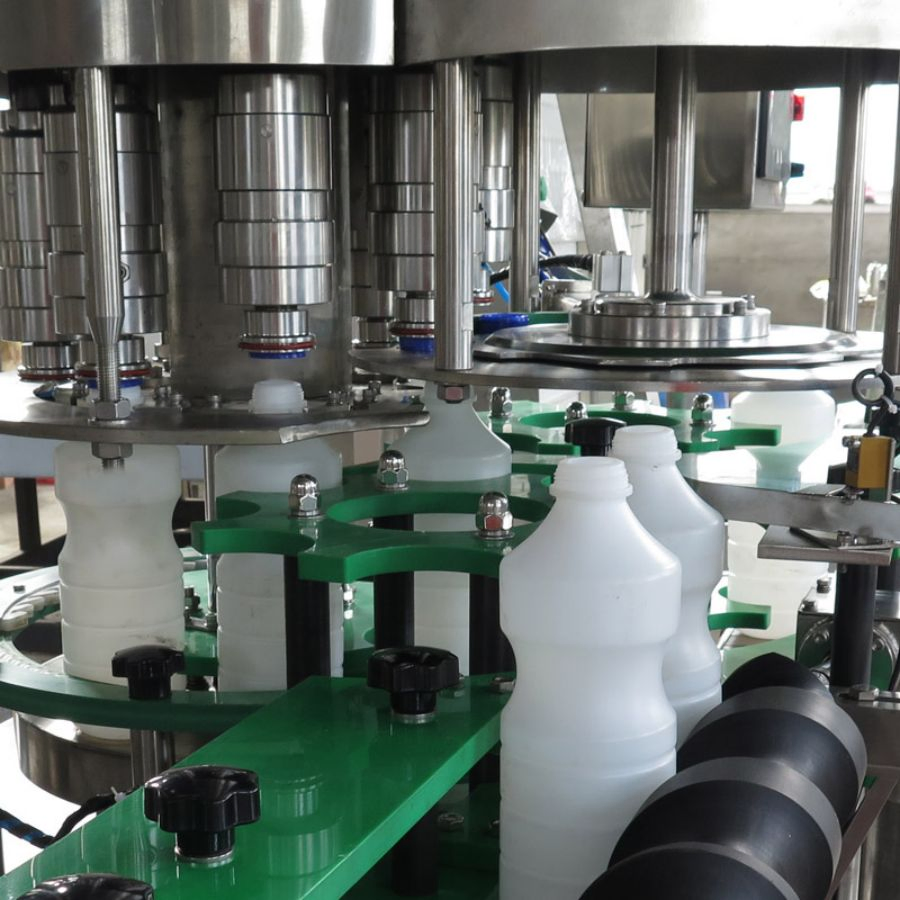

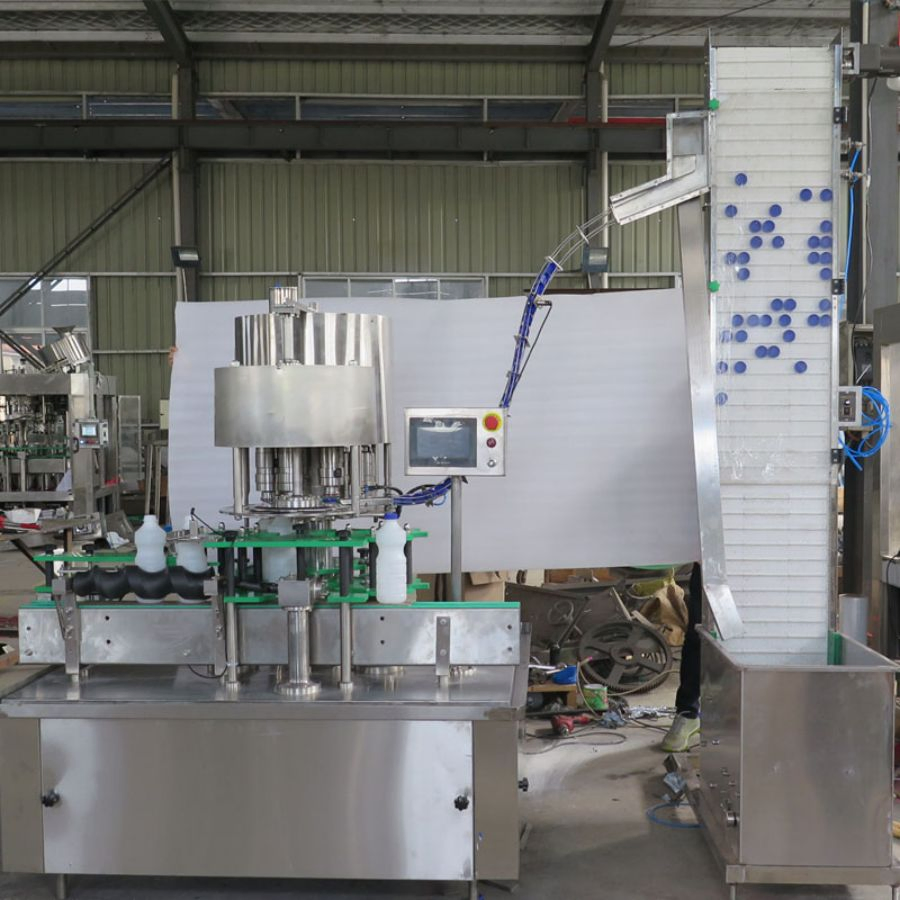

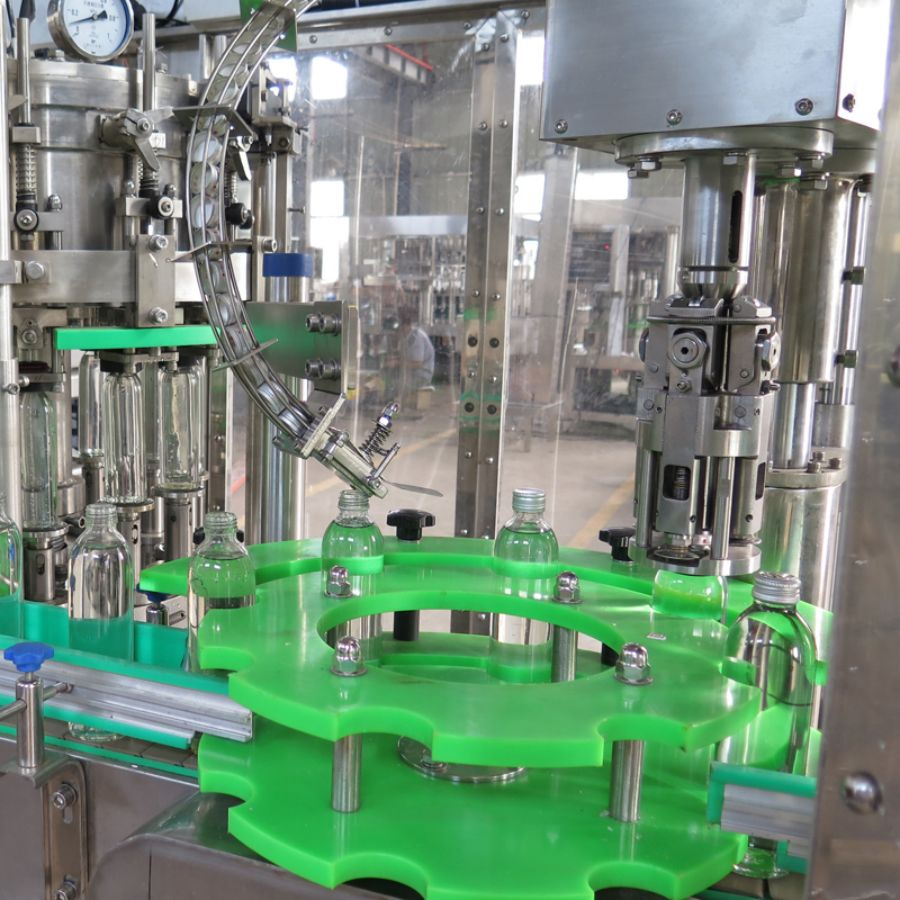

Automatic Plastic Bottle Filling, Capping, and Labeling System
Automatic Plastic Bottle Filling, Capping, and Labeling System
Automatic Plastic Bottle Filling, Capping, and Labeling System
Automatic Plastic Bottle Filling, Capping, and Labeling System
Automatic Plastic Bottle Filling, Capping, and Labeling System
1 / 5
Automatic Plastic Bottle Filling, Capping, and Labeling System
Automatic Plastic Bottle Filling, Capping, and Labeling System
Automatic Plastic Bottle Filling, Capping, and Labeling System
Automatic Plastic Bottle Filling, Capping, and Labeling System
Automatic Plastic Bottle Filling, Capping, and Labeling System

Automatic Plastic Bottle Filling, Capping, and Labeling System

Customization: Available
After-sales Service: 24 Hours
Warranty: 15 Months
Send Inquiry

Product Description

Overview
Packaging
Bottles
Automatic Grade
Automatic
Packaging Material
Plastic
Application
Cosmetics, Cleaning, Detergent, Drinks, Oil, Dairy Products, Skin Care Products, Hair Care Products, Tea, Vegetable, Fruit
Type
Cap Sealing Machine
Material Type
Liquid
Power
1.5kw
Capacity
100bpm
Voltage
380-440V 50Hz 3phase, 220V 60Hz 3 Phase
Electric Components
Siemens
HS Code
8422301090
Weight
1200kgs
Product Parameters
Item / Model CM-1 CM-4 CM-6 CM-8 CM-10 CM-12 CM-15
Capping heads 1 4 6 8 10 12 15
Capacity-500ml (B/H) 2000bph 4000bph 7000bph 9000bph 12000bph 18000bph 24000bph
Power 0.55kw 1.5kw 1.5kw 2.2kw 2.2kw 3.5kw 3.5kw
Air consumption 0.3m³/min. 0.3m³/min. 0.4m³/min. 0.4m³/min. 0.5m³/min. 0.5m³/min. 0.6m³/min.
Applicable container Bottle, cup, can, jar
Container materials Plastic, Glass, Metal
Product Description

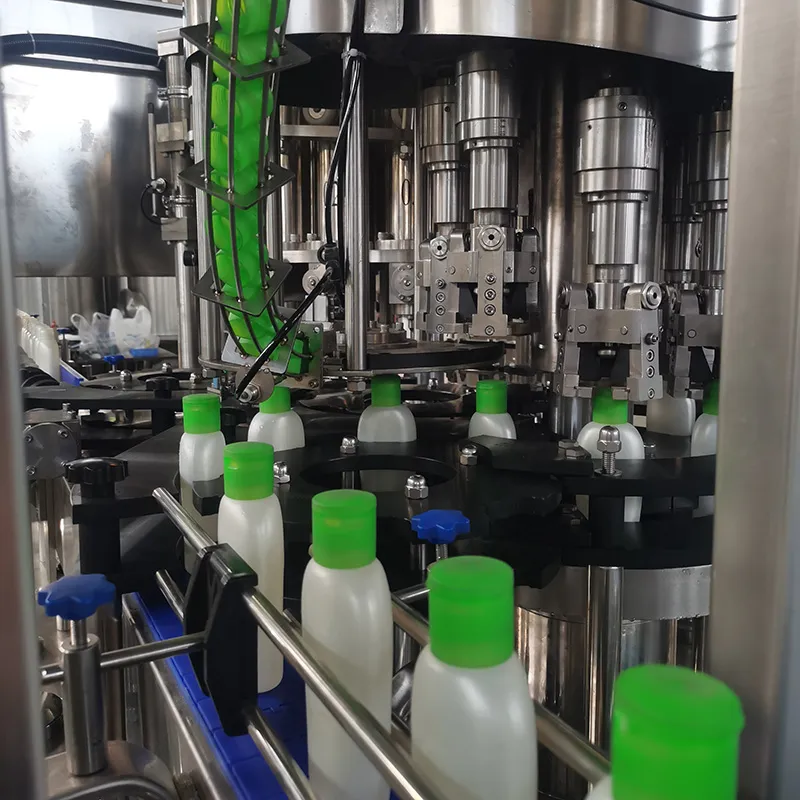

Flip top cap closing machine

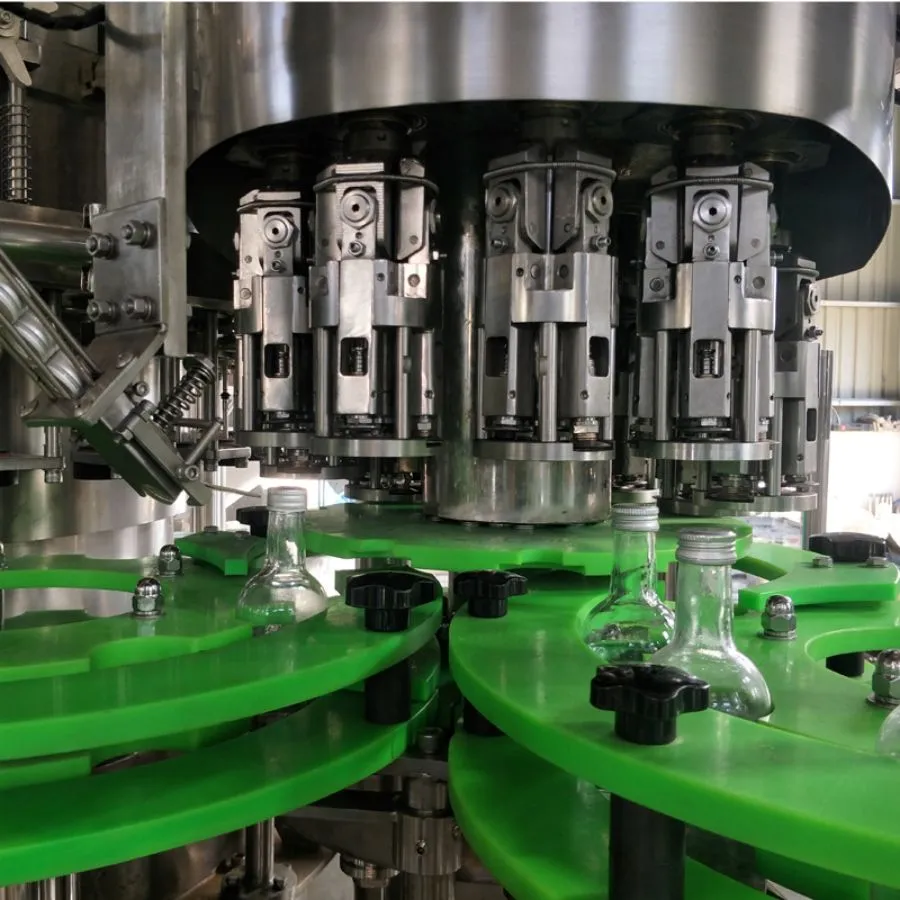

ROPP capping machine

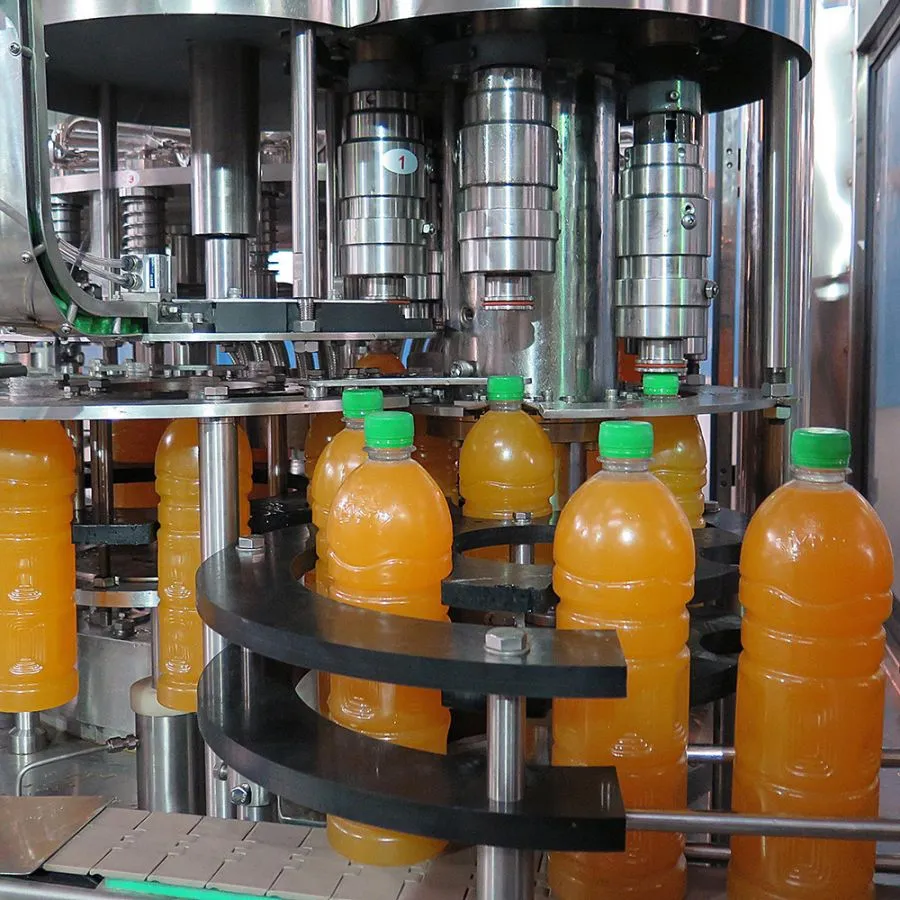

Screw capping machine
Key Technical Features
  • Stainless steel base mounted on adjustable floor levellers for easy alignment
  • Bearing frame and all surface components manufactured in SUS 304 stainless steel
  • Manual height adjustment via column and independent speed variation
  • Caps in chute photocell: machine pauses if no caps are present
  • Magnetic clutch capping head for screw caps with adjustable torque force
  • Stainless steel Cap pickup mould with wear-resistant rubber lining
  • Electrical control panel with 24 volt auxiliary commands
  • Equipped with Siemens control system components
  • Automatic cap feeder, chute, and applicating head
  • Main motor Overload clutch protection and safety guarding with interlocks
Project Case

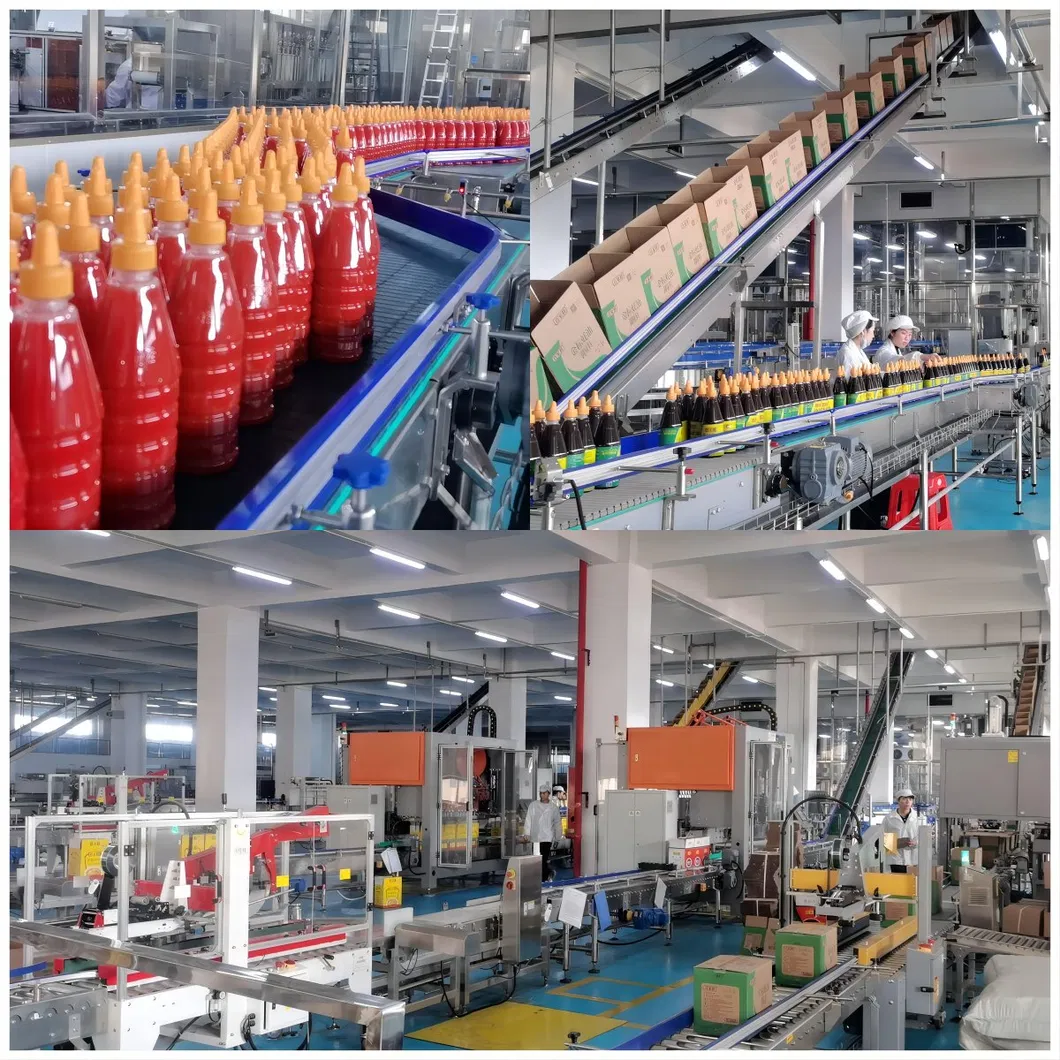

12000bph Sauce Filling & Packing Project
Sauce filling project

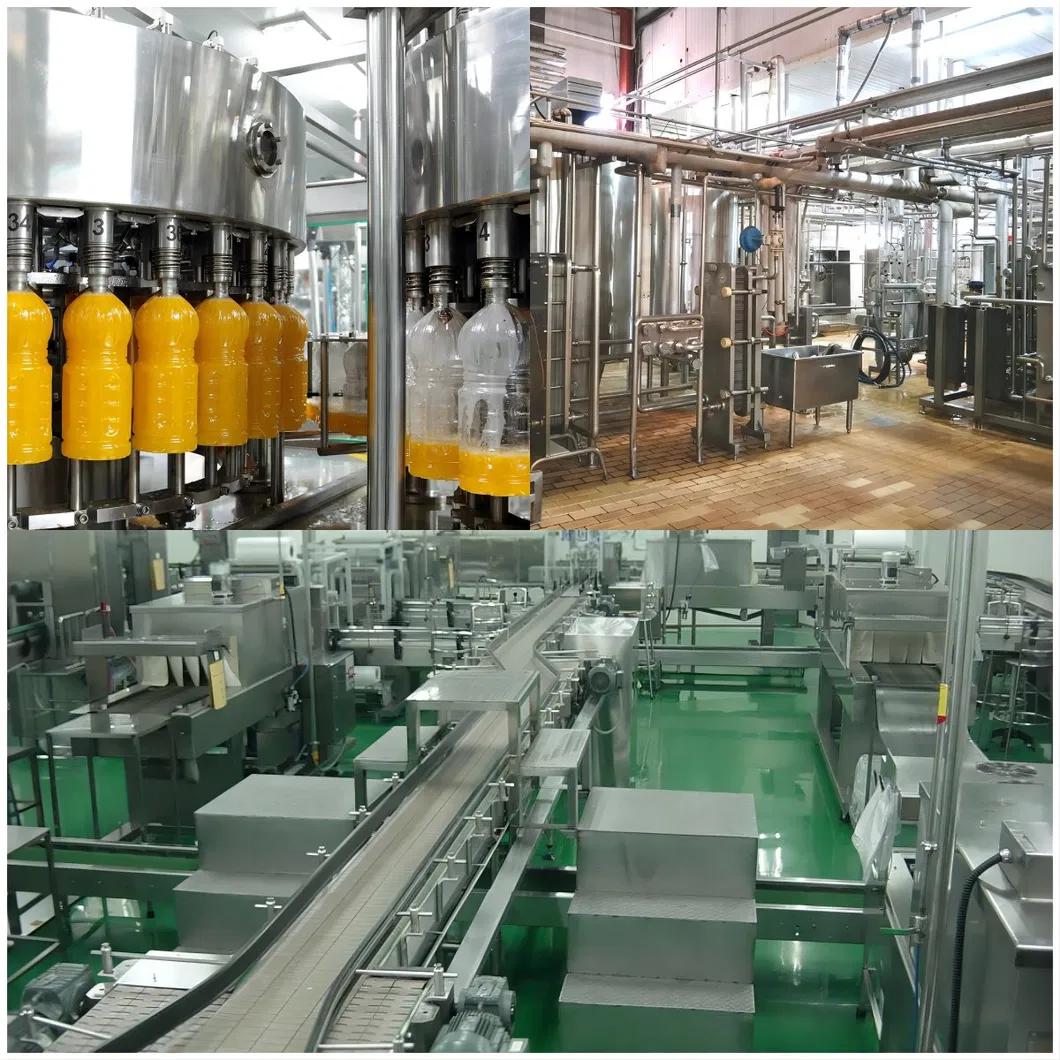

18000bph Juice Filling Line (Glass Bottles)
Juice filling line

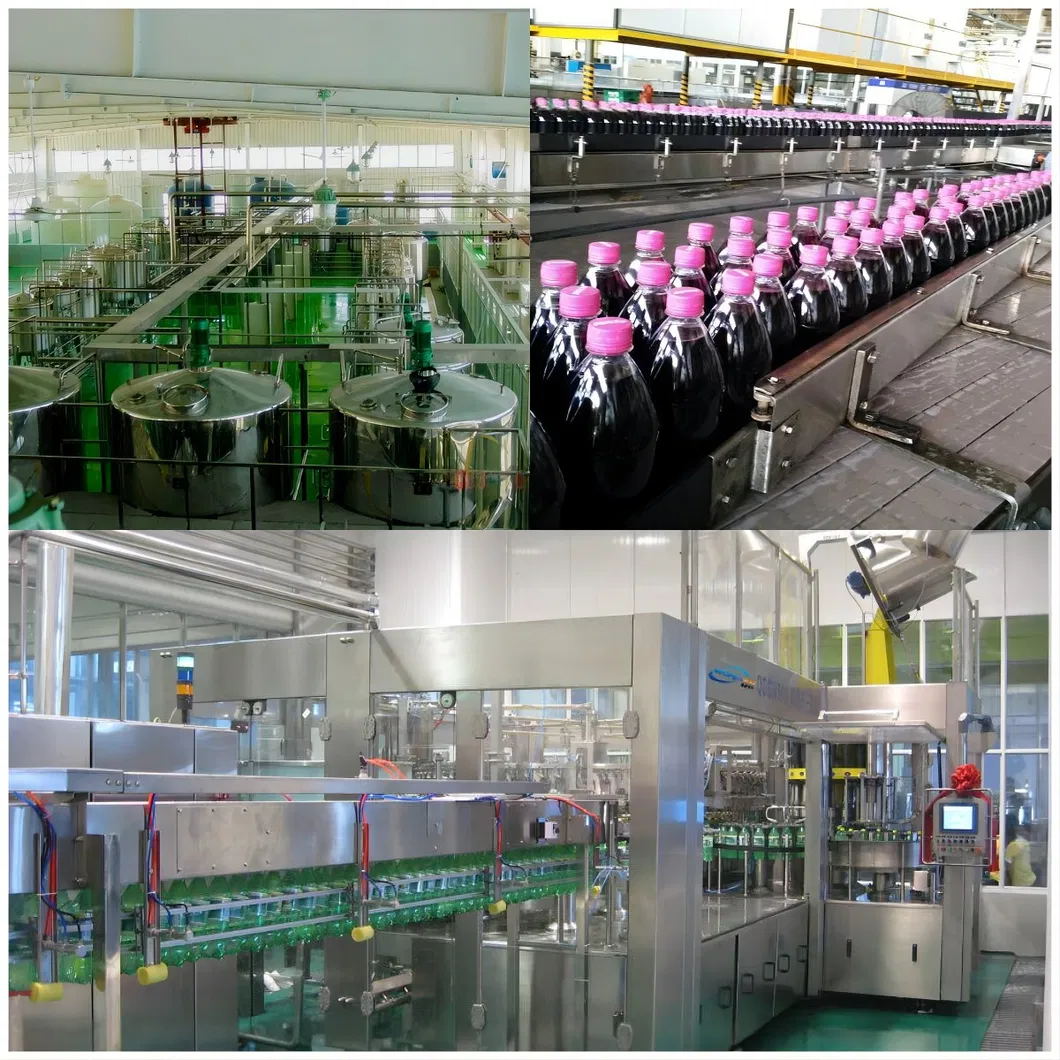

15000bph Carbonated Soft Drink Production Line
CSD production line
Service & Logistics
After Sales Service

We provide a 2-year warranty and a lifetime maintenance service commitment. Our professional team provides timely and effective technical support and solutions.

After sales support
Packaging & Shipping
Packaging and shipping
Frequently Asked Questions
What types of caps can this machine handle?
The system is compatible with Plastic Screw caps, Press-and-Turn caps, Flip caps, stopper caps, ROPP caps, crown caps, and twist-off caps.
What is the production capacity range?
Depending on the model (from 1 to 15 capping heads), the capacity ranges from 2,000 bph up to 24,000 bph for 500ml containers.
What container materials are compatible?
The machine effectively handles containers made of Plastic, Glass, and Metal in various shapes like bottles, cups, cans, and jars.
What are the main electrical components used?
We use high-quality Siemens components for the main electrical control system to ensure stability and global availability of parts.
What kind of warranty is provided?
We offer a comprehensive 2-year warranty along with a lifetime maintenance service commitment for all our equipment.
Is the capping torque adjustable?
Yes, the machine features a magnetic clutch capping head which allows for precise adjustment of the torque force for different cap requirements.
