| Automatic Grade | Automatic |
| Application | Cleaning, Detergent, Cosmetics, Drinks, Skin Care Products, Dairy Products, Hair Care Products, Snack |
| Type | Filling and Sealing Machine |
| Forming Species | Box Molding |
| Forming Function | Forming, Seal |
| Driven Type | Electric |
| Material Type | Solid |
| Packaging | Cartons |
| Packaging Material | Plastic |
| Weight | 2000kg |
| Core Components | PLC, Engine |
| Packaging Type | Cartons, Boxes |
| Voltage | 380V50Hz |
| Capacity | 5-30 Packs/Min. |
| Package Material | BOPP Film, PVC Film, etc |
| Working Pressure | ≥0.6MPa |
| Specification | 3250*1210*1770mm |
| Origin | China |
| Production Capacity | 25-100 Sets/Month |

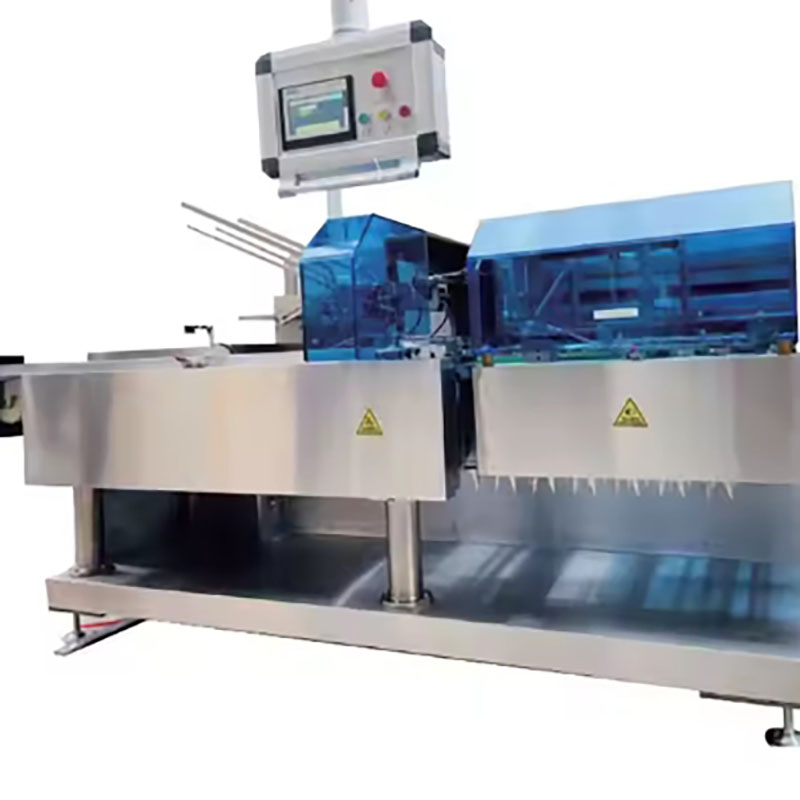

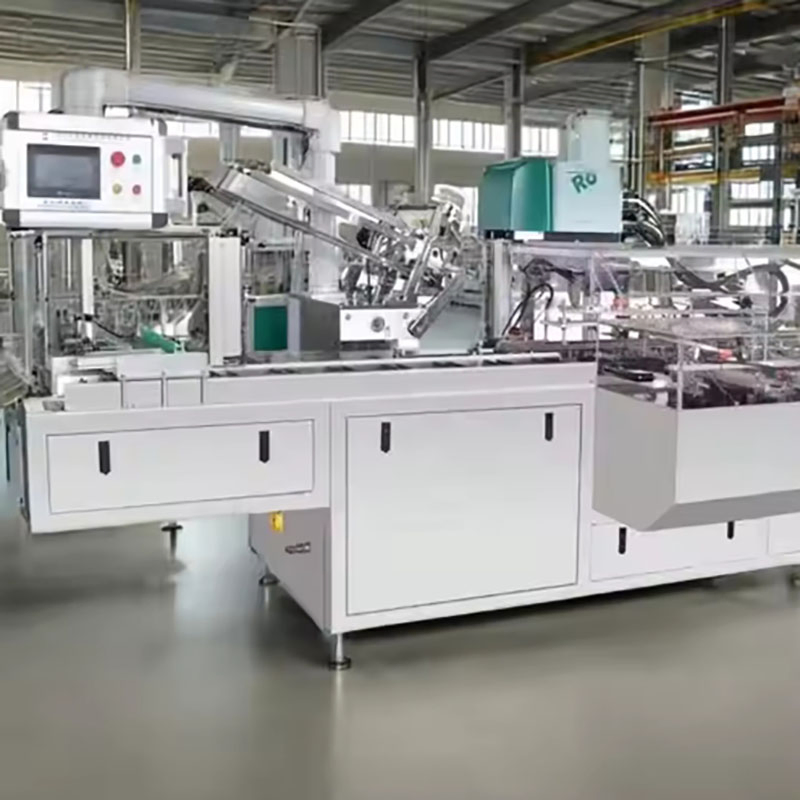

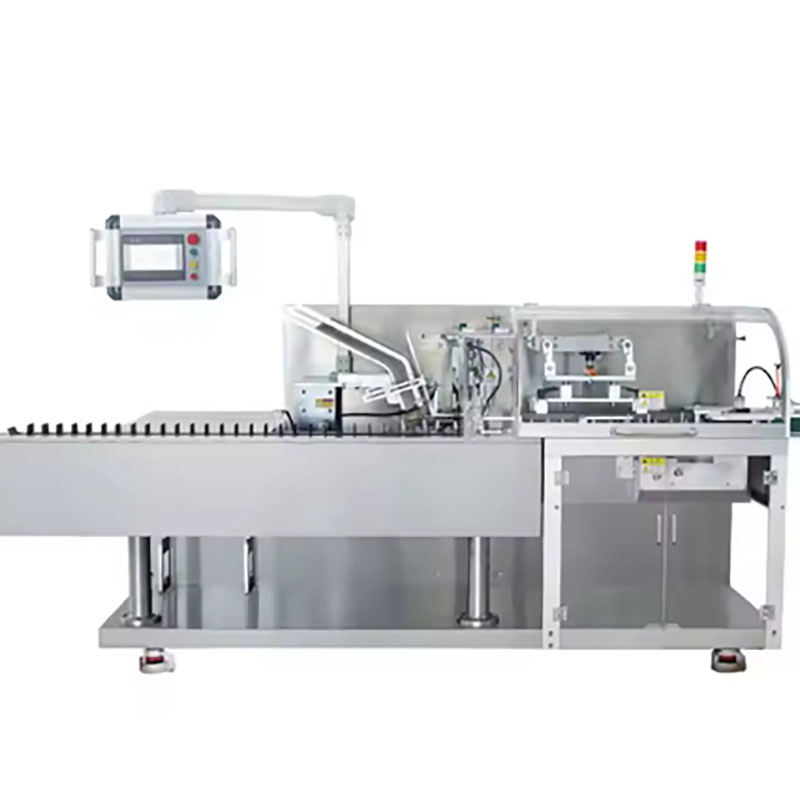

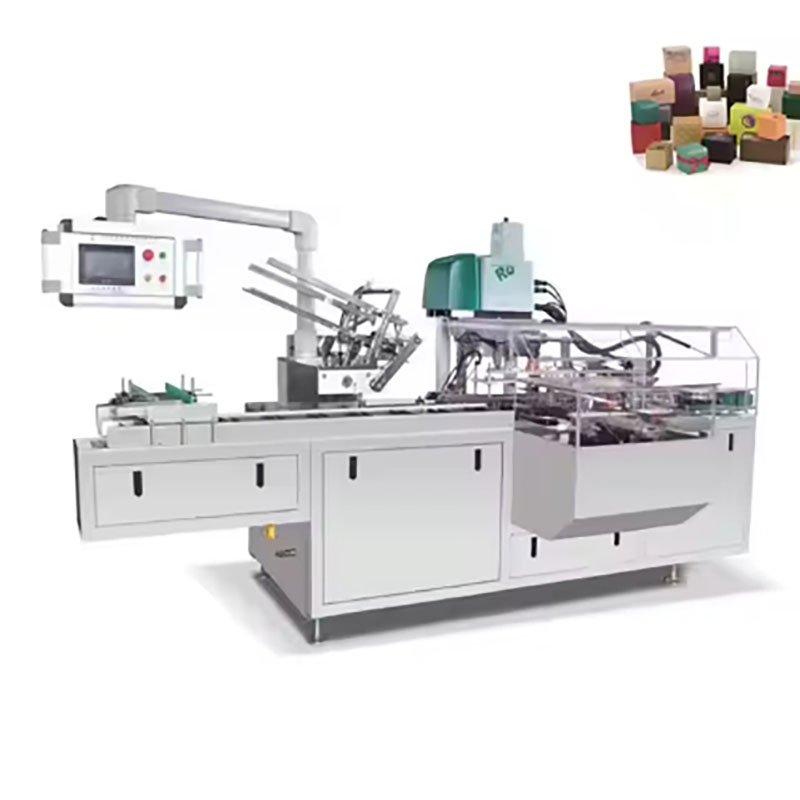

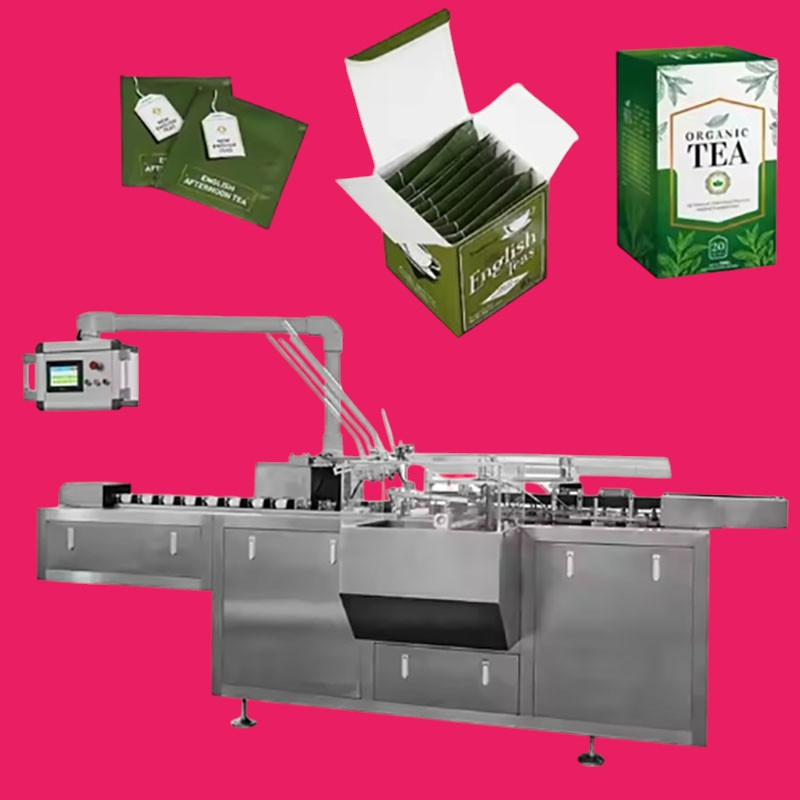

This ZH-Series Automatic Cartoning Machine is suitable for automatic filling and packing of products such as granular bags, soft double aluminum, plaster, band aid, facial mask, coffee bag, bottle, aluminum plastic plate and so on.

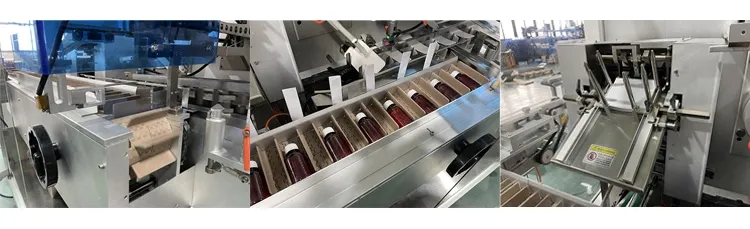

The whole process involves on-line material detection, manual folding (1 to 4 times folding) and conveying, carton drawing forming and conveying, material feeding, embossing batch number, and paper tongue packaging at both ends of the carton (also applicable to hot melt adhesive).

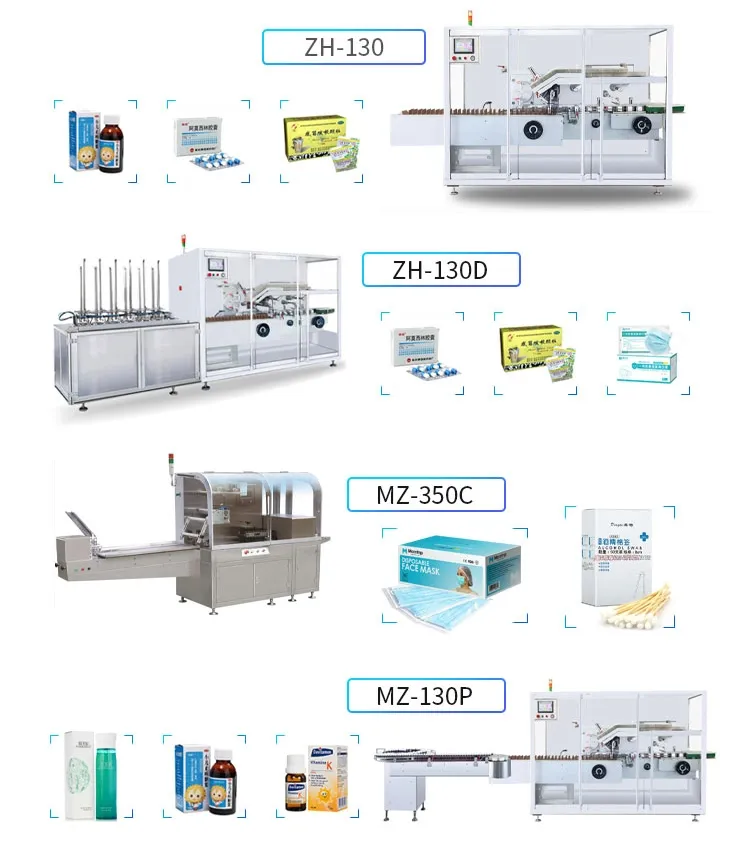

| Model | ZH-130 | ZH-130D | ZH-130P | ZH-350C |
|---|---|---|---|---|
| Speed | 30-130/min | 30-80/min | 30-130/min | 30-130/min |
| Carton Dimension | (65-240)*(30-180)*(15-75)mm | (75-220)*(50-160)*(15-70)mm | (65-240)*(30-120)*(15-70)mm | / |
| Fold Range | [1-4](Fold) | [1-4](Fold) | [1-4](Fold) | / |
| Working Pressure | ≥0.6mpa | ≥0.6mpa | ≥0.6mpa | ≥0.6mpa |
| Power Supply | 380V50HZ | 380V50HZ | 380V50HZ | 220V50/60Hz |
| Motor Power | 1.5kw | 1.5kw | 1.5kw | 3.2Kw |
| Weight | 2000kg | 2400kg | 2500kg | 1200Kg |

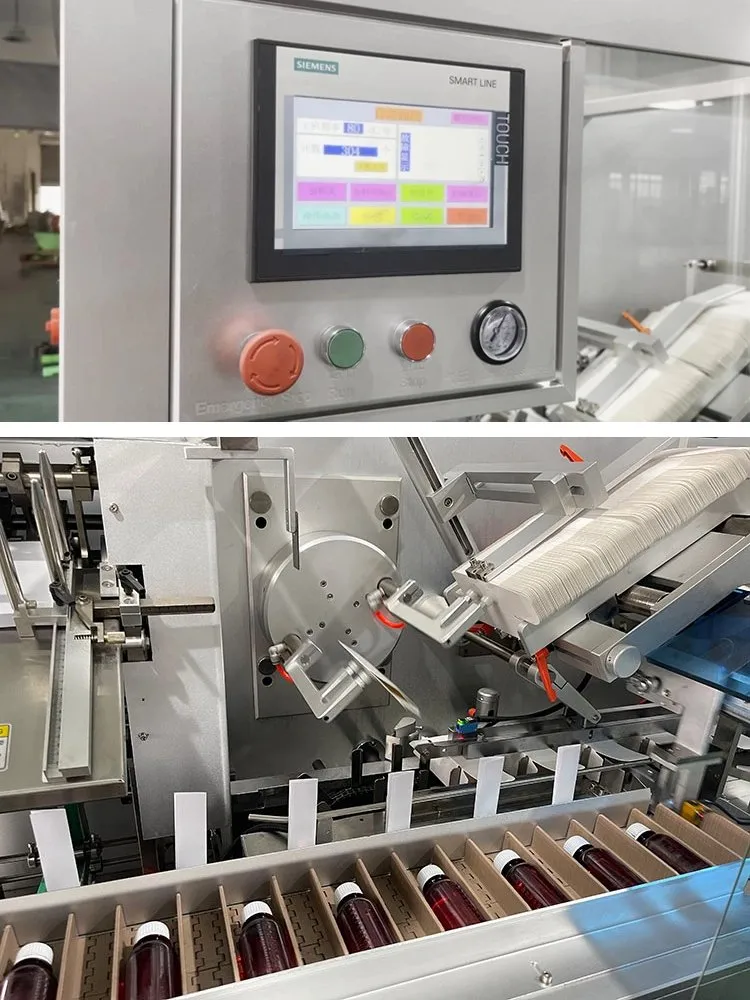

PLC automatic control system with international renowned brands for frequency conversion and electrical components. Touch interface for quick parameter setting.
Automatic display and alarm for material shortage or paper jams, ensuring 100% qualified output of finished products.

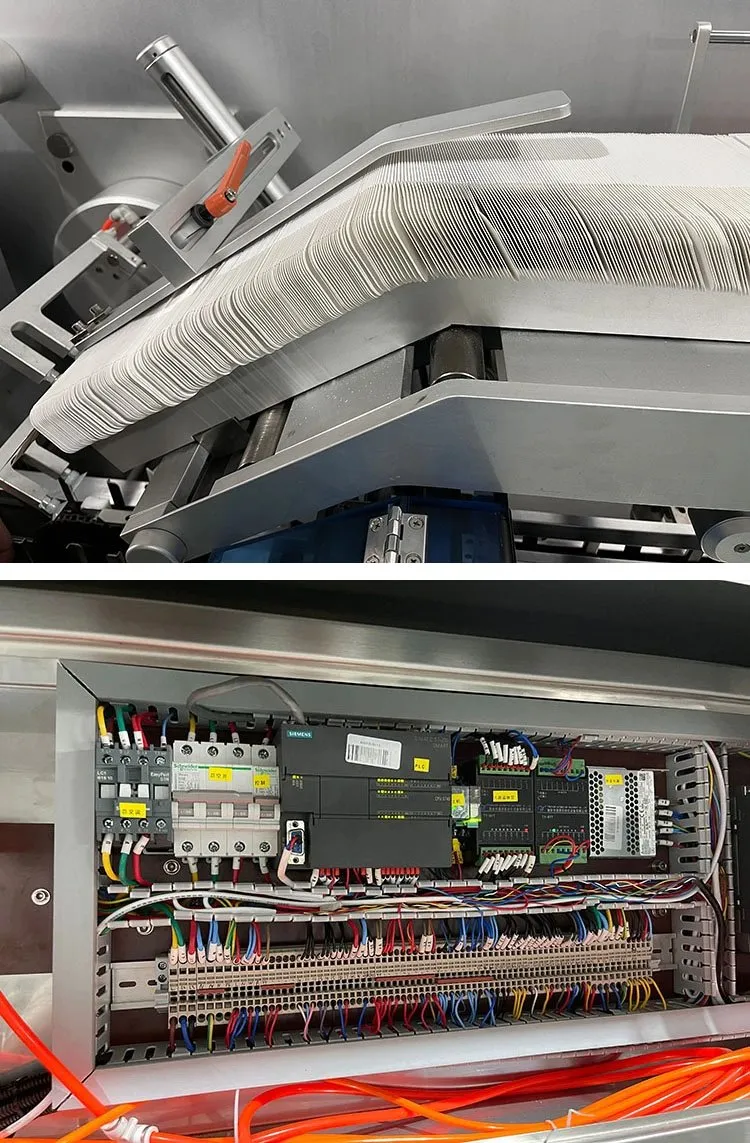

Large carton storage capacity to significantly reduce labor burden and increase efficiency.
Servo control system for precise speed adjustment and organized wiring for easier maintenance.
All parts in contact with material are made of stainless steel and non-toxic materials, meeting strict GMP requirements.

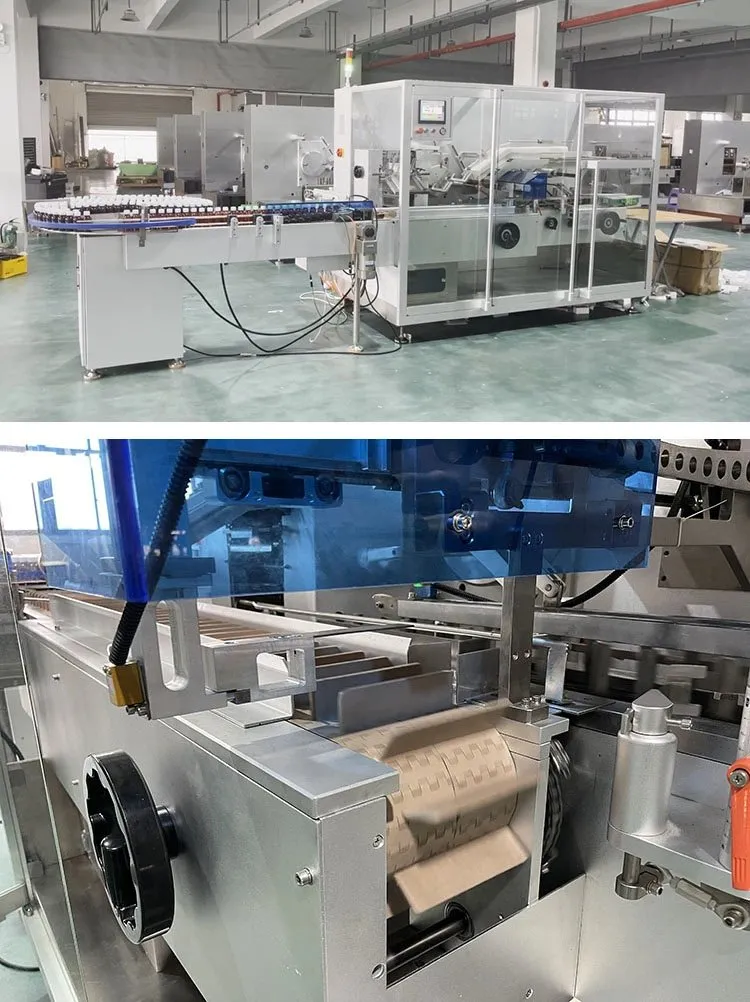

Aluminum sandblasting and oxidizing structure surface with push-pull protection doors for higher safety.
Advancing Pharmaceutical Manufacturing with Expertise and Innovation
Our company boasts extensive experience and expertise in designing and manufacturing a wide range of pharmaceutical machinery equipment. Our comprehensive product lineup includes mixers, separators, dryers, tablet presses, filling machines, packaging machines, and more. We provide reliable solutions backed by years of professional knowledge.
Our machinery is built on advanced technology and materials, featuring precise design and superior manufacturing quality. These machines come equipped with automation and intelligence functions that significantly enhance production efficiency, accuracy, and cost-effectiveness.
We prioritize environmental sustainability by incorporating energy-saving design principles to minimize energy consumption and waste generation. By delivering high-quality, efficient, and highly reliable mechanical equipment, we contribute to the advancement of pharmaceutical manufacturing processes worldwide.
