Definition: Clean-In-Place (CIP) systems are automated systems used to clean the interior surfaces of food and beverage process pipes, processing vessels, tanks, spiral freezers, mixers, blenders, homogenizers, roasters and associated fittings, without disassembling the process. Thorough, repeatable in-place cleaning is critical to the quality of your product and the safety of consumers.

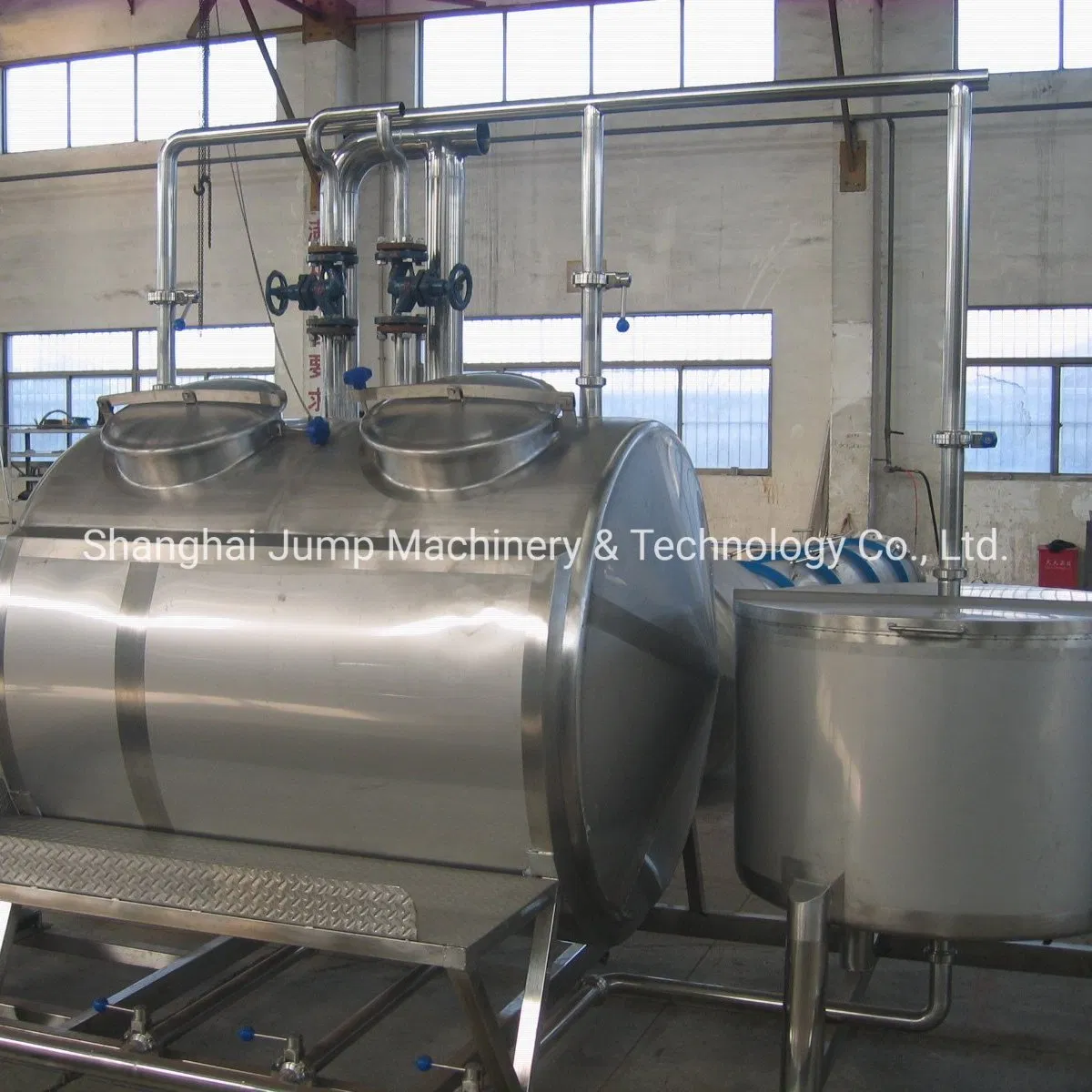

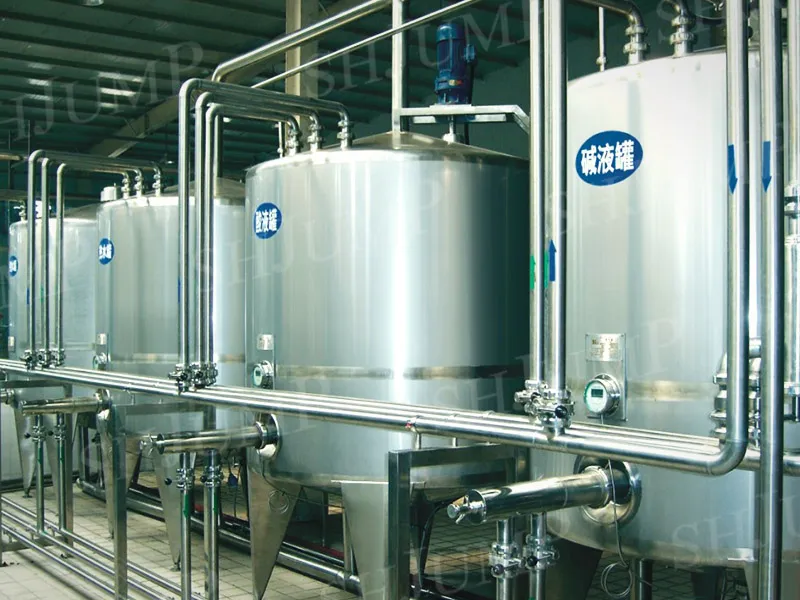

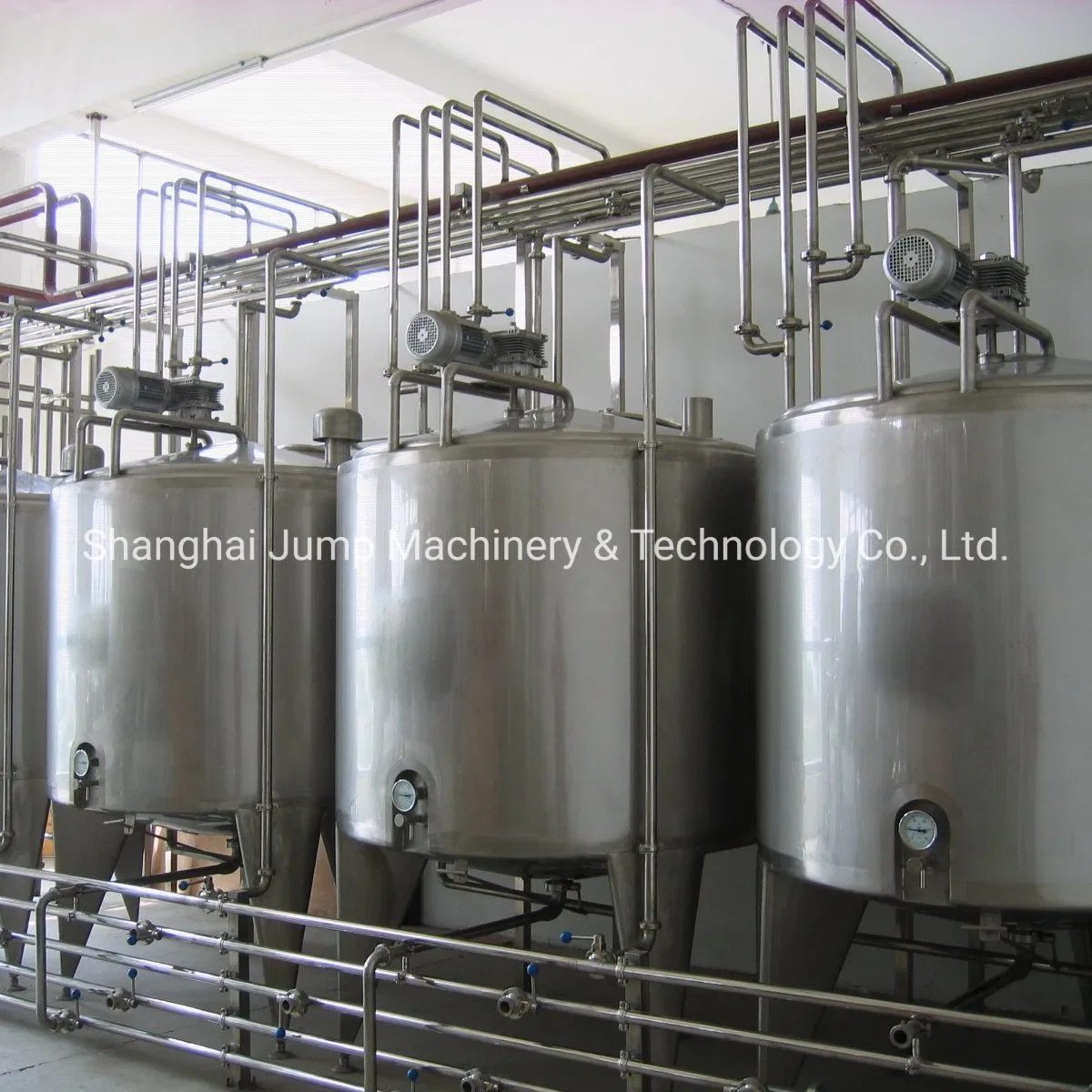

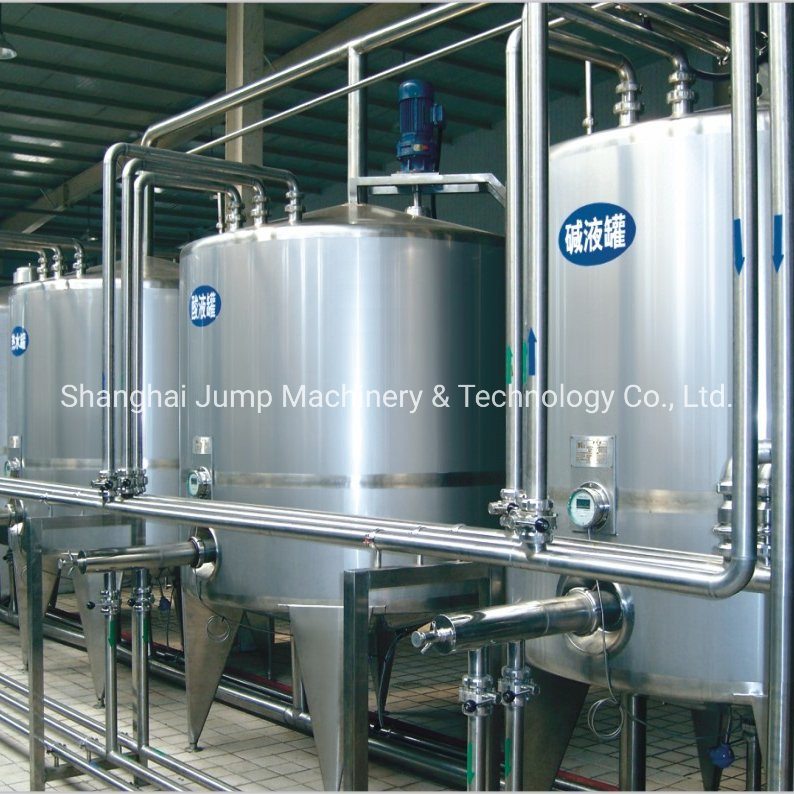

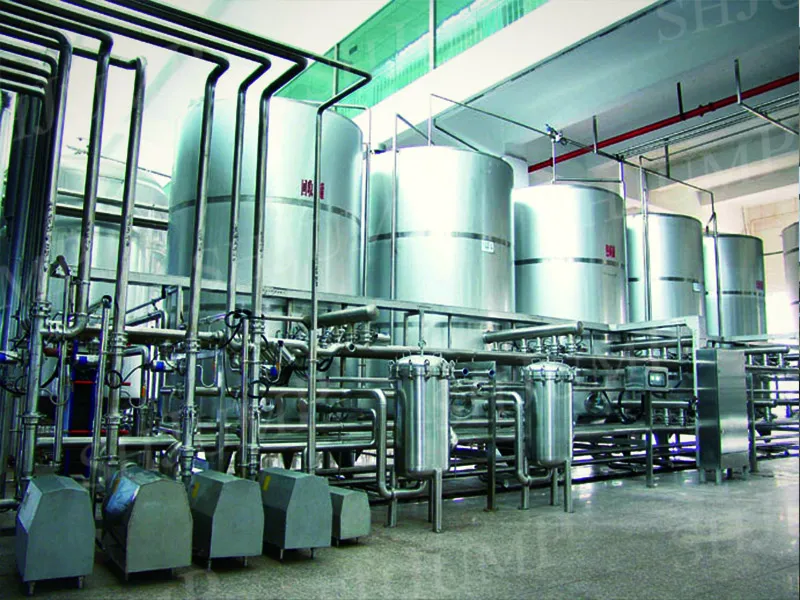

The Intelligent CIP system is a central integration system including WFI tank, CIP tank, plate heat exchanger, piping filter, transfer pump, loop liquid pump, temperature controller, level controller, conduct inspection instrument, PLC touch screen, control cabinet, piping, and valves.
| Feature | Parameters & Details |
|---|---|
| CIP Tank Size | 500L - 10000L |

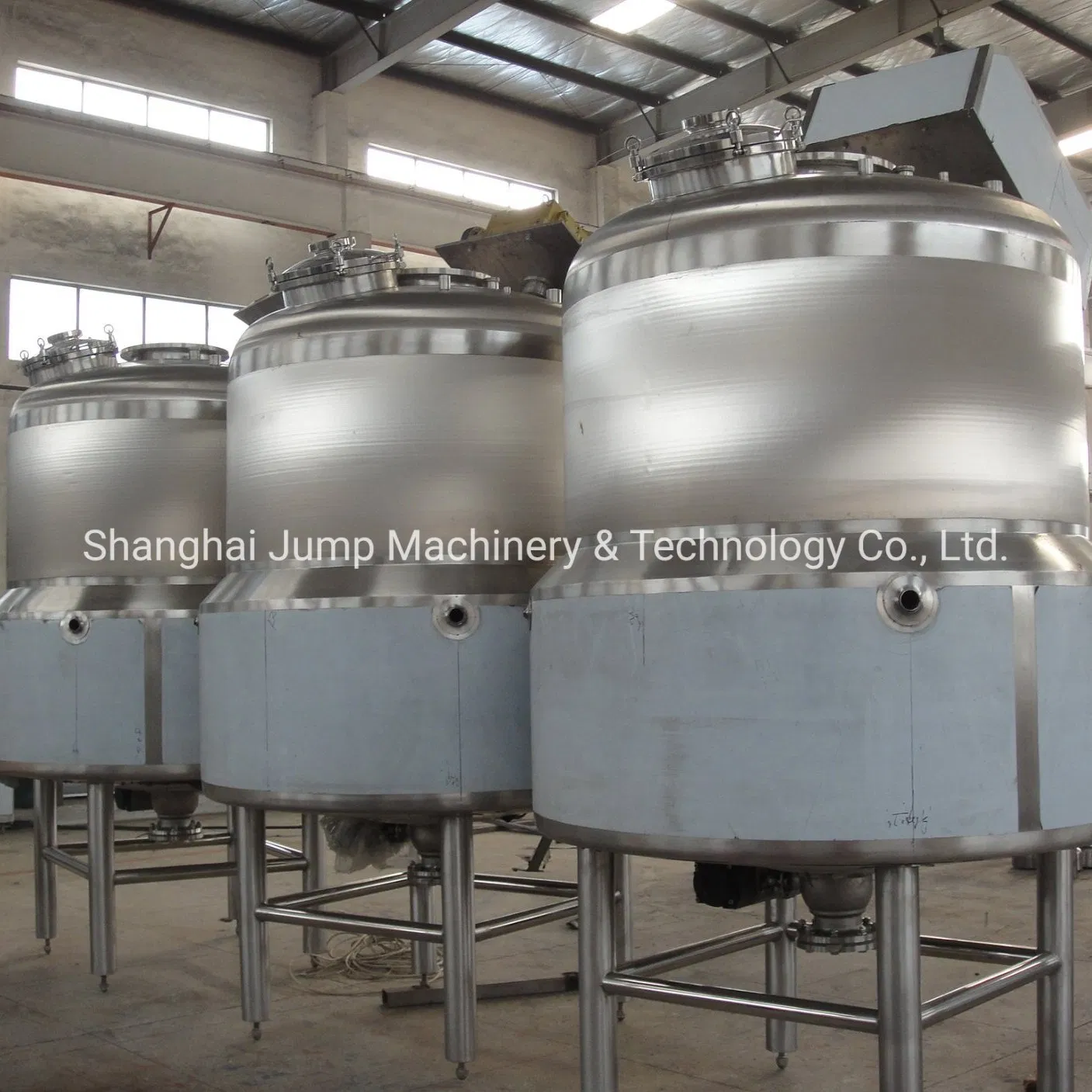

| Tank Types | Alkali tank, acid tank, hot water, clean water tank, water recycle tank |
| Cleaning Recycles | Single, double, three, or four circuits available |
| Heating Method | Coil pipes, plate heat exchanger, or tubular heat exchanger |
| Full Automatic Control | Auto flow rate, temperature, liquid level, concentration, transfer, and alarm |
| Semi-automatic | Auto temperature control with manual operation for other matters |
Processing Capabilities:
We provide a unique combination of expertise that covers the entire production chain:

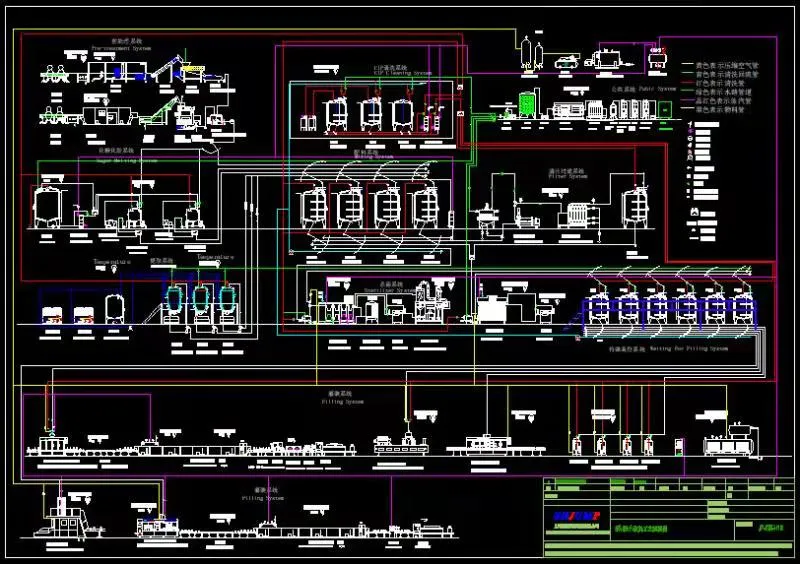

| Layout Design | Accurate processing line layout design according to factory size, including pipelines and cables. |

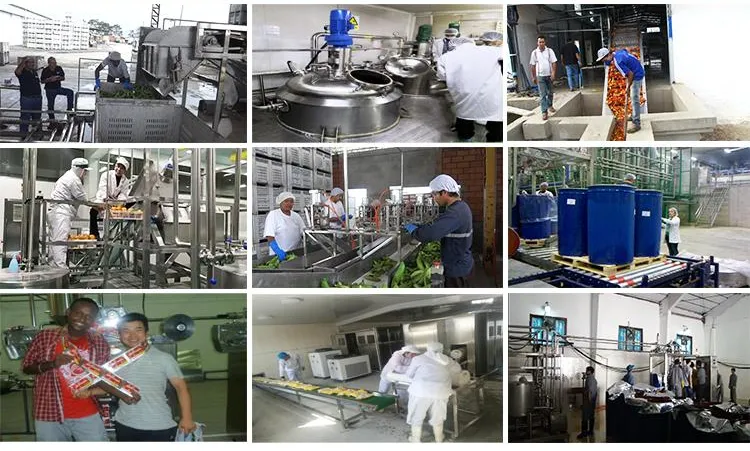

| Installation & Training | On-site engineering support for installation, adjustment, and worker training for operation and maintenance. |
| Formula Research | In-house lab available for pilot production and product formula research. |
Our team specializes in manufacturing complete food & beverage processing lines. With decades of technical development, we have completed over 330 processing lines for global customers.
Key technological highlights include large vacuum evaporation equipment (1000L-60000L/H) and advanced tube-in-tube sterilization systems that achieve 30% energy savings compared to industry standards.
