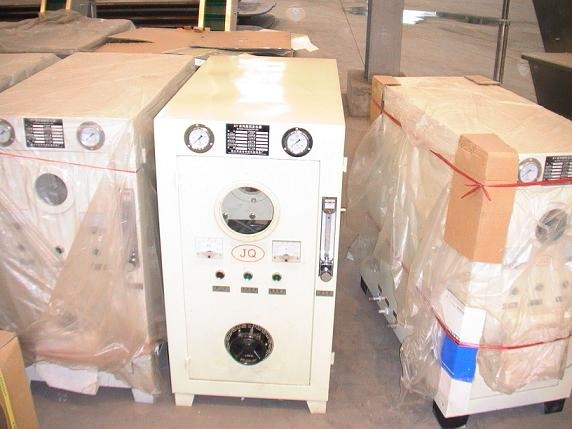

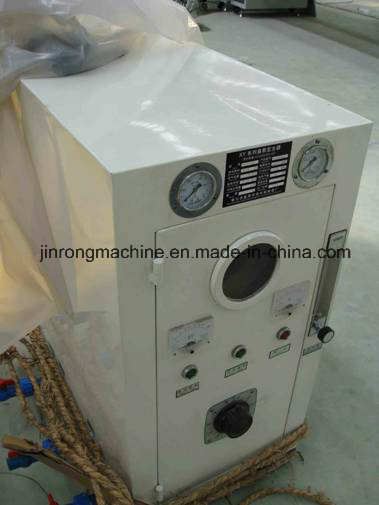

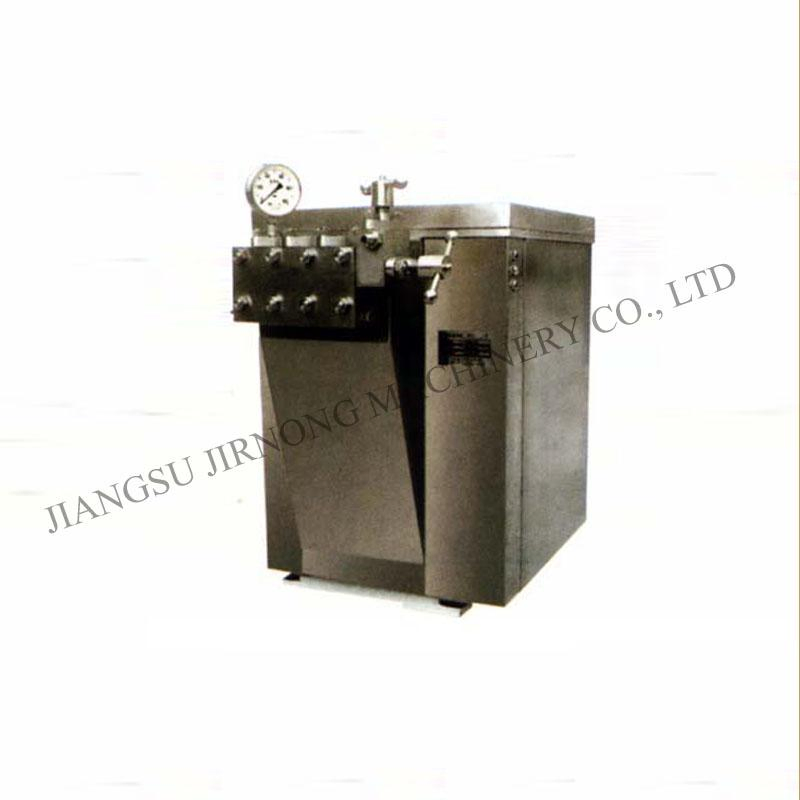

The GJB serial high pressure homogenization pump is multi-purpose equipment designed to homogenize and refine liquid materials to form high-pressure sprays. This pump enables liquid materials to achieve high pressure through the reciprocal movement of a plunger piston.
In dairy production, this pump is essential for homogenizing milk and bean milk. It remarkably refines fat globules within the liquid, preventing or reducing stratification. This significantly improves the fineness and porosity of the product, reflecting superior inner quality and making the finished foodstuff easier for the human body to absorb with increased nutritional value.
Furthermore, high-pressure liquid can be transformed into powder using spray dryer equipment, making this a critical component in powder production processes (such as milk powder).
This equipment is widely adapted for use in:
Note: This pump is not suitable for liquids with granular suspension or high viscosity (kinematics viscosity should be less than 0.2Pa.S).
| Model | 3-25 |
| Rating pressure (MPA) | 25 |
| Rating flux (M3/H) | 3 |
| Convey material | Milk, bean milk, juice, etc. |
| Temperature (°C) | < 75 |
| Inlet pipe diameter (mm) | 34 |
| Outlet pipe diameter (mm) | 16 |
| Liquid requirement | Liquid tank level higher than inlet level |
| Motor (KW) | 18.5 |
| Overall size (W*H) | 850 * 750 * 1350 |
| Weight (KG) | 1150 |
