Innovative Internal & External Homogenization Ointment Mixing System

Customization:	Available
Emulsifying Mixer:	Easy to Clean
Helical Ribbon Mixing:	External Circulating Homogenization

Basic Specifications

Model NO.

Vacuum Emulsifying Mixer

Top Homogenizer

Double-Way Mixing

Fixed Pot

Bottom Homogenizer (Int & Ext)

Circulation

Internal & External

Mixing System

Single/Double-Way Mixing

Package

Wooden Box

Specification

GMP ISO9001

HS Code

8479820090

Product Description

⚙️

RHJ-U Vacuum Emulsifying Mixer
Suitable for: Cream, paste, foundation, ointment, lotion, gel, conditioner, milk, sauce, etc.
Capacity Range: 5L ~ 5000L

Key Features:

Material: Contact parts SUS316L, other layers SUS304.

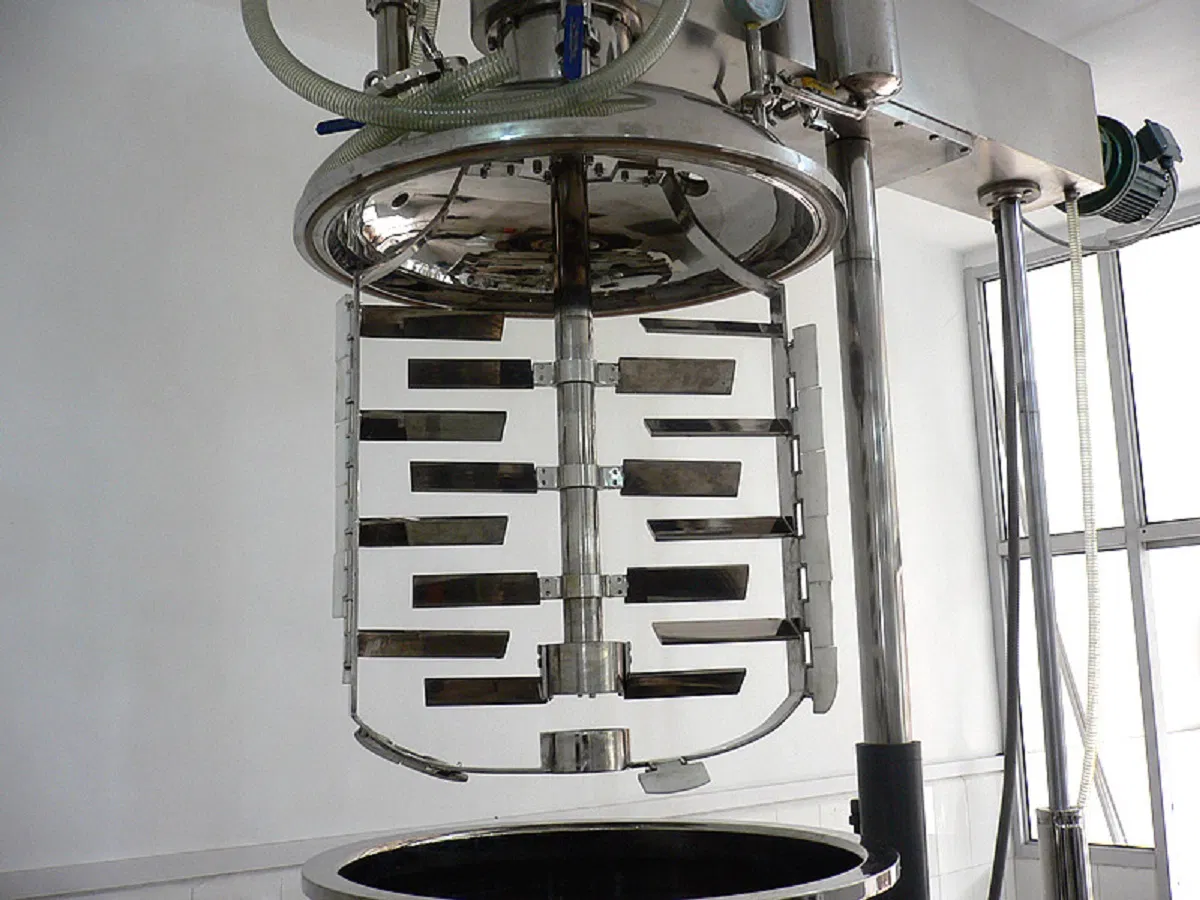

Speed: Homogenizer 0~3600rpm; Scraper 0~80rpm.

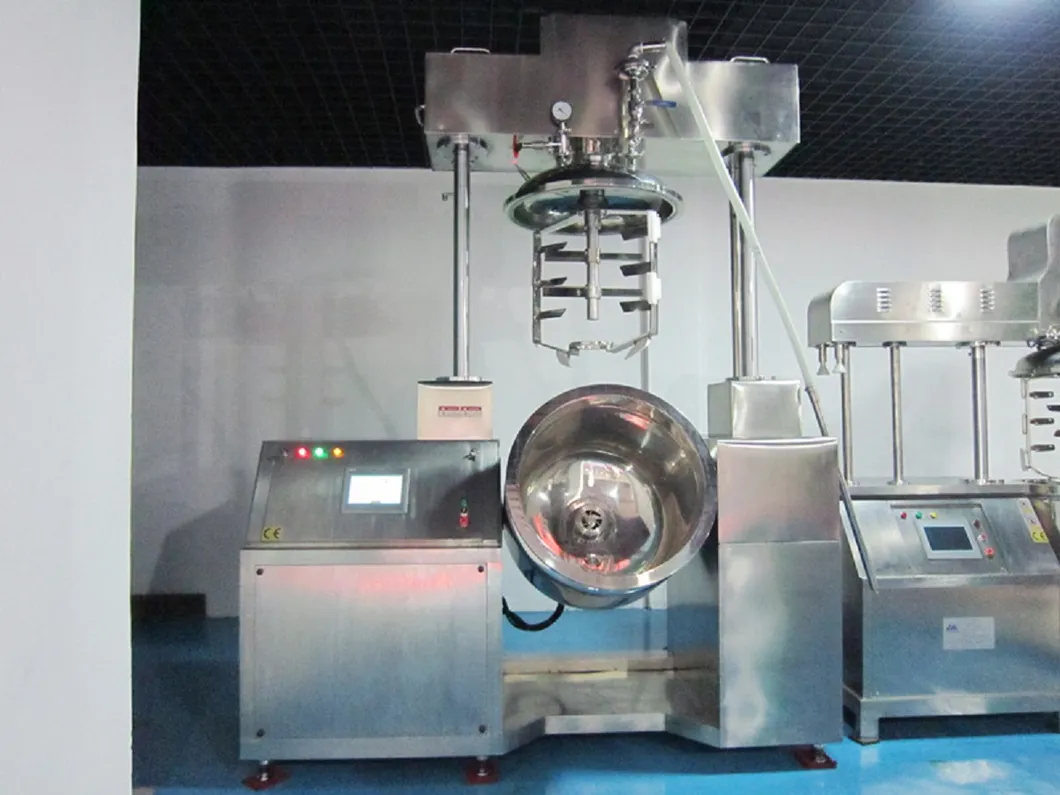

Lifting: Advanced hydraulic lifting system.
Heating: Flexible options via steam or electricity.
Operation: Choice of Automatic (PLC) or Manual control.

🏭

Application Fields:
Extensively used in daily chemicals, biopharmaceuticals, food, paint/ink, nanometer materials, petrochemicals, and fine chemical industries. It is particularly effective for high base viscosity and high solid content materials.

Performance & Technical Advantages

Our vacuum emulsifying systems offer various configurations including upper, lower, and circulating homogenization. Triple mixing adopts imported frequency converters to meet diverse technological demands.

The German-engineered homogenization structure uses double-end mechanical seals, reaching rotation speeds of 4200 rpm and shearing fineness of 0.2-5um. Vacuum defoaming ensures aseptic processing and dust-free material suction.

Model	Capacity (L)	Stir Motor (KW)	Stir (r/min)	Homogenizer (KW)	Homo (r/min)	Elec. Heat (KW)	Vacuum (Mpa)
RHJ-U5	5	0.18	0-63	0.37	0-3000	5	-0.09
RHJ-U10	10	0.37	0-63	0.75	0-3000	6	-0.09
RHJ-U50	50	1.1	0-63	3-5.5	3000	18	-0.085
RHJ-U100	100	1.5	0-63	4-7.5	3000	32	-0.085
RHJ-U200	200	2.2	0-63	5.5-11	3000	45	-0.085
RHJ-U500	500	4	0-63	11	3000	63	-0.85
RHJ-U1000	1000	5.5	0-63	15	3000	90	-0.85

Product Visuals

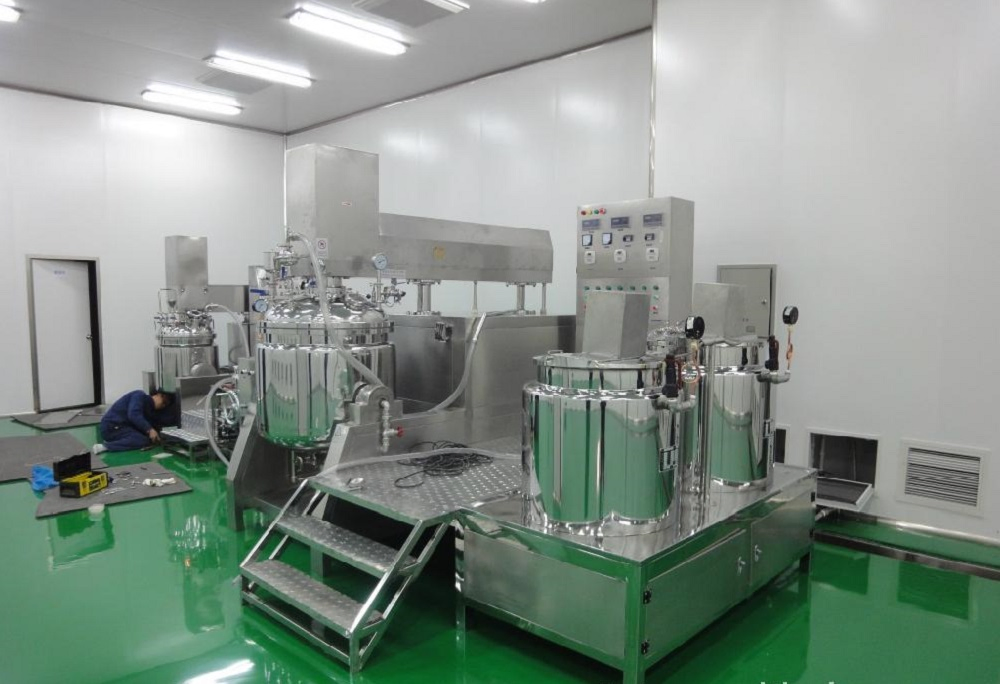

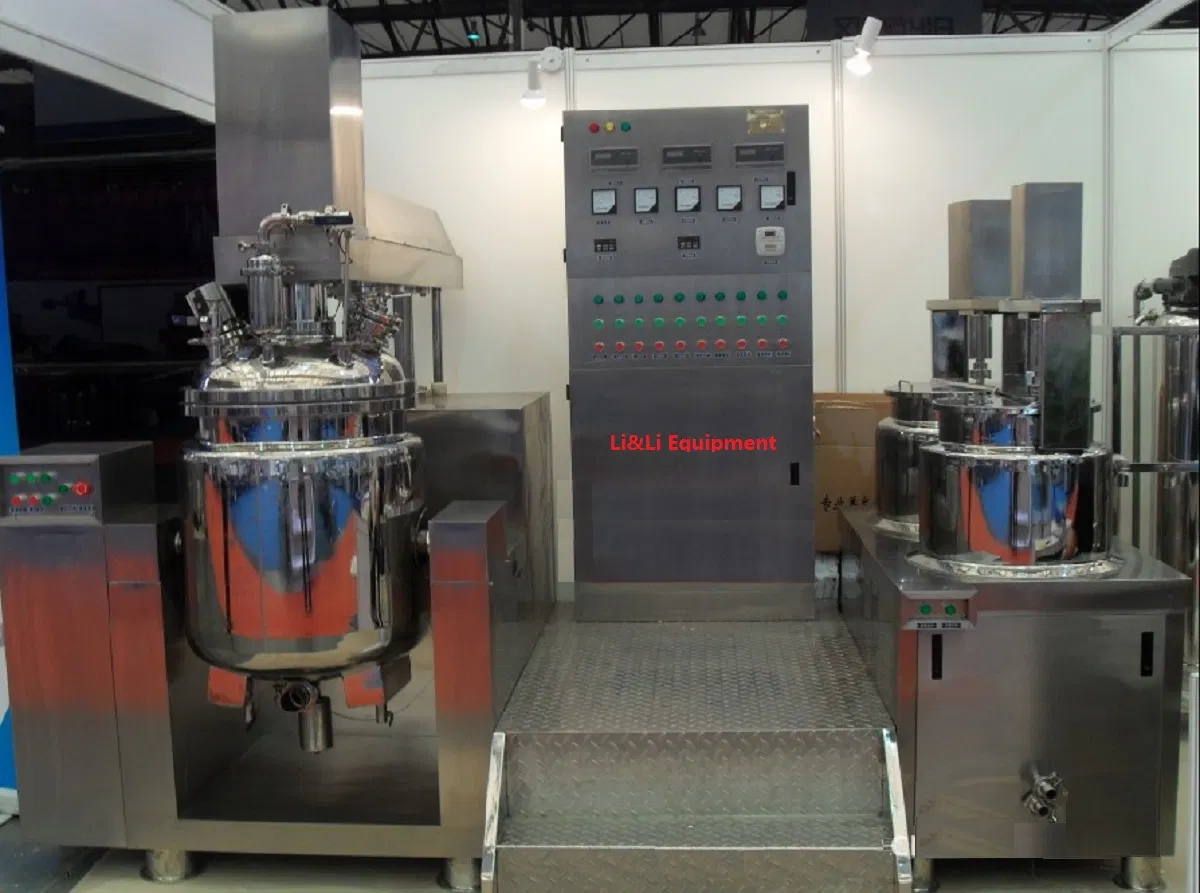

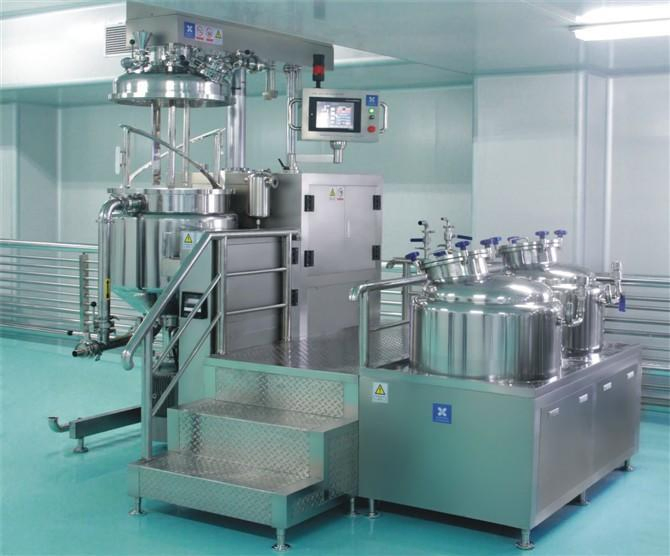

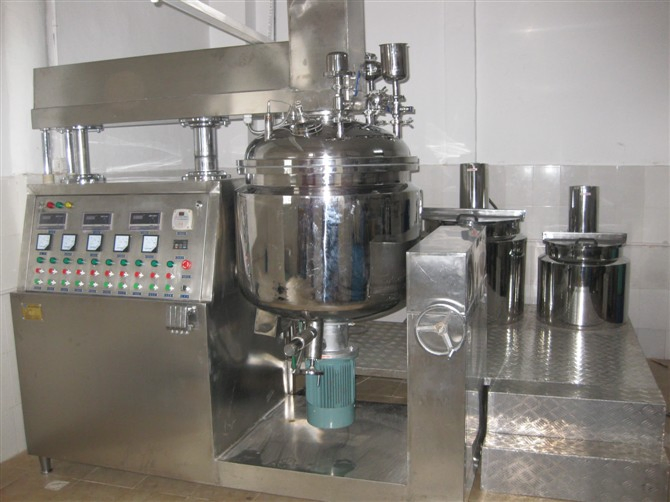

Internal & External Homogenization System

Frequently Asked Questions

🔹 What materials can this vacuum emulsifying mixer process?

It is ideal for high viscosity materials such as creams, pastes, foundations, ointments, lotions, gels, and food sauces.

🔹 What is the construction material of the pot?

The pot body is welded from three-layer stainless steel. Material contact parts use SUS316L, while other layers are SUS304, all mirror-polished to meet GMP standards.

🔹 How does the vacuum system benefit the production?

Vacuum defoaming removes air bubbles from the material to ensure an aseptic environment and prevents dust when sucking powder materials.

🔹 Can the heating method be customized?

Yes, according to your facility's requirements, the machine can be configured for either steam heating or electric heating.

🔹 What is the maximum speed of the homogenizer?

The German-technology based homogenizer can reach a maximum speed of 4200 rpm, achieving a shearing fineness of 0.2-5um.

🔹 Is the operation manual or automatic?

We offer both options. The machine can be operated manually or equipped with a PLC system for full automation.
