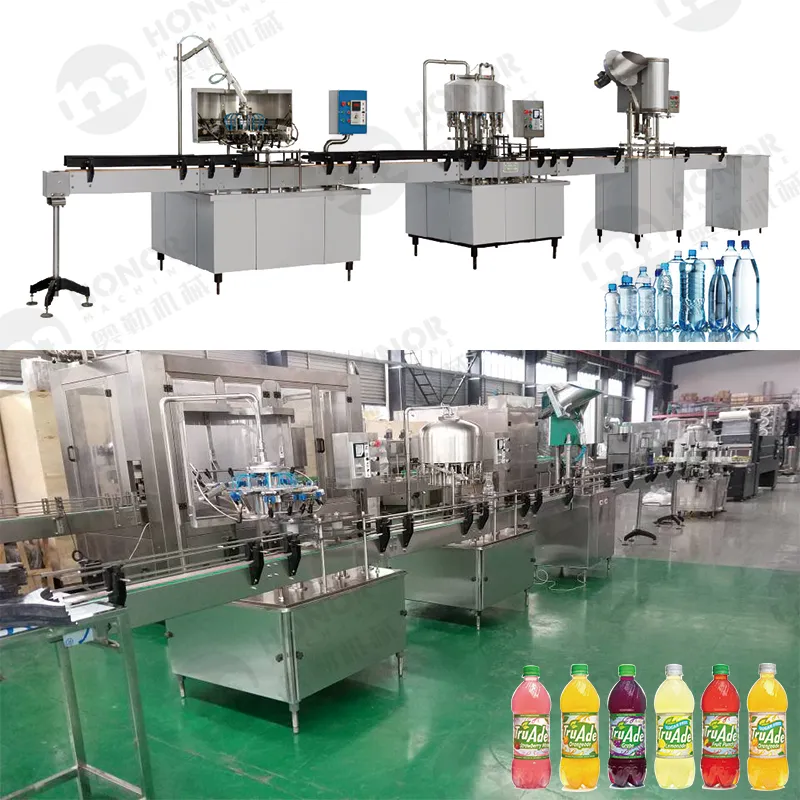

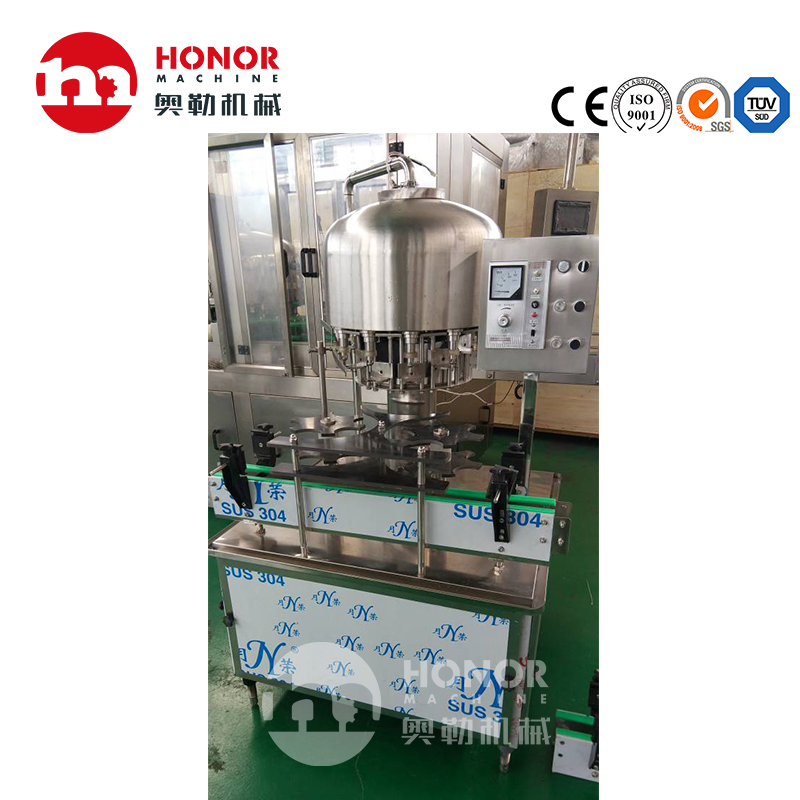

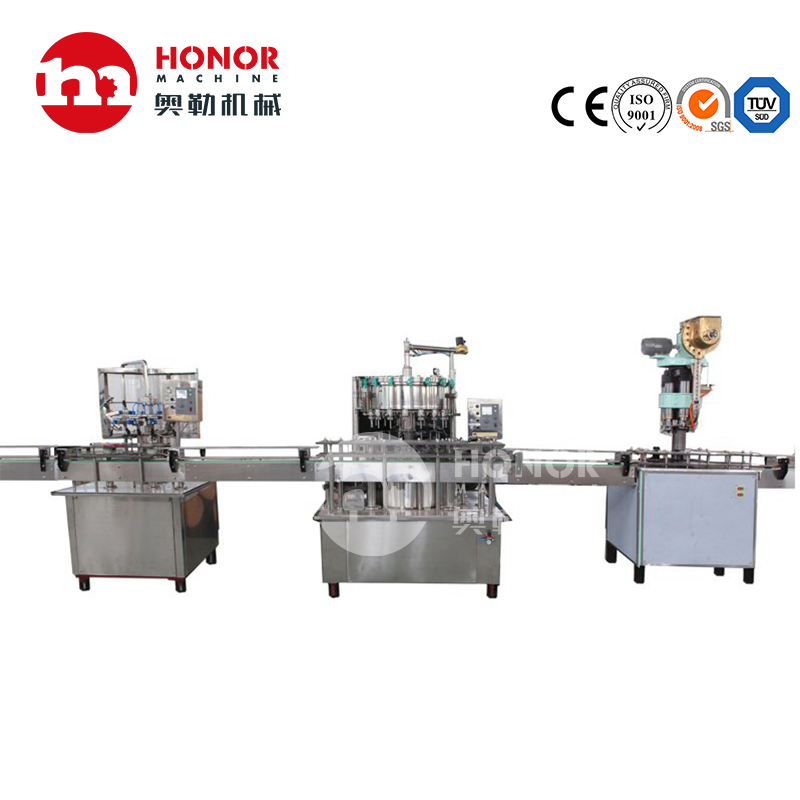

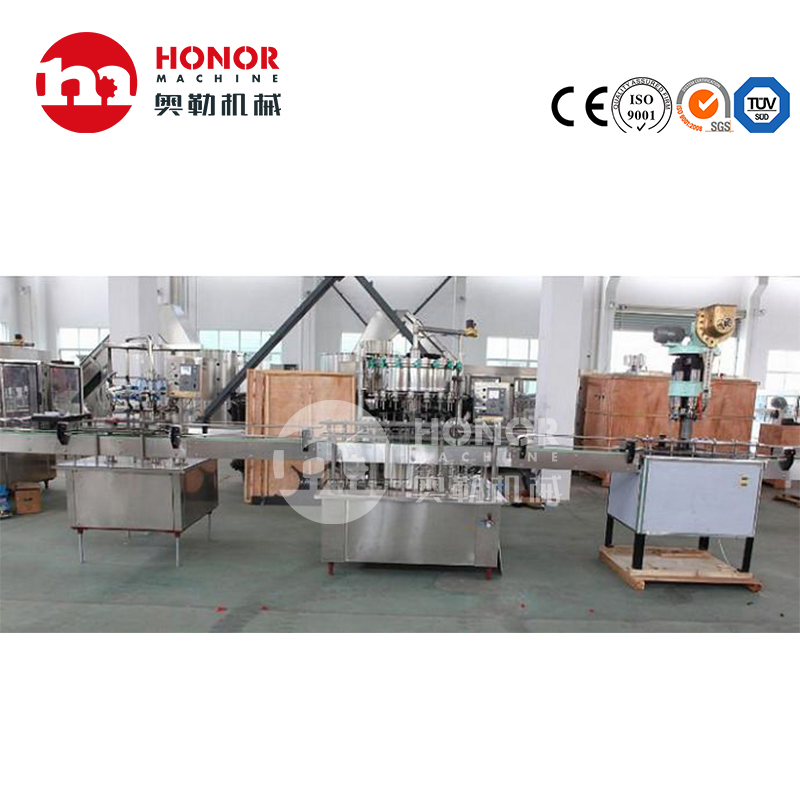

Advanced Liner Pet Bottle Filling and Sealing System
Advanced Liner Pet Bottle Filling and Sealing System
Advanced Liner Pet Bottle Filling and Sealing System
Advanced Liner Pet Bottle Filling and Sealing System
Advanced Liner Pet Bottle Filling and Sealing System
1 / 5
Advanced Liner Pet Bottle Filling and Sealing System
Advanced Liner Pet Bottle Filling and Sealing System
Advanced Liner Pet Bottle Filling and Sealing System
Advanced Liner Pet Bottle Filling and Sealing System
Advanced Liner Pet Bottle Filling and Sealing System

Advanced Liner Pet Bottle Filling and Sealing System

Customization: Available
Type: Volumetric Filling Machine
Automatic Grade: Automatic
Send Inquiry

Product Description

Basic Specifications
Model NO.
CGF
Material Type
Liquid
Filling Valve Head
Multi-Head
Filling Principle
Pressure
Structure
Rotary
Capacity
2000-24000bph
Bottle Material
Plastic/Glass
Bottle Size
0.2-2L
Machine Material
Stainless Steel 304/316
Warranty Time
24 Months
Controlled by
Siemens PLC
Production Capacity
30sets/Month
Product Description

Liner Pet Bottle Reverse Osmosis Purified Water Filling and Sealing Equipment

Advanced Liner Pet Bottle Filling and Sealing System
Technical Parameters
Model ZPC-12 GFP-12 YQX-3 ZPC-18 GFP-16 YQX-4 ZPC-24 GFP-24 YQX-6
Production (b/h) 800-2000 2000-4000 4000-6000
Bottle height (mm) 160-300 160-320 160-340
Motor power (kw) 3.2 4.2 5

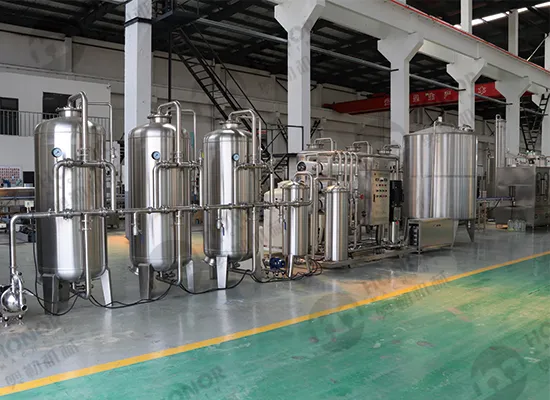

I. Water Treatment System
Water treatment system
  • Raw water pump: High-quality Nanfang pump or customized options.
  • Silica sand filter: Effectively removes suspended matter, organic matter, and heavy metal ions.
  • Active carbon filter: Reduces chlorine content (<0.1PPM) and improves water clarity and taste.
  • Sodium ion exchanger: Softens water by removing calcium and magnesium ions.
  • Reverse osmosis (RO): Intercepts substances larger than 0.0001 micron using high-pressure filtration.

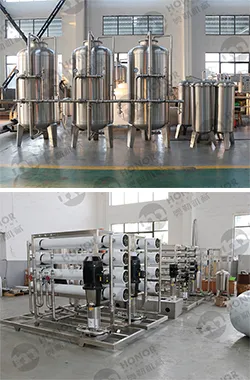

RO System

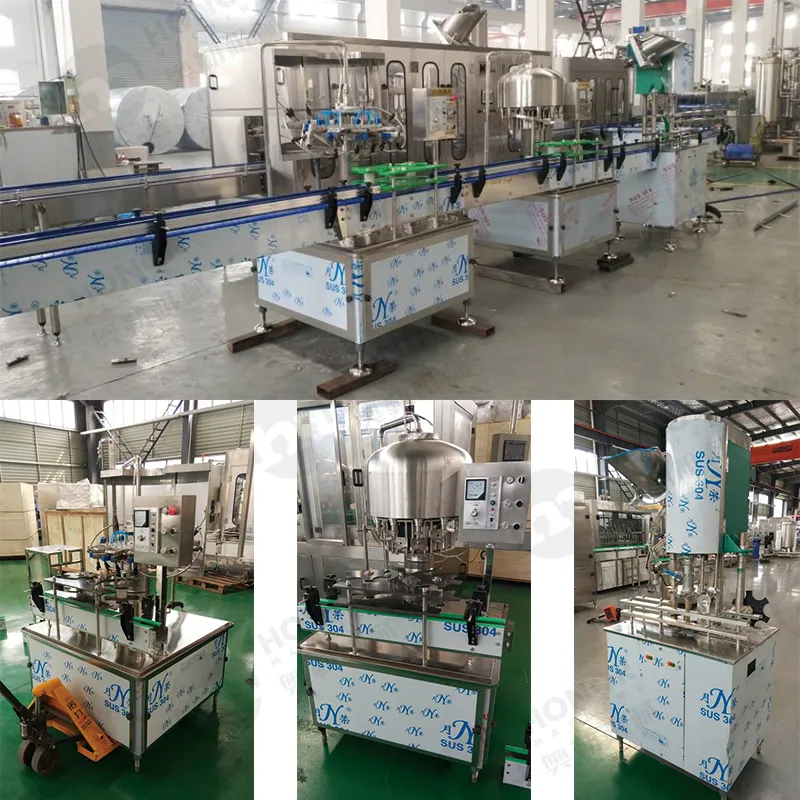

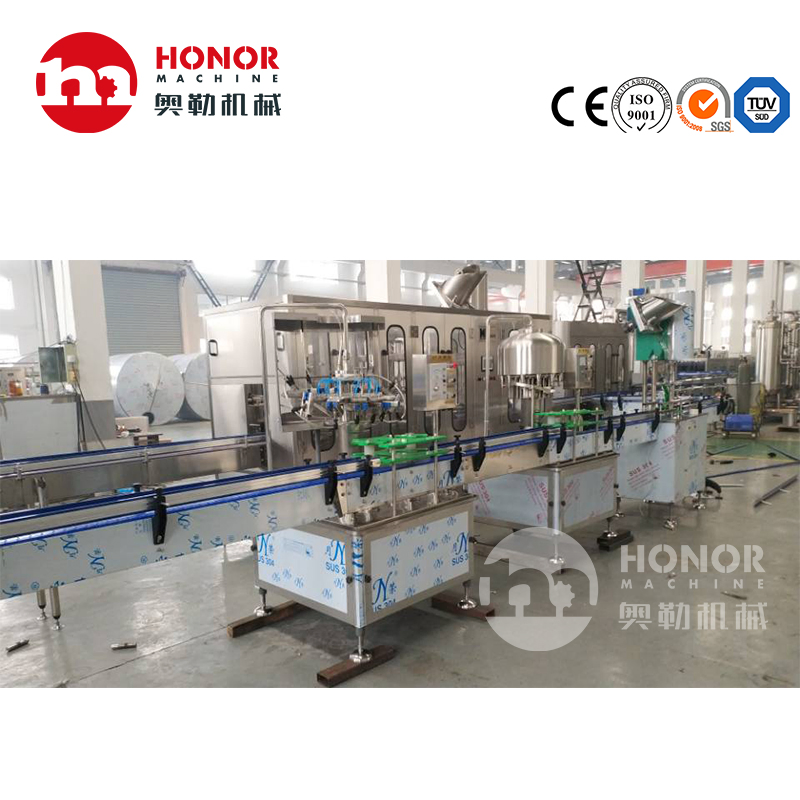

II. Linear Type Washing Filling Capping

This production line includes automatic washing, filling, and capping devices with a conveyor system. Made of high-quality stainless steel, it supports water, juice, and carbonated drinks.

Linear Type Washing Filling Capping
Part Name Brand Origin
PLC / Inverter / Touch ScreenSIEMENSGermany
Solenoid Valve / Air componentsAIRTACTaiwan
Drive motorFEITUOSwiss
Water PumpCNPChina
Main BearingSKFSweden
SensorAUTONICSKorea

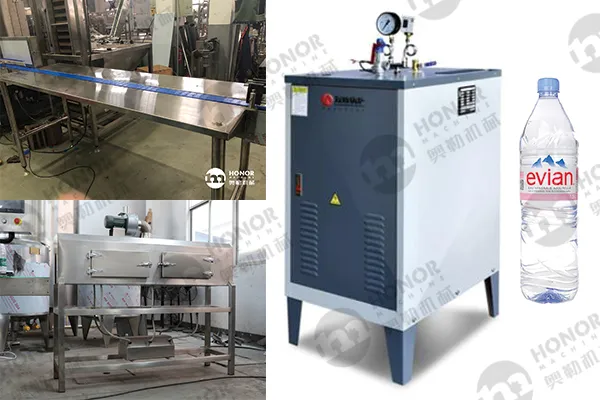

III. Semi Automatic Sleeve Labeling Machine

Includes manual table, label shrink tunnel, and steam generator. Suitable for round, square, and elliptical bottles in various industries including dairy, juice, and beer.

Sleeve Labeling Machine

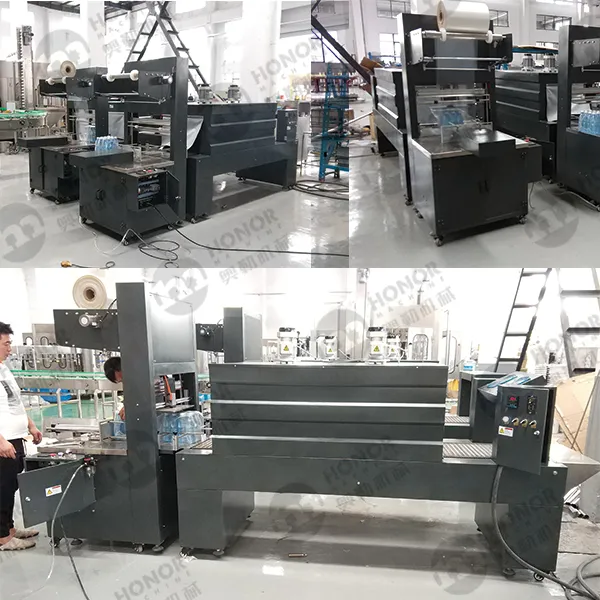

IV. Semi Automatic Shrink Wrapping Packing Machine
Shrink Wrapping Machine

Designed for beverages, pure water, and wine. Adopts optimal hot wind cycle structure and automatic electric components. Compatible with various hot shrinking films.

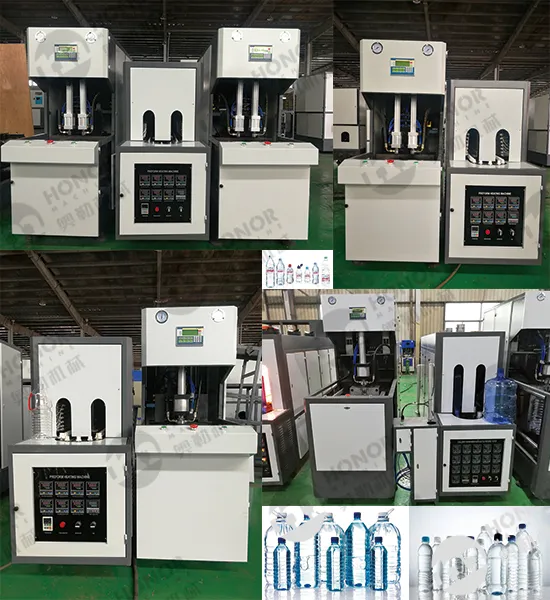

V. Semi Automatic Bottle Blowing Machine

Suitable for producing PET containers such as mineral water bottles, oil bottles, and cosmetics containers. Features double crank adjust mould and infrared heating.

Bottle Blowing Machine
Frequently Asked Questions
1. What is the production capacity of this filling line? The capacity ranges from 2,000 to 24,000 bottles per hour (bph), depending on the specific model and configuration chosen.
2. What types of bottle materials can the machine handle? The system is versatile and can process both Plastic (PET) and Glass bottles, covering sizes from 0.2L to 2L.
3. What is the warranty period for the equipment? We provide a comprehensive 24-month warranty for the machinery to ensure long-term stable operation.
4. Which brands are used for the electronic components? We use world-renowned brands including Siemens (PLC, Inverter, Touch Screen), Airtac (Pneumatics), and SKF (Bearings) for maximum reliability.
5. Is the machine resistant to corrosion? Yes, the machine is constructed using high-quality Stainless Steel 304 or 316, which provides excellent durability and hygiene for food and beverage production.
6. Can this line be used for products other than purified water? Yes, the production line is designed to handle water, fruit juices, and even carbonated drinks with the appropriate settings.
